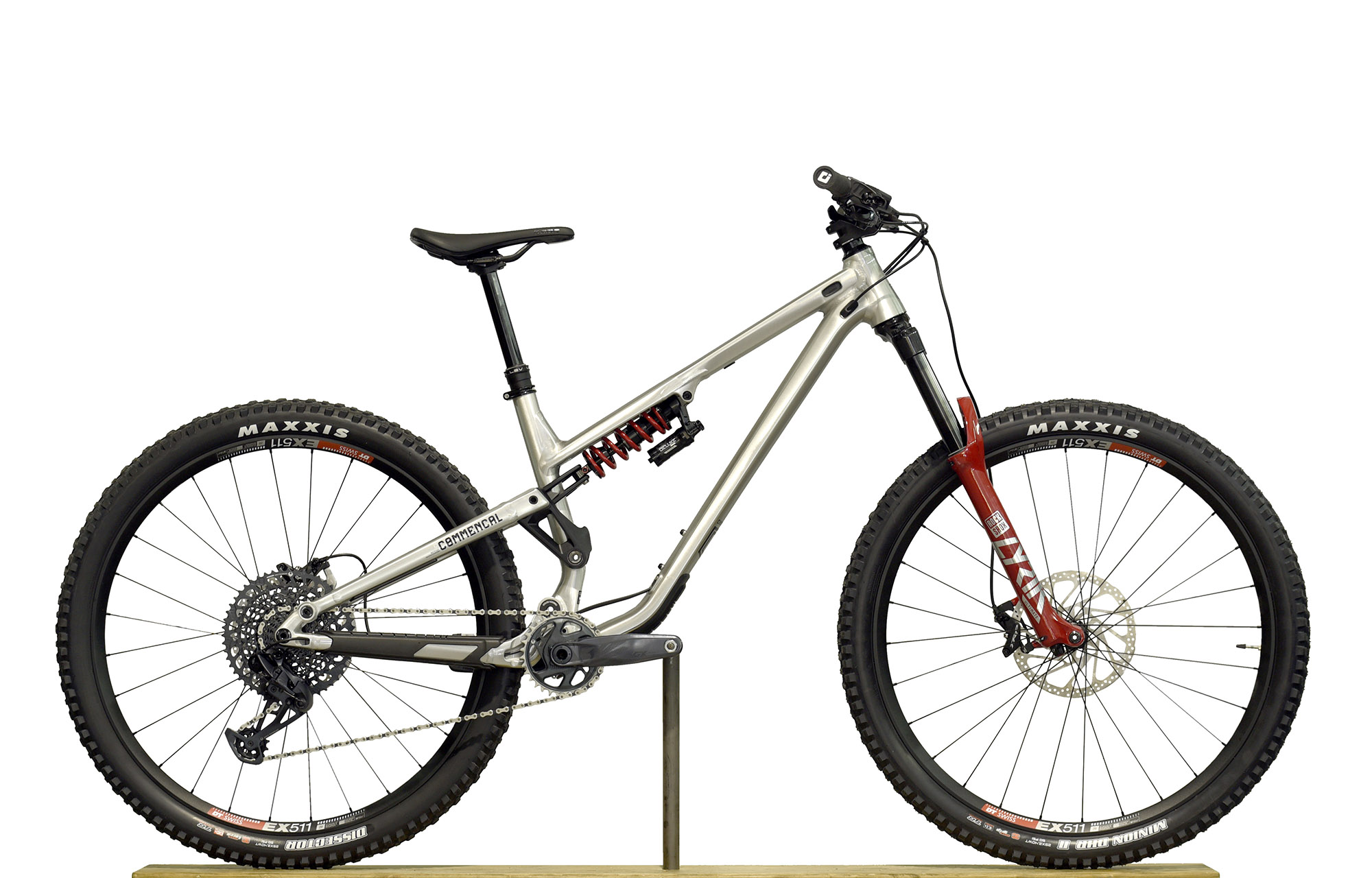

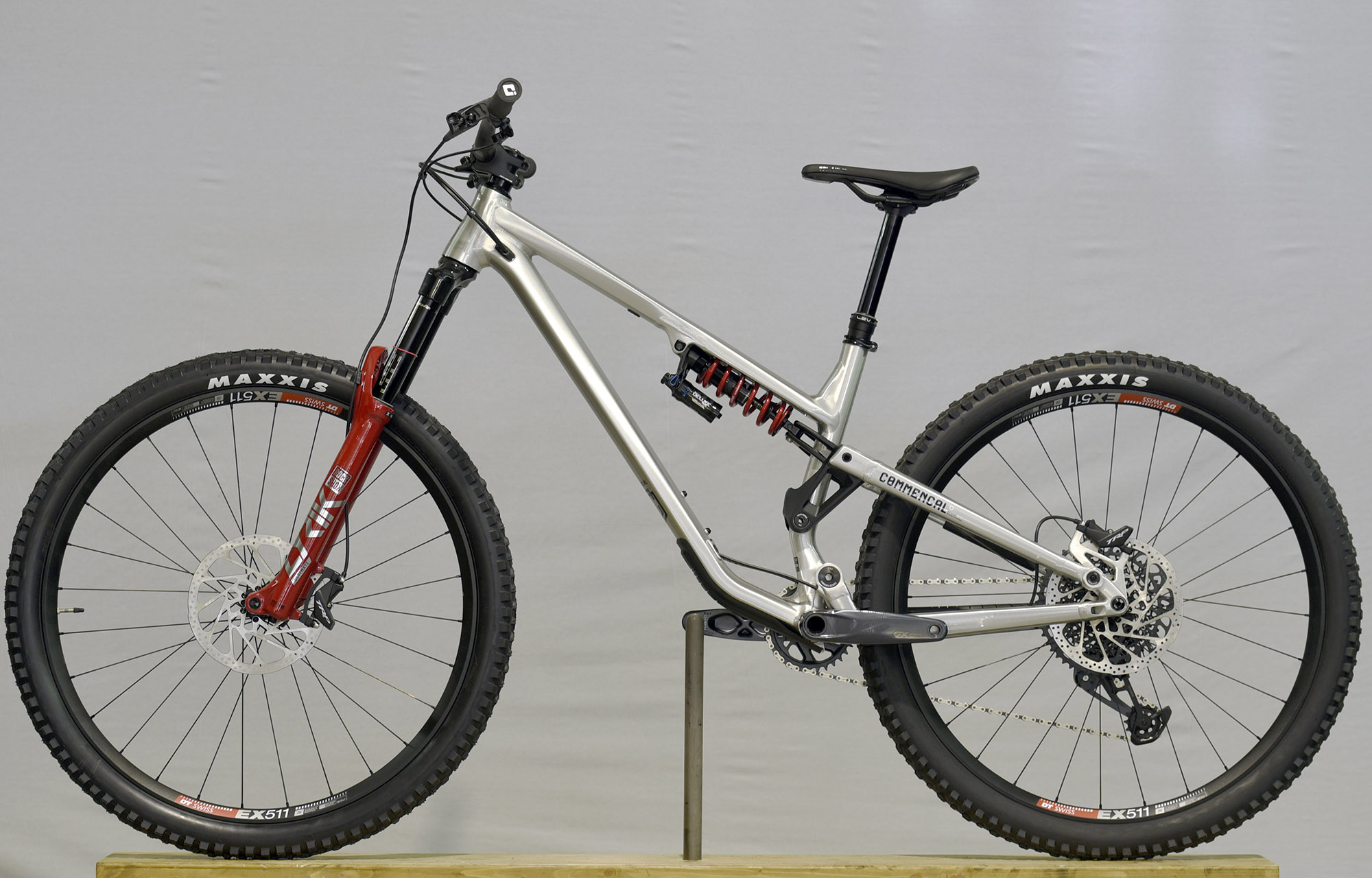

COMMENCAL META TR V4 RACE BRUSHED - M (22120402)

Price reduced from € 4.125,00 excl. VAT to € 2.833,33 excl. VAT -31%
id/sku : AN3840
Availability: This Item is currently not available. null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B sales department to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

10% off for pick-up at the COMMENCAL Village

To benefit from 10% off the VAT-included price (valid only on bikes, frames, skis or snowboards) with pickup at the COMMENCAL Village (Andorra), order through our dedicated e-commerce platform. On site, take advantage of expert advice from our specialists, full bike assembly, and also enjoy our dining area at the COMMENCAL Spot.

- DESCRIPTION -

This is an exhibition bike that has never been ridden, but has minor scratches caused by transport and storage.

- THE WORKSHOP NOTE -

-Slight scratch chainstay

Please note that this bike is guaranteed as new!
Enjoy!

Our second-hand bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and refurbished, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our second-hand bikes come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our second-hand bikes and our new bikes are scratches and paint chips caused by normal use.
Components and accessories may exceptionally differ from those shown in the specifications : contractual pictures.

Don't hesitate to contact us for more details.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -

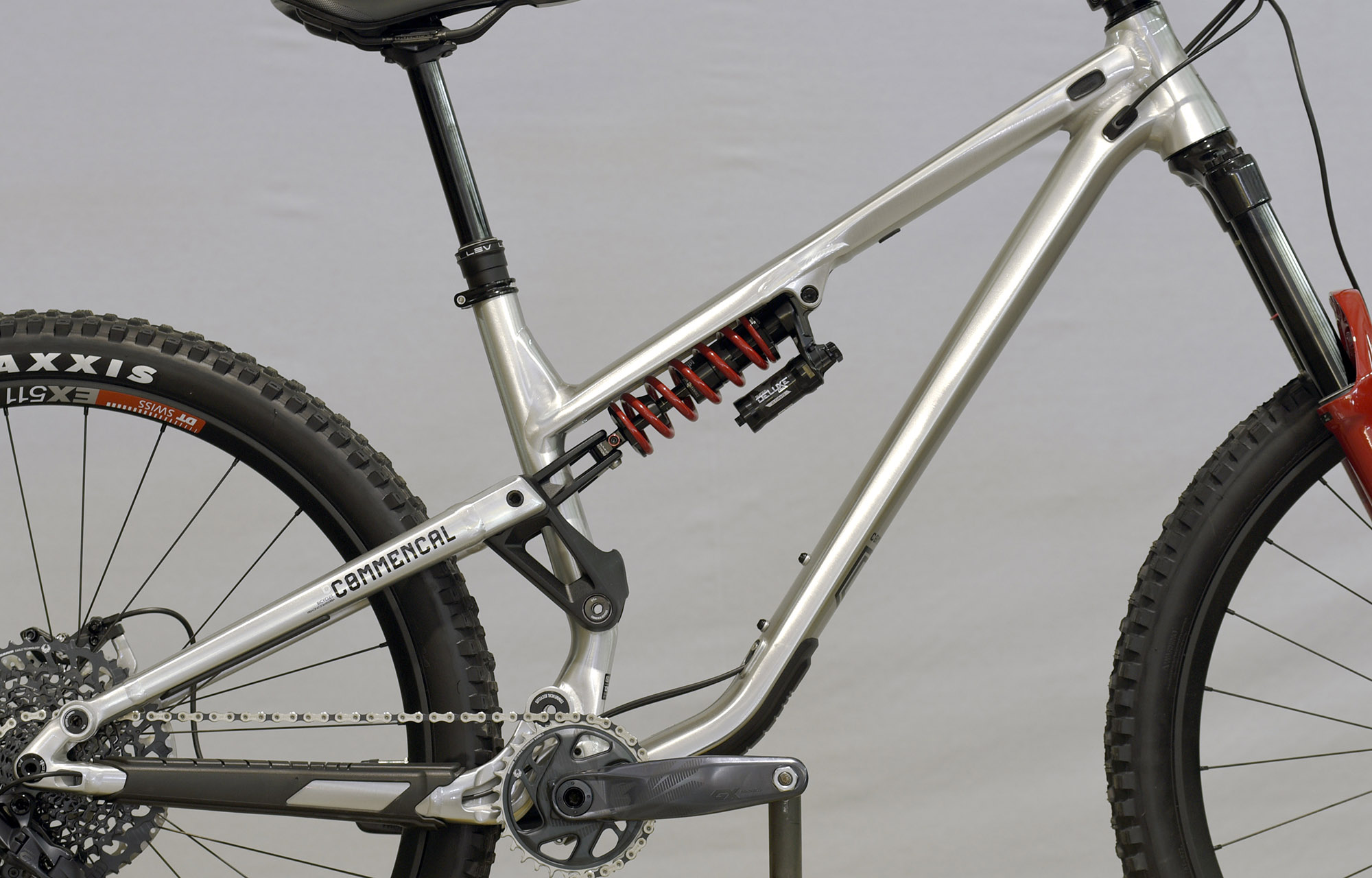

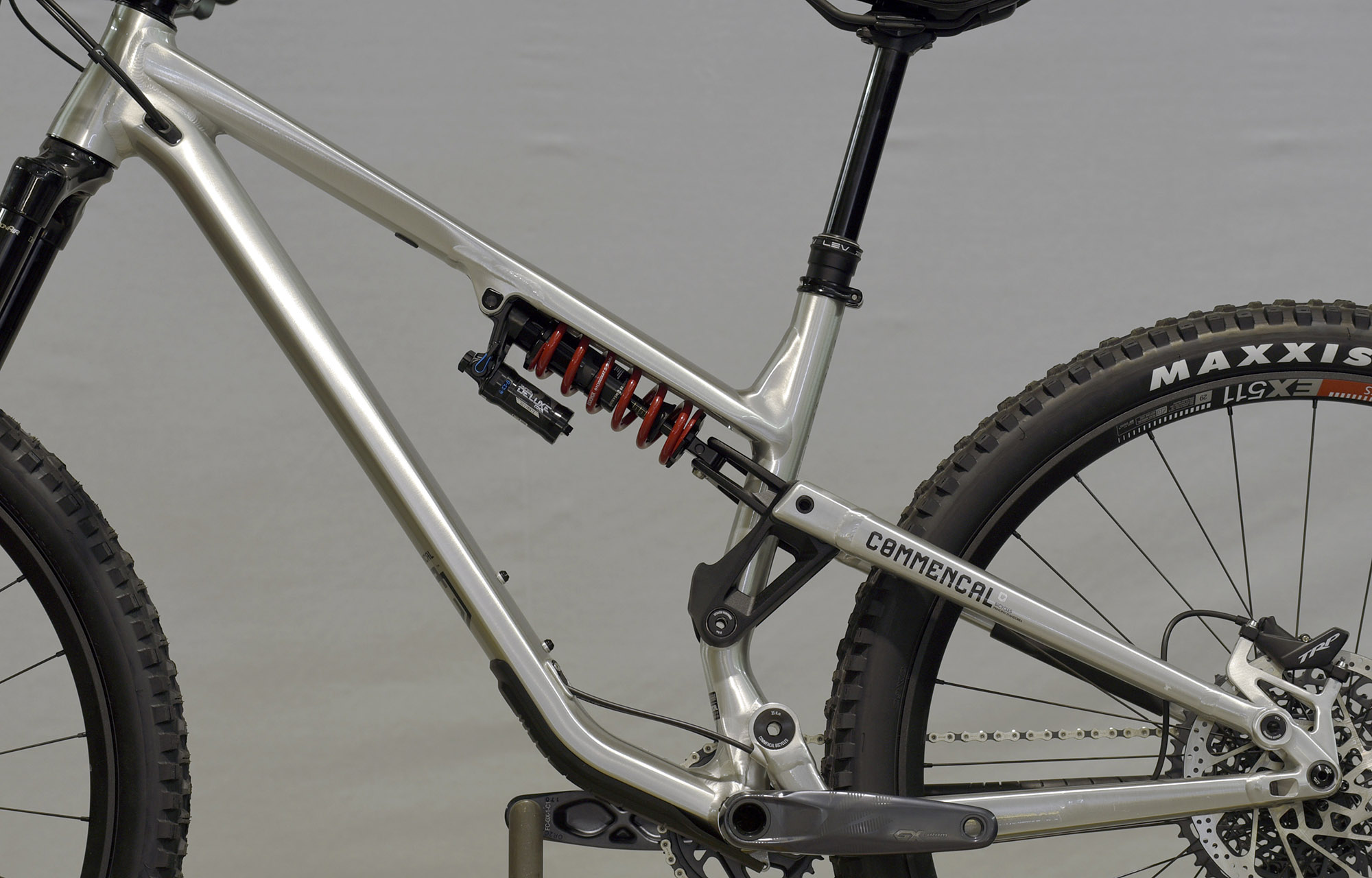

  • Frame

    META TR, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Super Deluxe Coil Ultimate
    210 x 55 mm, RCT damper,  LSC, rebound, 2-position (open/firm). Spring rates: 350lbs on S/M, 400lbs on L, 450lbs on XL

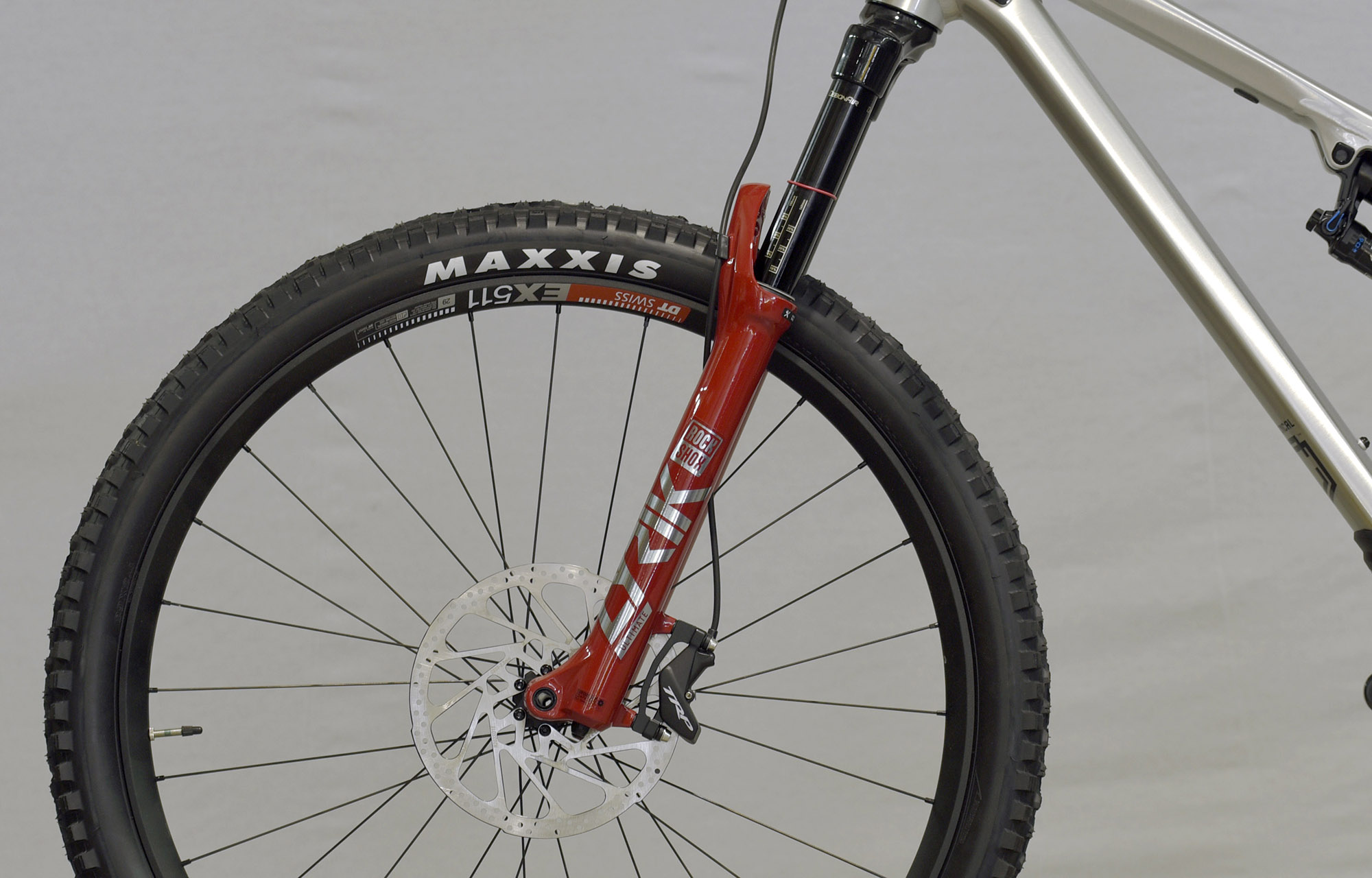

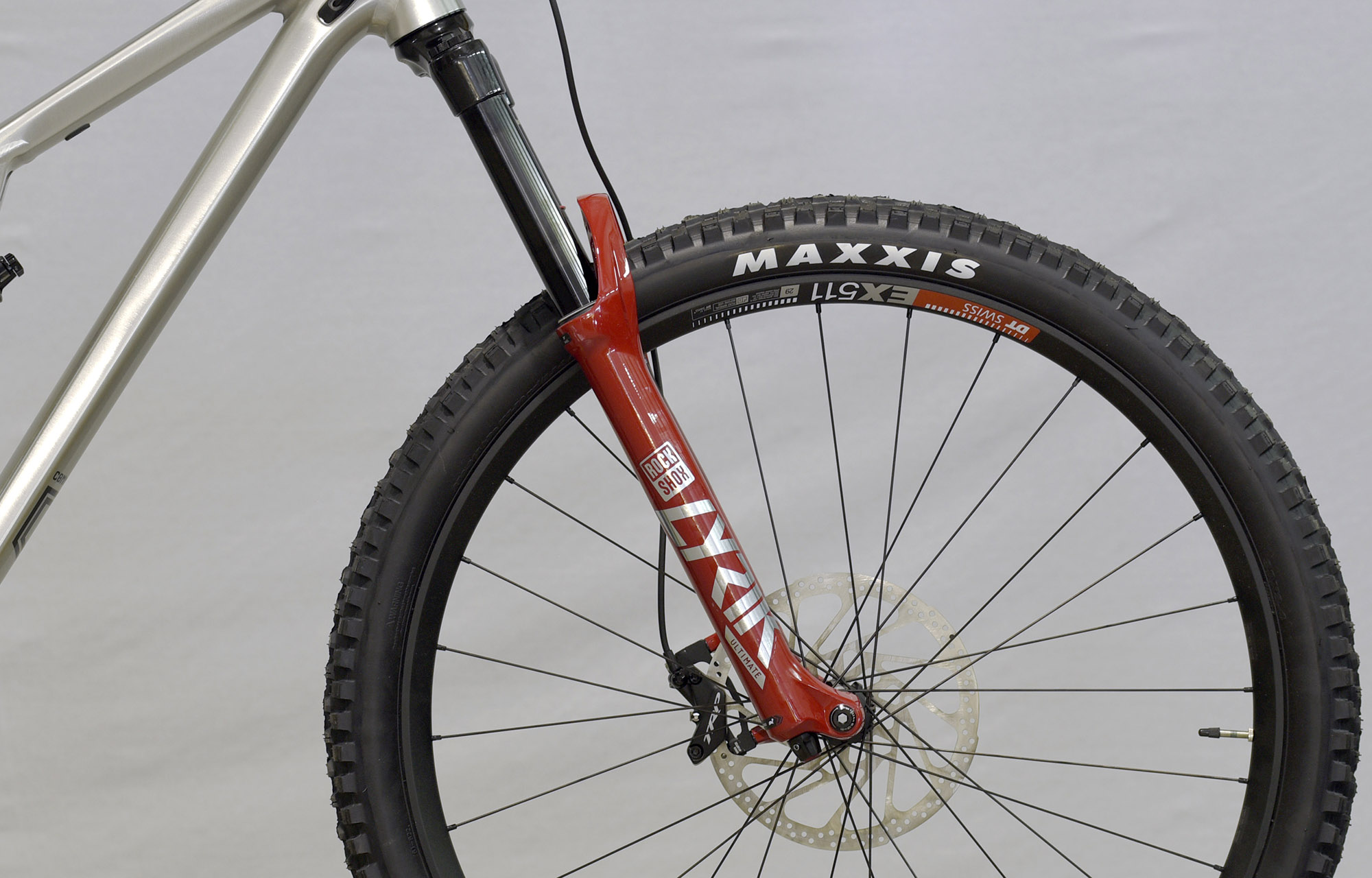

  • Fork

    ROCKSHOX Lyrik Ultimate, 160 mm travel
    29", Charger 2.1 damper, DebonAir, LSC, HSC, rebound, Boost (15 x 110 mm), 42 mm offset, 2 Tokens

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

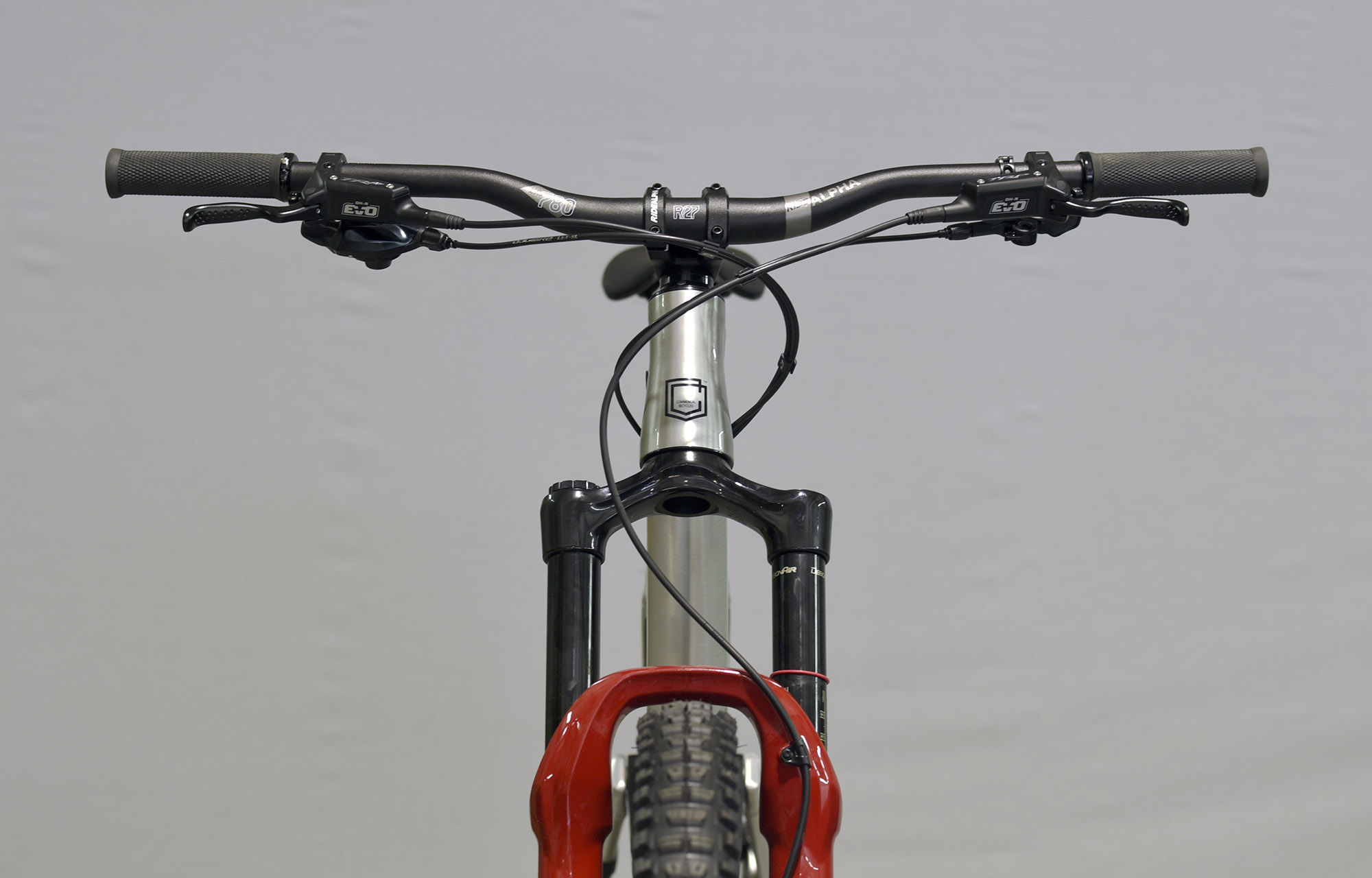

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    TRP DH-R Evo, 4 pistons
    Rotors: TRP R1 203 mm, 6-bolt, 2.3 mm width

    c

  • Shifters

    SRAM GX Eagle
    12s

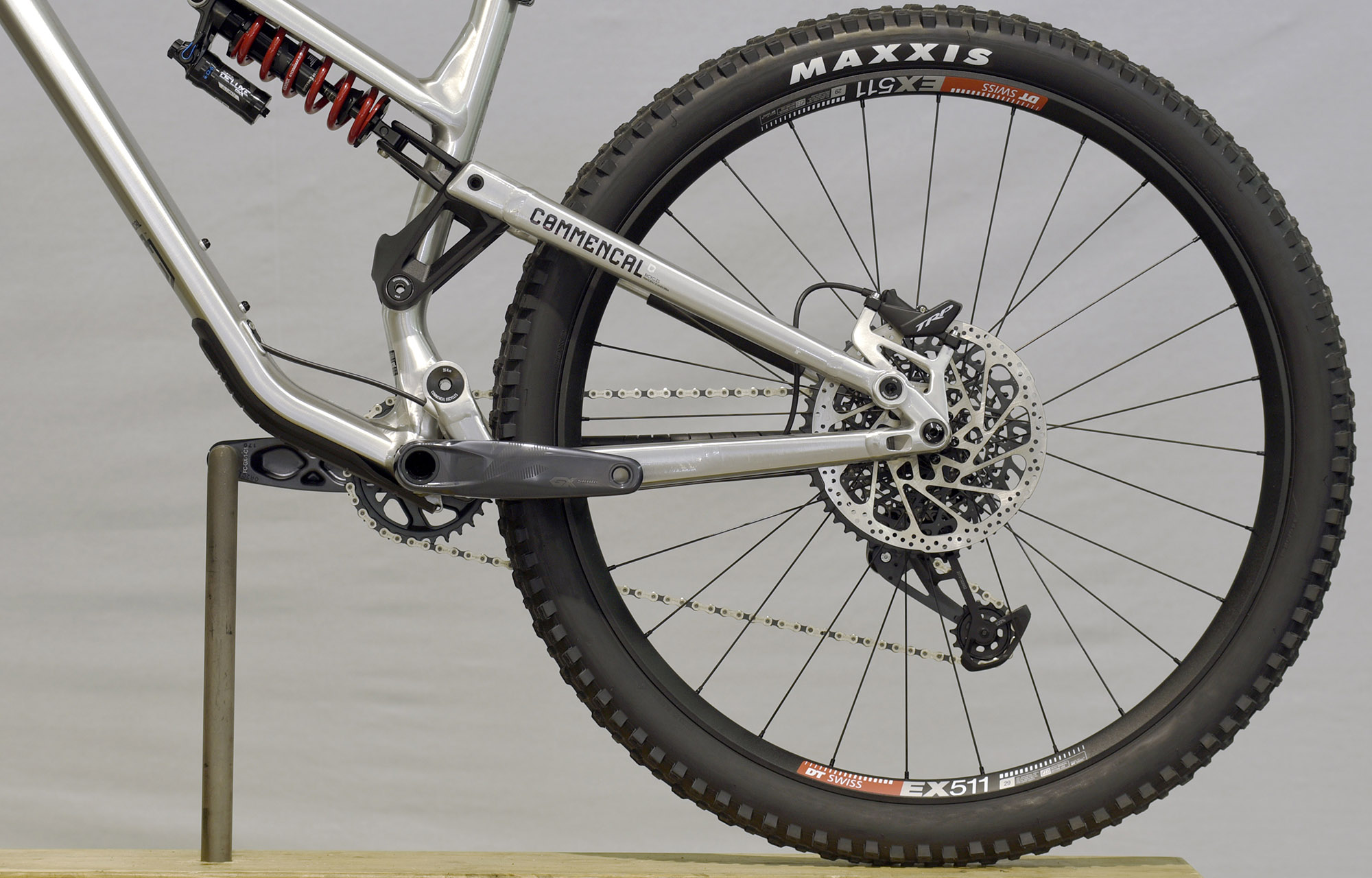

  • REAR DERAILLEUR

    SRAM GX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

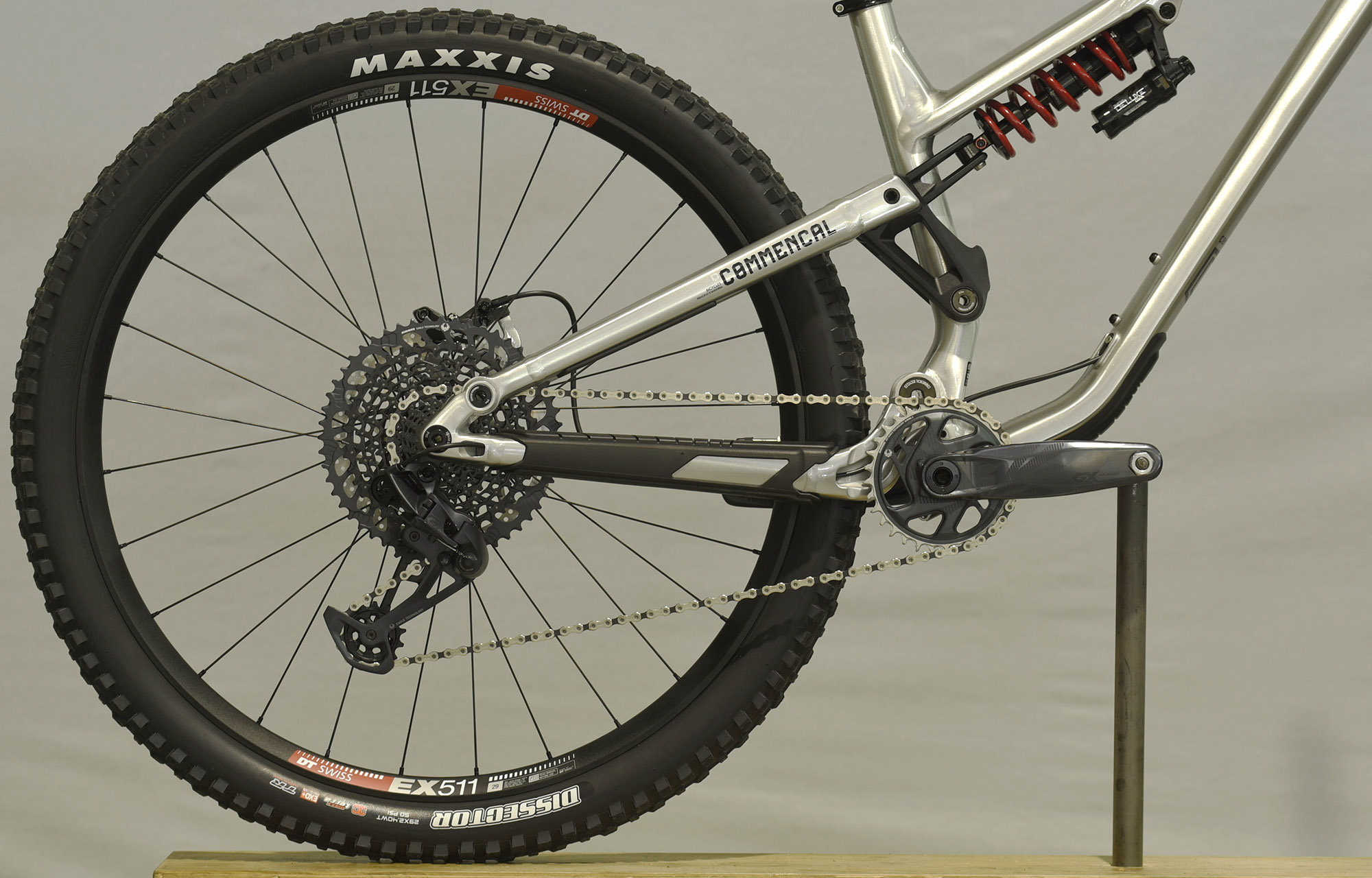

  • Crankset

    SRAM GX Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM GX Eagle, 32t, Narrow-Wide

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM XG-1275 Eagle
    12s, 10-52t

  • Rims

    DT SWISS EX511
    29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350Rear: 28h, sealed bearings, 12 x 148 mm, XD driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    DT SWISS Competition
    Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II
    Rear: 29" x 2.40", WT, EXO+, 3C MaxxTerra, Tubeless Ready - Front: 29" x 2.40", WT, EXO, 3C MaxxGrip, Tubeless Ready

  • Seat post

    KS Lev Integra
    34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3 Atmos
    140 mm width, Lux-Alloy Rails

  • Weight

    15,9 kg / 35.05 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Brushed
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

    *Please note that bike specs are subject to change without prior notice.
