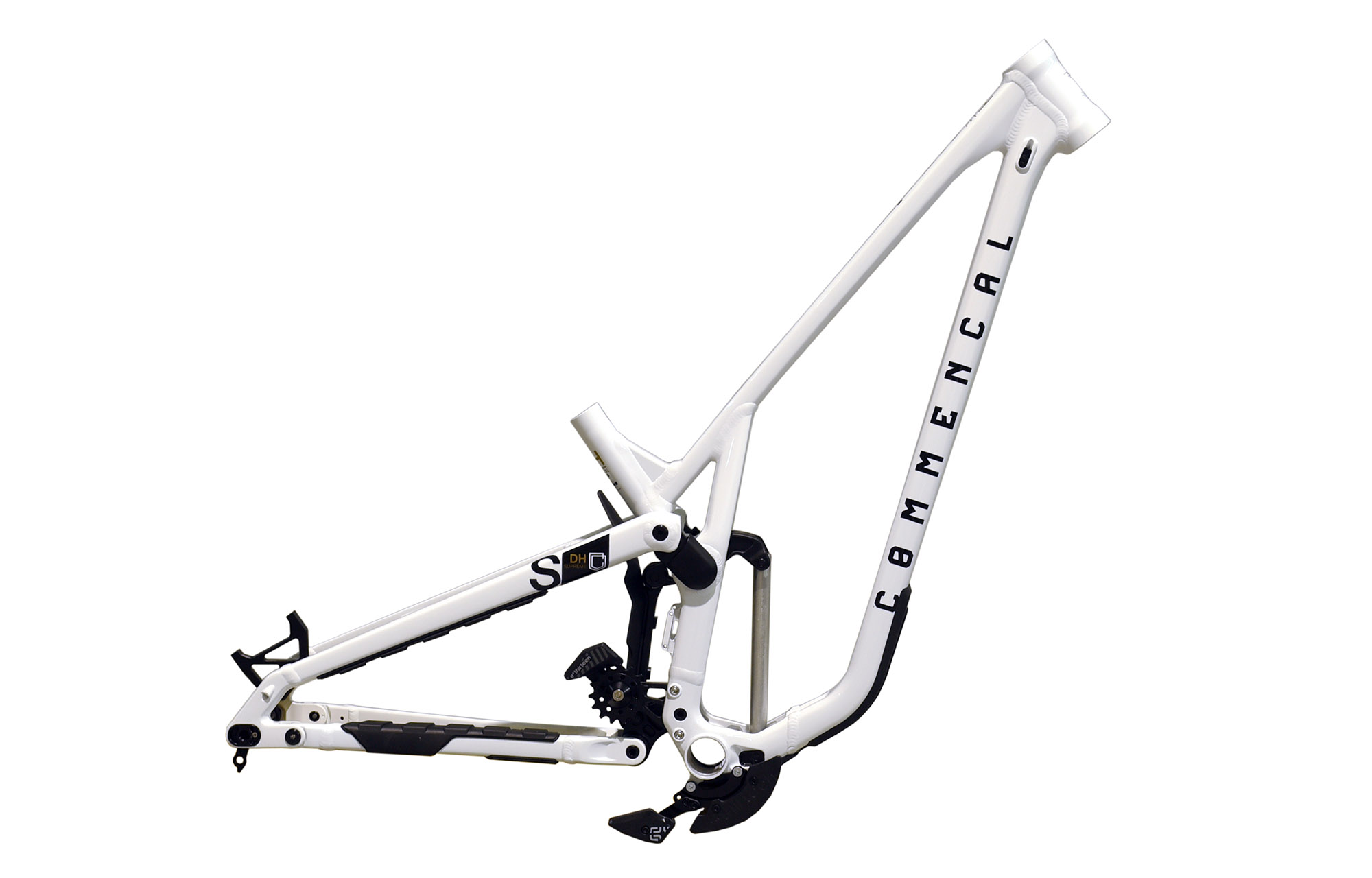

FRAME COMMENCAL SUPREME DH V5 PURE WHITE - L (22250703)
€ 2.416,66
excl. VAT
id/sku : AN4343
Availability:
This Item is currently not available.
null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
10% off for pick-up in andorra
You can place your order online and have the COMMENCAL bikes, frames, skis and snowboards of your choice ready to collect directly from our SHOWROOM in Andorra. You will benefit from an additional 10% OFF the total price on our website (including VAT). Just contact our SALES DEPARTMENT to place an order. Our team will contact you to set a collection date shortly after the request is processed.
- DESCRIPTION -

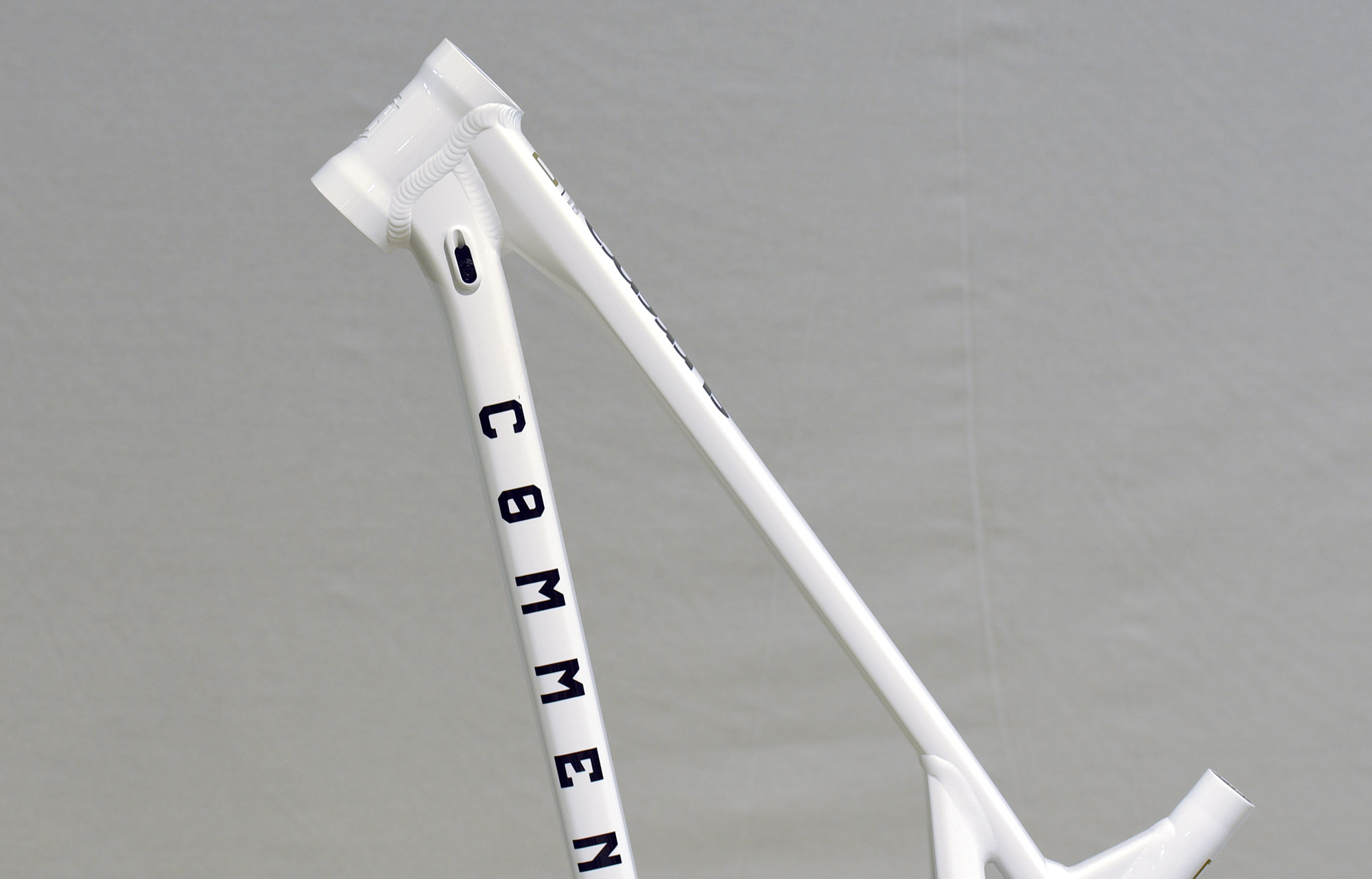

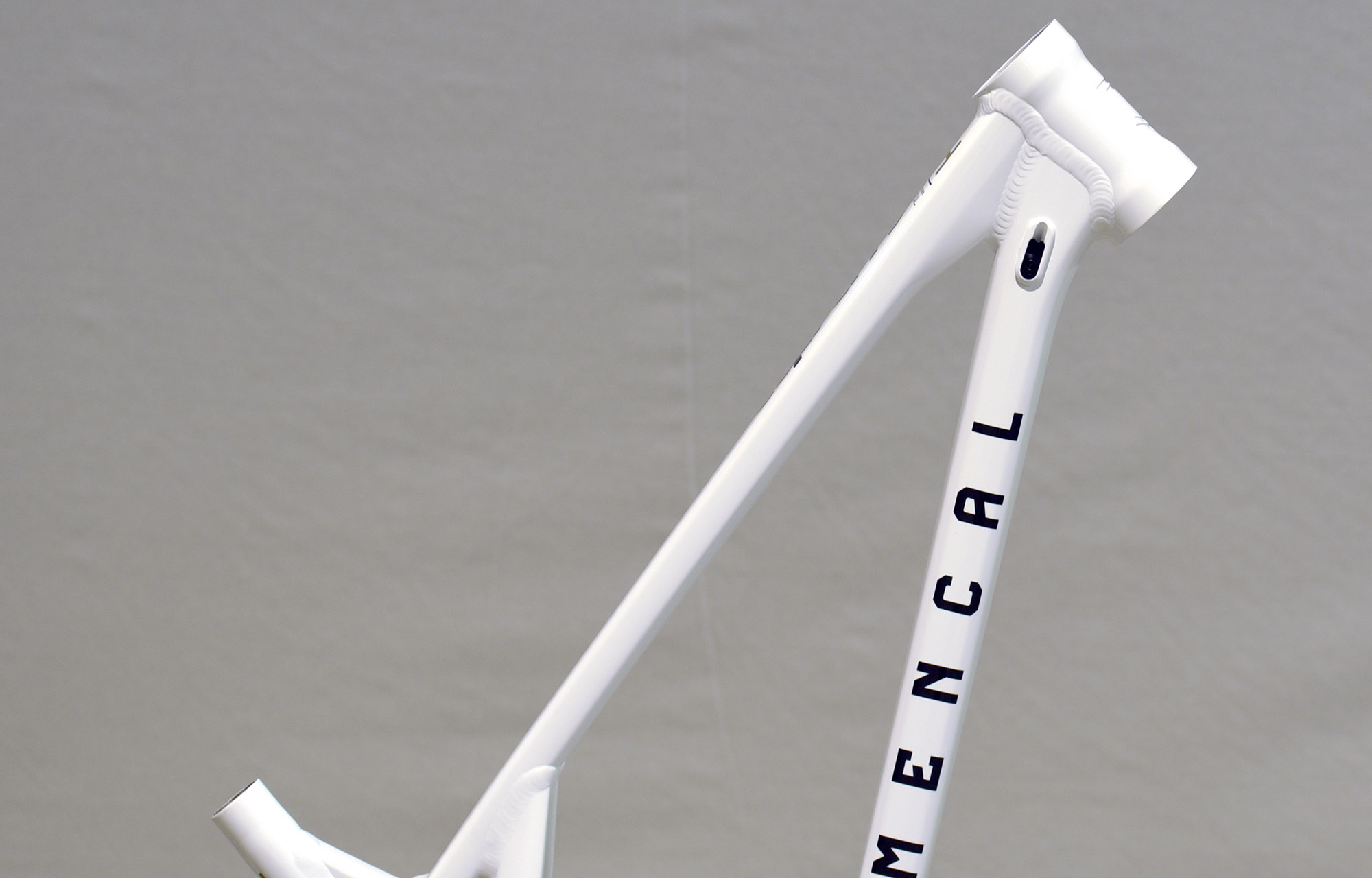

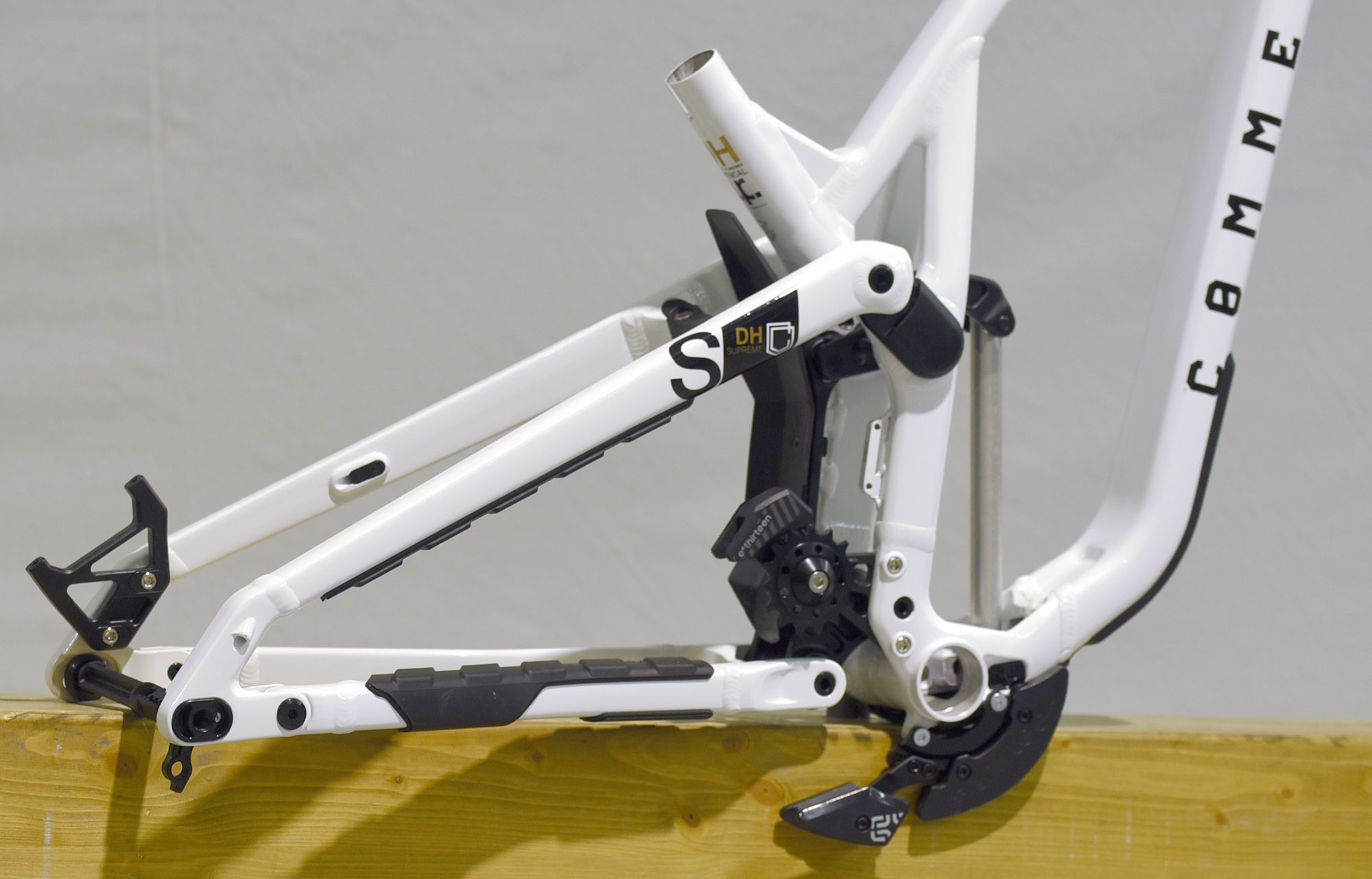

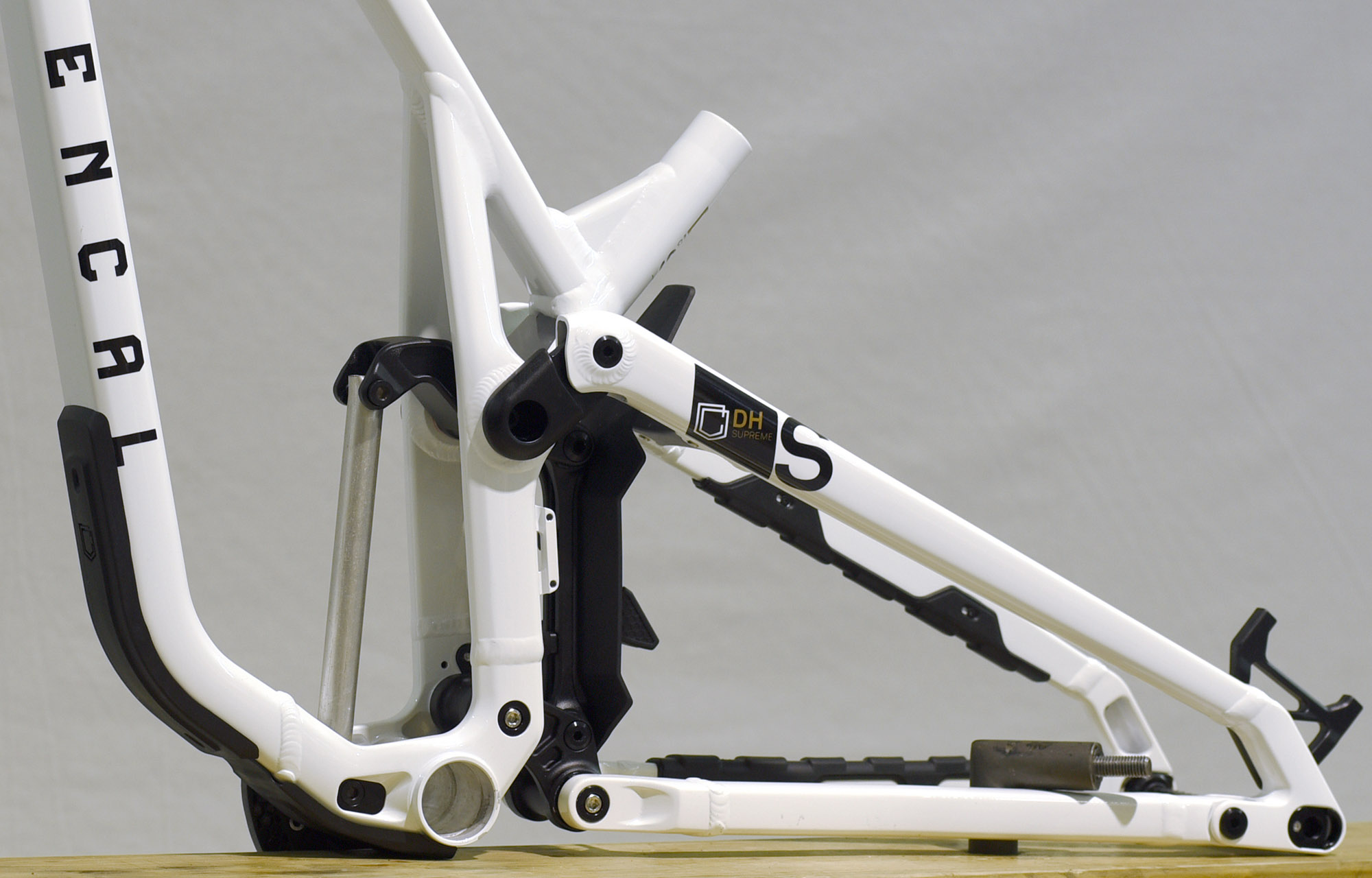

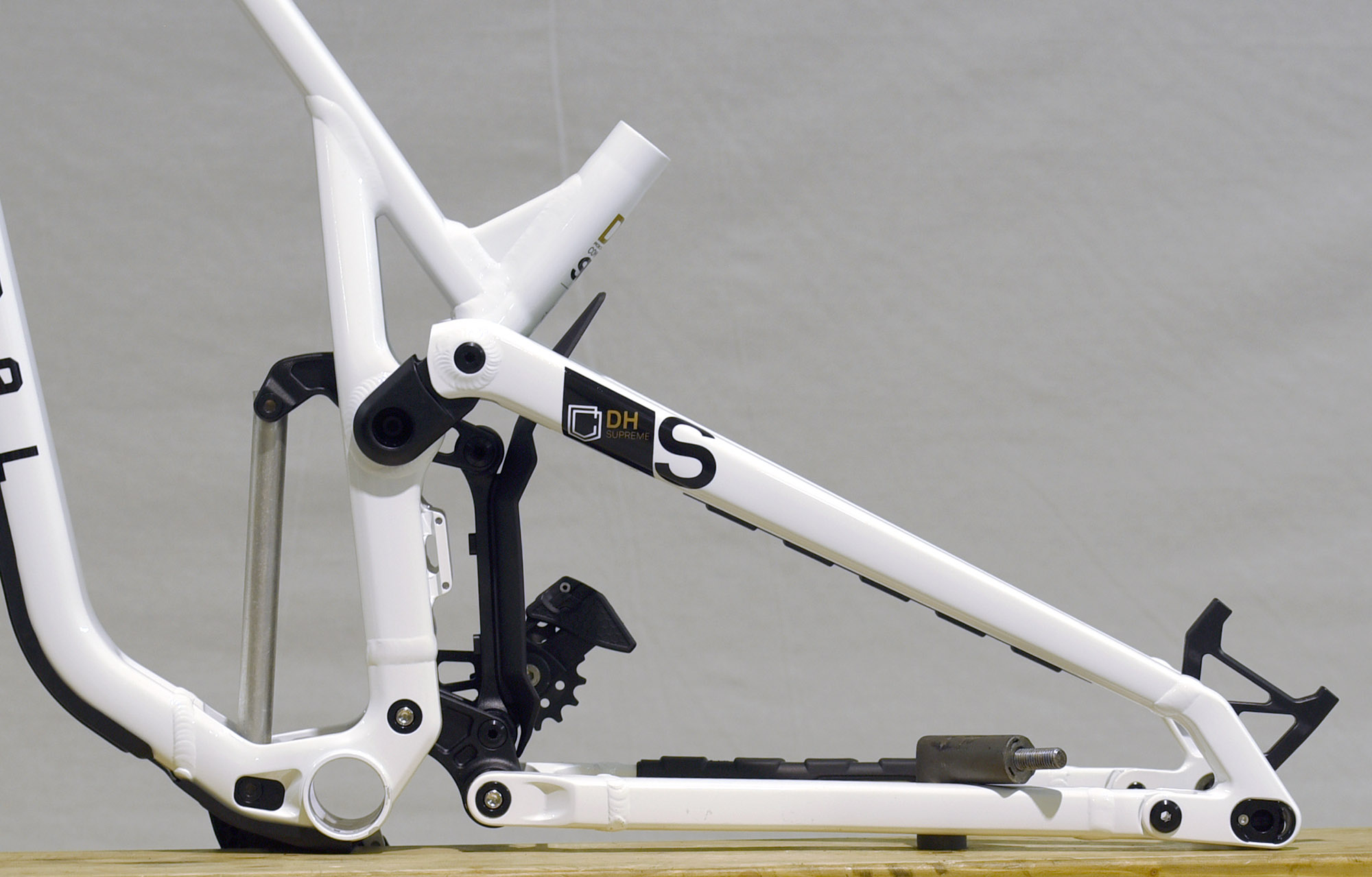

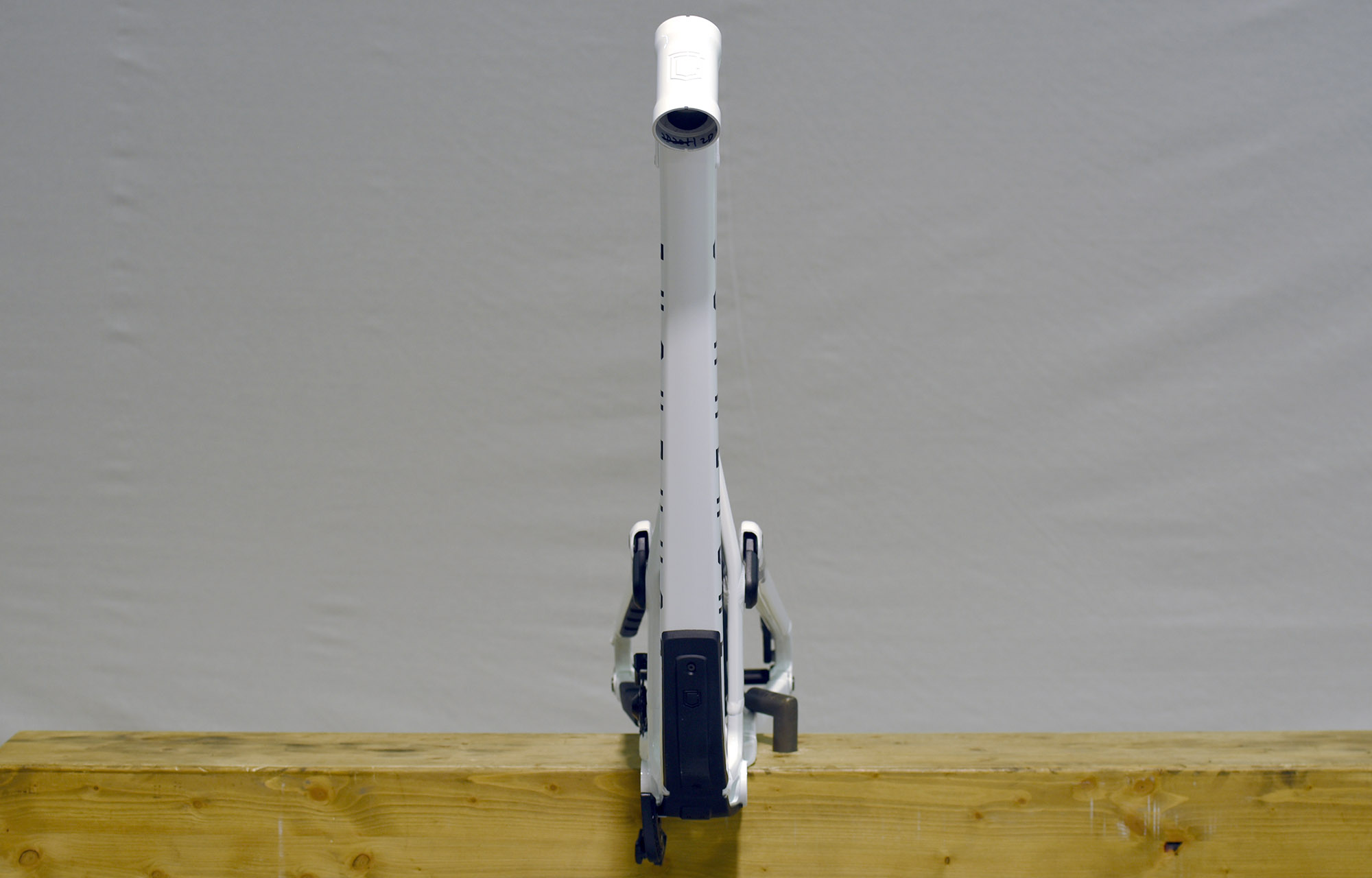

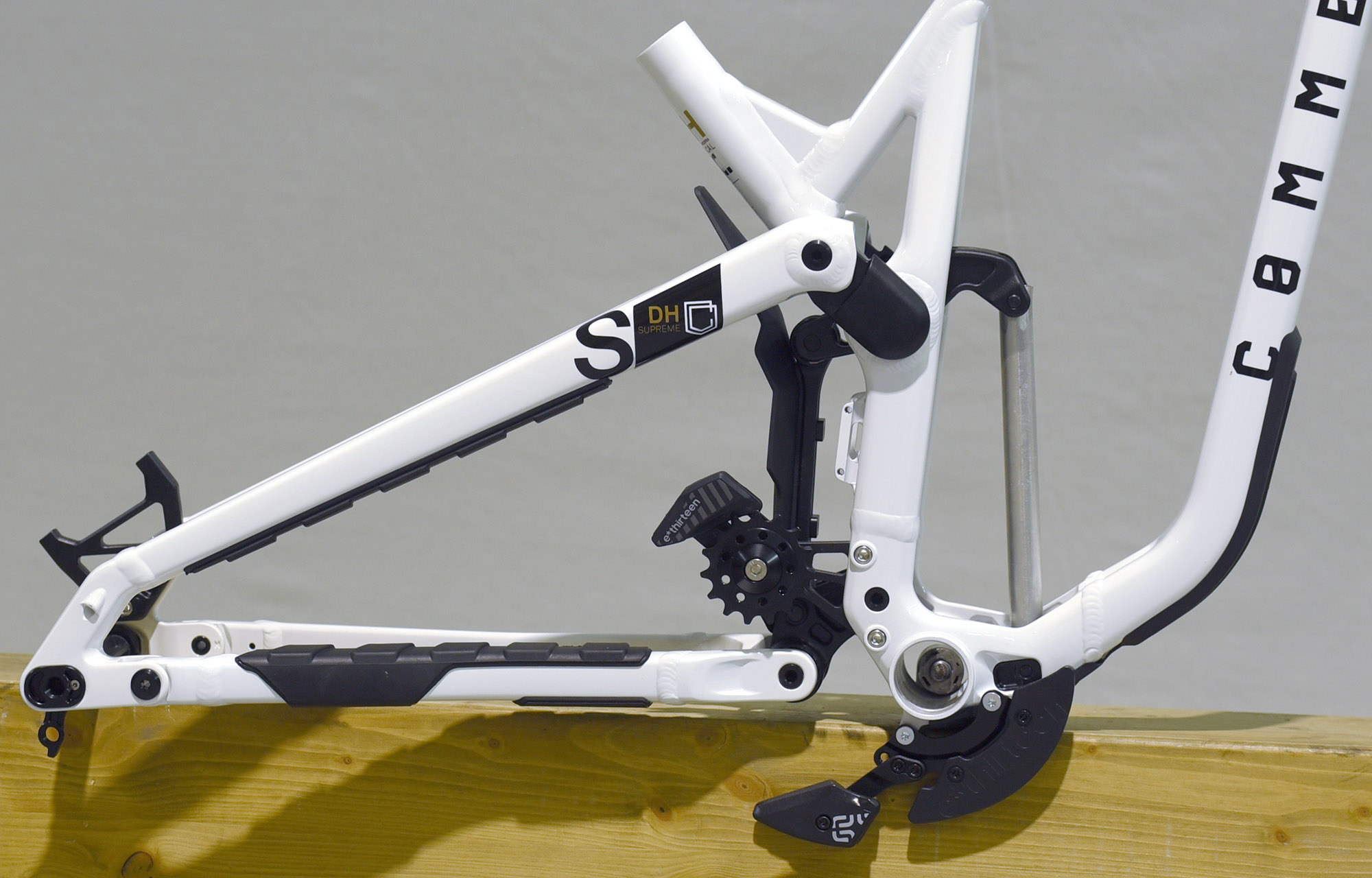

This is an exhibition frame that has never been ridden, but has minor scratches on the seat stay caused by transport and storage.
- THE WORKSHOP NOTE -
-Ready to assemble
Please note that this bike is guaranteed as new!
Enjoy!
Our bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and Refurbed, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our Refurbed come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our Refurbed bikes and our new bikes are scratches and paint chips caused by normal use.
Components and accessories may exceptionally differ from those shown in the specifications : contractual pictures.
Don't hesitate to contact us for more details.
See more
See less
- TECHNICAL INFO -
Bicycle type
DH 29''/27''
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 x 75
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
630 mm / 638 mm

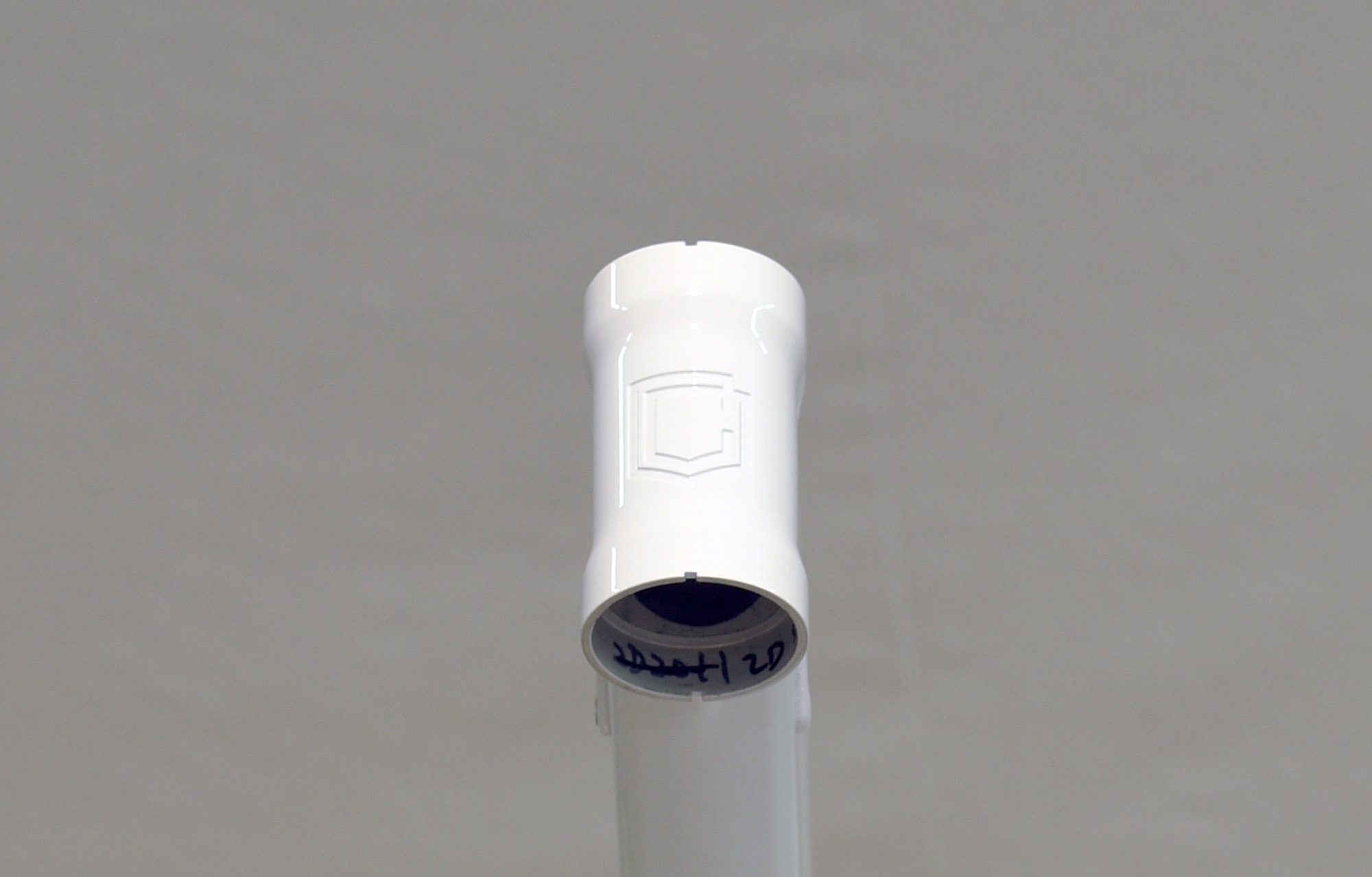

Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
64 mm / diam 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm

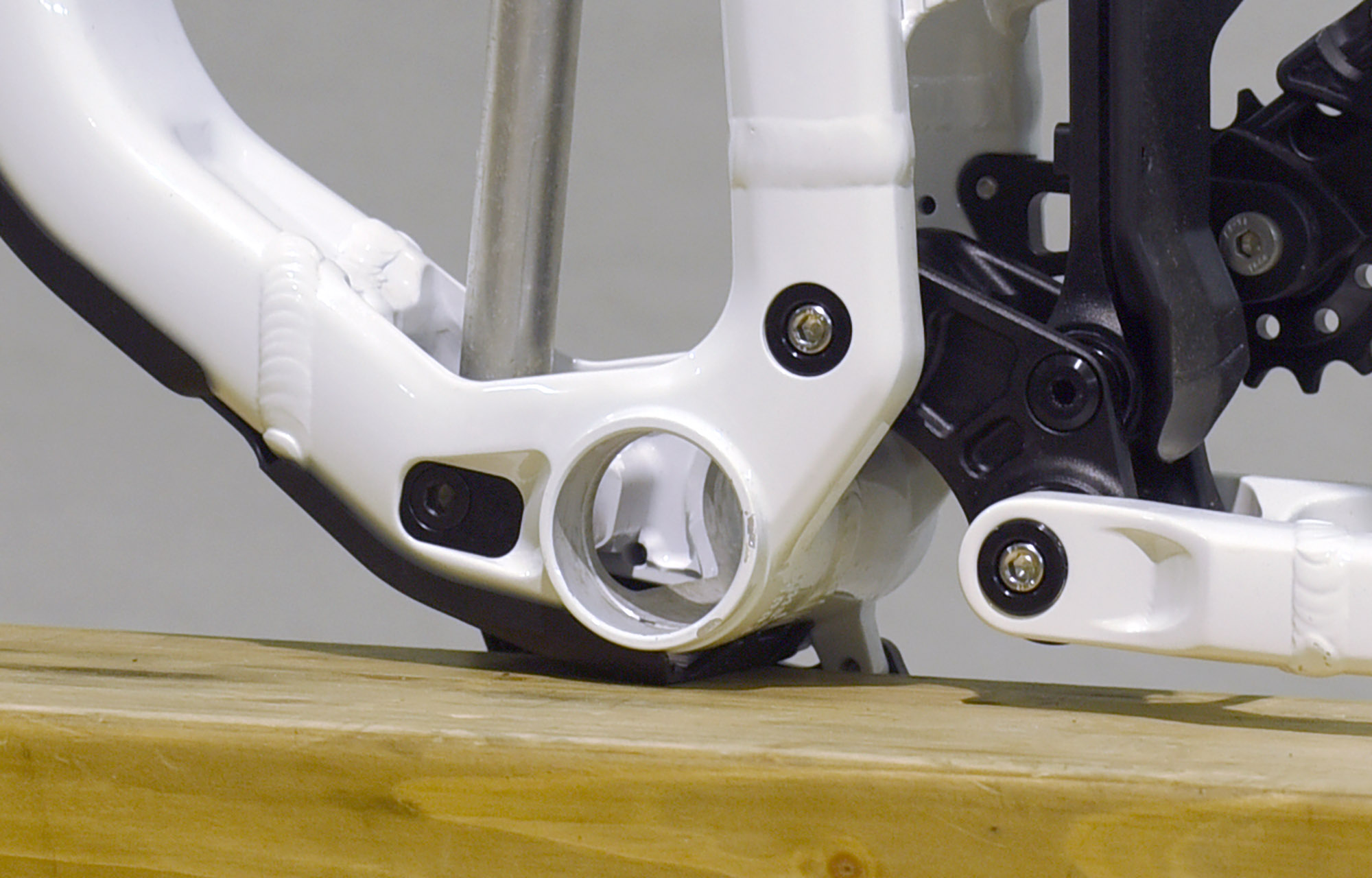

Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05, chainguide included with the frameset
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Accessories
Down tube protector, chainstay protector, seatstay protector, rear wheel axle, chainguide, frame mudguard, roller cover, rear brake adaptor, rear hanger
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)Hub Old
157 x 12Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)
- SPECIFICATIONS -
Colour
Pure White - Shiny Finish
