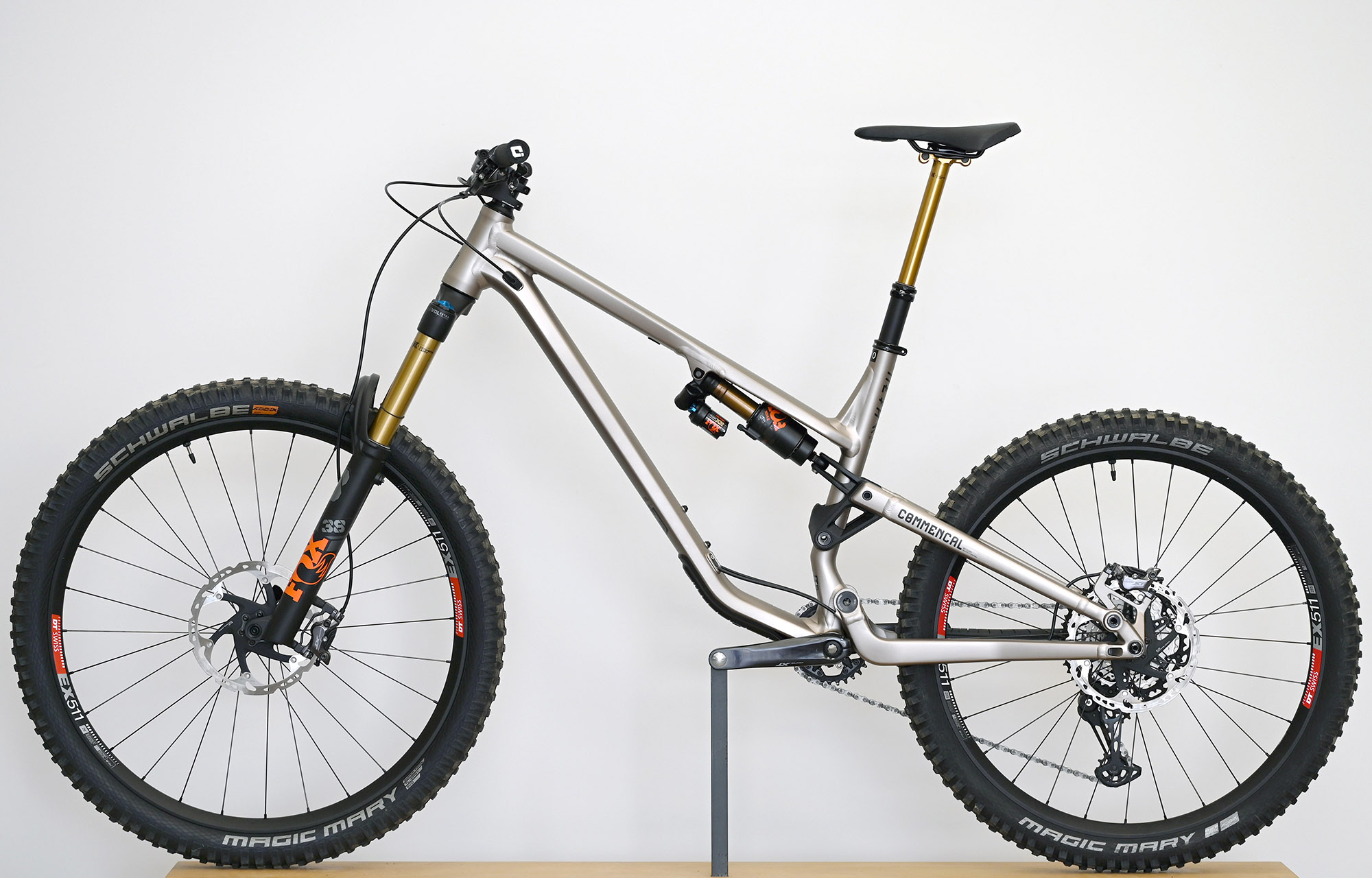

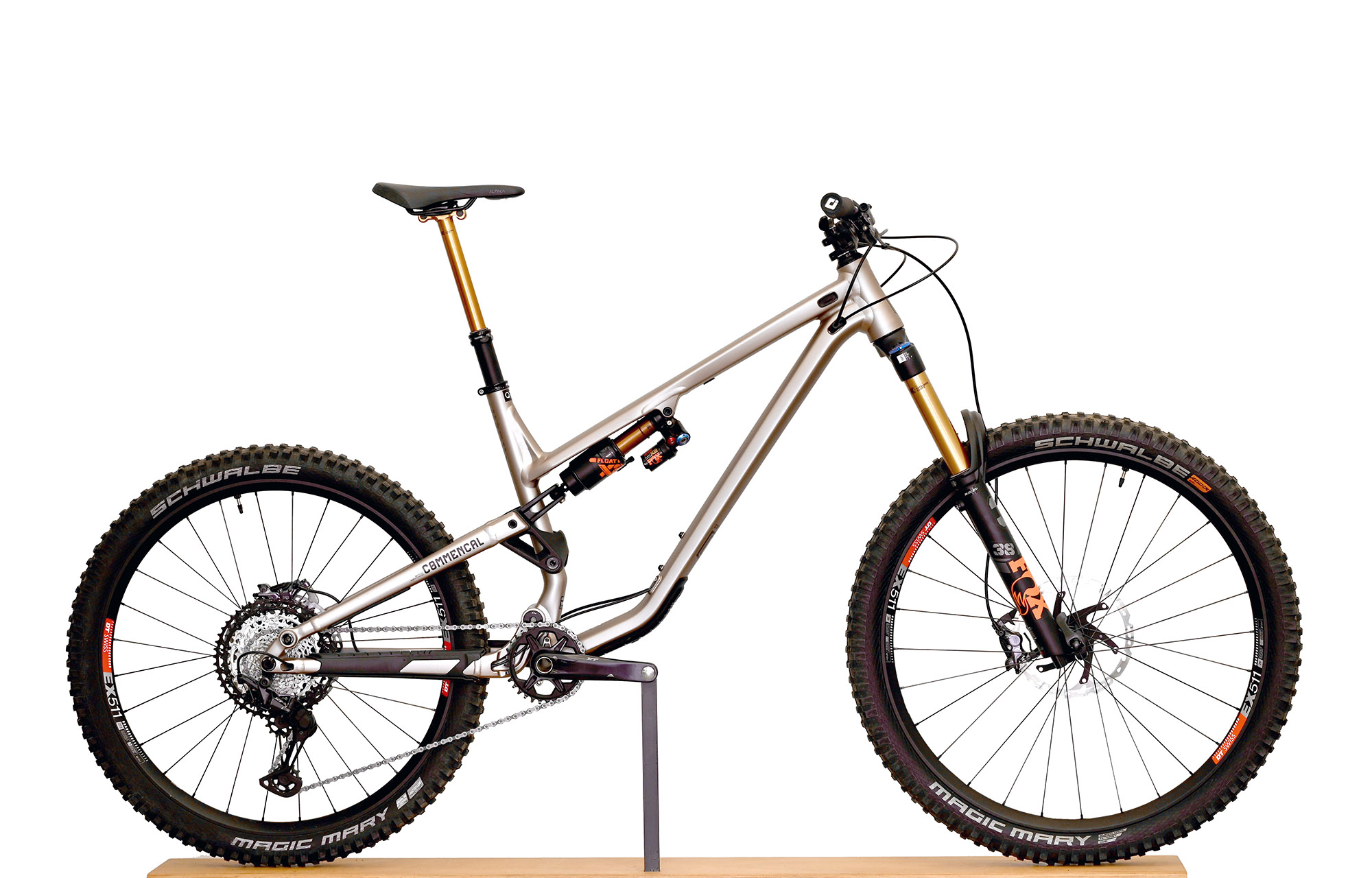

COMMENCAL META SX V4 SIGNATURE CHAMPAGNE - XL

Price reduced from NZ$ 8,347.82 excl. GST to NZ$ 6,608.69 excl. GST -21%
id/sku : OCNZ0020
Availability: In stock null
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

NON-CONTRACTUAL PHOTO

The bike has been ridden around ten times and shows signs of wear, scratches and paint chips, mainly on the chainstay, top tube.
However, it should be noted that these cosmetic defects in no way affect its performance or smooth operation.

- THE WORKSHOP NOTE -

- Bike in good conditions

Please note that this bike is guaranteed as new!
Enjoy!

Our second-hand bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and refurbished, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our second-hand bikes come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our second-hand bikes and our new bikes are scratches and paint chips caused by normal use.
Don't hesitate to contact us for more details.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    ENDURO 27''/29''

  • Frame material

    AL-6066 T4, T6

  • Frame weight

    3,9 kg / 8.59 lb

  • Rear travel

    160 mm

  • Shock length/stroke

    230 x 62,5 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    586 mm / 596 mm

  • Headset dimension

    TAPERED 1-1/8" / 1-1/2"

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    68-584 mm - 29'' : 65-622 mm

  • Disc brake standard

    POSTMOUNT 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 X 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META SX, 160 mm travel
    29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    FOX Float X2 Factory
    230 x 62.5 mm, HSC, LSC, HSR, LSR, 2-postion adjustment

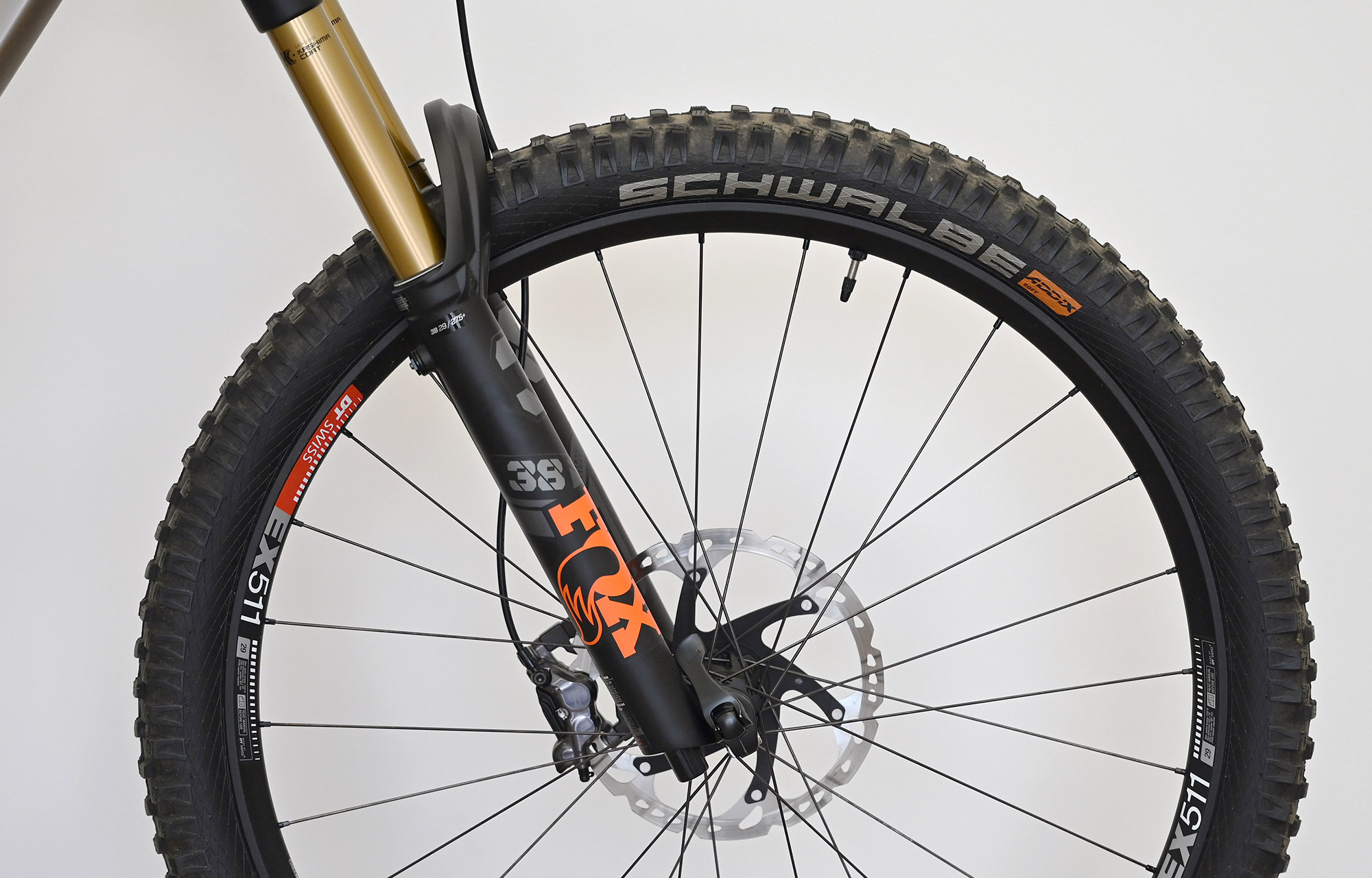

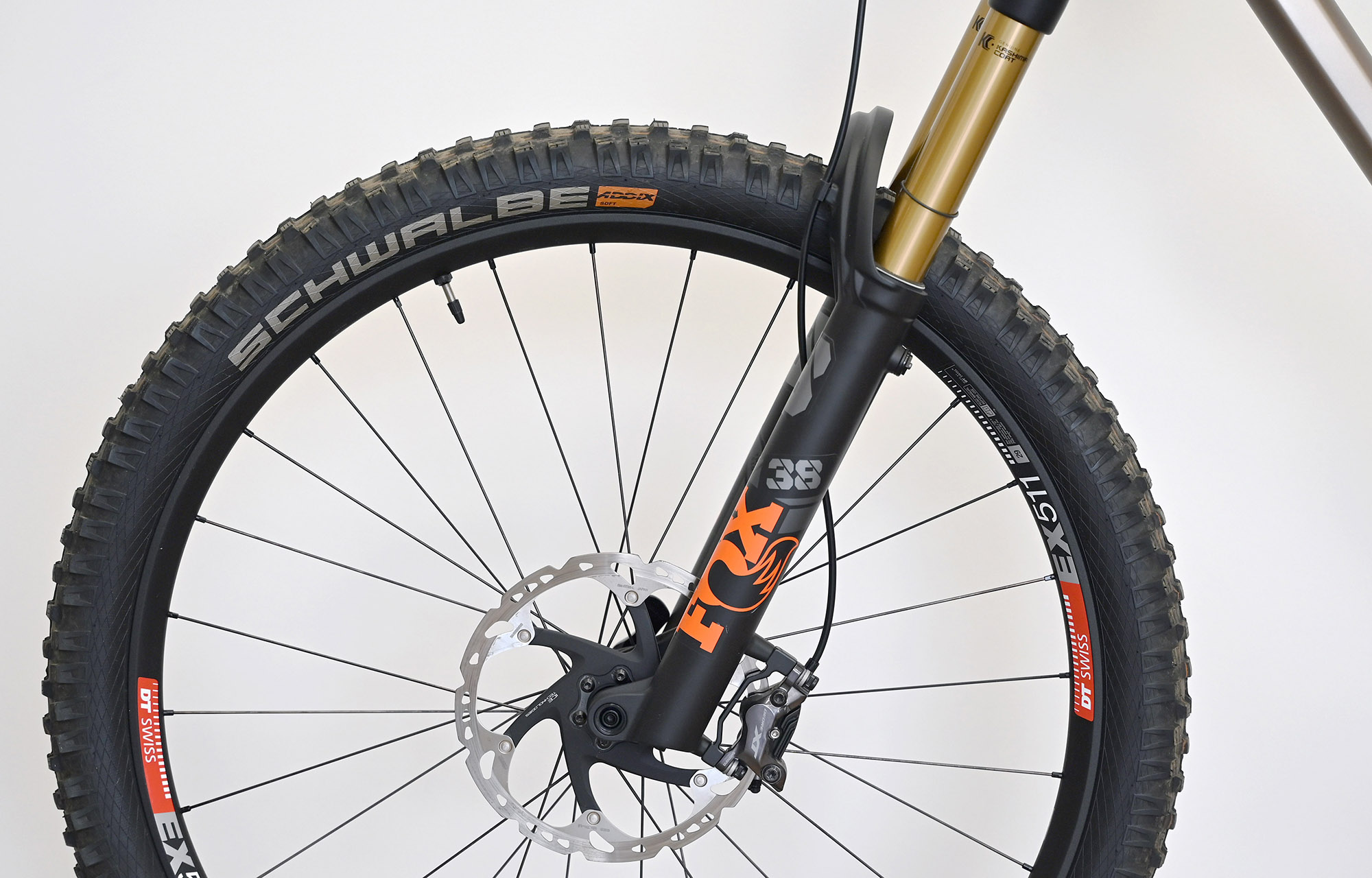

  • Fork

    FOX 38 Factory, 170 mm travel
    29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 2 Tokens

  • Headset

    ACROS ZS44/ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

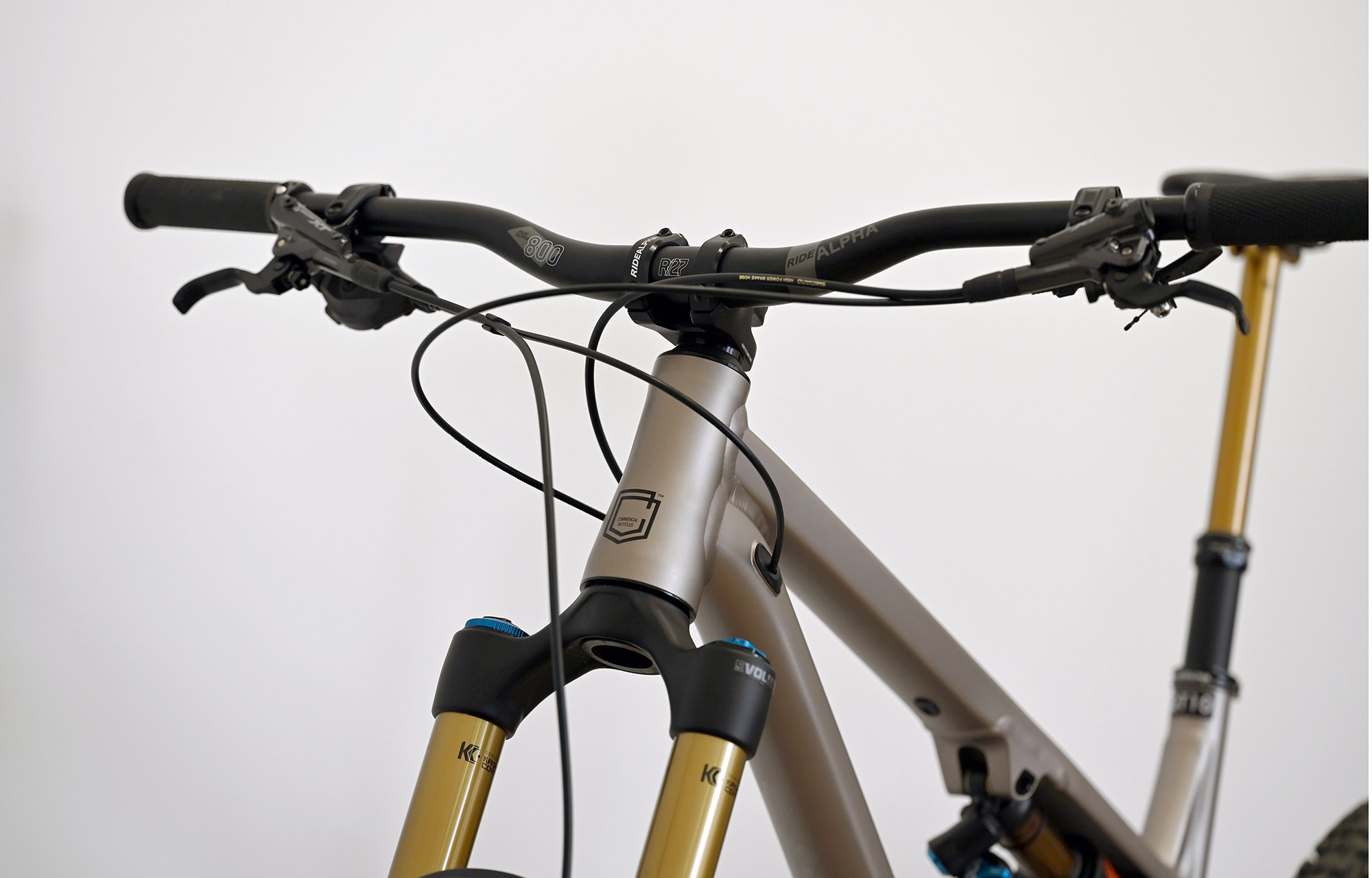

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

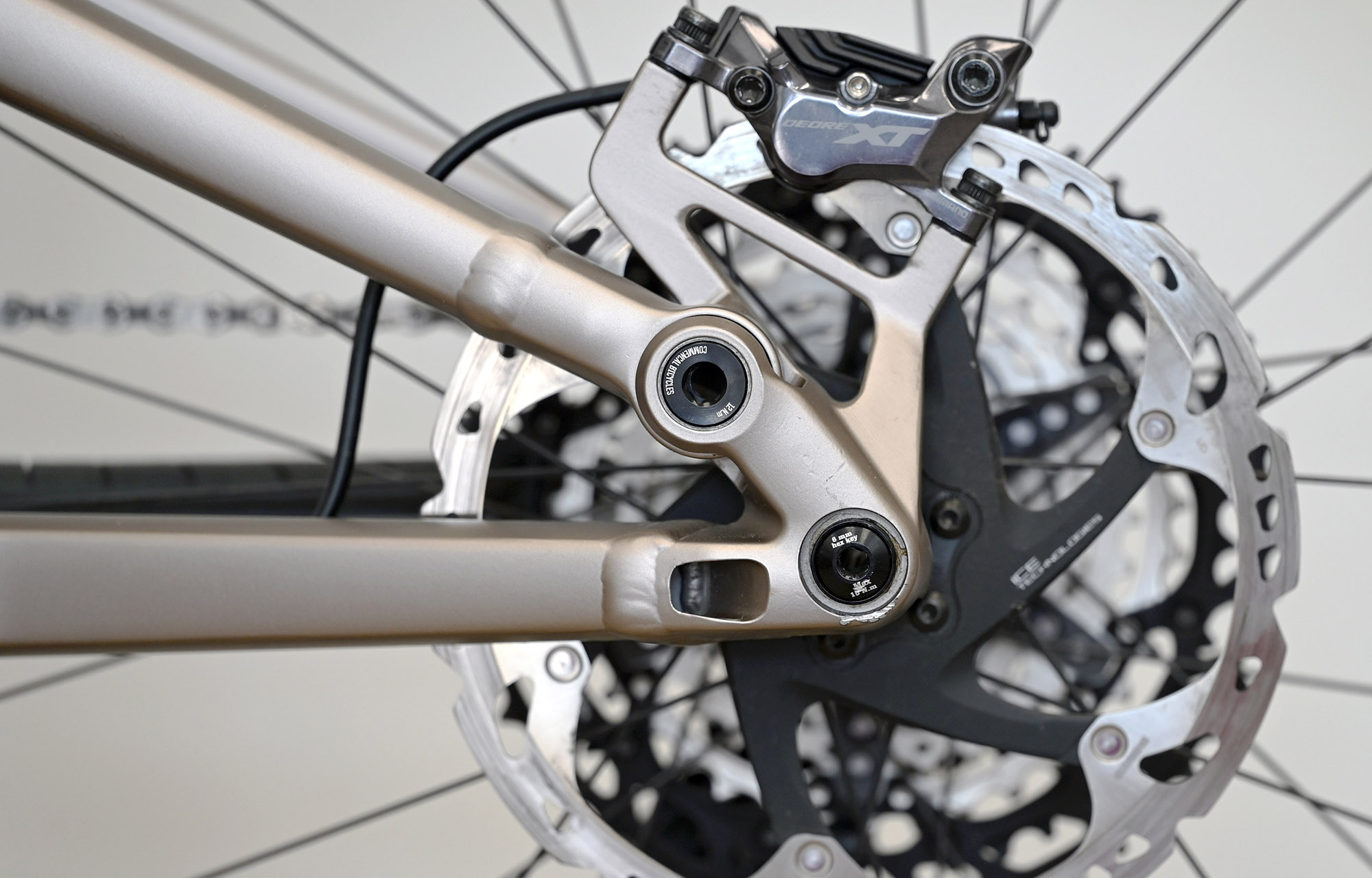

  • Brakes

    SHIMANO XT, 4 pistons, I-Spec EV compatible
    Rotors: SHIMANO SM-RT86 203 mm, 6 holes

  • Shifters

    SHIMANO XT
    12s

  • REAR DERAILLEUR

    SHIMANO XT
    12s

  • Bottom bracket

    SHIMANO BBMT800
    Pressfit

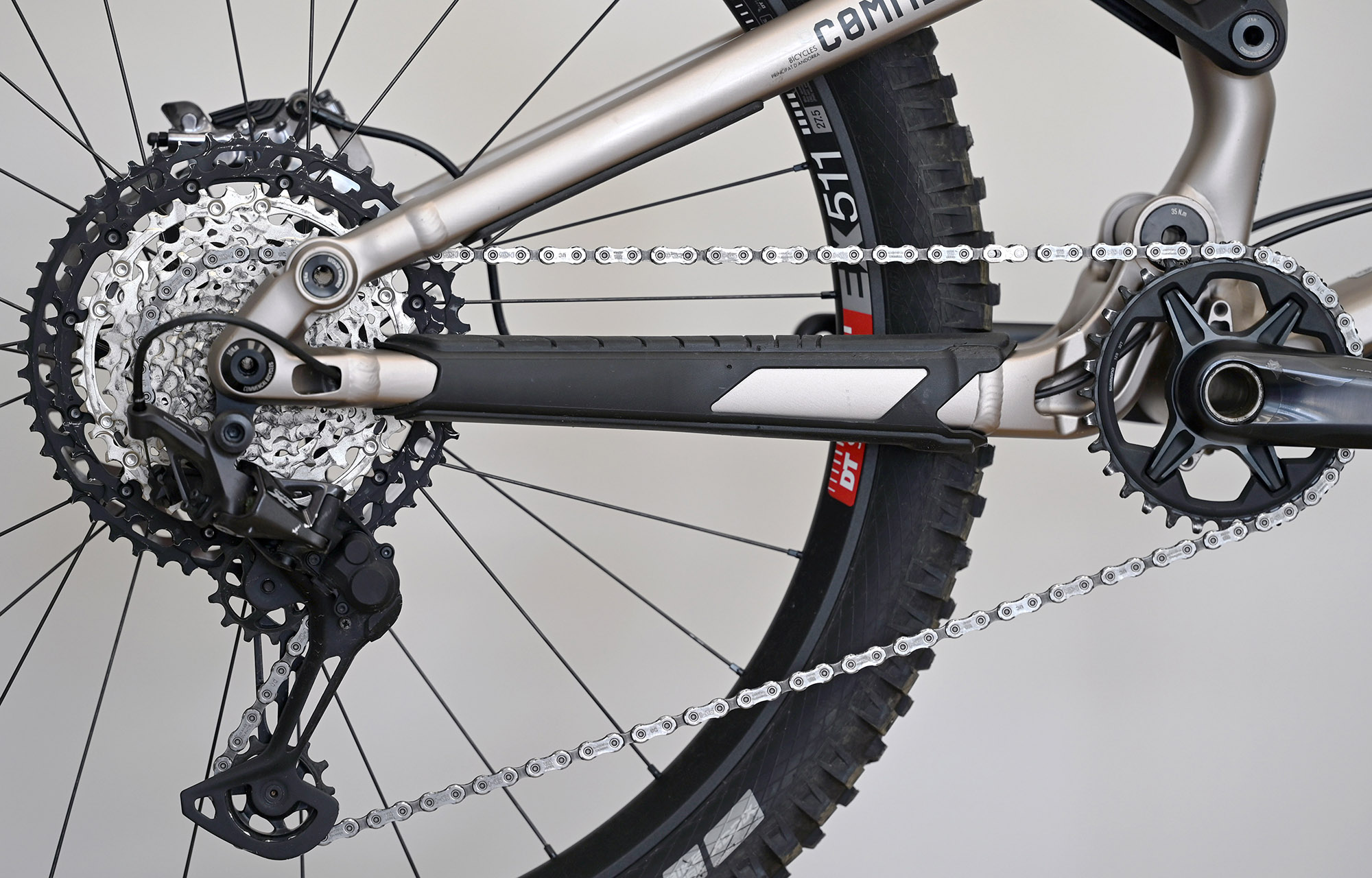

  • Crankset

    SHIMANO XT, 170 mm crank arms, Boost
    Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + Technology

  • Chain

    SHIMANO XT
    12s

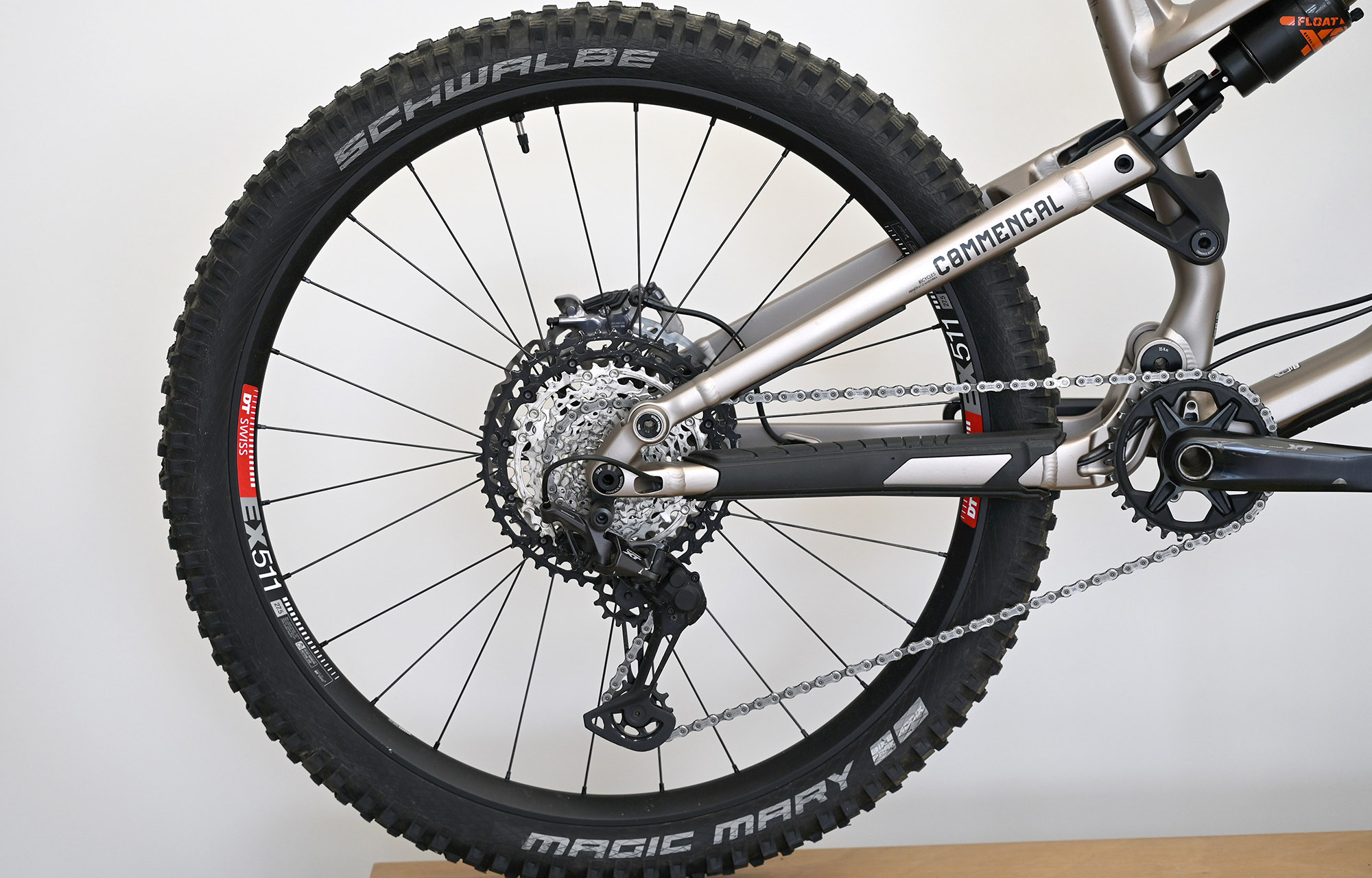

  • Cassette

    SHIMANO XT
    12s, 10-51t

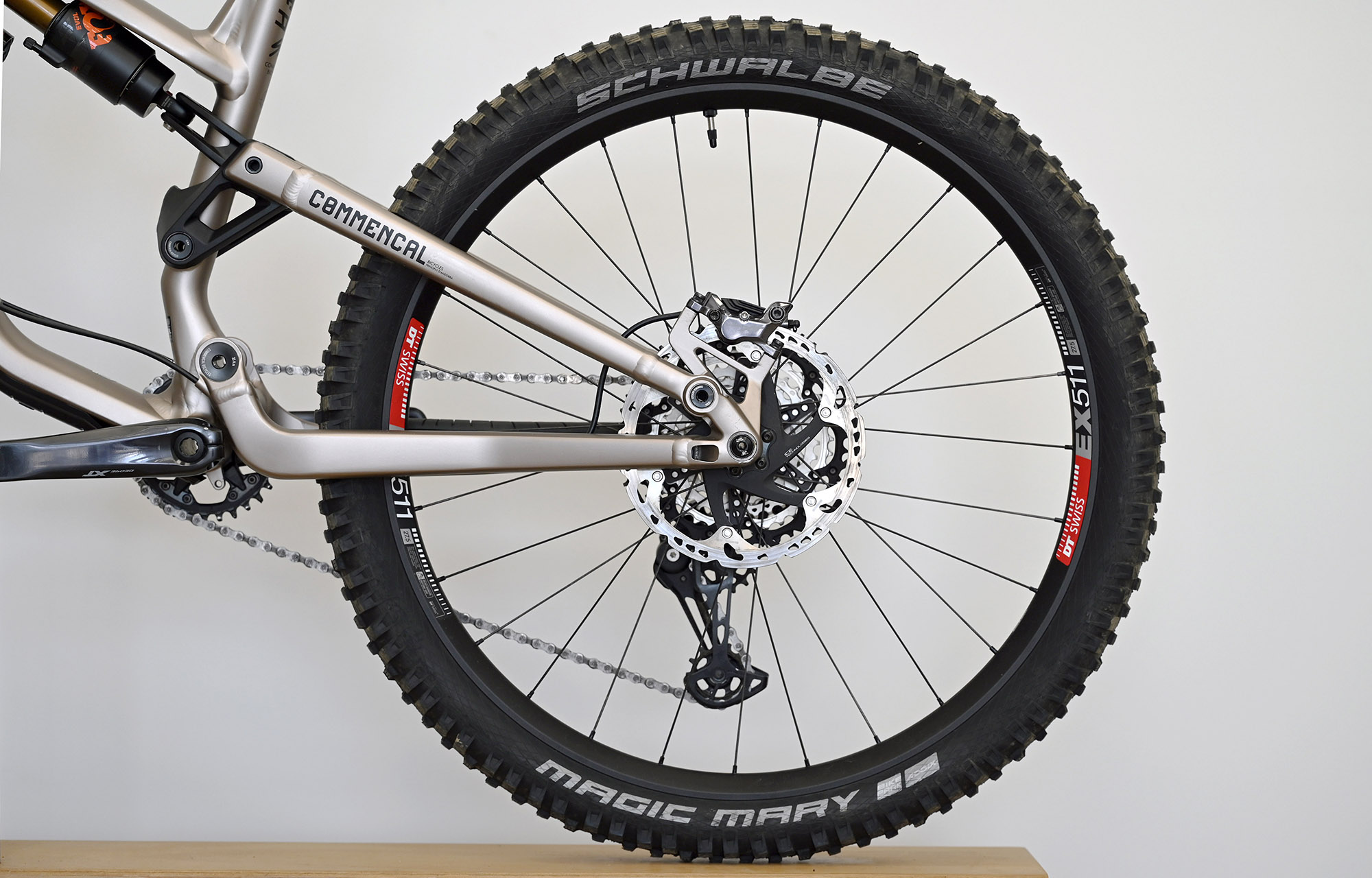

  • Rims

    Rear: DT SWISS EX511 27.5'' - Front: DT SWISS EX511 29''
    Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350
    Rear: 28h, sealed bearings, 12 x 148 mm, MicroSpline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    DT SWISS Competition
    Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
    Rear: 27.5" x 2.4", Super Trail, Addix Soft, Tubeless Easy  - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy

  • Seat post

    FOX Transfer Factory
    31.6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L and 200 mm on XL, 1x lever + seat tube adaptor to 34.9 mm

  • Saddle

    FIZIK Terra Alpaca X5
    145 mm width, S-alloy rails

  • Weight

    15,9 kg / 35.05 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Champagne
    Matte Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, FOX 38 Fender
    *    Please note that bike specs are subject to change without prior notice
