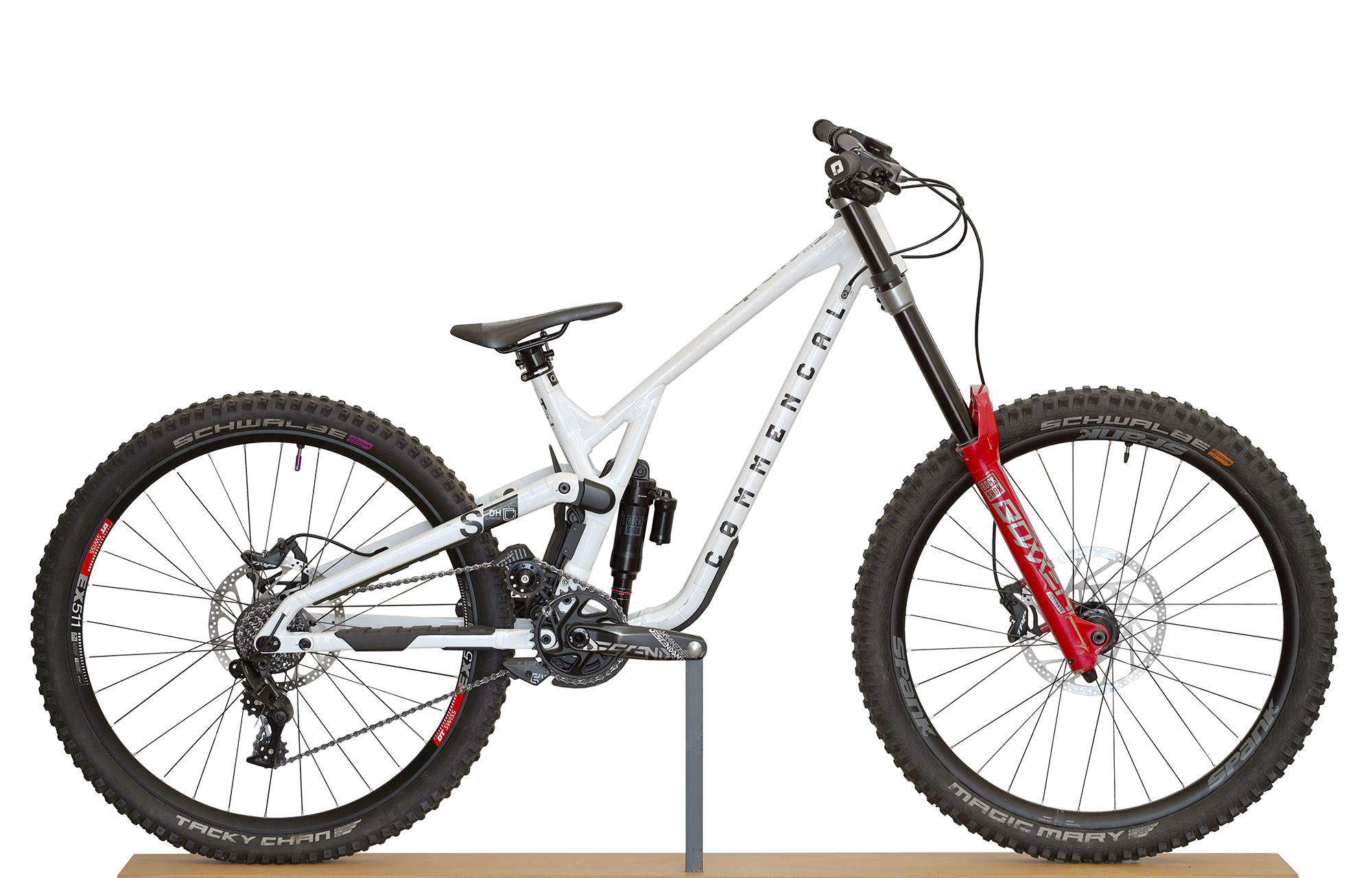

COMMENCAL SUPREME DH V5 XS PURE WHITE (23170900)

Price reduced from NZ$ 8,608.69 excl. GST to NZ$ 6,869.56 excl. GST -20%
id/sku : OCNZ0031
Availability: This Item is currently not available. null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
- DESCRIPTION -

This bike have only been ridden 2 times, ex-demo bike.

- THE WORKSHOP NOTE -

- Bike as good as new

Please note that this bike is guaranteed as new!
Enjoy!

Our bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and Refurbed, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our Refurbed come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our Refurbed bikes and our new bikes are scratches and paint chips caused by normal use.
Components and accessories may exceptionally differ from those shown in the specifications : contractual pictures.

Don't hesitate to contact us for more details.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Frame DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    4,2 kg / 9,25 lb (without accessories)

  • Rear travel

    220 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 8 mm / 30 x 8 mm

  • Recommended/max. fork height

    612 mm / 620 mm

  • Headset type

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    157 x 12 mm

  • Flip Chip
    Front / Up
  • Wheel Base Length
    Centered
  • Bridge
    XS & S : Thin - M & L : Medium - XL : Thick
- SPECIFICATIONS -
  • Frame

    Supreme DH V5 27'', 220 mm travel
    27.5'', Alloy 6066, triple butted tubes, T4, T6

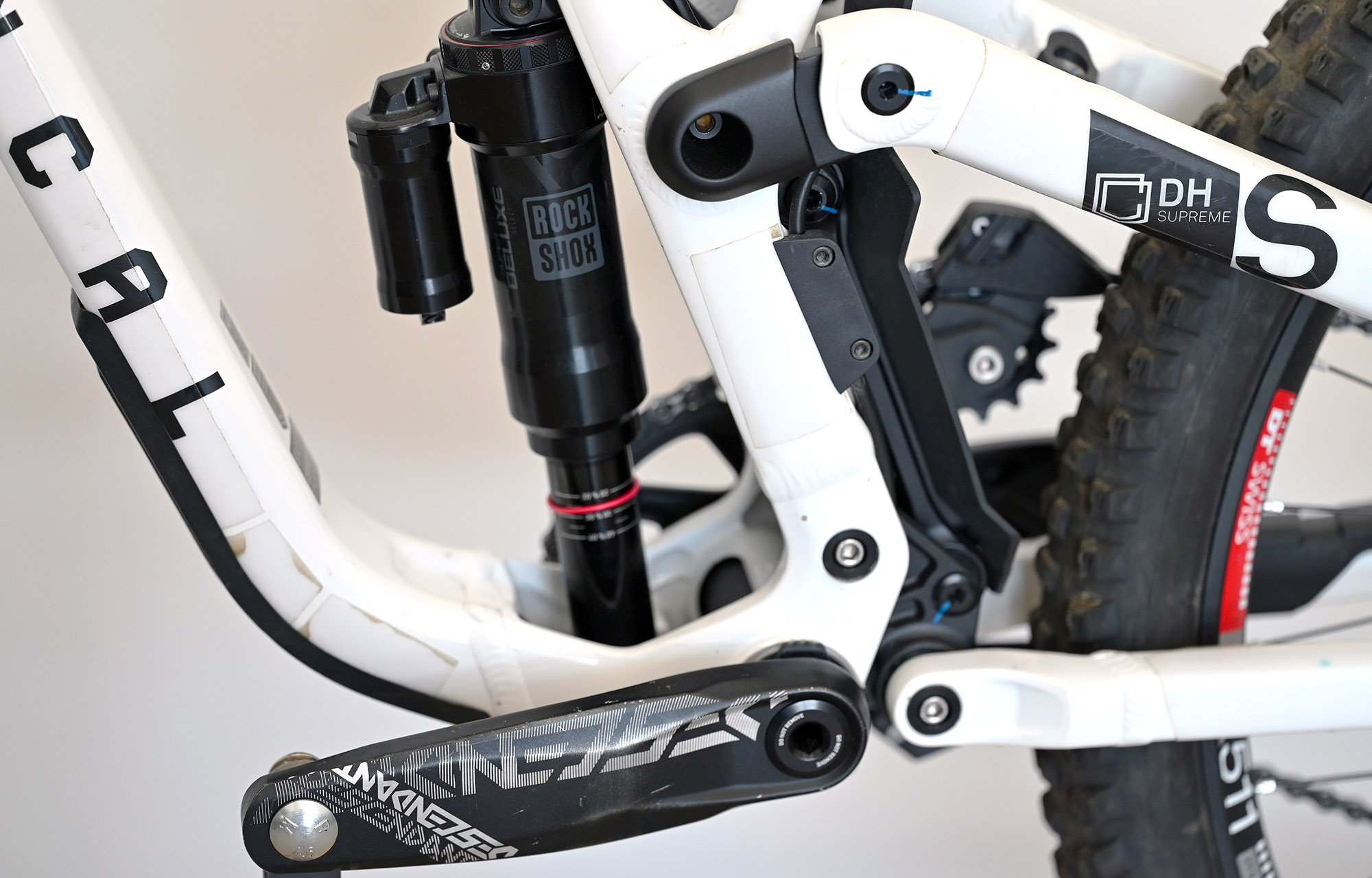

  • Shock

    ROCKSHOX SuperDeluxe Select R
    250 x 75 mm, rebound, DebonAir, 1 Token

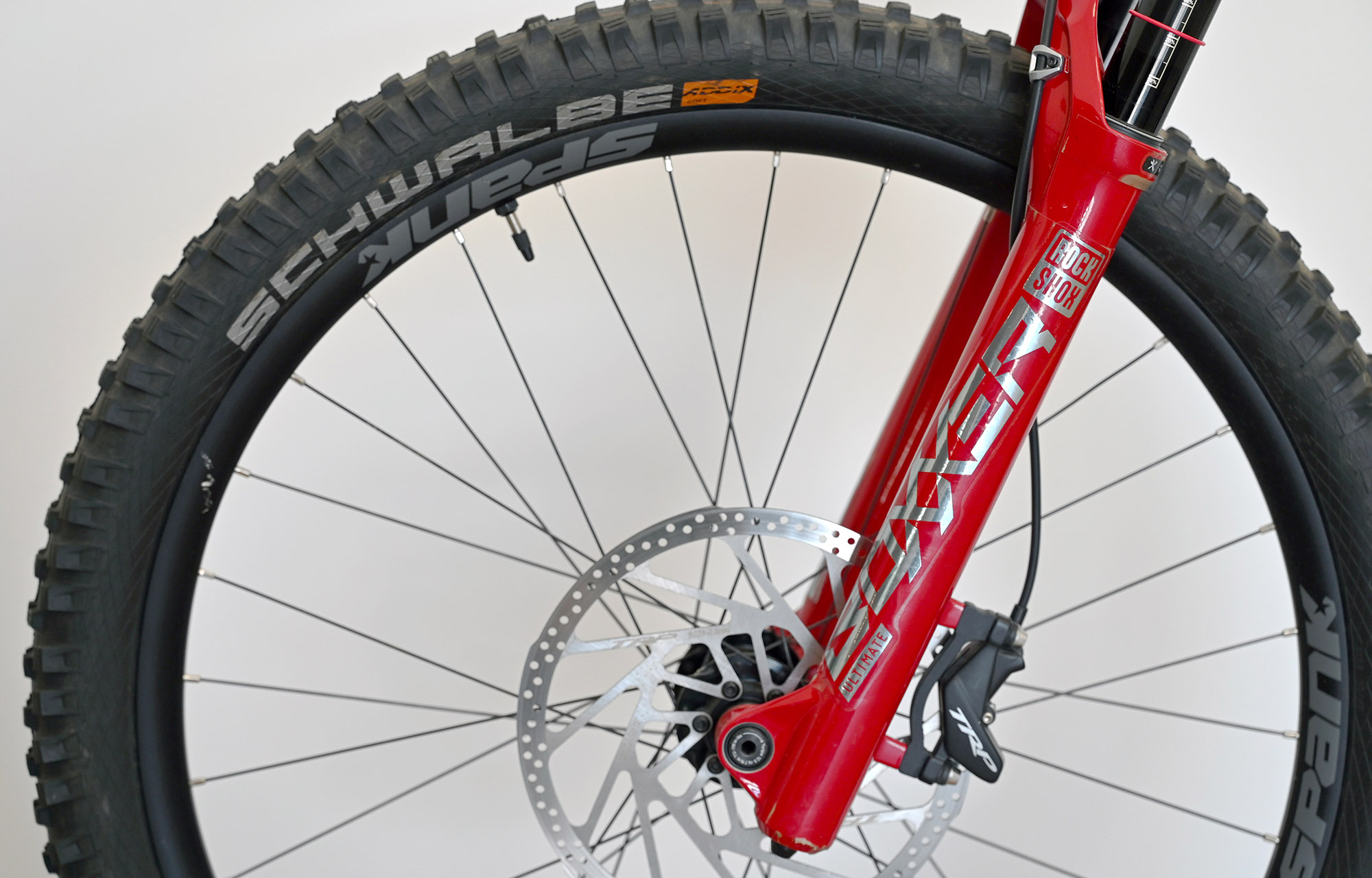

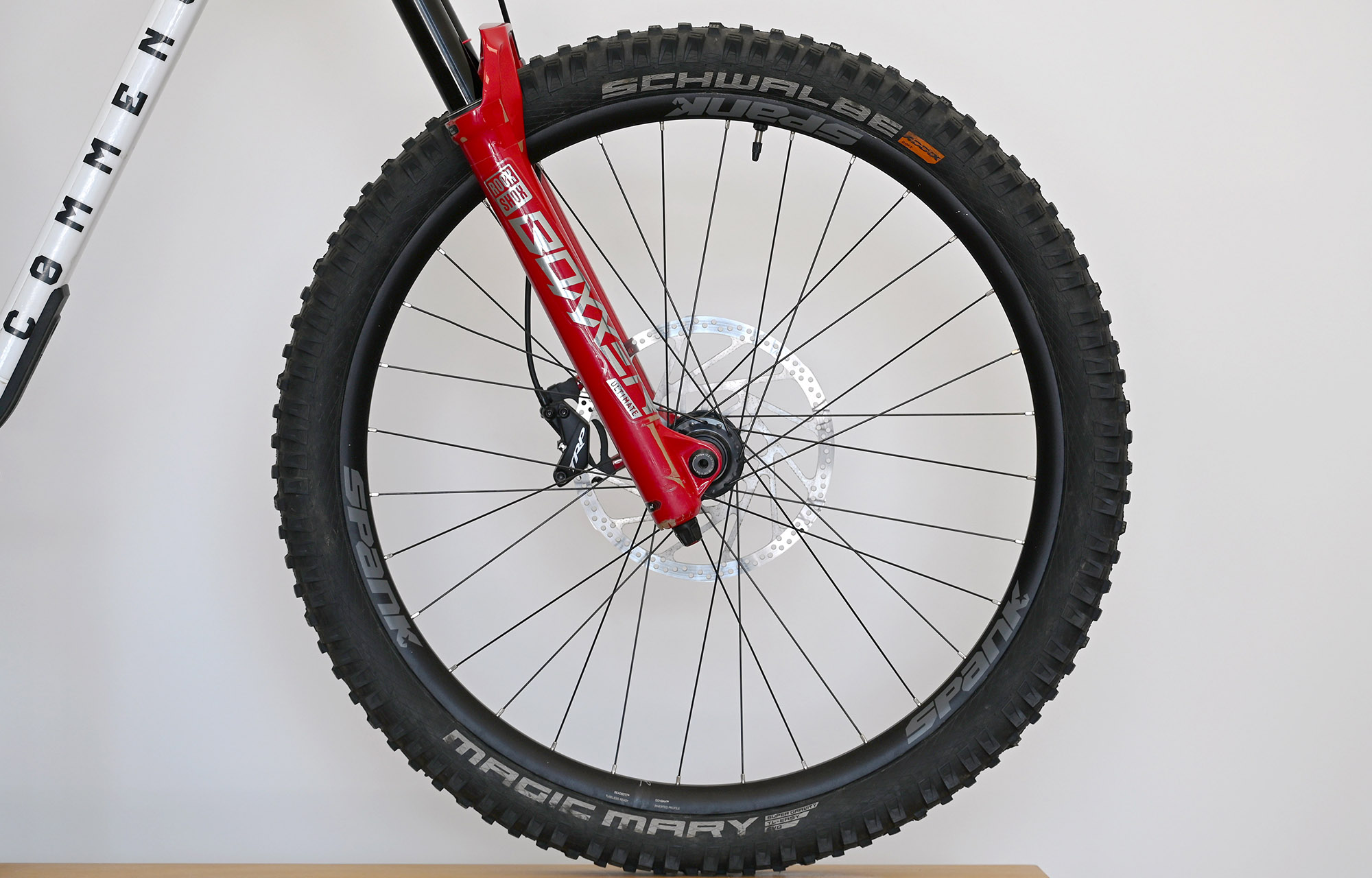

  • Fork

    ROCKSHOX Boxxer Ultimate, 200 mm travel
    27.5", Charger 2.1 damper, RC2, DebonAir, rebound, Boost (20 x 110 mm), 36 mm offset, 0 Token

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA DH 40
    40 mm extension, direct mount, 31.8 mm

  • Handlebar

    RIDE ALPHA R20
    31.8 mm, 740 mm width, 20 mm rise, Alloy 6061

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

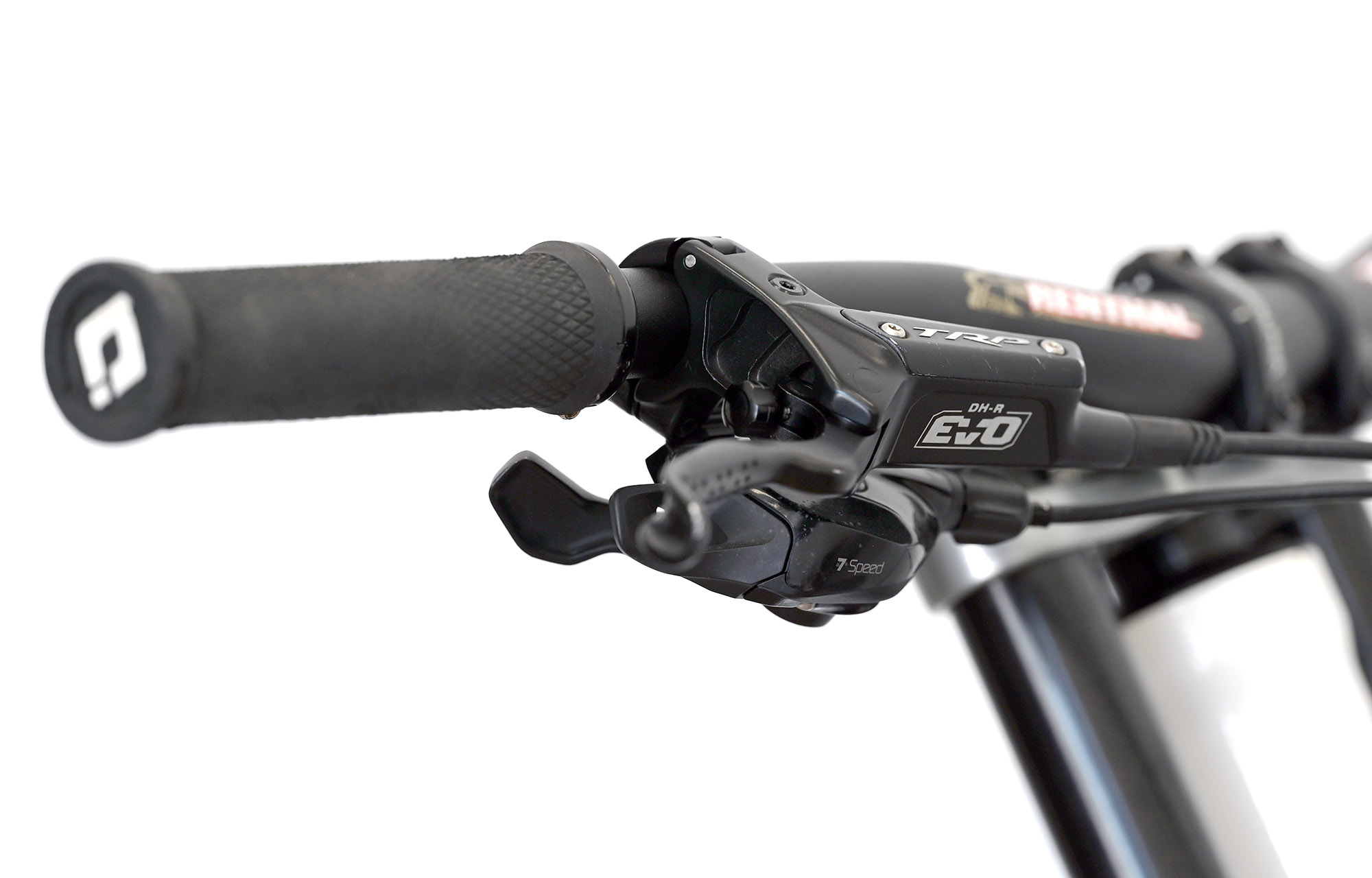

  • Brakes

    TRP DH-R Evo, 4 pistons
    Rotor: TRP R1 223/203 mm, 6-bolt, 2.3 mm width

  • Shifters

    SRAM GX DH
    7 sp

  • Chain guide

    E13 LG1 + Bottom Guide
    32-34t

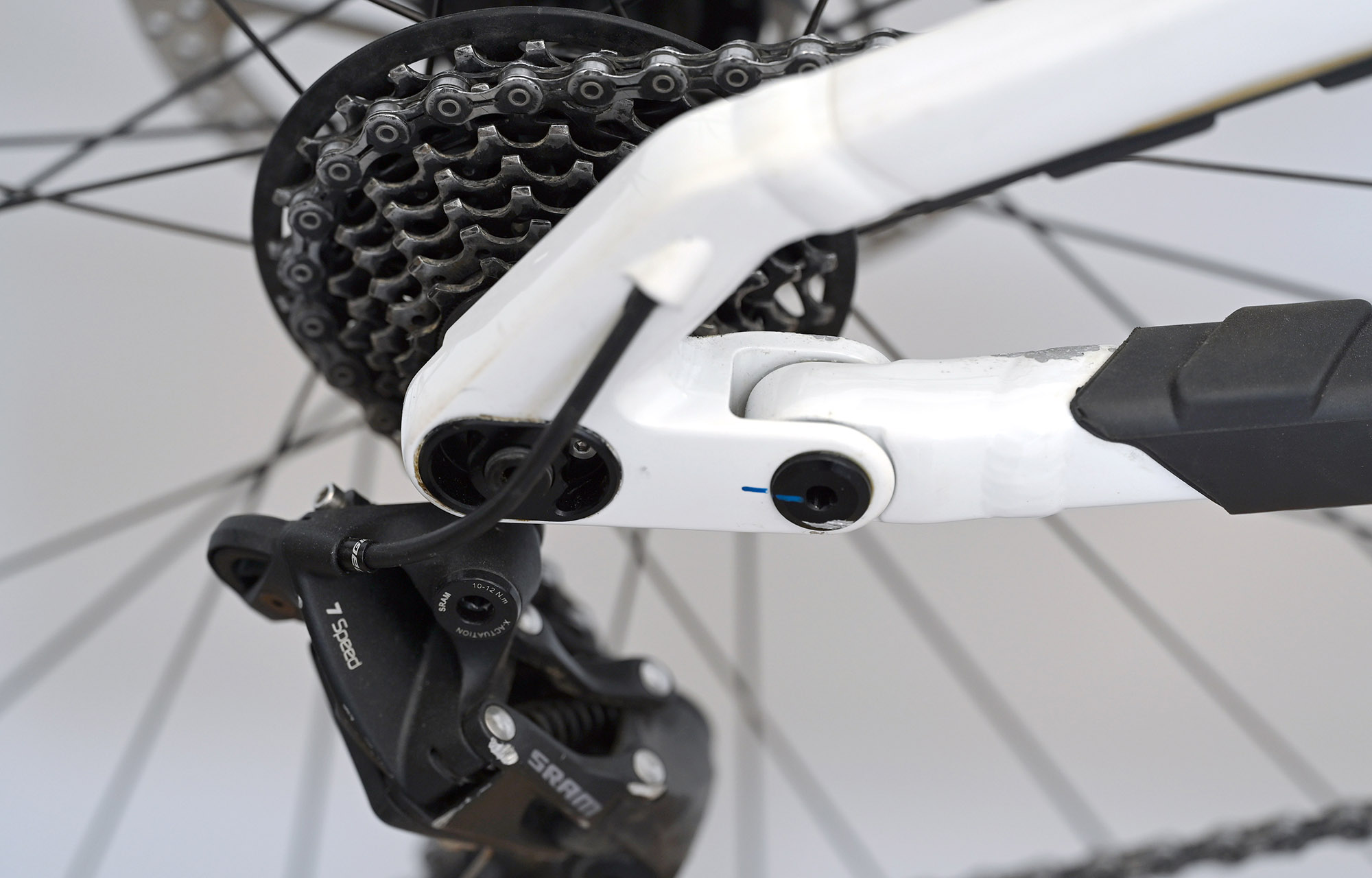

  • REAR DERAILLEUR

    SRAM GX DH
    7 sp

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    TRUVATIV Descendant DH, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant DH X-Sync, 34t

  • Chain

    KMC X11EL
    Black

  • Cassette

    SRAM GX DH
    7 sp, 11-25t

  • Rims

    SPANK Spike Race 33
    27.5'', 32h, 28 mm inner width, tubeless ready

  • Hubs

    Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
    Rear: 32h, sealed bearings, 12 x 157 mm - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

  • Spokes/nipples

    SAPIM D-Light
    J-Bend, 2.0-1.6-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai
    REAR: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - FRONT: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready

  • Seat post

    RIDE ALPHA Super Light
    31.6 mm, 250 mm, Alloy 7075

  • Saddle

    FIZIK Gravita Alpaca X5
    MG rails, flexible "wings"

  • Weight

    16,9 kg / 37.25 lb
    Average weight for XS size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Pure White
    Shiny FInish

  • Accessories

    Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, frame mudguard
    *Please note that bike specs are subject to change without prior notice.
