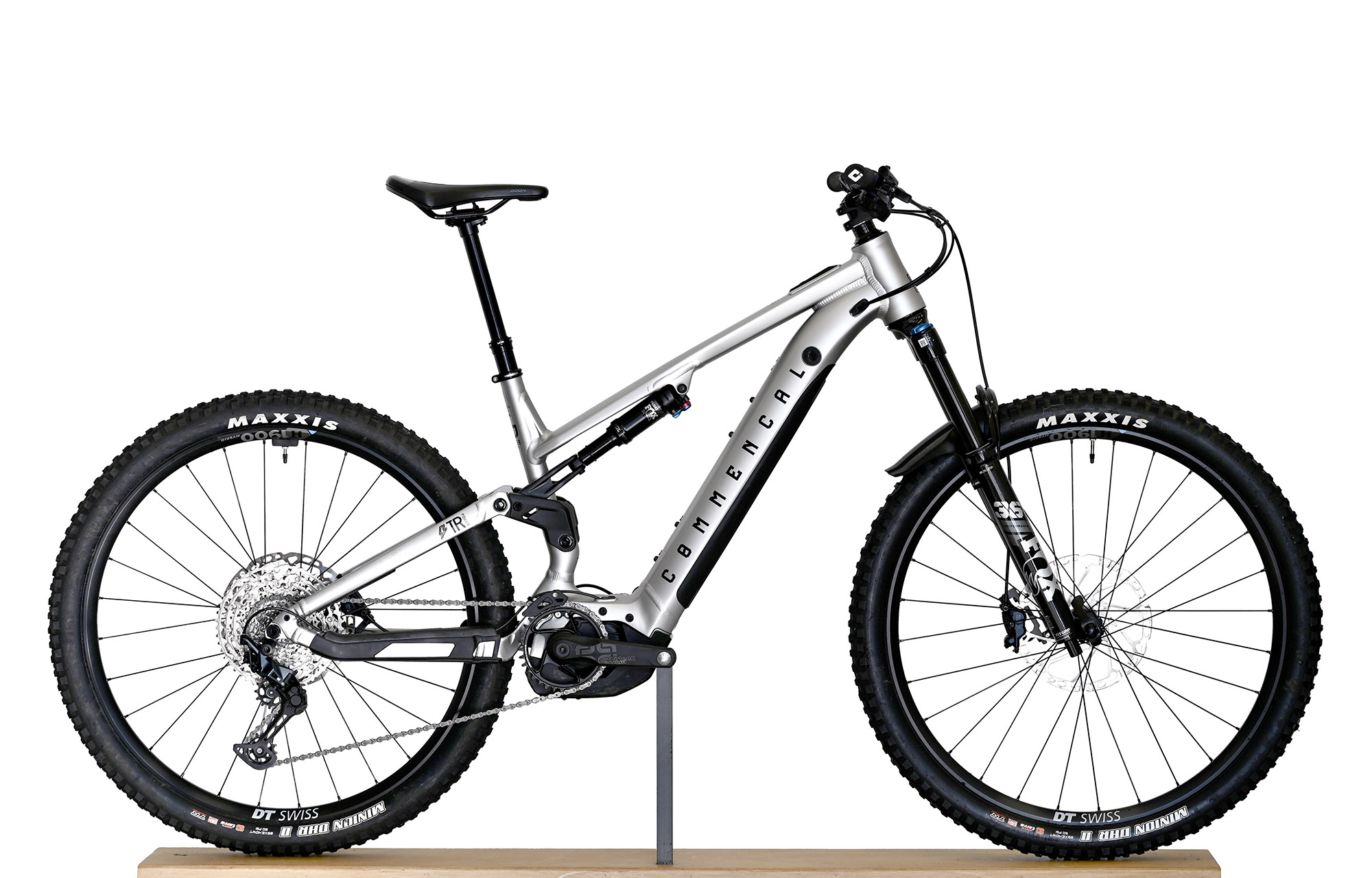

COMMENCAL META POWER TR BOSCH ESSENTIAL SILVER - L (22180203) 545km

Price reduced from NZ$ 9,826.08 excl. GST to NZ$ 6,252.17 excl. GST -36%
id/sku : OCNZ0049
Availability: In stock null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

POWERMORE 250WH RANGE EXTENDER BOSCH

The new BOSCH PowerMore 250Wh additional battery increases range by 40% on our META SX V4 / META TR V4 BOSCH and by 60% on our META SX V5 / T.E.M.P.O. BOSCH. It ensures you optimal equipment for long enduro rides.

Buy
- DESCRIPTION -

Our refurbished bikes come from a variety of fleets including:
Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage).
Each bike undergoes a thorough inspection and maintenance process:
Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced.
Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

- GENERAL -
Bike ridden 545km in very good shape, ready for a new start.

- AESTHETIC -
Scratches and paint chips, on frame.
Slight scratches on fork lowers, rear derailleur, crank arms, brakes and rims.

- MECHANICAL -
Brakes bleed, new pads.
Checked shock absorber and fork.

For more information, feel free to get in touch.
*Please note that some components and accessories may vary from what is shown in the photos or specifications.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    E-BIKE TRAIL 29''

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    - kg / - lb - With plastic accessories.

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm / NOTHING

  • Recommended/max. fork height

    566 mm / 576 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS56 / ZS66

  • Maximum tyre dimension (etrto)

    65 mm - 622

  • Disc brake standard

    PM160

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    BOSCH

  • ISCG

    Yes (BOSCH Standard)

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META POWER TR BOSCH, 140 mm
    29", Alloy 6066, triple butted tubes, T4, T6.

  • Motor

    BOSCH Performance Line CX
    Max. torque: 85N.m, 250W

  • Battery

    BOSCH PowerTube 625, 625Wh
    BOSCH 4A Charger, Compact size & lightweight

    Compatible w/Bosch PowerMore 250 for extra range

  • Display

    BOSCH System Controller
    BOSCH Mini Remote currently not available in the USA

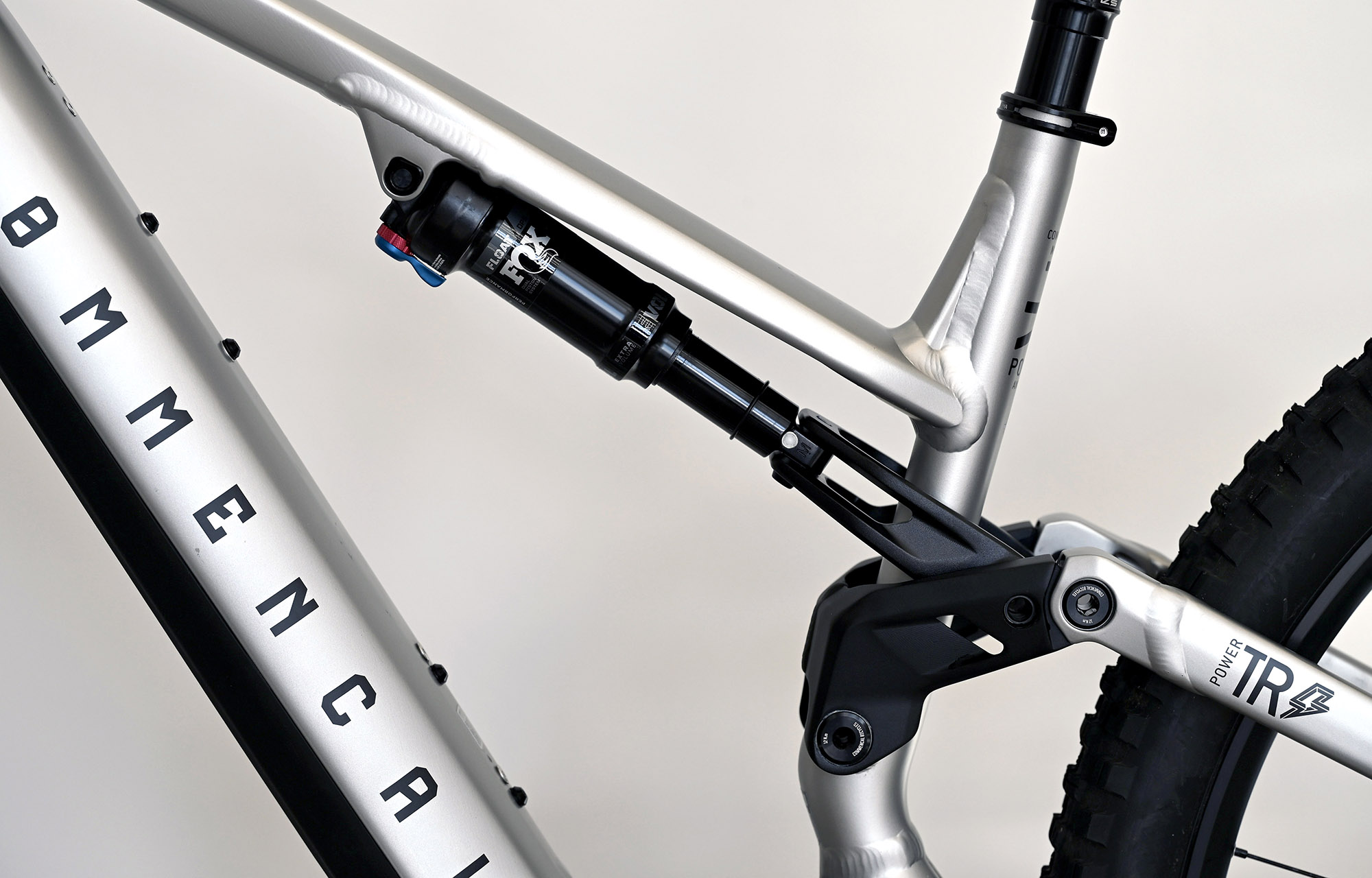

  • Shock

    FOX Float DPS Performance
    210 x 55 mm, 2-position (open /firm) lever, rebound, 0.2 spacer

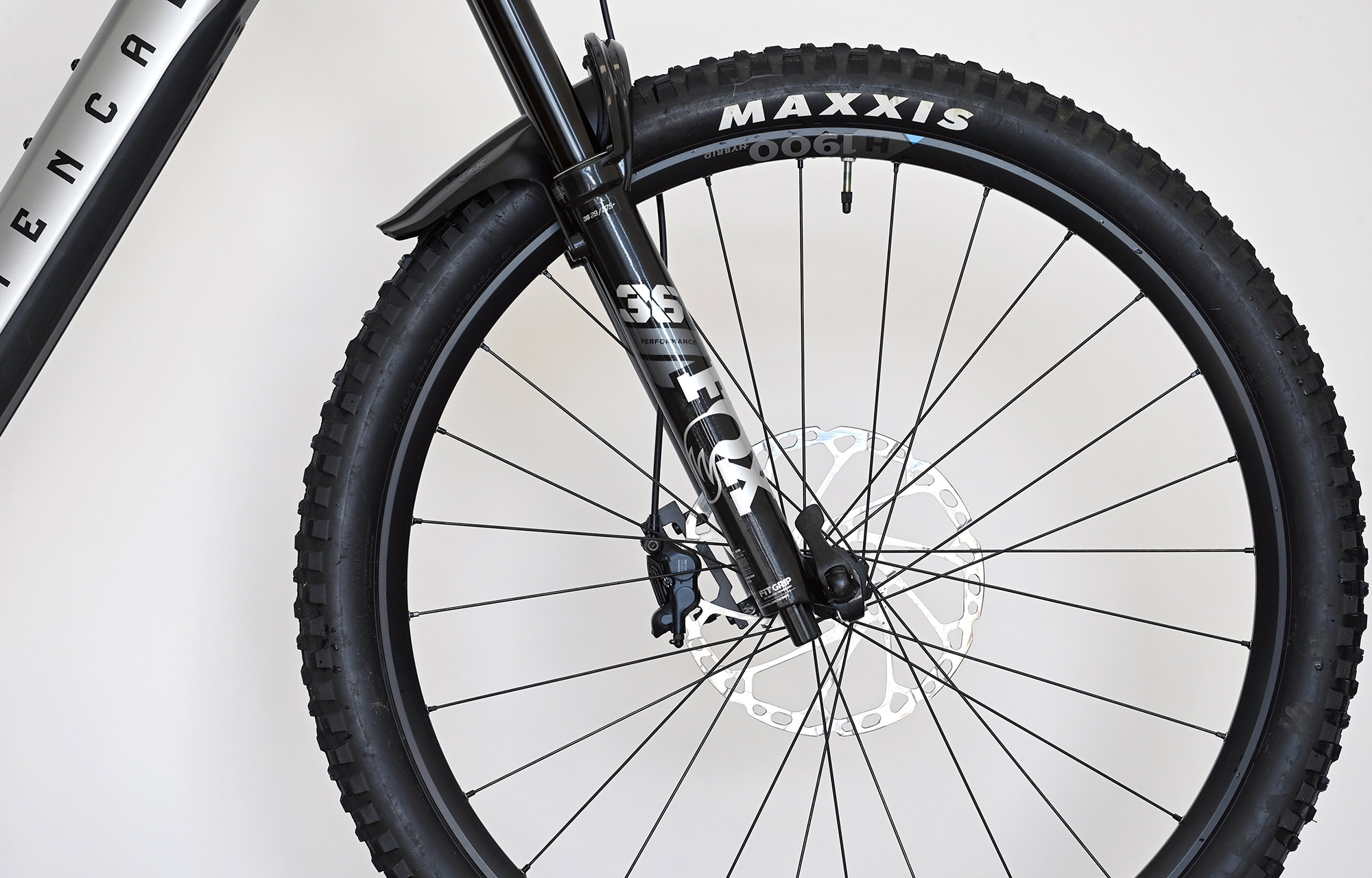

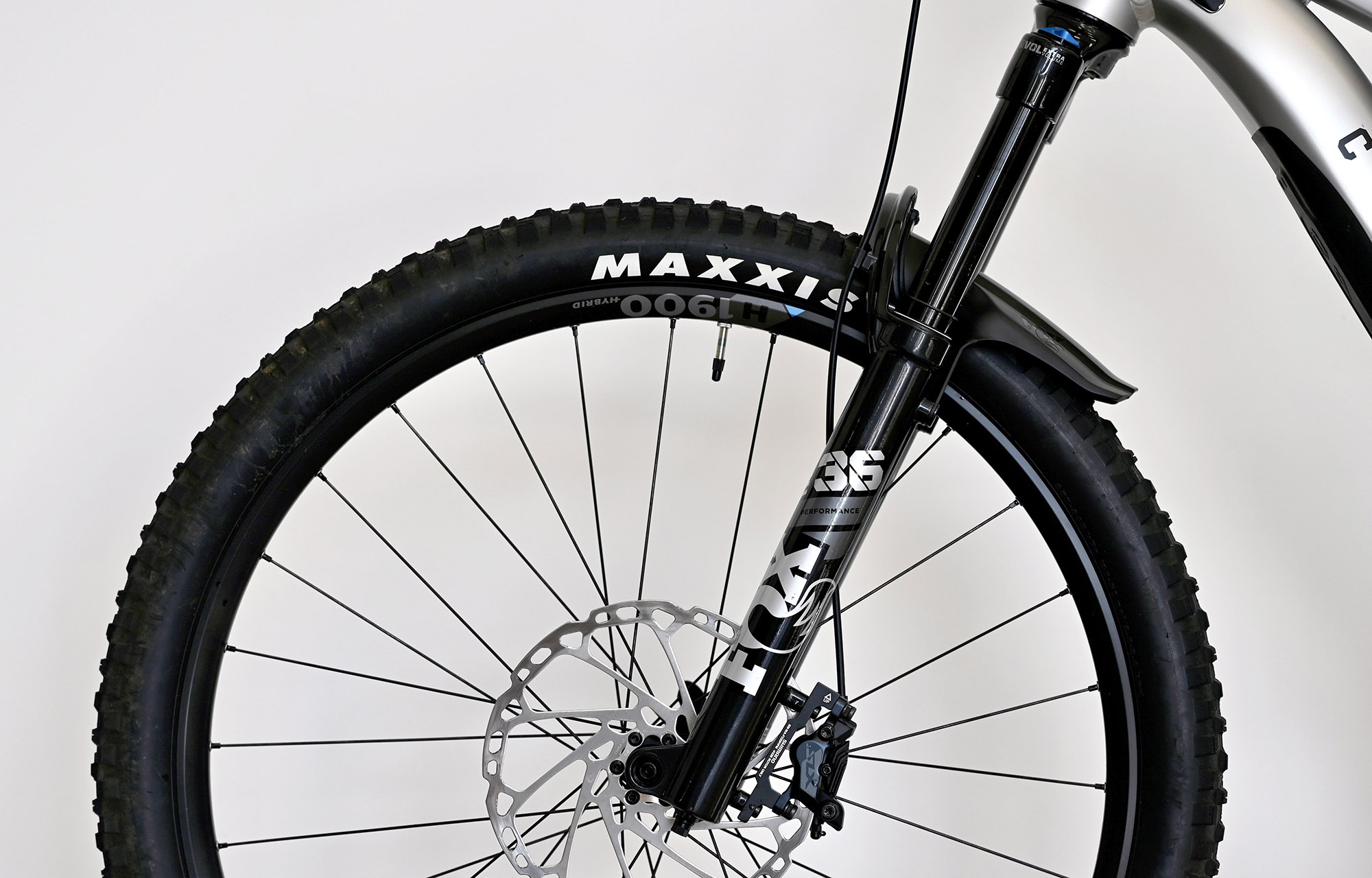

  • Fork

    FOX 36 Performance E-Bike, 150 mm travel
    29", Grip damper, 3 positions compression, LSR, Boost (15 x 110 mm), 44 mm offset, 4 spacers

  • Headset

    ACROS ZS56 / ZS66
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA 40 EXTERNAL
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
    Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
    Rotors: SHIMANO SM-RT66 220 mm, 6-bolt, bolt-on magnet

  • Shifters

    SHIMANO SLX
    12s, RapidFire Plus

  • Chain guide

    RIDE ALPHA Upper Guide
    32-34t

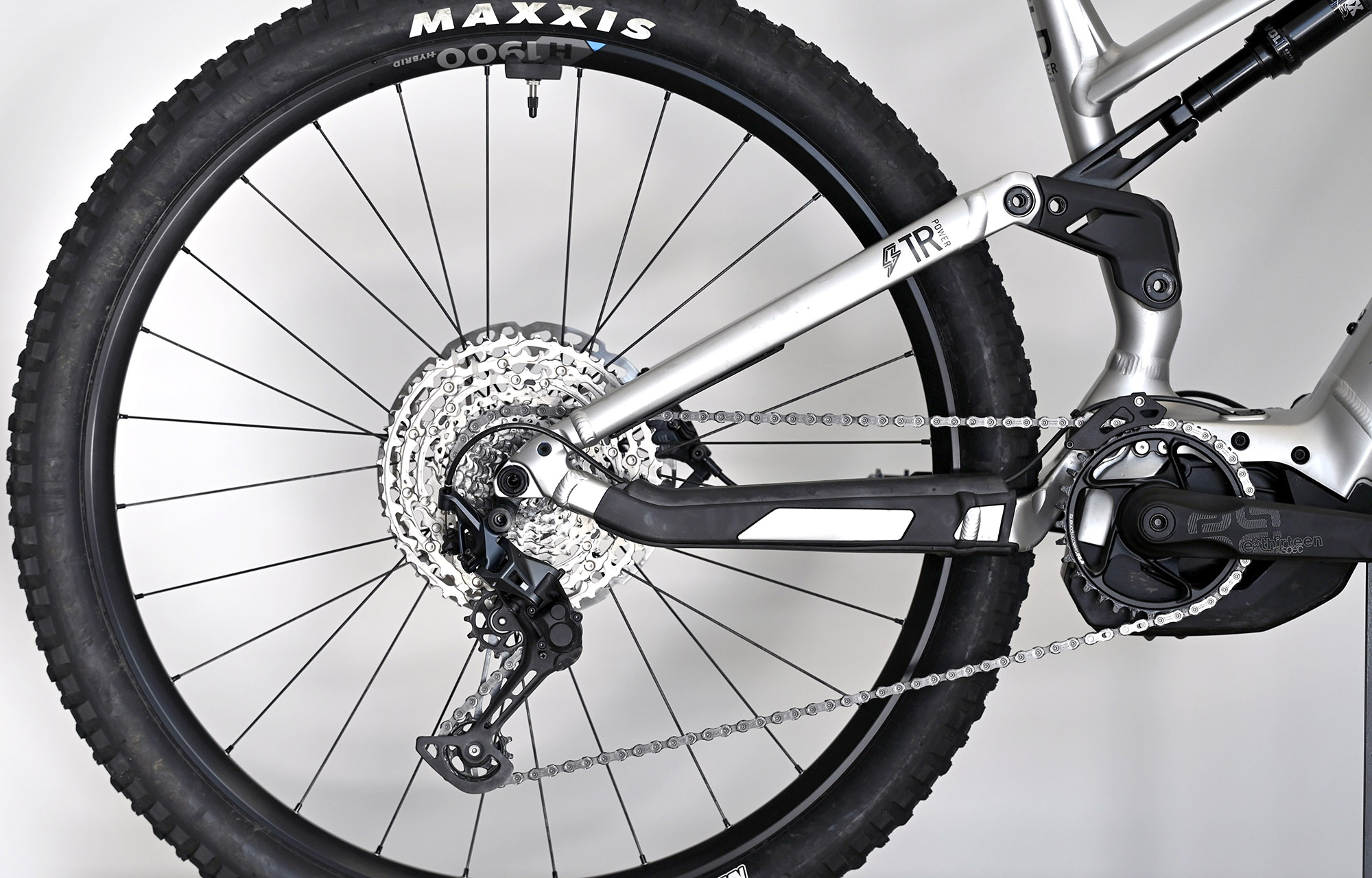

  • REAR DERAILLEUR

    SHIMANO SLX
    12s

  • Bottom bracket

    BOSCH

  • Crankset

    E13 E*Spec Plus Bosch CX, 160 mm crank arms
    Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mount

  • Chain

    SHIMANO SLX
    12s

  • Cassette

    SHIMANO DEORE 12s / 10-51
    12s, 10-51t

  • Rims

    Rear: DT SWISS H1900 Spline - Front: DT SWISS H1900 Spline
    Rear: 29'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 370 - Front: DT SWISS 370
    Rear: 28h, 12 x 148 mm, sealed bearings, 18t, e-bike specific, SHIMANO Micro Spline - Front: 28h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    DT SWISS Hybrid 1
    Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS DHR II

  • Seat post

    KS Rage I
    31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    FIZIK Terra Aidon X5
    145 mm width, S-Alloy Mobius rails

  • Weight

    24.4 kg / 53.8 lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    Yes

  • Colour

    Silver
    Matte Finish

  • Accessories

    RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
    *Actual product may differ from pictures.
    *Please note that bike specs are subject to change without prior notice.

  • Battery recycling

    Partnership with BOSCH
    The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.

    Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.


    Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
