COMMENCAL META TR V4 ORIGIN HERITAGE GREEN

Price reduced from £2,950.00 to £1,800.00 -39%
id/sku : 22METATRO
Availability: Select the model for availability null
Your size is not available? visit our european warehouse
c
- DESCRIPTION -

CHECK OUT THE META TR V4

The META TR V4 is our vision of trail riding. It is designed to make you really want to ride. Most at home when pedalling, it is even more at home when you let go of the brakes downhill, where it turns into a real mini-enduro. Well balanced, it excels during technical fast descents thanks to the aggressive kinematic/geometry combo. Rider positioning when climbing is ideal for long adventures. Flow trails, enduro, bike park, climbing, descents: nothing stands in its way.

META TR V4 - META SX V4: WHICH ONE TO CHOOSE?


COMMENCAL META TR V4 ORIGIN HERITAGE GREEN

The META TR ORIGIN meets the needs of riders who want a ready-to-ride reliable and efficient bike.

On the suspension side we chose the ROCKSHOX 35 Silver R with 150mm travel. It stands up to small impacts but also the most violent and provides the comfort necessary to filter out vibrations.

The ROCKSHOX Deluxe Select shock handles the travel on the back. It offers easy adjustments plus comfort and grip both uphill and downhill, thanks to a setting adapted to the kinematics of the frame.

Reliable and with a clean feel, the 4-piston SRAM Guide T brakes combined with 200mm discs will guarantee confidence when facing any slope.

The SRAM SX Eagle 12-speed drivetrain features a wide 11-50t gear ratio. An example of reliability and precision to tackle anything that comes your way.

The E13 LG1 EN rims with their wide reinforced profile are particularly reliable. Assembled on reinforced hubs, they are perfect for the META TR.

The MAXXIS Minion DHR II and Dissector tyres with EXO casing combine excellent lateral grip and performance.

*Please note that bike specs are subject to change without prior notice.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META TR 29, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Deluxe Select
    210 x 55 mm, R damper, DebonAir Linear, rebound, 1 Token neg. 4 Tokens pos

  • Fork

    ROCKSHOX 35 Silver R, 150 mm travel
    29", Coil, rebound, Boost (15 x 110 mm), 44 mm offset

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    RIDE ALPHA DH
    Ultra-soft compound, single clamp, black

  • Brakes

    SRAM Guide T, 4 pistons, MatchMaker compatible
    Rotors: SRAM G2 CleanSweep 200 mm, 6-bolt

  • Shifters

    SRAM SX Eagle
    12s

  • REAR DERAILLEUR

    SRAM SX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide

  • Chain

    SRAM NX Eagle
    12s

  • Cassette

    SRAM PG-1210
    12s, 11-50t

  • Rims

    E13 LG1 EN Base
    29'', 32h, 30 mm inner width

  • Hubs

    Rear: FORMULA DCL-348A - Front: FORMULA DC-711
    Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    SAPIM Race
    J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II
    Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready

  • Seat post

    RIDE ALPHA
    34,9 mm, 400 mm on S/M, 450 mm on L/X

  • Saddle

    SDG Bel Air V3
    140 mm width, Steel Rails

  • Weight

    15,8 kg / 34.83 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Heritage Green
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

    *Please note that bike specs are subject to change without prior notice.

- SIZES -

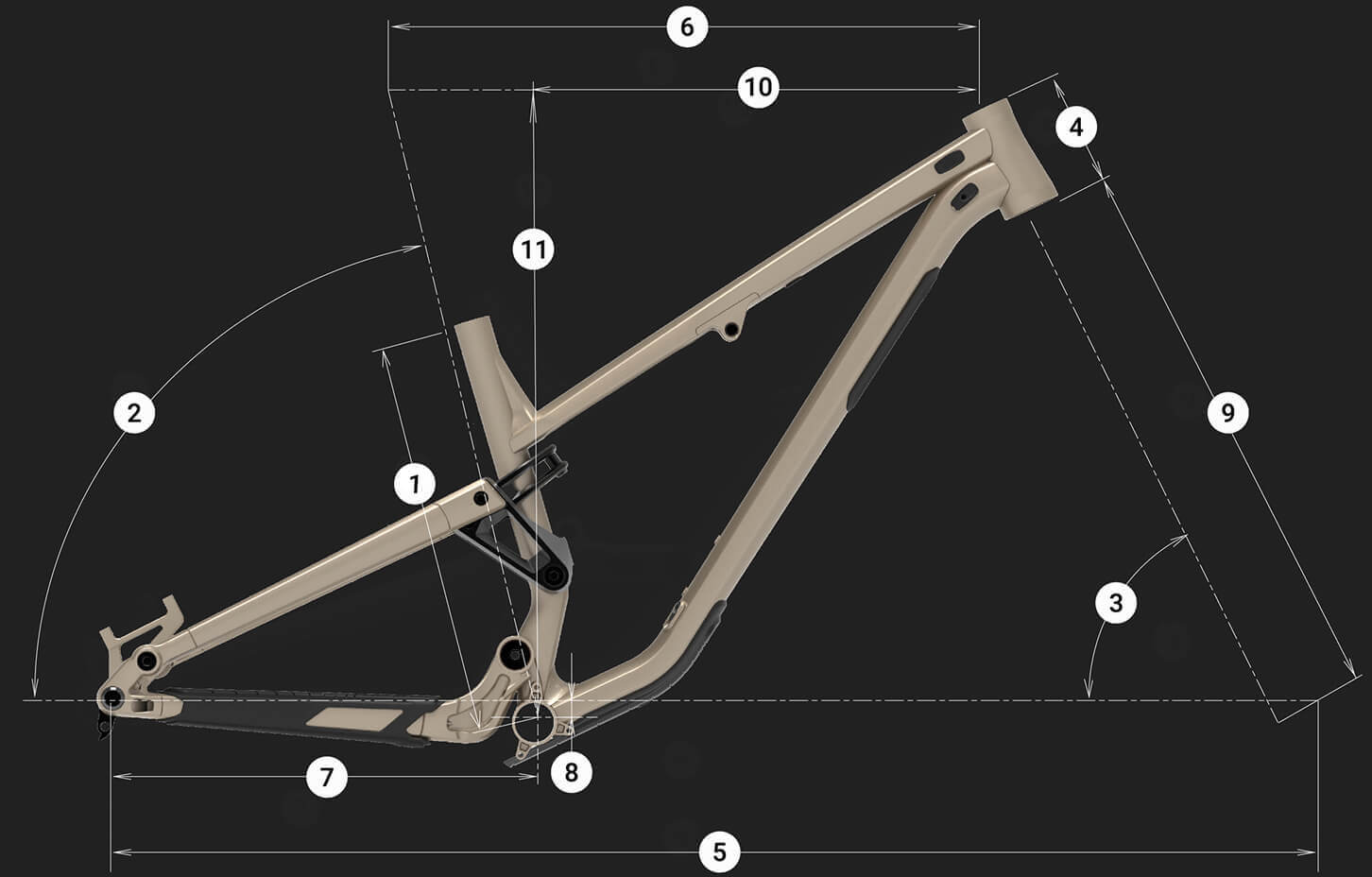

- GEOMETRY -
SIZES
