COMMENCAL META TR V4 ORIGIN HERITAGE GREEN image number null

ALL MOUNTAIN

150-160mm

140mm

29" / 29"

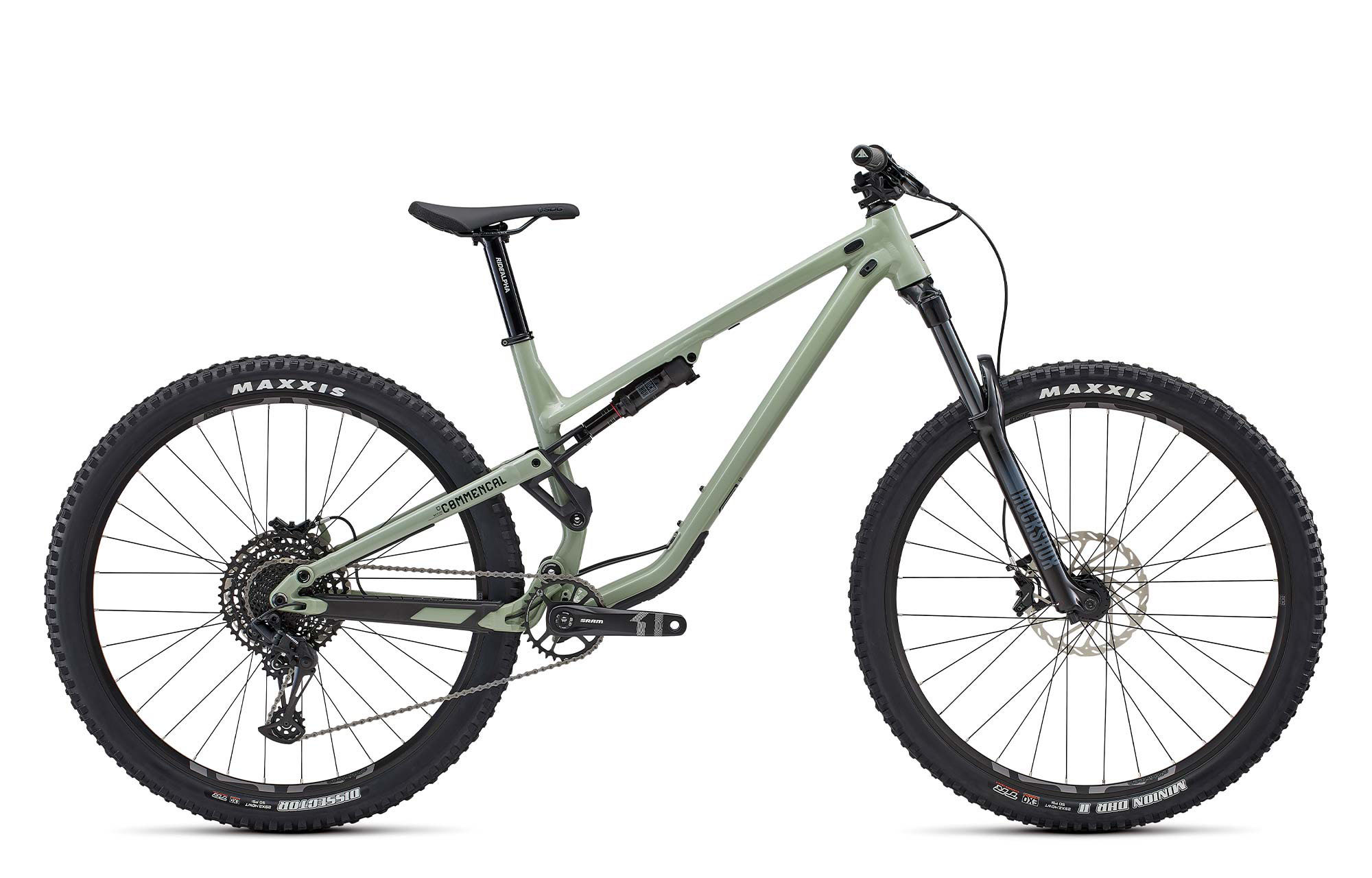

COMMENCAL META TR V4 ORIGIN HERITAGE GREEN

The META TR V4 represents our take on trail riding. Designed to make you want to ride, it’s a bike that loves the climbs and truly comes alive when you let go of the brakes on the descents, performing like a mini enduro.

ALL MOUNTAIN

150-160mm

140mm

29" / 29"

LEARN MORE ABOUT THE META TR V4
Price reduced from £2,950.00 excl. VAT to £1,900.00 excl. VAT -36%
id/sku : 22METATROL
  SIZE GUIDE
Availability: In stock null
COMMENCAL META TR V4 ORIGIN HERITAGE GREEN image cover number large 0
COMMENCAL META TR V4 ORIGIN HERITAGE GREEN image cover number large 1
COMMENCAL META TR V4 ORIGIN HERITAGE GREEN image cover number large 2

specifications

  • Frame

    META TR 29, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Deluxe Select
    210 x 55 mm, R damper, DebonAir Linear, rebound, 1 Token neg. 4 Tokens pos

  • Fork

    ROCKSHOX 35 Silver R, 150 mm travel
    29", Coil, rebound, Boost (15 x 110 mm), 44 mm offset

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    RIDE ALPHA DH
    Ultra-soft compound, single clamp, black

  • Brakes

    SRAM Guide T, 4 pistons, MatchMaker compatible
    Rotors: SRAM G2 CleanSweep 200 mm, 6-bolt

  • Shifters

    SRAM SX Eagle
    12s

  • REAR DERAILLEUR

    SRAM SX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide

  • Chain

    SRAM NX Eagle
    12s

  • Cassette

    SRAM PG-1210
    12s, 11-50t

  • Rims

    E13 LG1 EN Base
    29'', 32h, 30 mm inner width

  • Hubs

    Rear: FORMULA DCL-348A - Front: FORMULA DC-711
    Rear: 32h, 12 x 148 mm, sealed bearings, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    SAPIM Race
    J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II
    Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready

  • Seat post

    RIDE ALPHA
    34,9 mm, 400 mm on S/M, 450 mm on L/X

  • Saddle

    SDG Bel Air V3
    140 mm width, Steel Rails

  • Weight

    15,8 kg / 34.83 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Heritage Green
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

    *Please note that bike specs are subject to change without prior notice.

Bike specifications are subject to change without notice.

Technical informations

  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

  • Bicycle type

    All Mountain

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140mm

  • Shock length/stroke

    210x55mm

  • Recommended SAG

    26-30% / 14-17mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Included - 20x10mm

  • Recommended/max. fork height

    551mm / 571mm

  • Headset type

    ZS44 / ZS56

  • ICR compatible

    No

  • Wheels size

    29’’ - 29’’

  • Max. rear tyre dimension - ETRTO

    65mm - Ø622mm

  • rear brake mounting type

    Postmount 200mm

  • Rear brake rotor max. size

    220mm

  • Seatpost/seat clamp diameter

    34,9mm / 38,5mm

  • Seatpost insertion max.

    S : 240mm / M : 280mm / L : 300mm / XL : 320mm

  • Bottom bracket type

    Press Fit BB 92mm

  • Chain guide

    ISCG 05

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.75mm

  • UDH hanger

    No

  • shock anchor adjustment

    2 positions

WHICH META V4 TO CHOOSE?

Discovering new trails with the META TR V4 or having fun in the bike park with the META SX V4 has never been easier. The quintessence of our META V4 platform, they are already proven and benefit from all our experience with the CONTACT SYSTEM suspension. Each excel in their respective areas.

Check out the differences

Geometry

SIZE
SLow / High
MLow / High
LLow / High
XLLow / High
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
78,6° / 79°
78,6° / 79°
78,6° / 79°
78,6° / 79°
3 - HEAD TUBE ANGLE
64,5° / 65°
64,5° / 65°
64,5° / 65°
64,5° / 65°
4 - HEAD TUBE LENGTH
110
115
120
125
5 - WHEELBASE
1203 / 1202
1230 / 1229
1257 / 1256
1284 / 1283
6 - TOP TUBE LENGTH
566 / 565
592 / 591
618 / 617
644 / 643
7 - CHAIN STAY LENGTH
435 / 434
435 / 434
435 / 434
435 / 434
8 - BOTTOM BRACKET HEIGHT
-33 / -29
-33 / -29
-33 / -29
-33 / -29
9 - FORK LENGTH
561
561
561
561
10 - REACH
440 / 444
465 / 469
490 / 494
515 / 519
11 - STACK
626 / 623
630 / 627
634 / 631
638 / 635

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
