Technical features

Bicycle type

Gravel
Frame material

AL 6069 T4, T6
Frame weight

2.8 kg / 6.17 lb w/ fork
Recommended/max. fork height

410mm
Headset type

IS52 / IS52

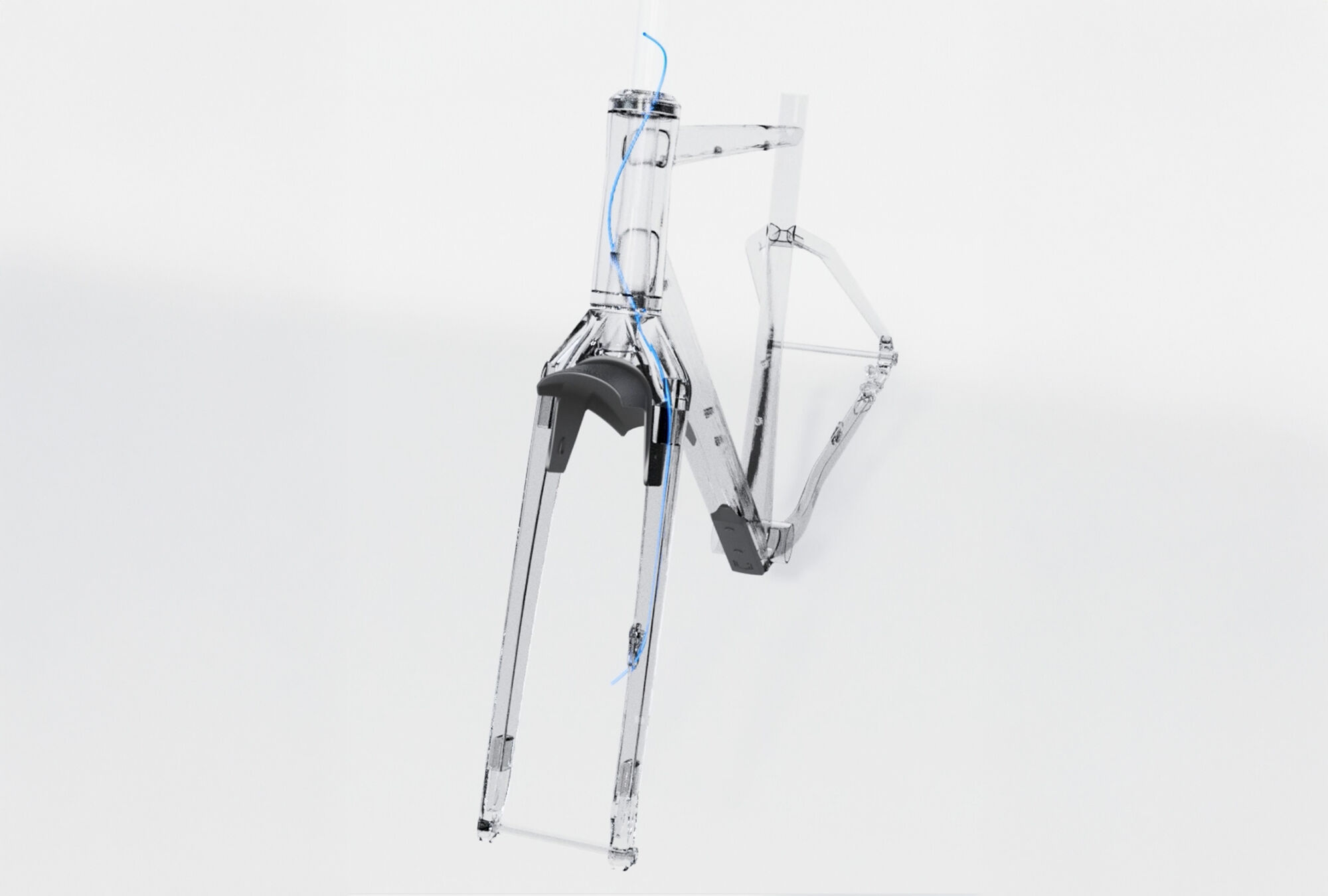

ICR compatible

Yes
Wheels size

700C (S-M-L-XL)
650B (XS)
Max. tyre dimension - ETRTO

47mm - Ø622mm
rear brake mounting type

Flatmount 140mm
Rear brake rotor max. size

180mm
Seatpost/seat clamp diameter

27,2mm - 30,6mm
Seatpost insertion max.

XS : 240mm / S : 260mm / M : 280mm / L : 300mm / XL : 314mm
Bottom bracket type

Press Fit BB 86,5mm
Chain line

47,5
Rear Hub dimension

142x12mm
Rear Axle dimension

Maxle standard, 175mm, M12, P1.0mm
UDH hanger

No

Geometry

SIZE

1 - SEAT TUBE LENGTH

460

480

500

520

540

2 - VIRTUAL SEAT TUBE ANGLE

74°

73,9°

73,8°

3 - HEAD TUBE ANGLE

70,5°

70,8°

71°

71,2°

71,4°

4 - HEAD TUBE LENGTH

135

145

155

170

185

5 - WHEEL BASE

1010

1035

1056,5

1079,5

1107,4

6 - TOP TUBE LENGTH

522,3

547

570,3

595,5

625

7 - CHAIN STAY LENGTH

420

425

8 - BOTTOM BRACKET HEIGHT

-65

-70

9 - FORK LENGTH

410

10 - FORK OFFSET

11 - REACH

360

380

400

420

445

12 - STACK

564

580

590

605

620

13 - STANDOVER HEIGHT

739

749,6

767,4

774,4

800

14 - SEAT POST HEIGHT

650

690

740

790

830

All lengths in millimeters.
The saddle height (see 14 on diagram) can be lowered by 20mm.
