Technical features

  • Bicycle type

    City

  • Frame material

    AL 6061 T4, T6

  • Frame weight

    NC

  • Recommended/max. fork height

    410mm

  • Headset type

    ZS44 / ZS56

  • ICR compatible

    No

  • Wheels size

    700C

  • Max. tyre dimension - ETRTO

    47mm - Ø622mm

  • rear brake mounting type

    Flatmount 160mm

  • Rear brake rotor max. size

    160mm

  • Seatpost/seat clamp diameter

    27,2mm - 30,6mm

  • Seatpost insertion max.

    S : 300mm / M : 340mm / L : 360mm / XL : 386mm

  • Bottom bracket type

    BSA 68mm

  • Chain line

    47,5

  • Rear Hub dimension

    142x12mm

  • Rear axle dimension

    Maxle standard, 170mm, M12, P1.75mm

  • UDH hanger

    No

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
510
530
550
570
2 - SEAT TUBE ANGLE
73,5°
73,5°
73,5°
73,5°
3 - HEAD TUBE ANGLE
71,5°
71,5°
71,5°
71,5°
4 - HEAD TUBE LENGTH
160
165
170
175
5 - WHEELBASE
1010
1036
1066
1101
6 - TOP TUBE LENGTH
559
579
599
634
7 - CHAIN STAY LENGTH
425
425
425
425
8 - BOTTOM BRACKET HEIGHT
-65
-65
-65
-65
9 - FORK LENGTH
400
400
400
400
10 - FORK OFFSET
45
45
45
45
11 - REACH
386
405
423
457
12 - STACK
584
589
593
598

All lengths in millimeters.

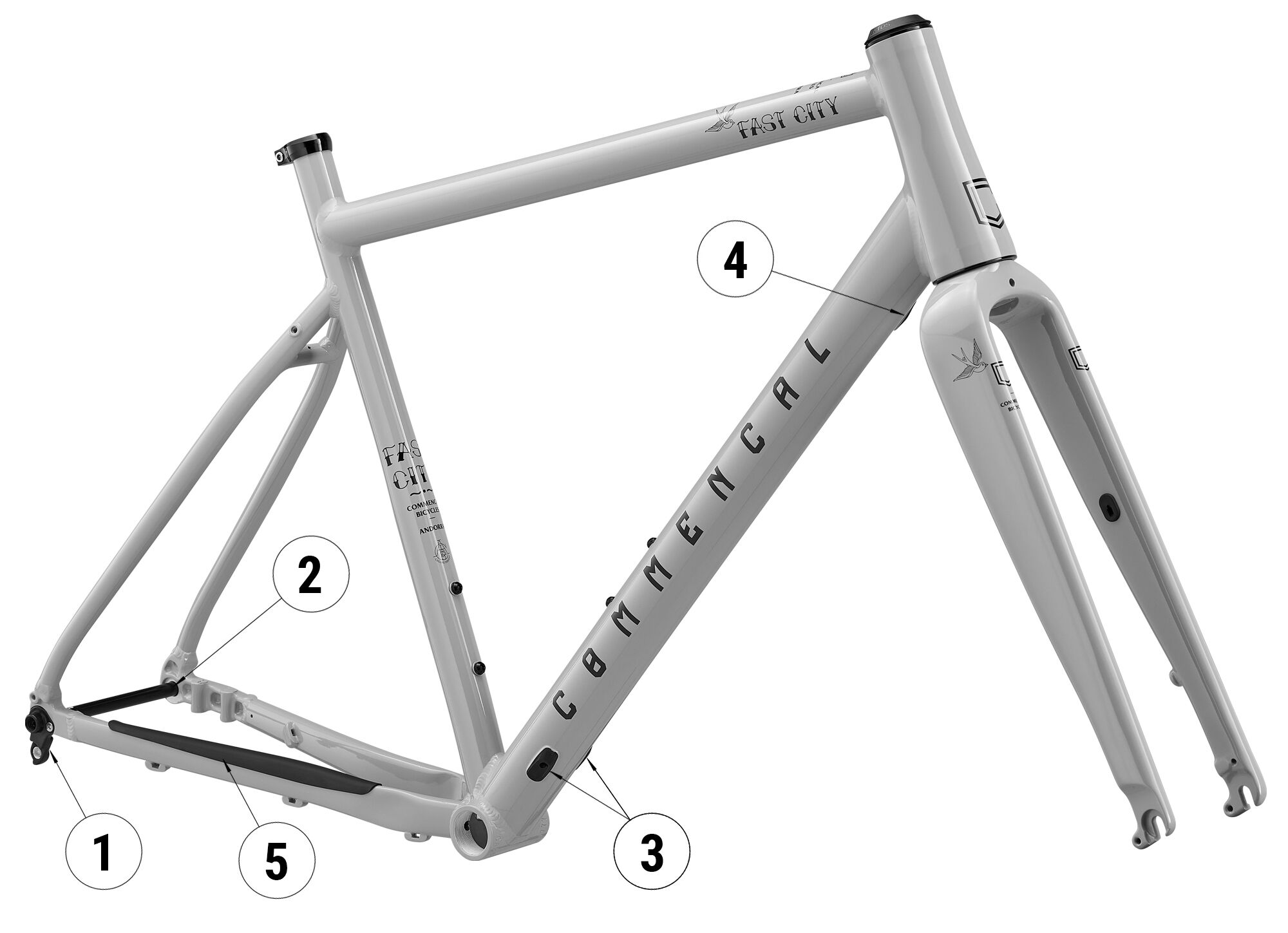

Frame parts

1
W21FCBRHR
Product not available on our site, please contact our teams.
2
W19AXLEWHEEL142
Product not available on our site, please contact our teams.
3
W18SEAL1H
Product not available on our site, please contact our teams.
4
W18SEAL2H
Product not available on our site, please contact our teams.
5
W19FCBPROTECCS
Product not available on our site, please contact our teams.

complete assembly
