Technical features

  • Bicycle type

    E-bike - Enduro / Freeride

  • Frame material

    AL 6066 T6

  • Frame weight

    4,795 kg / 10,57 lb

  • Rear travel

    160mm

  • Shock length/stroke

    230x60mm

  • Recommended SAG

    29-32% / 17,5-19mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x10mm / no bushing needed on clevis

  • Recommended/max. fork height

    576mm / 586mm

  • Headset type

    ZS56 / ZS66

  • ICR compatible

    Yes

  • Wheels size

    29’’ - 27.5’’

  • Max. rear tyre dimension - ETRTO

    65mm - Ø584mm

  • rear brake mounting type

    Postmount 200mm

  • Rear brake rotor max. size

    223mm

  • Seatpost/seat clamp diameter

    34,9mm / 38,5mm

  • Seatpost insertion max.

    S : 180mm / M : 220mm / L : 240mm / XL : 260mm

  • Motor Crankarms interface

    AVINOX

  • Chain guide

    Custom upper guide

  • Recommended/max. chainring teeth

    34T / 36T

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    UDH standard, 180mm, M12, P1.0mm

  • UDH hanger

    yes

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
77,9°
77,9°
77,9°
77,9°
3 - HEAD TUBE ANGLE
64°
64°
64°
64°
4 - HEAD TUBE LENGTH
130
134,5
140
140
5 - WHEELBASE
1236
1258
1290,4
1315,4
6 - TOP TUBE LENGTH
576,6
597,7
624,1
649,1
7 - CHAIN STAY LENGTH
445
445
450
450
8 - BOTTOM BRACKET HEIGHT
0
0
0
0
9 - FORK LENGTH
576
576
576
576
10 - FORK OFFSET
44
44
44
44
11 - REACH
440
460
485
510
12 - STACK
638,3
642,3
647,3
647,3

All lengths in millimeters.

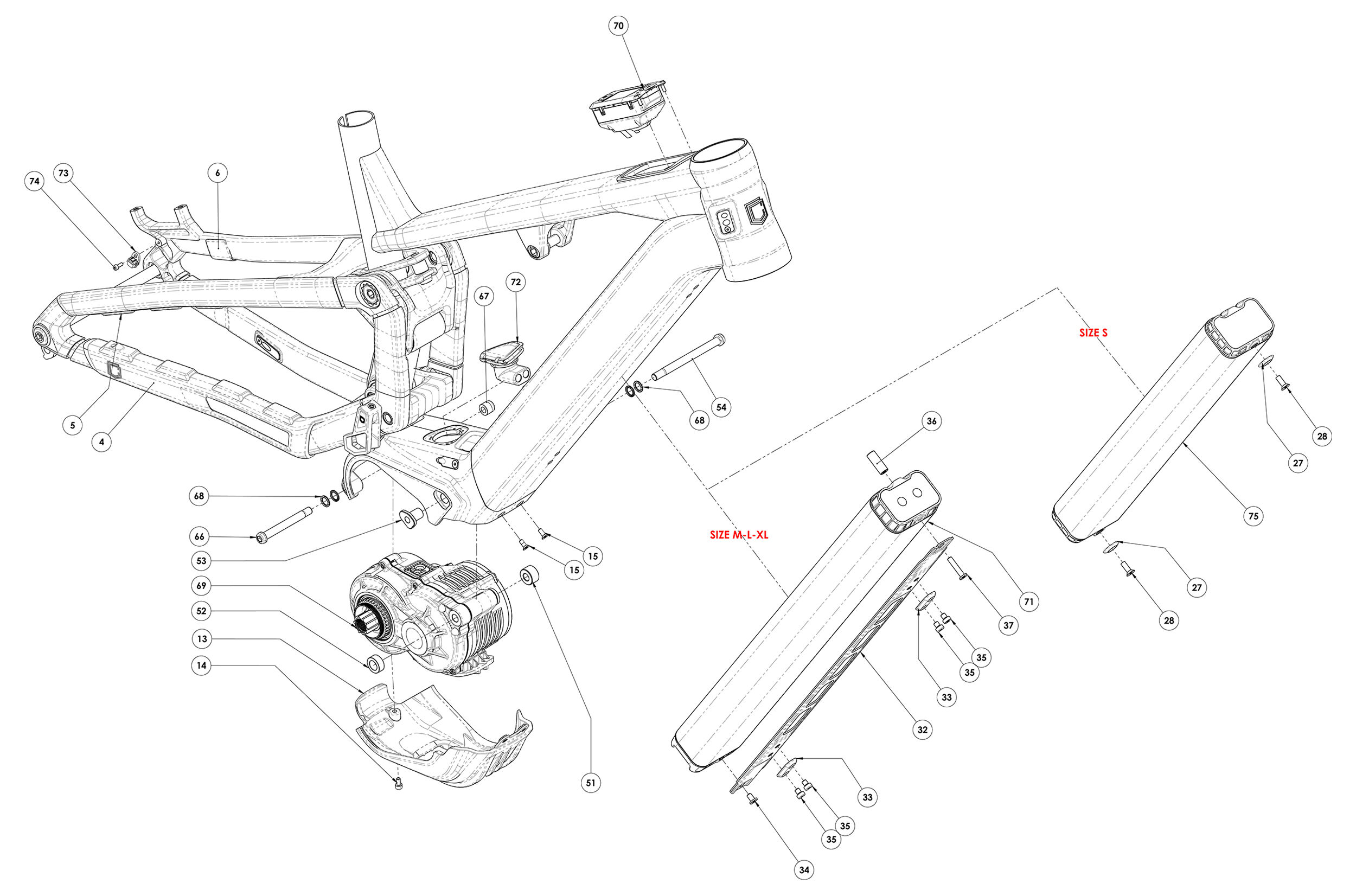

Frame Assembly

13+14+15
TBD
Product not available on our site, please contact our teams.
27+28
W25TPOPWDTWASHERS
Product not available on our site, please contact our teams.
5N.m
33+35
W25SX800BATSCREW
Product not available on our site, please contact our teams.
9N.m
32+34+37
TBD
Product not available on our site, please contact our teams.
5N.m
51+52+53+ 54+68+ 66+67
TBD
Product not available on our site, please contact our teams.
54+66 : 22N.m
69
TBD
Product not available on our site, please contact our teams.
70
TBD
Product not available on our site, please contact our teams.
71
TBD
Product not available on our site, please contact our teams.
72
TBD
Product not available on our site, please contact our teams.
73+74
TBD
Product not available on our site, please contact our teams.
75
TBD
Product not available on our site, please contact our teams.
1+50+61
W25SX800LOWLINK
Product not available on our site, please contact our teams.
2+40+61
TBD
Product not available on our site, please contact our teams.
3+61+30+29
W25SX800CLEVIS
Product not available on our site, please contact our teams.
14N.m
7+15
W25CSCABGUIDSX800
Product not available on our site, please contact our teams.
9+10+11+12
W25CGPWRSX800
Product not available on our site, please contact our teams.
8N.m
61+38+40+ 62+39+50
W24BEARKITMETA
Product not available on our site, please contact our teams.
16+38
W25MPWV5WASHER
Product not available on our site, please contact our teams.
17
W21METALOCKRING
Product not available on our site, please contact our teams.
9N.m
18+22
W23MTV5AXLESHFT
Product not available on our site, please contact our teams.
14N.m
19+21+64
W22TPOAXLELLFT
Product not available on our site, please contact our teams.
Axle: 20N.m / Expander: 5N.m
20+21+64
W22TPOAXLEULFT
Product not available on our site, please contact our teams.
Axle: 20N.m / Expander: 5N.m
23
W23MTV5WASHERULRT
Product not available on our site, please contact our teams.
24
W23MTV5AXLEULCL
Product not available on our site, please contact our teams.
17N.m
25
W23MTV5AXLEULRT
Product not available on our site, please contact our teams.
17N.m
26+21+64
W23MTV5AXLELLRT
Product not available on our site, please contact our teams.
Axle: 20N.m / Expander: 5N.m
41+42+43+ 44+45+46+ 47+48
TBD
Product not available on our site, please contact our teams.
55+56+57+58
TBD
Product not available on our site, please contact our teams.
65
A22HANGSRAMUDH
Product not available on our site, please contact our teams.
25N.m
63
W22AXLEWHEELUDH180
Product not available on our site, please contact our teams.
20N.m

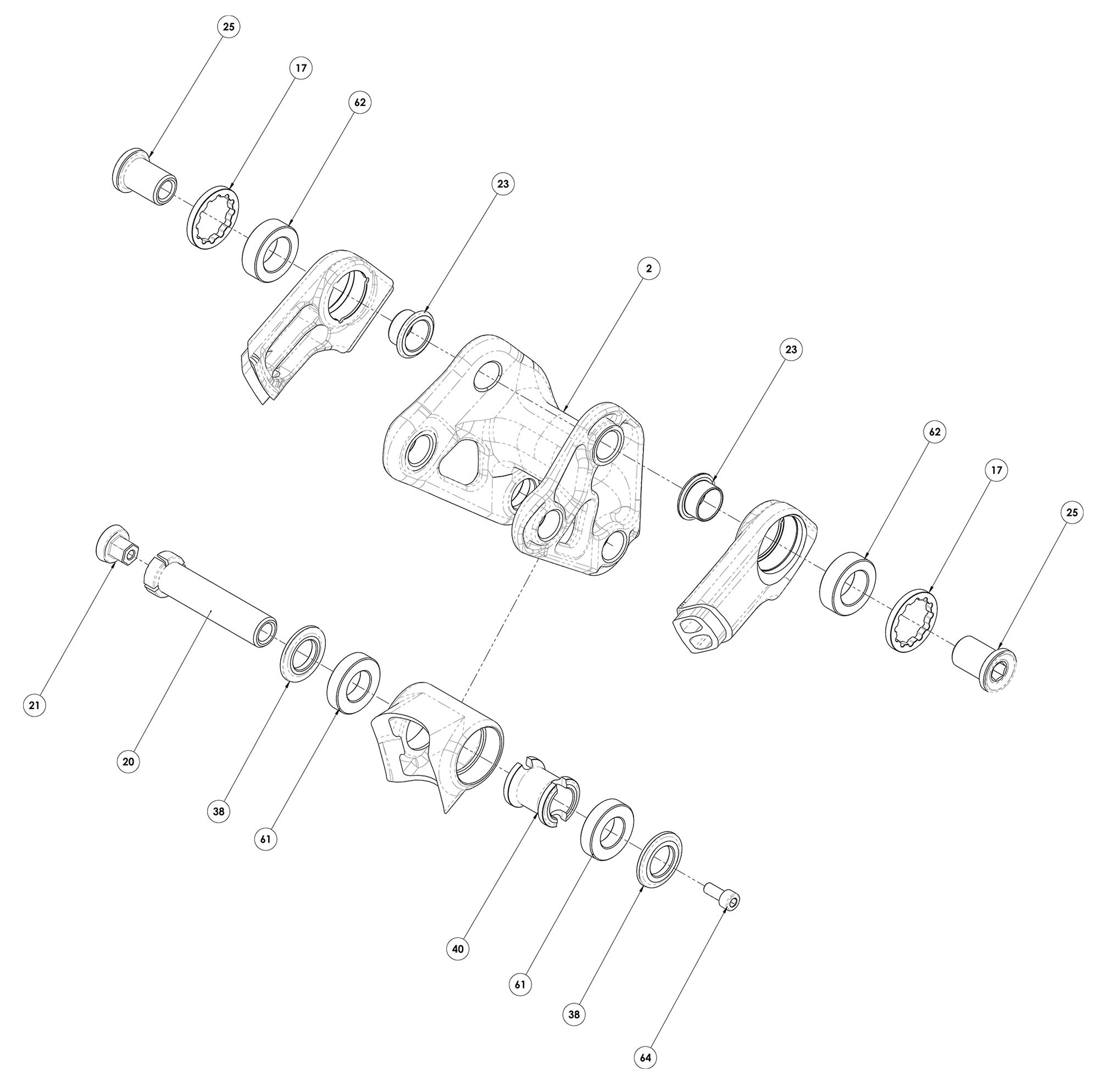

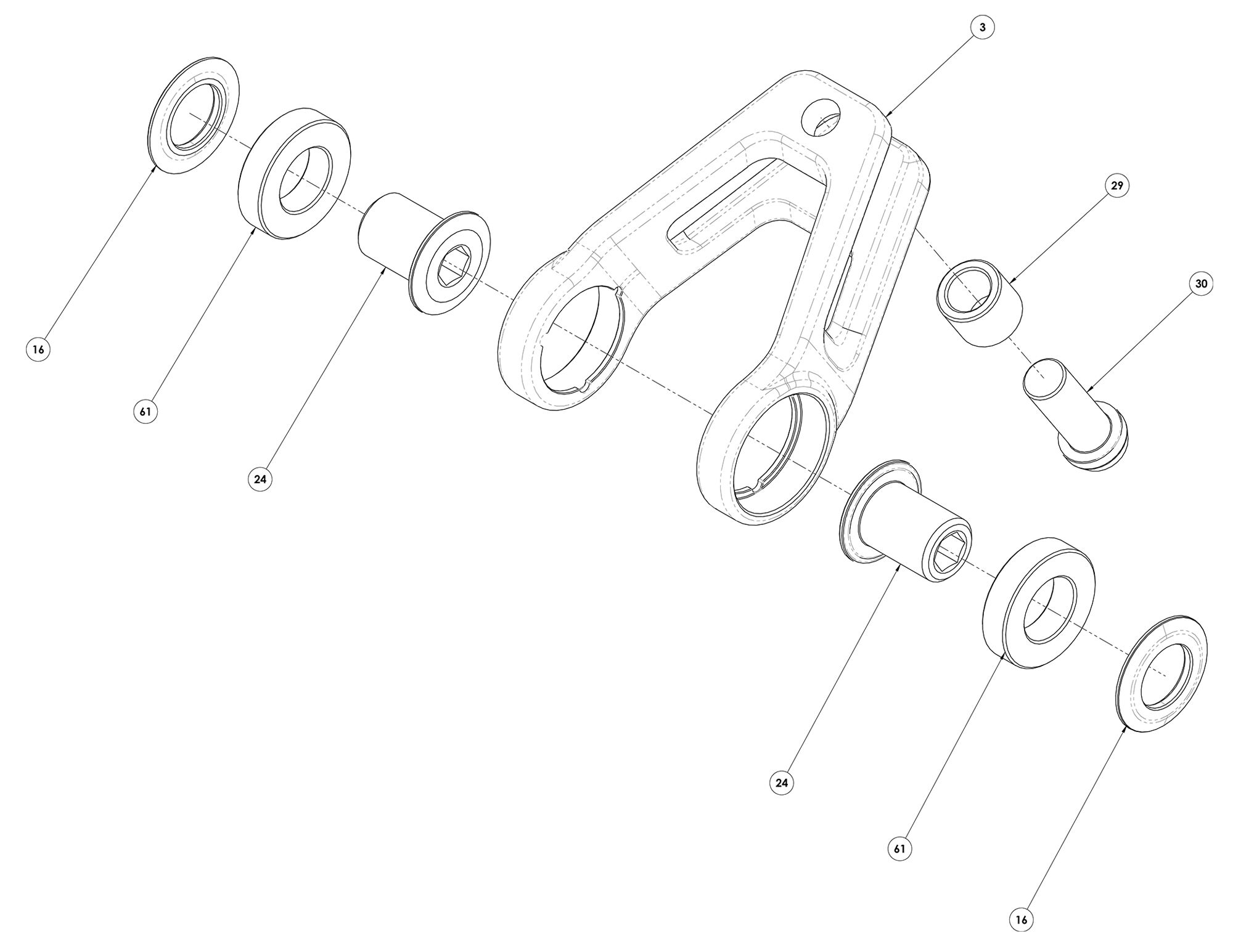

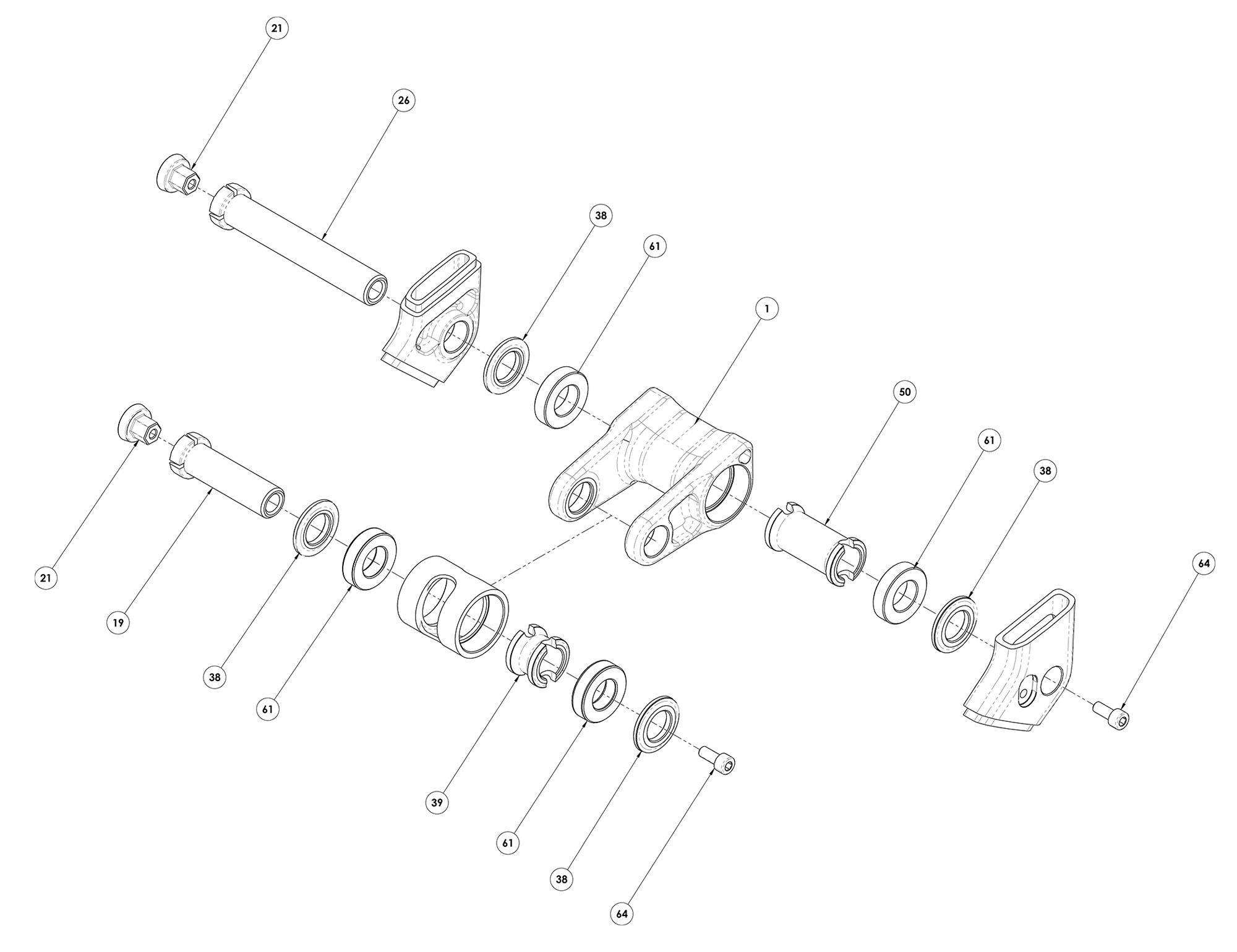

linkage

1+50+61
W25SX800LOWLINK
Product not available on our site, please contact our teams.
61+38+40+ 62+39+50
W24BEARKITMETA
Product not available on our site, please contact our teams.
16+38
W25MPWV5WASHER
Product not available on our site, please contact our teams.
19+21+64
W22TPOAXLELLFT
Product not available on our site, please contact our teams.
Axle: 20N.m / Expander: 5N.m
26+21+64
W23MTV5AXLELLRT
Product not available on our site, please contact our teams.
Axle: 20N.m / Expander: 5N.m
4+5+6
W25PROTKITSX800DJI
Product not available on our site, please contact our teams.
2+40+61
TBD
Product not available on our site, please contact our teams.
61+38+40+ 62+39+50
W24BEARKITMETA
Product not available on our site, please contact our teams.
16+38
W25MPWV5WASHER
Product not available on our site, please contact our teams.
17
W21METALOCKRING
Product not available on our site, please contact our teams.
9N.m
20+21+64
W22TPOAXLEULFT
Product not available on our site, please contact our teams.
Axle: 20N.m / Expander: 5N.m
23
W23MTV5WASHERULRT
Product not available on our site, please contact our teams.
25
W23MTV5AXLEULRT
Product not available on our site, please contact our teams.
17N.m
3+61+30+29
W25SX800CLEVIS
Product not available on our site, please contact our teams.
14N.m
61+38+40+ 62+39+50
W24BEARKITMETA
Product not available on our site, please contact our teams.
16+38
W25MPWV5WASHER
Product not available on our site, please contact our teams.
24
W23MTV5AXLEULCL
Product not available on our site, please contact our teams.
17N.m

Cable Routing
