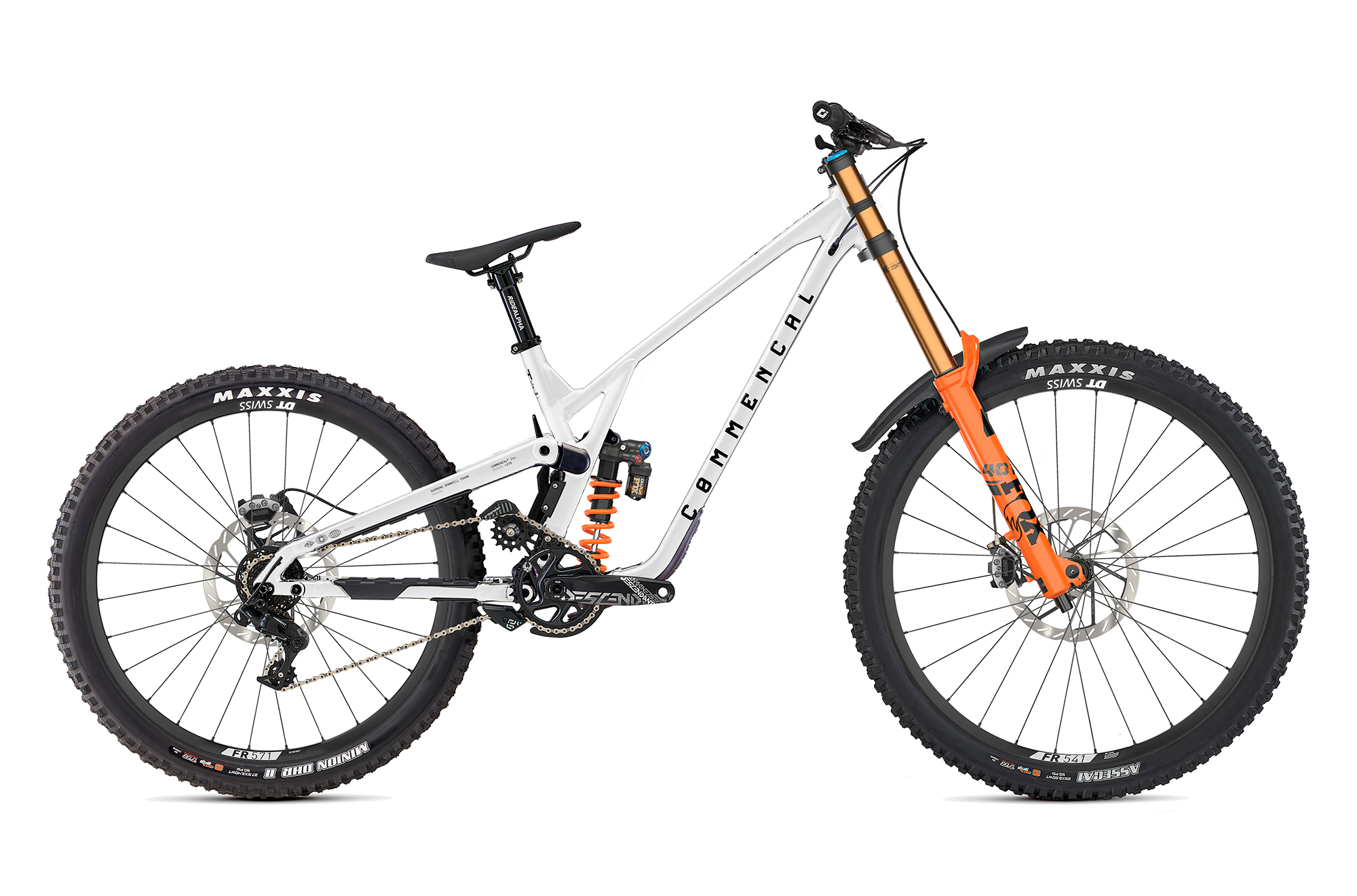

COMMENCAL SUPREME DH V5 SIGNATURE PURE WHITE 2026 image number null

COMMENCAL SUPREME DH V5 SIGNATURE PURE WHITE 2026

$7,800.00
id/sku : BT5SUPV5SGEU1
Availability: Select the size to see null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

- DESCRIPTION -

CHECK OUT THE SUPREME DH V5

The SUPREME DH V5 returns in 2025, building on its rich triumphant tradition. Born from the collaboration between the engineering of our Research and Development department and the flair of our exceptional riders, it continues to write its legend on World Cup circuits. Its first season was a whirlwind: 9 brilliant triumphs, 27 podium places achieved with panache, and the conquest of Elite Women's, Men's and Teams' titles. These figures are not merely statistics, they rather testify to its uncontested authority.

The High Performance Virtual Contact System, our ultimate conception of downhill performance, is the core of this formidable machine. This ingenious design offers an ideal balance between impressive reactivity during pedalling and an ability to absorb shocks that promises reliability on the most difficult courses. Maintaining its tradition, the aluminium chassis of the SUPREME DH V5 continues to include its modular inserts. This technical finesse offers you the possibility to modulate the geometry and behaviour of the bike with surgical precision, for millimetre-perfect adaptation to the course requirements. In 2025, the SUPREME DH V5 transcends the simple notion of a bike, becoming an extension of your will on the track.

SUPREME DH V5 SETTINGS GUIDE


COMMENCAL SUPREME DH V5 SIGNATURE

-
The FOX 40 fork and its GRIP X2 cartridge offer a wide range of adjustments that allow you to adapt and overcome all trails. The FOX DHX2 shock absorber in Factory version, which includes 4 adjustment circuits, provides optimal support and shock filtration for maximum comfort.
- The GX DH drivetrain, whose reputation speaks for itself, is reliable and responsive.
- The rims are a combination of DT SWISS FR541 front and FR571 rear, hand-built on 350 hubs, they are ideal for Gravity use.
- Braking is handled by the proven Maven Silver. They guarantee power and crisp feel in all circumstances.

*Please note that bike specs are subject to change without prior notice.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Frame DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    5,3 kg / 11,68 lbs in size S with frame protections, chain guide, rear wheel axle

  • Rear travel

    220 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 8 mm / 30 x 8 mm

  • Recommended/max. fork height

    612 mm / 620 mm

  • Headset type

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle

  • Flip Chip
    Front / Up
  • Wheel Base Length
    Centered
  • Bridge
    XS & S : Thin - M & L : Medium - XL : Thick
- SPECIFICATIONS -
  • Frame

    SUPREME DH V5 29/27, 220 mm travel
    27/29'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

  • Shock

    FOX DHX2 Factory
    250 x 75 mm, HSC, LSC, HSR, LSR
    425lbs on S, 475lbs on M, 525lbs on L, 575lbs on XL

  • Fork

    FOX 40 Factory, 200 mm
    29", Grip X2, HSR, LSR, HSC, LSC, Boost (20 x 110 mm), 52 mm offset

  • Headset

    ACROS ZS44/ZS56
    Alloy cups, sealed bearings

  • Stem

    BURGTEC MK3 DH
    45 mm extension, direct mount, 31.8 mm

  • Handlebar

    BURGTEC Ride Wide
    31.8 mm, 800 mm width, 30 mm rise, Alloy 6061

  • Grips

    ODI Longneck V2.1
    Single clamp, black

  • Brakes

    SRAM Maven Silver, 4 pistons, resin pads
    Rotors: SRAM HS2 220 mm, 6-bolt, 2.0 mm thickness

  • Shifters

    SRAM GX DH
    7s

  • Chain guide

    E13 LG1
    32-34t

  • REAR DERAILLEUR

    SRAM GX DH
    7s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM Descendant DH, 165 mm crank arms, DUB
    Chainring: SRAM Descendant DH, 34t

  • Chain

    SRAM PC-1110
    11s

  • Cassette

    SRAM PG-720 DH
    7s, 11-25t

  • Rims

    DT SWISS FR541
    Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width

  • Hubs

    DT SWISS 350
    Rear: 32h, sealed bearings, 12 x 157 mm, SHIMANO Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm

  • Spokes/nipples

    DT SWISS Competition
    Straightpull

  • Tyres

    Rear: MAXXIS Minion DHR II - Front: MAXXIS High Roller III
    Rear: 27.5x2.50WT 3C MaxxTerra / DH Casing / TR - Front: 29x2.50WT 3C MaxxGrip / DH Casing / TR

  • Seat post

    RIDE ALPHA
    31.6 mm, 250 mm length

  • Saddle

    FIZIK Gravita Alpaca X5
    S-Alloy rails, Team edition

  • Weight

    - kg / - lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Pure White
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, shuttle pad, fork bumpers, FOX 40 fender

- SIZES -
- GEOMETRY -
SIZES
