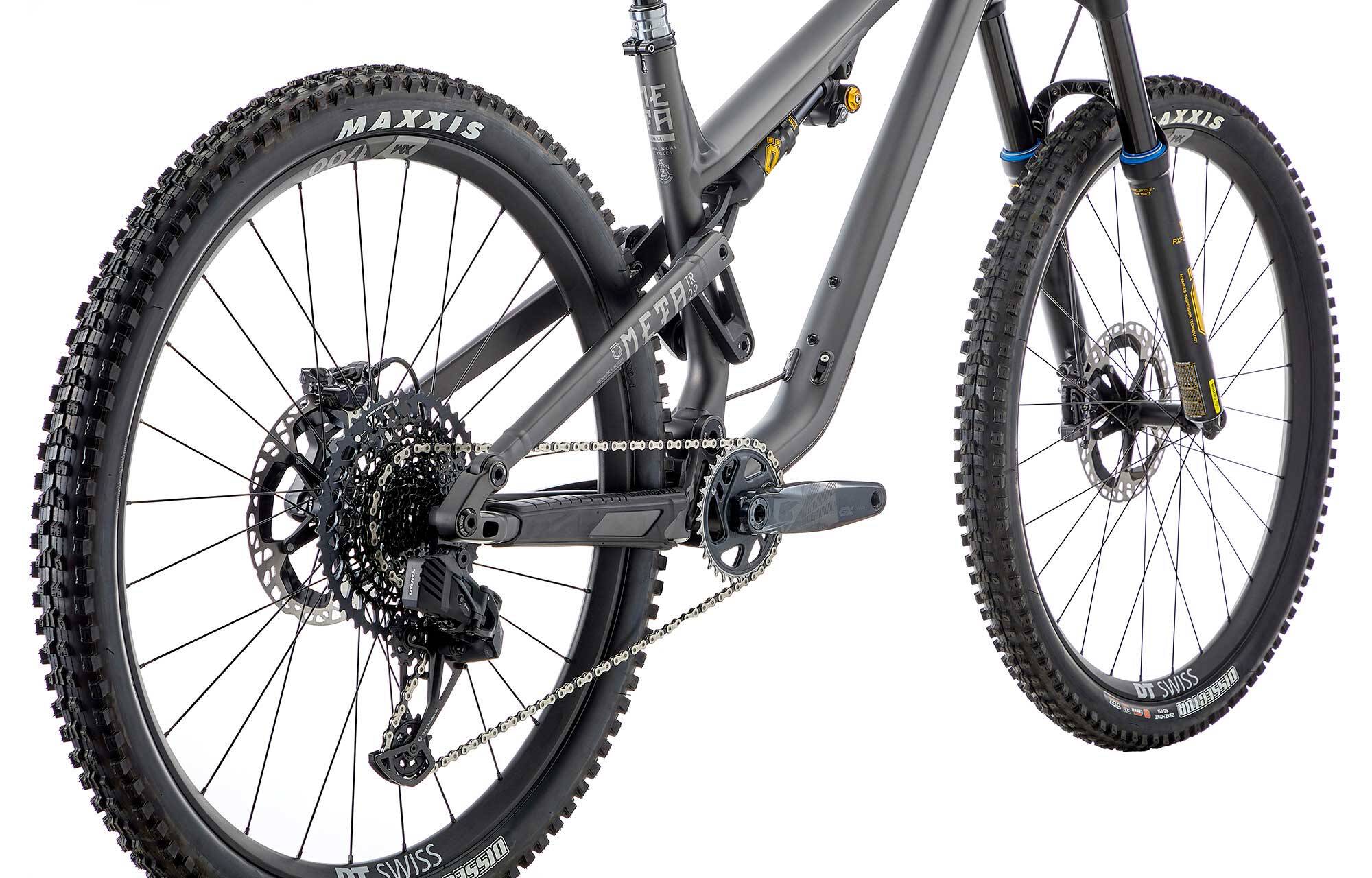

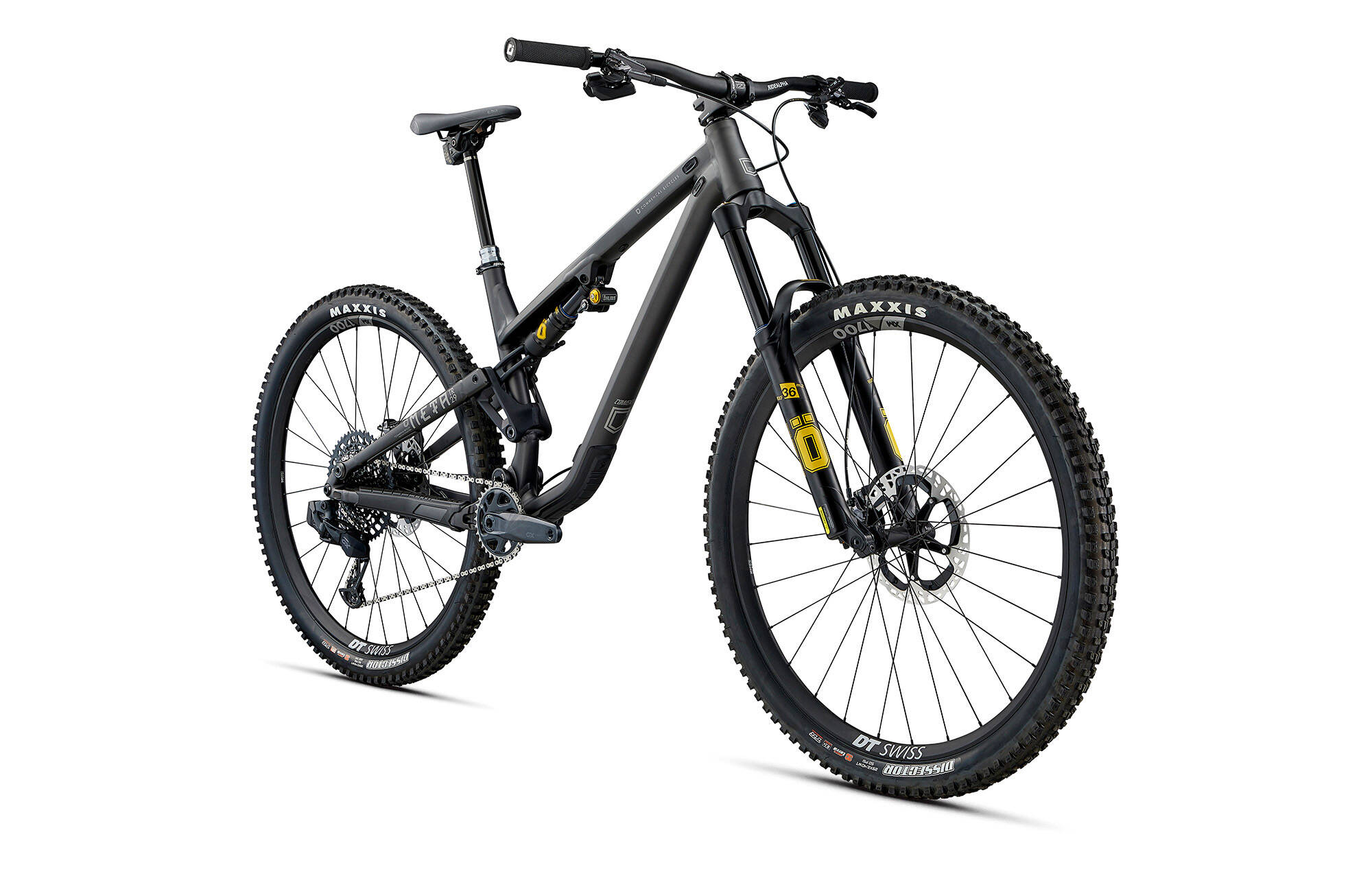

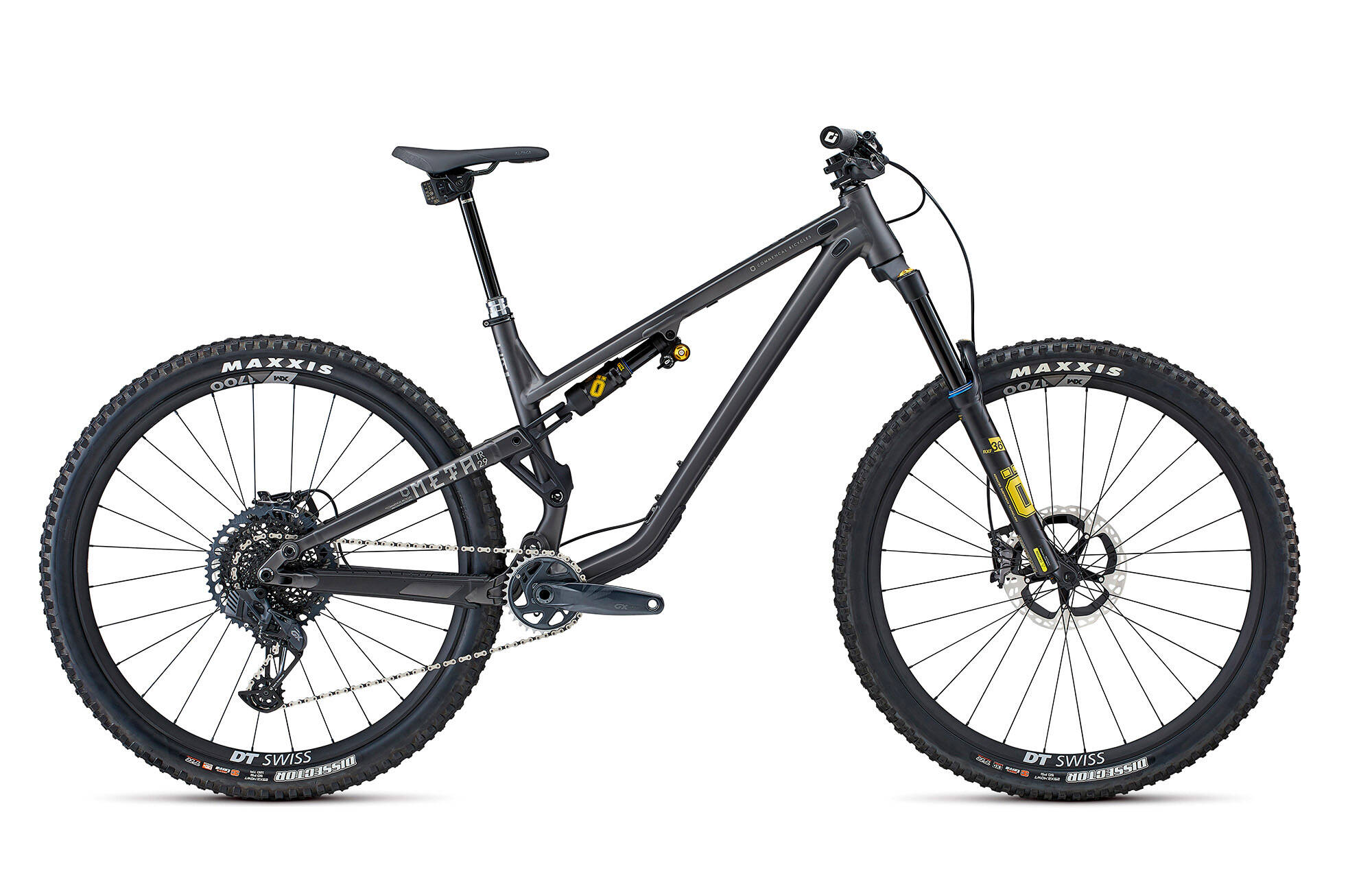

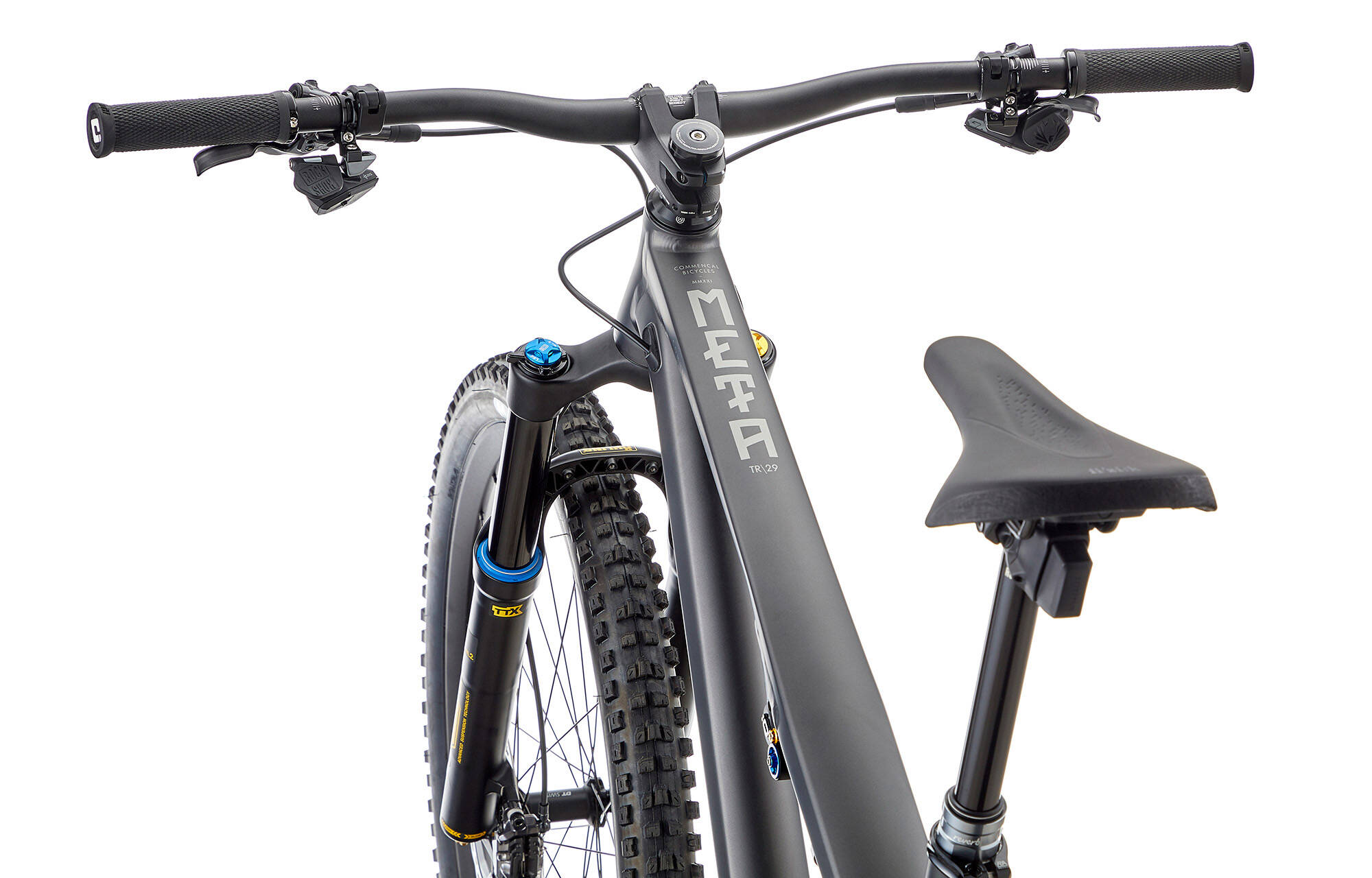

COMMENCAL META TR V4 OHLINS EDITION AXS DARK SLATE
The META TR V4 represents our take on trail riding. Designed to make you want to ride, it’s a bike that loves the climbs and truly comes alive when you let go of the brakes on the descents, performing like a mini enduro.
ALL MOUNTAIN
ALL MOUNTAIN
150mm
150-160mm
150-160mm
140mm
140mm
29" / 29"
29" / 29"
BUY IN-STORE
Don’t see your preferred shop?
Ask them to contact our B2B sales department to become a partner store.
Once they’re approved, you can order from us or directly from them and have your orders delivered to the shop.
The shop will then notify you when your order is ready for pickup.
specifications
specifications
Frame
META TR V4, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
ÖHLINS TTX1 Air
210 x 55 mm, climb mode, Adjustable HSC (High-Speed Compression), LSC (Low-Speed Compression) and Rebound dampingFork
ÖHLINS RXF 36 M.2 Air, 150 mm
29", TTX18 cartridge, HSC 3 positions, LSC, rebound Boost (15 x 110 mm), 44 mm offsetHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 50
50 mm extension, 31,8 mmHandlebar
RIDE ALPHA R27
Grips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO RT-MT900 203 mm, Centerlock, Ice Technology FreezaShifters
SRAM GX Eagle AXS
12s, Electrical, with batteryREAR DERAILLEUR
SRAM GX Eagle AXS
12s, Electrical, with batteryBottom bracket
SRAM DUB
PressfitCrankset
SRAM GX Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM GX Eagle, 32t, Narrow-WideChain
SRAM GX Eagle
12sCassette
SRAM XG-1275 Eagle
12s, 10-52tRims
DT SWISS XM1700 Spline
29'', 28h, 30 mm inner widthHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, 12 x 148 mm, 36t ratchet, sealed bearings - Front: 28h, 15 x 110 mm, sealed bearingsSpokes/nipples
DT SWISS Competition
Straightpull, 2.0 / 1.8 / 2.0 mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS DISSECTOR - Front: MAXXIS DISSECTOR
Rear: 29" x 2.4" WT, 3C MaxxTerra EXO+, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxTerra EXO, Tubeless ReadySeat post
ROCKSHOX reverb AXS
34.9 mm 125 mm on S, 150 mm on M, 170 mm on L/XL, Electrical, with batterySaddle
FIZIK Terra Alpaca X5
145 mm width, S-Alloy railsWeight
15 kg / 33.06 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dark Slate
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector, AXS battery charger
Bike specifications are subject to change without notice.
Technical informations
Technical informations
WHICH META V4 TO CHOOSE?
WHICH META V4 TO CHOOSE?
Discovering new trails with the META TR V4 or having fun in the bike park with the META SX V4 has never been easier. The quintessence of our META V4 platform, they are already proven and benefit from all our experience with the CONTACT SYSTEM suspension. Each excel in their respective areas.
Geometry
Geometry
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
Suspension settings
Suspension settings
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes. This guide below is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
