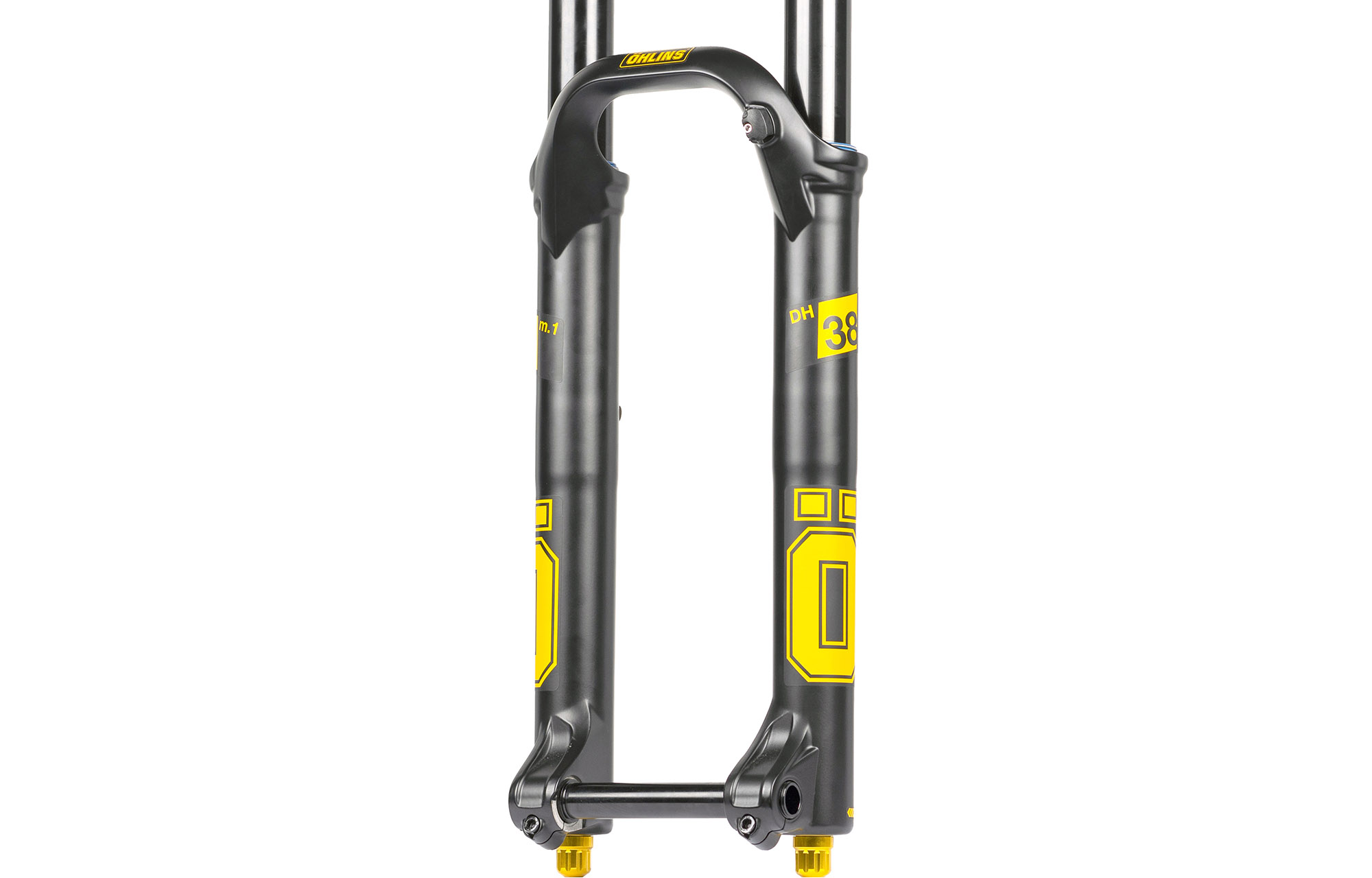

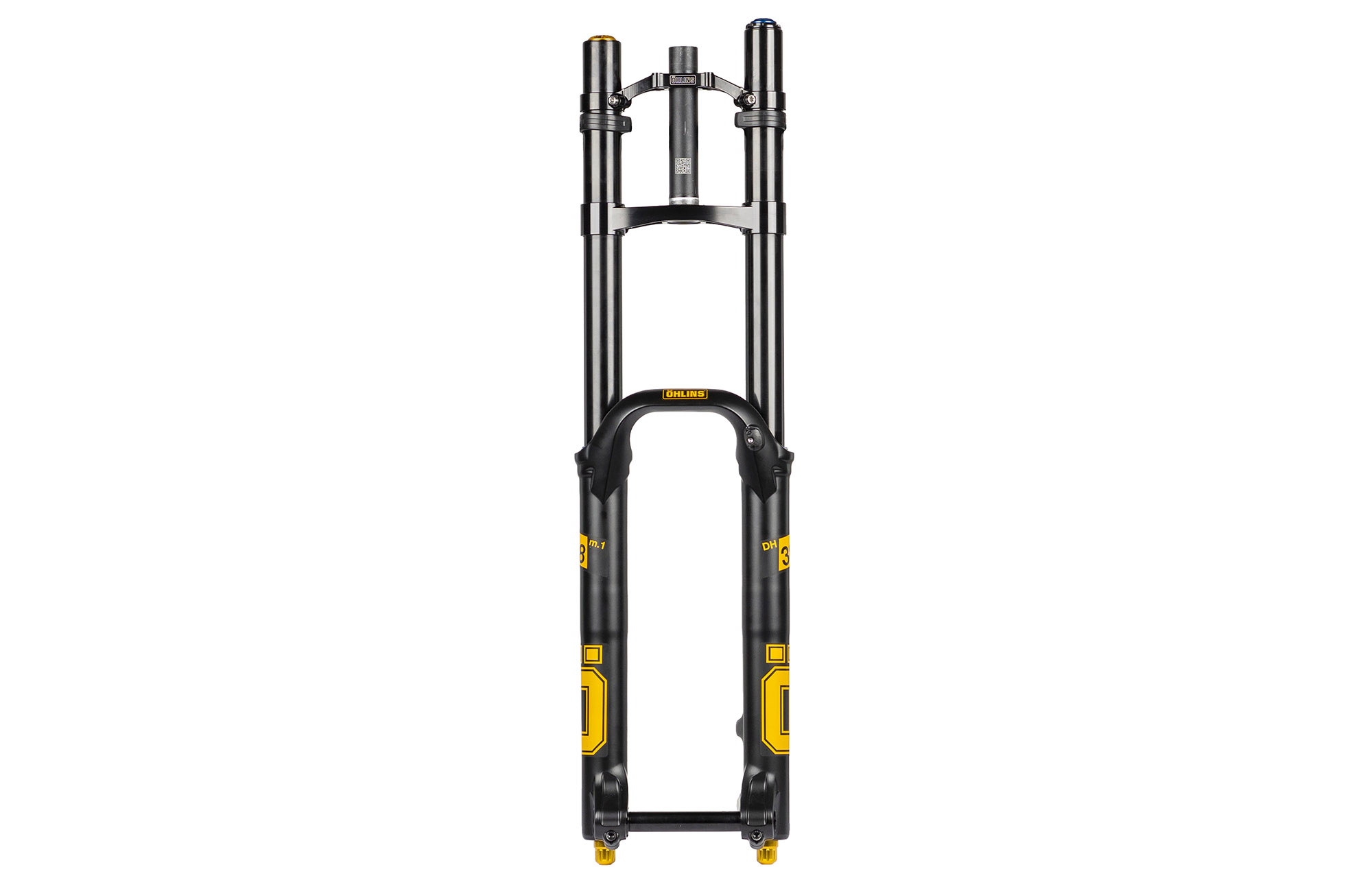

ÖHLINS DH38 M.1 AIR 200MM 29"

SECOND HAND HIGHLIGHTS

A brand like COMMENCAL generates dozens and dozens of used components every year.
Our second-hand components are coming from exhibitions, tests or have been dismounted from our bikes.
For scratches, paint chips and/or wear and tear, please see photos.

- THE WORKSHOP NOTE -

New fork, installed but never used. Steerer cut at 155mm, star nut installed

In just a few years, ÖHLINS has become one of the best brands for MTB race suspension. The DH38 M.1 is the most obvious example of this, since it offers a very balanced precision/comfort chassis, a pneumatic spring that has an infinitely adjustable limit switch and efficient hydraulic adjustments that are easy to use (high and low speed compression, low speed rebound).

We spent a lot of time working on the ideal rebound and compression settings and this fork is the result of our partnership with the legendary Swedish brand.

Technical specifications:
•  Wheel size: 29"
•  Travel: 200 mm
•  Stanchions: 38 mm
•  Axle: 20 x 110 mm Boost
•  Tapered Steerer 1 1/8"
•  Low-speed compression adjustment: 15 clicks
•  High speed compression adjustment: 3 clicks
•  Rebound adjustment: 15 clicks
•  Brake mount: Post Mount 200 mm
•  Offset: 54 mm
•  Weight 2.82 kg

Compatible models:
SUPREME DH V4 29, SUPREME DH 29/27, SUPREME DH V5 29/27.

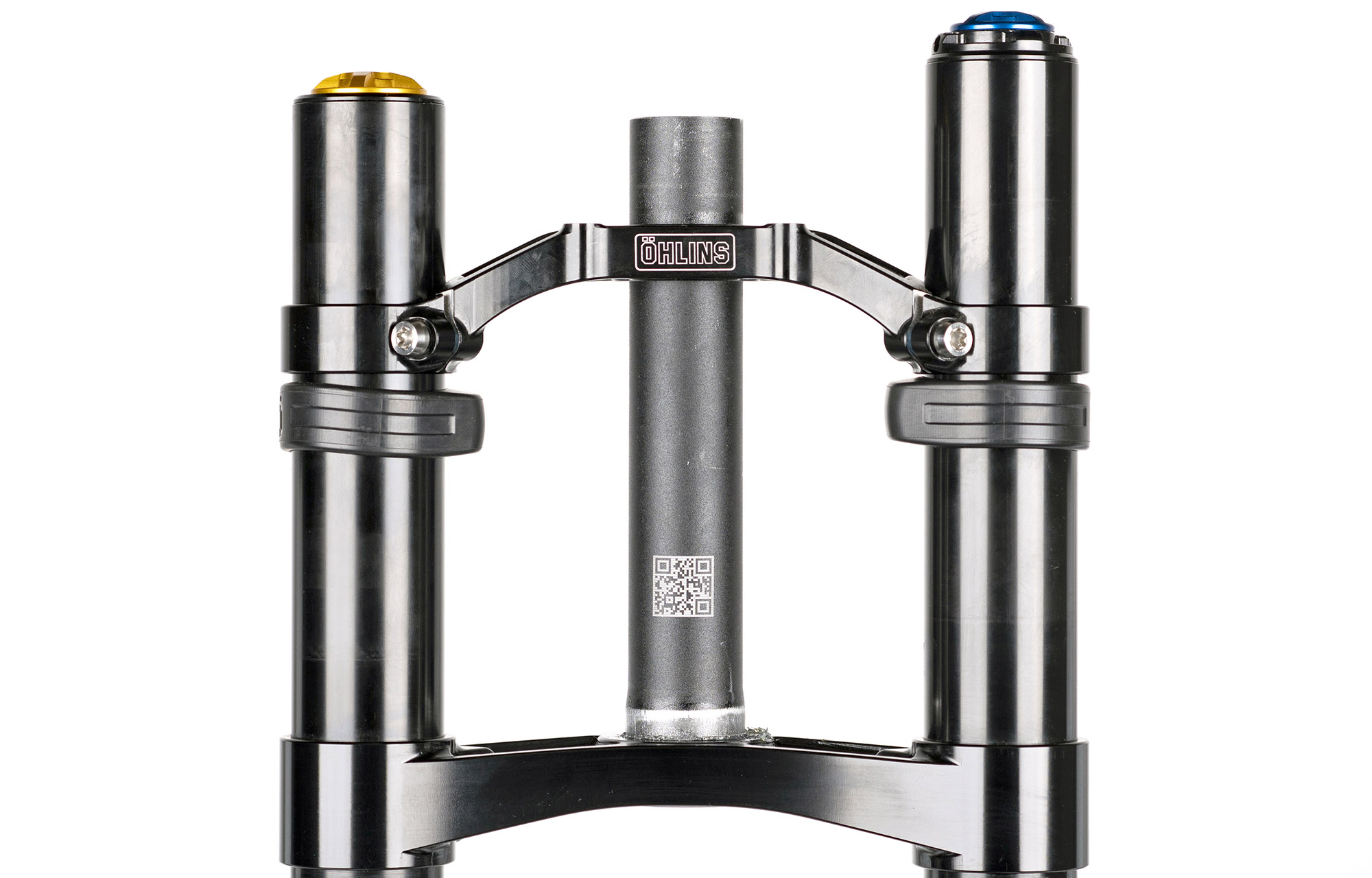

Wheel axle and triple trees included.

All ÖHLINS suspension that we offer has been tested by our engineers and product teams so that we can provide internal settings perfectly adapted to your COMMENCAL bike from the outset.
