COMMENCAL SUPREME DH V5 OHLINS EDITION YELLOW - M (23151202)

Price reduced from $6,900.00 to $5,200.00 -25%
id/sku : OCUSA1024
Availability: In stock null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
- DESCRIPTION -

Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage.
We perform a thorough check of each bike and replace all wearing and damaged parts.
While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
These bikes are final sale but come with a full warranty.

- GENERAL DESCRIPTION -

Bike is used, in good mechanical condition.

- COSMETIC DESCRIPTION -

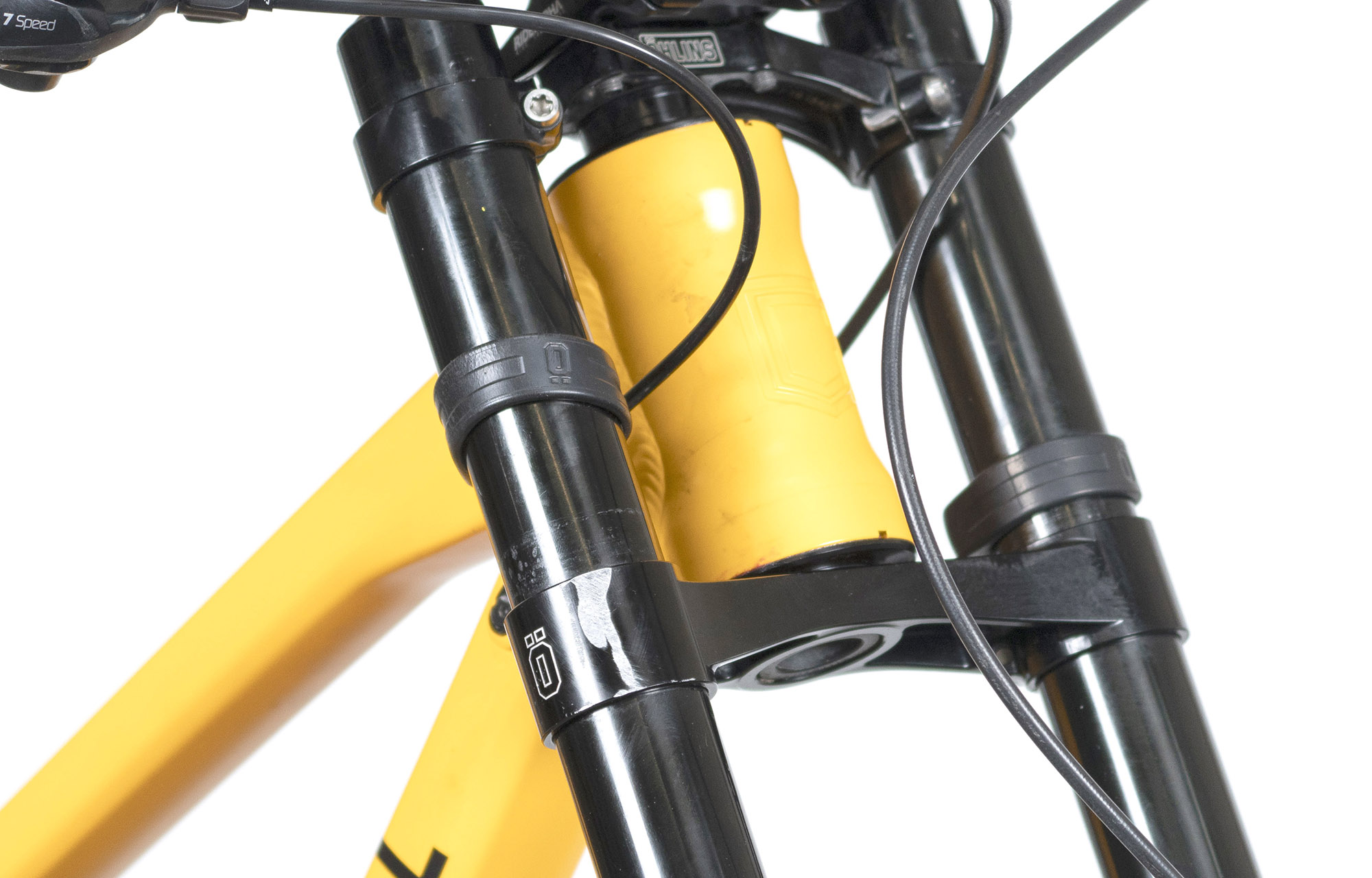

Cable wear on fork stanchion.
Paint wear on cranks.
Paint chips throughout the frame.

- MECHANICAL DESCRIPTION -

Bearing: New.
Fork: Inspected, in good working condition.
Shock: Inspected, in good working condition.
Brakes: Bled.
Wheels: New.
Tires: New.
Handlebars and Grips: New.


Don’t hesitate to contact us for more details.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Frame DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    5,3 kg / 11,68 lbs in size S with frame protections, chain guide, rear wheel axle

  • Rear travel

    220 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 8 mm / 30 x 8 mm

  • Recommended/max. fork height

    612 mm / 620 mm

  • Headset type

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle

  • Flip Chip
    Front / Up
  • Wheel Base Length
    Centered
  • Bridge
    XS & S : Thin - M & L : Medium - XL : Thick
- SPECIFICATIONS -
  • Frame

    SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
    27/29'', Alloy 6066, triple butted tubes, T4, T6

  • Shock

    OHLINS TTX22 m.2
    250 x 75 mm, HSC, LSC, rebound. Spring rates: 388 lbs on S, 434 lbs on M, 457 lbs on L, 502 lbs on XL

  • Fork

    OHLINS DH38 m.1 Air, 200 mm travel
    29", TTX 18 damper, LSC, HSC, rebound, Boost (20 x 110 mm), 54 mm offset

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA DH 40
    40 mm extension, direct mount, 31.8 mm

  • Handlebar

    RIDE ALPHA R27
    31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on  XL

  • Grips

    ODI Longneck
    Soft pro compound, single clamp, black

  • Brakes

    TRP DH-R Evo, 4 pistons, resin pads
    Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thickness

  • Shifters

    SRAM GX DH
    7 sp

  • Chain guide

    E13 LG1 + Bottom Guide
    32-34t

  • REAR DERAILLEUR

    SRAM GX DH
    7 sp

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    TRUVATIV Descendant DH, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant DH X-Sync, 34t

  • Chain

    KMC X11EL
    Black

  • Cassette

    E13 DH 7 Speed Integrated Cassette
    7s, 9-24t DM Cassette

  • Rims

    E13 Grappler Race Alloy
    Rear: 27.5'', 32h, 30 mm inner width  - Front: 29'', 32h, 30 mm inner width

  • Hubs

    Rear: E13 GRAPPLER Race Alloy - Front: E13 GRAPPLER Race Alloy
    Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

  • Tyres

    Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
    Rear: 27.5'' x 2.4''- Front: 29" x 2.4"

  • Seat post

    RIDE ALPHA Super Light
    31.6 mm, 250 mm length

  • Saddle

    FIZIK Gravita Alpaca X5
    130 mm width, S-Alloy rails

  • Weight

    18 kg / 39,68 lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Ohlins Yellow
    Matte Finish

  • Accessories

    Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard

     *Please note that bike specs are subject to change without prior notice.
