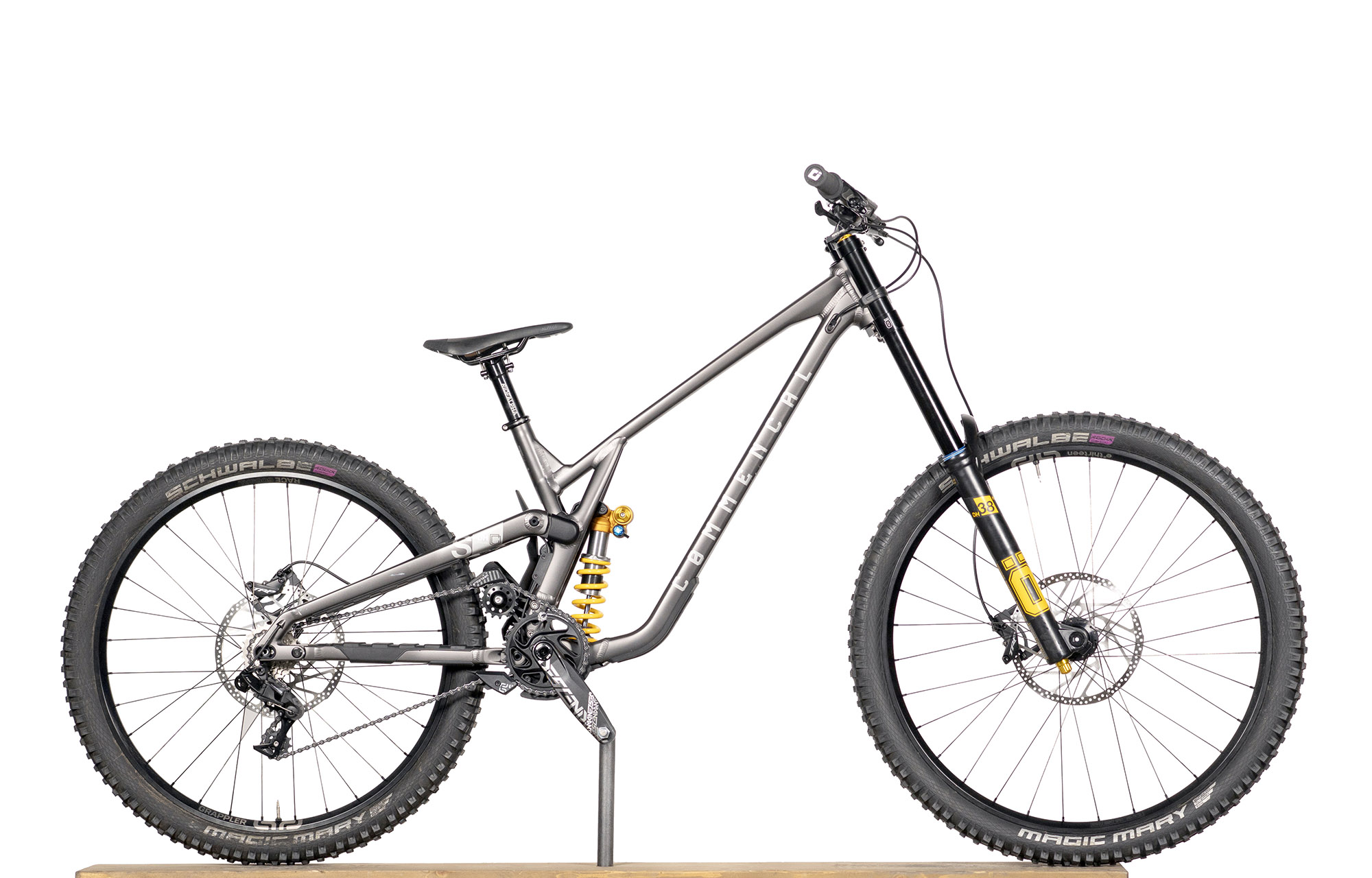

COMMENCAL SUPREME DH V5 OHLINS EDITION DARK SLATE - L (23150703)

Price reduced from $6,900.00 to $5,200.00 -25%
id/sku : OCUSA898
Availability: This Item is currently not available. null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
- DESCRIPTION -

Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage.
We perform a thorough check of each bike and replace all wearing and damaged parts.
While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
These bikes are final sale but come with a full warranty.

- GENERAL DESCRIPTION -

Bike is used, in good mechanical condition.

- COSMETIC DESCRIPTION -

Scratches and paint chips that will not affect the performance of the frame.

- MECHANICAL DESCRIPTION -

Tires: new.
Fork and shock: inspected, in good working conditions and not serviced.
Brakes: bleed, pads changed.


Don’t hesitate to contact us for more details.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Frame DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle

  • Rear travel

    220 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 8 mm / 30 x 8 mm

  • Recommended/max. fork height

    612 mm / 620 mm

  • Headset dimension

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle

  • Flip Chip
    Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)
  • Wheel Base Length
    Centered (Available as an option: Flip Flop +/-6mm)
  • Bridge
    XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)
- SPECIFICATIONS -
  • Frame

    SUPREME DH V5 29/27, 200 mm travel on S / M / L / XL
    27/29'', Alloy 6066, triple butted tubes, T4, T6

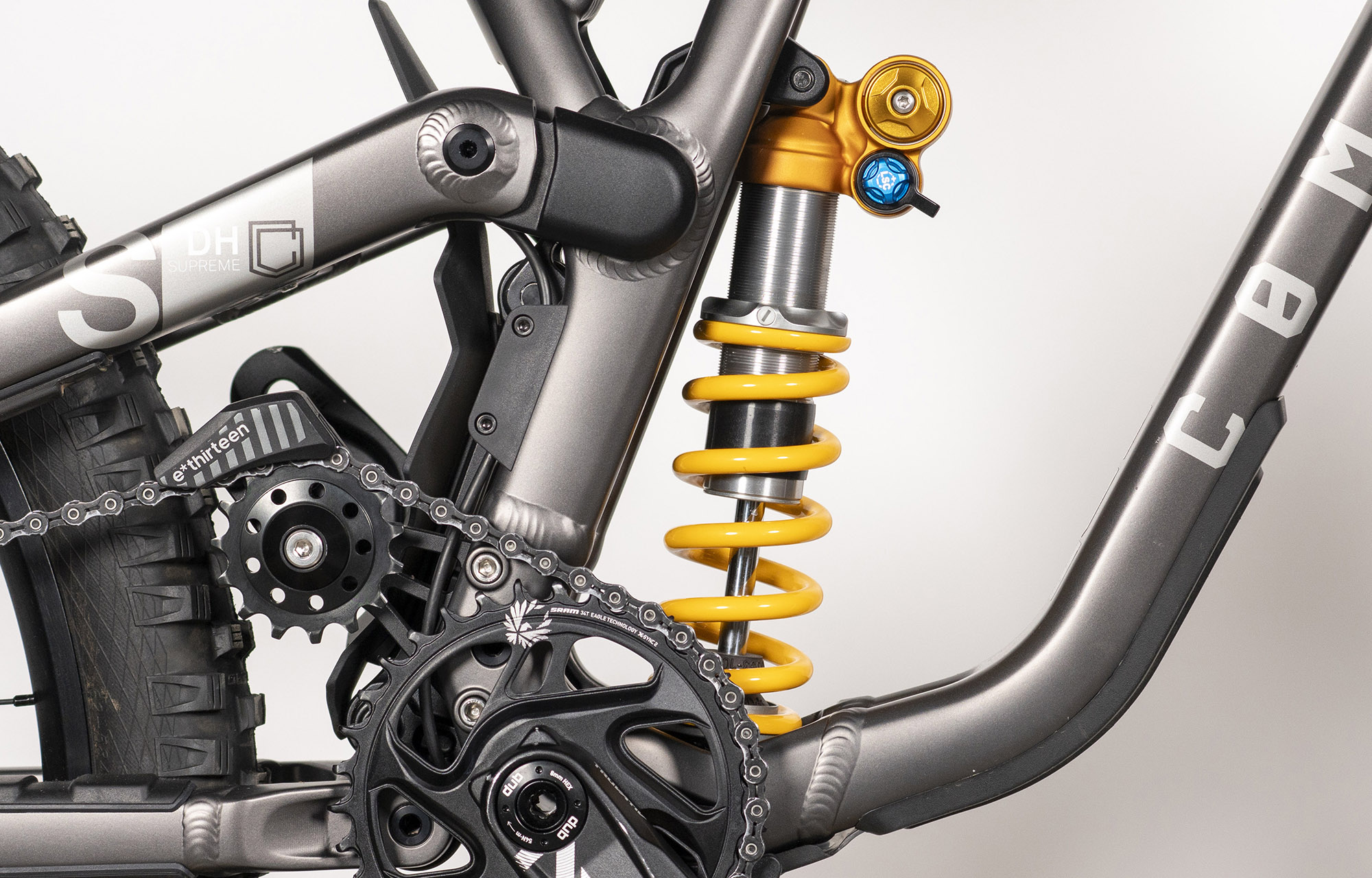

  • Shock

    OHLINS TTX22 m.2
    250 x 75 mm, HSC, LSC, rebound. Spring rates: 388 lbs on S, 434 lbs on M, 457 lbs on L, 502 lbs on XL

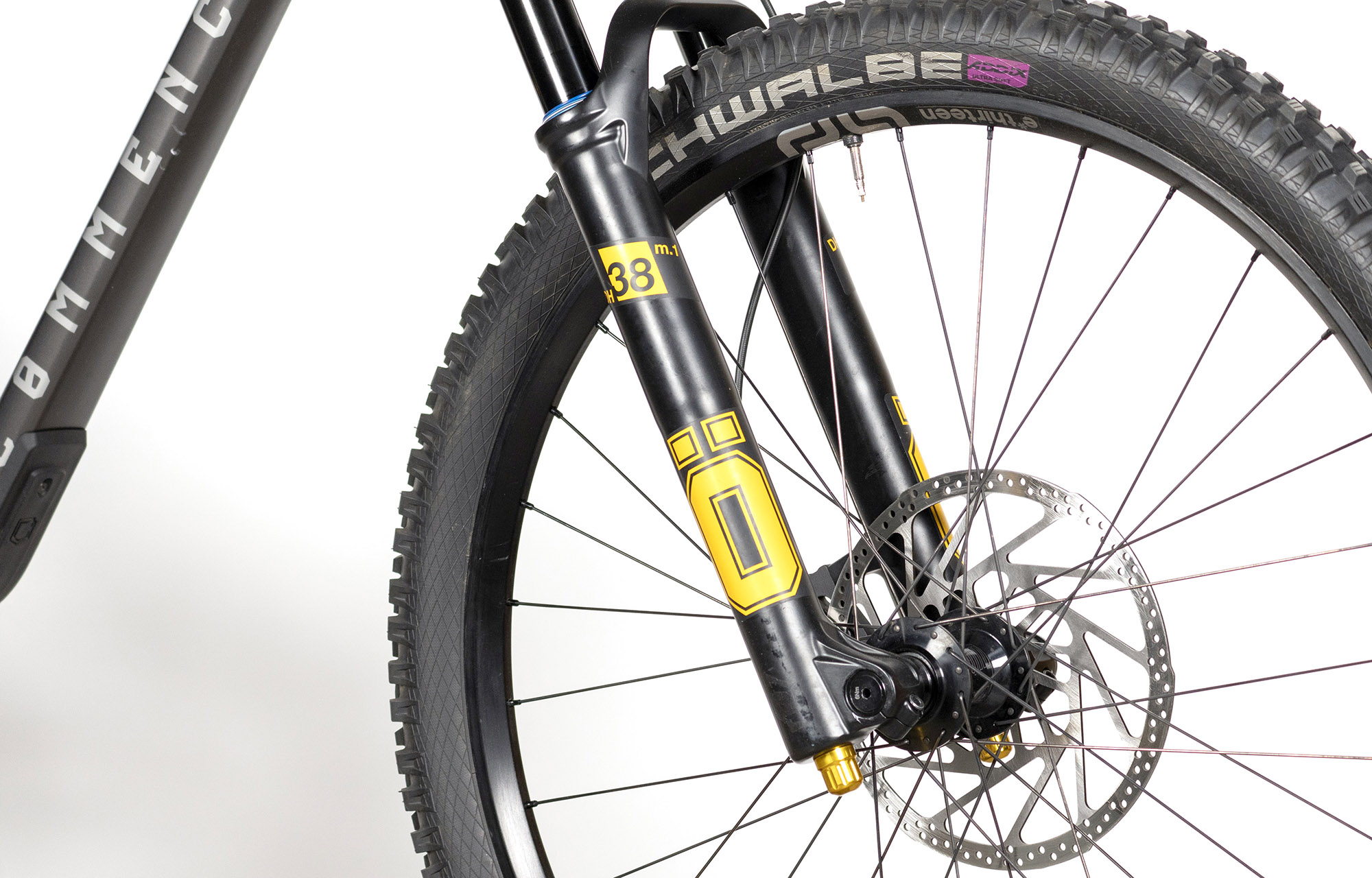

  • Fork

    OHLINS DH38 m.1 Air, 200 mm travel
    29", TTX 18 damper, LSC, HSC, rebound Boost (20 x 110 mm), 54 mm offset

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA DH 40
    40 mm extension, direct mount, 31.8 mm

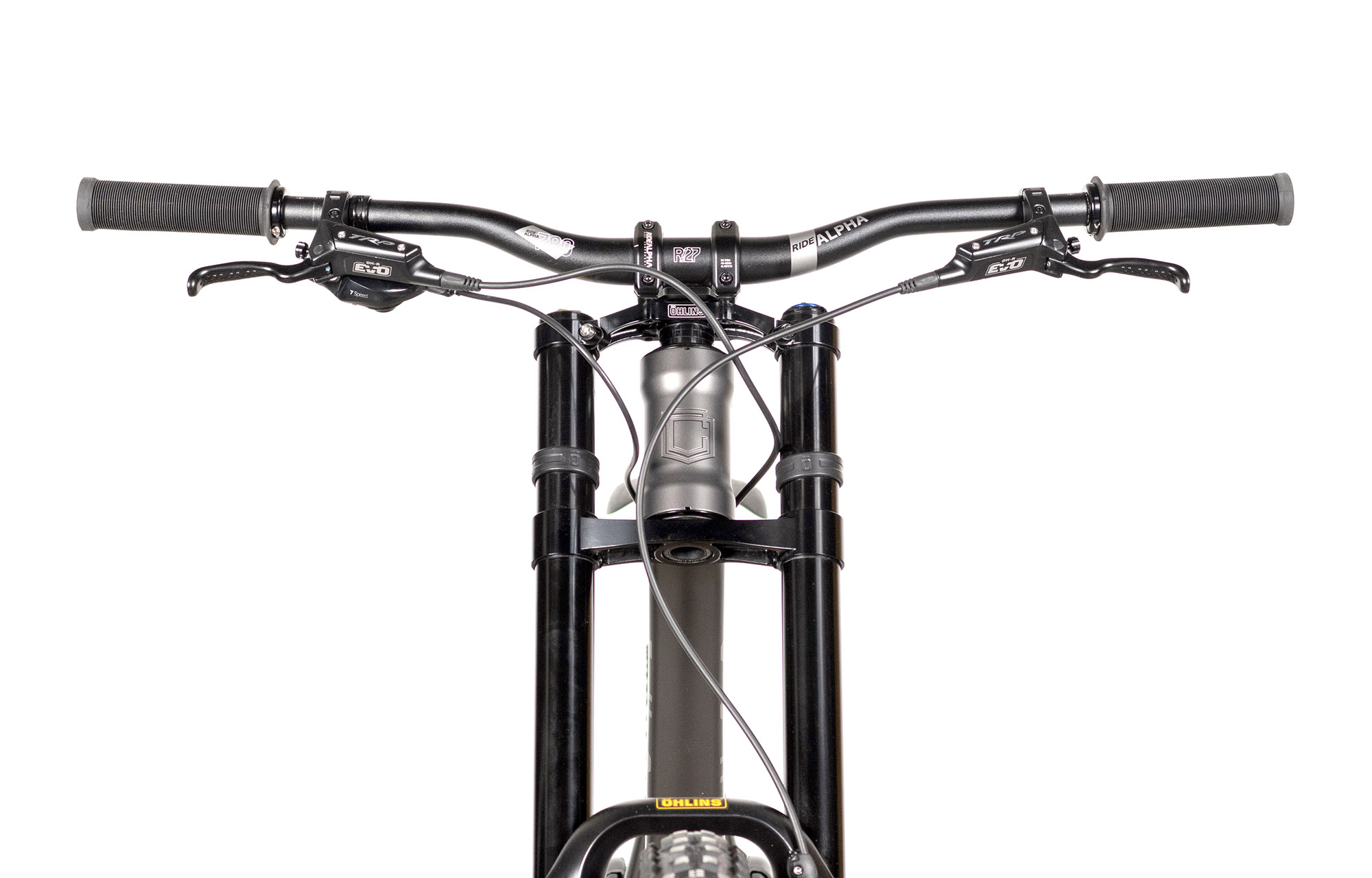

  • Handlebar

    RIDE ALPHA R27
    31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on  XL

  • Grips

    ODI Longneck
    Soft pro compound, single clamp, black

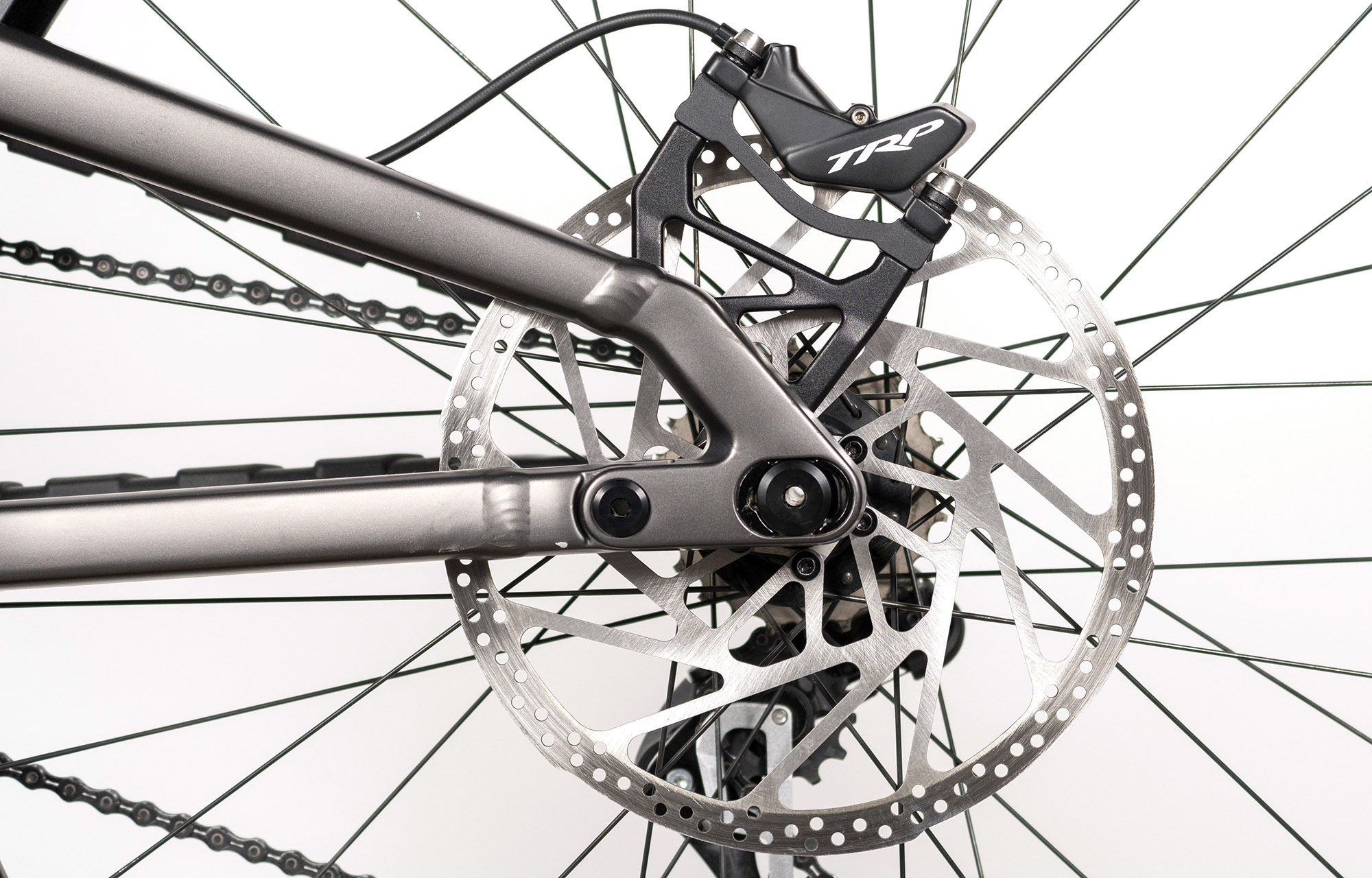

  • Brakes

    TRP DH-R Evo, 4 pistons, resin pads
    Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thickness

  • Shifters

    SRAM GX DH
    7 sp

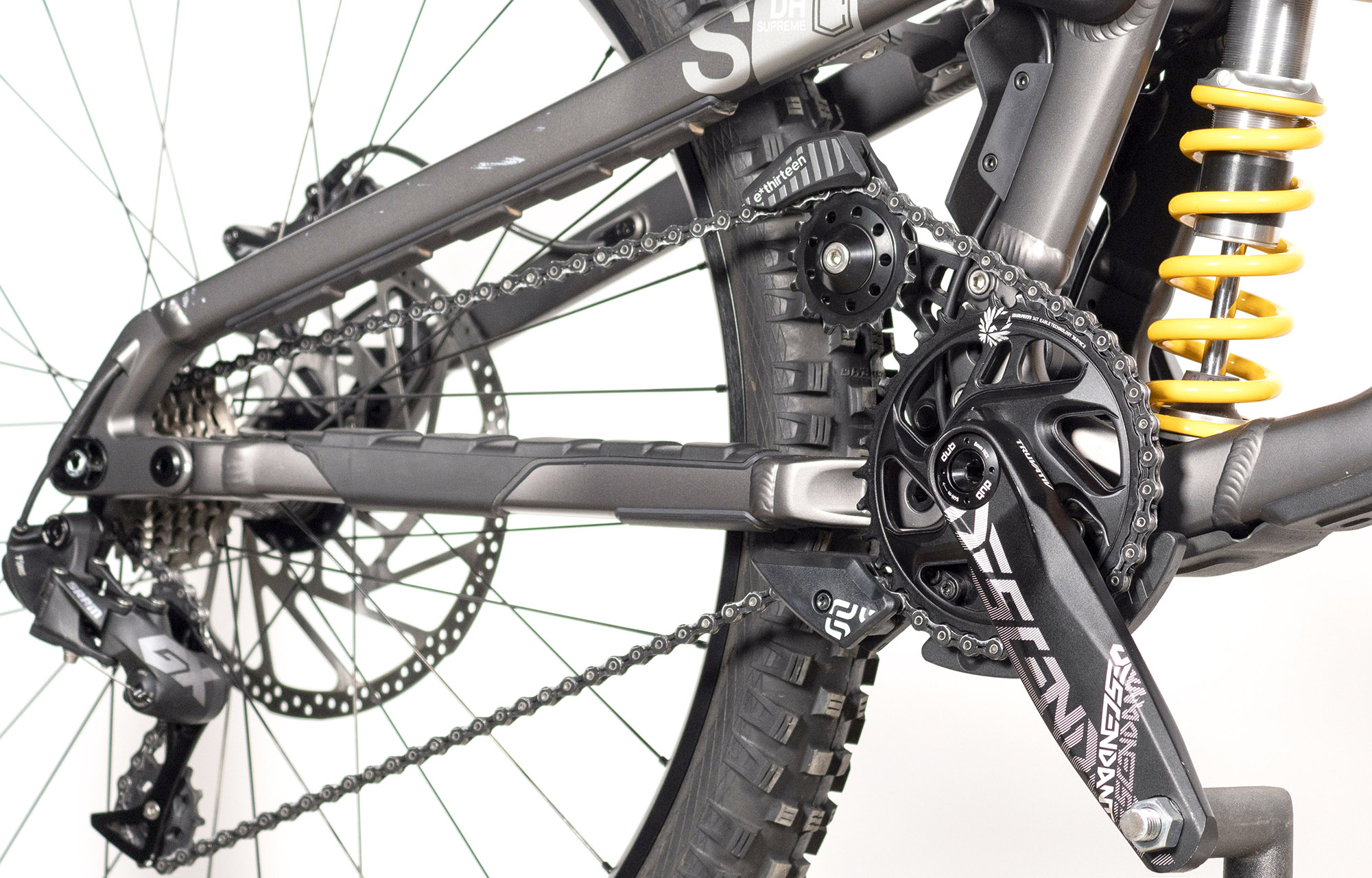

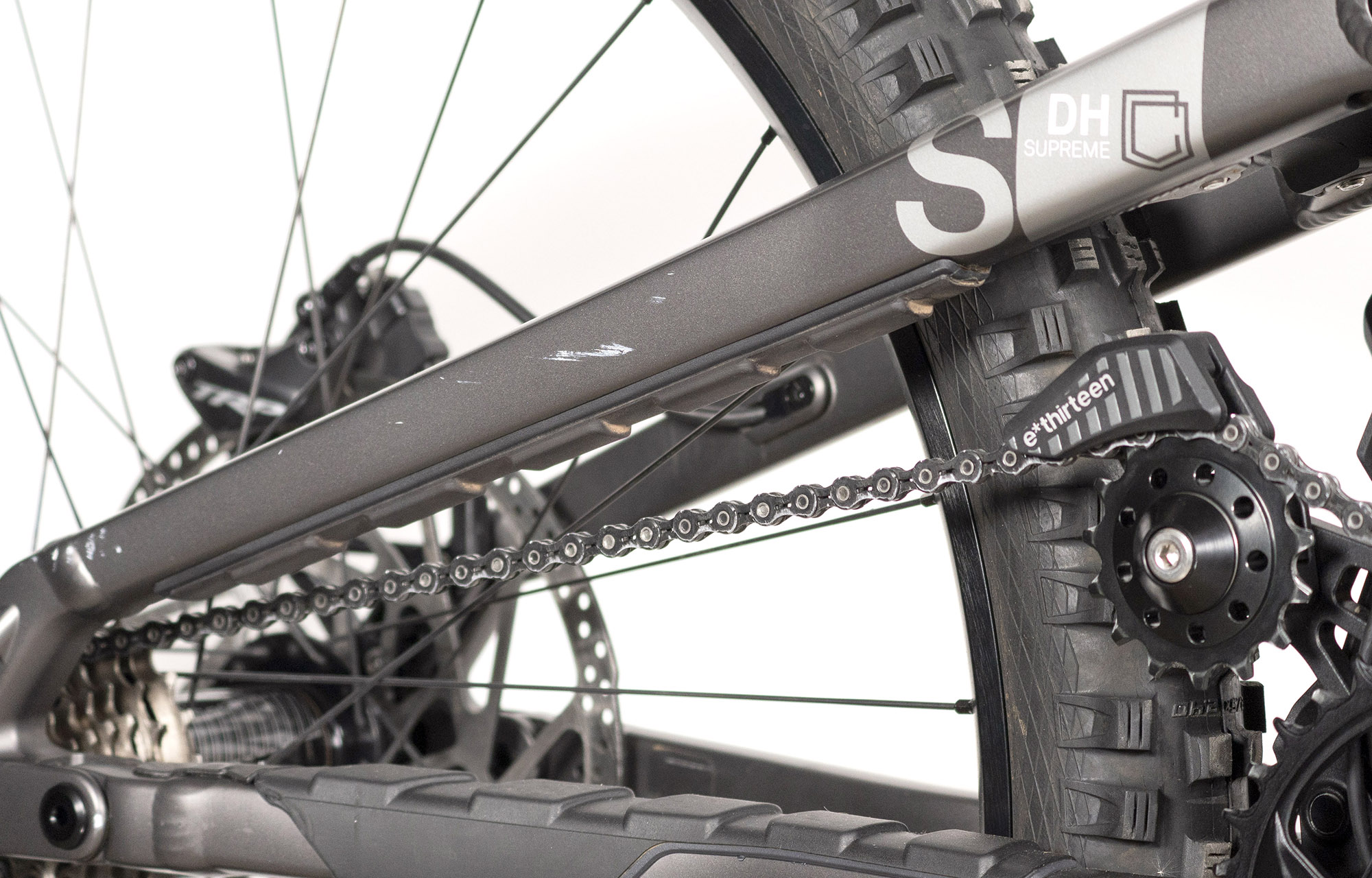

  • Chain guide

    E13 LG1 + Bottom Guide
    32-34t

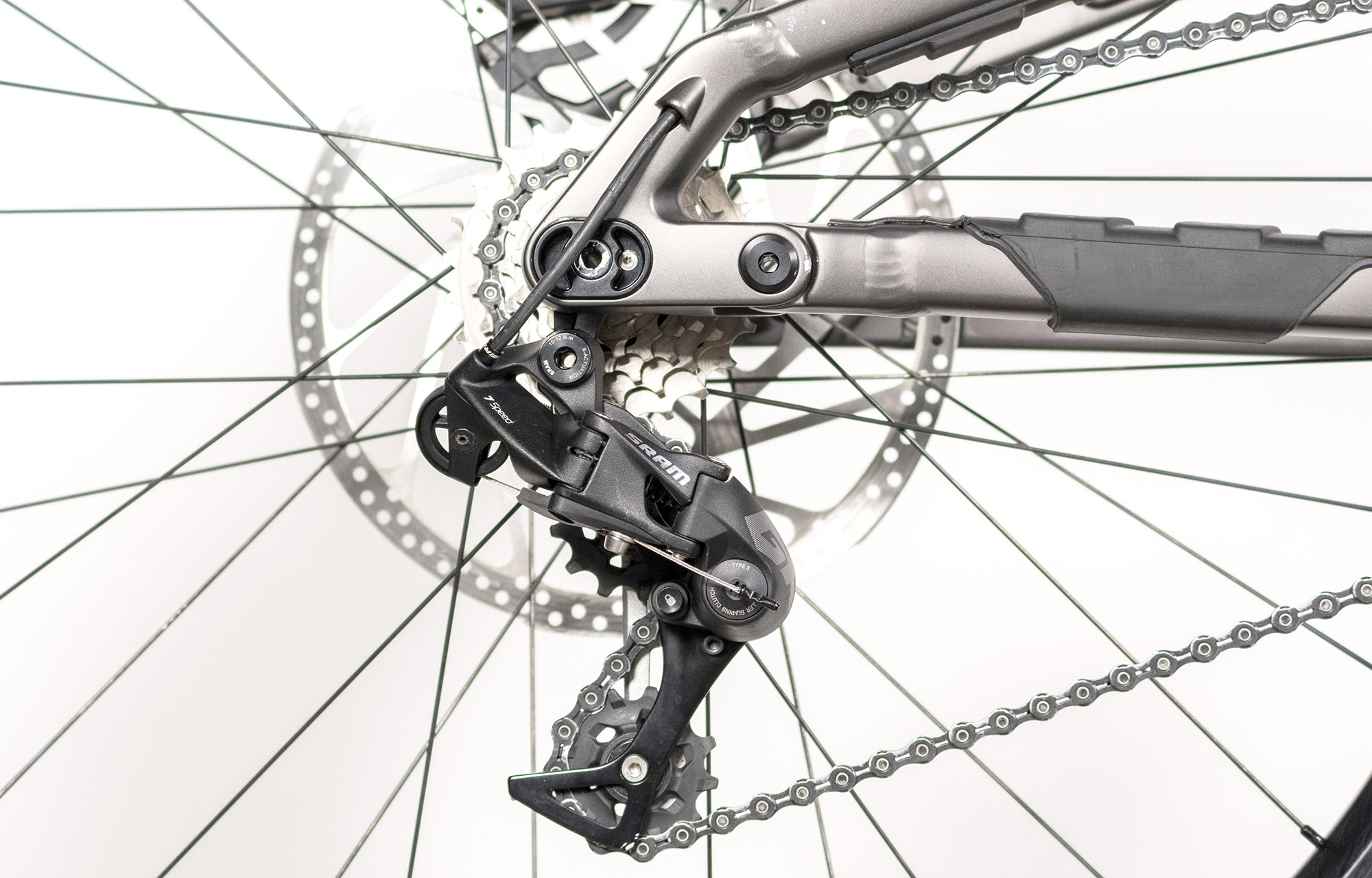

  • REAR DERAILLEUR

    SRAM GX DH
    7 sp

  • Bottom bracket

    SRAM DUB
    Pressfit

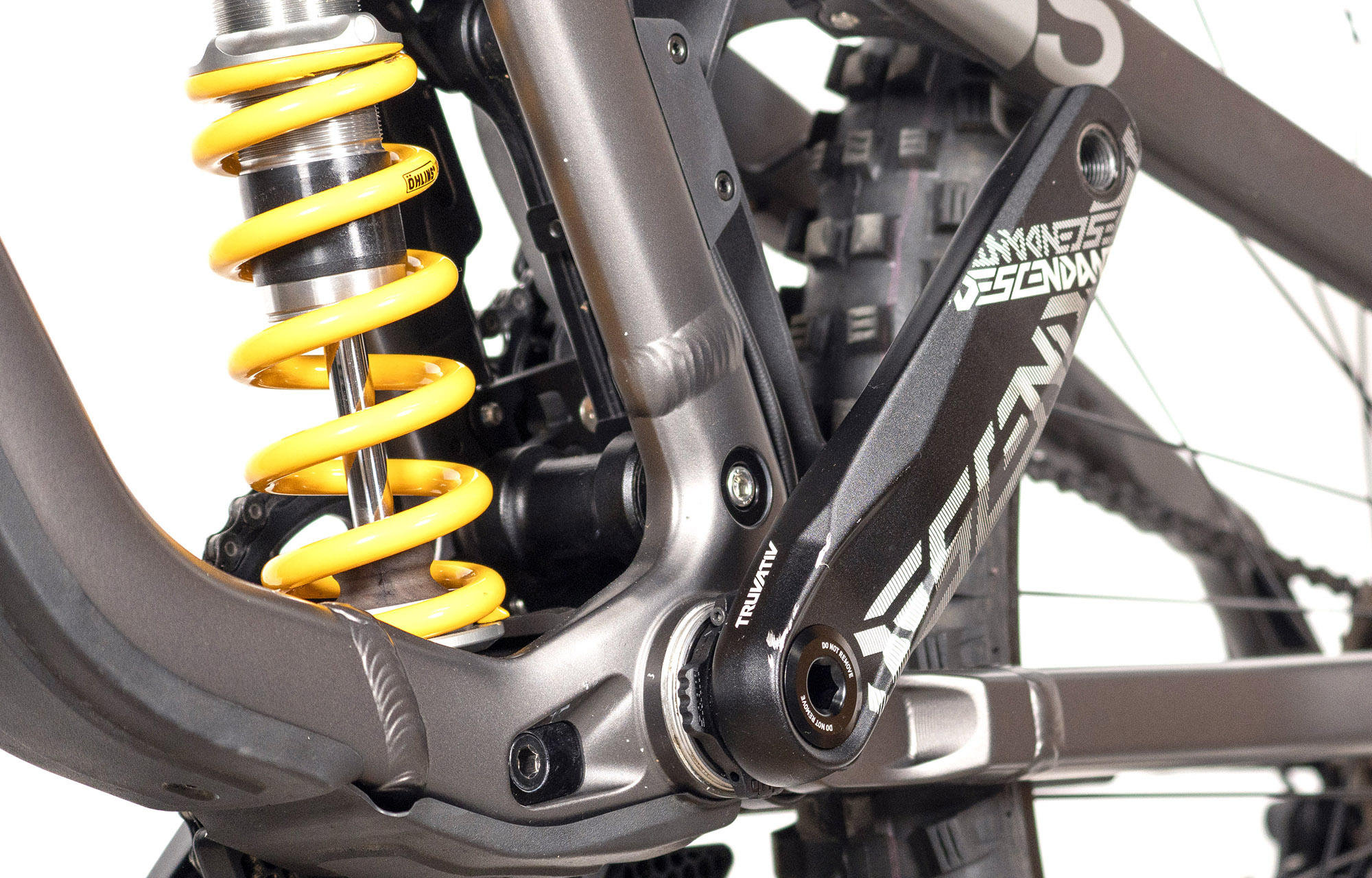

  • Crankset

    TRUVATIV Descendant DH, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant DH X-Sync, 34t

  • Chain

    KMC X11EL
    Black

  • Cassette

    E13 DH 7 Speed Integrated Cassette
    7s, 9-24t DM Cassette

  • Rims

    E13 LG1 Plus DH or E13 Grappler Race Alloy DH
    Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner

  • Hubs

    Rear: E13 LG1 Plus DH - Front: E13 LG1 Plus DH
    Rear: E13 LG1 Plus DH or Grappler Race Alloy DH - Front: E13 LG1 Plus DH or Grappler Race Alloy DH

  • Tyres

    Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary
    Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29" x 2.4", Super DH, Addix Ultra Soft, Tubeless Easy

  • Seat post

    RIDE ALPHA Super Light
    31.6 mm, 250 mm length

  • Saddle

    FIZIK Gravita Alpaca X5
    130 mm width, S-Alloy rails

  • Weight

    18 kg / 39,68 lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Dark Slate
    Matte Finish

  • Accessories

    Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard
    *Please note that bike specs are subject to change without prior notice.
