COMMENCAL META SX V4 RIDE DIRT (L)

$2,600.00
id/sku : OCUSA839
Availability: This Item is currently not available. null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
- DESCRIPTION -

The image of this model is not a photo but in fact a 3D representation. The studio photos with the specs listed below will be available very shortly.

New META SX

We have been working on 29/27 Mullet bikes for 3 years now with our different DH teams. This work has allowed us to understand that to transform a regular bike with the same sized wheels into a bike with different sized wheels, it isn't effective to just throw a 27-inch wheel on the back. The geometry and kinematics of the bike must be completely reworked and it is thanks to this experience that we are now able to present the most successful version of the META V4 we've ever produced, the META SX!

Equipping this META SX with different sized 29/27-inch wheels is not the result of a trend that we're following. Quite simply, this way the bike is much more balanced, specifically relating to grip on the front and back - the large 29-inch wheel on the front allows more confidence and rolling capacity whilst the 27.5-inch rear wheel offers more manoeuvrability and responsiveness.

The result is a bike that is more agile and easier in the steeps, more efficient under braking and more dynamic when pushing hard.

Once again, our choice to work with Aluminium has allowed us to accompany this change in wheel size with an adjustment of the geometry. A shorter 10mm reach, a straightened steerer angle and extended (10mm) chain stays mean that the rider is naturally repositioned in the centre of the bike and will therefore have the ability to be more precise and agile in their technique.

Undoubtedly, one of the points that has changed the most is the way the suspension works. Apart from the kinematics which have been reworked to provide more liveliness, we've made a point of managing the stiffness of the rear triangle. Through new double row Enduro Bearings, eliminating any deformation, the new META SX offers perfect deformation/rigidity management to provide grip, comfort and performance.

In addition to all this in-depth work, as on our META POWER TR and META TR models, we now offer a Flip Chip on the shock extension in order to be able to better adjust the geometry, and therefore fit with your style! This system also means you can adapt the height of the bottom bracket as well as the steerer and saddle angles within seconds. Depending on your preferences, you can have the choice between a dynamic bike that's perfect for big pedalling trips, or a more progressive version which is ideal for days in the bike park or on more committed trails.

Finally, we have worked on a detail that makes the difference; the finished look.

The welds have been the subject of meticulous work to reduce them as much as possible without affecting the solidity of the frame. The cable routing is neat for easier maintenance, the cables being easily accessible in the down tube, while grommets are placed at the ends to give perfect support and prevent penetration of water and mud.

Installing a bottle cage has also been made easy.

About the META SX RIDE

This META SX RIDE comes in a matte Dirt colour and is made to get even more dirty!

This is a full-enduro model of the META SX and therefore has the appropriate suspension:

- The ROCKSHOX ZEB fork with 38mm stanchions will give you all the precision you need to keep your lines.

- The Deluxe Select + shock has adjustments that are simple and effective.

This suspension combo provides comfort and performance, on any type of terrain.

The rest of the components have been carefully selected:

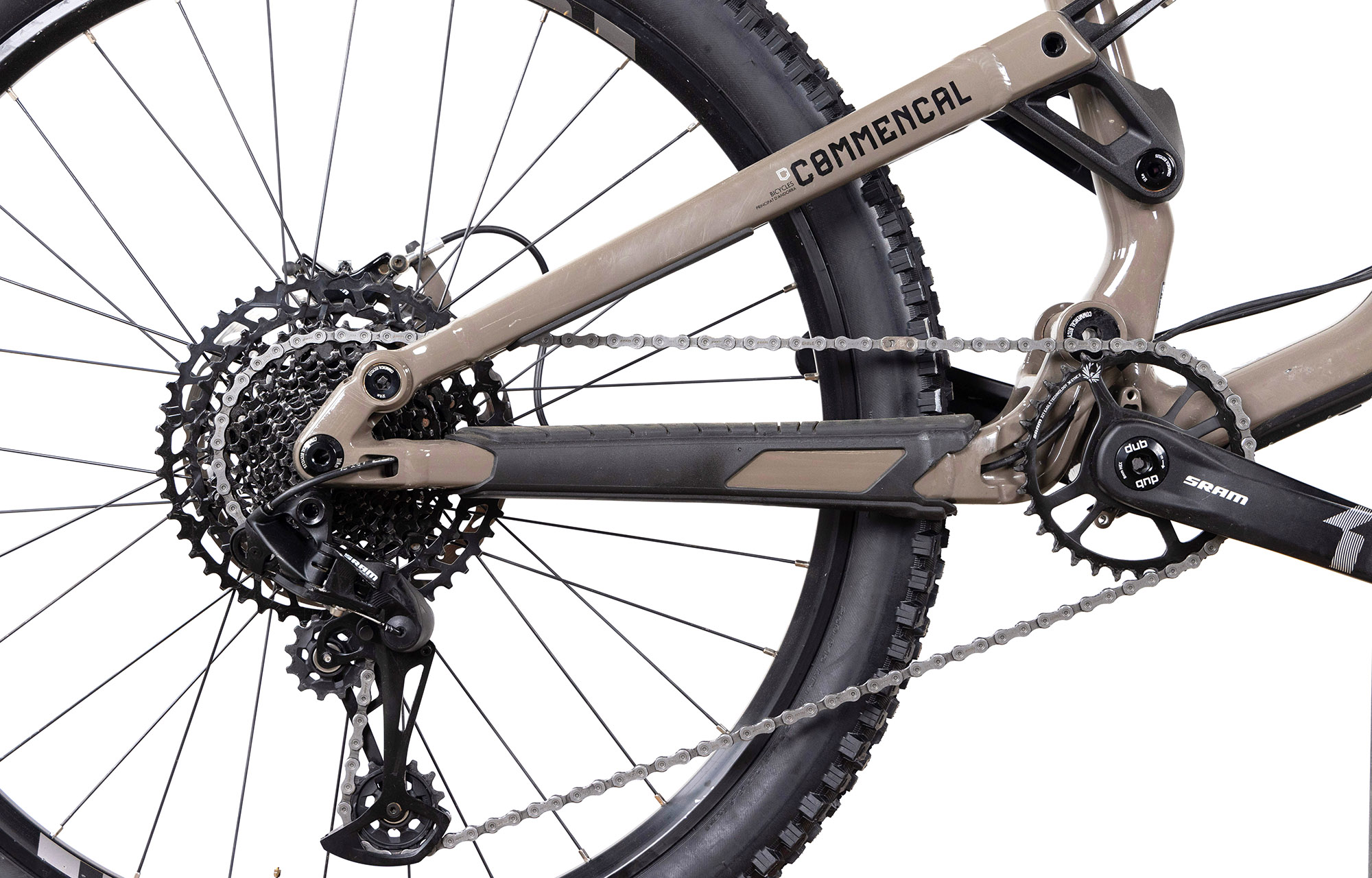

- SRAM SX Eagle 12-speed drivetrain and 11-50t gearset help you tackle the toughest climbs.

- The SRAM Guide T 4-piston brakes are reliable.

- The KS Rage-I telescopic seat post provides real comfort and significant freedom of movement on the way downhill.

- The MAXXIS Assegai 29 front and DHR II 27.5 rear combo fits the program perfectly, with an excellent compromise between lateral grip and roll.

Details make the difference.

See more See less
- Video -
- TECHNICAL INFO -
  • SECOND HAND HIGHLIGHTS

    Our second-hand bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!

    Completely disassembled and refurbished, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!

    Our second-hand bikes come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.

    The only difference between our second-hand bikes and our new bikes are scratches and paint chips caused by normal use.

    Don't hesitate to contact us for more details.

  • Bicycle type

    ENDURO 27''/29''

  • Frame material

    AL-6066

  • Frame weight

    3,9 kg / 8.59 lb

  • Rear travel

    160 mm

  • Shock length/stroke

    230 x 62,5 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm

  • Recommended/max. fork height

    586 mm / 596 mm

  • Headset dimension

    TAPERED 1-1/8" / 1-1/2"

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    68-584

  • Disc brake standard

    POSTMOUNT 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    12 x 148 mm

- SPECIFICATIONS -
  • Frame

    2022 Meta SX, 160 mm travel

    29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Deluxe Select +

    230 x 62.5 mm, rebound, threshold adjustment, 2 tokens

  • Fork

    ROCKSHOX Zeb, 170 mm travel

    29", Charger damper, Debonair, rebound, Boost (15 x 110 mm), 44 mm offset, 1 Token

  • Headset

    ACROS ZS44/ZS56

    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40

    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL

    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion

    Soft pro compound, single clamp, black

  • Brakes

    SRAM Guide T, 4 pistons, MatchMaker compatible

    Rotors: SRAM G2 CleanSweep 200 mm, 6-bolt

  • Shifters

    SRAM SX Eagle

    12s

  • REAR DERAILLEUR

    SRAM SX Eagle

    12s

  • Bottom bracket

    SRAM DUB

    Pressfit

  • Crankset

    SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost

    Chainring: SRAM X1 1000 Eagle, 32t, Narrow-Wide

  • Chain

    SRAM NX Eagle

    12s

  • Cassette

    SRAM PG-1210

    12s, 11-50t

  • Rims

    Rear: E13 LG1 DH Base 27.5'' - Front: E13 LG1 DH Base 29''

    Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width

  • Hubs

    Rear: FORMULA DCL-348A - Front: FORMULA DC-711

    Rear: 32h, sealed bearings - Front: 32h, sealed bearings

  • Spokes/nipples

    SAPIM Leader

    J-Bend 2.0 mm, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai

    Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxTerra, EXO, Tubeless Ready

  • Seat post

    KS Rage-I

    34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    SDG Bel Air V3

    Steel Rails

  • Weight

    16 kg / 35.27 lb

    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances

  • Pedals included

    No

  • Colour

    Dirt

    Matte Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

- SIZES -
- GEOMETRY -
SIZES
