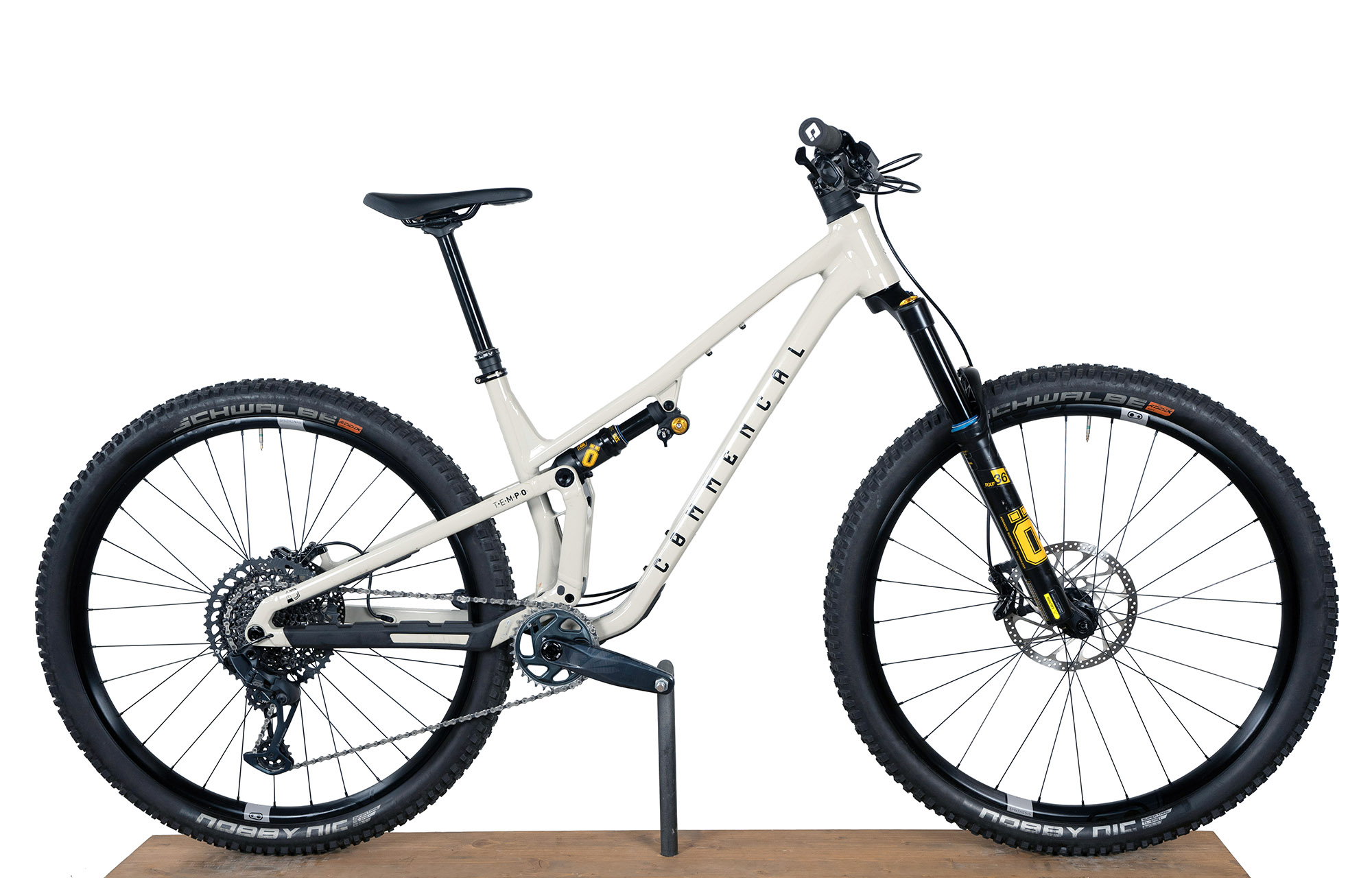

COMMENCAL T.E.M.P.O. OHLINS EDITION CHALK - M (22123902)

Price reduced from $5,000.00 to $3,250.00 -35%
id/sku : OCUSA878
Availability: This Item is currently not available. null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
- DESCRIPTION -

Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage.
We perform a thorough check of each bike and replace all wearing and damaged parts.
While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
These bikes are final sale but come with a full warranty.

- GENERAL DESCRITPION -

None.

- COSMETIC DESCRIPTION -

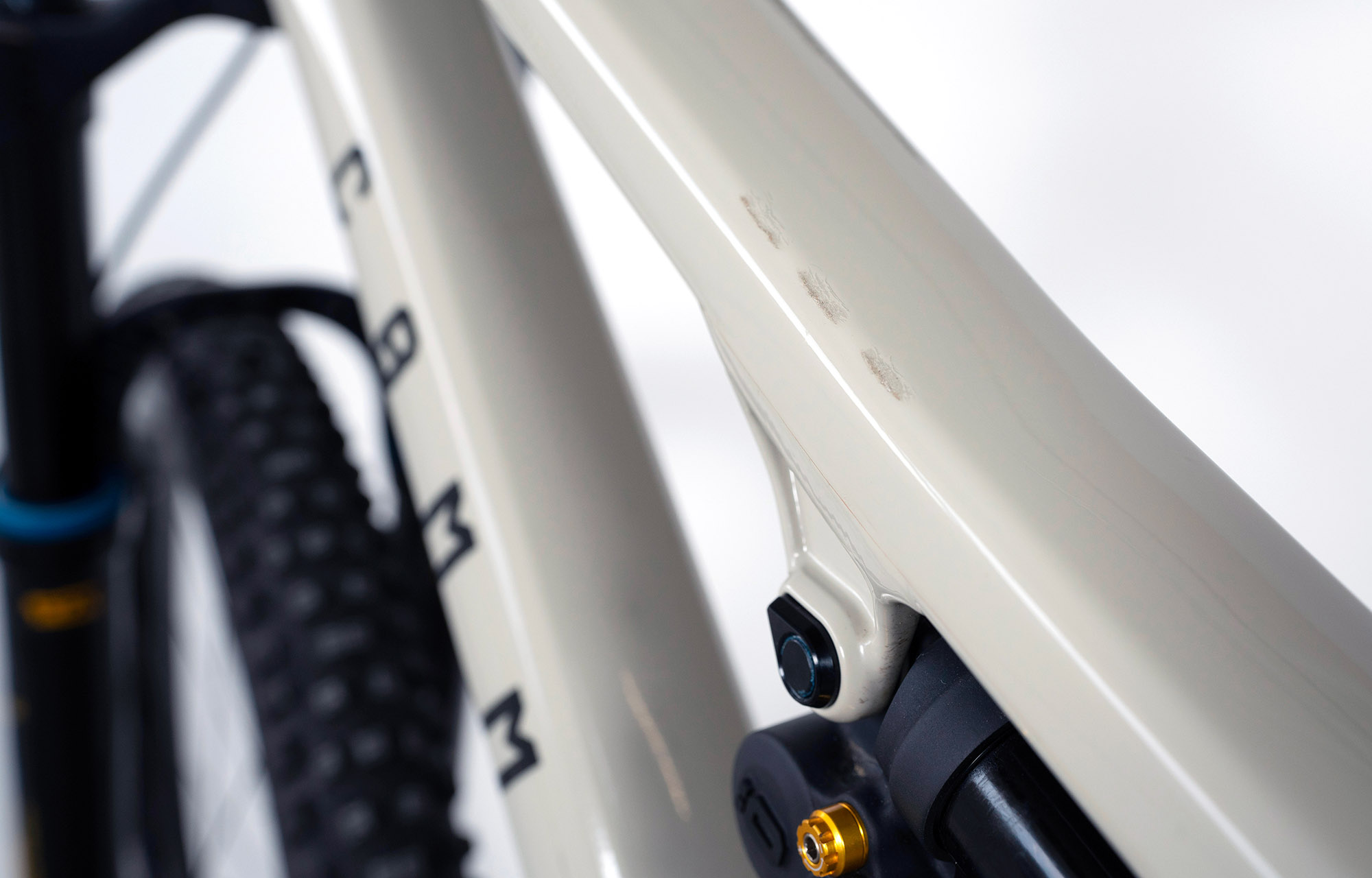

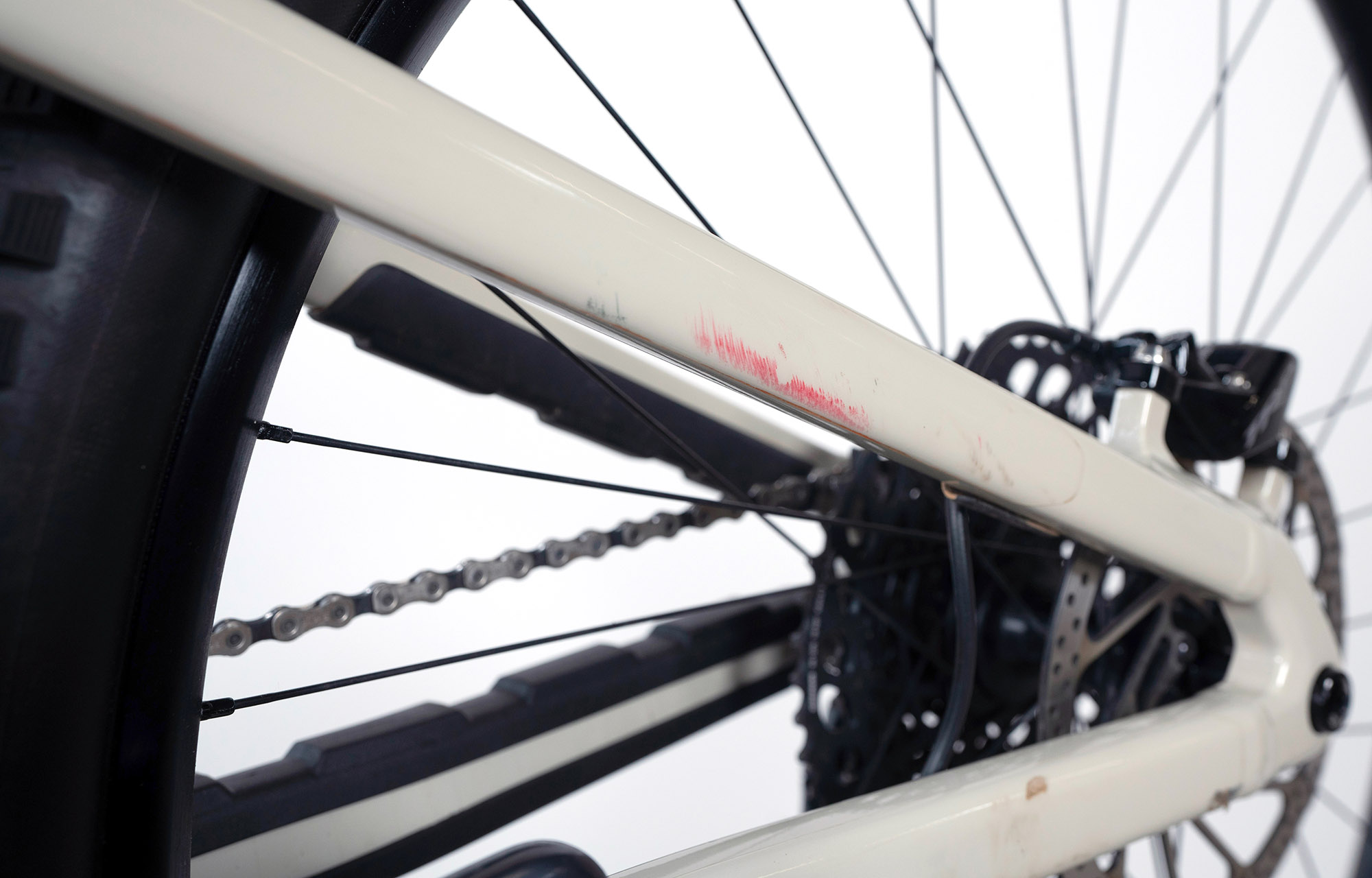

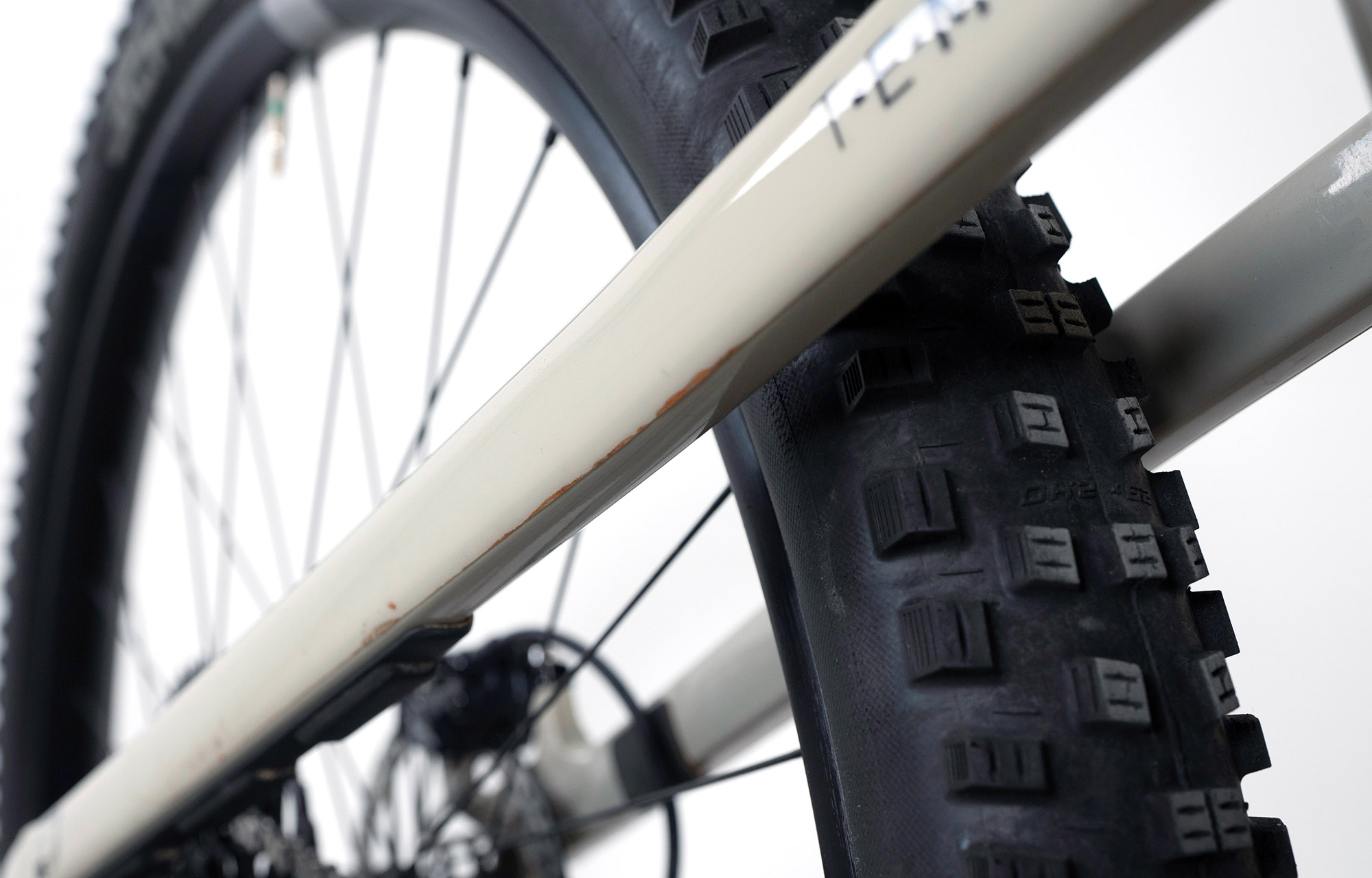

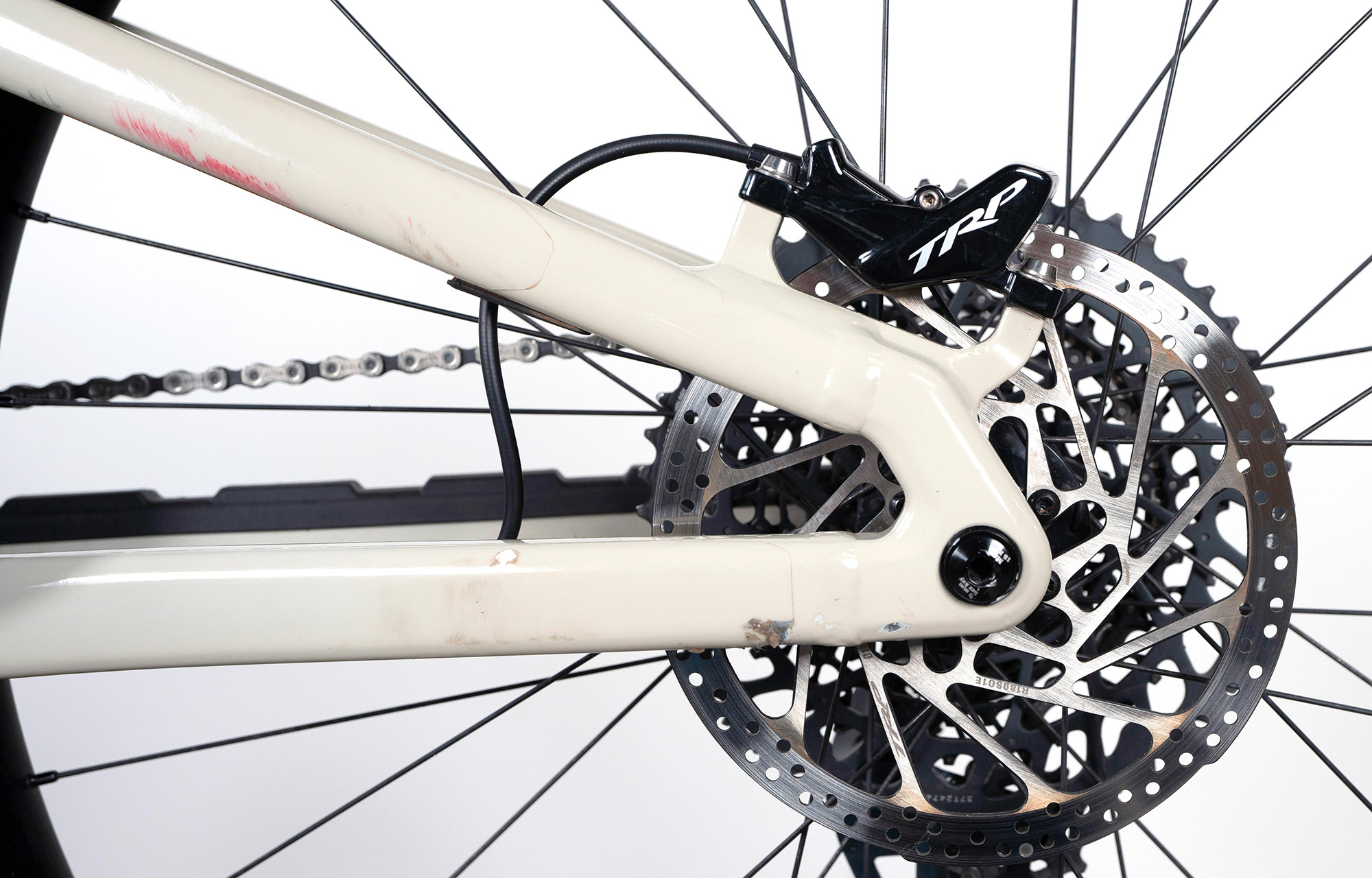

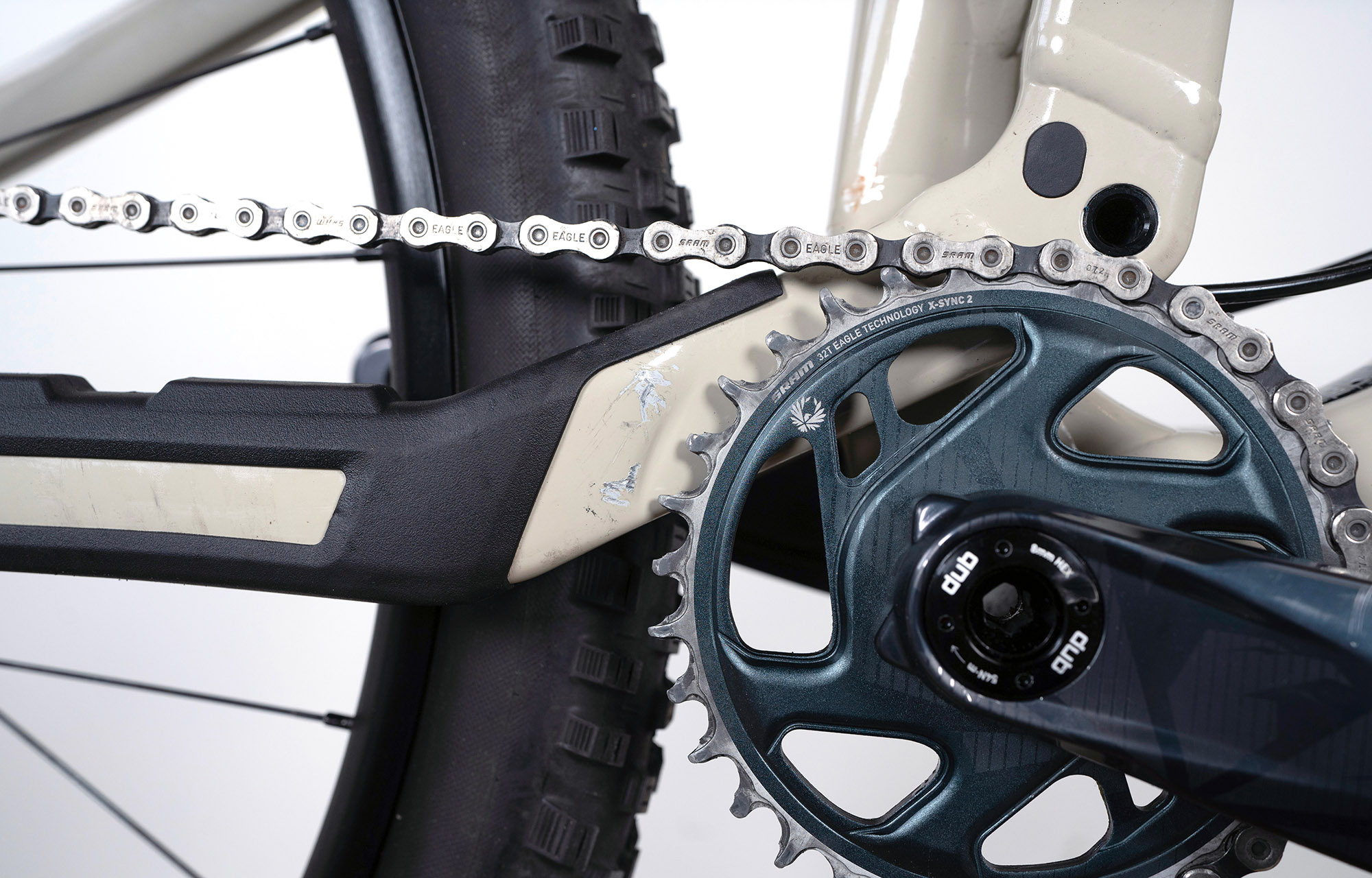

Chainstay scratches and red paint scuff, scuff on ridewrap top tube, scratches on handlebars and levers, rear rim scratch.

- MECHANICAL DESCRITPION -

None.


Don’t hesitate to contact us for more details.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    TRAIL 29"

  • Frame material

    AL-6066

  • Frame weight

    3,125 kg / 6,88 lb, raw without accessories

  • Rear travel

    125 mm

  • Shock length/stroke

    210 x 50 mm

  • Piggy back shock compatible

    Yes

  • Recommended SAG

    30% = 15mm stroke

  • Shock bushings

    20 x 10 mm / 30 x 10 mm

  • Recommended/max. fork height

    551 mm / 561 mm

  • Headset type

    ZS56 / ZS56, Integrated cable routing

  • Maximum tyre dimension (etrto)

    63mm / dim. 756

  • Disc brake standard

    POSTMOUNT 180 mm

  • Rear rotor max. size

    200 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    BB92 Press Fit

  • ISCG

    ONLY ON THE TOP / CUSTOM, NO ISCG

  • Rear hub compatibility

    12 x 148 mm / Maxle stealth 180 mm M12x1,0

- SPECIFICATIONS -
  • Frame

    T.E.M.P.O., 125 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    OHLINS TTX1 Air
    210 x 50 mm, rebound, 3 positions, Evol LV

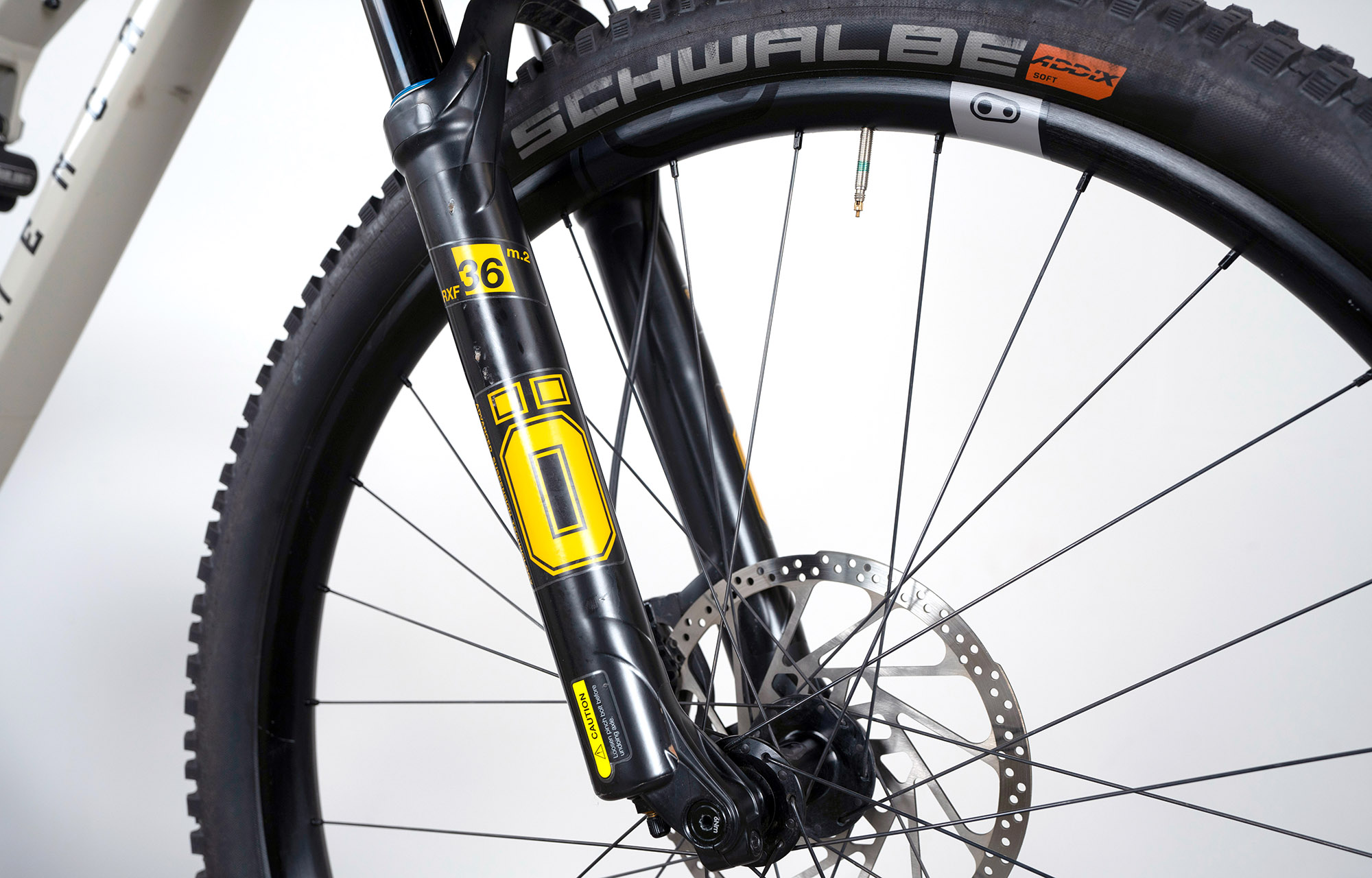

  • Fork

    OHLINS RXF 36 m.2 Air, 140 mm travel
    29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 51 mm offset

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings, Integrated cable routing

  • Stem

    RIDE ALPHA 40
    40 mm extension, 31,8 mm

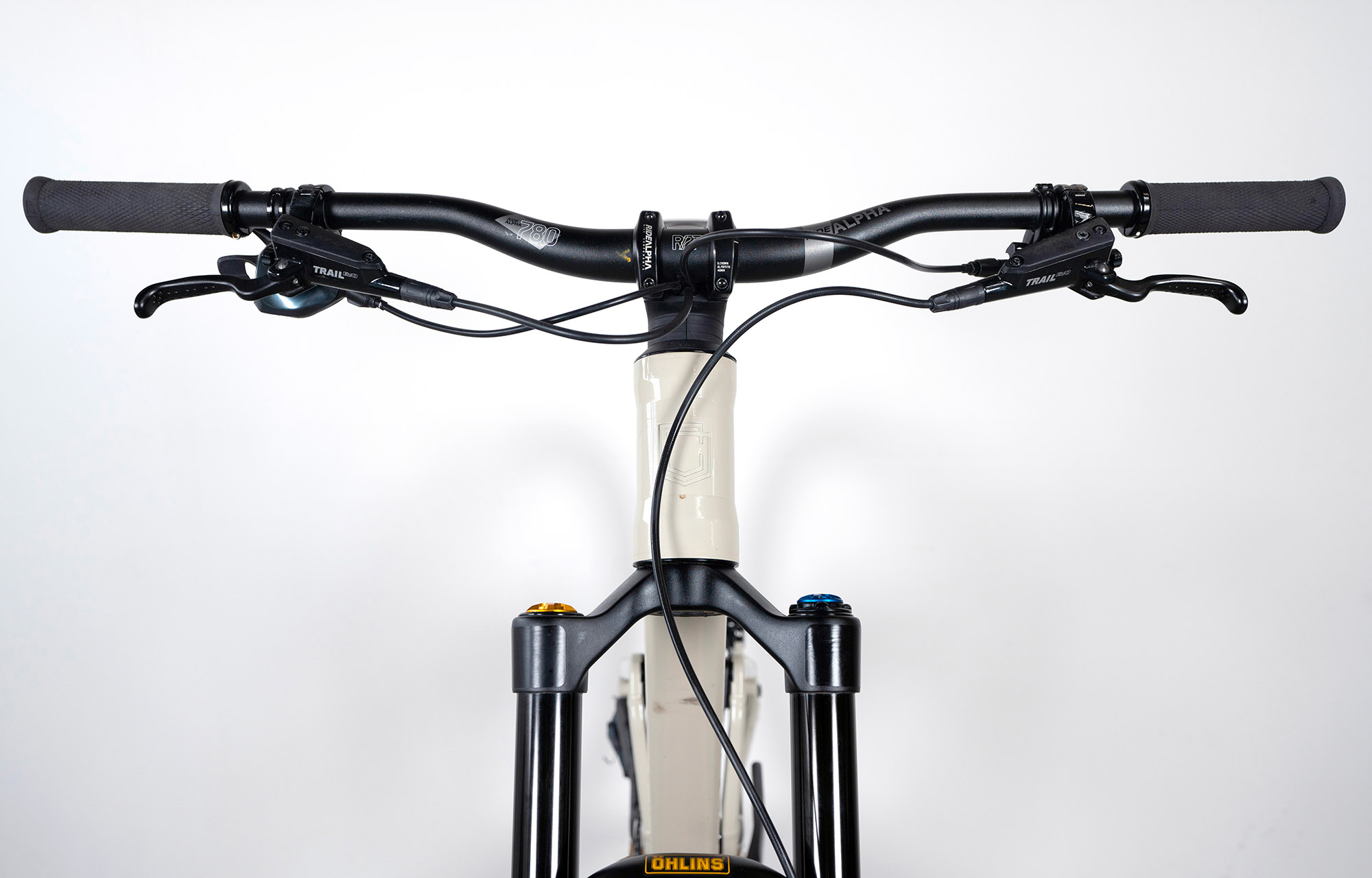

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Single clamp, black

  • Brakes

    TRP Trail EVO, 4 pistons, resin pads
    Rotor: TRP R1 203 / 180 mm, 6-bolt

  • Shifters

    SRAM GX Eagle
    12s

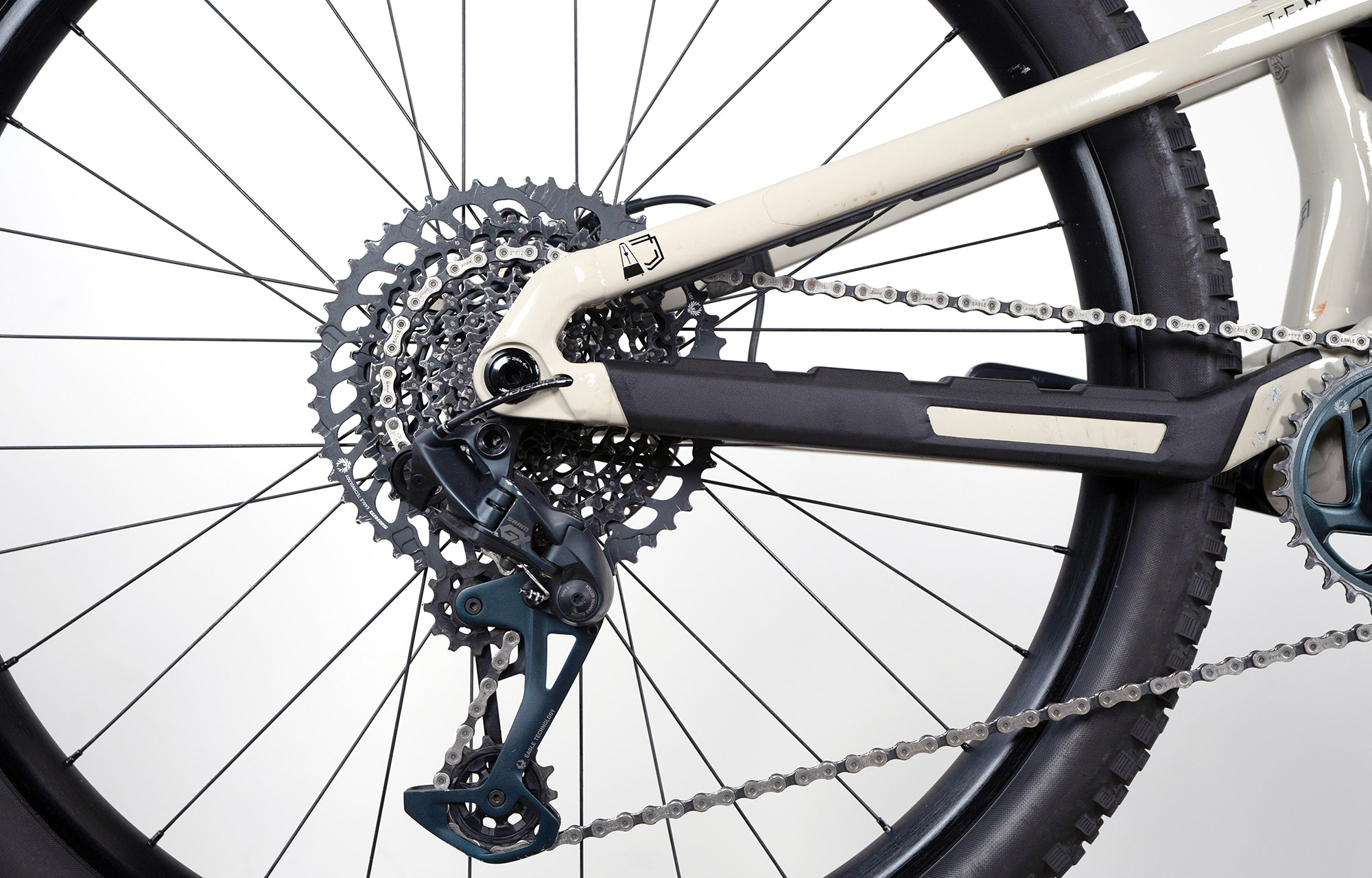

  • REAR DERAILLEUR

    SRAM GX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

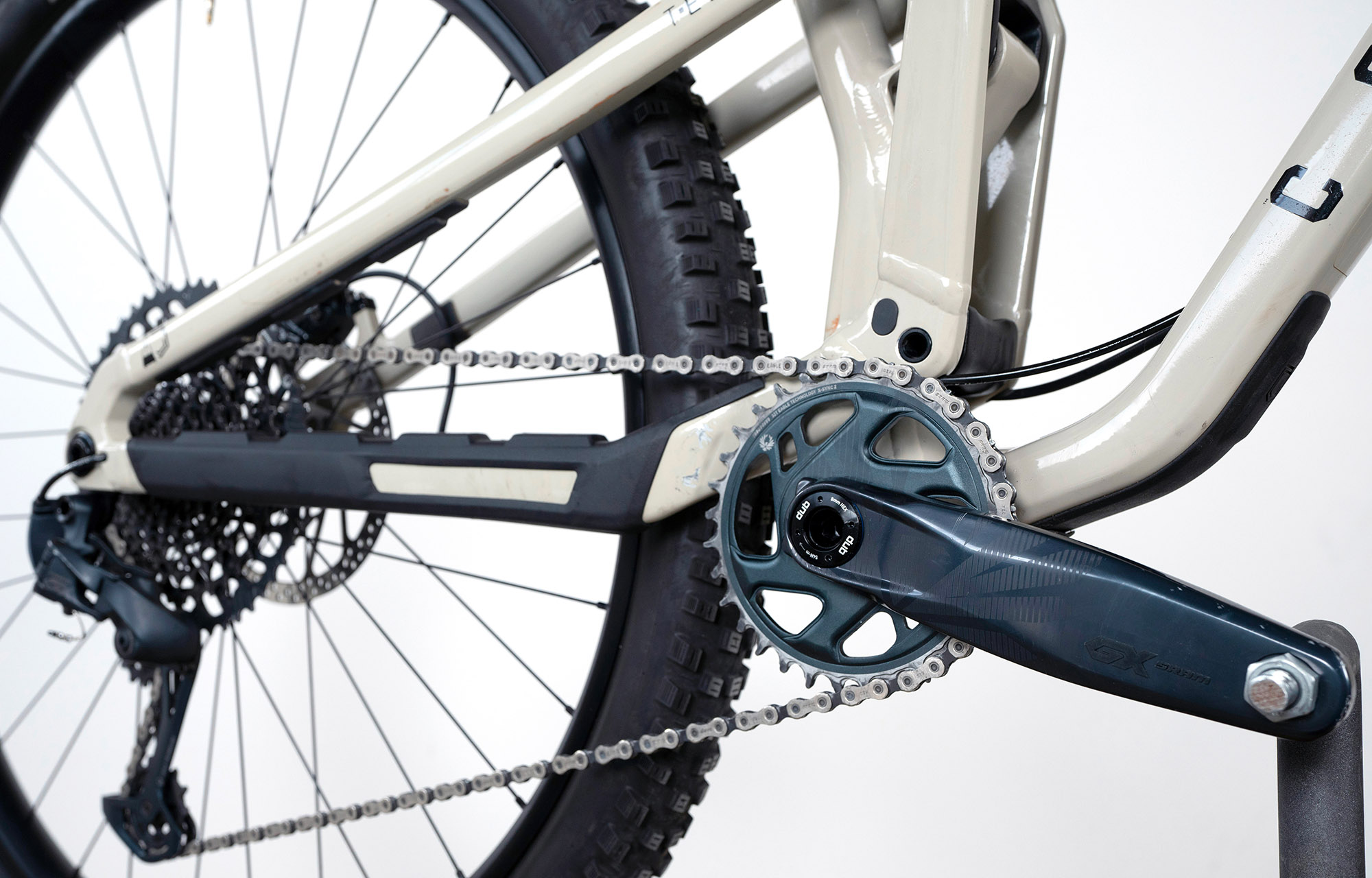

  • Crankset

    SRAM GX Eagle, 170 mm crank arms, Boost
    Chainring: SRAM GX Eagle, 32t, Narrow-Wide

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM GX Eagle
    12s, 10-52t

  • Rims

    CRANKBROTHERS Synthesis Enduro Alloy
    Front: 29", 28 holes, 31.5mm inner width - Rear: 29", 32 holes, 29.5mm inner width

  • Hubs

    Rear: INDUSTRY NINE 1/1 - Front: INDUSTRY NINE 1/1
    Rear: 32 holes, 6 pawls, Sram XD freehub body - Front: 28 holes

  • Spokes/nipples

    SAPIM D-Light
    J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II
    Rear: 29" x 2.4" WT, dual compound, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready

  • Seat post

    KINDHSOCK Lev Integra
    31.6 mm, 150 mm on S, 175 mm on M, 200 mm on L/XL

  • Saddle

    FIZIK Terra Alpaca X5
    145 mm width, S-alloy rails

  • Weight

    14,5 kg / 31.96 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances

  • Pedals included

    No

  • Colour

    Chalk
    Shinny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector
    *Please note that bike specs are subject to change without prior notice

- SIZES -
150
155
160
165
170
175
180
185
190
195
200
205
210
215
220
225
230
235
S
5.2158
5.7170
M
5.6168
5.11180
L
5.10178
6.3190
XL
6.2188
6.11210
- GEOMETRY -
SIZES
1 - SEAT TUBE LENGTH
2 - SEAT TUBE ANGLE
3 - HEAD TUBE ANGLE
4 - HEAD TUBE LENGTH
5 - WHEELBASE
6 - TOP TUBE LENGTH
7 - CHAIN STAY LENGTH
8 - BOTTOM BRACKET HEIGHT
9 - FORK LENGTH
10 - STANDOVER HEIGHT
11 - REACH
12 - STACK
13 - FORK OFFSET
S
M
L
XL
380
420
440
460
76,6
76,6
76,6
76,6
65,5
65,5
65,5
65,5
115
120
125
130
1190
1211,5
1238,5
1261
579
600
621,5
642,9
435
435
440
440
-35
-35
-35
-35
551
551
551
551
-
-
-
-
430
450
470
490
624
628,5
633
637,5
51
51
51
51
