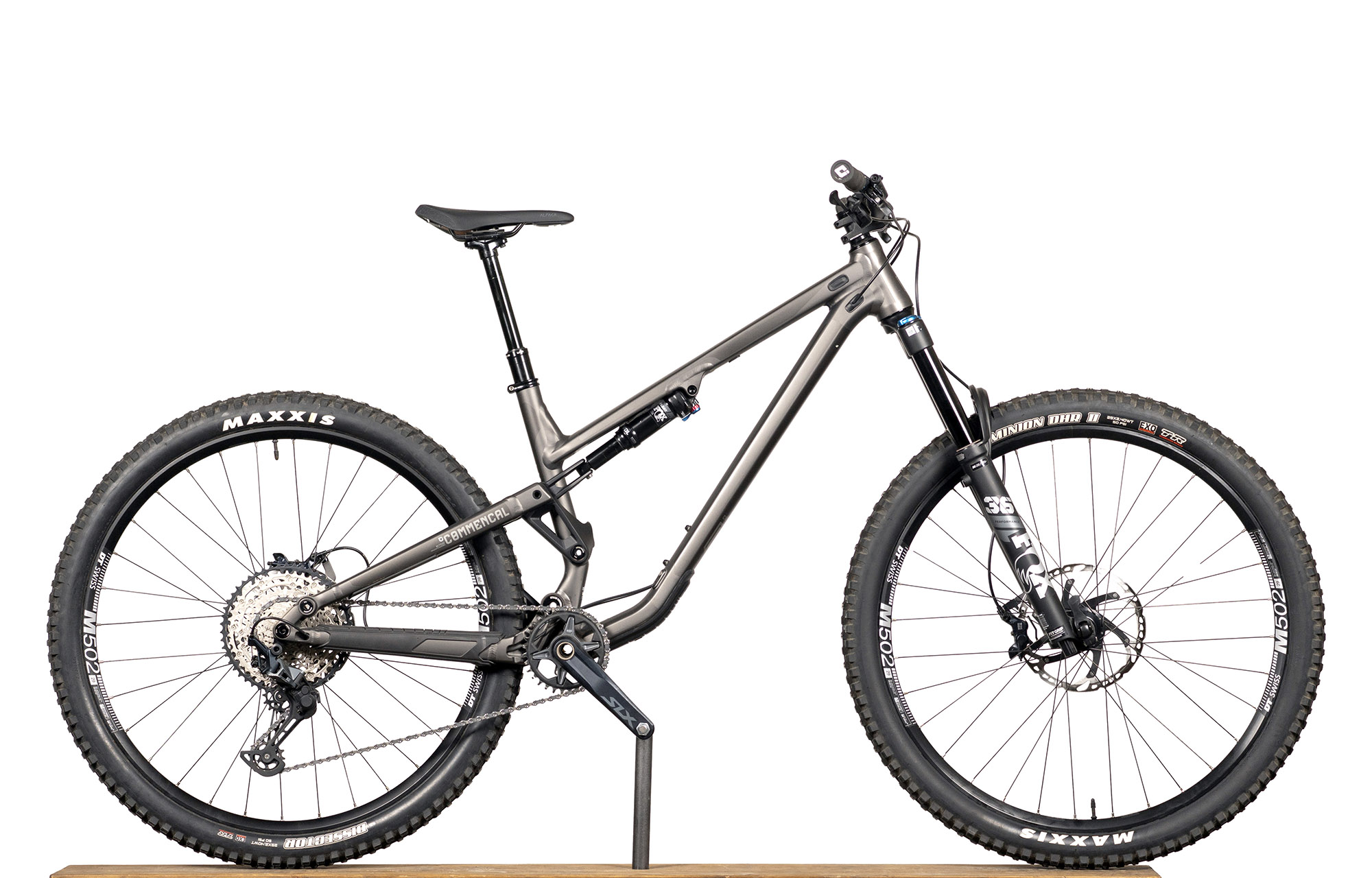

COMMENCAL META TR V4 ESSENTIAL DARK SLATE - M (22120202)

Price reduced from $4,200.00 to $2,300.00 -45%
id/sku : OCUSA987
Availability: This Item is currently not available. null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
- DESCRIPTION -

Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage.
We perform a thorough check of each bike and replace all wearing and damaged parts.
While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
These bikes are final sale but come with a full warranty.

- GENERAL DESCRIPTION -

None.

- COSMETIC DESCRIPTION -

Covered ridewrap kit installed
Minor scuff on derailleur

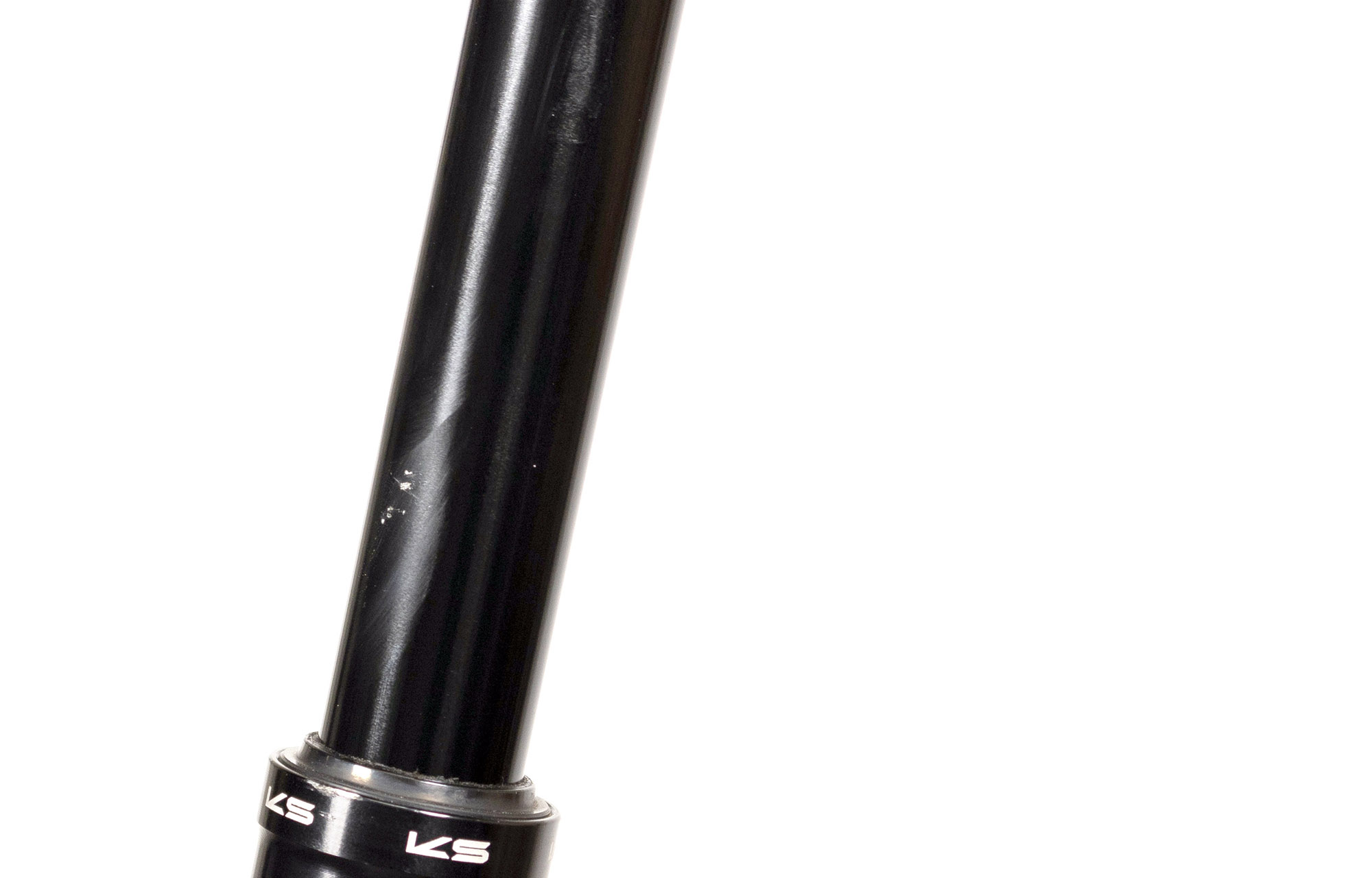

Small scratch on dropper stanchion
Scratch on drive side crank arm
Paint chip on down tube

- MECHANICAL DESCRIPTION -

None.


Don’t hesitate to contact us for more details.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Trail 29"

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    3,7 kg / 8.15 lb

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    Nothing on body - 20 x 10 mm on shaft

  • Recommended/max. fork height

    551 mm / 571 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    29" - 65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    34,9 mm / 38,5 mm

  • Bottom bracket type

    BB92

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META TR, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

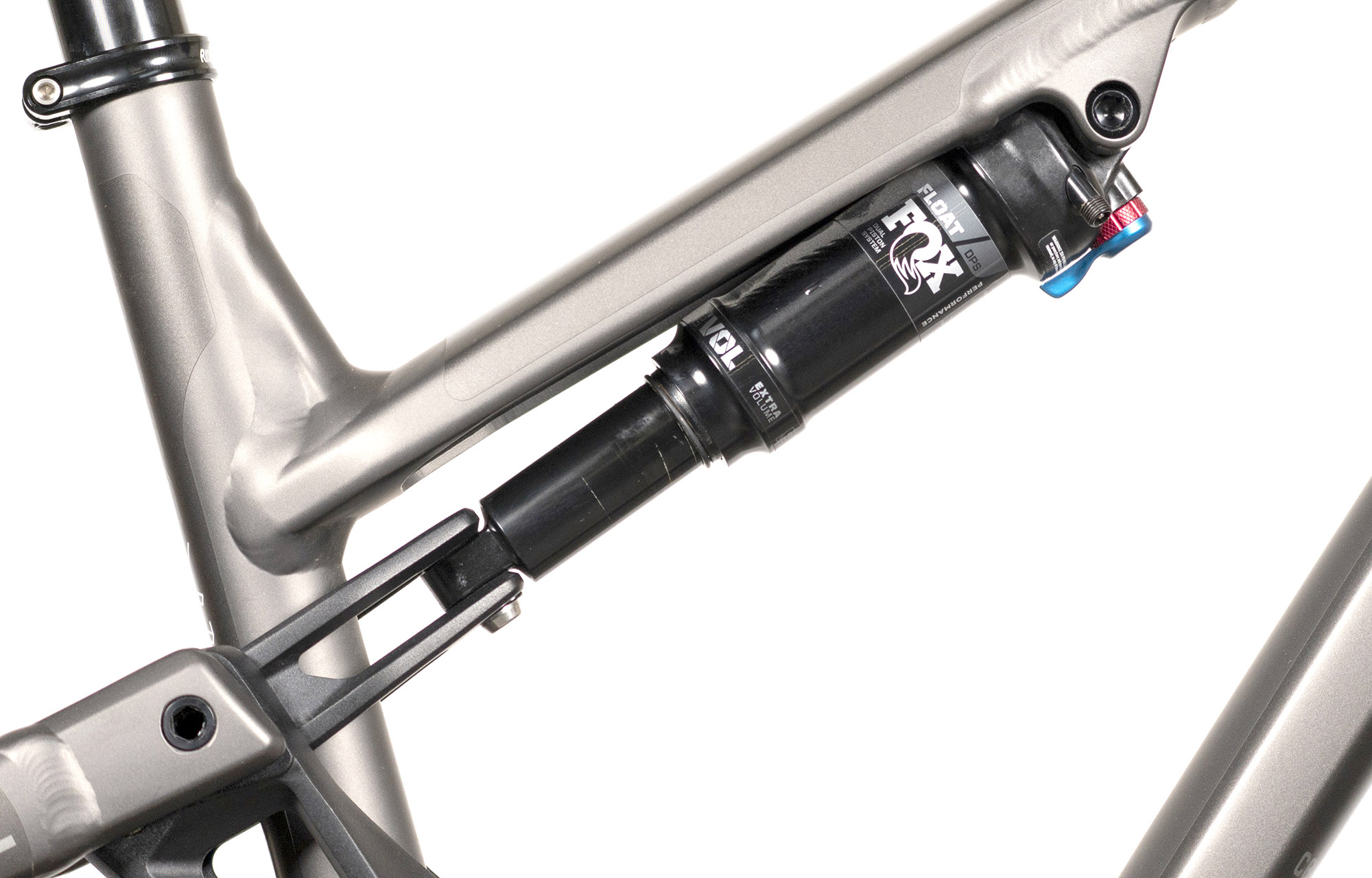

  • Shock

    FOX Float DPS Performance
    210 x 55 mm, rebound, 3 position adjustment

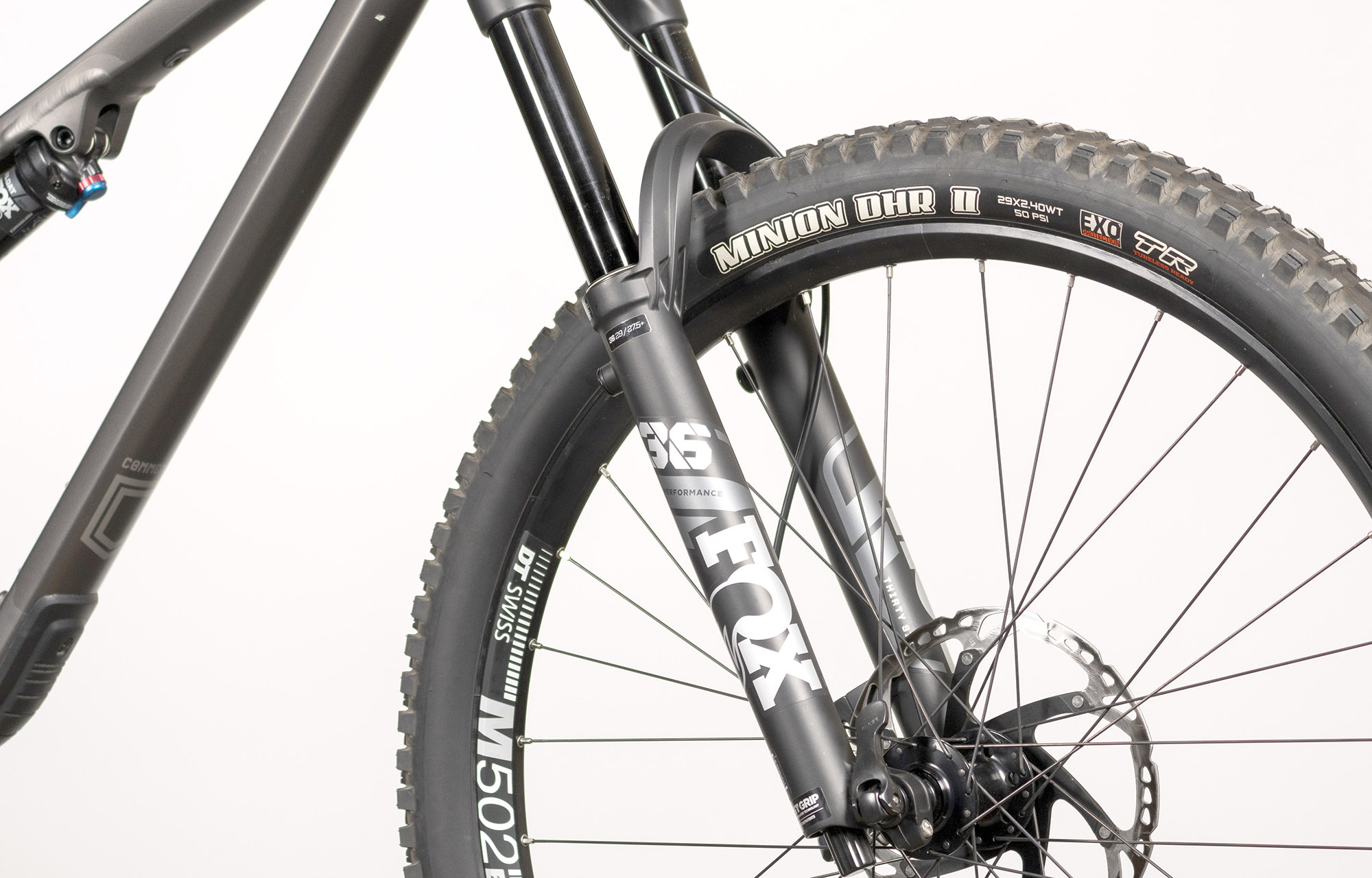

  • Fork

    FOX 36 Performance, 150 mm travel
    29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 Tokens

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31,8 mm

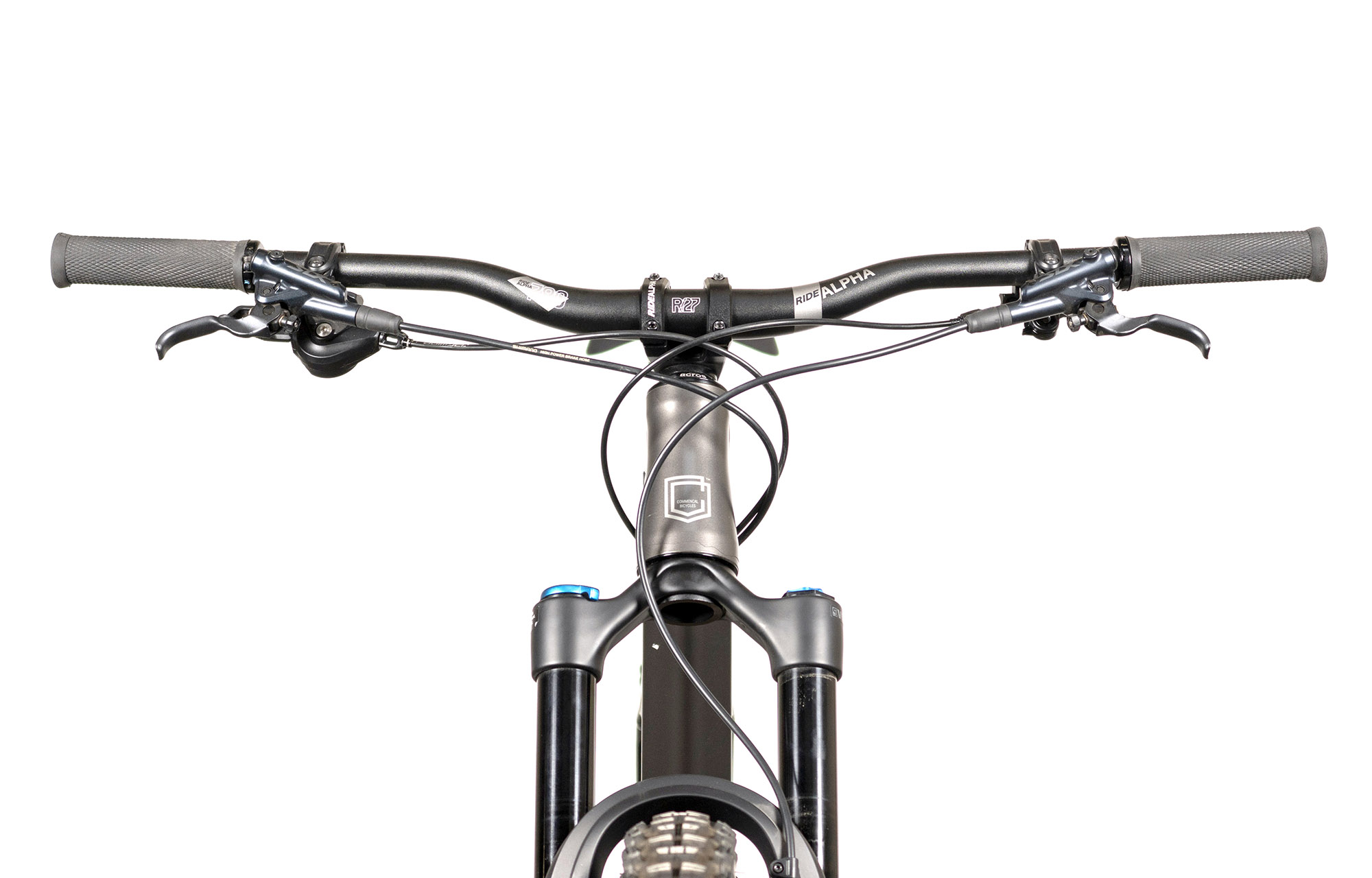

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

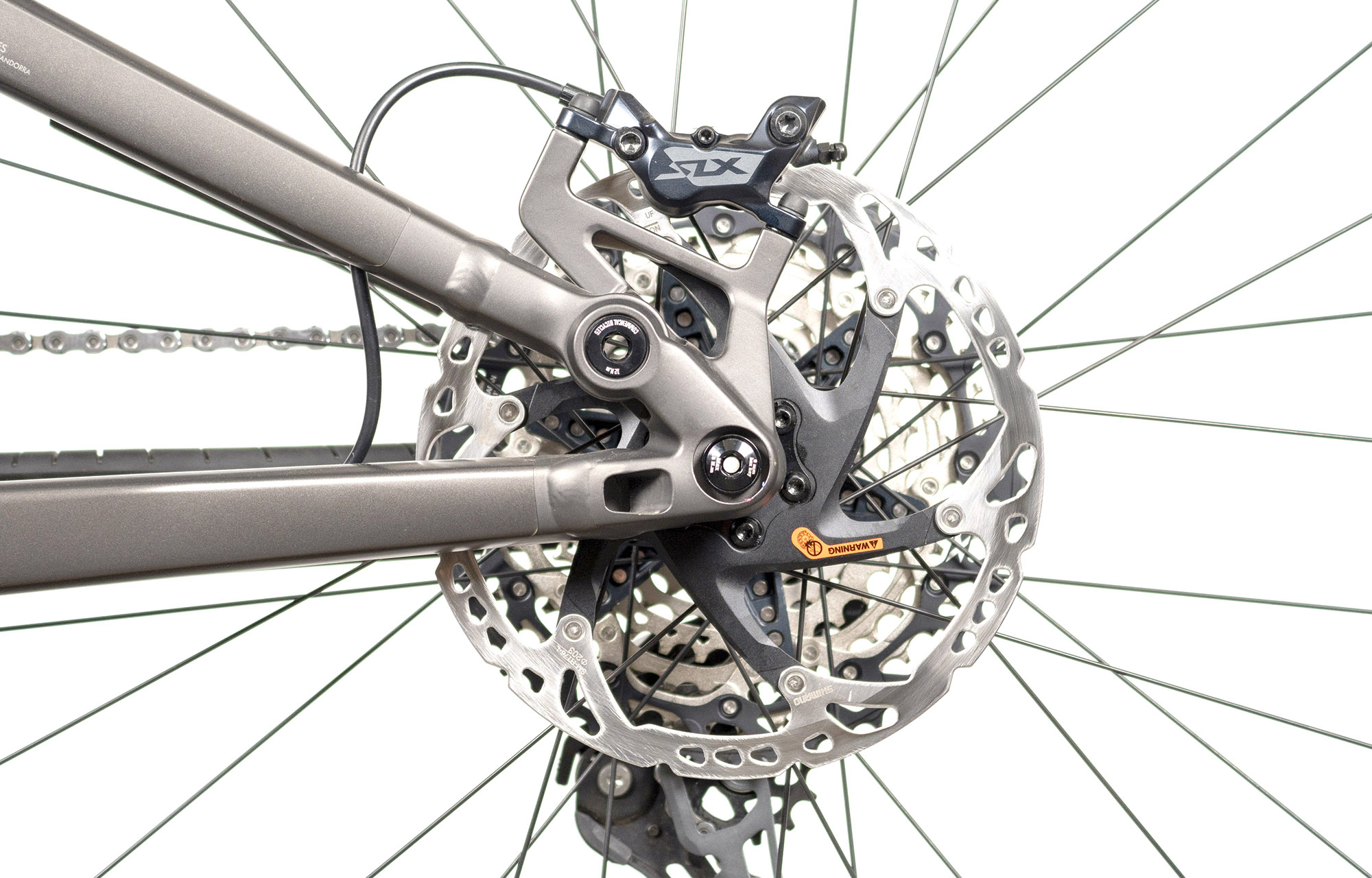

  • Brakes

    SHIMANO SLX, 4 pistons, I-Spec EV compatible
    Rotors: SHIMANO SM-RT76 203 mm, 6 holes

  • Shifters

    SHIMANO SLX
    12s

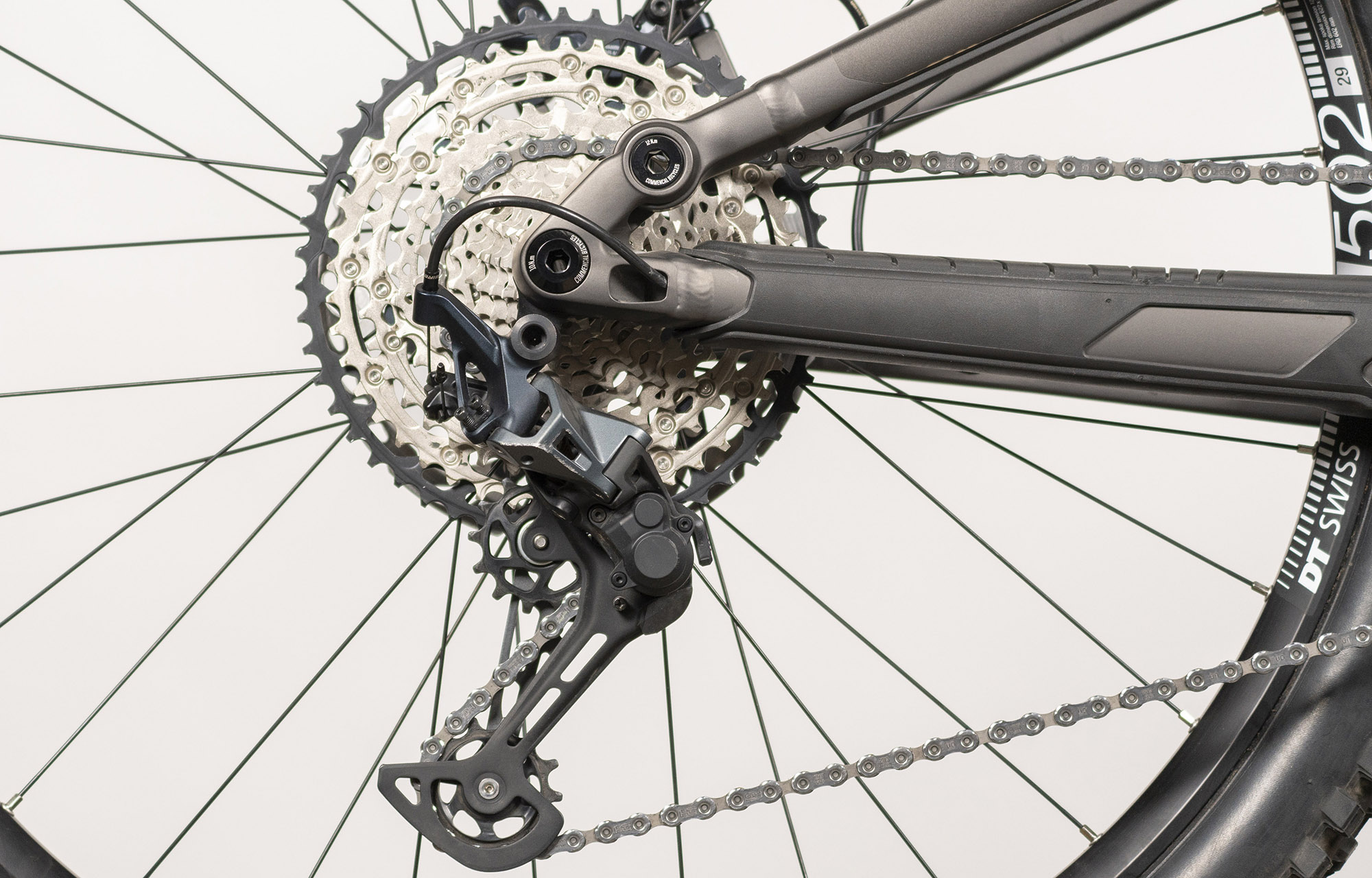

  • REAR DERAILLEUR

    SHIMANO SLX
    12s

  • Bottom bracket

    SHIMANO BB71-41A
    Pressfit

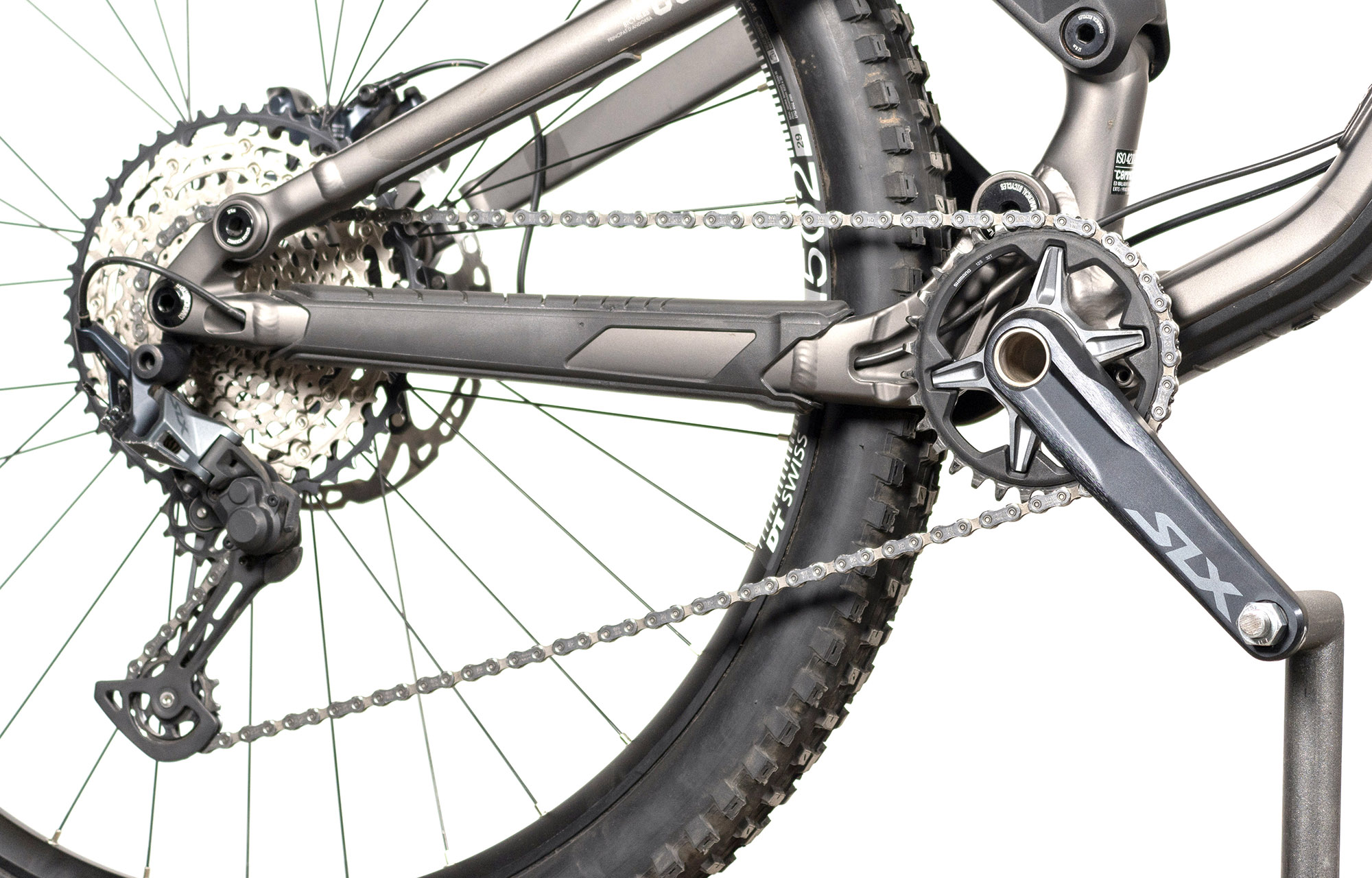

  • Crankset

    SHIMANO SLX, 170 mm crank arms, Boost
    Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + Technology

  • Chain

    SHIMANO SLX
    12s

  • Cassette

    SHIMANO SLX
    12s, 10-51t

  • Rims

    DT SWISS M 502
    29'', 32h, 30 mm inner width

  • Hubs

    Rear: FORMULA MSL-148A - Front: FORMULA DC-711
    Rear: 32h, 12 x 148 mm, sealed bearings, Micro Spline - Front: 32h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    SAPIM Race
    J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II
    Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready

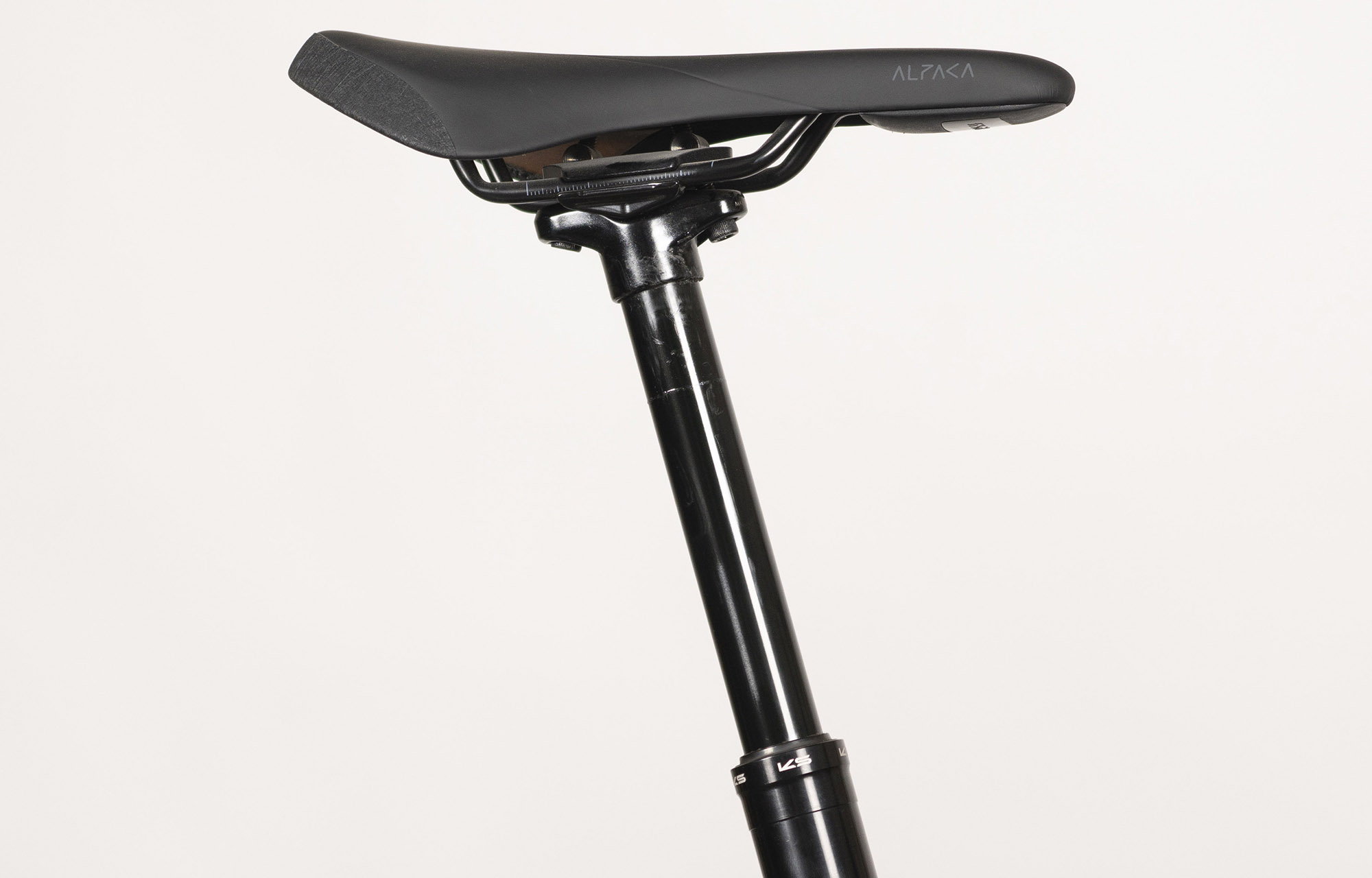

  • Seat post

    KS Rage-I
    34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote

  • Saddle

    FIZIK Terra Alpaca X5
    145 mm width, S-alloy rails

  • Weight

    15 kg / 33.06 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Dark Slate
    Matte Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector

    *Please note that bike specs are subject to change without prior notice.
