ALL MOUNTAIN

150mm

150-160mm

140mm

29" / 29"

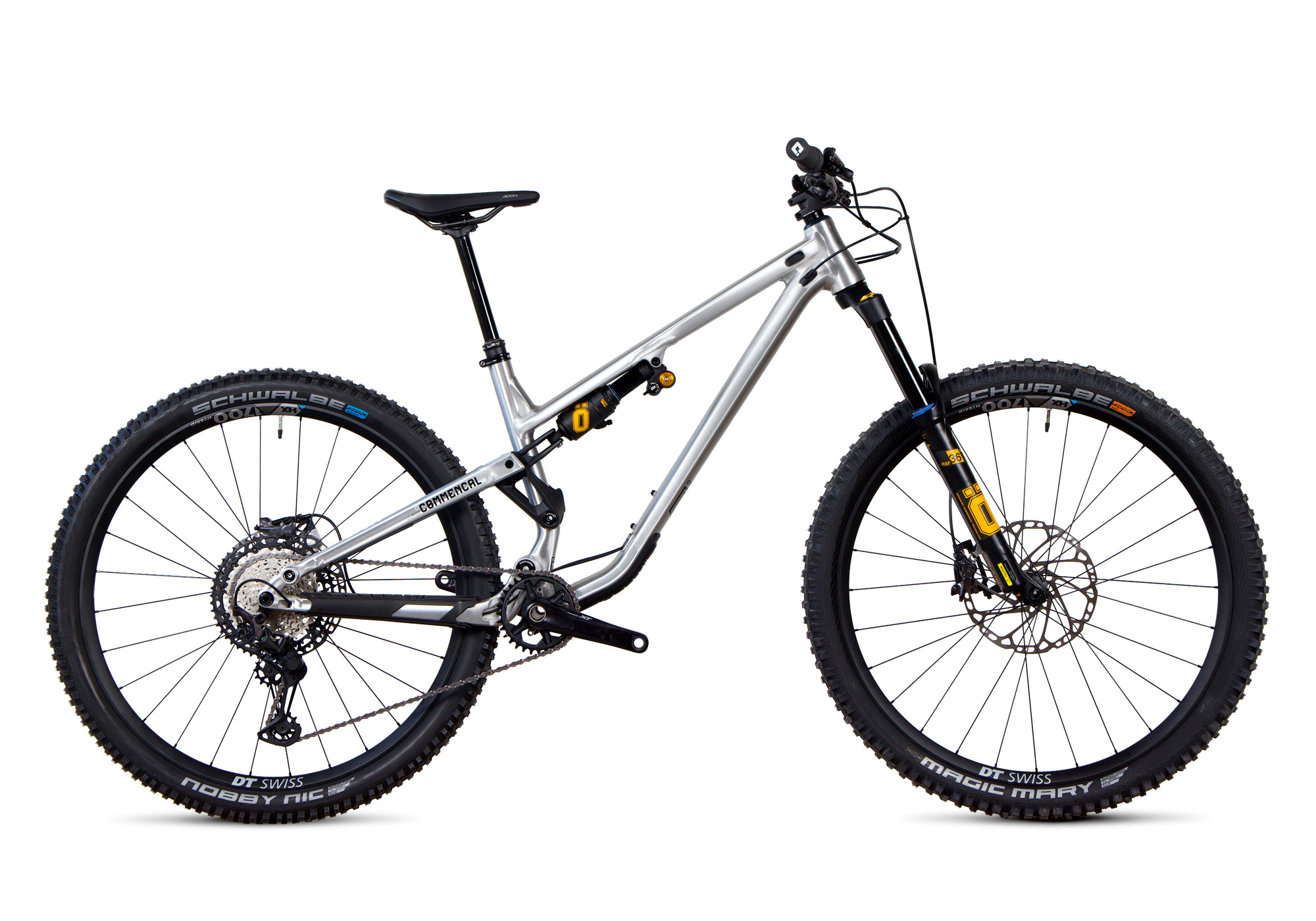

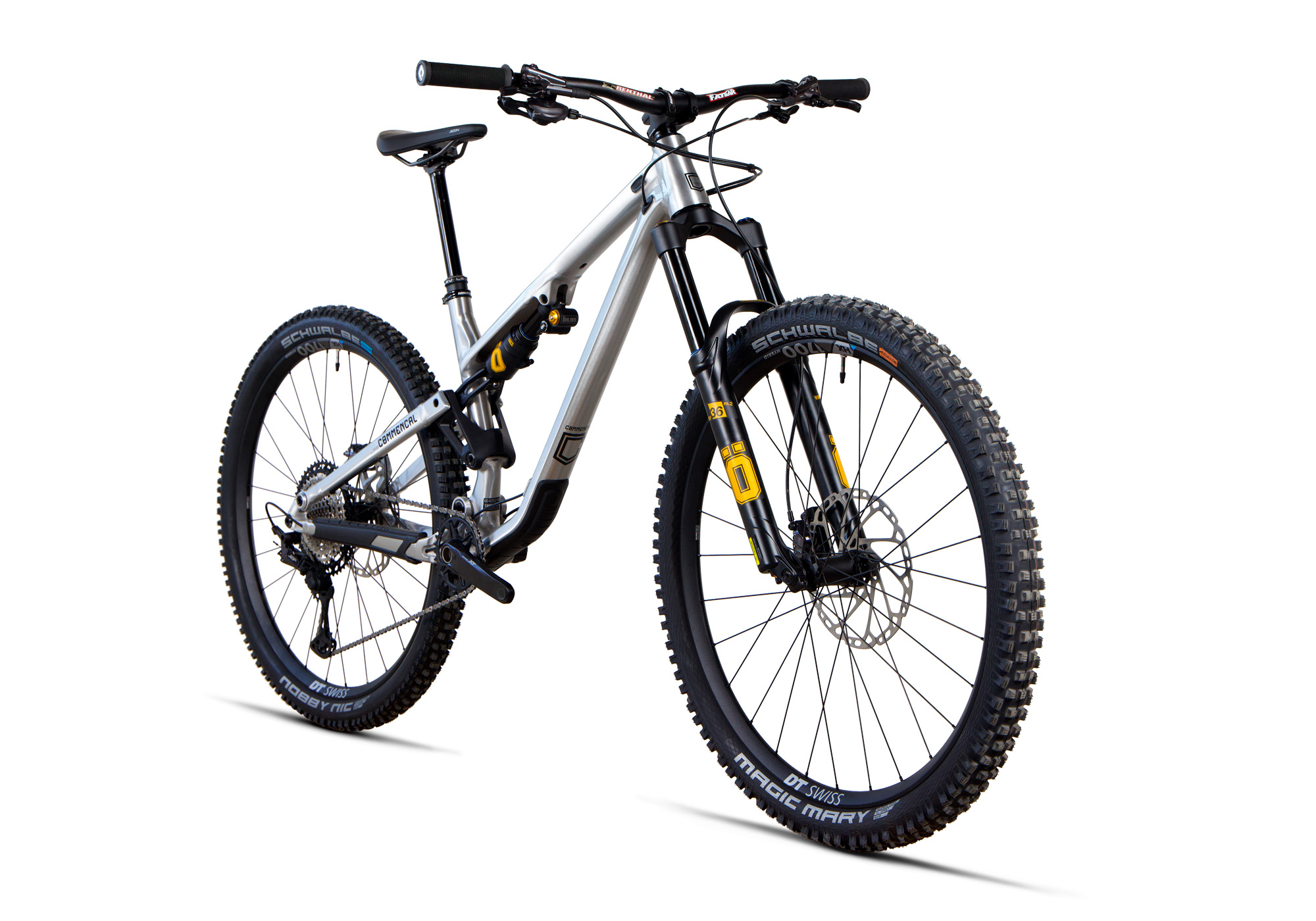

COMMENCAL META TR OHLINS EDITION BRUSHED

The META TR V4 represents our take on trail riding. Designed to make you want to ride, it’s a bike that loves the climbs and truly comes alive when you let go of the brakes on the descents, performing like a mini enduro.

ALL MOUNTAIN

150mm

150-160mm

140mm

29" / 29"

LEARN MORE ABOUT THE META TR V4
Price reduced from $5,300.00 to $4,200.00 -21%
id/sku : BT2MTRV4OH1ALCUSM
  SIZE GUIDE
Out of stock
This product is currently unavailable for purchase.
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists. Contact the shop directly for service options and rates.
Learn more
Showroom Delivery
Choose pickup at one of our COMMENCAL USA showrooms (Golden, CO or Menifee, CA) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.
Shipping Estimation
Please select an option
Please enter a valid Postal Code
OK
No delivery options are available for this address or item. Please contact us at store.us@commencal.com

The estimated shipping cost is calculated based on all the items in your cart.

BUY IN-STORE

Don’t see your preferred shop?
Ask them to contact our B2B sales department to become a partner store.
Once they’re approved, you can order from us or directly from them and have your orders delivered to the shop.
The shop will then notify you when your order is ready for pickup.

specifications

  • Frame

    META TR V4, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

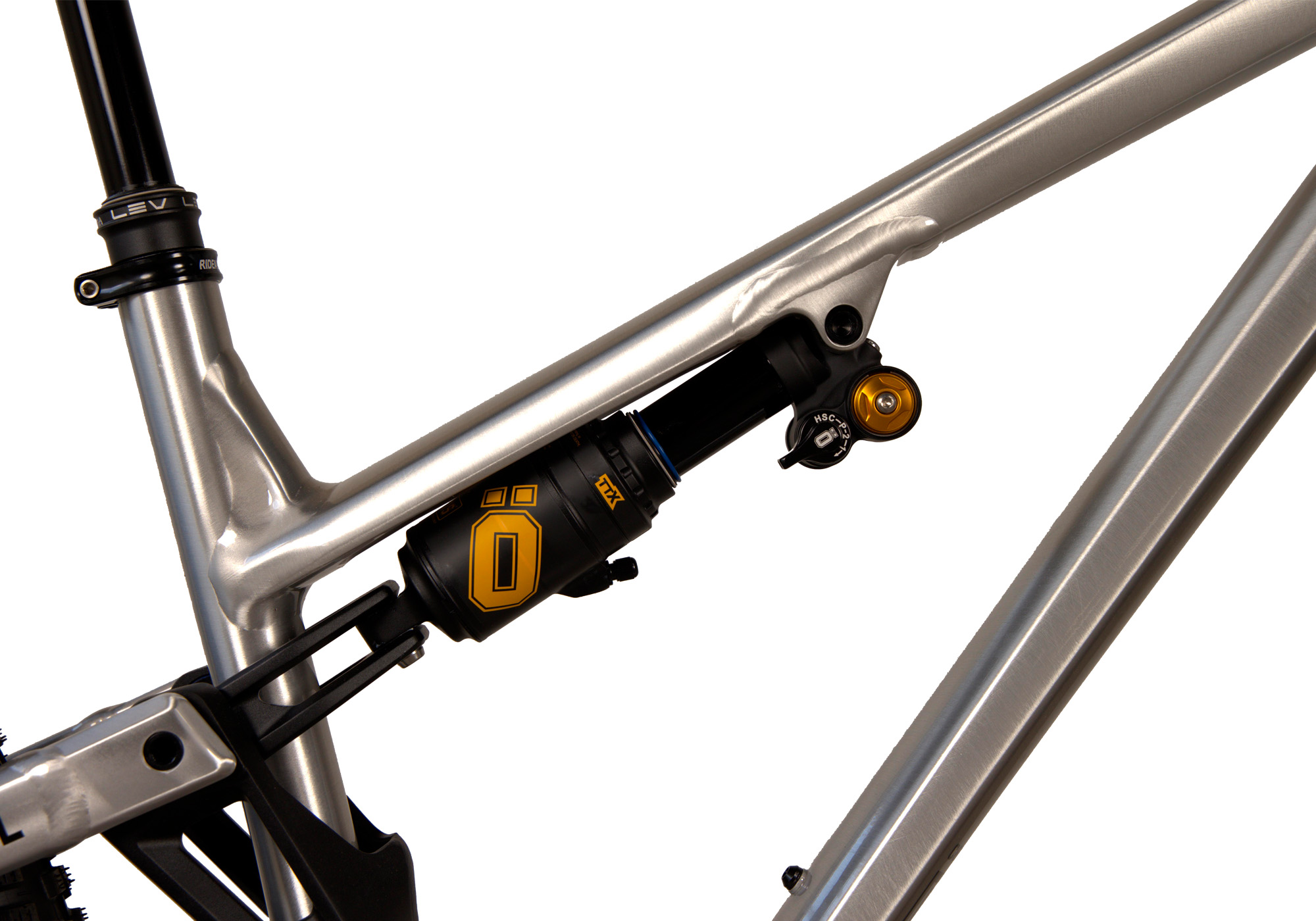

  • Shock

    OHLINS TTX22 Air
    210 x 55 mm, LSC, HSC, rebound

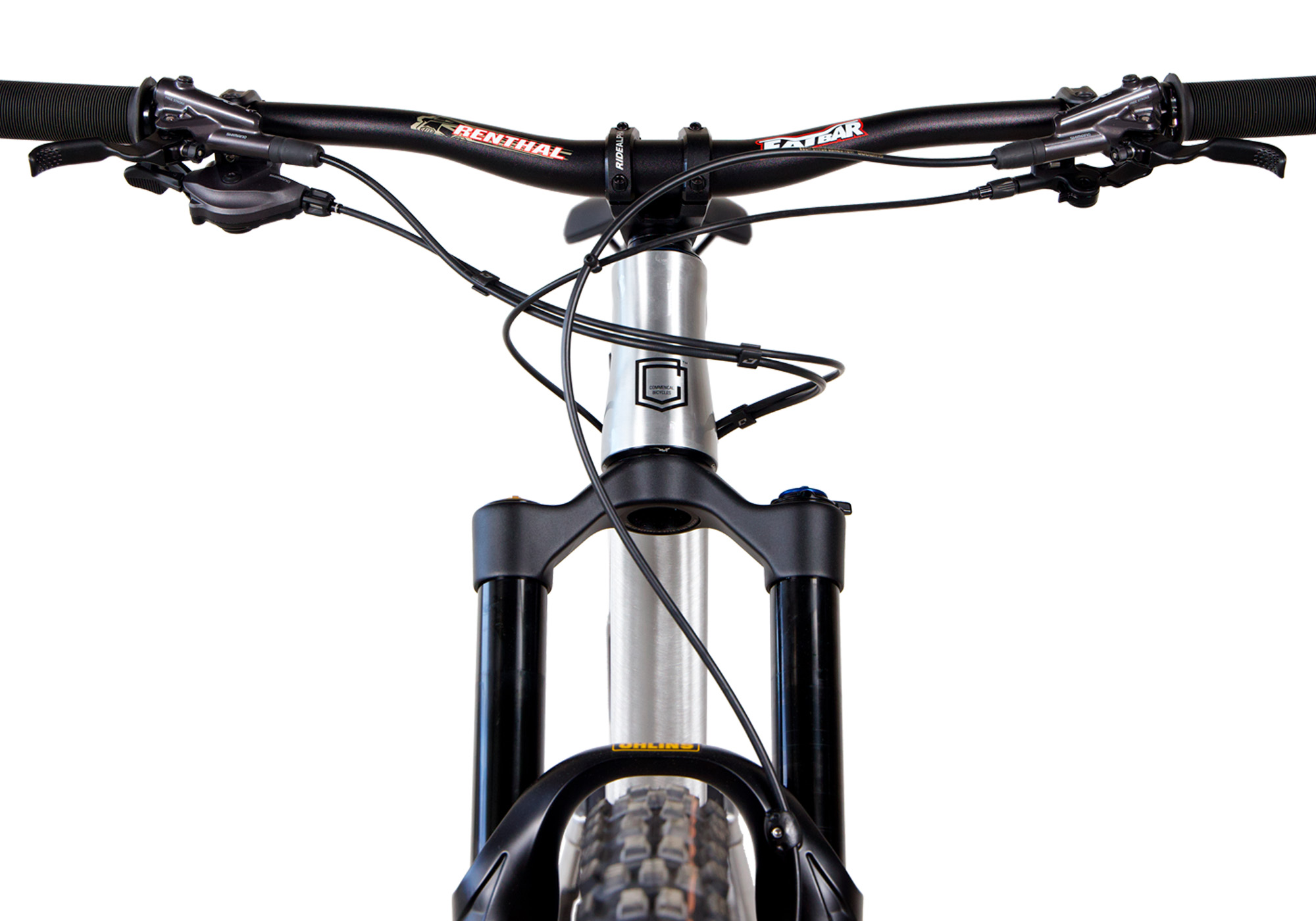

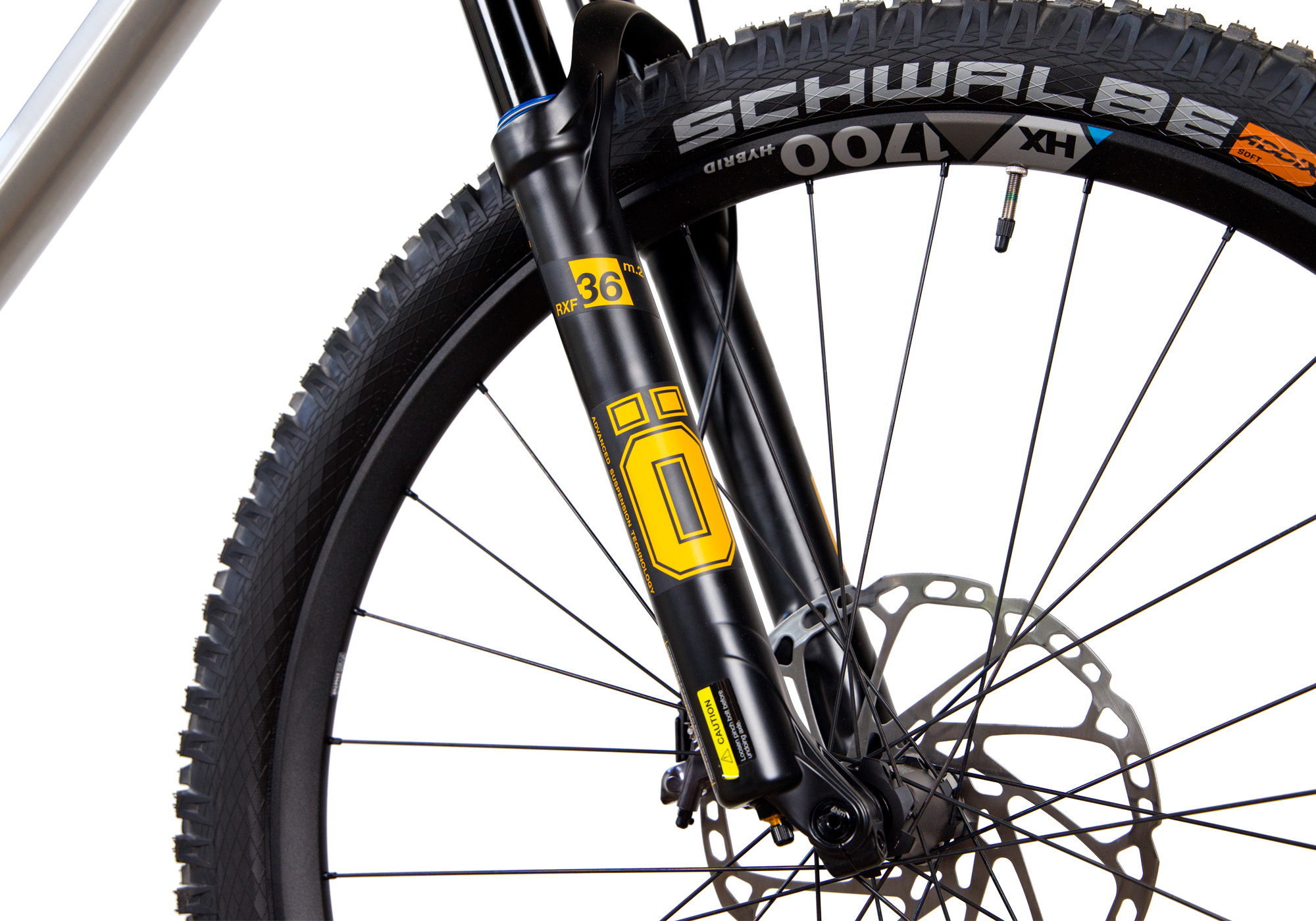

  • Fork

    OHLINS RXF36 m.2 Air, 150 mm travel
    29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset

  • Headset

    CANE CREEK 40 Series Head Set ZS44/ZS56

  • Grips

    Grips ODI LONGNECK V2.1 135 mm

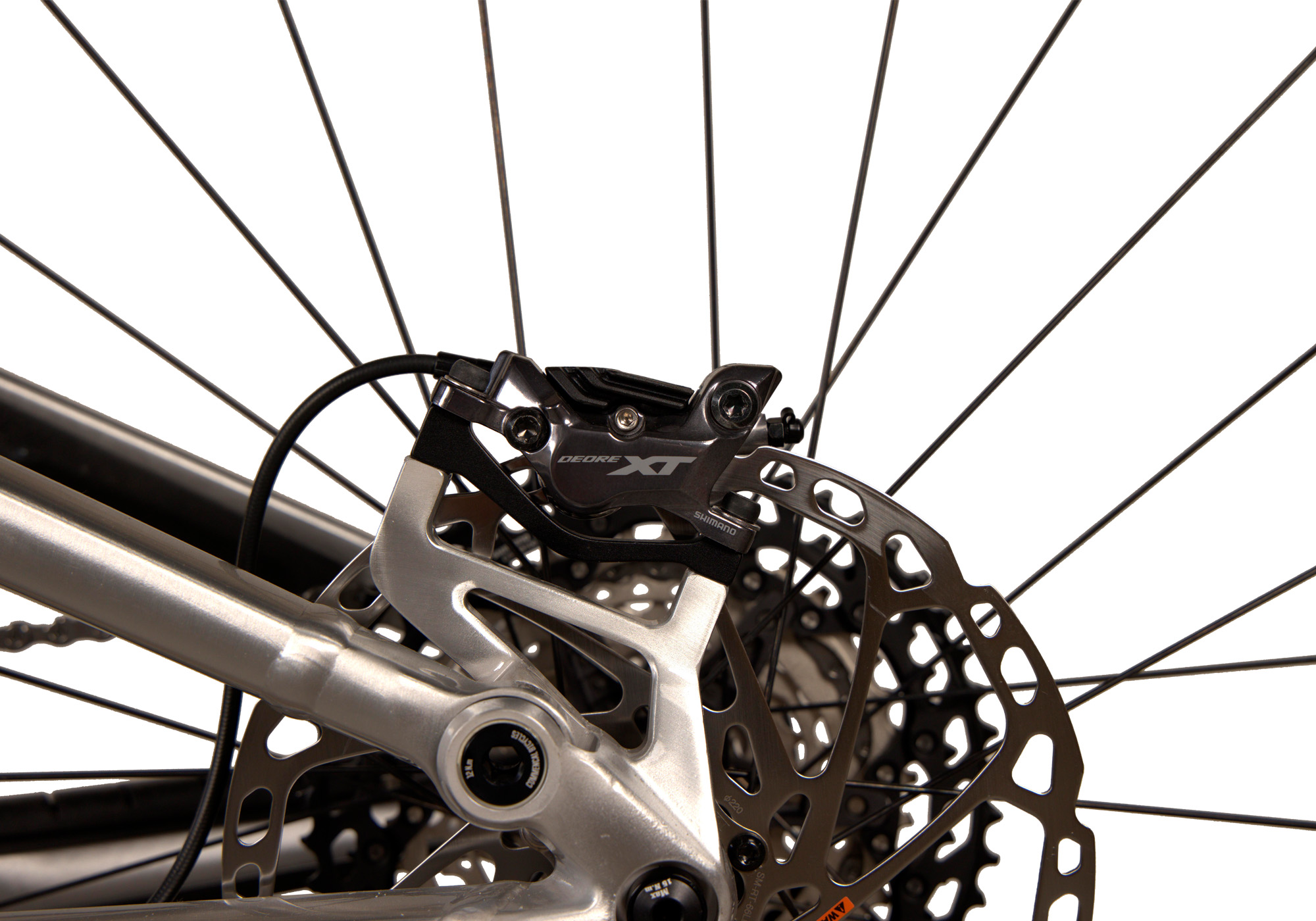

  • Brakes

    SHIMANO XT, 4 pistons, I-Spec EV compatible
    Rotor: SHIMANO SM-RT66 220 mm, 6-bolt, bolt-on magnet

  • Shifters

    SHIMANO XT
    12s

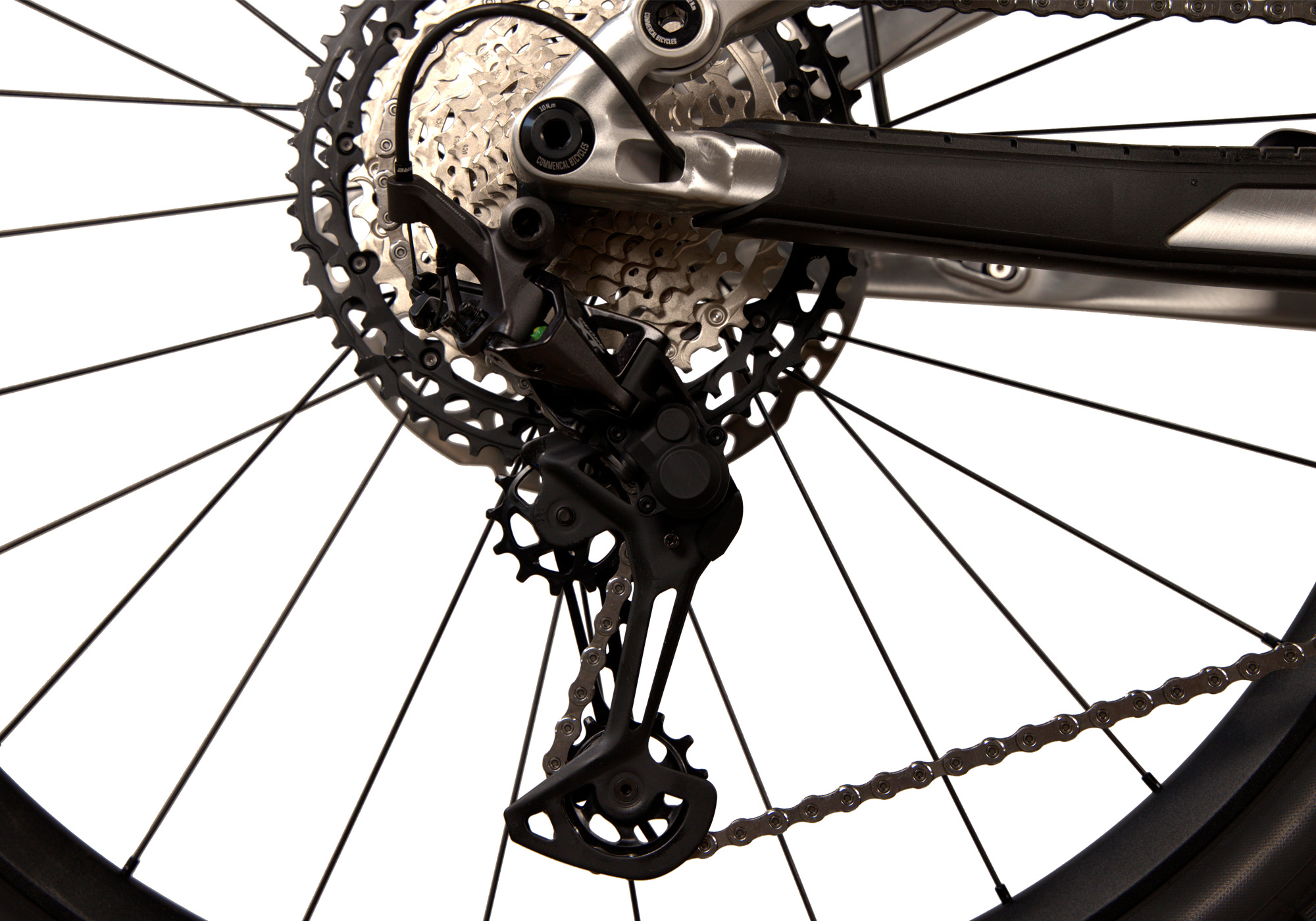

  • REAR DERAILLEUR

    SHIMANO XT
    12s

  • Bottom bracket

    SHIMANO XT Pressfit

  • Crankset

    SHIMANO XT 170 mm 32t Crankset

  • Chain

    SHIMANO XT
    12s

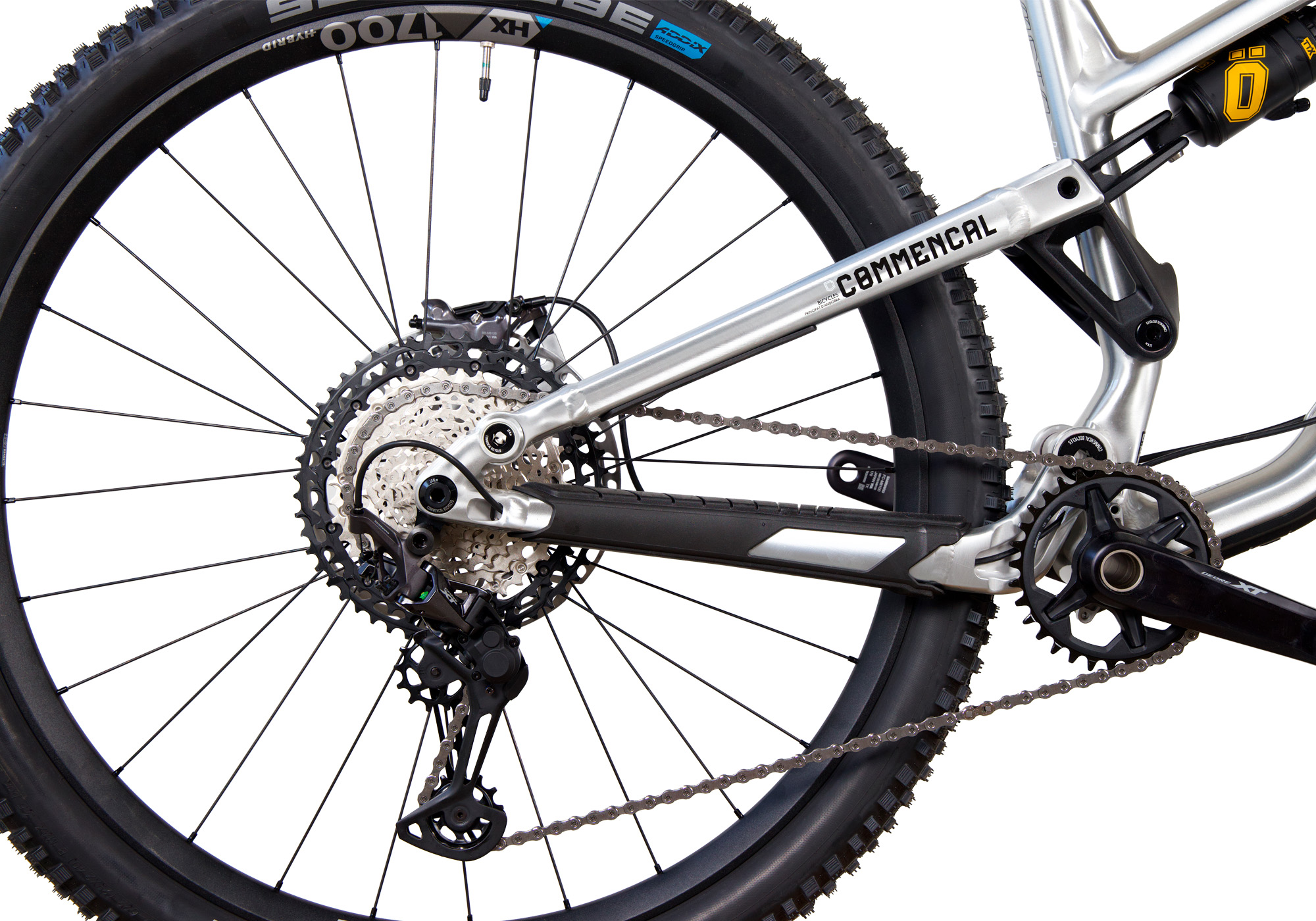

  • Cassette

    SHIMANO XT
    12s, 10-51t

  • Rims

    Rear: DT SWISS HX1700 Spline - Front: DT SWISS HX1700 Spline
    Rear: 29'', 28h, welded, 30 mm inner width - Front: 29'', 28h, welded, 30 mm inner width

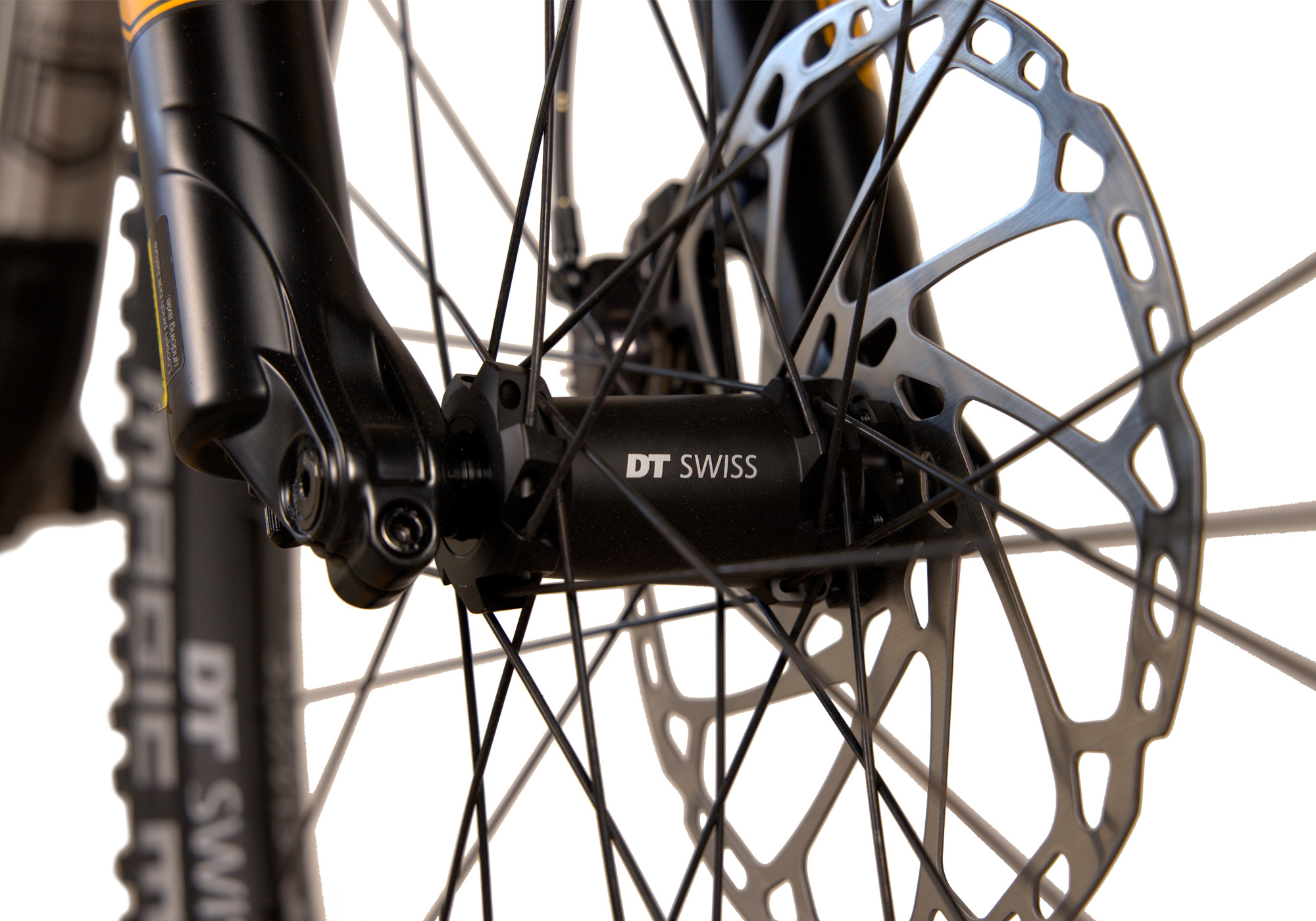

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350
    Rear: 28h, sealed bearings, 36 SL, e-bike specific - Front: 28h, sealed bearings

  • Spokes/nipples

    DT SWISS Hybrid 1
    Straightpull, 2.34/2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary
    Rear: 29"x2.4", Super Trail, Addix SpeedGrip, Tubeless Easy - Front: 29"x2.4", Super Trail, Addix Soft, Tubeless Easy

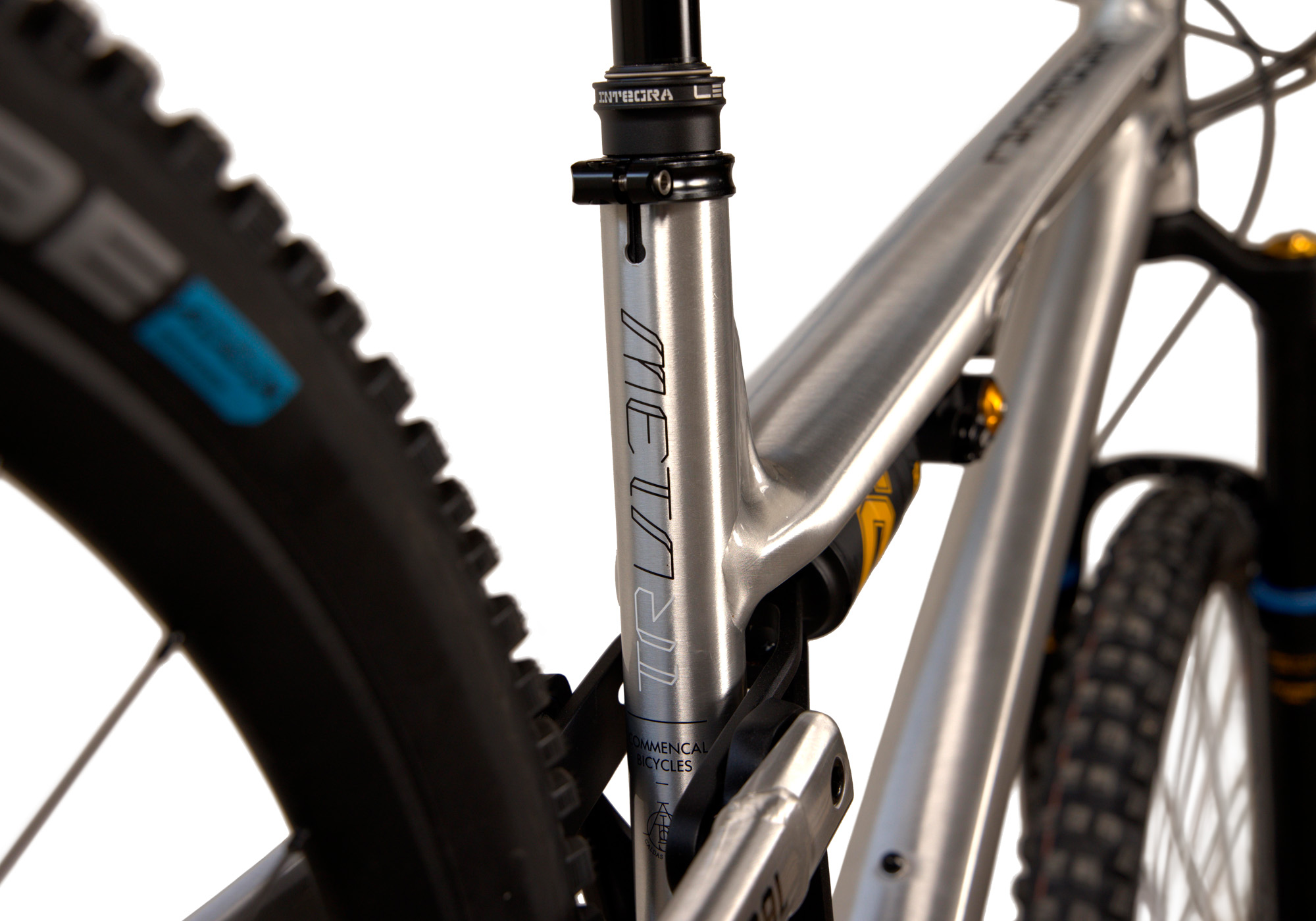

  • Seat post

    KS Lev Integra, 31.6 mm, travel: 175 mm, SouthPaw alloy remote
    Seatpost Adaptor 31.6 / 34.9

  • Saddle

    FIZIK Terra Aidon X3
    Kium Mobius rails

  • Pedals included

    No

  • Colour

    Brushed
    Shinny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector.

Bike specifications are subject to change without notice.

Technical informations

WHICH META V4 TO CHOOSE?

Discovering new trails with the META TR V4 or having fun in the bike park with the META SX V4 has never been easier. The quintessence of our META V4 platform, they are already proven and benefit from all our experience with the CONTACT SYSTEM suspension. Each excel in their respective areas.

Check out the differences

Geometry

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

Suspension settings

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes. This guide below is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.

Suspension setup guide

commencal care

We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.

Warranty

Our products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase.

learn more

Registration

The online registration of your bike will enable us to deal efficiently with any potential problem you may encounter.

Register your bike

Technical documents

Here you will find all the technical and practical information concerning your COMMENCAL.

Detailed Technical Sheet
User Manual
