COMMENCAL META HT AM RACE FROZEN BROWN
The META HT V2 focuses on simplicity. Here, there's no rear suspension - it's all about the fundamentals of riding. Its geometry and frame construction provide maximum sensations. Power transmission is optimized to facilitate pedaling. It accompanies you whatever your mood of the moment.
ALL MOUNTAIN
ALL MOUNTAIN
150mm
150mm
29" / 29"
29 / 27.5"
29" / 29"
29 / 27.5"
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
The META HT V2 RACE plays the classy card with matte colours and matching black components.

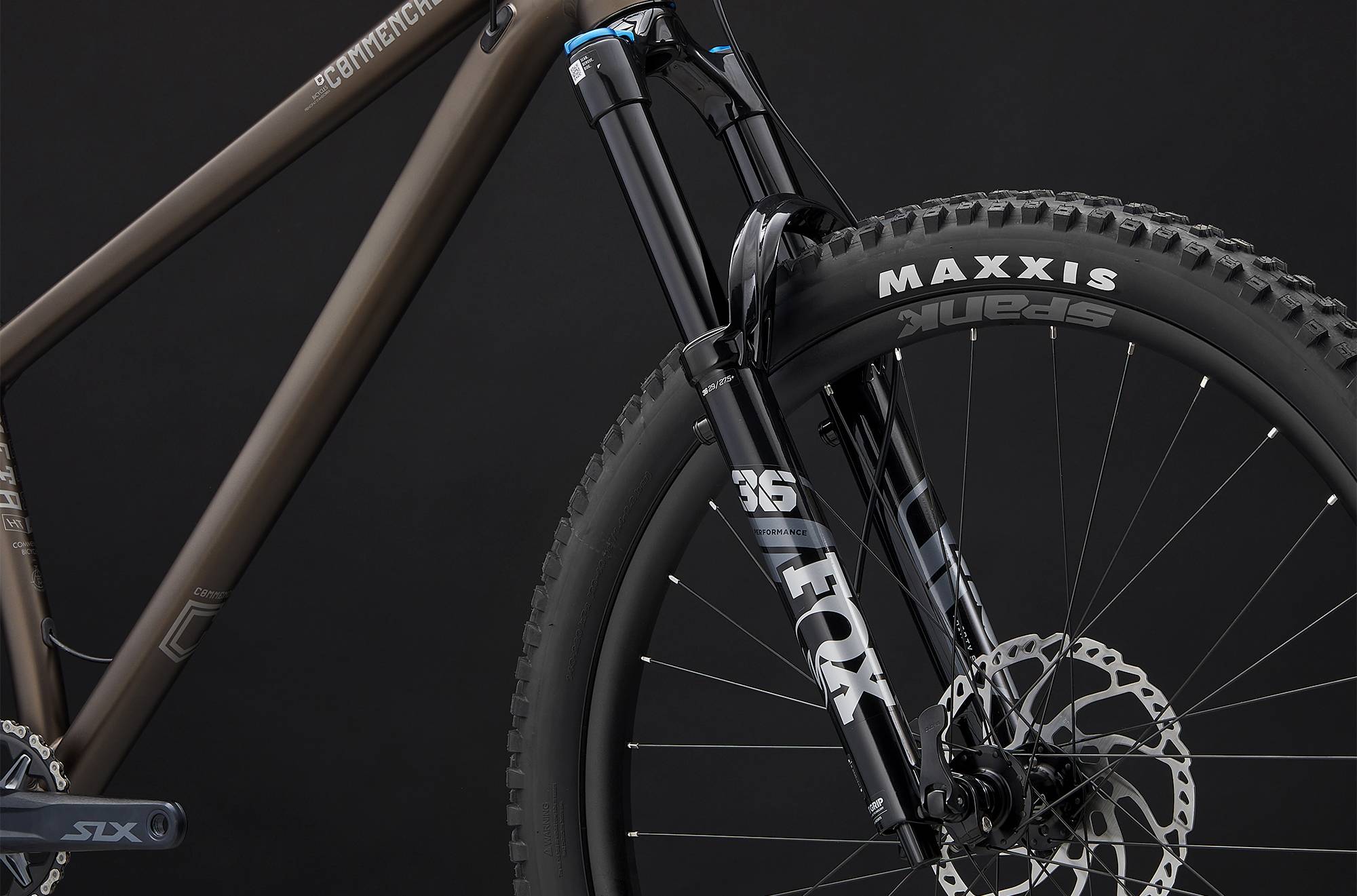

• The FOX 36 Performance fork features a rigid chassis for maximum precision. A three-position Grip cartridge and Float Evol air spring allow fine tuning of the stiffness to suit taste and size.
• The SHIMANO SLX 2-piston brakes with 203 / 180mm discs offer a clear and powerful feel.
• Sturdy SPANK Spike Race 33 rims and Formula hubs make up the wheels.
• A SHIMANO SLX 12-speed drivetrain with its wide gearing is perfect for rides with a lot of elevation gain.
specifications
specifications
Frame
2022 Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL
Alloy 6061, triple butted tubes, T4, T6.Fork
FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 TokensHeadset
ACROS ZS44 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO SLX, 2 pistons, I-Spec EV compatible
Rotors : SHIMANO SM-RT66 203 / 180 mm, 6-boltShifters
SHIMANO SLX
12s, RapidFire PlusREAR DERAILLEUR
SHIMANO SLX
12sBottom bracket
SHIMANO SLX
BSA, threadedCrankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32tChain
KMC X12
12sCassette
SHIMANO Deore
12s, 10-51tRims
SPANK Spike Race 33
Rear: 27.5'', 32h, 28 mm inner width on S / M - 29'', 32h, 28 mm inner width on L / XL - Front: 29'', 32h, 28 mm inner width on S / M / L / XLHubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, SHIMANO Microspline - Front: 32h, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS Dissector
REAR: 27.5'' x 2.6'', 3C MaxxTerra, New EXO+, Tubeless Ready on S / M - 29'' x 2.6'', 3C MaxxTerra, New EXO+, Tubeless Ready on L / XL - FRONT: 29" x 2.6", 3C MaxxTerra, New EXO+, Tubeless Ready on S / M / L / XLSeat post
KS Rage-I
31.6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
14,2 kg / 31.30 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Frozen Brown
Matte FinishAccessories
Chainstay protector, seatstay protector
Bike specifications are subject to change without notice.
Technical informations
Technical informations
Bicycle type
Hardtail Enduro
Frame material
AL 6061 T4, T6
Frame weight
2.08 kg / 4,58 lb
Recommended/max. fork height
561 MM / 571 MM
Headset dimension
TAPERED 1-1/8" / 1-1/2"
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
27,5" - 71-584 / 29'' - 66-622
Disc brake standard
INTERNATIONAL STANDARD
Rear rotor max. size
200 MM
Seatpost/seat clamp diameter
31,6 MM / 34,9 MM
Bottom bracket type
BSA 68 MM
Rear hub compatibility
L=180 mm, M12, P1.75 mm - MOYEU 148 X 12 STANDARD MAXLE
-
Bicycle type
All Mountain
-
Frame material
AL 6061 T4, T6
-
Frame weight
2.08 kg / 4,58 lb
-
Recommended/max. fork height
552mm / 562mm
-
Headset type
ZS44 / ZS56
-
ICR compatible
No
-
Wheels size
29’’ - 29’’ (L-XL)
29’’ - 27.5’’ (S-M) -
Max. rear tyre dimension - ETRTO
64mm - Ø622mm (L-XL)
64mm - Ø584mm (S-M) -
rear brake mounting type
IS 200mm
-
Rear brake rotor max. size
200mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
S : 250mm / M : 297mm / L-XL : 340mm
-
Bottom bracket type
BSA 68mm
-
Chain guide
No
-
Chain line
52
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.75mm
-
UDH hanger
No
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
