COMMENCAL META POWER TR SHIMANO RACE DARK SLATE

Price reduced from $7,400.00 to $4,500.00 -39%
id/sku : 22METAPWTRRGR
Availability: Select the model for availability null
This page does not contain any content.
  • Start
  • DESCRIPTION
  • TECHNICAL INFO
  • SPECIFICATIONS
  • SIZES
  • GEOMETRY
  • SPECS
  • TECHNICAL SPECIFICATIONS
  • Size Chart
  • Video
- DESCRIPTION -

ALL ABOUT META POWER SHIMANO

The META POWER TR is designed for the ride. With 140mm of travel it's easy to tame and is forgiving to the rider. Dynamic and playful, it ensures effective pedalling thanks to excellent geometry. The straightened seat tube and long front-end ideally positions the rider between the two wheel axles. The 29-inch wheels allow you to tackle the most technical climbs. This is the bike for those who like long rides and enjoying letting go of the brakes on the downhill.

META POWER TR SHIMANO RACE DARK SLATE

The META POWER TR RACE blends into any environment. With this bike you have everything you need to go on an adventure whether it’s a few hours or for several days.

The SHIMANO EP8 motor offers 250w of power and 85Nm torque to overcome all difficulties with the flexibility that we expect. Its 630Wh battery ensures sufficient autonomy for long mountain adventures.

The ROCKSHOX Lyrik Select+ fork is sure value. Its chassis with optimised stiffness for performance, the Charger 2.1 hydraulic cartridge with simple and precise adjustments, and the DebonAir pneumatic spring combining sensitivity and support, are reliable and proven in the field.

It is the ROCKSHOX Deluxe Select+ shock absorber which manages the rear suspension thanks to a setting adapted to the kinematics of the frame.

The DT SWISS H 1900 SPLINE wheels are specifically designed for e-MTB use and assembled by hand by the Swiss brand. Solidity and reliability are the key words to describe this pair of wheels.

Braking is entrusted to SRAM Guide RE which have been developed for e-MTB use. Coupled with 220mm discs, the braking is powerful and efficient.

To offer maximum grip and protection we find a pair of Minion DHRII in EXO+ casing.

*Please note that bike specs are subject to change without prior notice.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    E-bike Trail 29"

  • Frame material

    AL-6066 T4, T6

  • Frame weight

    4,1 kg / 9.03 lb - With plastic accessories.

  • Rear travel

    140 mm

  • Shock length/stroke

    210 x 55 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 10 mm front

  • Recommended/max. fork height

    566 mm / 576 mm

  • Headset dimension

    Tapered

  • Headset type

    ZS56 / ZS66

  • Maximum tyre dimension (etrto)

    65 mm - 622

  • Disc brake standard

    Postmount

  • Rear rotor max. size

    220 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    SHIMANO EP800

  • ISCG

    Yes (SHIMANO Standard)

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 12 x 148 mm standard maxle

- SPECIFICATIONS -
  • Frame

    META POWER TR, 140 mm travel
    29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

  • Motor

    SHIMANO DU-EP800
    250 W, 85 Nm

  • Battery

    SHIMANO BT-E8036
    630Wh

  • Display

    SHIMANO SC-EM800
    LCD colored display featuring: Clock, Assist mode display, Battery charge level, Current Speed, Maximum speed, Average speed, Trip distance, Trip time, Estimated range, Range overview, Cadence, Human output power (as scale indicator), Calorie setting, Maintenance alert, Bluetooth LE connection (for E-Tube Project communication)

  • Shock

    RockShox Deluxe Select +
    210 x 55 mm, rebound, threshold adjustment

  • Fork

    ROCKSHOX Lyrik Select +, 150 mm travel
    29", Debonair, Charger 2.1 RC damper, compression, rebound, Boost (15 x 110 mm), 42 mm offset

  • Headset

    ACROS ZS56 / ZS66
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 50
    50 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 E-Bike
    31,8 mm, 780 mm width, 20 mm rise, Alloy 6061, electric wire internal routing

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    SRAM Guide RE, 4 pistons
    Rotors : SRAM Centerline 220mm, 6 holes

  • Shifters

    SRAM GX Eagle
    12s, Single Click

  • Chain guide

    RIDE ALPHA EP8
    32-34t

  • REAR DERAILLEUR

    SRAM GX Eagle
    12s

  • Bottom bracket

    SHIMANO

  • Crankset

    SHIMANO FC-EM900 160 mm crank arms
    Chainring : E13 E*Spec Plus 32t, Narrow-Wide, direct mount

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM XG-1275 Eagle
    12s, 10-52t

  • Rims

    DT SWISS H1900 Spline
    29'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 370 - Front: DT SWISS 370
    Rear: 28h, 12 x 148 mm, sealed bearings, 18t, Sram XD, e-bike specific - Front: 28h, 15 x 110 mm, sealed bearings

  • Spokes/nipples

    DT SWISS Hybrid 1
    Straightpull, 2.34 / 2.0 mm, triple butted, stainless, with ProLock, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS DHR II
    Rear: 29 x 2.4, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29 x 2.4, 3C MaxxTerra, EXO+, Tubeless Ready

  • Seat post

    KINDSHOCK Lev Si
    31,6 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L & XL, SouthPaw alloy remote

  • Saddle

    FIZIK Terra Aidon X3
    145 mm width, Kium Mobius rails

  • Weight

    24,4 kg / 53,79 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    Yes

  • Colour

    Dark Slate
    Matte Finish

  • Accessories

    RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
    META POWER bikes are delivered with SHIMANO Europlug (CEE 7/7 norm) battery charger, a plug adapter is necessary for customers living in countries using different standards.

  • Battery recycling

    Partnership with SHIMANO
    In partnership with SHIMANO, COMMENCAL supports a voluntary battery recycling program for ebike batteries. For each META POWER sold COMMENCAL will contribute 7EUR to fundraising organisation COREPILE. This sum is paid through SHIMANO France. When your battery reaches the end of its life, it would be great if you could send it back to us for recycling. Contact us for more info on the procedure.

- SIZES -

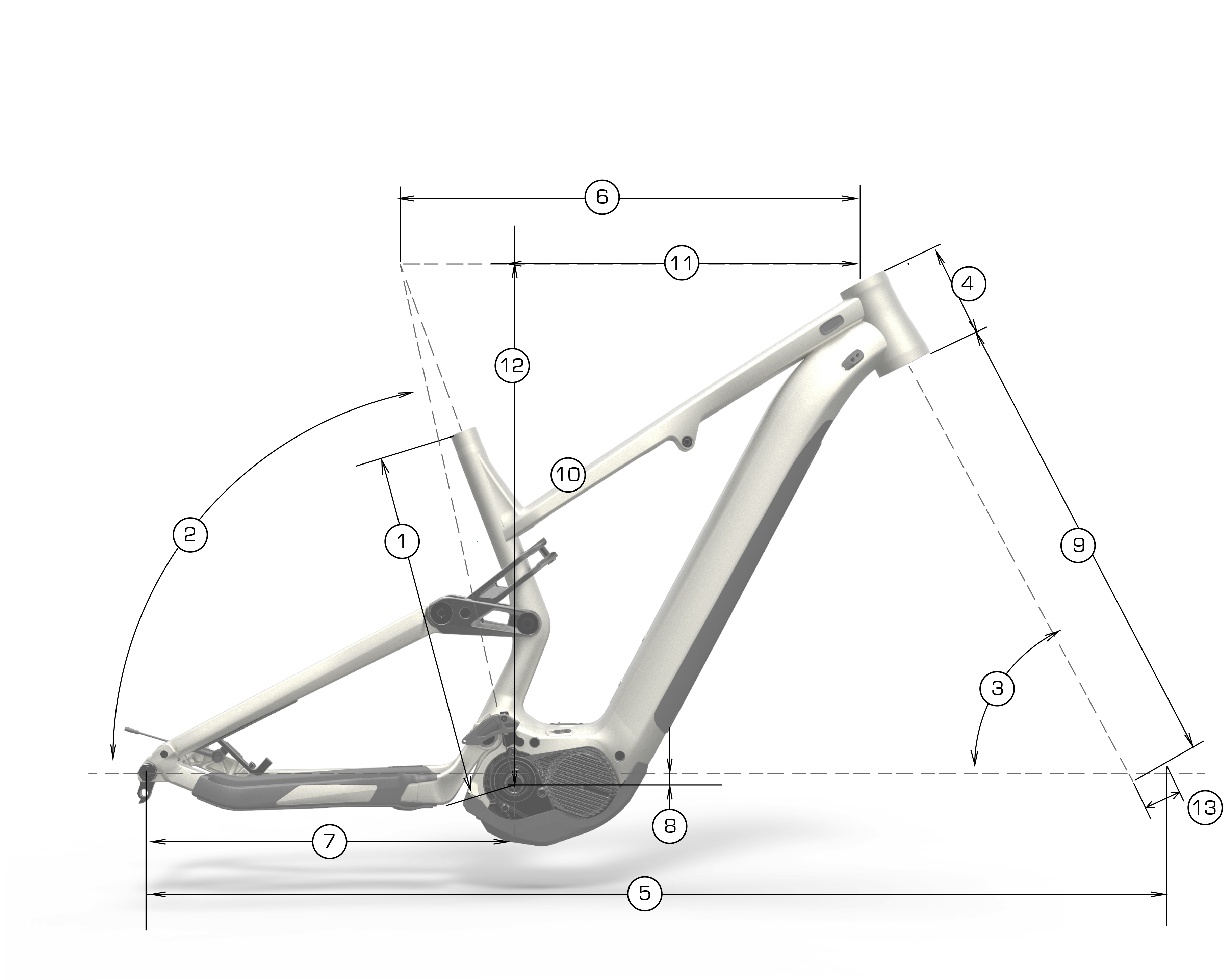

- GEOMETRY -
