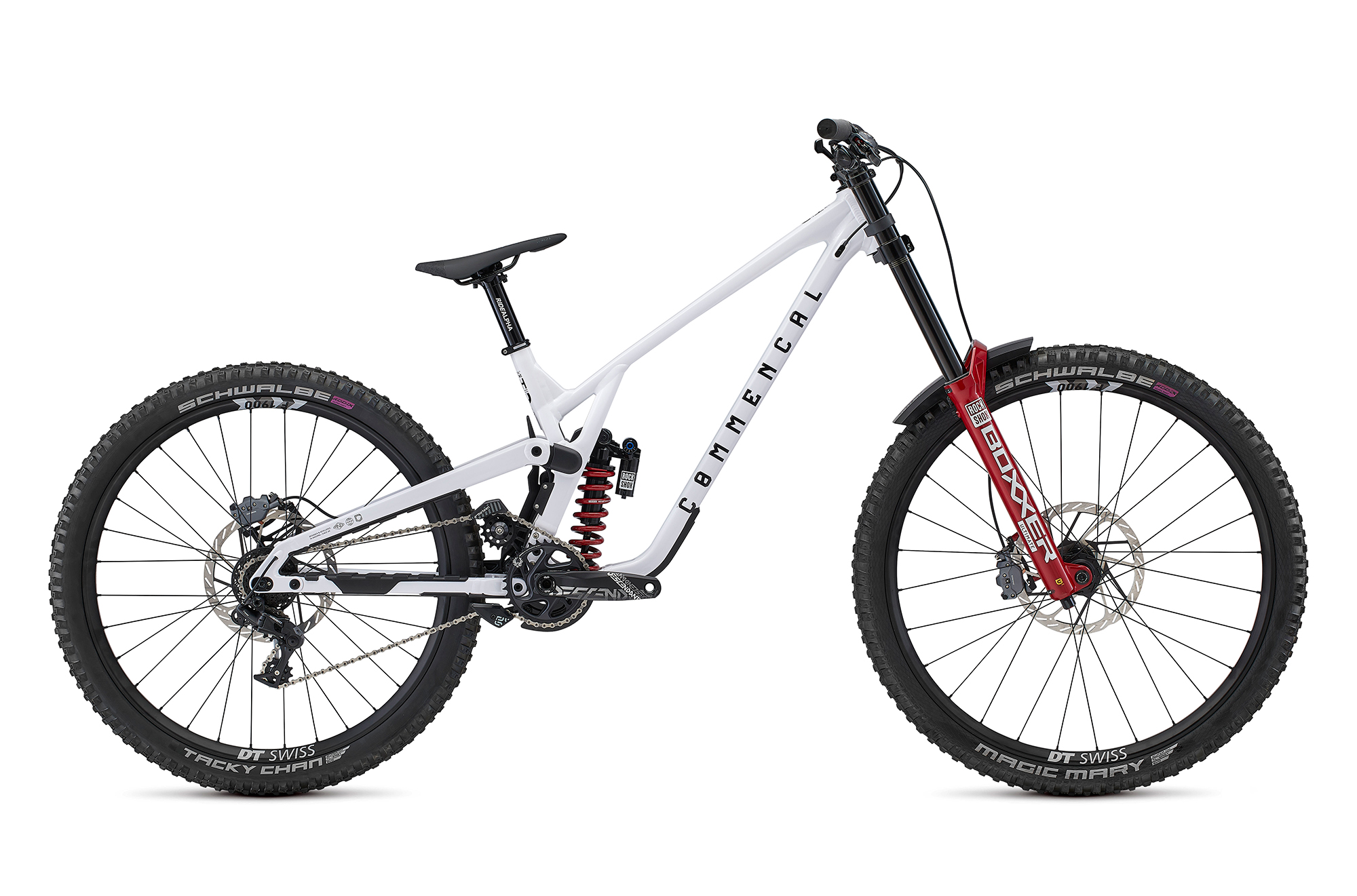

The SUPREME DH V5 is a top-tier ROCKSHOX-equipped build designed for competitive downhill racing.
• The fork is a ROCKSHOX BoXXer Ultimate featuring the Charger 3 hydraulic cartridge for precise and effortless adjustments. The shock is a ROCKSHOX Vivid Coil Ultimate DH delivering enhanced sensitivity and exceptional control over the most demanding terrain.
• Braking power comes from SRAM Maven Bronze 4-piston brakes paired with 220 mm discs. They offer extreme stopping power and durability for intense downhill runs.
• DT SWISS F1900 Classic wheels are hand-assembled for strength and reliability, enabling seamless run after run performance.
• Drivetrain performance relies on the SRAM GX DH 7-speed group, providing precise and responsive gear shifts perfectly suited for downhill racing challenges.
Bicycle type
Frame DH Racing
Frame material
AL 6066 T4, T6
Frame weight
5,3 kg / 11,68 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
30 x 8 mm / 30 x 8 mm
Recommended/max. fork height
612 mm / 620 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / UpWheel Base Length
CenteredBridge
XS & S : Thin - M & L : Medium - XL : Thick
Frame
SUPREME DH V5, 220 mm travel
29/27.5'', Alloy 6066, triple butted tubes, T4, T6.Shock
ROCKSHOX Vivid Coil Ultimate DH
250 x 75 mm, HSC, LSC, LSR, rebound.
Spring rates: 400lbs on S, 450lbs on M, 500lbs on L, 550lbs on XLFork
ROCKSHOX Boxxer Ultimate, 200 mm travel
29'', Charger 3 damper, HSC, LSC, HSR, LSR, Boost (20 x 110 mm), 52 mm offsetHeadset
ACROS ZS56/ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH
40 mm extension, 31.8 mmHandlebar
RIDE ALPHA
31.8 mm, 780 mm on S/M/L, 800 mm on XL, rise 27Grips
RIDE ALPHA Mushroom
132 mm, single clamp, blackBrakes
SRAM Maven Bronze, 4 pistons, sintered pads
Rotors: SRAM HS2 220 mm, 6-bolts, 2.0 mm widthShifters
SRAM GX DH
7sChain guide
E13 LG1
32-34tREAR DERAILLEUR
SRAM GX Eagle
7sBottom bracket
SRAM DUB
PressfitCrankset
SRAM Descendant DH, 165 mm crank arms, DUB
Chainring: SRAM Descendant DH, 34tChain
SRAM PC-1130
11sCassette
SRAM PG-720 DH
7s, 11-25tRims
DT SWISS F1900 Classic
Rear: 27.5'', 32h, 30 mm inner width, 12 x 157 mm - Front: 29'', 32h, 30 mm inner width, 20 x 110 mmHubs
Included with wheelset
Spokes/nipples
Included with wheelset
Tyres
Rear: SCHWALBE Tacky Chan - Front: SCHWALBE Magic Mary
Rear: 27.5''x2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29''x2.4", Super DH, Addix Ultra Soft, Tubeless EasySeat post
RIDE ALPHA
31.6 mm, 250 mmSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails, Team editionWeight
18,7 kgs - 41,22 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pure White
Shiny FinishAccessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector, FOX 40 fender
