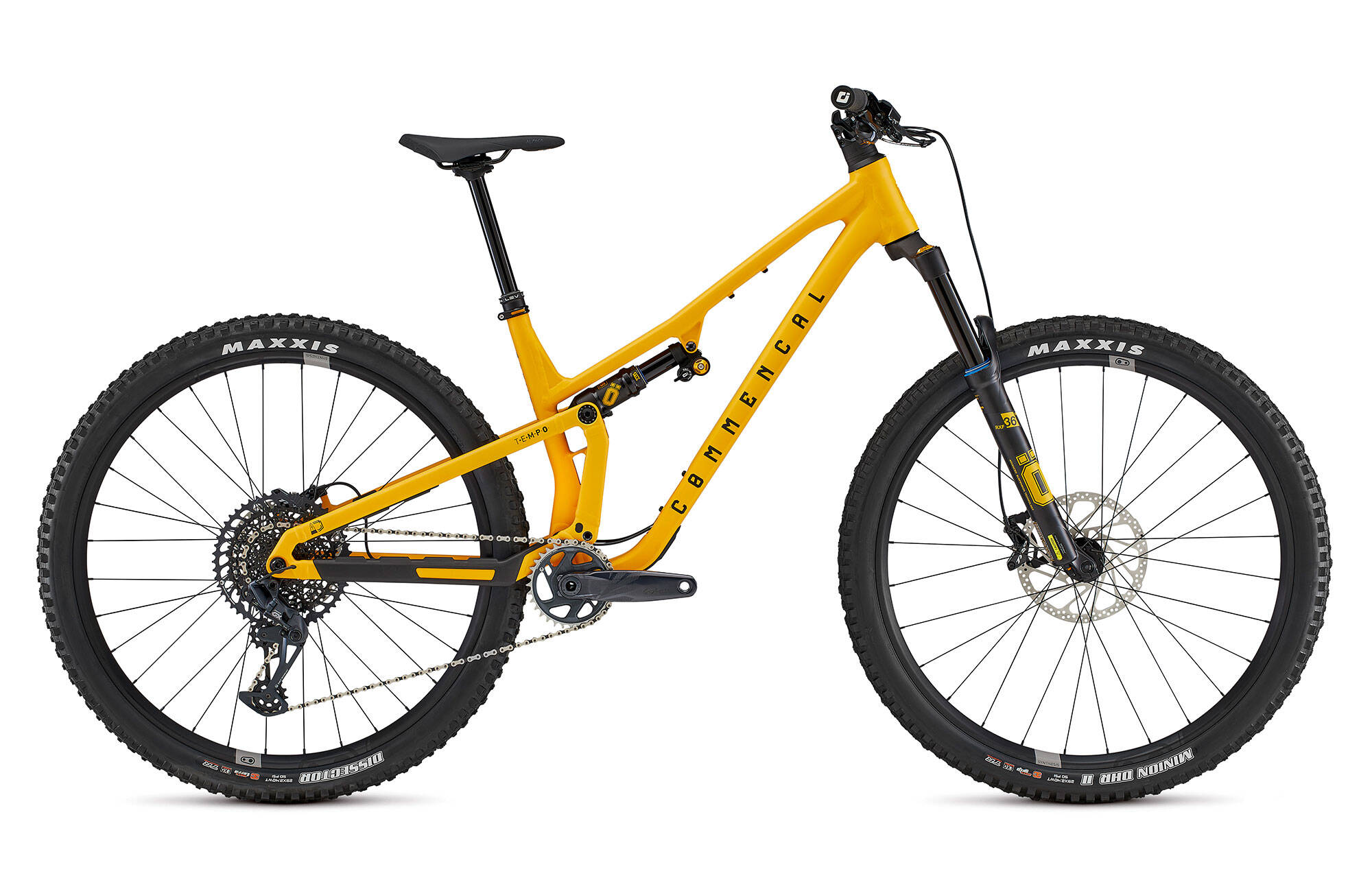

COMMENCAL T.E.M.P.O. OHLINS EDITION YELLOW
The T.E.M.P.O. is our trail bike. It’s also the go-to training bike for our riders. Agile and responsive, it encourages you to play with the terrain, building speed, launching and landing with precision on every feature.
TRAIL
TRAIL
140-150mm
140-150mm
125mm
125mm
29" / 29"
29" / 29"
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
The T.E.M.P.O. ÖHLINS EDITION benefits from all the suspension expertise of the Swedish brand, offering a setup that encourages bold, confident handling.

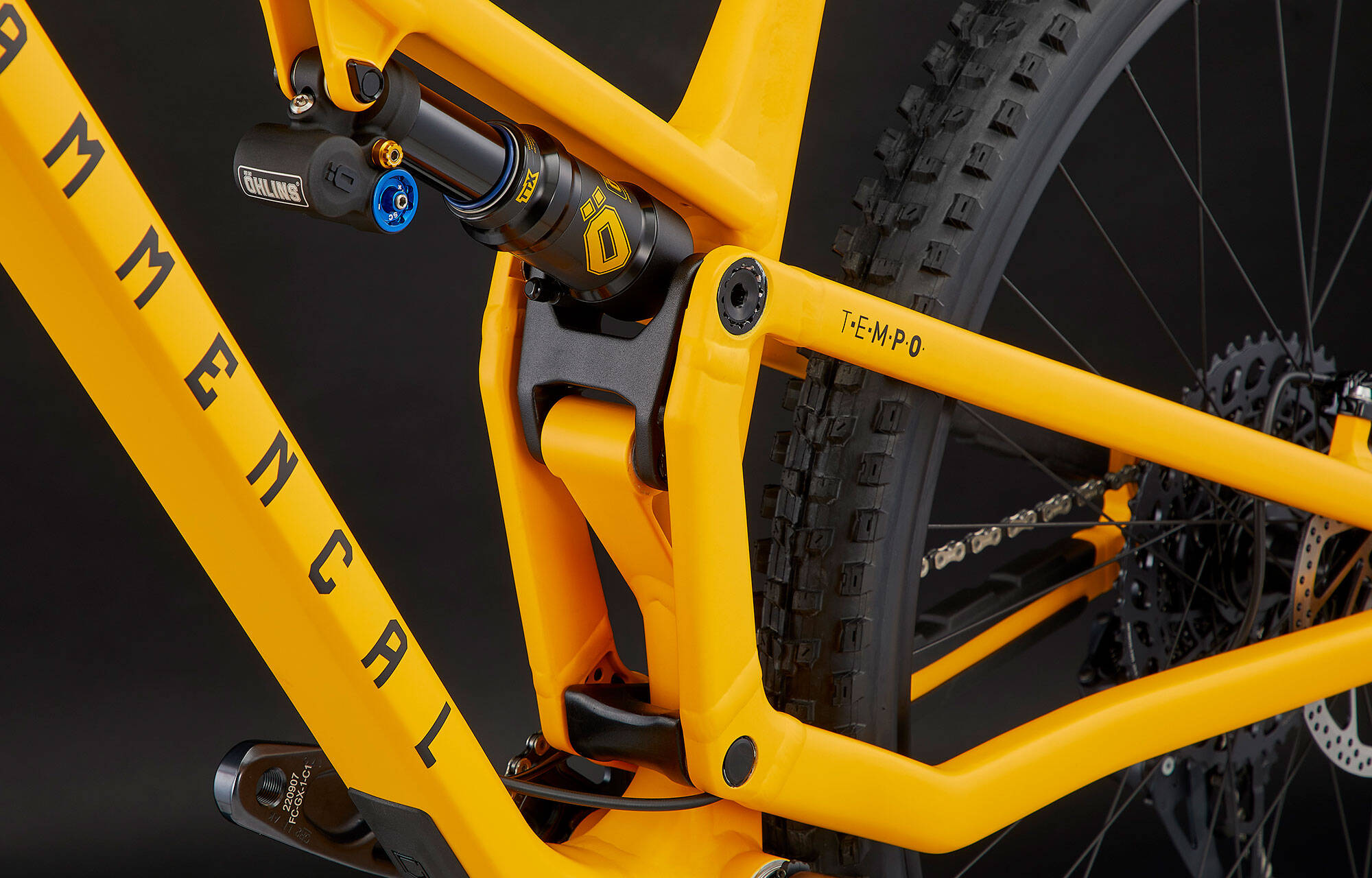

• The RXF 36 m.2 fork delivers optimal travel and precise handling. The Ramp Up Chamber of the air spring means progressiveness at the end of the travel can be adjusted and the TTX hydraulic cartridge allows high and low speed compression as well as rebound adjustment. The TTX1 Air shock is designed for trail bikes. It benefits from numerous adjustments: air volume, rebound, high and low speed compression and even lock-out. In collaboration with ÖHLINS, we have worked on a specific valve system which releases the full potential of our Virtual Contact System.
• TRP TRAIL EVO 4-piston brakes are consistent and reliable.
• With the Synthesis Enduro I9, CRANKBROTHERS offer a pair of aluminium wheels built around INDUSTRY NINE hubs. The stiffness is differentiated between the front and rear to optimise Grip and stability.

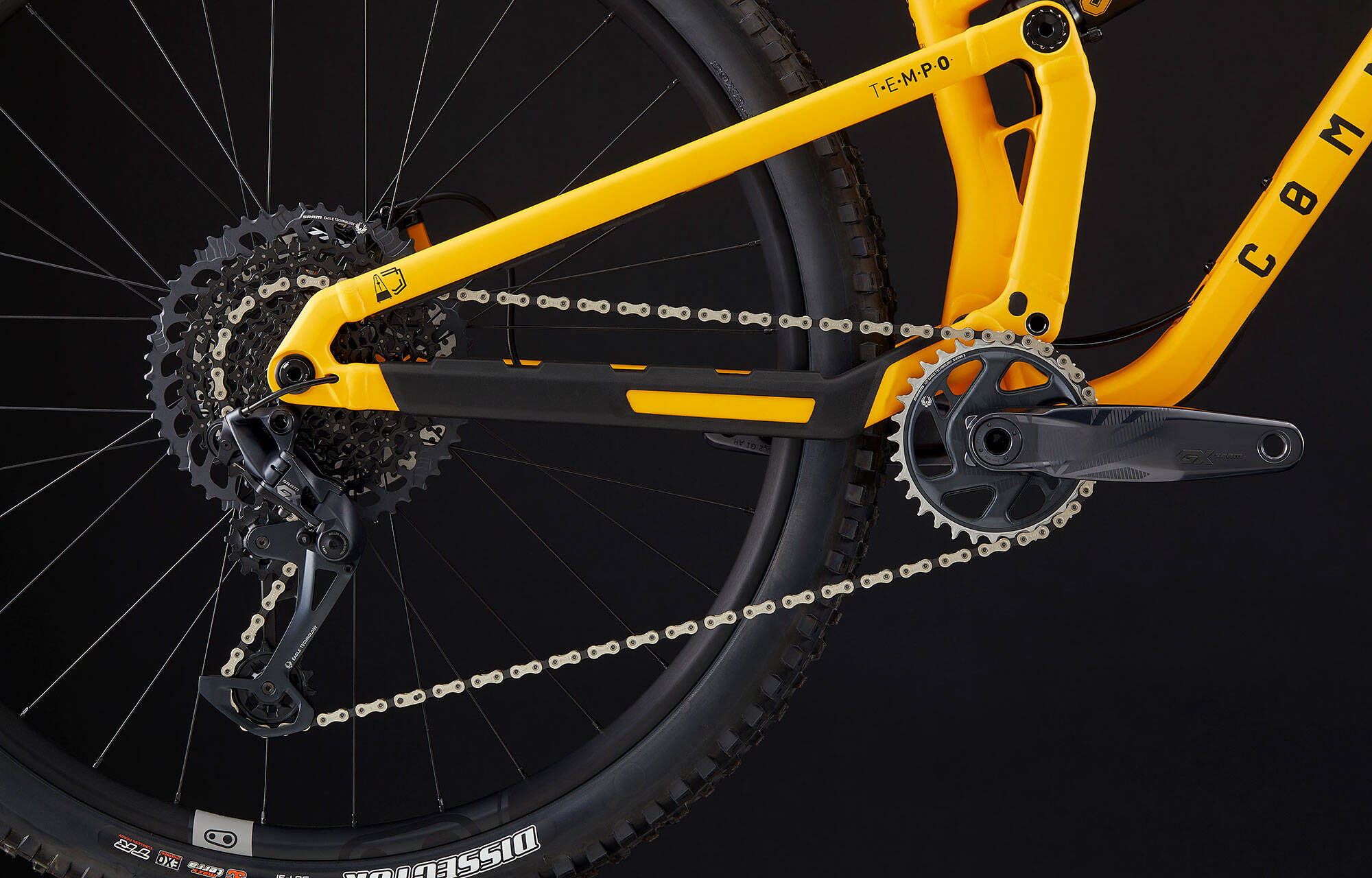

• A SRAM GX Eagle 12-speed drivetrain and 10-52t cassette mean climbing is a breeze.
specifications
specifications
Frame
T.E.M.P.O, 125 mm travel
29'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearingsShock
OHLINS TTX1 Air
210 x 50 mm, climb mode, 3 positions HSC, LSC, LSRFork
OHLINS RXF 36 m.2 Air, 140 mm travel
29", TTX 18 damper, climb mode, LSC, HSC, LSR, Boost (15 x 110 mm), 51 mm offsetHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearings, Integrated cable routingStem
RIDE ALPHA 40
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft Pro Compound, single clamp, blackBrakes
TRP Trail EVO, 4 pistons, resin pads
Rotor: TRP R1 203 / 180 mm, 6-boltShifters
SRAM GX Eagle
12sREAR DERAILLEUR
SRAM GX Eagle
12sBottom bracket
SRAM DUB
PressfitCrankset
SRAM GX Eagle, 170 mm crank arms, Boost
Chainring: SRAM GX Eagle, 32t, Narrow-WideChain
SRAM GX Eagle
12sCassette
SRAM XG-1275 Eagle
12s, 10-52tRims
CRANKBROTHERS Synthesis Enduro Alloy
Front: 29", 28 holes, 31.5mm inner width - Rear: 29", 32 holes, 29.5mm inner widthHubs
Rear: INDUSTRY NINE 1/1 - Front: INDUSTRY NINE 1/1
Rear: 32 holes, sealed bearings, 12 x 148 mm, 6 pawls, 4° engagement, Sram XD freehub body - Front: 28 holes, sealed bearings, 15 x 110 mmSpokes/nipples
SAPIM D-Light
J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.4" WT, 3C MaxxTerra, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless ReadySeat post
KINDHSOCK Lev Integra
31.6 mm, 150 mm on S, 175 mm on M, 200 mm on L/XLSaddle
FIZIK Terra Alpaca X5
145 mm width, S-alloy railsWeight
14,7 kg / 32,4 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Ohlins Yellow
Matte FinishAccessories
Down tube protector, chainstay protector, seatstay protector
Bike specifications are subject to change without notice.
Technical informations
Technical informations
Bicycle type
TRAIL 29"
Frame material
AL 6069 T4, T6
Frame weight
3,125 kg / 6,88 lb, raw without accessories
Rear travel
125 mm
Shock length/stroke
210 x 50 mm
Piggy back shock compatible
Yes
Recommended SAG
30% = 15mm stroke
Shock bushings
20 x 10 mm / 30 x 10 mm
Recommended/max. fork height
551 mm / 561 mm
Headset type
ZS56 / ZS56, Integrated cable routing
Maximum tyre dimension (etrto)
63mm / dim. 756
Disc brake standard
POSTMOUNT 180 mm
Rear rotor max. size
200 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BB92 Press Fit
ISCG
No ISCG, custom upper guide
Chain Line
52 mm
Rear hub compatibility
Hub 12 x 148 mm - Axle L=180 mm, M12, P1.0 mm
-
Bicycle type
Trail
-
Frame material
AL 6069 T4, T6
-
Frame weight
3,44 kg / 7,58 lb
-
Rear travel
125mm
-
Shock length/stroke
210x50mm
-
Recommended SAG
28-30% / 14-15mm
-
Piggy back shock compatible
Yes
-
Shock bushings
20x10mm / 30x10mm
-
Recommended/max. fork height
551mm / 561mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
Yes
-
Wheels size
29’’ - 29’’
-
Max. rear tyre dimension - ETRTO
64mm - Ø622mm
-
rear brake mounting type
Postmount 180mm
-
Rear brake rotor max. size
200mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
S : 225mm / M : 265mm / L : 285mm / XL : 305mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
ISCG 05 lower - Custom upper guide
-
Chain line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.0mm
-
UDH hanger
Yes
-
shock anchor adjustment
No
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
