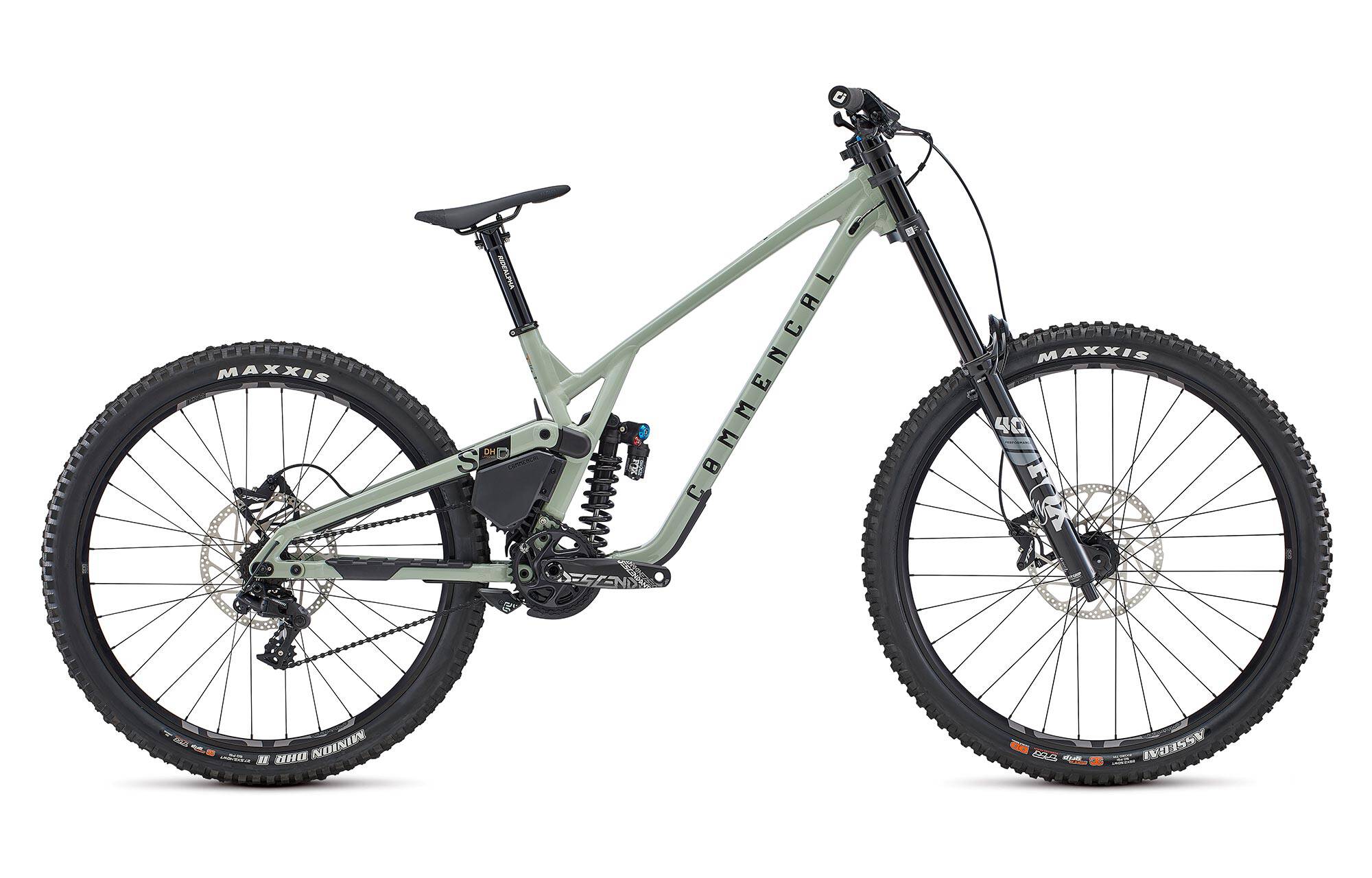

COMMENCAL SUPREME DH V5 ESSENTIAL HERITAGE GREEN image number null

DOWNHILL

200mm

220mm

29" / 27.5"

COMMENCAL SUPREME DH V5 ESSENTIAL HERITAGE GREEN

The SUPREME DH V5 is much more than just a racing bike; it's a true machine designed for competitions. The result of three years of intensive collaboration between our research and development department and top athletes, this model has proven its worth from its very first World Cup season.

DOWNHILL

200mm

220mm

29" / 27.5"

LEARN MORE ABOUT THE SUPREME DH V5

$6,600.00 $6,300.00 -5%

id/sku : 22SUPV5RXL

SIZE GUIDE

Sold out

In stock

Sold out

In stock

Sold out

Availability: This Item is currently not available. null

HOME
DELIVERY

CLICK &
COLLECT

SHOWROOM
DELIVERY

Click & collect

Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists. Contact the shop directly for service options and rates.
Learn more

Showroom Delivery

Choose pickup at one of our COMMENCAL USA showrooms (Golden, CO or Menifee, CA) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.

Please select an option

Postal Code :

Please enter a valid Postal Code

State :

Country :

Please select a country

Sku :

No delivery options are available for this address or item. Please contact us at store.us@commencal.com

The estimated shipping cost is calculated based on all the items in your cart.

BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

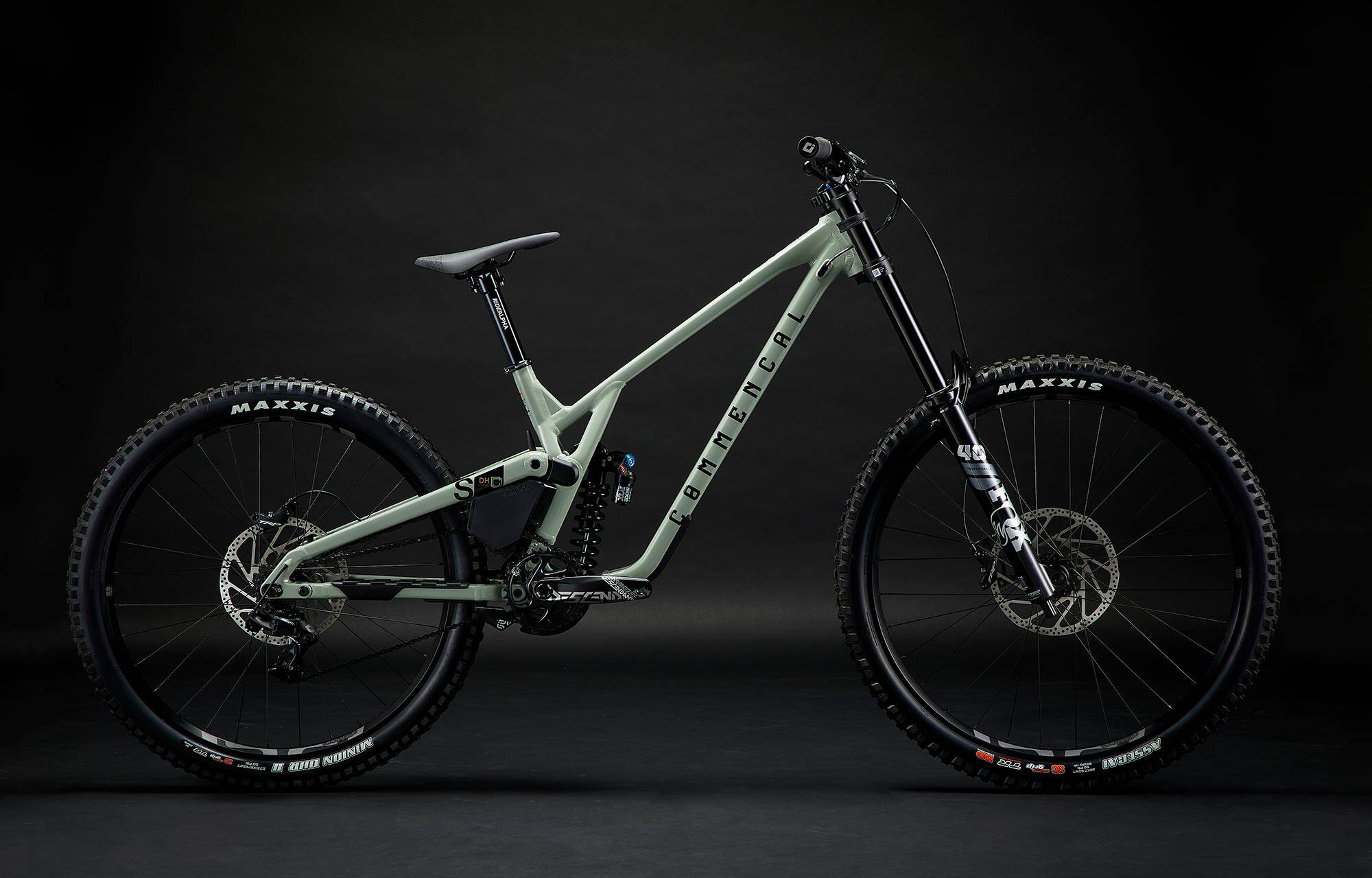

COMMENCAL SUPREME DH V5 ESSENTIAL HERITAGE GREEN image cover number large 0

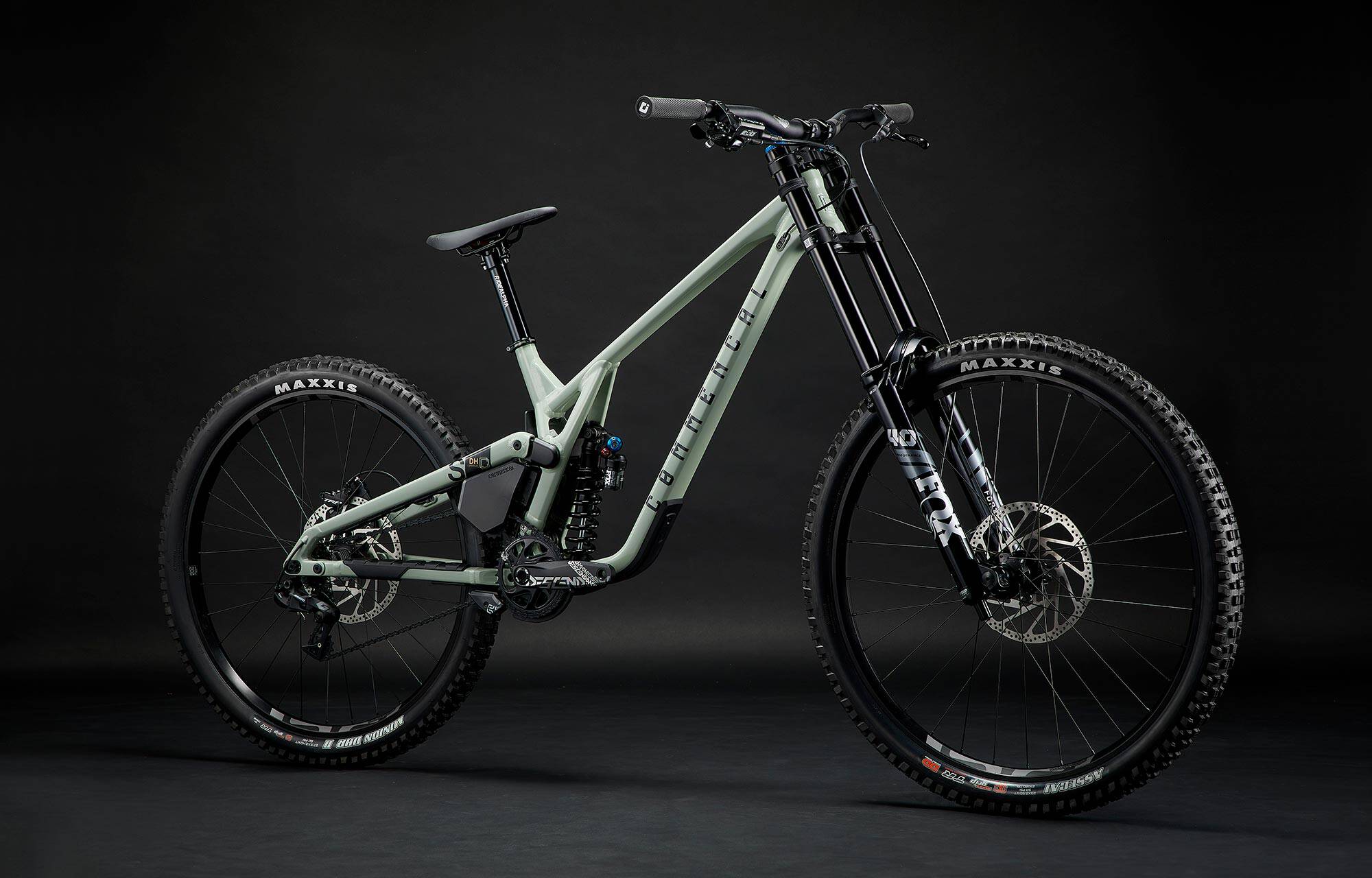

COMMENCAL SUPREME DH V5 ESSENTIAL HERITAGE GREEN image cover number large 1

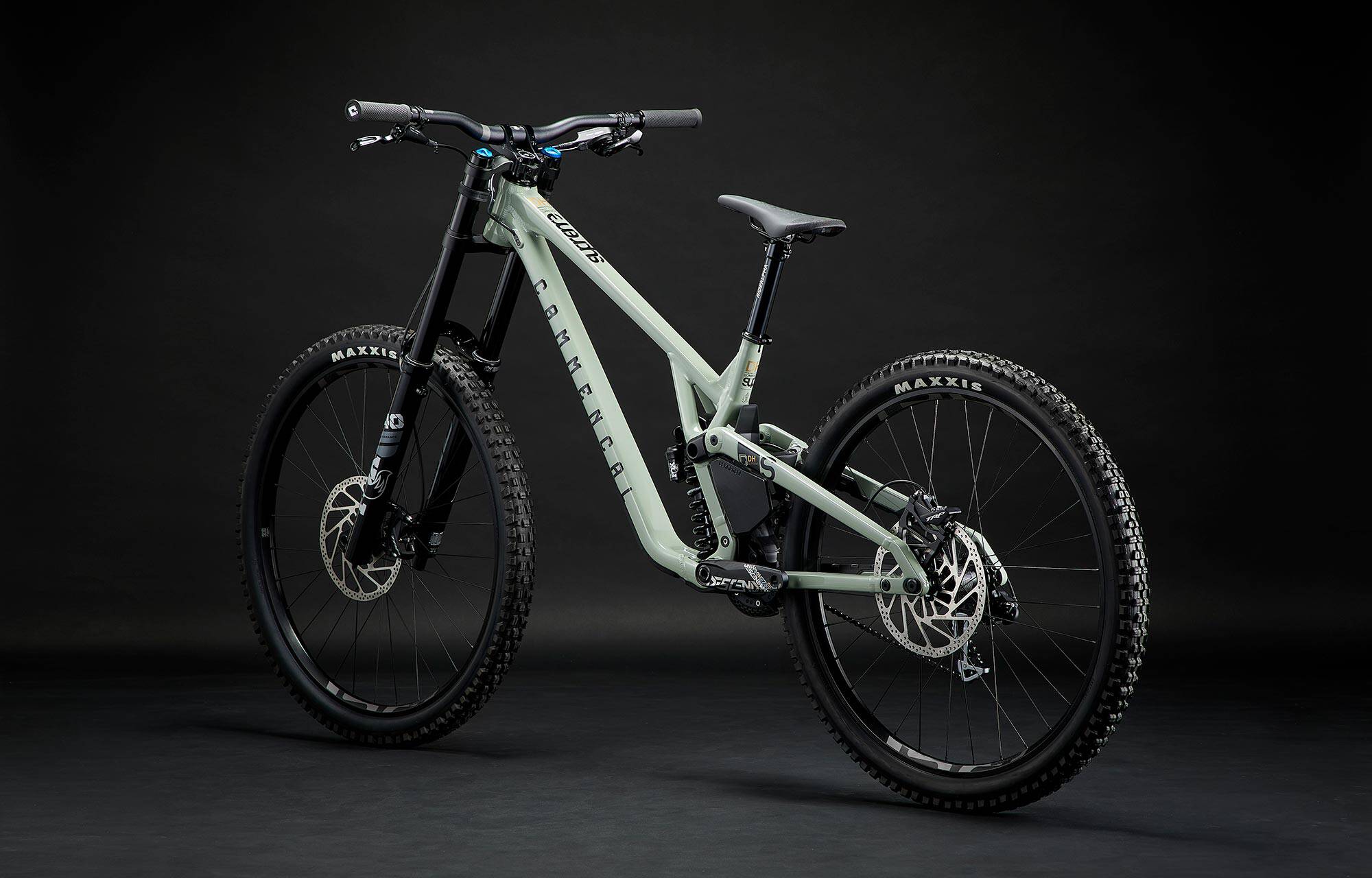

COMMENCAL SUPREME DH V5 ESSENTIAL HERITAGE GREEN image cover number large 2

CHECK OUT THE SUPREME DH V5

SUPREME DH V5: Engineered for Performance, Built to Win
The SUPREME DH V5 is the ultimate race machine, born from three years of dedicated collaboration between our R&D team and elite athletes. From its very first season competing in World Cup events, the SUPREME DH V5 has proven its dominance: 9 victories, 27 podium finishes, and first-place rankings in the Elite Women, Men, and Team categories. This success speaks for itself.

Precision Engineering: High Virtual Contact System (HVCS) Kinematics
At the heart of the SUPREME DH V5 is our groundbreaking High Virtual Contact System (HVCS), a suspension kinematic designed to optimize both responsiveness and shock absorption. The result? Exceptional control and adaptability on even the toughest terrain.

With adjustable geometry inserts integrated into the aluminum frame, riders can fine-tune the bike’s behavior to match specific course conditions, ensuring optimal performance for every race.

SUPREME DH V5 SETTINGS GUIDE

COMMENCALSUPREME DH V5 ESSENTIAL HERITAGE GREEN: Built for the Essentials

The SUPREME DH V5 ESSENTIAL lives up to its name—focusing on the core elements of downhill performance without compromise. Every component is chosen for precision, durability, and rider-focused functionality, delivering a smooth and controlled descent.

High-Performance Components for Ultimate Control:
- FOX 40 Performance Fork: Featuring an adjustable air spring and a GRIP hydraulic cartridge, this fork allows on-the-fly low-speed compression adjustment—perfect for fast-paced trail changes.
- FOX DHX2 Performance Elite Shock: With 4-way adjustability and unmatched sensitivity, this shock maintains performance without overheating, no matter the length or intensity of the descent.

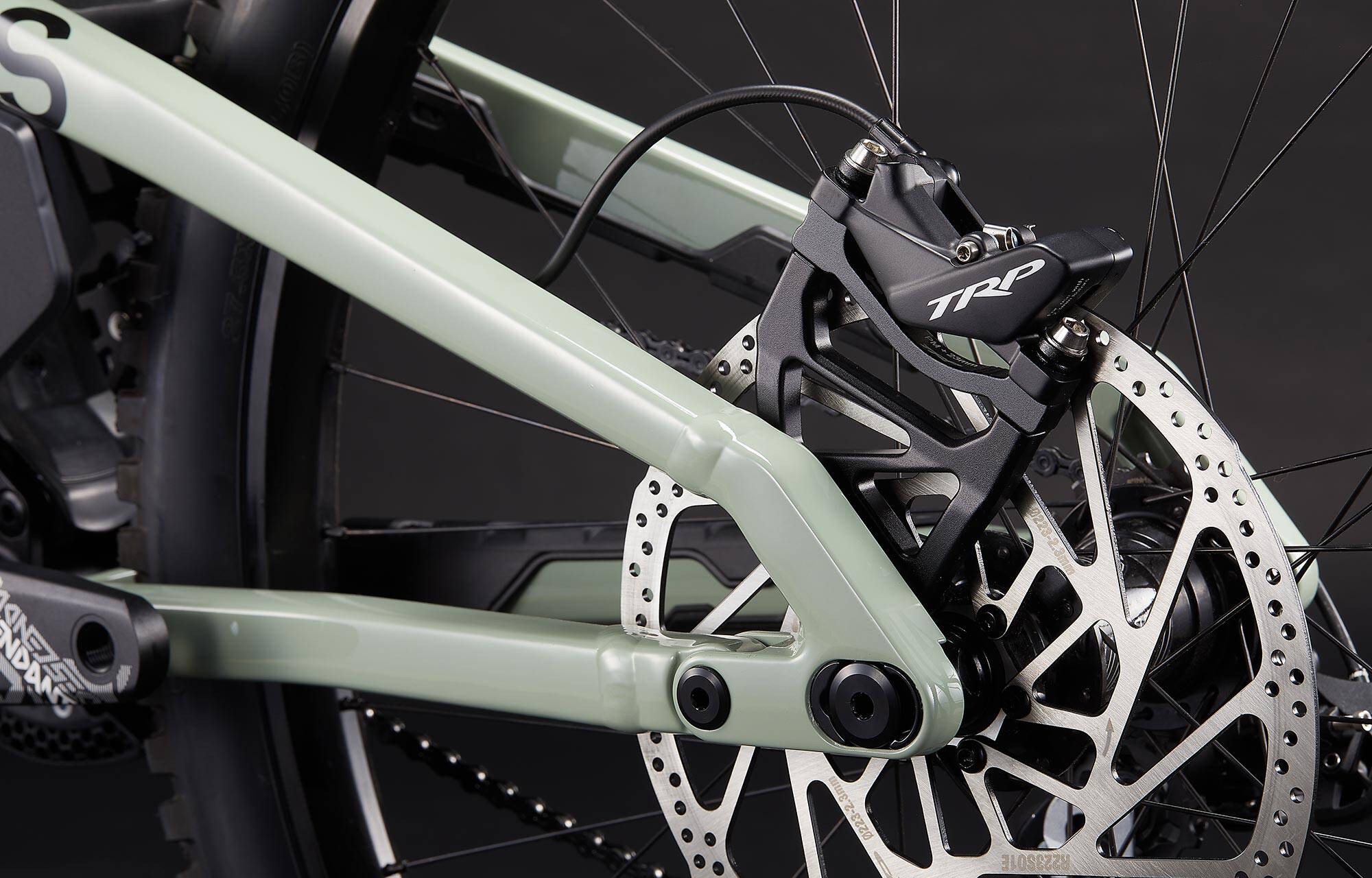

- TRP DH-R Evo Brakes: These 4-piston brakes with 223mm rotors deliver powerful, reliable, and precise braking. Designed for progressive control, they excel on steep, technical trails.
- E13 LG1+ DH Wheels: Known for their strength and durability, these wheels feature a wide spoke umbrella for enhanced lateral stiffness, thanks to the integrated freehub body and cassette design.
- SRAM GX DH Drivetrain: Engineered for downhill, the SRAM GX DH derailleur ensures smooth and responsive shifting under pressure, keeping you in control at high speeds.

Maximum Grip with MAXXIS Tire Combo
The MAXXIS Assegai and Minion DHR II tires (DH casing) offer the ideal balance of traction and stability. Whether navigating wet roots or hard-packed dirt, these tires deliver confidence-inspiring grip that pushes your limits without losing control.

Conclusion: Race-Ready, Trail-Proven
The SUPREME DH V5 ESSENTIAL is not just a bike—it’s a statement of downhill excellence. Combining advanced engineering with proven race components, it’s designed for those who demand the very best from their equipment. Get ready to ride at the edge of performance and set your sights on the podium.

*Please note that bike specs are subject to change without prior notice.

COMMENCAL SUPREME DH V5 ESSENTIAL HERITAGE GREEN image cover number large 3

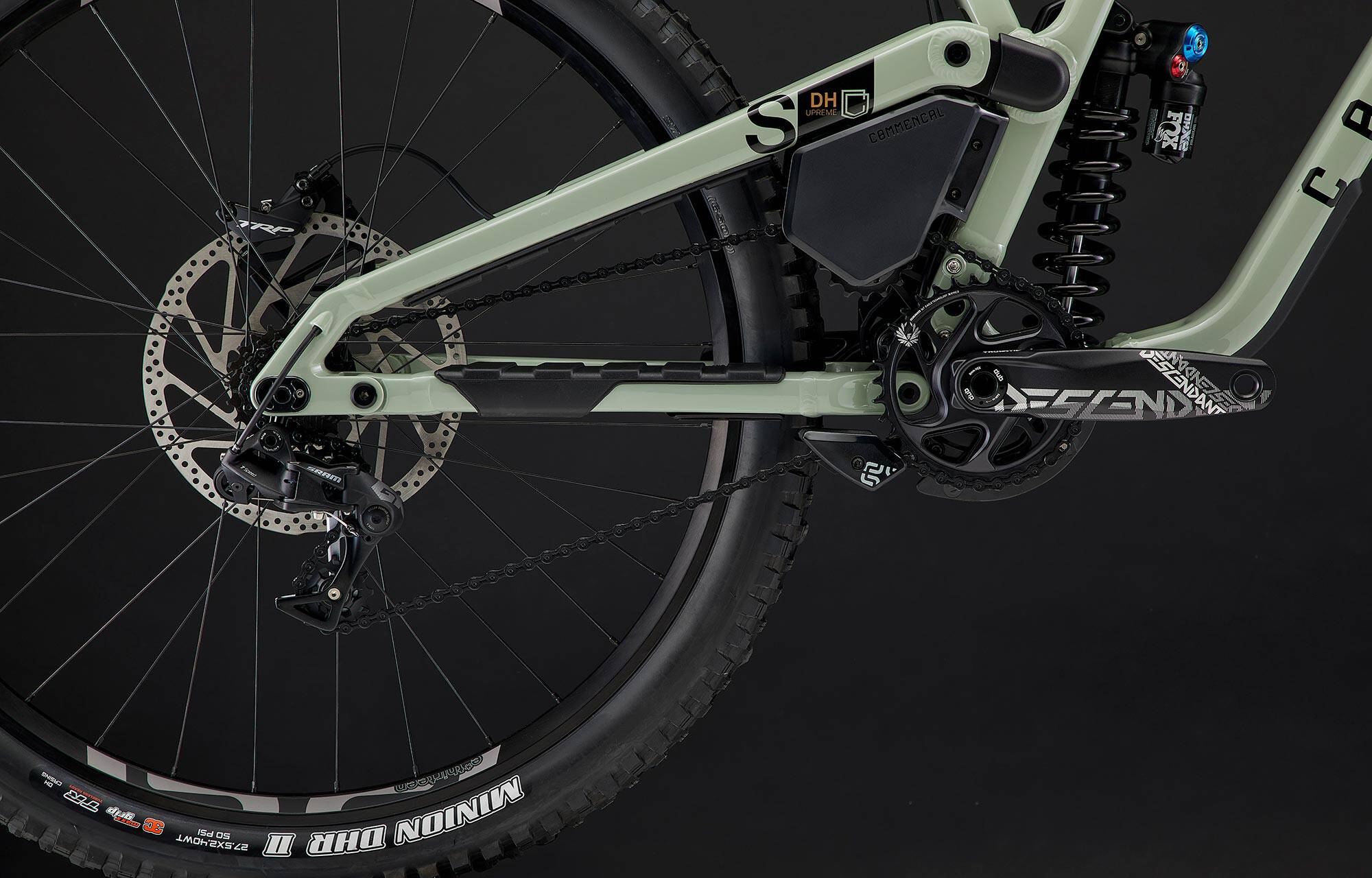

COMMENCAL SUPREME DH V5 ESSENTIAL HERITAGE GREEN image cover number large 4

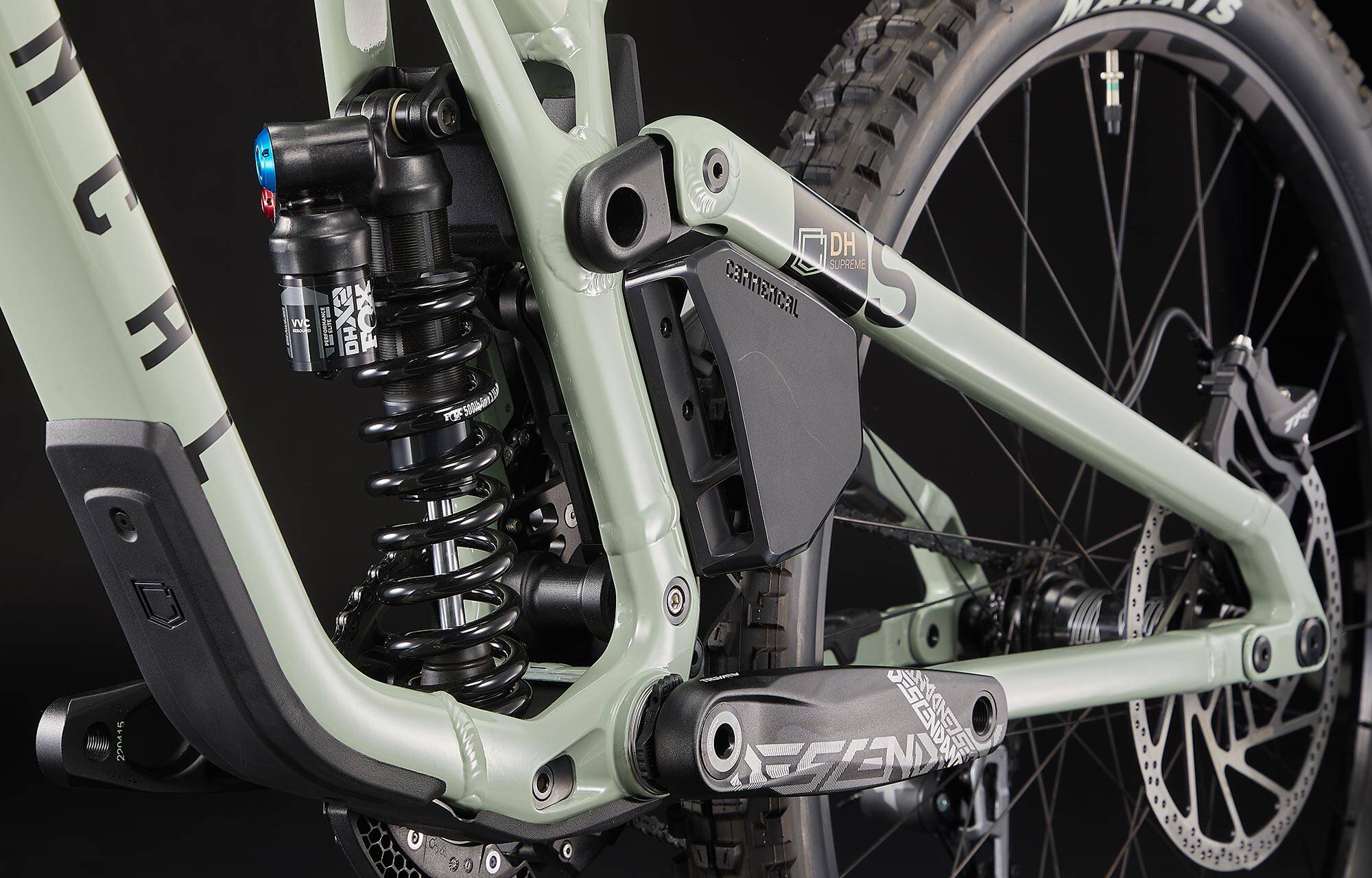

COMMENCAL SUPREME DH V5 ESSENTIAL HERITAGE GREEN image cover number large 5

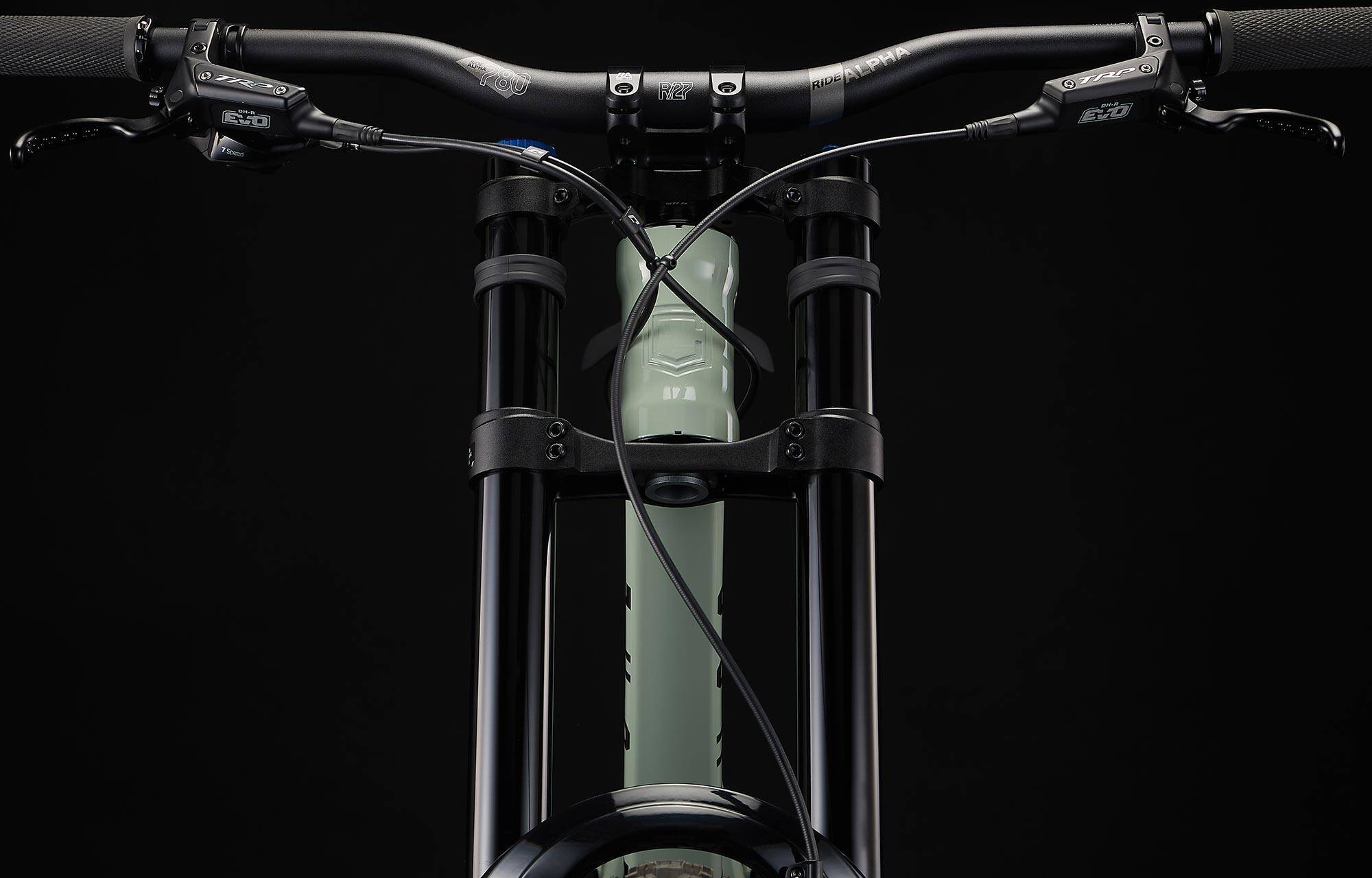

COMMENCAL SUPREME DH V5 ESSENTIAL HERITAGE GREEN image cover number large 6

specifications

Frame
SUPREME DH V5, 220 mm travel
29/27.5'', Alloy 6066, triple butted tubes, T4, T6
Shock
FOX DHX 2 Performance Elite
250 x 75 mm, LSC, LSR. Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 500 lbs on XL
Fork
FOX 40 Performance, 203 mm travel
29", Grip damper, LSC, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 spacers
Headset
ACROS ZS56 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mm
Handlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion
Soft pro compound, single clamp, black
Brakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thickness
Shifters
SRAM GX DH
7 sp
Chain guide
E13 LG1 + Bottom Guide
32-34t
Rear derailleur
SRAM GX DH
7 sp
Bottom bracket
SRAM DUB
Pressfit
Crankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34t
Chain
KMC X11EL
Black
Cassette
E13 LG1 Plus DH
7s, 9-21t DM Cassette
Rims
E13 LG1 Plus DH
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width
Hubs
Rear: E13 LG1 Plus DH - Front: E13 LG1 Plus DH
Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black
Tyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH Casing, Tubeless Ready - Front: 29" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready
Seat post
RIDE ALPHA Super Light
31.6 mm, 250 mm length
Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy rails
Weight
17,5 kg / 38,58 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
Heritage Green
Shiny Finish
Accessories
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard, FOX 40 fork fender

Bike specifications are subject to change without notice.

Technical informations

Bicycle type
Cadre DH 29''/27''
Frame material
AL 6066 T4, T6
Frame weight
5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle
Rear travel
220 mm
Shock length/stroke
250 x 75
Piggy back shock compatible
Yes
Shock bushings
20 x 10 mm / 30 x 8 mm
Recommended/max. fork height
630 mm / 638 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
64 mm / diam 721
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle
Flip Chip
Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)
Wheel Base Length
Centered (Available as an option: Flip Flop +/-6mm)
Bridge
XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)

Bicycle type

Downhill Racing
Frame material

AL 6066 T4, T6
Frame weight

5,3 kg / 11.68 lb
Rear travel

220mm
Shock length/stroke

250x75mm
Recommended SAG

20-25% / 15-19mm
Piggy back shock compatible

Yes
Shock bushings

30x8mm / 30x8mm
Recommended/max. fork height

612mm / 620mm
Headset type

ZS56 / ZS56
ICR compatible

No
Wheels size

29’’ - 27.5’’
Max. rear tyre dimension - ETRTO

65mm - Ø584mm
rear brake mounting type

Postmount 200mm
Rear brake rotor max. size

223mm
Seatpost/seat clamp diameter

31,6mm / 34,9mm
Seatpost insertion max.

130mm
Bottom bracket type

Press Fit BB 107mm
Chain guide

ISCG 05 lower - Custom upper idler guide
Recommended/max. chainring teeth

34T / 36T
Chain line

56,5
Rear Hub dimension

157x12mm
Rear Axle dimension

Custom, 200mm, M12, P1.0mm
UDH hanger

No
shock anchor adjustment

4 positions
Rear Wheel Base Length adjustment

3 positions
Rear triangle stiffness adjustment

3 thickness

Frame settings

The SUPREME DH V5 is a race machine with no compromises, made to go fast whatever the track. For this reason, frame settings are adjustable depending on various factors, like terrain conditions or simply just your preferences. Follow our guide!

These recommendations are indeed recommendations.The best settings are the ones where you feel most comfortable on the bike.

How to adjust your SUPREME DH V5

Geometry

SIZE

XSLow / High

SLow / High

MLow / High

LLow / High

XLLow / High

1 - SEAT TUBE LENGTH

370

2 - SEAT TUBE ANGLE

76,4° / 76,8°

75,7° / 76,1°

3 - HEAD TUBE ANGLE

63,9° / 64,3°

63,3° / 63,7°

4 - HEAD TUBE LENGTH

112

5 - WHEELBASE

1196 / 1194

1246 / 1244

1283 / 1281

1311 / 1309

1331 / 1329

6 - TOP TUBE LENGTH

548 / 546

596 / 594

621 / 619

649 / 647

669 / 667

7 - CHAIN STAY LENGTH

442 / 440

454 / 452

8 - BOTTOM BRACKET HEIGHT

1,5 / -3,5

2,5 / -3

9 - FORK LENGTH

581

612

10 - FORK OFFSET

11 - REACH

401 / 405

431 / 435

456 / 460

484 / 488

504 / 508

12 - STACK

605 / 602,5

649 / 646

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

Suspension settings

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.

Adjust your suspension
