Technical features

  • Bicycle type

    All Mountain

  • Frame material

    AL 6061 T4, T6

  • Frame weight

    2,32 kg / 5,11 lb

  • Recommended/max. fork height

    561mm / 571mm

  • Headset type

    ZS56 / ZS56

  • ICR compatible

    Yes

  • Wheels size

    29’’ - 29’’ (M-L-XL)
    29’’ - 27.5’’ (S)

  • Max. rear tyre dimension - ETRTO

    64mm - Ø622mm (M-L-XL)
    64mm - Ø584mm (S)

  • rear brake mounting type

    Postmount 200mm

  • Rear brake rotor max. size

    200mm

  • Seatpost/seat clamp diameter

    31,6mm / 34,9mm

  • Seatpost insertion max.

    S : 300mm / M : 300mm / L : 320mm / XL : 340mm

  • Bottom bracket type

    BSA 68mm

  • Chain guide

    No

  • Chain line

    53

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.0mm

  • UDH hanger

    Yes

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
76,8°
75,5°
75,5°
75,5°
3 - HEAD TUBE ANGLE
65,8°
64,5°
64,5°
64,5°
4 - HEAD TUBE LENGTH
115
120
125
130
5 - WHEELBASE
1150
1196
1218
1246
6 - TOP TUBE LENGTH
558
603
624
650
7 - CHAIN STAY LENGTH
425
430
430
430
8 - BOTTOM BRACKET HEIGHT
-54,4
-50
-50
-50
9 - FORK LENGTH
561
561
561
561
10 - REACH
410
435
455
480
11 - STACK
638
649
653
658

All lengths in millimeters.

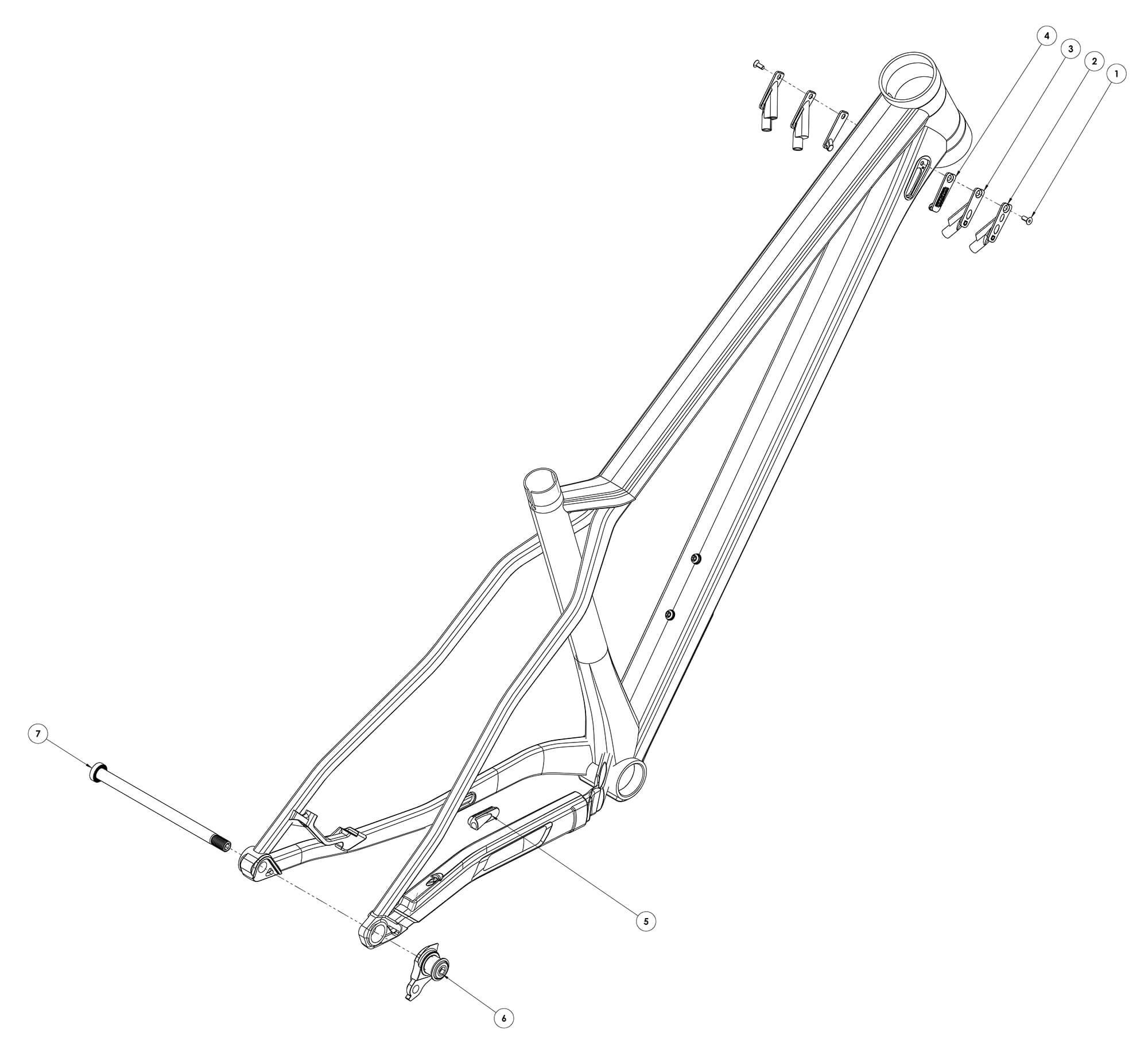

Frame Assembly

1+2
W23ICRSEAL2H
ICR SEAL - 2 HOLES
1+3
W23ICRSEAL1H
ICR SEAL - 1 HOLES
6
A22HANGSRAMUDH
UNIVERSAL DERAILLEUR HANGER
7
W22AXLEWHEELUDH180
REAR WHEEL AXLE - MAXLE UDH 180 STANDARD
1+4
W23ICRSEAL0H
Product not available on our site, please contact our teams.
5
-
Product not available on our site, please contact our teams.

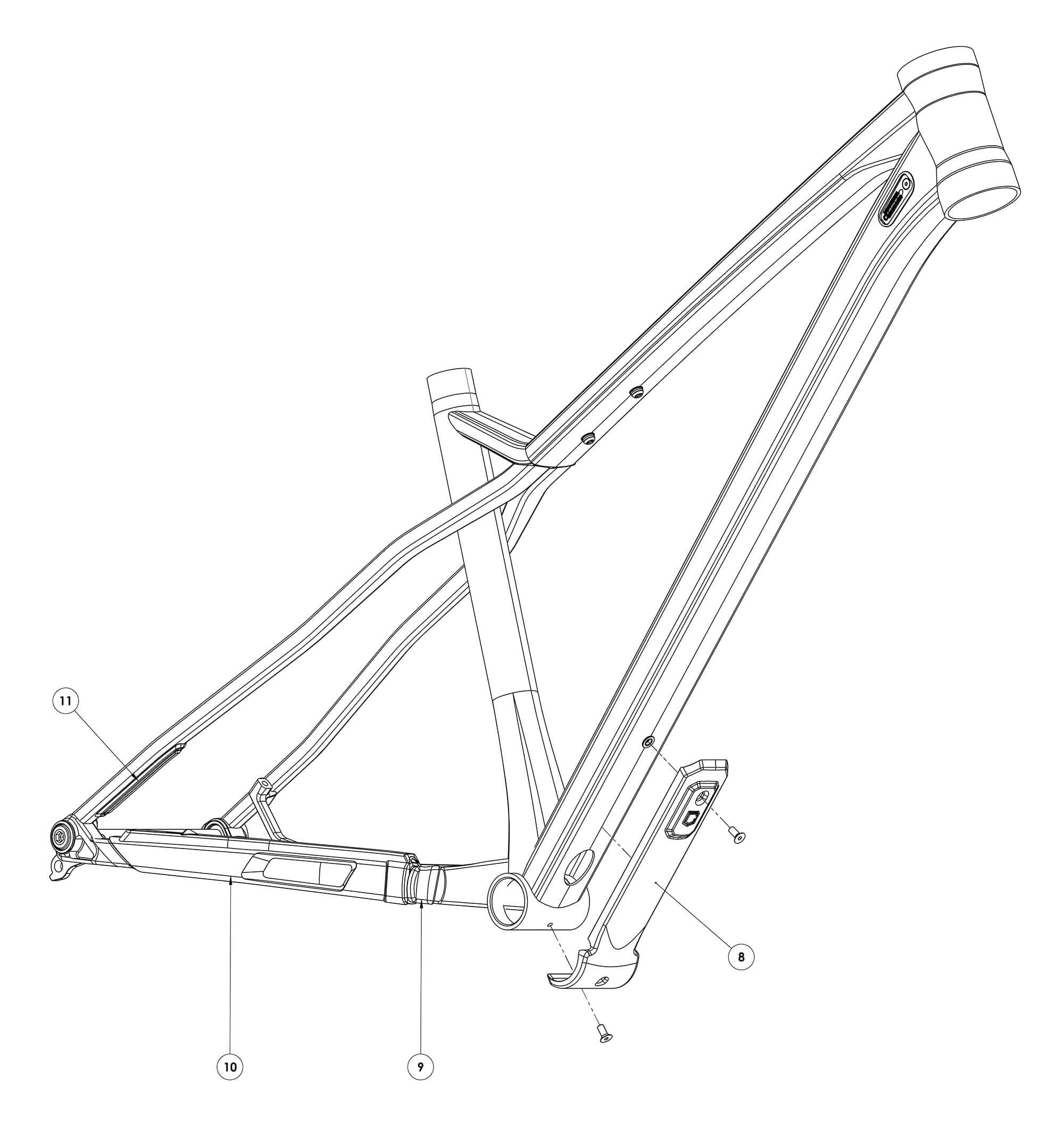

Protectors

8
-
Product not available on our site, please contact our teams.
9
-
Product not available on our site, please contact our teams.
10
-
Product not available on our site, please contact our teams.
11
-
Product not available on our site, please contact our teams.

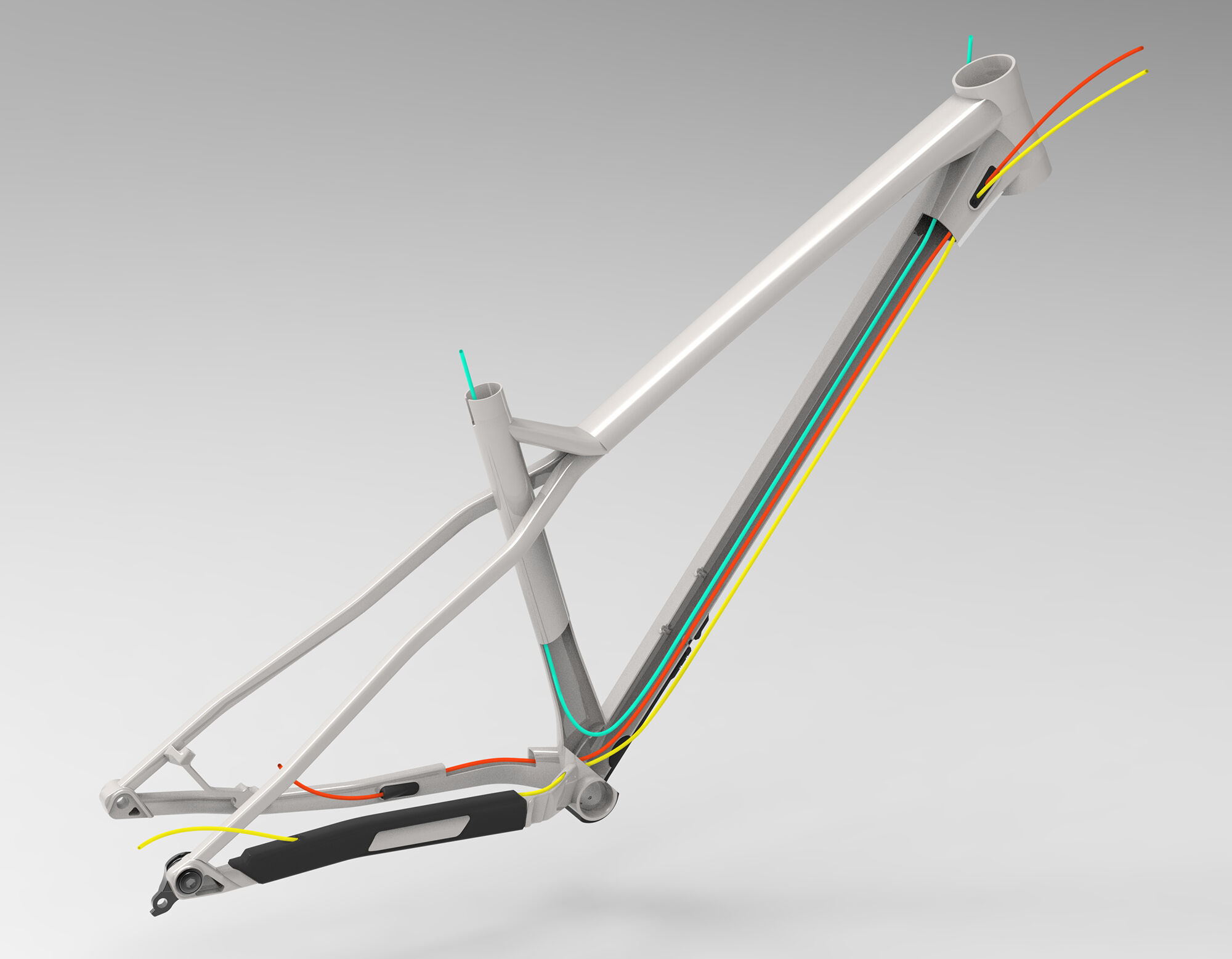

Cable Routing
