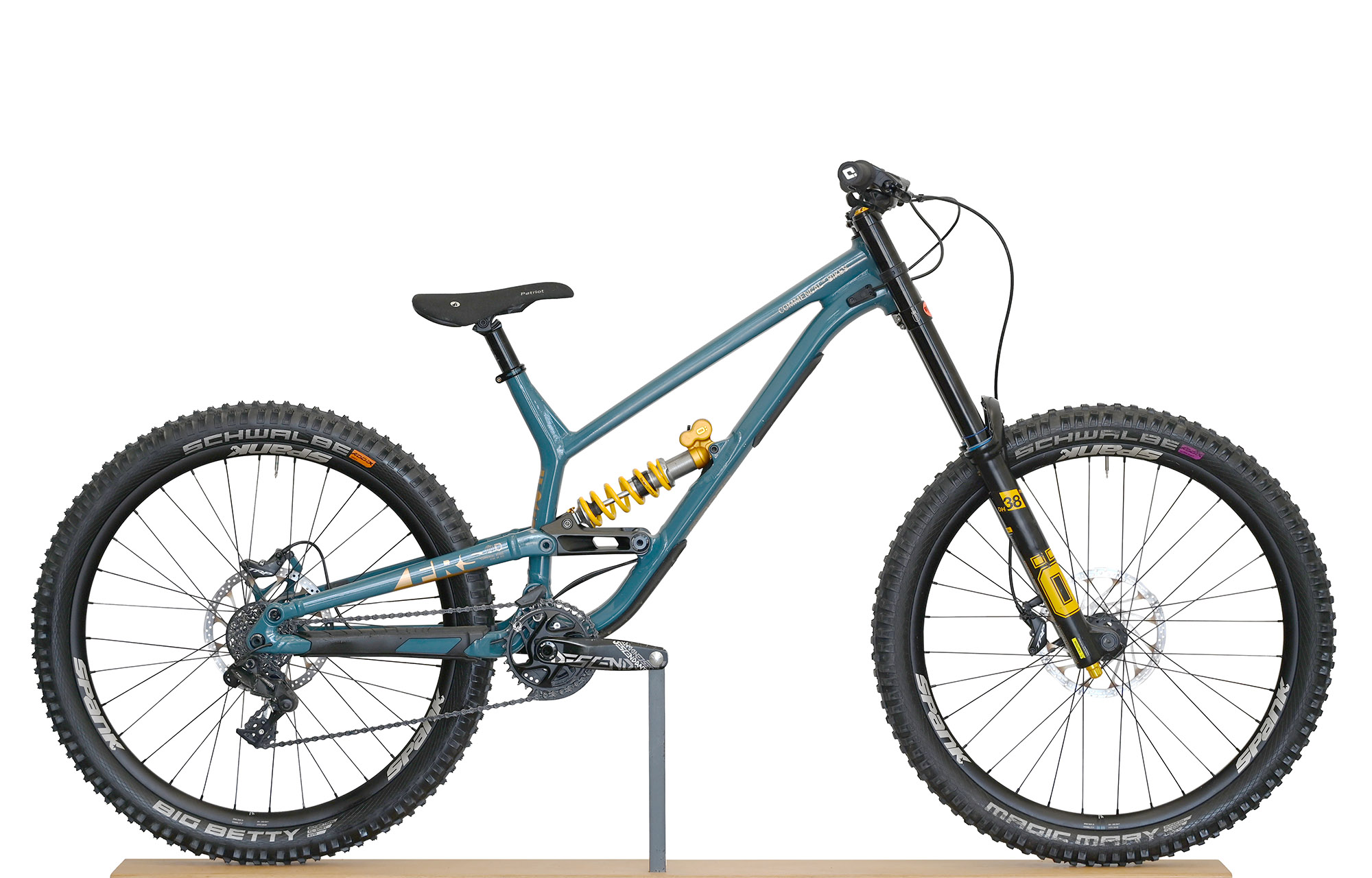

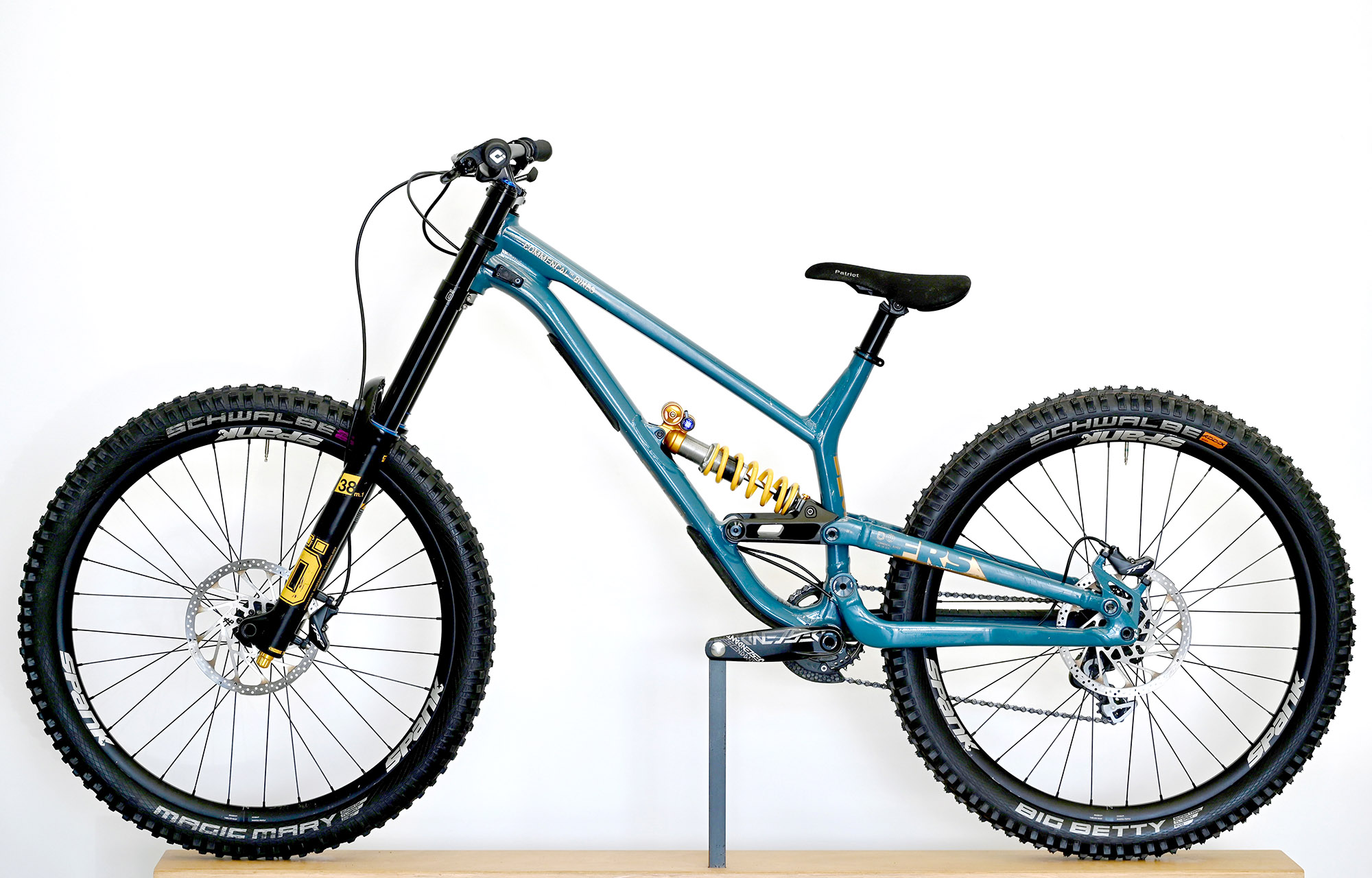

COMMENCAL FRS OHLINS EDITION AQUA BLUE - L (23150603)

Price reduced from NZ$ 7,173.91 excl. GST to NZ$ 5,826.08 excl. GST -19%
id/sku : OCNZ0042
Availability: This Item is currently not available. null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

- DESCRIPTION -

Our refurbished bikes come from a variety of fleets including:
Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage).
Each bike undergoes a thorough inspection and maintenance process:
Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced.
Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

- GENERAL -
Bike ridden ready for a new start.

- AESTHETIC -
Scratches and paint chips, on frame.
Scratches on fork, brakes, crank arms, rear derailleur and rims.

- MECHANICAL -
New rear tyre.
Serviced shock absorber and fork.
Brakes bleed, pads changed.

For more information, feel free to get in touch.
*Please note that some components and accessories may vary from what is shown in the photos or specifications.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    DH / Freeride

  • Frame material

    AL 6069 T4, T6

  • Frame weight

    4,1 kg / 9.03 lb

  • Rear travel

    200 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20 x 8 mm / 30 x 10 mm

  • Recommended/max. fork height

    581 mm / 595 mm

  • Headset dimension

    Tapered 1-1/8" / 1-1/2"

  • Headset type

    ZS44 / ZS56

  • Maximum tyre dimension (etrto)

    27.5’' - 65 MM

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    203 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=180 mm, M12, P1.75 mm - Hub 150 x 12 mm standard maxle

- SPECIFICATIONS -

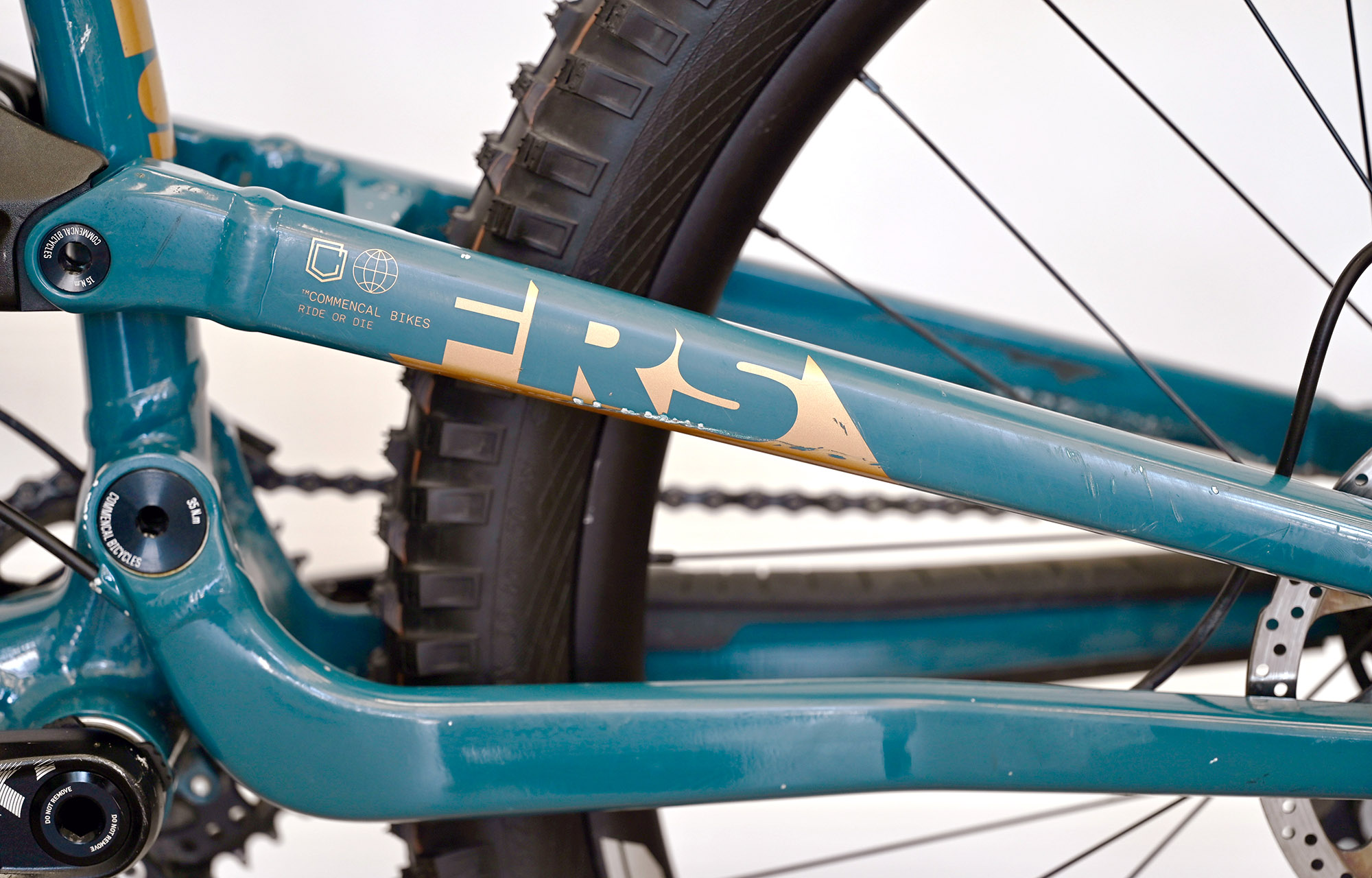

  • Frame

    FRS, 200 mm travel
    27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

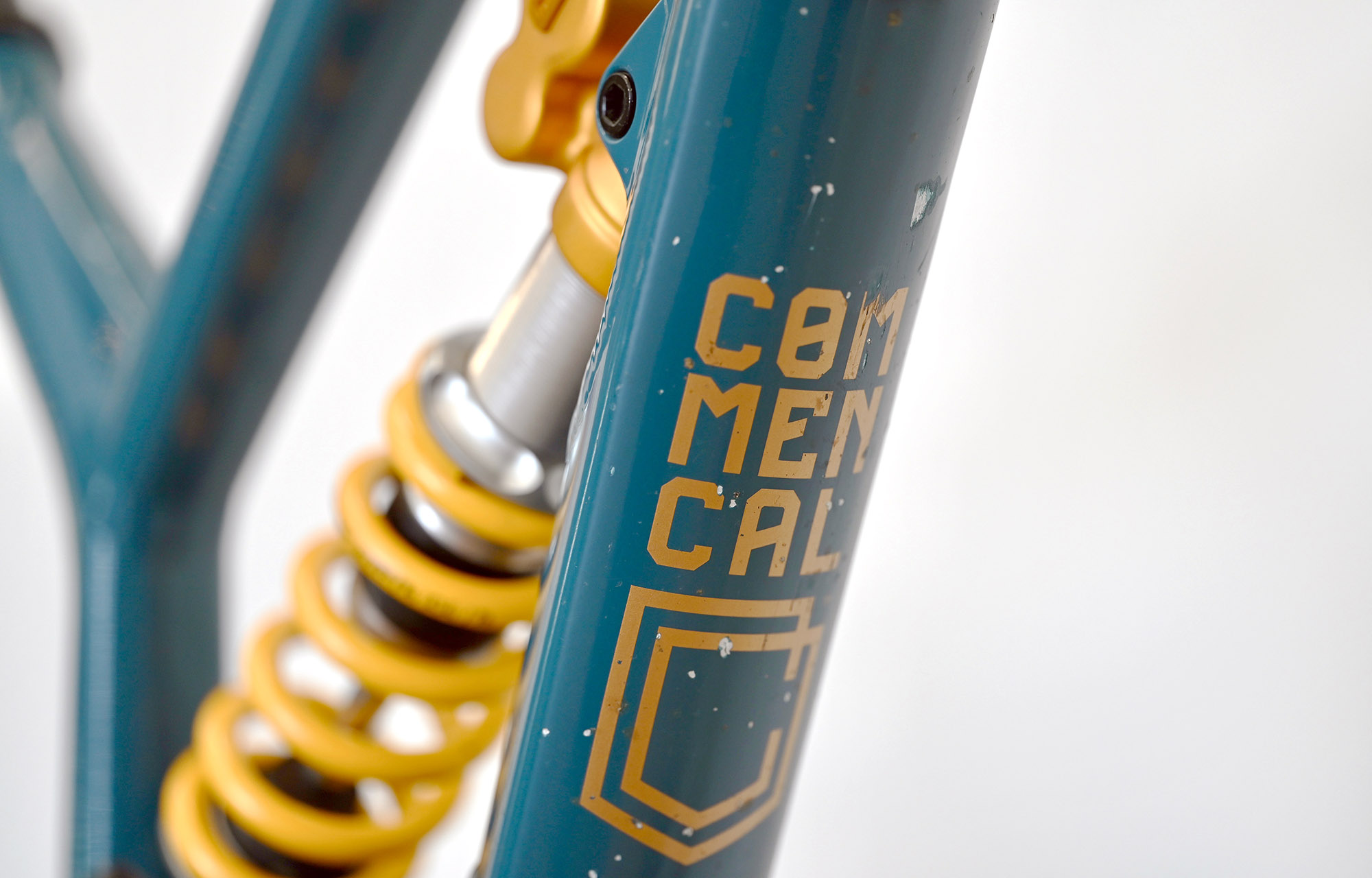

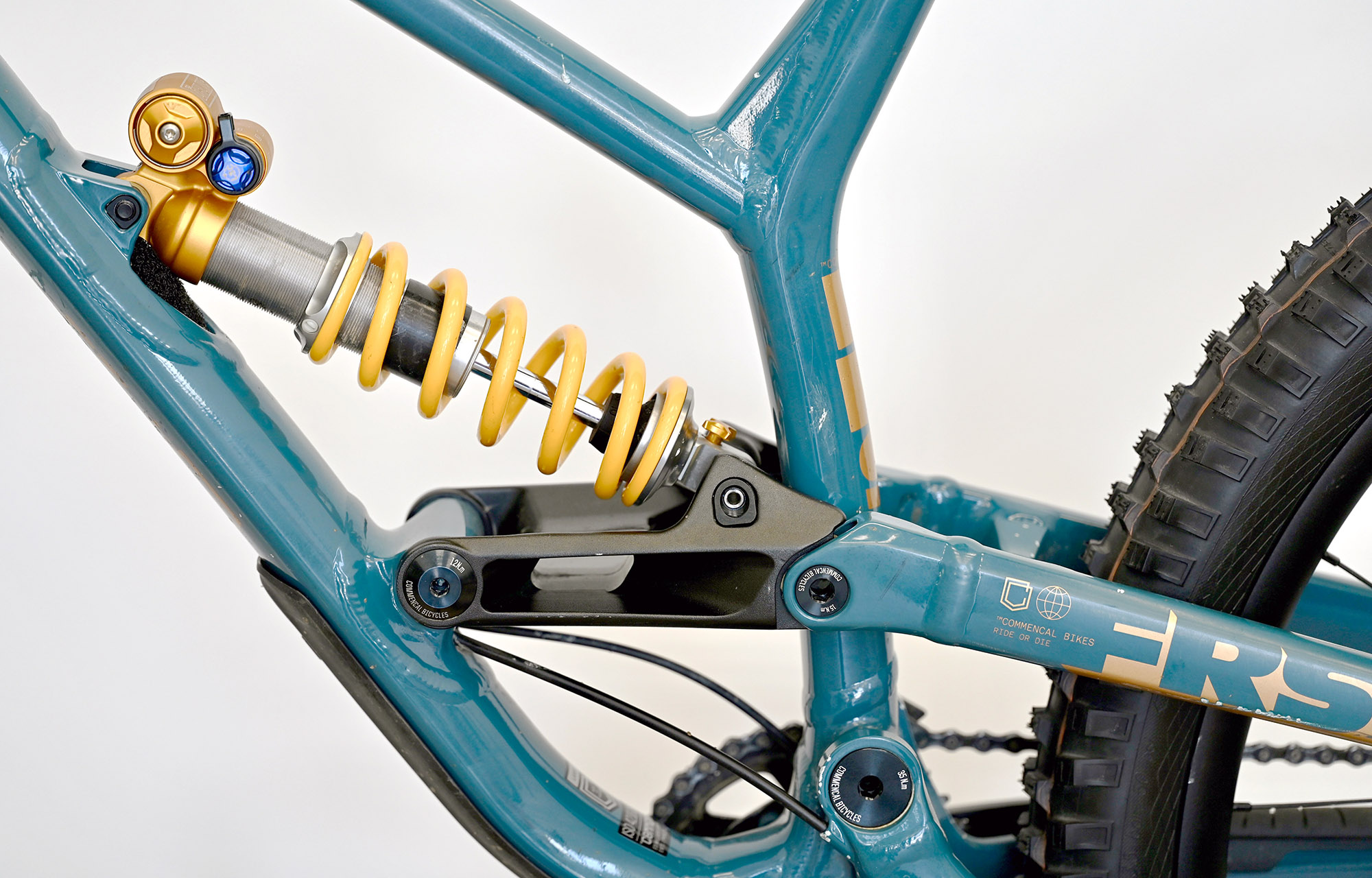

  • Shock

    OHLINS TTX22M Coil
    250 x 75 mm, HSC, LSC, rebound. Spring rates: 343 lbs on S, 388 lbs on M, 434 lbs on L, 480 lbs on XL

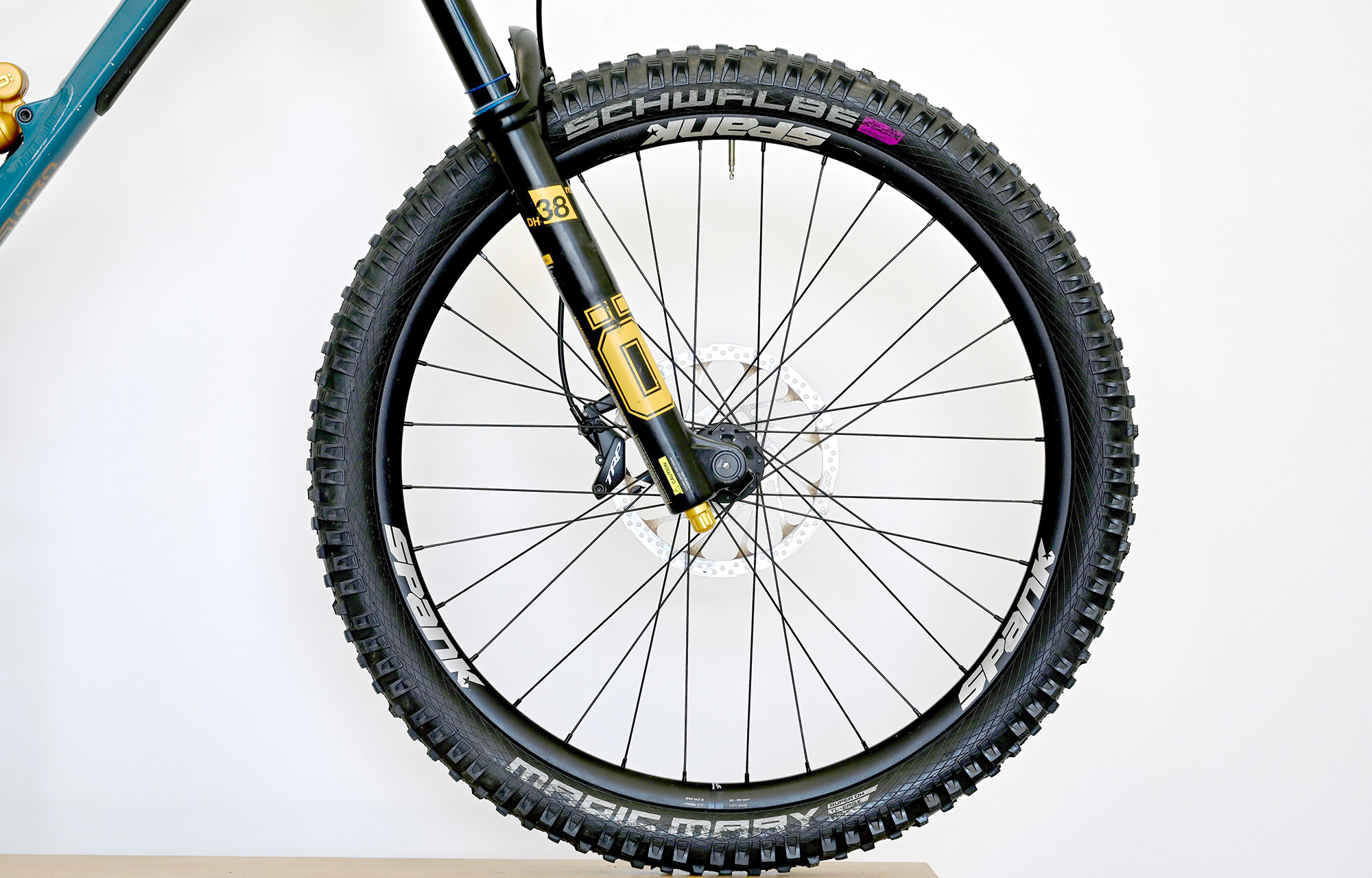

  • Fork

    OHLINS DH38 Air, 200 mm travel
    27.5", TTX 18 damper, Ramp Up chamber, LSC, HSC, LSR, Boost (20 x 110 mm), 46 mm offset

  • Headset

    ACROS ZS44 / ZS56
    Alloy cups, sealed bearings

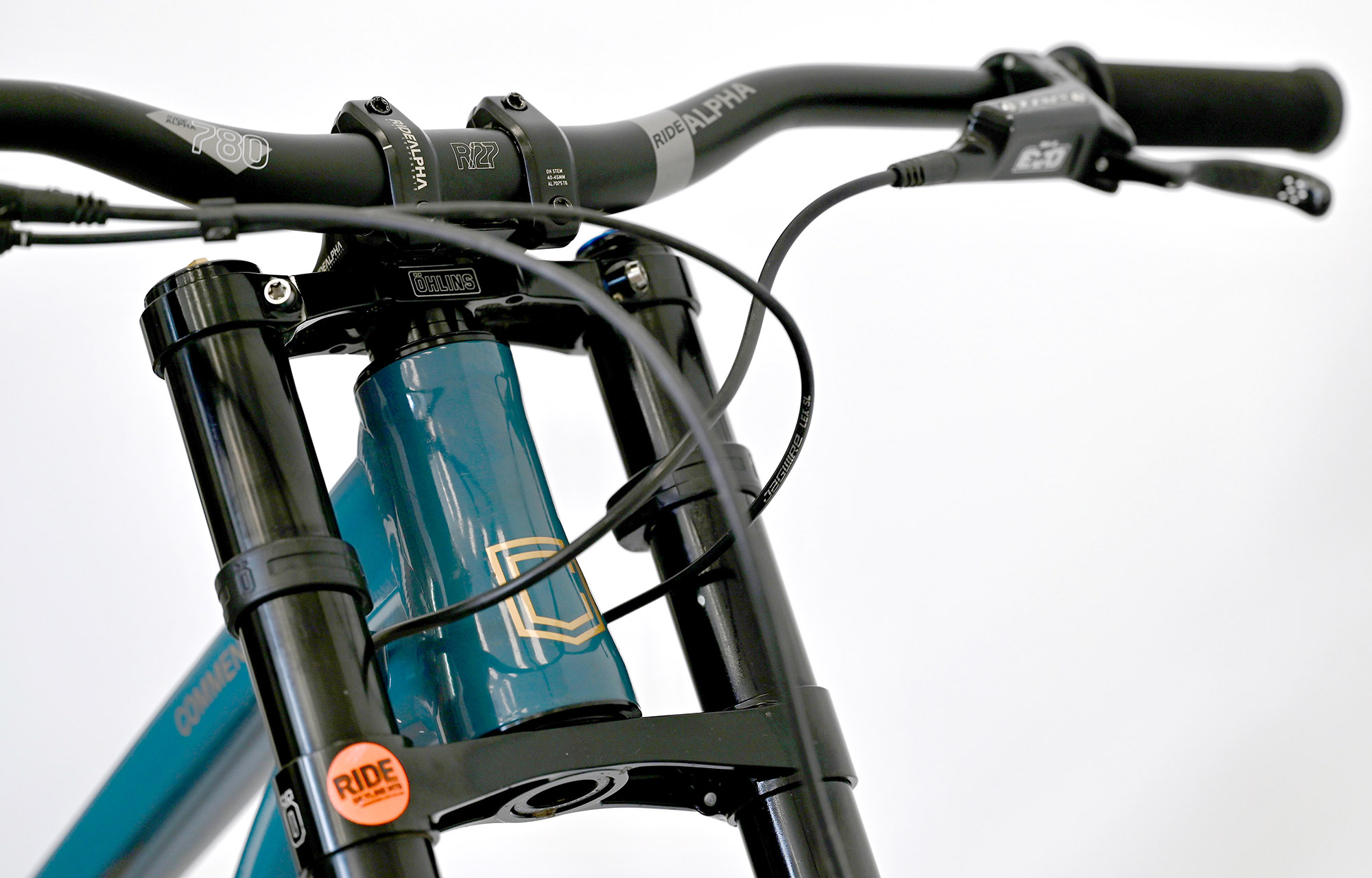

  • Stem

    RIDE ALPHA DH 40
    40 mm extension, direct mount, 31.8 mm

  • Handlebar

    RIDE ALPHA R27
    31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Longneck
    Soft compound, single clamp, black

  • Brakes

    TRP DH-R EVO, 4 pistons
    Rotors: TRP R1 203 mm, 2,3 mm, 6-bolt

  • Shifters

    SRAM GX DH
    7 sp

  • Chain guide

    E13 Vario
    34-36t

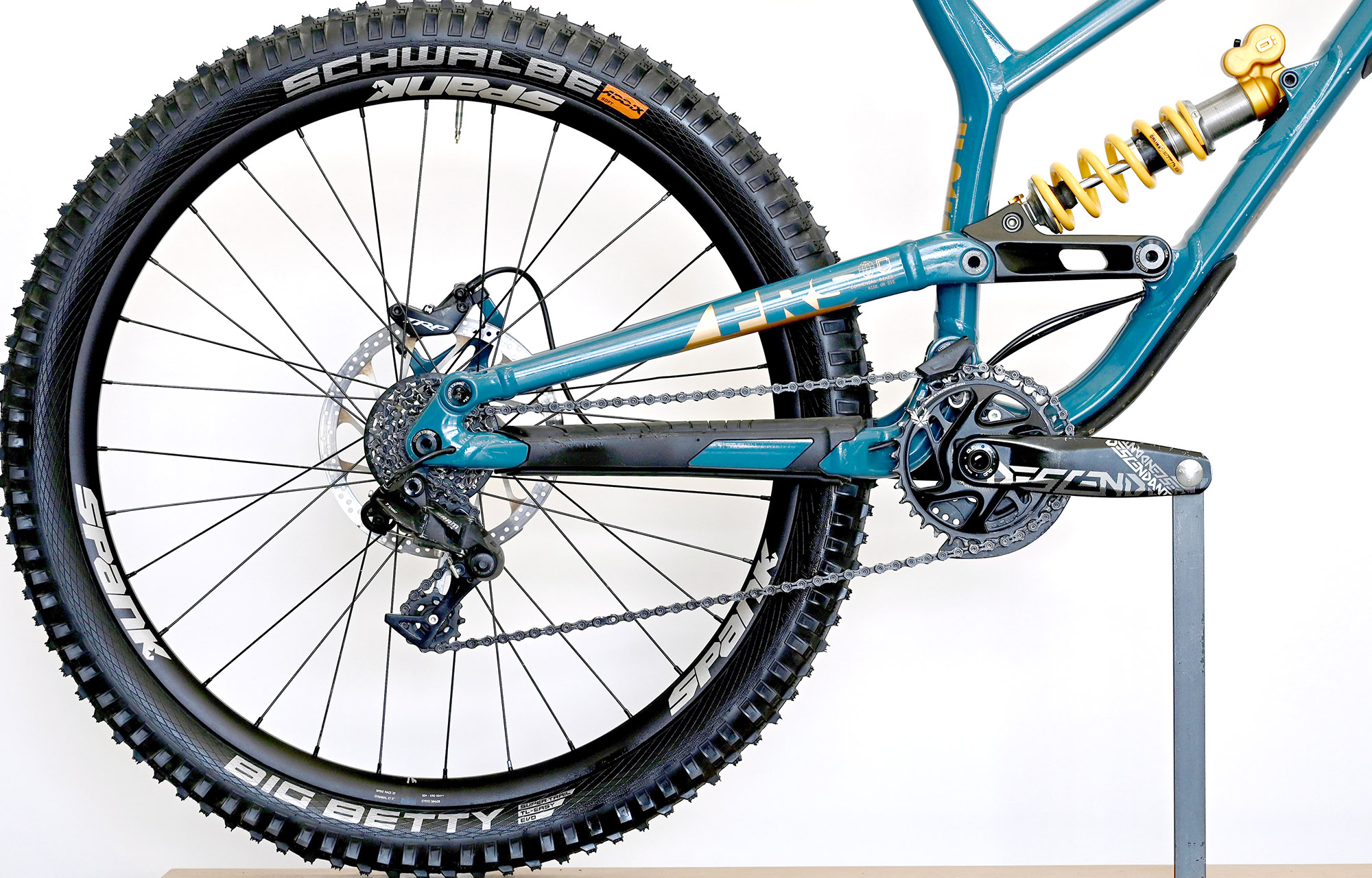

  • REAR DERAILLEUR

    SRAM GX DH
    7 sp

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    TRUVATIV Descendant DH, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant DH X-Sync, 34t

  • Chain

    KMC X11EL
    Black

  • Cassette

    SRAM PG-720
    7 sp, 11-25t

  • Rims

    SPANK Spike Race 33
    27.5'', 32h, 28 mm inner width, Tubeless Ready

  • Hubs

    Rear: SPANK HEX J-TYPE - Front: SPANK HEX J-TYPE
    Rear: 32h, sealed bearings, 12 x 150 mm, SHIMANO Hyperglide, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

  • Spokes/nipples

    SPANK
    J-Hook, tripple butted 2.2/1.8/2.0

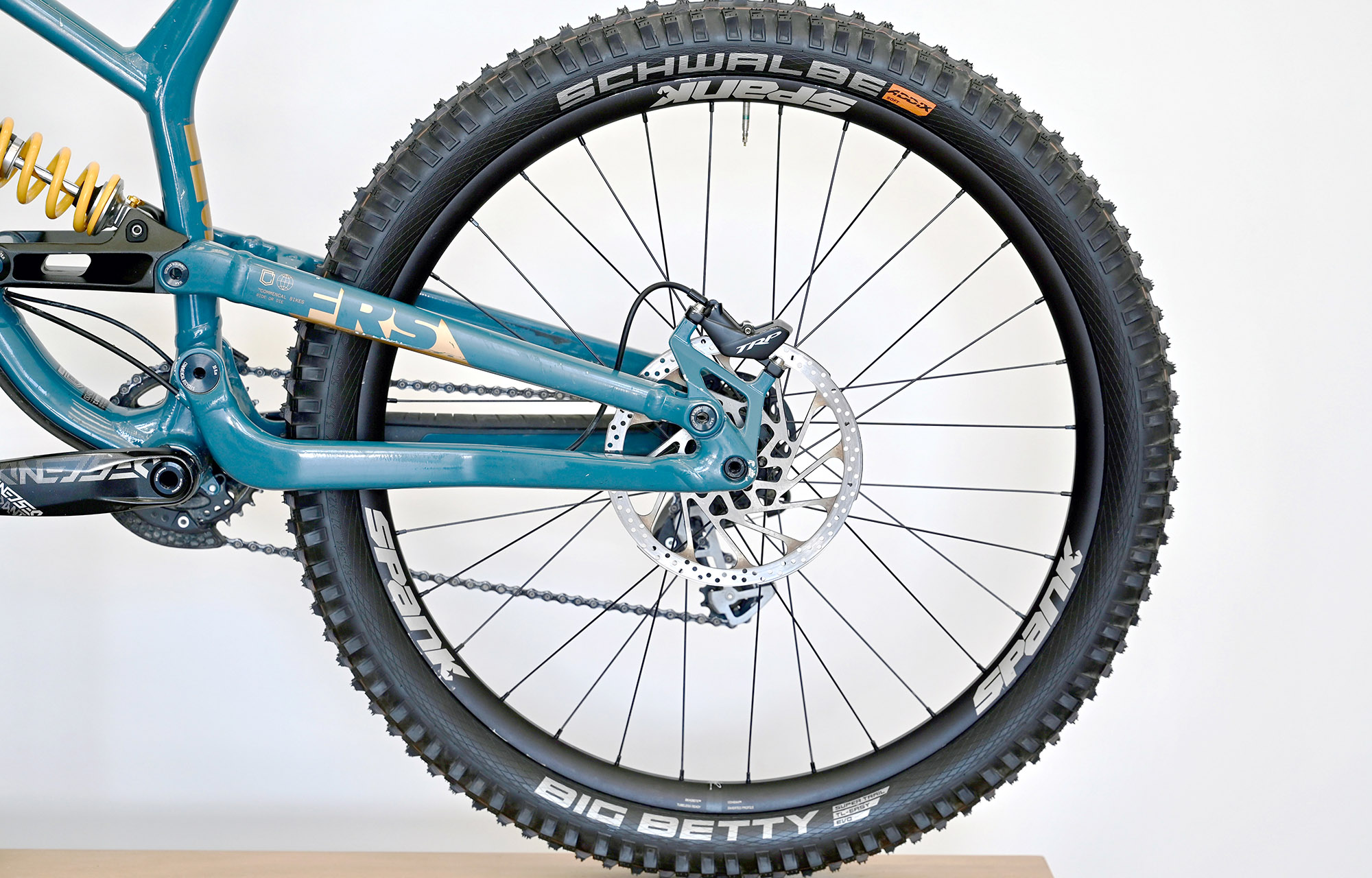

  • Tyres

    Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary
    Rear: 27.5" x 2.4", Super Gravity, Addix Soft, Tubeless Easy - Front: 27.5" x 2.4", Super Gravity, Addix Soft, Tubeless Easy

  • Seat post

    SDG Micro I-Beam
    31.6 mm, 250 mm length

  • Saddle

    SDG Patriot I-Beam
    129 mm width, Kevlar reinforced

  • Weight

    16,4 kg / 36.15 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances

  • Pedals included

    No

  • Colour

    Aqua Blue
    Shiny Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, shuttle pad, fork bumpers

- SIZES -
- GEOMETRY -
SIZES
