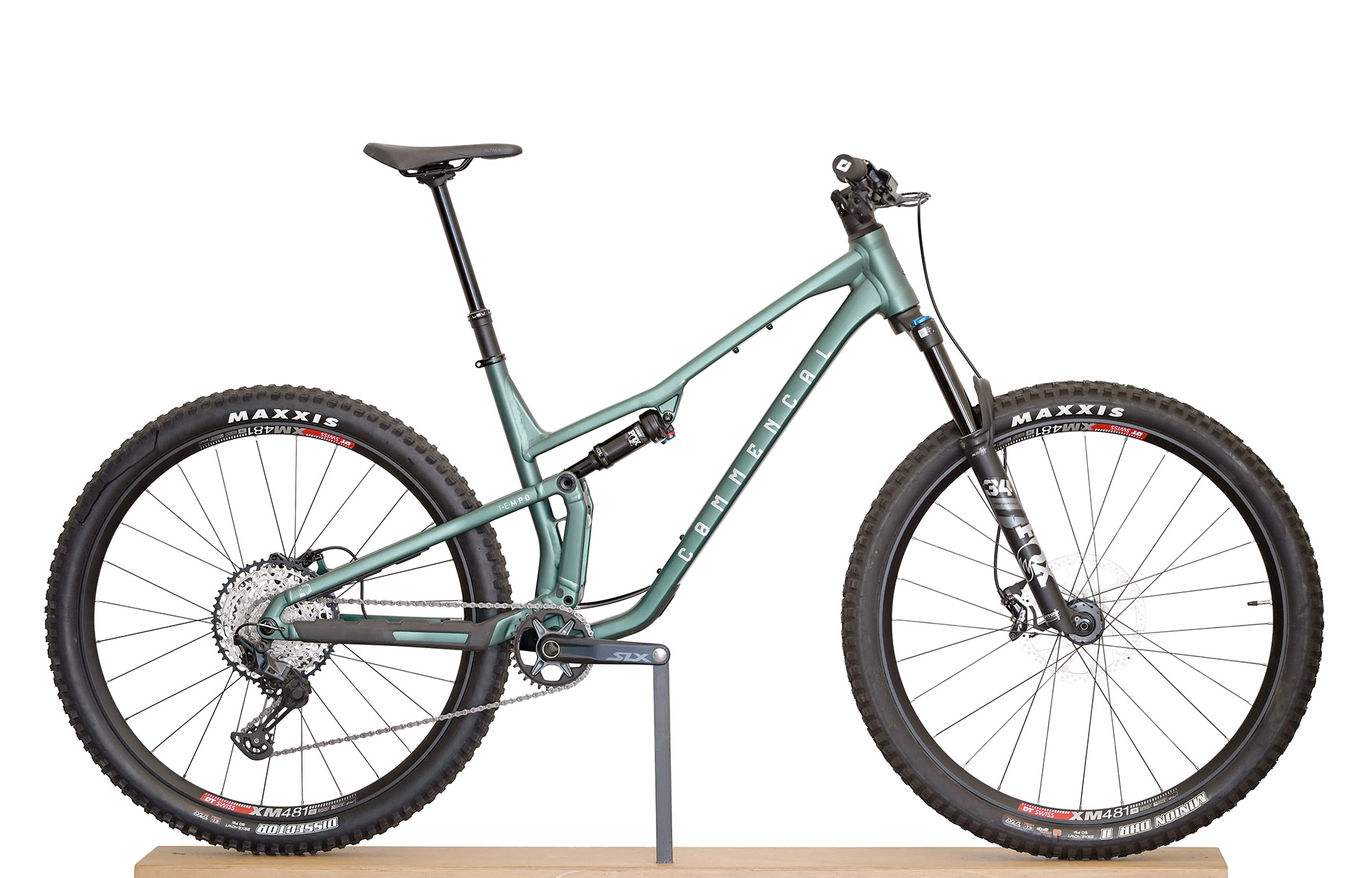

COMMENCAL T.E.M.P.O. ESSENTIAL METALLIC GREEN - XL (22120904) image number null

Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

COMMENCAL T.E.M.P.O. ESSENTIAL METALLIC GREEN - XL (22120904)

Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.

PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

Price reduced from NZ$ 5,565.21 excl. GST to NZ$ 3,626.08 excl. GST -35%
id/sku : OCNZ0054
Availability: In stock null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

workshop note

- GENERAL -
Ridden bike in very good shape ready for a new start.

- AESTHETIC -
Scratches and paint chips on frame.

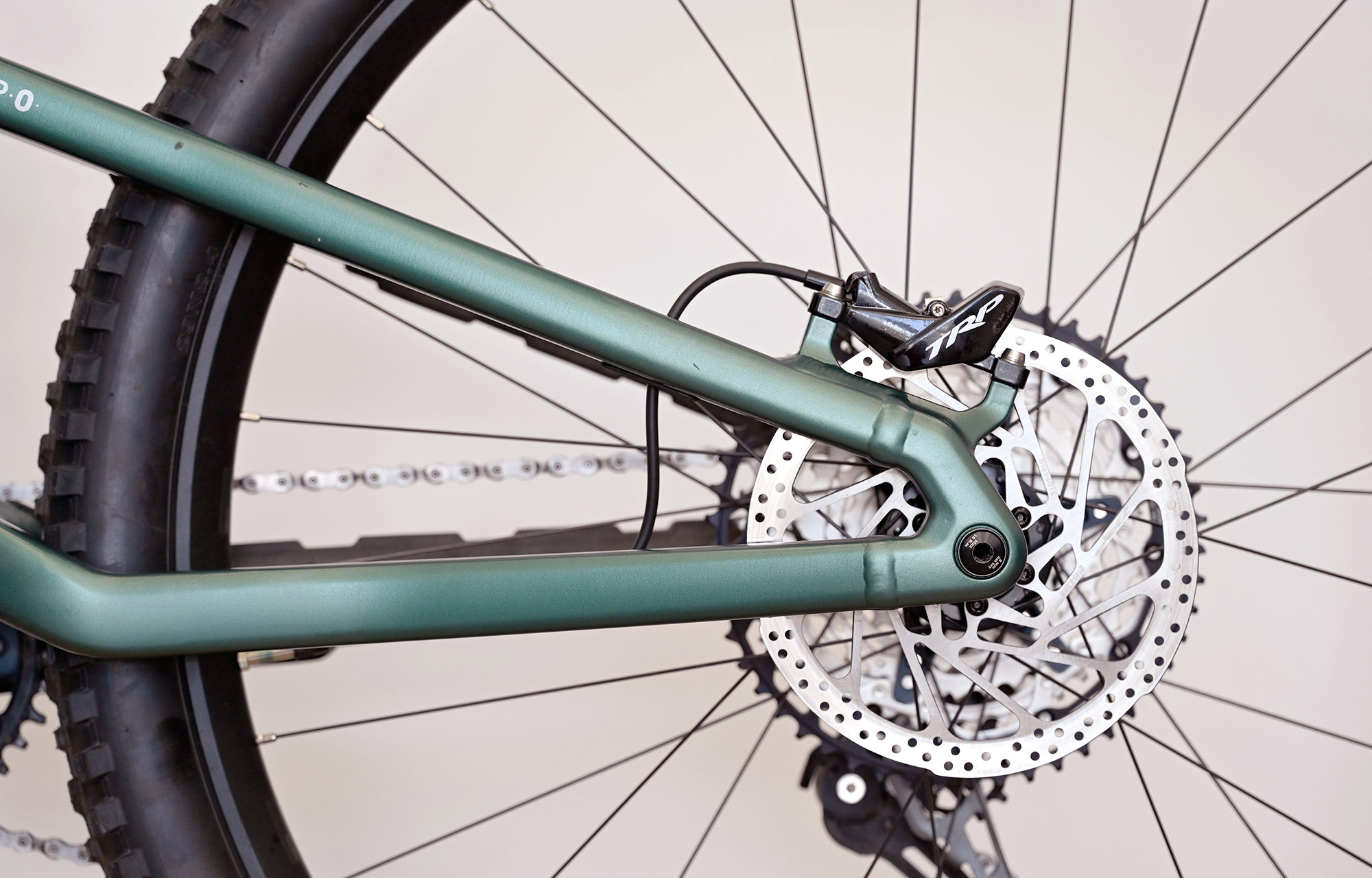

Scratches on fork stickers and rear brake caliper.

- MECHANICAL -
Serviced shock absorber and fork.
Brakes bleed, pads changed.

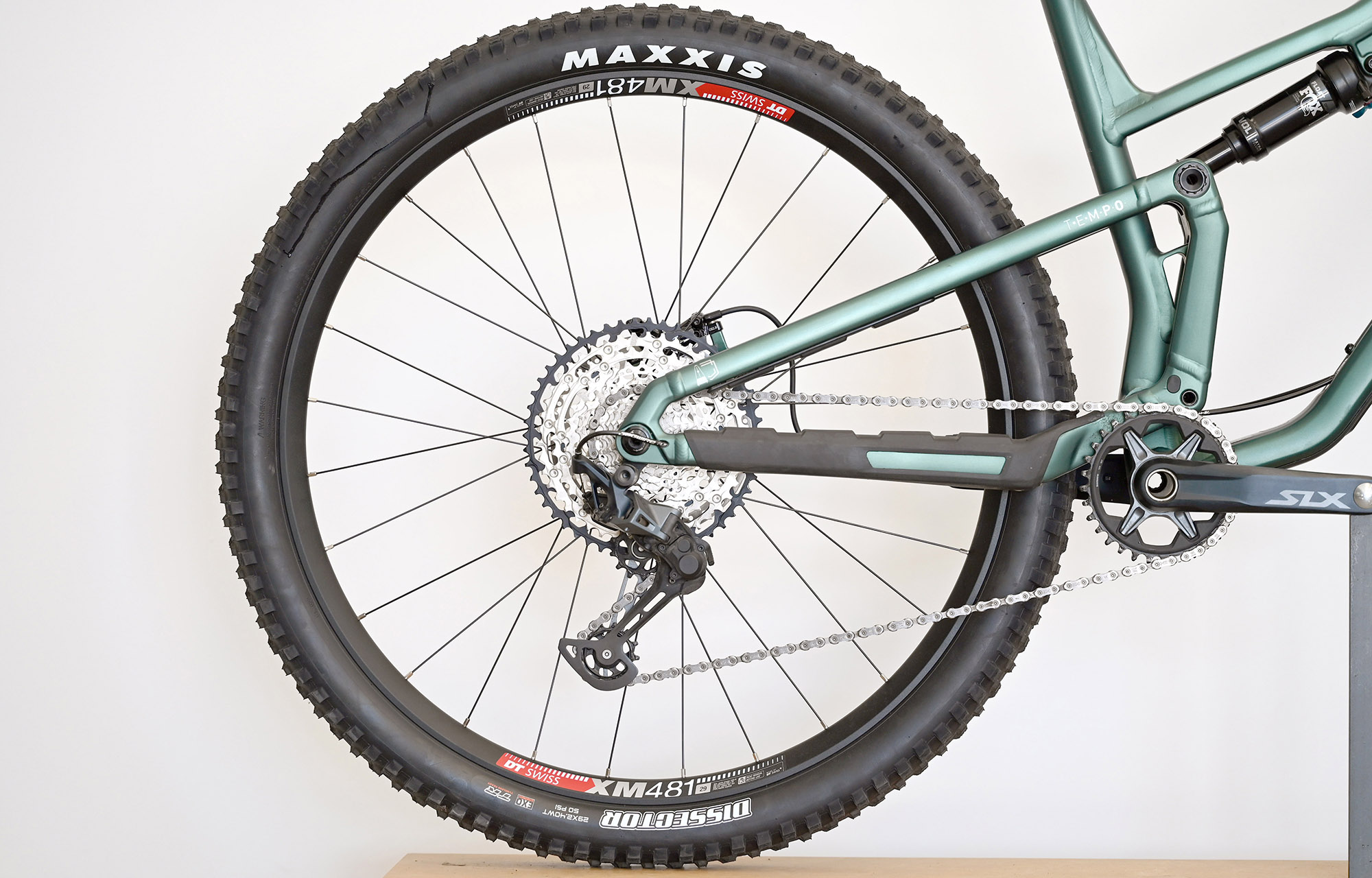

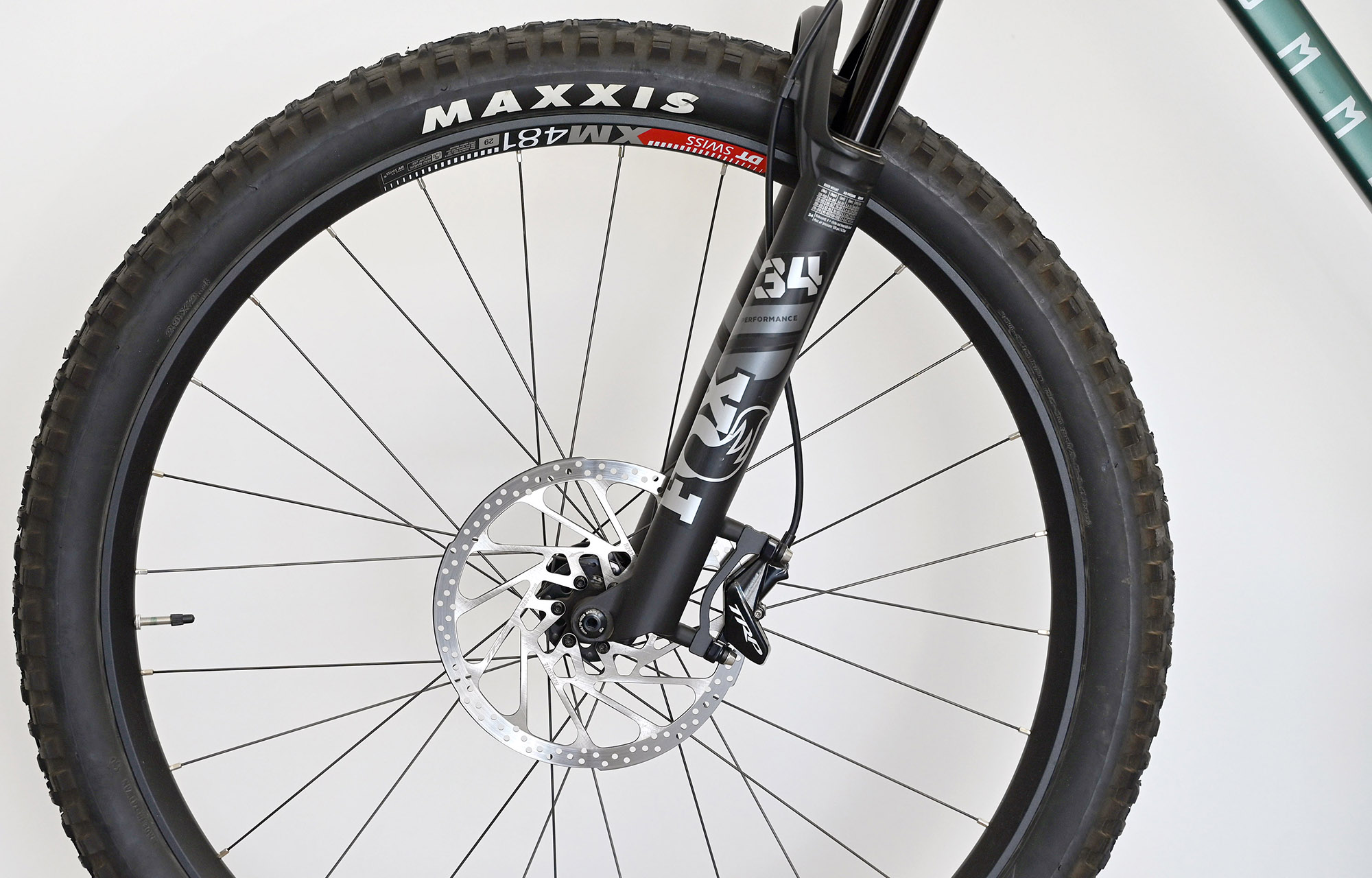

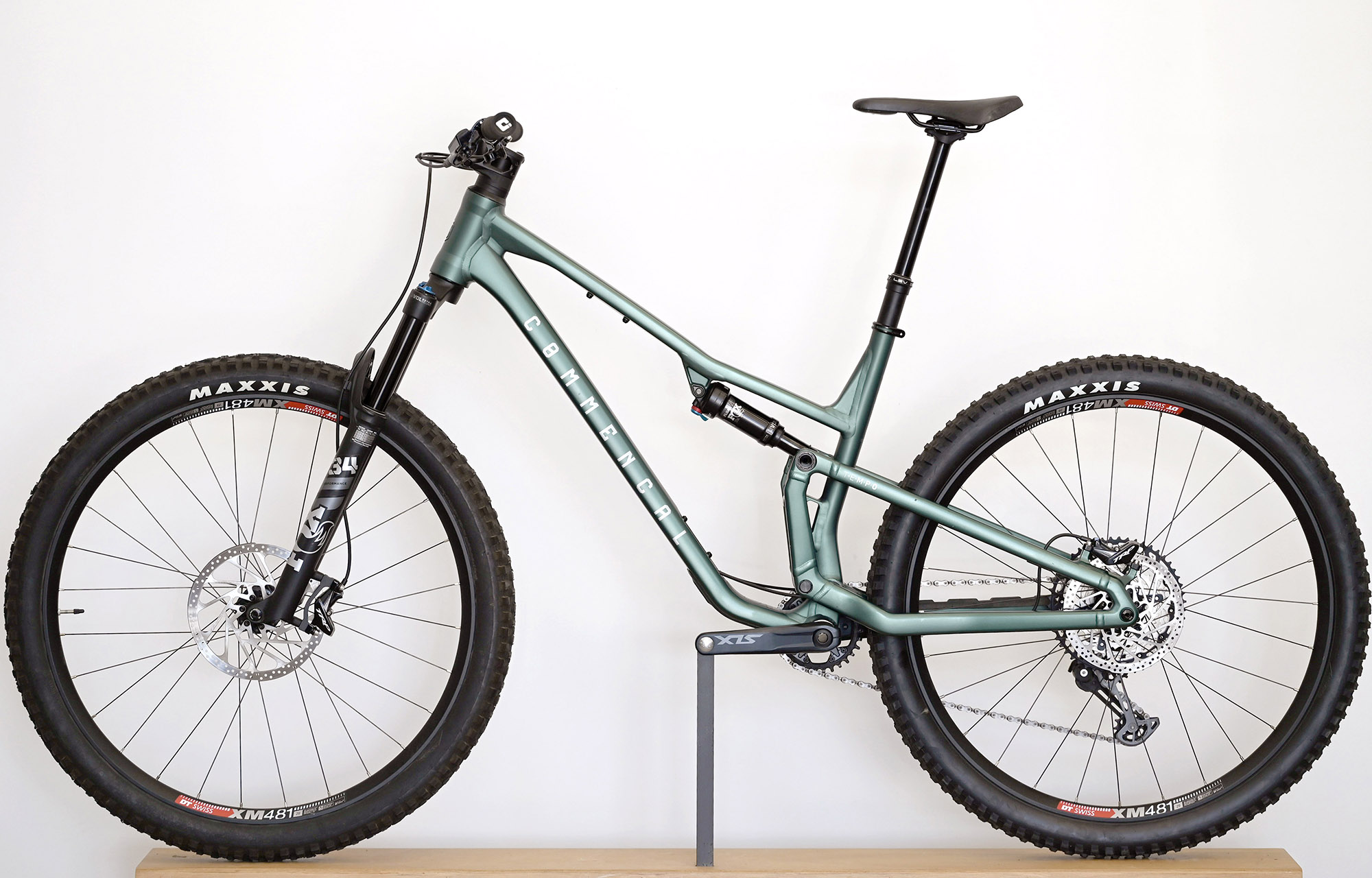

Please feel free to check the photos below for more details.

Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.

For more information, contact us.

specifications

  • Frame

    T.E.M.P.O, 125 mm travel
    29'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

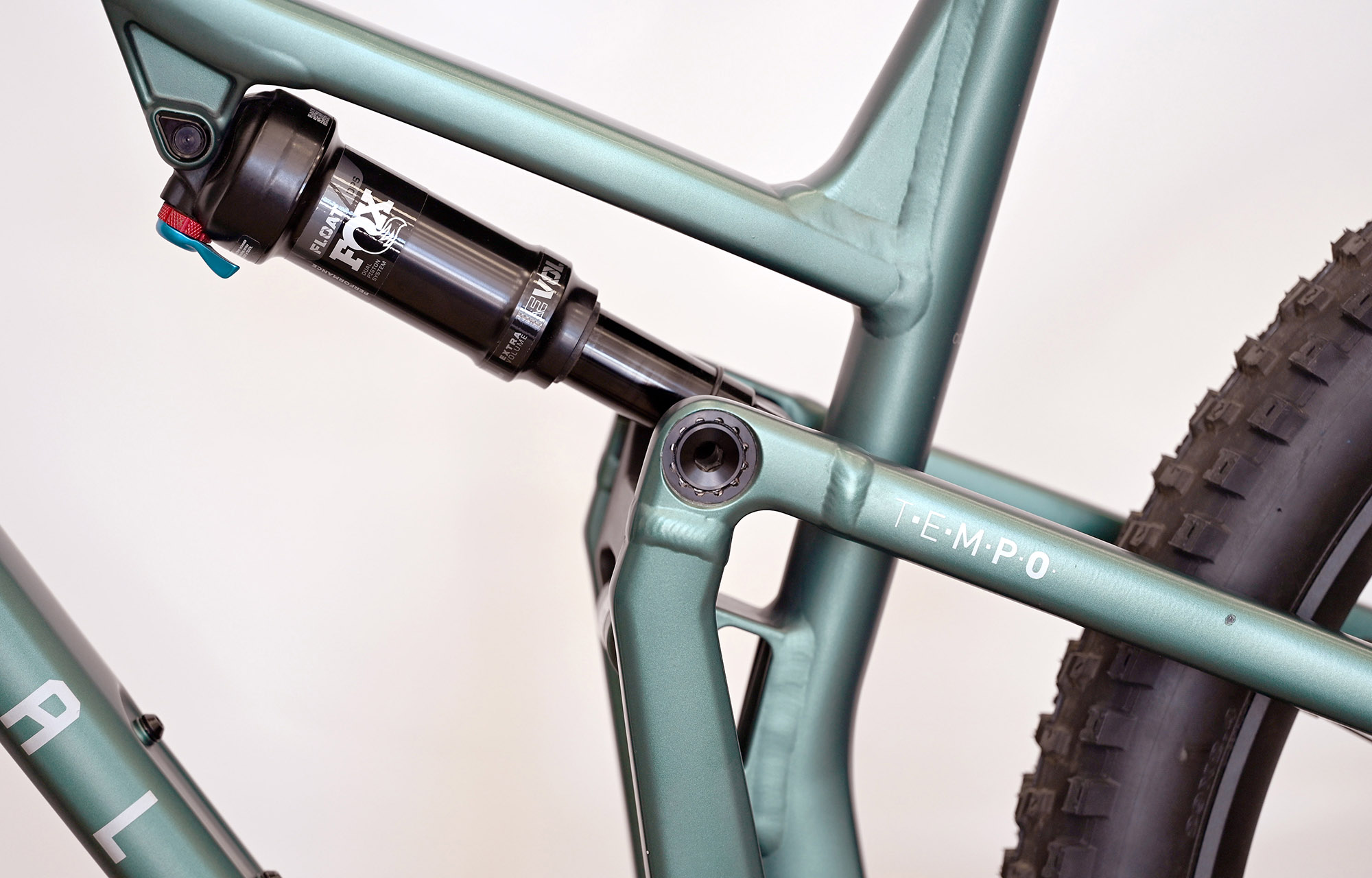

  • Shock

    FOX FLOAT DPS Performance
    210 x 50 mm, rebound, 3 positions, Evol LV, 0.4 spacer

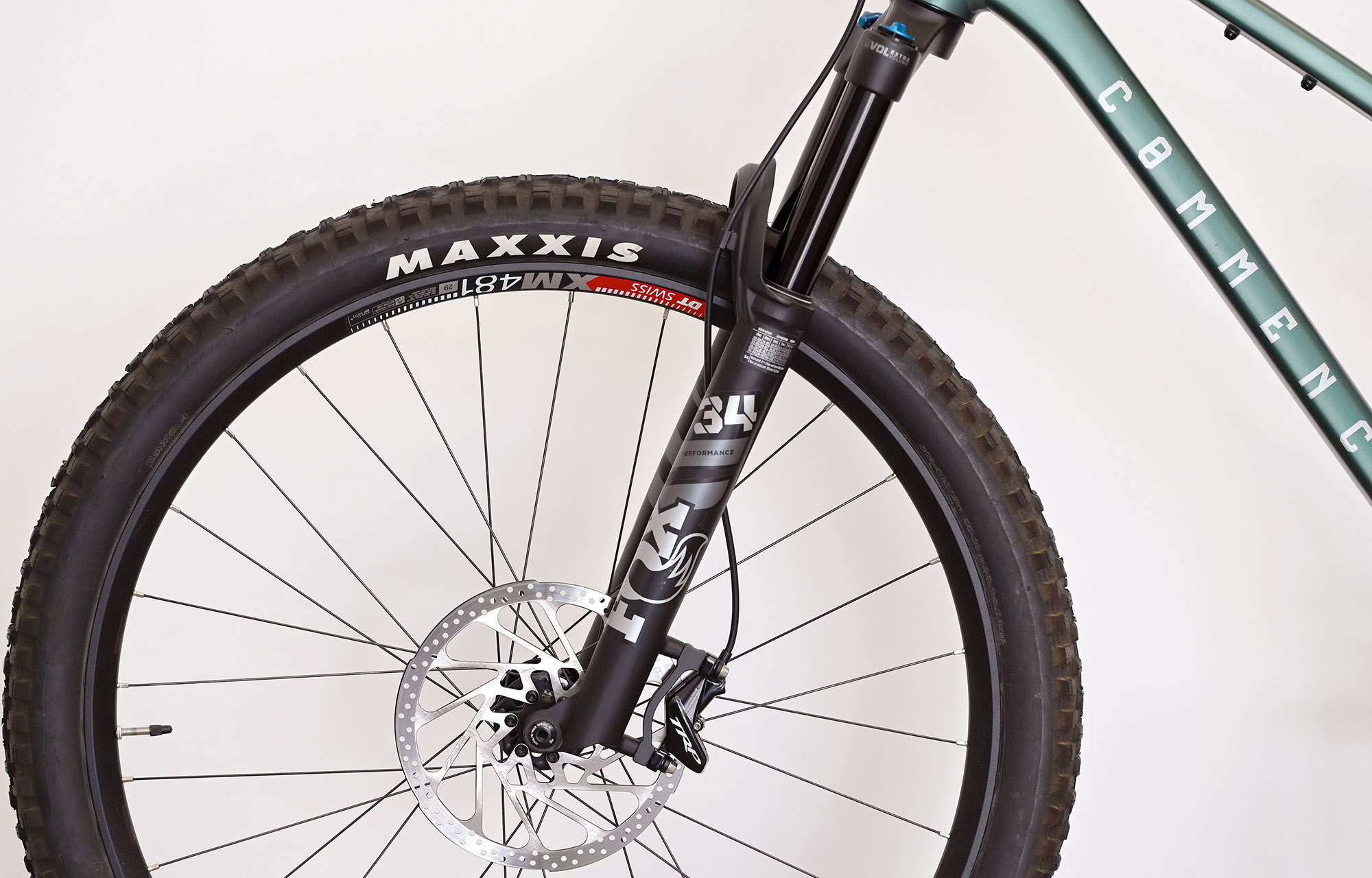

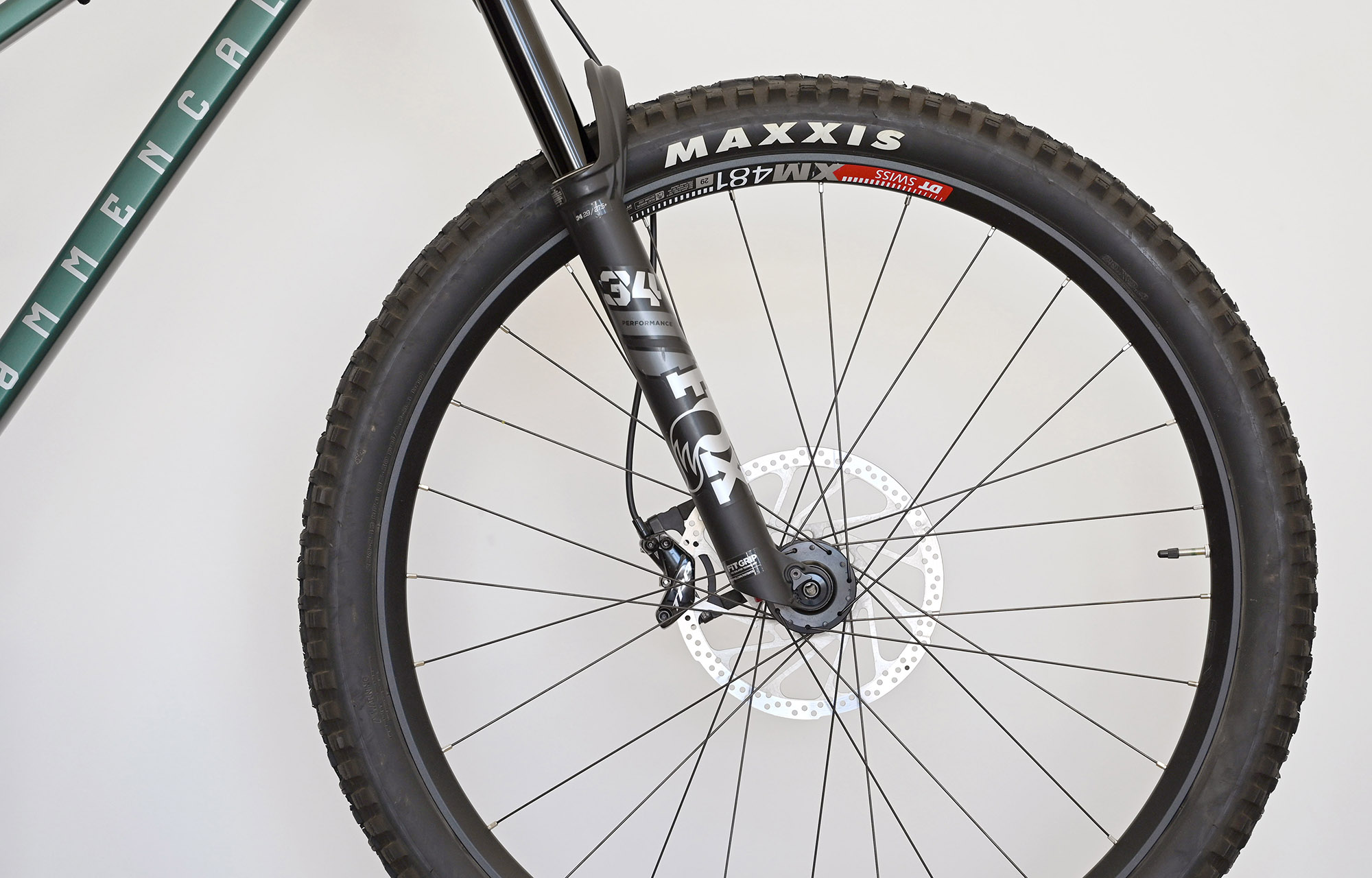

  • Fork

    FOX 34 Performance, 140 mm travel
    29", Float, Grip damper, LSR, 3 positions compression, Boost (15 x 110 mm), 51 mm offset, 1 spacer

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings, Integrated cable routing

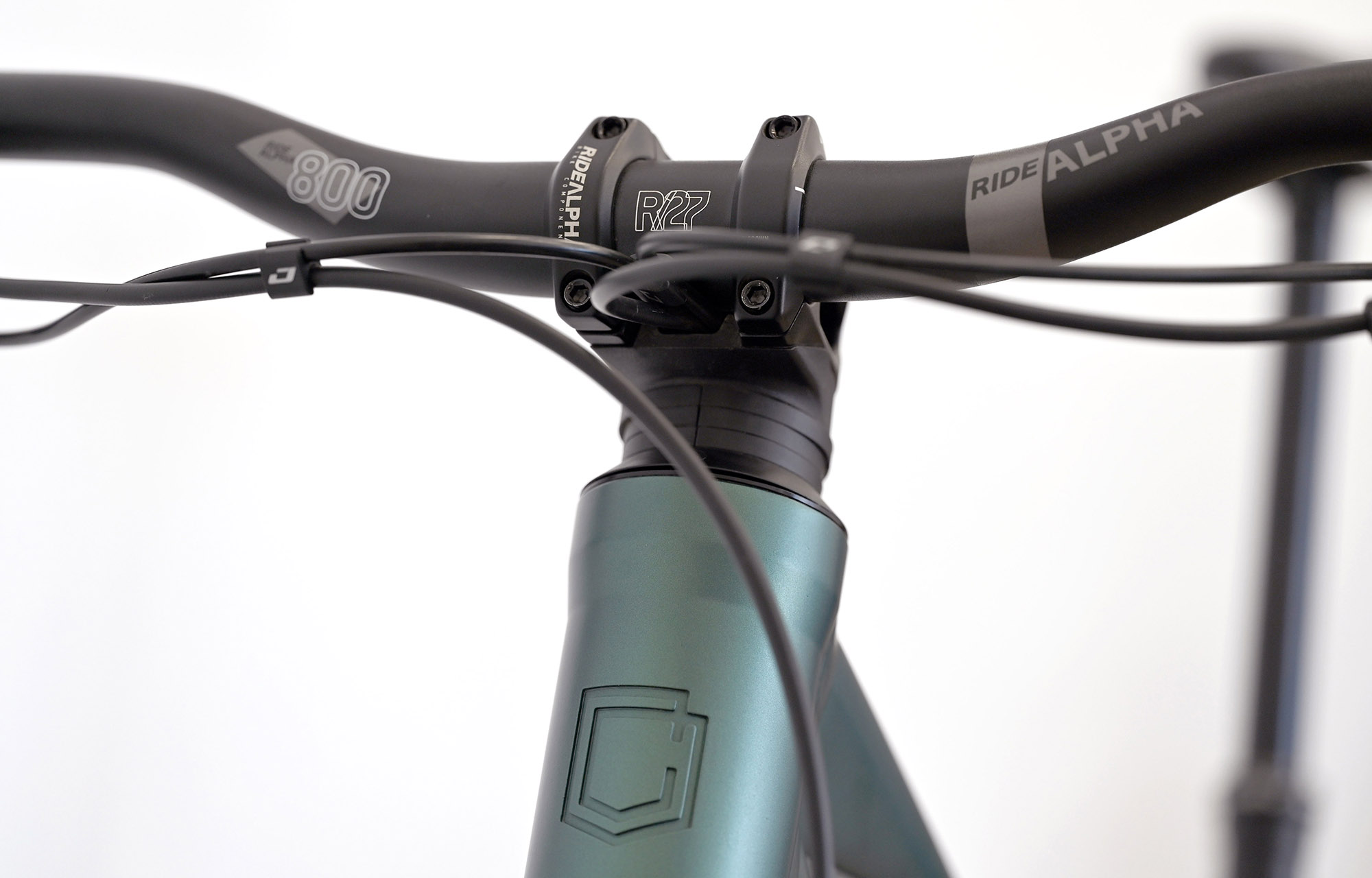

  • Stem

    RIDE ALPHA 40
    40 mm extension, 31,8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    ODI Elite Motion
    Single clamp, black

  • Brakes

    TRP Trail Evo, 4 pistons, I-Spec EV, resin pads
    Rotors: TRP R1 203 / 180 mm, 6-bolt, 2.3 mm thickness

  • Shifters

    SHIMANO SLX
    12s

  • REAR DERAILLEUR

    SHIMANO SLX
    12s

  • Bottom bracket

    SHIMANO SMBB71
    Pressfit

  • Crankset

    SHIMANO SLX, 170 mm crank arms, Boost
    Chainring: SHIMANO SLX, 32t, Narrow-Wide

  • Chain

    SHIMANO SLX
    12s

  • Cassette

    SHIMANO SLX
    12s, 10-51t

  • Rims

    DT SWISS XM 481
    29'', 28h, 30 mm inner width

  • Hubs

    Rear: FORMULA MSL-148A - Front: FORMULA DC-711
    Rear: 28h, sealed bearings, 12 x 148 mm, SHIMANO Microspline freehub body - Front: 28h, sealed bearings, 15 x 110 mm

  • Spokes/nipples

    SAPIM D-Light
    J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS Dissector - Front: MAXXIS DHR II
    Rear: 29" x 2.4" WT, dual compound, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready

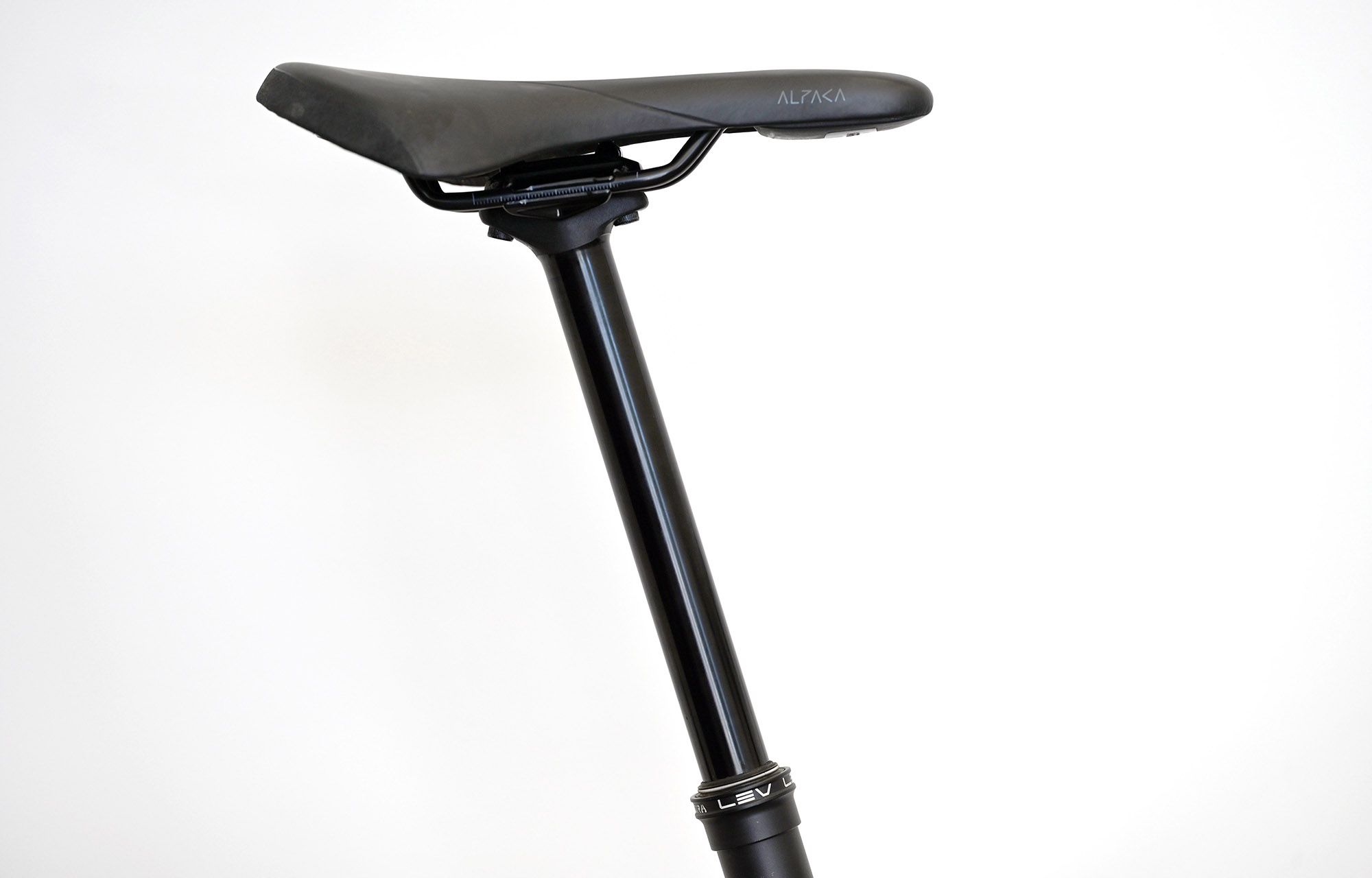

  • Seat post

    KINDHSOCK Lev Integra
    31.6 mm, 150 mm on S, 175 mm on M, 200 mm on L/XL

  • Saddle

    FIZIK Terra Alpaca X5
    145 mm width, S-alloy rails

  • Weight

    14,4 kg / 31,7 lbs
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Metallic Green
    Matte Finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector
    *Please note that bike specs are subject to change without prior notice.

Bike specifications are subject to change without notice.

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.

Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.

Technical informations

  • Bicycle type

    Trail

  • Frame material

    AL 6069 T4, T6

  • Frame weight

    3,44 kg / 7,58 lb

  • Rear travel

    125mm

  • Shock length/stroke

    210x50mm

  • Recommended SAG

    28-30% / 14-15mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x10mm / 30x10mm

  • Recommended/max. fork height

    551mm / 561mm

  • Headset type

    ZS56 / ZS56

  • ICR compatible

    Yes

  • Wheels size

    29’’ - 29’’

  • Max. rear tyre dimension - ETRTO

    64mm - Ø622mm

  • rear brake mounting type

    Postmount 180mm

  • Rear brake rotor max. size

    200mm

  • Seatpost/seat clamp diameter

    31,6mm / 34,9mm

  • Seatpost insertion max.

    S : 225mm / M : 265mm / L : 285mm / XL : 305mm

  • Bottom bracket type

    Press Fit BB 92mm

  • Chain guide

    ISCG 05 lower - Custom upper guide

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.0mm

  • UDH hanger

    Yes

  • shock anchor adjustment

    No

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
76,6°
76,6°
76,6°
76,6°
3 - HEAD TUBE ANGLE
65,5°
65,5°
65,5°
65,5°
4 - HEAD TUBE LENGTH
115
120
125
130
5 - WHEELBASE
1190
1211,5
1238,5
1261
6 - TOP TUBE LENGTH
579
600
621,5
642,9
7 - CHAIN STAY LENGTH
435
435
440
440
8 - BOTTOM BRACKET HEIGHT
-35
-35
-35
-35
9 - FORK LENGTH
551
551
551
551
10 - FORK OFFSET
51
51
51
51
11 - REACH
430
450
470
490
12 - STACK
624
628,5
633
637,5

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
