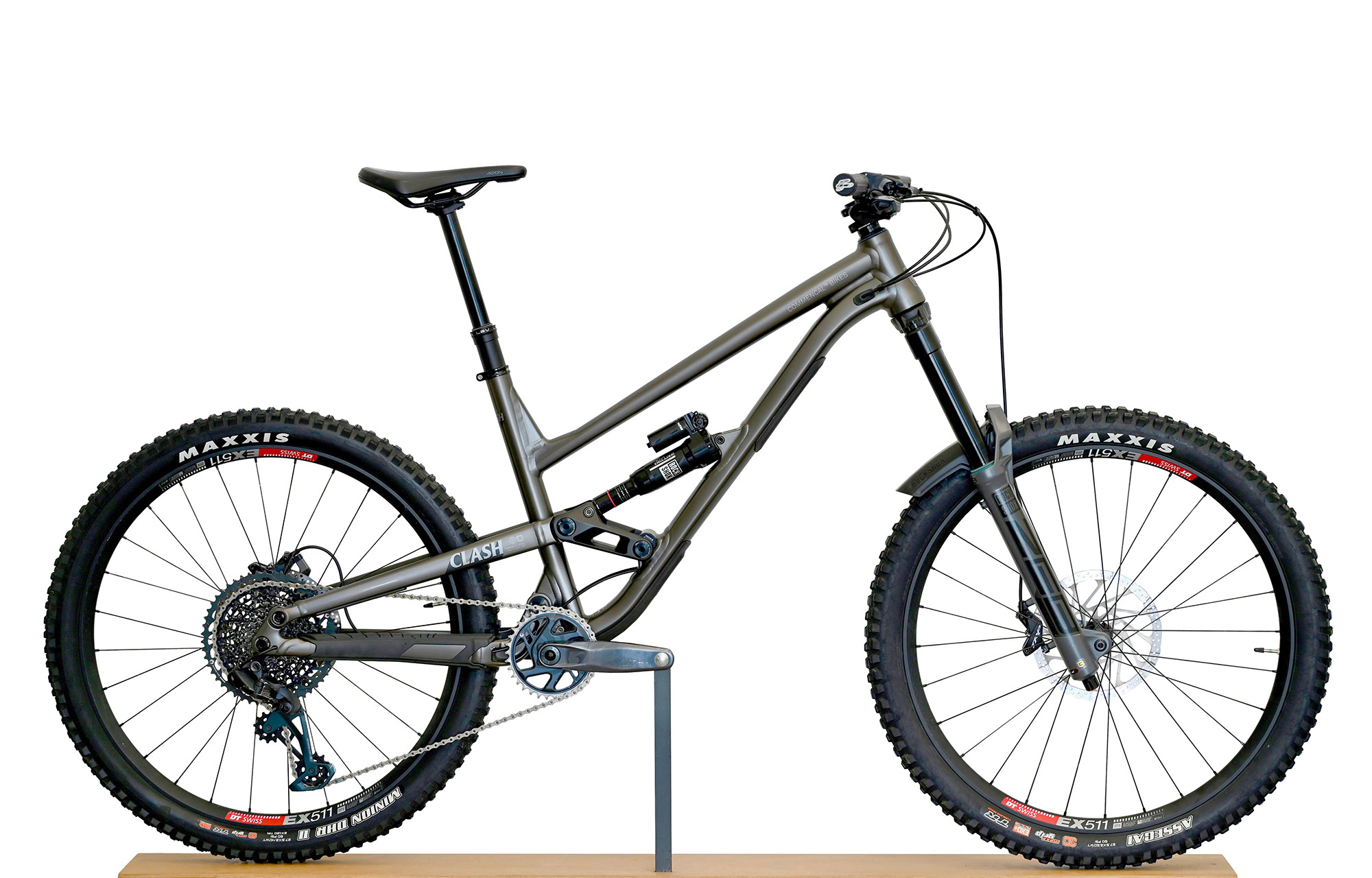

COMMENCAL CLASH RACE DARK SLATE - L (22134603) image number null

Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

COMMENCAL CLASH RACE DARK SLATE - L (22134603)

Our refurbished bikes come from a variety of fleets including: Demo models, R&D test bikes, rental outlets, press/team/bike patrol bikes, showroom displays, and new bikes (transport damage). Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.

PLUS, OUR REFURBISHED BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!

LEARN MORE ABOUT THIS BIKE
Price reduced from NZ$ 6,521.73 excl. GST to NZ$ 4,730.43 excl. GST -27%
id/sku : OCNZ0059
  SIZE GUIDE
Availability: In stock null
Shipping Estimation
Please select an option
Please enter a valid Postal Code
Please select a country
OK
No delivery options are available for this address or item. Please contact us at store.nz@commencal.com

The estimated shipping cost is calculated based on all the items in your cart.

BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

workshop note

- GENERAL -
Ridden bike in very good shape ready for a new start.

- AESTHETIC -
Scratches and paint chips on frame.
Scratches on rims, derailleur, fork and crank arms.
Full Ride wrapped.

- MECHANICAL -
Serviced shock absorber and fork.
Brakes bleed, pads changed.

Please feel free to check the photos below for more details.

Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.

For more information, contact us.

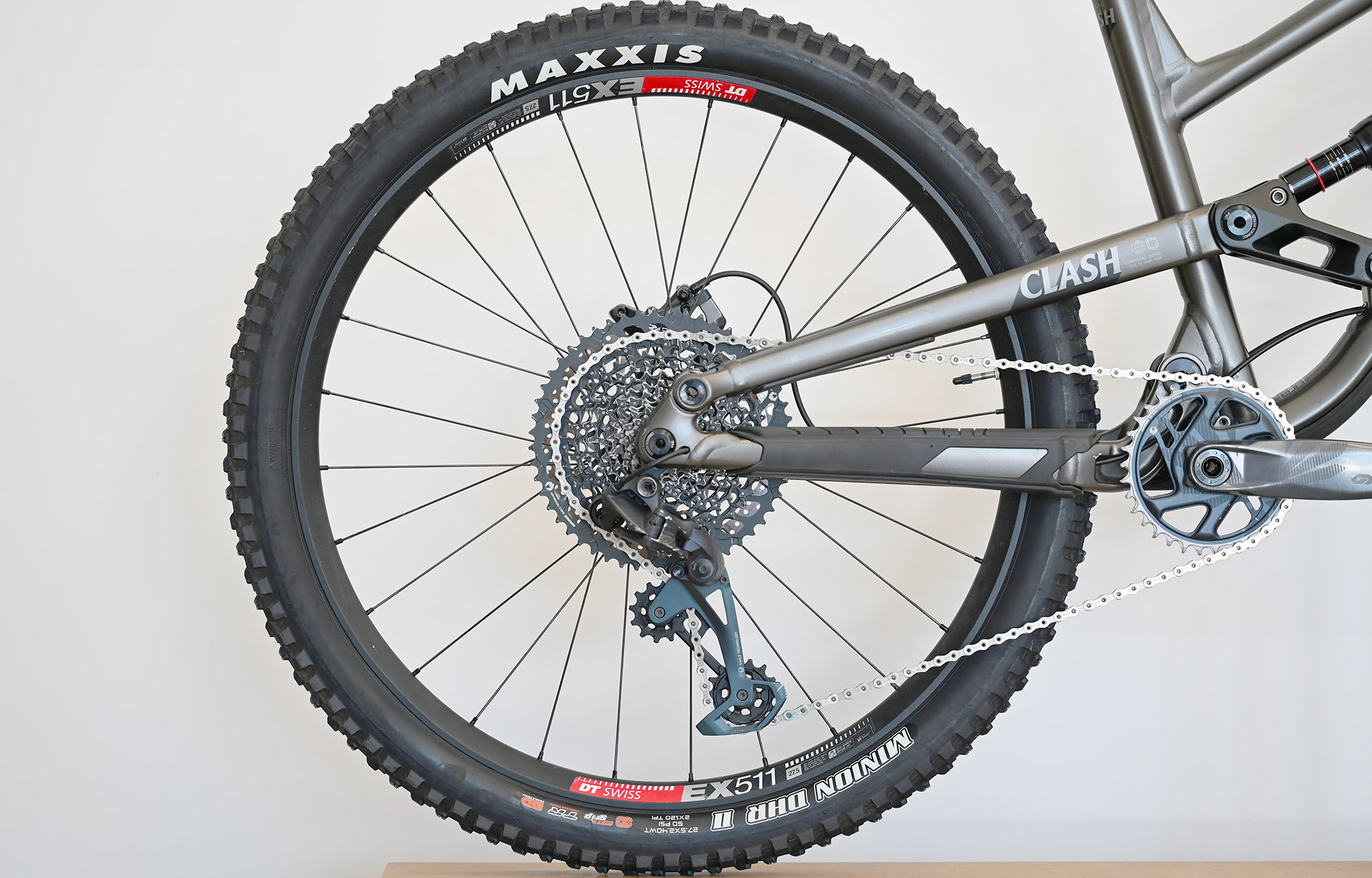

COMMENCAL CLASH RACE DARK SLATE - L (22134603) image cover number large 0

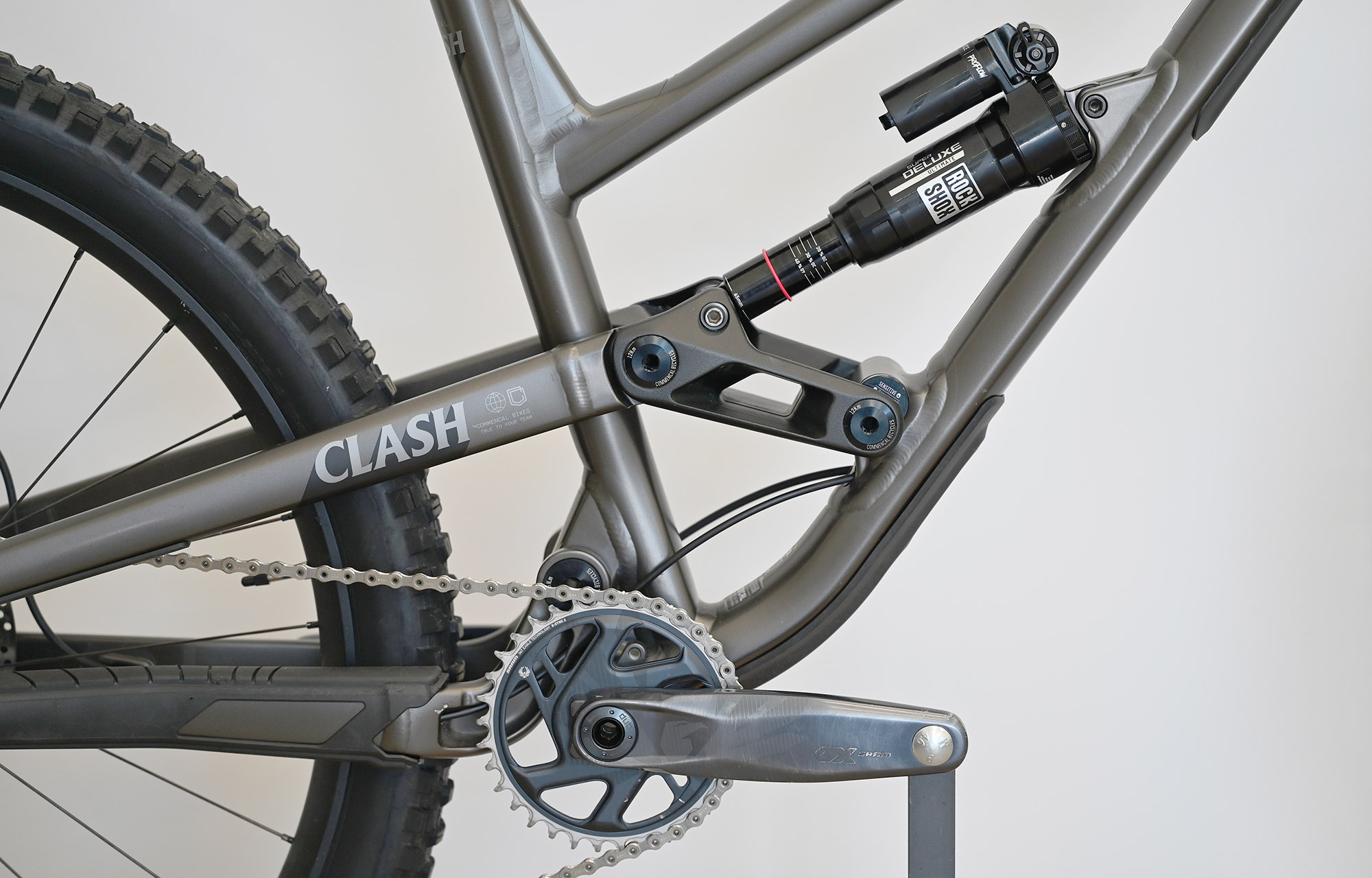

COMMENCAL CLASH RACE DARK SLATE - L (22134603) image cover number large 1

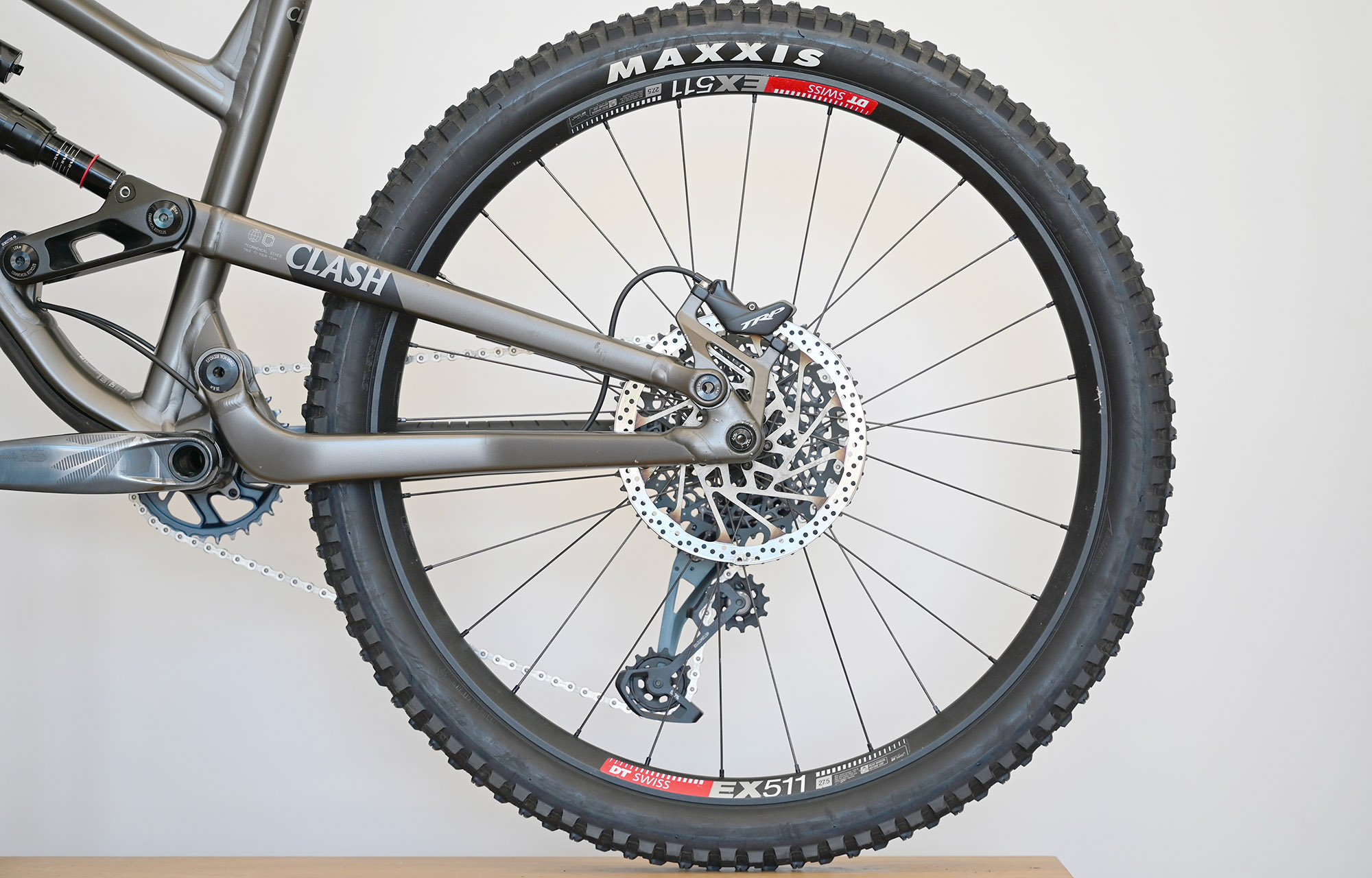

COMMENCAL CLASH RACE DARK SLATE - L (22134603) image cover number large 2

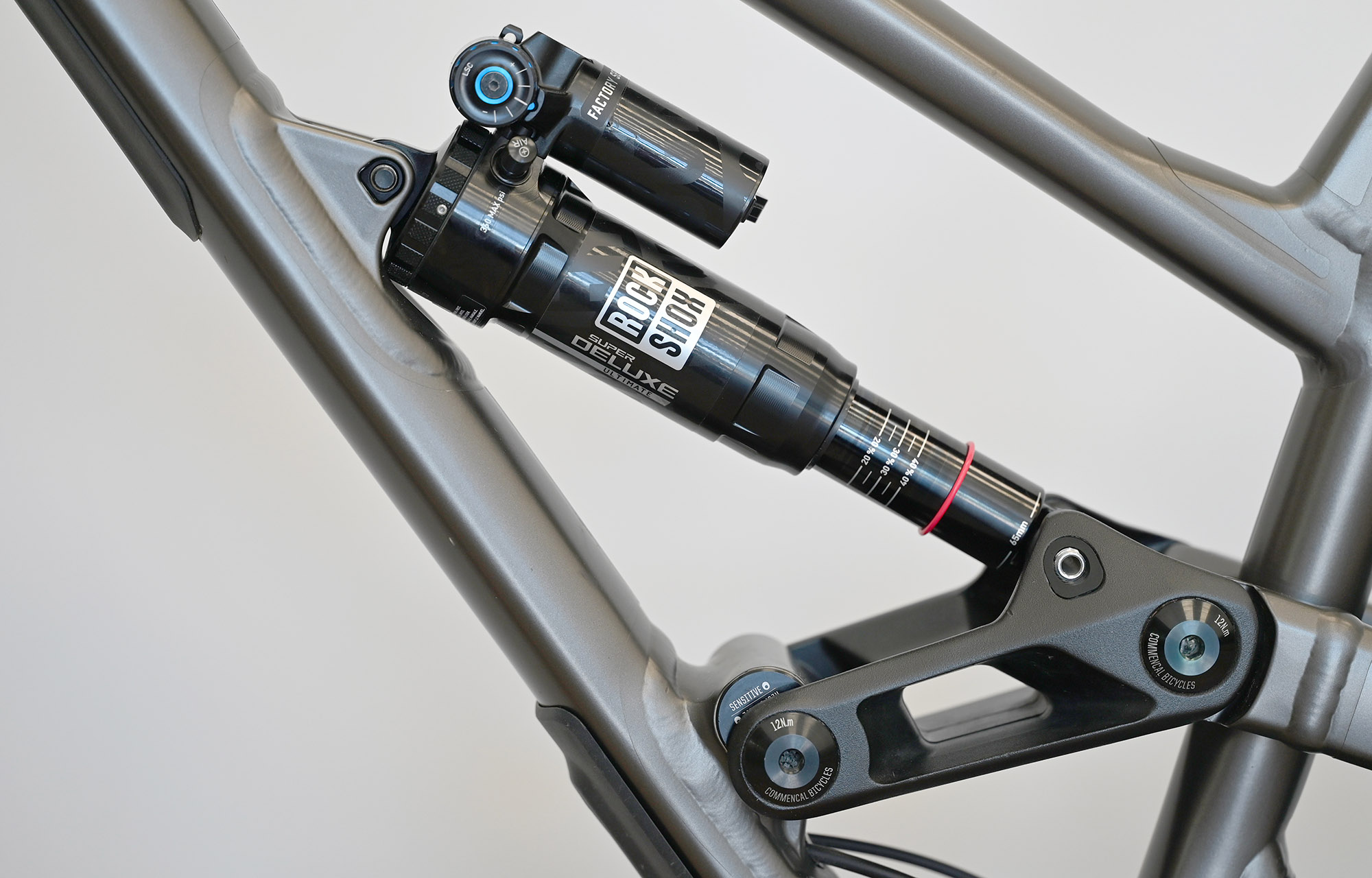

COMMENCAL CLASH RACE DARK SLATE - L (22134603) image cover number large 3

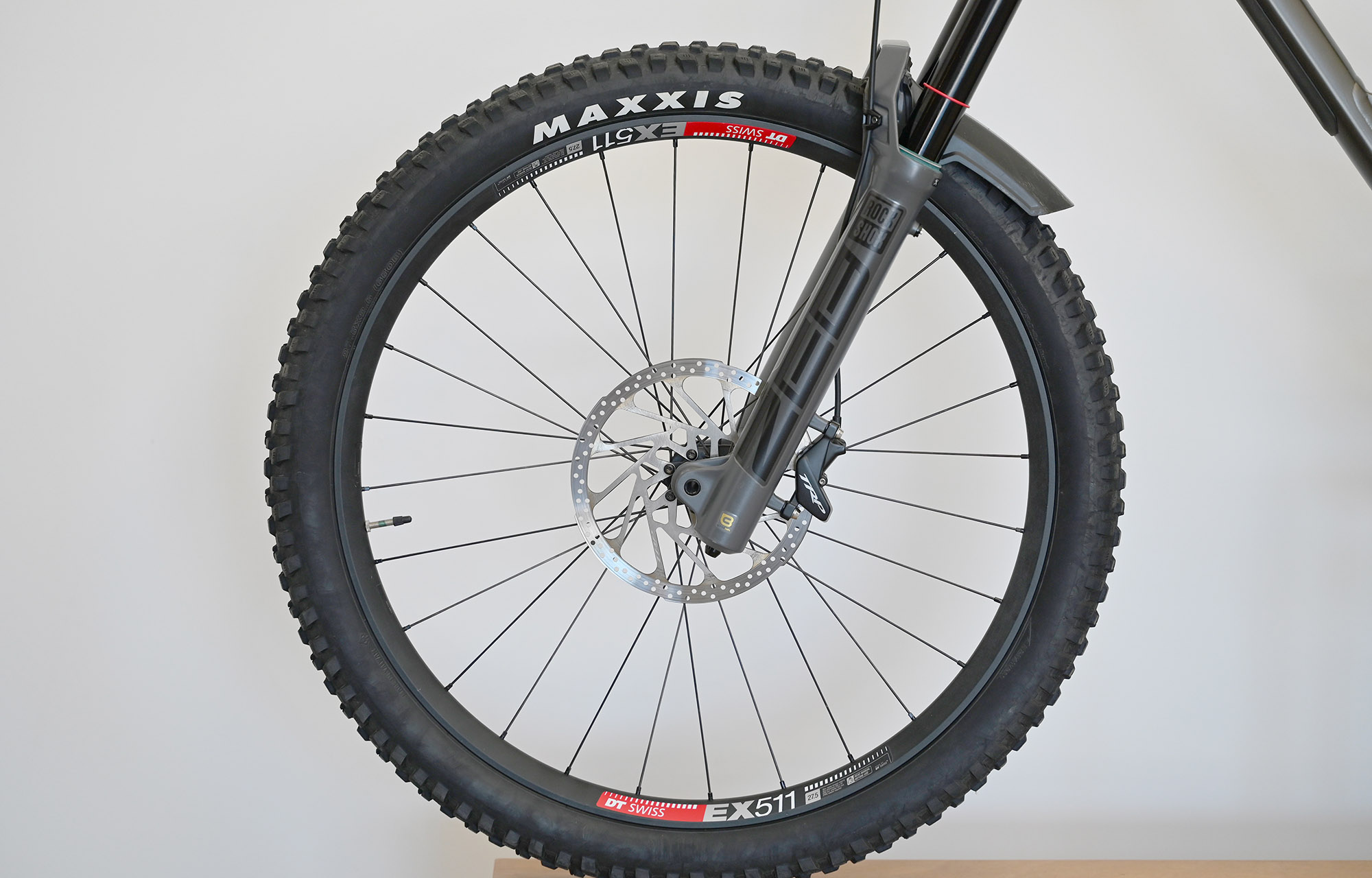

COMMENCAL CLASH RACE DARK SLATE - L (22134603) image cover number large 4

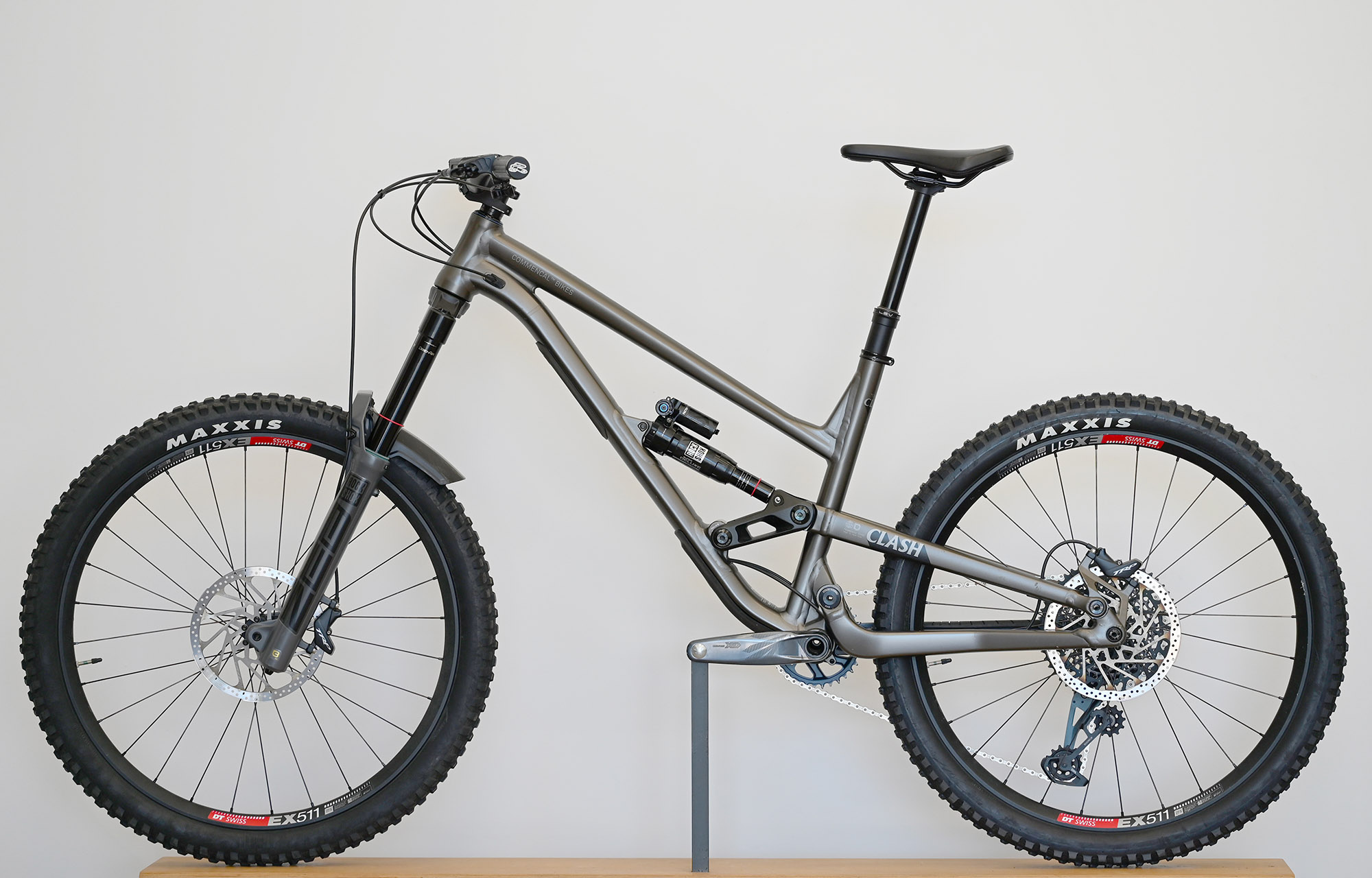

COMMENCAL CLASH RACE DARK SLATE - L (22134603) image cover number large 5

specifications

  • Frame

    CLASH, 170 mm travel
    27.5'', Alloy 6069, triple butted tubes, T4, T6. Enduro bearings

  • Shock

    ROCKSHOX Super Deluxe Ultimate
    230 x 65 mm, RC2T damper, DebonAir Linear, HSC, LSC, rebound, 2-position (open / firm), 1 Token neg. 4 Tokens pos.

  • Fork

    ROCKSHOX Zeb Ultimate, 180 mm travel
    27.5", Charger 3 RC2 W/ButterCup damper, Debonair +, LSC, HSC, rebound, Boost (15 x 110 mm), 38 mm offset, 0 Token

  • Headset

    ACROS ZS44/ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA Freeride 40
    40 mm extension, 31.8 mm

  • Handlebar

    RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
    31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

  • Grips

    RENTHAL

  • Brakes

    TRP DH-R Evo, 4 pistons
    Rotors: TRP R1 203 mm, 6-bolt, 2.3 mm width

  • Shifters

    SRAM GX Eagle
    12s

  • REAR DERAILLEUR

    SRAM GX Eagle
    12s

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    SRAM GX Eagle, 170 mm crank arms, DUB, Boost
    Chainring: SRAM GX Eagle, 34t, Narrow-Wide

  • Chain

    SRAM GX Eagle
    12s

  • Cassette

    SRAM XG-1275
    12s, 10-52t

  • Rims

    DT SWISS EX511
    27.5'', 28h, 30 mm inner width

  • Hubs

    Rear: DT SWISS 350 - Front: DT SWISS 350
    Rear: 28h, sealed bearings, 12 x 148 mm, XD Driver, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

  • Spokes/nipples

    DT SWISS Competition
    J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai

  • Seat post

    KS Lev Integra
    34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote

  • Saddle

    FIZIK Aidon

  • Weight

    15,5 kg / 34.17 lb
    Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Dark Slate
    Matte finish

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, shuttle pad, Zeb specific fender

Bike specifications are subject to change without notice.

Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.

learn more

Technical informations

  • Bicycle type

    Enduro / Freeride

  • Frame material

    AL 6069 T4, T6

  • Frame weight

    4,1 kg / 9.03 lb

  • Rear travel

    155mm / 170mm

  • Shock length/stroke

    230x65mm

  • Recommended SAG

    26-30% / 17-20mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x8mm / 30x10mm

  • Recommended/max. fork height

    572mm / 586mm

  • Headset type

    ZS44 / ZS56

  • ICR compatible

    No

  • Wheels size

    27.5’’ - 27.5’’

  • Max. rear tyre dimension - ETRTO

    65mm - Ø584mm

  • rear brake mounting type

    Postmount 200mm

  • Rear brake rotor max. size

    223mm

  • Seatpost/seat clamp diameter

    34,9mm / 38,5mm

  • Seatpost insertion max.

    S : 250mm / M-L-XL : 275mm

  • Bottom bracket type

    Press Fit BB 92mm

  • Chain guide

    ISCG 05

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.75mm

  • UDH hanger

    No

  • shock anchor adjustment

    2 positions

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
418
440
465
2 - SEAT TUBE ANGLE
77,2°
77,2°
77,2°
77,1°
3 - HEAD TUBE ANGLE
64°
64°
64°
64,5°
4 - HEAD TUBE LENGTH
110
115
120
125
5 - WHEELBASE
1216
1238
1265
1292
6 - TOP TUBE LENGTH
586
607
633
666
7 - CHAIN STAY LENGTH
434
434
434
434
8 - BOTTOM BRACKET HEIGHT
-12
-12
-12
-12
9 - FORK LENGTH
572
572
572
572
10 - FORK OFFSET
37
37
37
37
11 - REACH
445
465
490
520
12 - STACK
619
624
628
635

All lengths in millimeters.

Size guide

What Size to Choose?

According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.

Between Two Sizes?

When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.

Morphology

Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.

Suspension settings

Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.

This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
