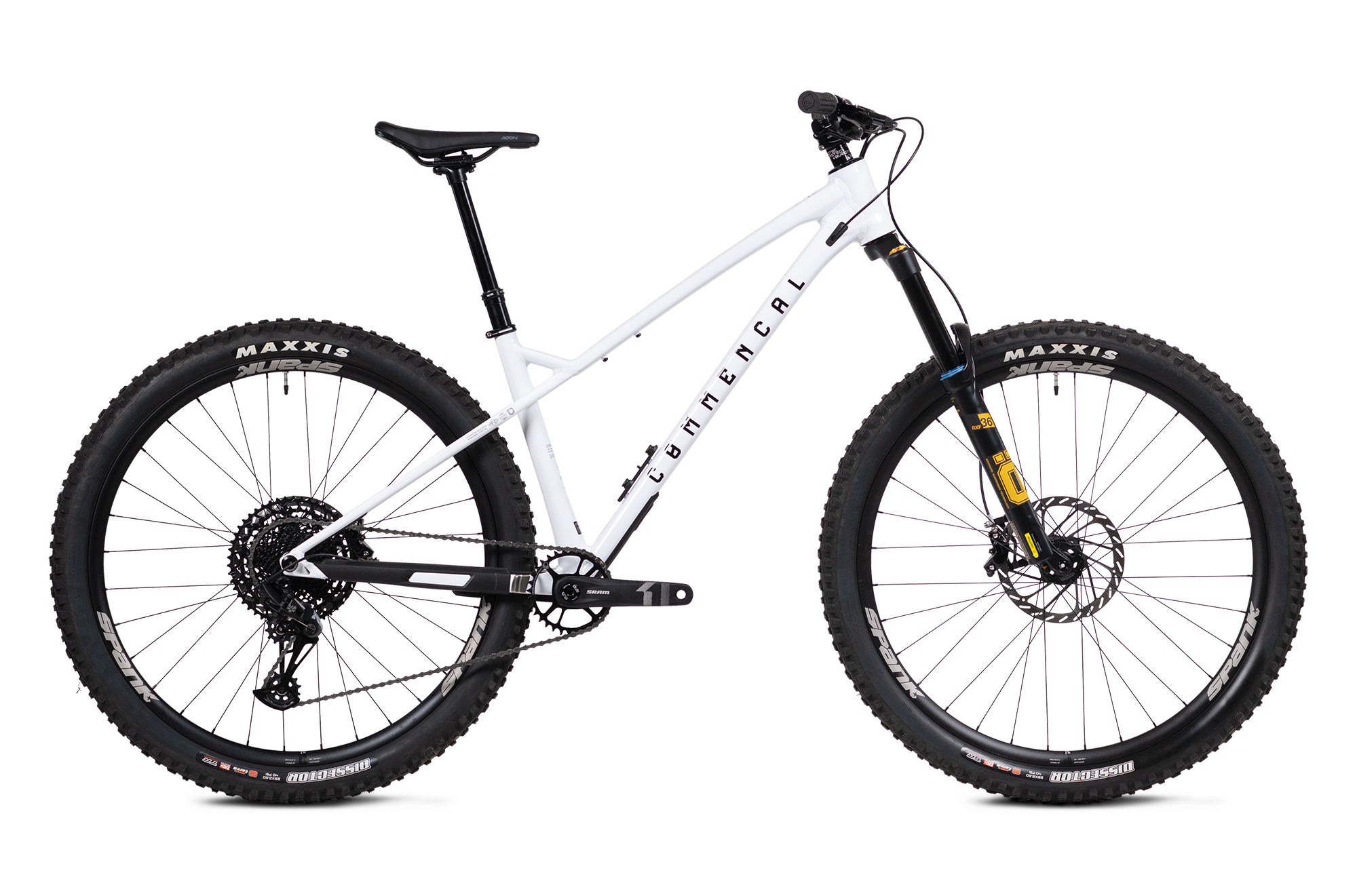

COMMENCAL META HT V3 OHLINS PURE WHITE
Riding a hardtail is a true state of mind. It's about putting the joy of riding at the center of the game, without any gimmicks. The META HT V3 has been freshened up with a completely redesigned frame to improve comfort and for carefree riding on all types of trails.
TRAIL
ALL MOUNTAIN
TRAIL
ALL MOUNTAIN
150mm
150mm
29" / 29"
29 / 27.5"
29" / 29"
29 / 27.5"
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
specifications
specifications
Frame
META HT V3: 29''/29'' on M / L / XL
Alloy 6061, triple butted tubes, T4, T6.Fork
OHLINS RXF36 m.2 Air, 150 mm travel
29", TTX18 damper, HSC, LSC, LSR, rebound, Boost (15 x 110 mm), 44 mm offsetHeadset
CANE CREEK 40-Series
ZS56 / ZS56Stem
BURGTEC Enduro MK3
42.5 mm extension, 31.8 mmHandlebar
BURGTEC Widealloy Enduro
30 mm rise, 780 mm widthGrips
BURGTEC The Bartender Pro
Brakes
SRAM Code RSC, 4 pistons
Rotors: SRAM RS2 200 mm, 6-boltsShifters
SRAM NX Eagle
12sREAR DERAILLEUR
SRAM NX Eagle
12sBottom bracket
SRAM DUB BSA
Width 68 mm, wideCrankset
SRAM X1 1000 Eagle, 170 mm crank arms
Chainring: SRAM X1 1000 Eagle, 32t, steelChain
SRAM NX Eagle
12sCassette
SRAM NX Eagle
12s, 11-50t, Sram PGRims
SPANK Spike Race 33
29'', 32h, 28 mm inner widthHubs
Rear: FORMULA - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Sram PG - Front: 32h, sealed bearings, 15 x 110 mm - Front:-Spokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, blackTyres
MAXXIS Dissector
29" x 2.6", 3C MaxxTerra, New EXO+, Tubeless ReadySeat post
KS Rage-I
31.6mm, travel: 170mmSaddle
FIZIK Terra Aidon X5
145mm width, S-alloy railsWeight
- kg / - lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Pure White
Shiny finishAccessories
Chainstay protector, seatstay protector, anti-chainsuck
Bike specifications are subject to change without notice.
Technical informations
Technical informations
Bicycle type
Frame Hardtail Enduro
Frame material
Al 6061 T6
Frame weight
1,86 kg
Recommended/max. fork height
561 / 571 mm
Headset dimension
1-1/2" / 1-1/2"
Headset type
ZS56 / ZS56 (ACROS integrated duct routing)
Maximum tyre dimension (etrto)
29 2,6 MAXXIS
Wheel Size
26/27 XS, 27/29" S - 29" M, L, XL
Disc brake standard
Postmount (200 XL L M S & 180 XS)
Rear rotor max. size
200 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BSA
Chain Line
53 mm
Rear hub compatibility
148 x 12 mm / UDH
-
Bicycle type
All Mountain
-
Frame material
AL 6061 T4, T6
-
Frame weight
2,32 kg / 5,11 lb
-
Recommended/max. fork height
561mm / 571mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
Yes
-
Wheels size
29’’ - 29’’ (M-L-XL)
29’’ - 27.5’’ (S) -
Max. rear tyre dimension - ETRTO
64mm - Ø622mm (M-L-XL)
64mm - Ø584mm (S) -
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
200mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
S : 300mm / M : 300mm / L : 320mm / XL : 340mm
-
Bottom bracket type
BSA 68mm
-
Chain guide
No
-
Chain line
53
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
Maxle standard, 180mm, M12, P1.0mm
-
UDH hanger
Yes
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
A META HT FOR YOUR CHILD?
A META HT FOR YOUR CHILD?
The META HT KIDS are the children's versions of our META HT. The geometries, components, and wheel sizes are designed as a complete package to help children become experienced riders.
The META HT V3 comes with a lifetime guarantee against manufacturing defects, exclusively for the original purchaser.
commencal care
commencal care
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
Warranty
Warranty
Our products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase.
Registration
Registration
The online registration of your bike will enable us to deal efficiently with any potential problem you may encounter.
Technical documents
Technical documents
Here you will find all the technical and practical information concerning your COMMENCAL.
