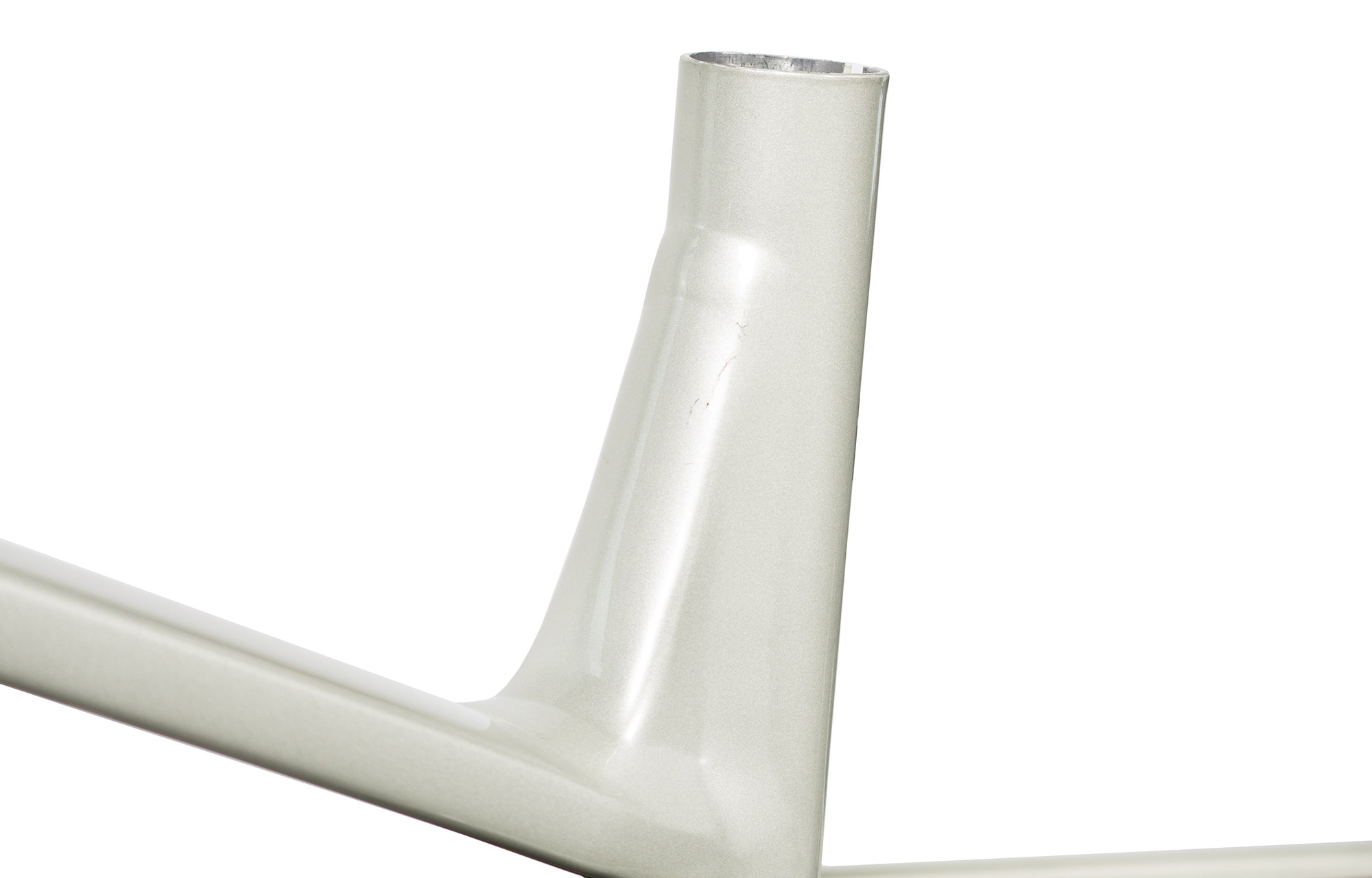

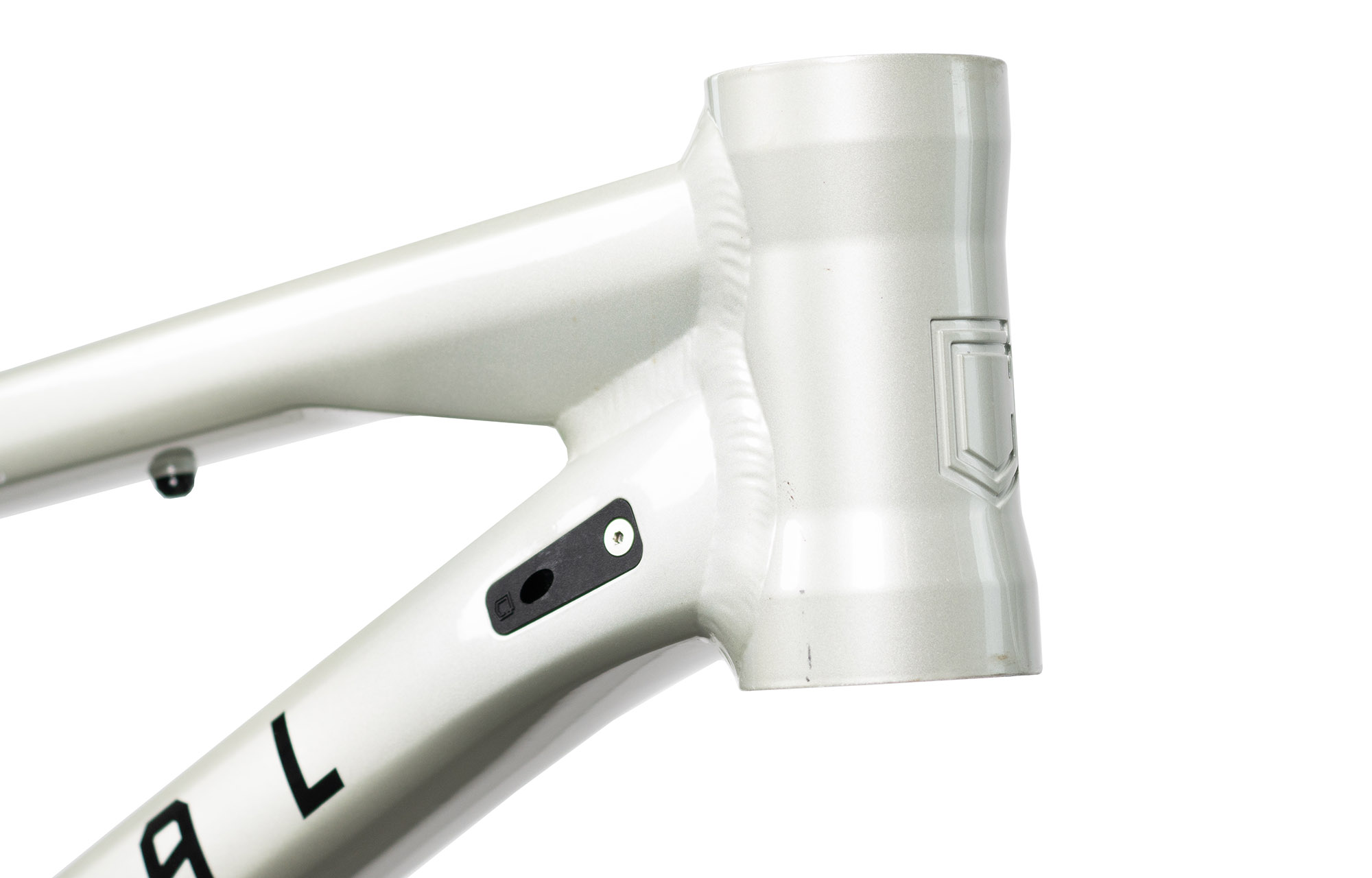

FRAME COMMENCAL META V5 CLEAR SILVER - M (23220502)
Our refurbished frames come from our demo fleets, test fleets and returns for shipping damage. We perform a thorough check of each frame and replace all wearing and damaged parts. While they may have cosmetic imperfections, every frame is fully reconditioned and ready to ride.
THESE FRAMES ARE FINAL SALE BUT COME WITH A FULL WARRANTY.
A LA CARTE
Welcome to the A La Carte configurator, our program which makes building the bike of your dreams a reality! Need help or advice? The "I need help" button allows you to forward your configuration to our team. You can also save your configuration and have it sent directly by email (to yourself) with the "Save" button.
{{ formatPrice(price.total) }} {{ formatPrice(price.main) }} {{ formatPrice(price.component) }}
-
{{ cat.name }} {{ cat.productsSelected }}
-
{{ subCat.name }} {{ subCat.productsSelected }}
-
-
{{ productsInfo[p.sku].productName }} Pre-order : {{ productsInfo[p.sku].datePreOrder }}
{{ p.sku }}
{{ formatPrice(formatPriceWithTaxRates(productsInfo[p.sku].price.sales.value,productsInfo[p.sku].price.sales.taxRate) ) }}{{ productsInfo[s].productName }} Pre-order : {{ productsInfo[s].datePreOrder }}
{{ formatPrice(p.price) }}
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
HOME DELIVERY
Once your configuration is finalized, you will be able to estimate the delivery costs from the first step of the ordering process.Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists. Contact the shop directly for service options and rates.Learn more
Showroom Delivery
Choose pickup at one of our COMMENCAL USA showrooms (Golden, CO or Menifee, CA) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.
FRAME COMMENCAL META V5 CLEAR SILVER - M (23220502)
Our refurbished frames come from our demo fleets, test fleets and returns for shipping damage. We perform a thorough check of each frame and replace all wearing and damaged parts. While they may have cosmetic imperfections, every frame is fully reconditioned and ready to ride.
THESE FRAMES ARE FINAL SALE BUT COME WITH A FULL WARRANTY.
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists. Contact the shop directly for service options and rates.Learn more
Showroom Delivery
Choose pickup at one of our COMMENCAL USA showrooms (Golden, CO or Menifee, CA) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL DESCRIPTION -
Ridden once in excellent condition.
- COSMETIC DESCRIPTION -
Slight scratches.
- MECHANICAL DESCRIPTION -
Fully checked.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
Technical informations
Technical informations
-
Bicycle type
Enduro / All Mountain
-
Frame material
AL 6066 T4, T6
-
Frame weight
4,06 kg / 8,95 lb
-
Rear travel
150mm
-
Shock length/stroke
210x55mm
-
Recommended SAG
27-30% / 15-19mm
-
Piggy back shock compatible
Yes
-
Shock bushings
20x10mm / no bushing needed on clevis
-
Recommended/max. fork height
571mm / 586mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
Yes
-
Wheels size
29’’ - 29’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø622mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
34,9mm / 38,5mm
-
Seatpost insertion max.
S : 230mm / M : 270mm / L : 290mm / XL : 310mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
ISCG 05 lower - Custom upper guide
-
Recommended/max. chainring teeth
32T / 34T
-
Chain Line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
UDH standard, 180mm, M12, P1.0mm
-
UDH hanger
Yes
-
shock anchor adjustment
2 positions
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
