Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.
COMMENCAL SUPREME DH V5 ESSENTIAL HERITAGE GREEN - M (22150802)
Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage. We perform a thorough check of each bike and replace all wearing and damaged parts. While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
THESE BIKES ARE FINAL SALE BUT COME WITH A FULL WARRANTY.
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
- GENERAL DESCRIPTION -
Bike was ridden for one season, and it's been full turned up.
- COSMETIC DESCRIPTION -

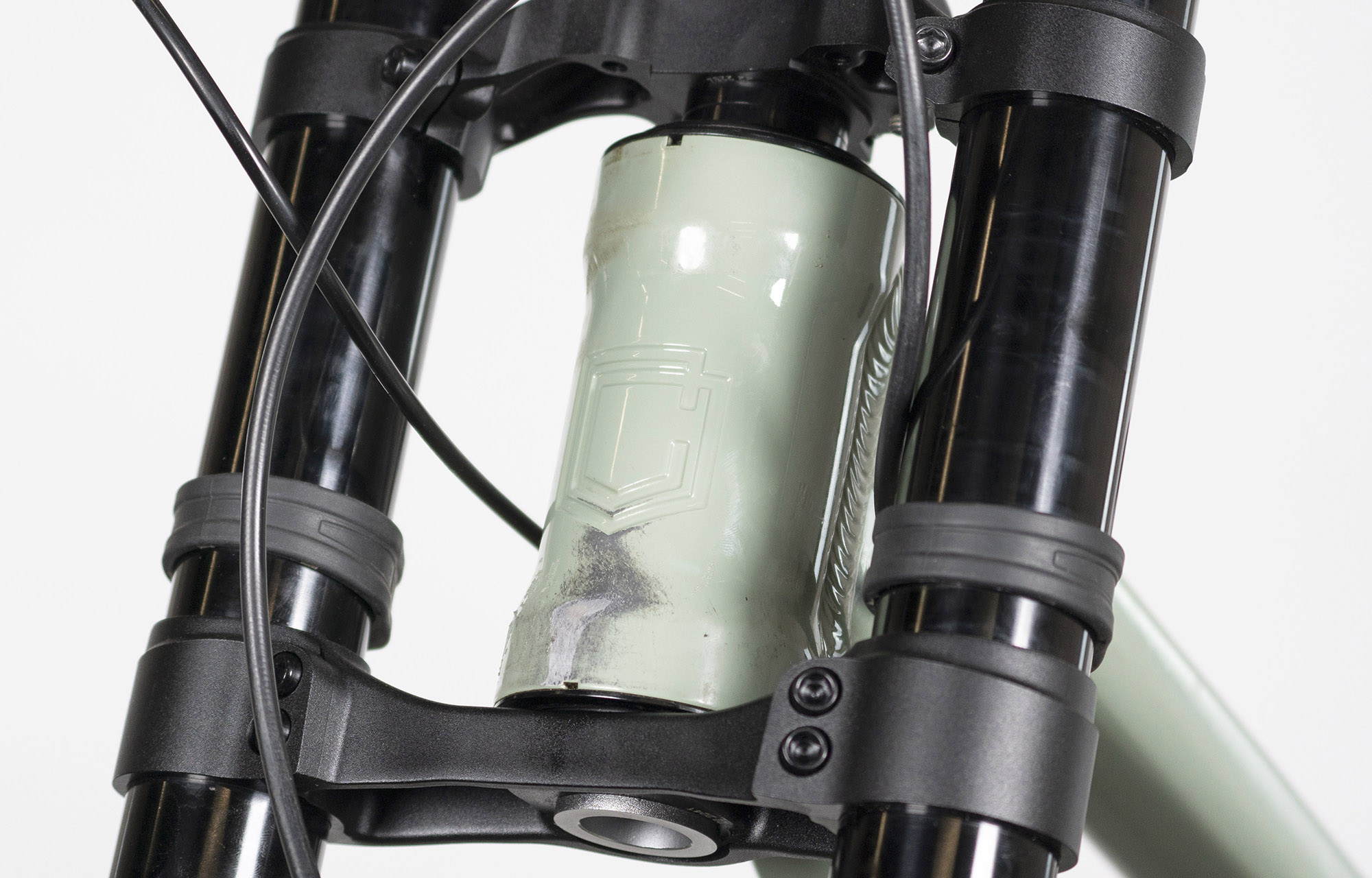

Paint scratched on head tube.
Paint chips on top tube near seat tube.
F & R brake levers scratched.

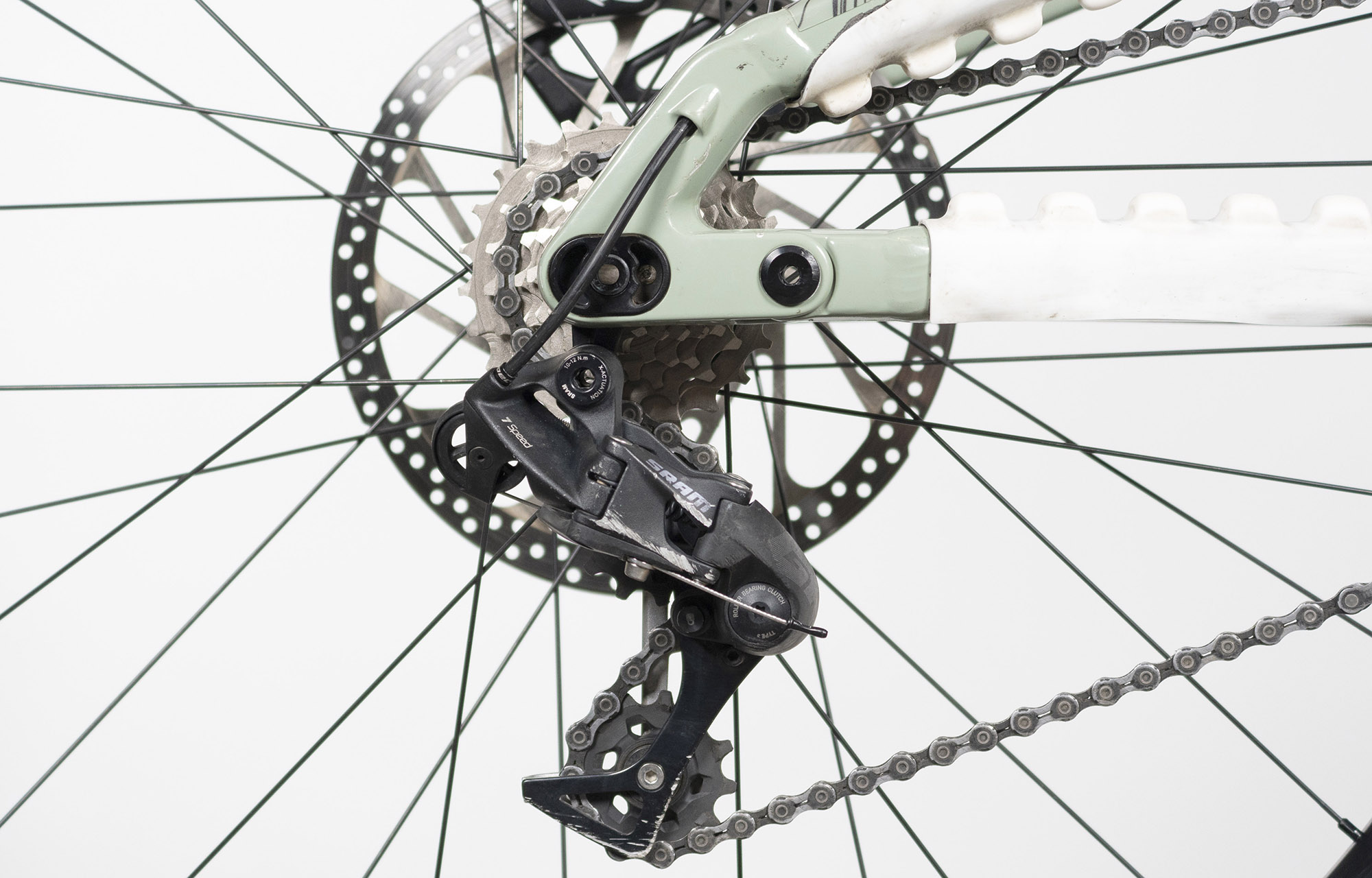

Minor scratches on derailleur.
- MECHANICAL DESCRIPTION -
Fork: Lower leg service, new seals and oil installed.
Shock: Inspected no serviced.
Brakes: Bled.
Wheels: New.
Tires: New.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock
FOX DHX 2 Performance Elite
250 x 75 mm, LSC, LSR. Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 500 lbs on XLFork
FOX 40 Performance, 203 mm travel
29", Grip damper, LSC, Float Evol. Boost (20 x 110 mm), 52 mm offset, 2 spacersHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thicknessShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
E13 LG1 Plus DH
7s, 9-21t DM CassetteRims
E13 LG1 Plus DH
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner widthHubs
Rear: E13 LG1 Plus DH - Front: E13 LG1 Plus DH
Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackTyres
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary
Seat post
RIDE ALPHA Super Light
31.6 mm, 250 mm lengthSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
17,5 kg / 38,58 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Heritage Green
Shiny FinishAccessories
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard, fork fender specific Fox 40
*Please note that bike specs are subject to change without prior notice.
Bike specifications are subject to change without notice.
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
-
Bicycle type
Downhill Racing
-
Frame material
AL 6066 T4, T6
-
Frame weight
5,3 kg / 11.68 lb
-
Rear travel
220mm
-
Shock length/stroke
250x75mm
-
Recommended SAG
20-25% / 15-19mm
-
Piggy back shock compatible
Yes
-
Shock bushings
30x8mm / 30x8mm
-
Recommended/max. fork height
612mm / 620mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
No
-
Wheels size
29’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
133mm
-
Bottom bracket type
Press Fit BB 107mm
-
Chain guide
ISCG 05 lower - Custom upper idler guide
-
Chain line
56,5
-
Rear Hub dimension
157x12mm
-
Rear Axle dimension
Maxle standard, 200mm, M12, P1.0mm
-
UDH hanger
No
-
shock anchor adjustment
4 positions
-
Rear Wheel Base Length adjustment
3 positions
-
Rear triangle stiffness adjustment
3 thickness
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
