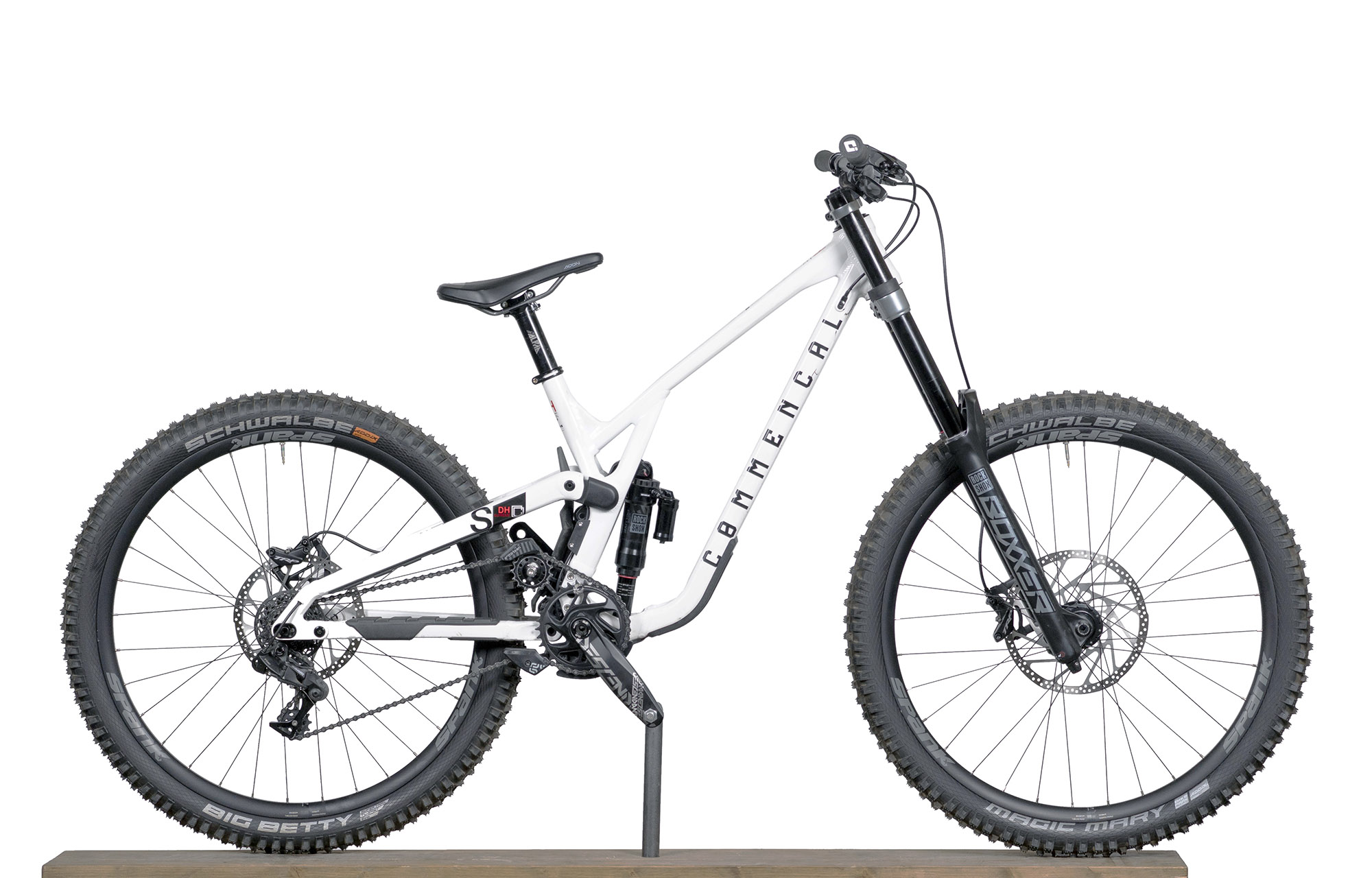

COMMENCAL SUPREME DH V5 XS PURE WHITE - XS (22173300)

Price reduced from $5,500.00 to $3,800.00 -31%
id/sku : OCUSA1011
Availability: This Item is currently not available. null
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
- DESCRIPTION -

Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage.
We perform a thorough check of each bike and replace all wearing and damaged parts.
While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
These bikes are final sale but come with a full warranty.

- GENERAL DESCRIPTION -

Bike is used, in good mechanical condition.

- COSMETIC DESCRIPTION -

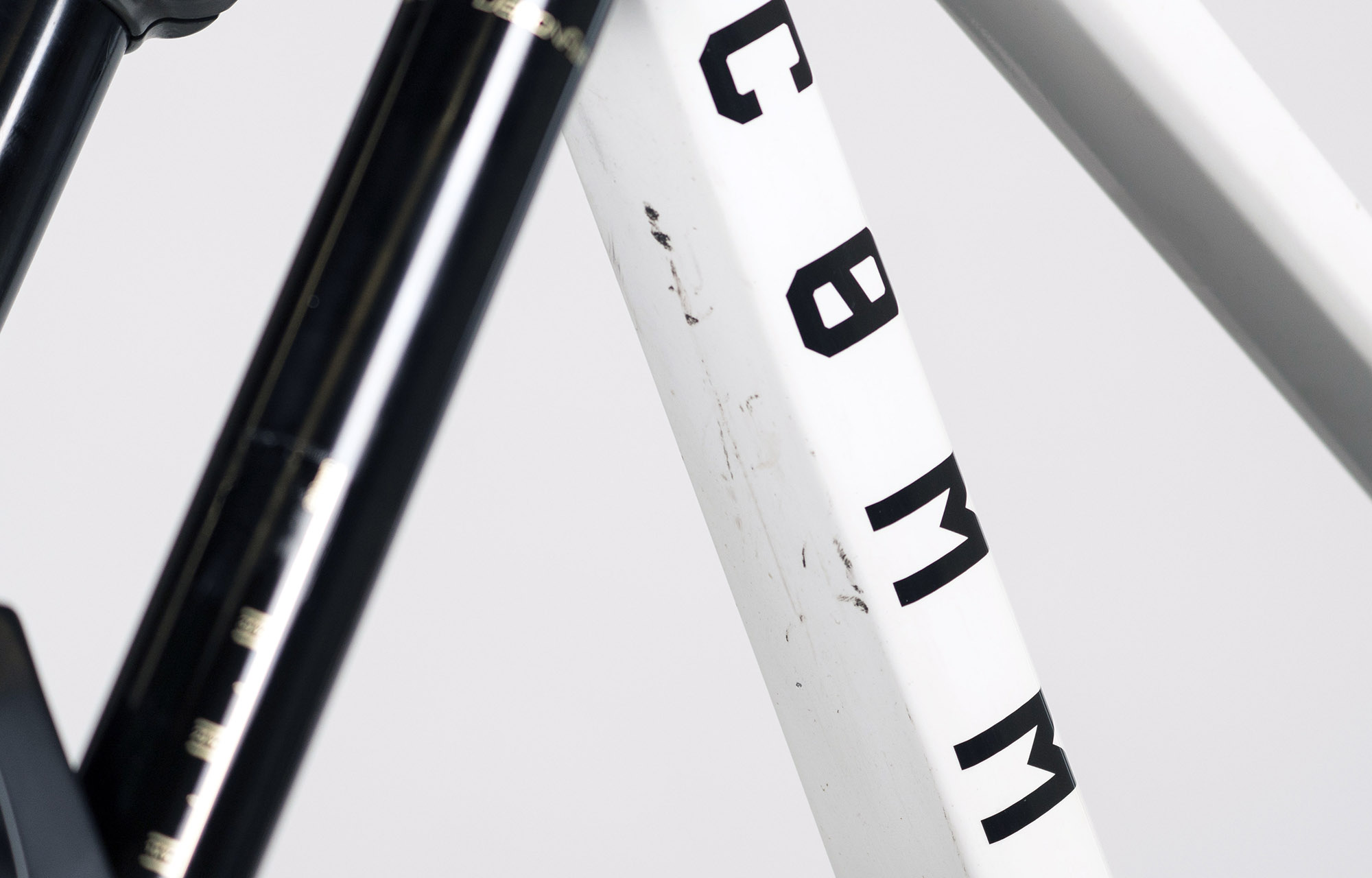

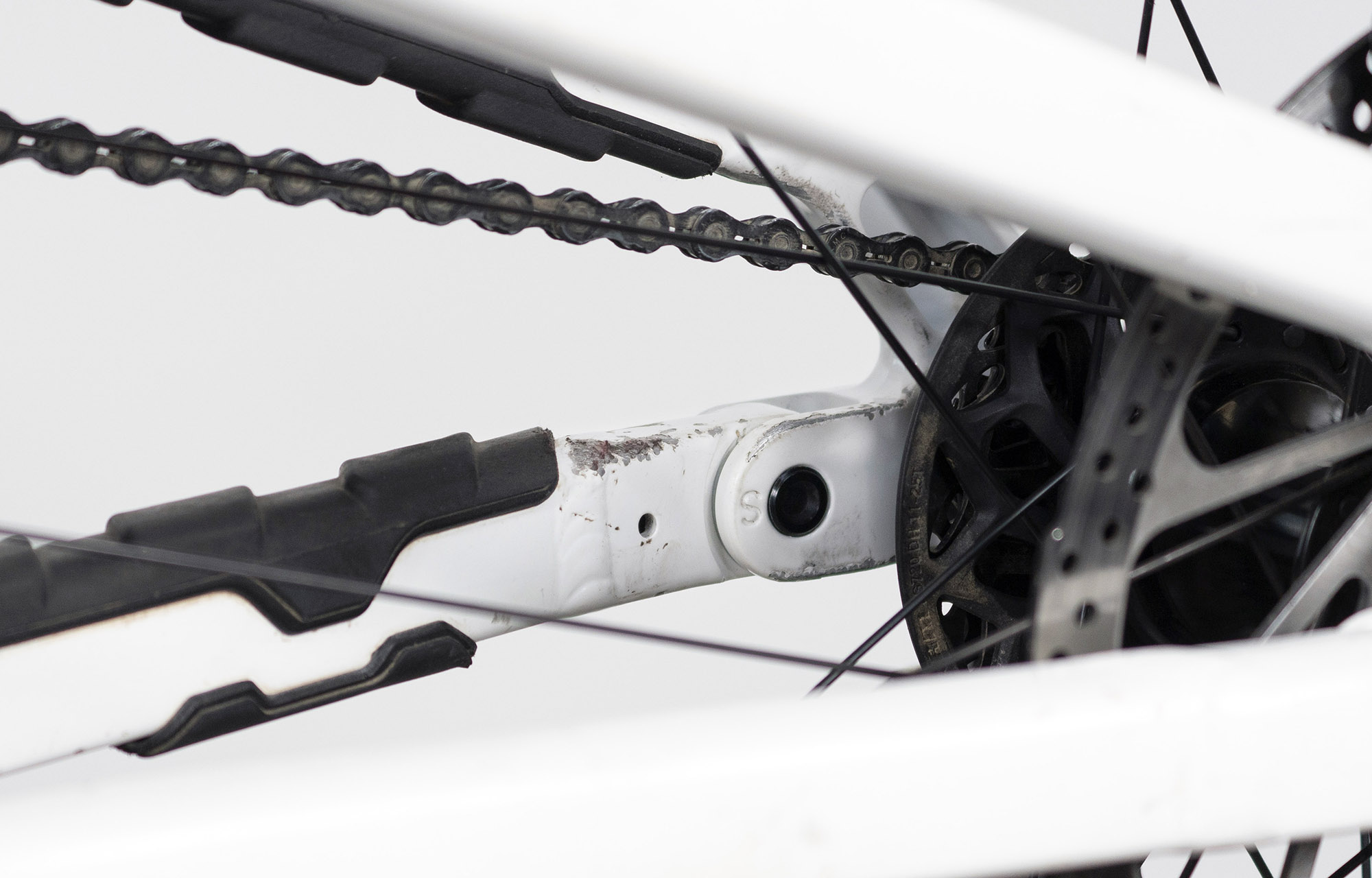

Drive side paint damage on the stays.
Paint chipping on down tube.
Paint chipping on head tube.
Paint blemish on seat tube.

- MECHANICAL DESCRIPTION -

Bearing: Cleaned and greased.
Fork: Revised.

- COMPONENTS DESCRIPTION -

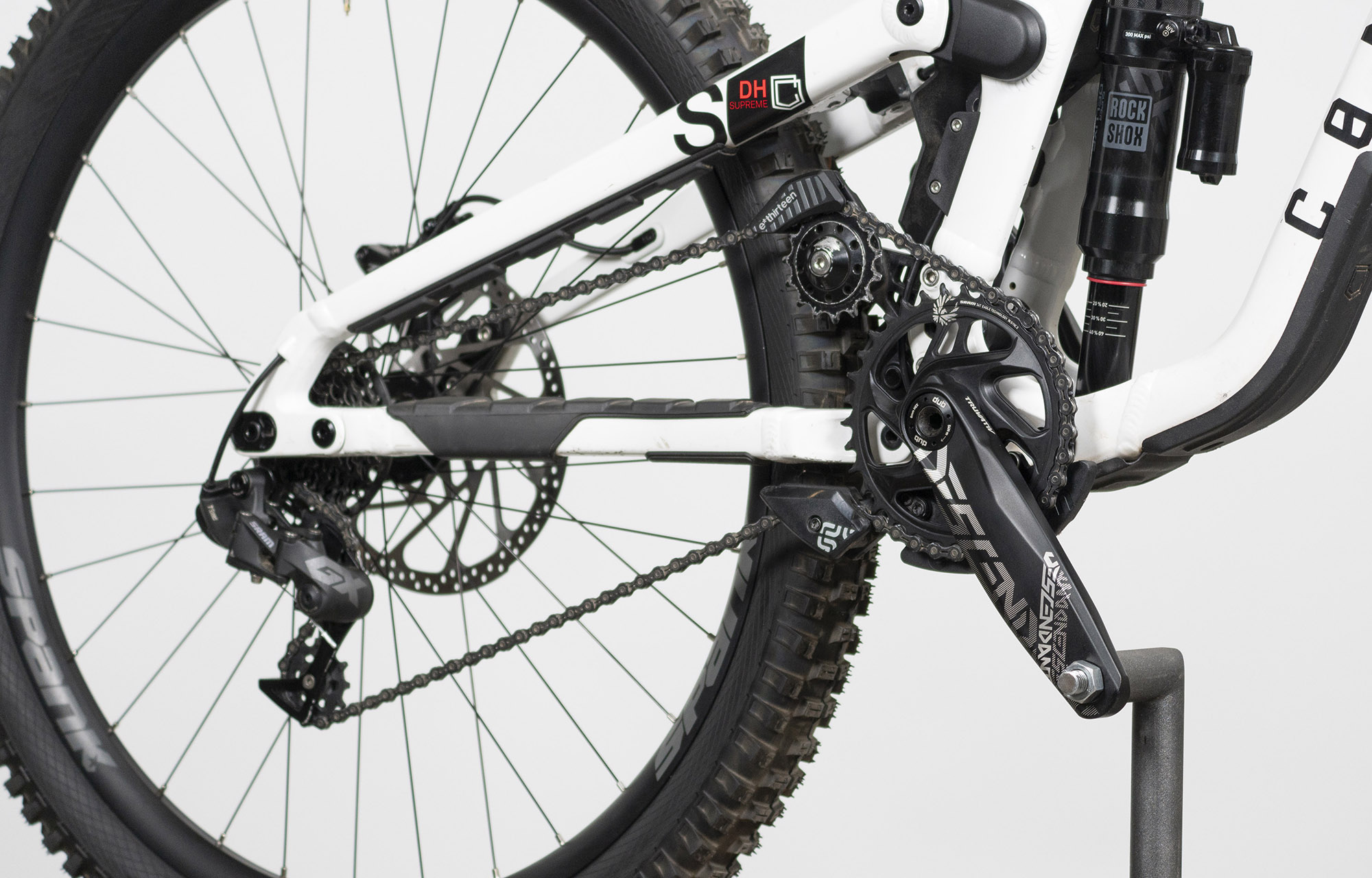

Drive Train: NEW cranks, shifter, derailleur.
Brakes : NEW.
Wheels, Tires : NEW.
Cockpit : NEW.


Don’t hesitate to contact us for more details.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Frame DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    5,2 kg / 11,46 lbs in size S with frame protections, chain guide, rear wheel axle

  • Rear travel

    220 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 8 mm / 30 x 8 mm

  • Recommended/max. fork height

    590 mm

  • Headset dimension

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle

- SPECIFICATIONS -
  • Frame

    SUPREME DH V5 27'', 220 mm travel
    27.5'', Alloy 6066, triple butted tubes, T4, T6

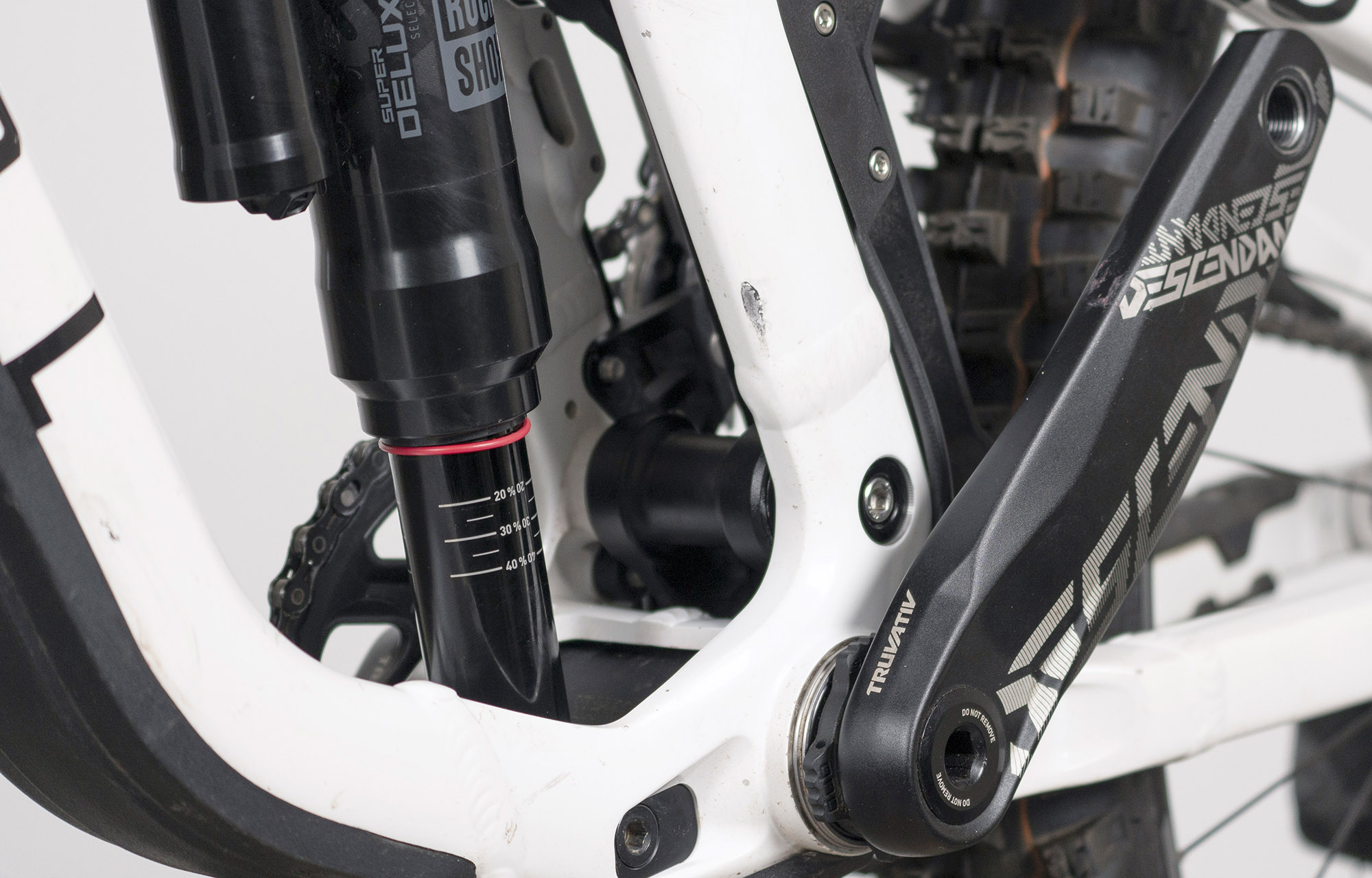

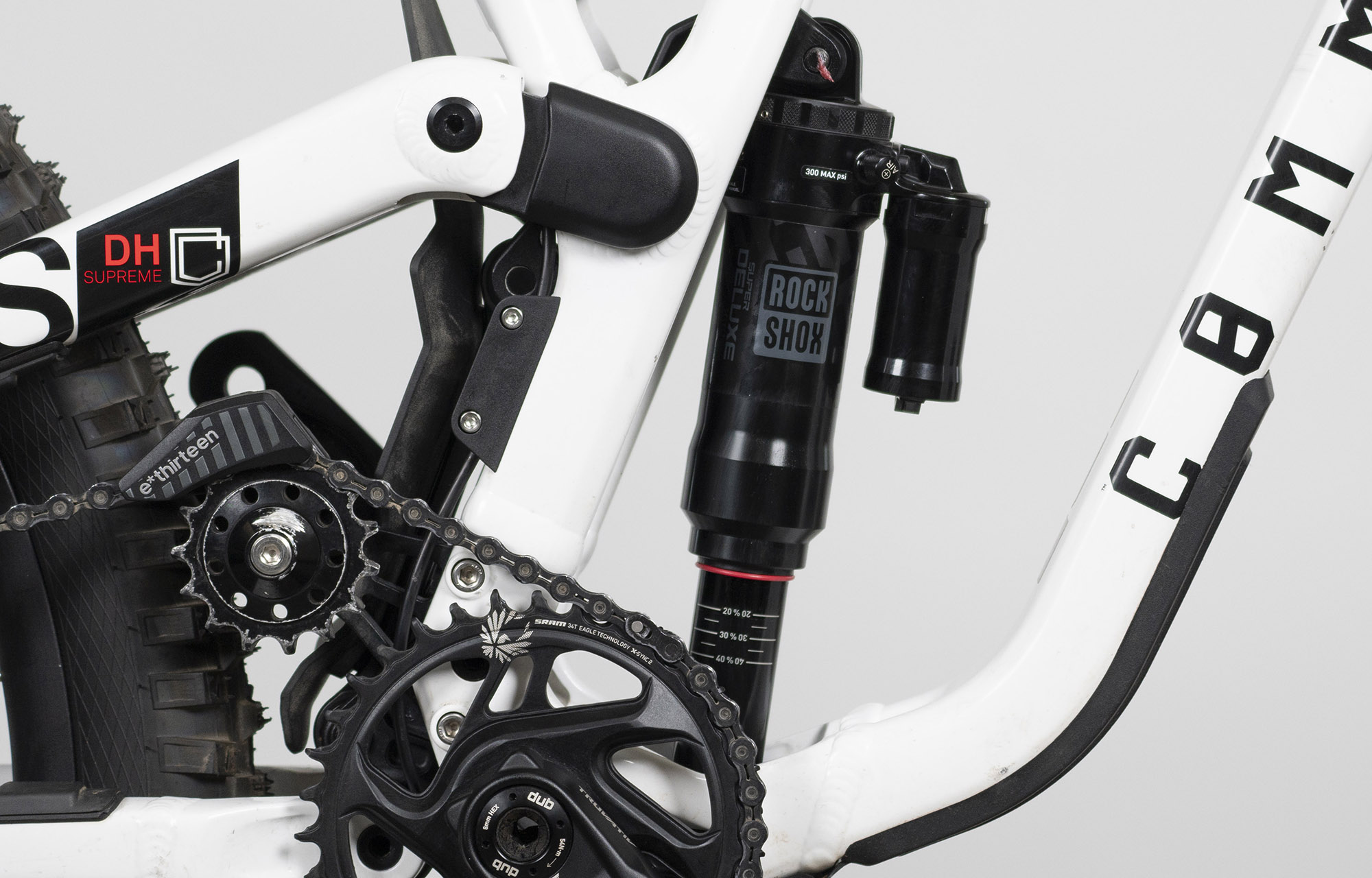

  • Shock

    ROCKSHOX SuperDeluxe Select R
    250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 1 Token pos.

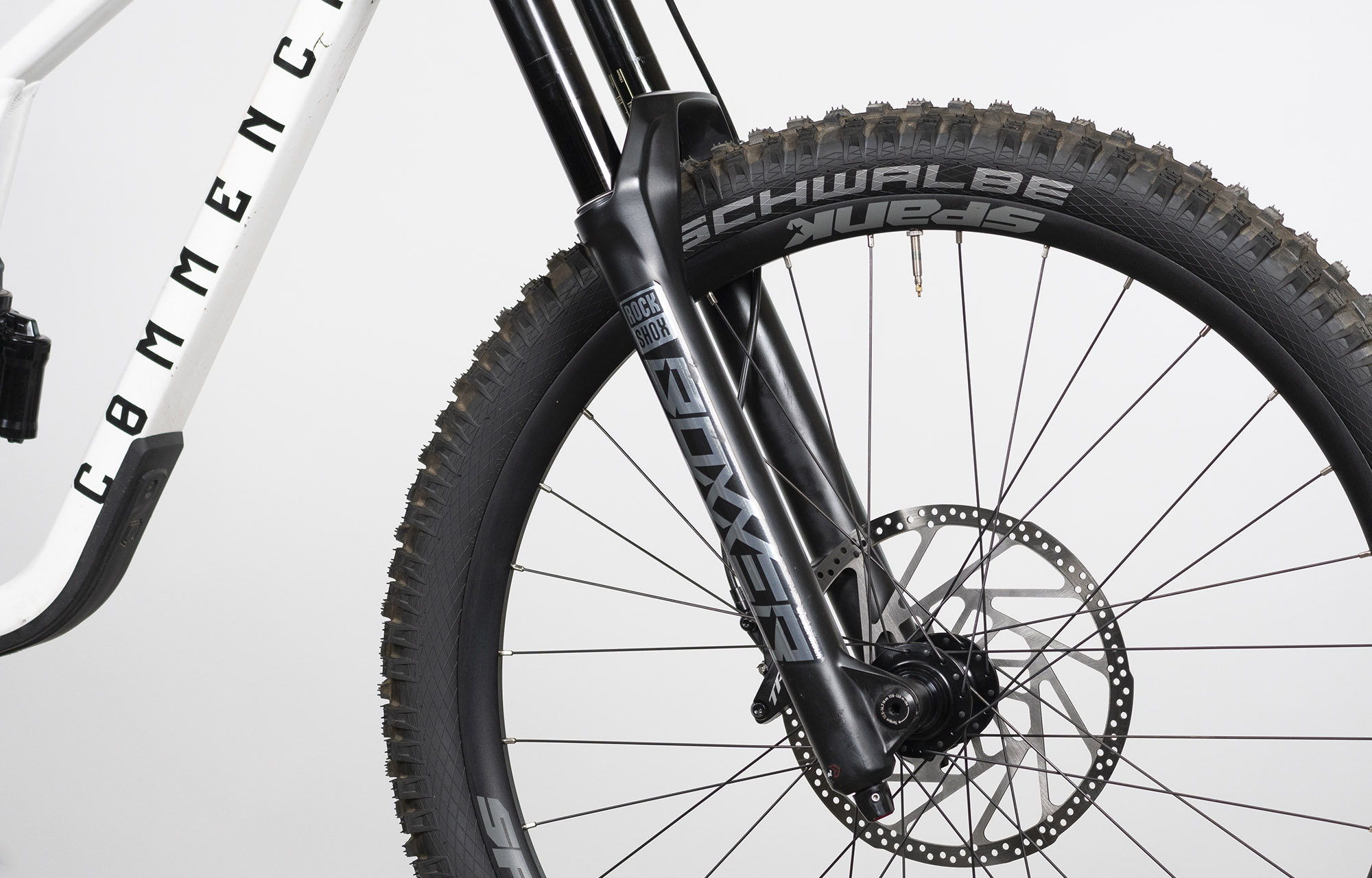

  • Fork

    ROCKSHOX Boxxer Ultimate, 200 mm travel
    27.5", Charger 2.1 RC2 damper, DebonAir, rebound, Boost (20 x 110 mm), 36 mm offset, 0 Token

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA DH 40
    40 mm extension, direct mount, 31.8 mm

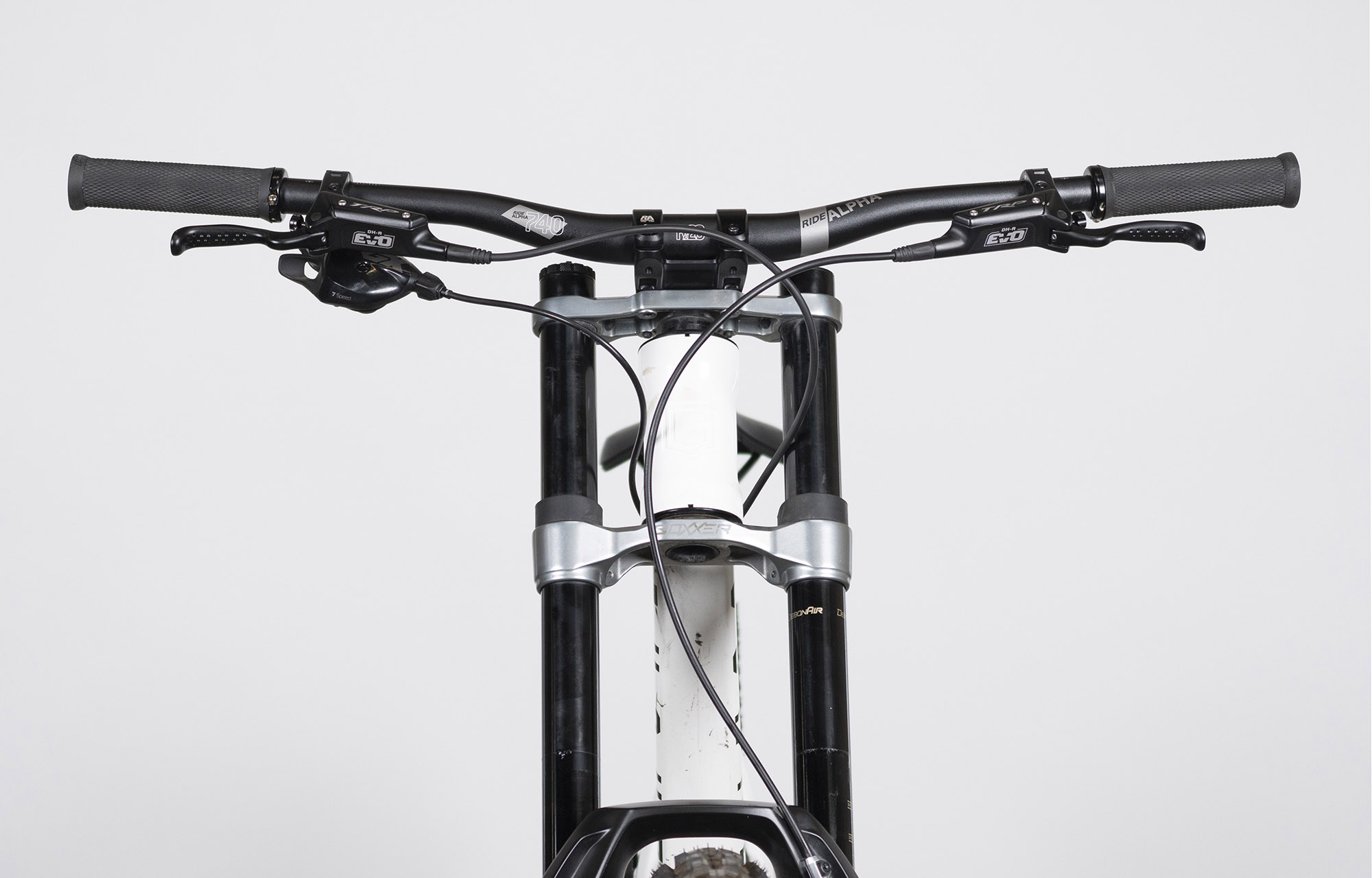

  • Handlebar

    RIDE ALPHA R20
    31.8 mm, 740 mm width, 20 mm rise, Alloy 6061

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

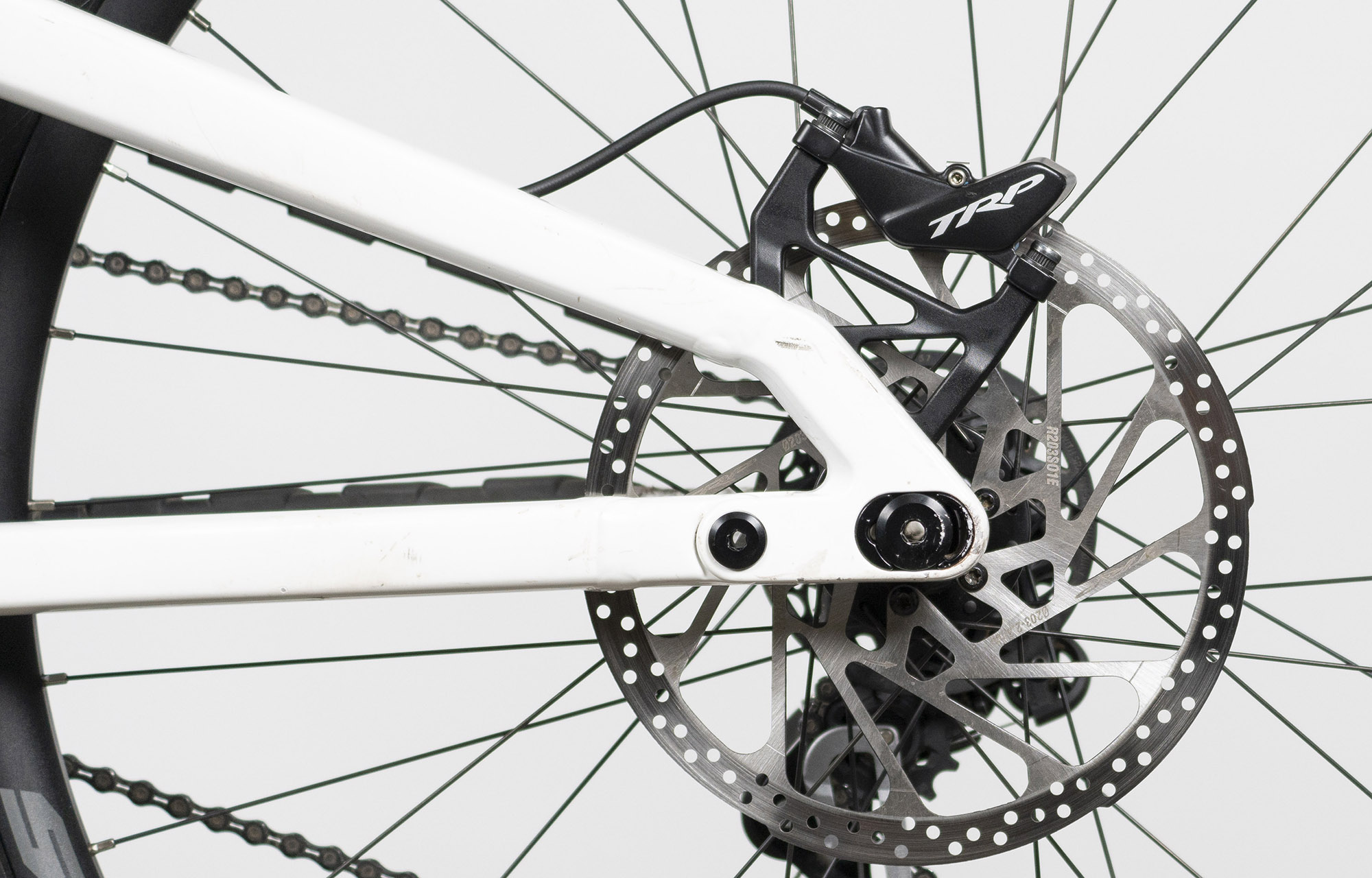

  • Brakes

    TRP DH-R Evo, 4 pistons, resin pads
    Rotors: TRP R1 223/203 mm, 6-bolt, 2.3 mm width

  • Shifters

    SRAM GX DH
    7 sp

  • Chain guide

    E13 LG1 + Bottom Guide
    32-34t

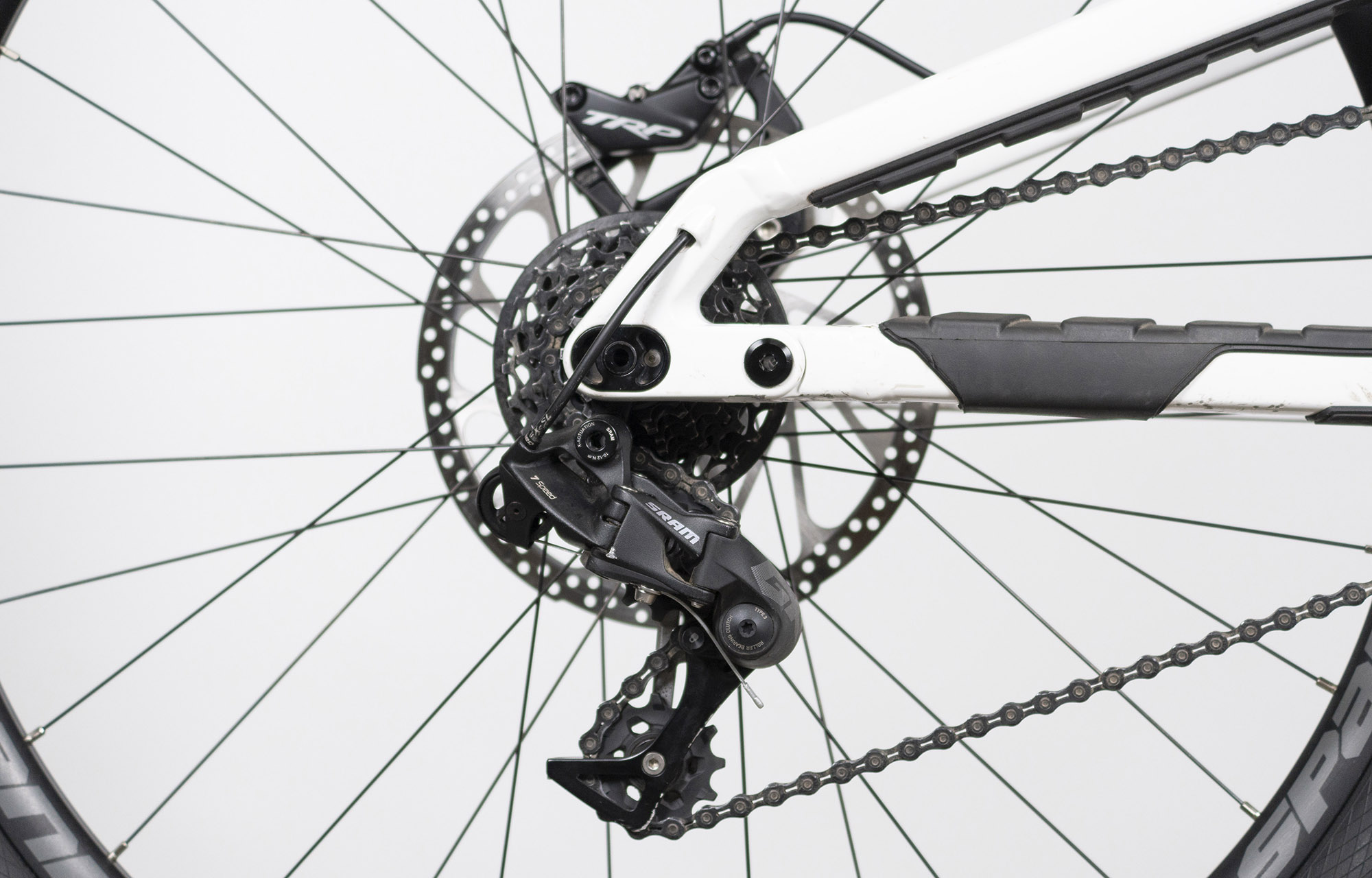

  • REAR DERAILLEUR

    SRAM GX DH
    7 sp

  • Bottom bracket

    SRAM DUB
    Pressfit

  • Crankset

    TRUVATIV Descendant DH, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant DH X-Sync, 34t

  • Chain

    KMC X11EL

  • Cassette

    SRAM PG-720
    7 sp, 11-25t

  • Rims

    SPANK Spike Race 33
    27.5'', 32h, 28 mm inner width, tubeless ready

  • Hubs

    Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
    Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

  • Spokes/nipples

    SAPIM D-Light
    J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: SCHWALBE Big Betty - Front: SCHWALBE Magic Mary

  • Seat post

    RIDE ALPHA Super Light
    31.6 mm, 250 mm, Alloy 7075

  • Saddle

    FIZIK Gravita Alpaca X5
    130 mm width, S-Alloy rails

  • Weight

    16.8 kg / 37.04 lbs
    Average weight for XS size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Pure White
    Shiny FInish

  • Accessories

    Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, frame mudguard
    *Please note that bike specs are subject to change without prior notice.
