Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.
COMMENCAL SUPREME DH 29 RACE - L (21150003)
Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage. We perform a thorough check of each bike and replace all wearing and damaged parts. While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
THESE BIKES ARE FINAL SALE BUT COME WITH A FULL WARRANTY.
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage.
We perform a thorough check of each bike and replace all wearing and damaged parts.
While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
These bikes are final sale but come with a full warranty.
- GENERAL DESCRITPION -
None.
- COSMETIC DESCRIPTION -

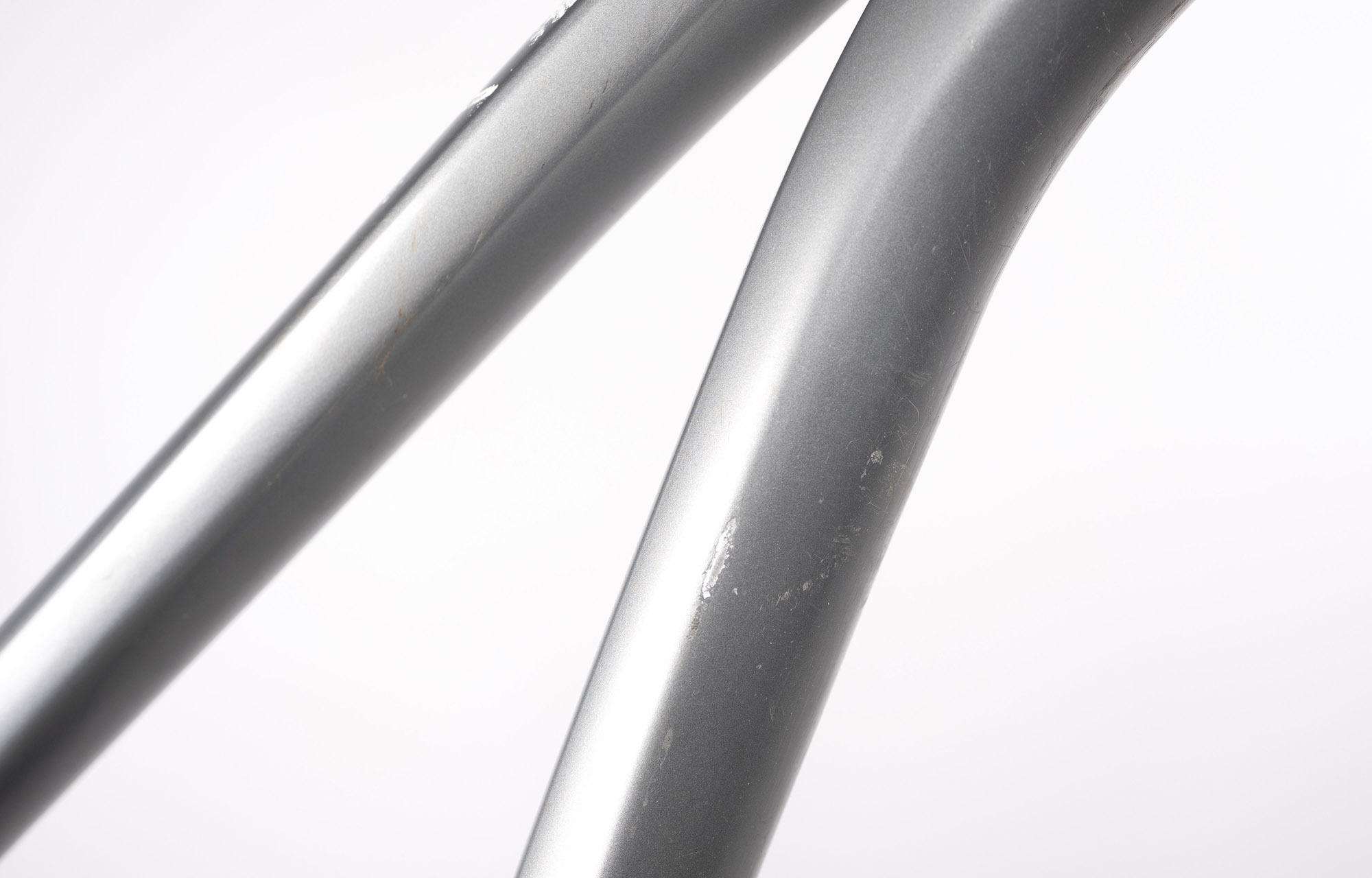

Scratches and paint chips due to normal use, defects are cosmetic only.
- MECHANICAL DESCRITPION -

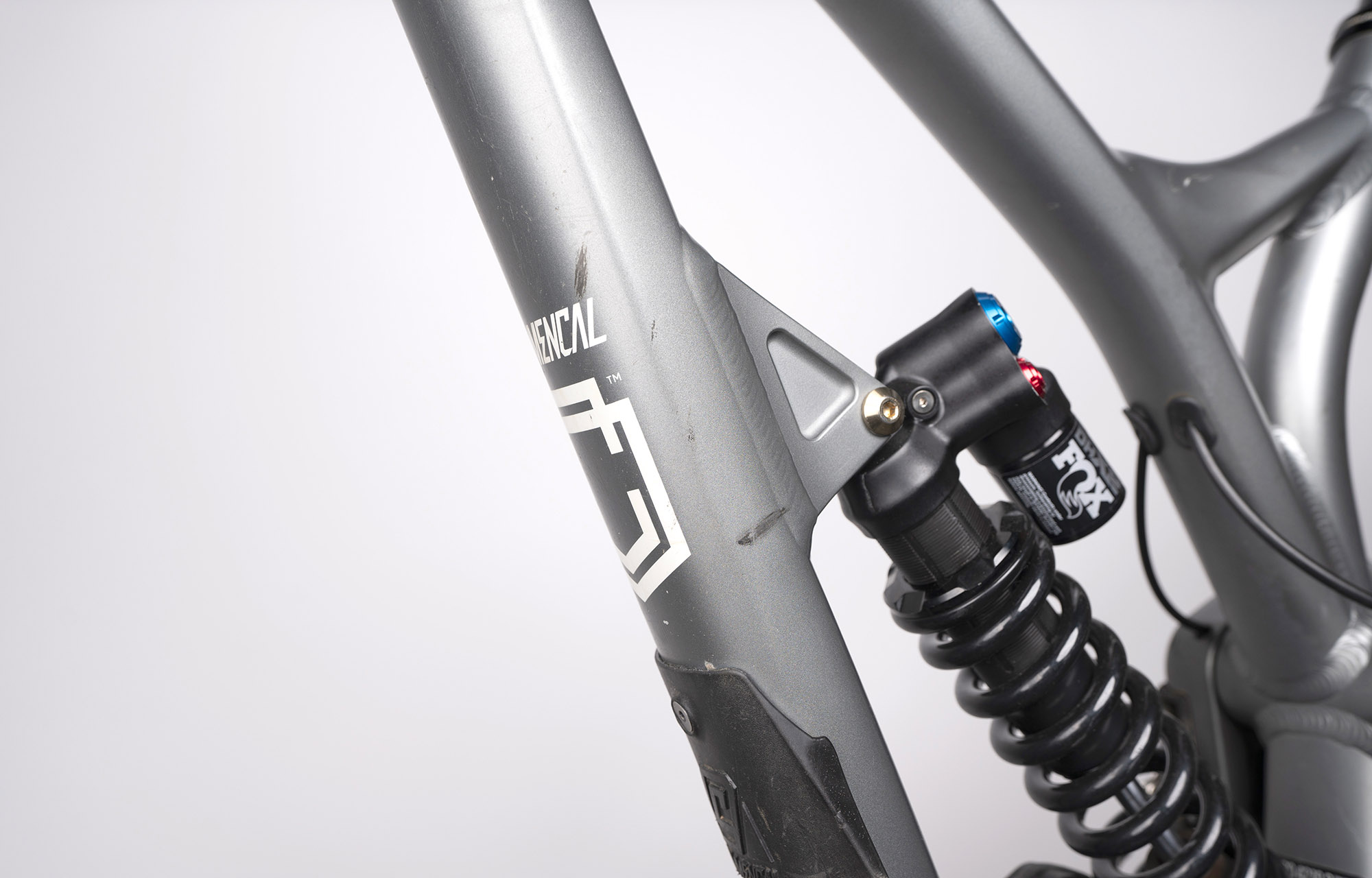

Fork and shock: inspected, in good working conditions and not serviced.
Brakes: bleed, pads changed.
Don’t hesitate to contact us for more details.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
2021 Supreme DH 29, 200 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Shock
FOX DHX2 Performance Elite
250 x 75 mm, LSC, LSR. Spring rates: 400 lbs on S, 450 lbs on M, 500 lbs on L, 550 lbs on XL
Fork
FOX 40 Performance, 203 mm travel
29", Grip damper, LSC, LSR, Float Evol. Boost (20 x 110 mm), 56 mm offset
Headset
ACROS ZS56 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mm
Handlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061
Grips
RIDE ALPHA DH
Ultra-soft compound, single clamp, black
Brakes
SHIMANO Deore, 4 pistons, I-Spec EV compatible
Rotor: SHIMANO SM-RT76 203 mm, 6-bolt
Shifters
SRAM GX DH
7 sp
Chain guide
E13 LG1 + Bottom Guide
28-34t
REAR DERAILLEUR
SRAM GX DH
7 sp
Bottom bracket
SRAM DUB
Pressfit
Crankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34t
Chain
KMC X11EL
Black
Cassette
SRAM GX DH
7 sp, 11-25t
Rims
SPANK 359
29'', 32h, 30 mm inner width
Hubs
Rear: FORMULA DHG-150 - Front: FORMULA DHL-93
Rear: 32h, sealed bearings - Front: 32h, sealed bearings
Spokes/nipples
DT SWISS Competition
J-Bend, 2.0-1.8-2.0 mm, double butted, stainless, with Nylok, black
Tyres
Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary
Rear: 29"x2.4", Super DH, Addix Ultra Soft - Front: 29"x2.4", Super DH, Addix Ultra Soft
Seat post
RIDE ALPHA Super Light
31.6 mm, 250 mm, Alloy 7075
Saddle
FIZIK Alpaca Gravita X5
MG rails, flexible "wings"
Weight
16,7 KG / 36.81 LB
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances
Pedals included
No
Colour
Matte Graphite
Matte finish
Accessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover
Bike specifications are subject to change without notice.
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
Bicycle type
DH Racing
Frame material
Al 6066T6
Frame weight
4,6 kg / 10,14 lb
Rear travel
200 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 8 mm / 30 x 10 mm
Recommended/max. fork height
601 mm / 56 mm
Headset type
ZS56/ZS56
Maximum tyre dimension (etrto)
65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
150 x 12 mm
Geometry
Geometry
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
Suspension settings
Suspension settings
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
commencal care
commencal care
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
Warranty
Warranty
Our products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase.
Registration
Registration
The online registration of your bike will enable us to deal efficiently with any potential problem you may encounter.
Technical documents
Technical documents
Here you will find all the technical and practical information concerning your COMMENCAL.
