Contractual photo - Components and accessories may exceptionally differ from those specified in the specifications.

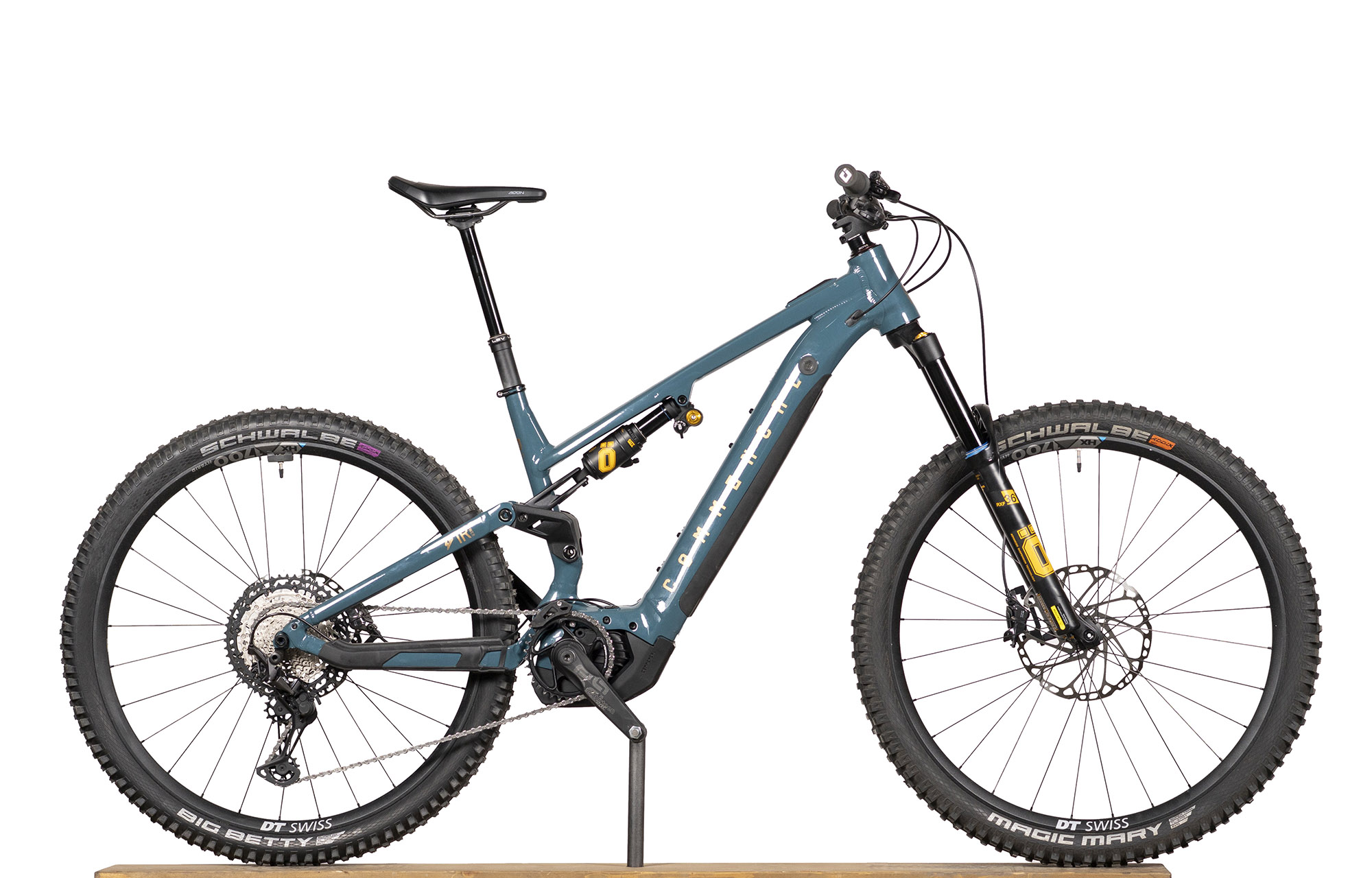

COMMENCAL META POWER TR BOSCH OHLINS EDITION AQUA BLUE - L (22181803) 80m
Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage. We perform a thorough check of each bike and replace all wearing and damaged parts. While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
THESE BIKES ARE FINAL SALE BUT COME WITH A FULL WARRANTY.
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage.
We perform a thorough check of each bike and replace all wearing and damaged parts.
While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
These bikes are final sale but come with a full warranty.
- GENERAL DESCRIPTION -
ODO 80 miles.
- COSMETIC DESCRIPTION -

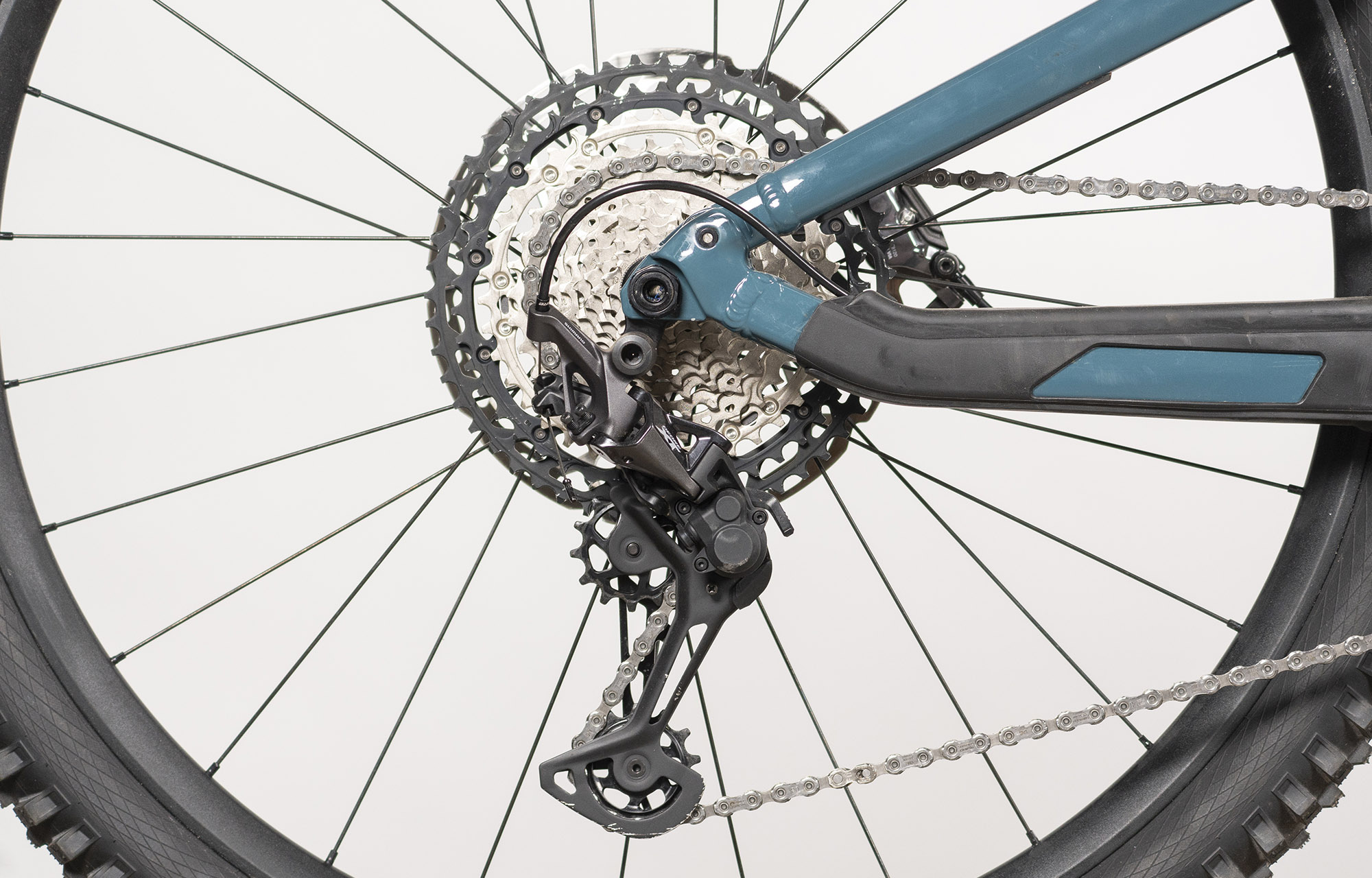

Minor scratches on derailleur.

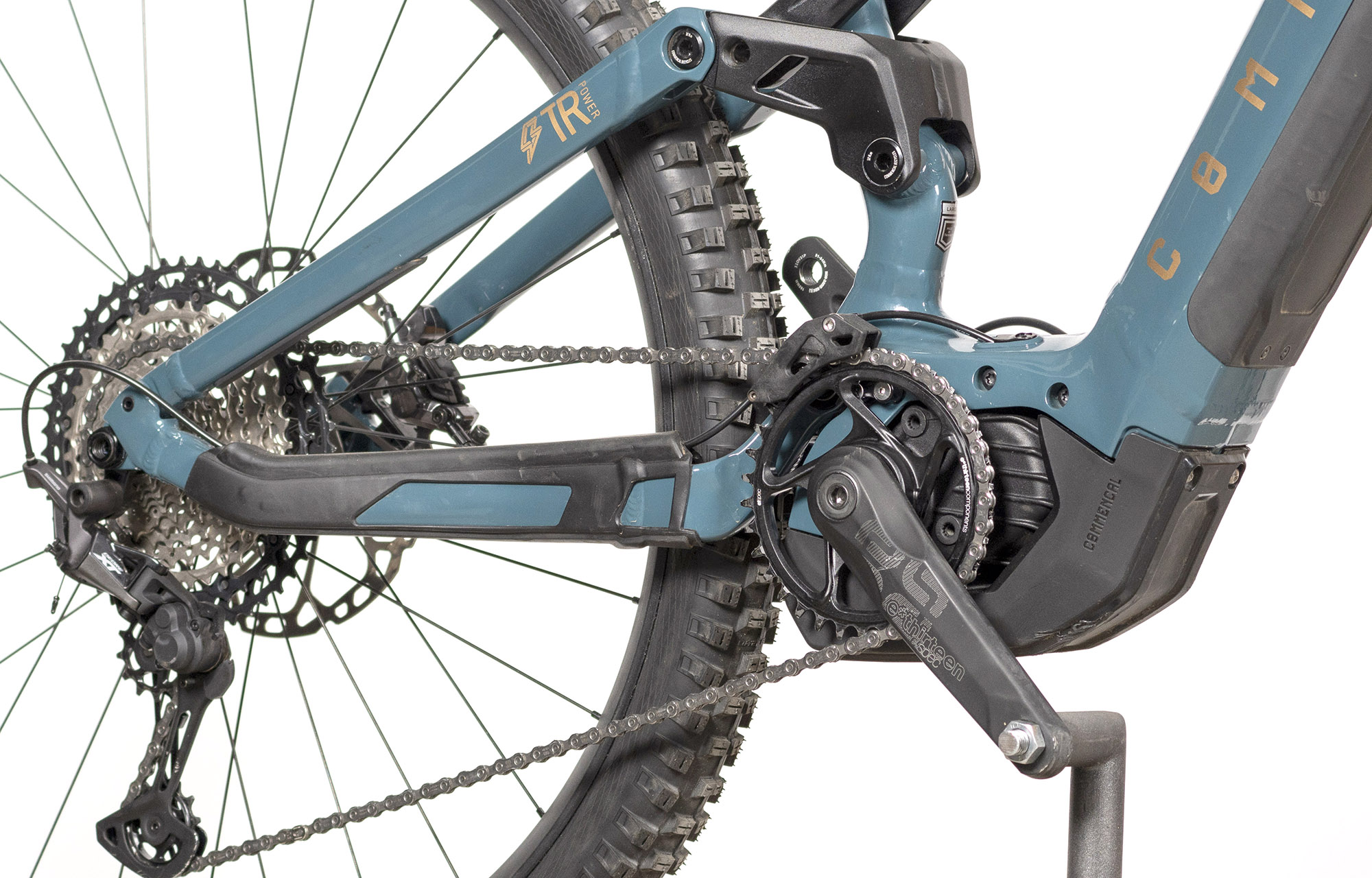

Scratches on motor cover.

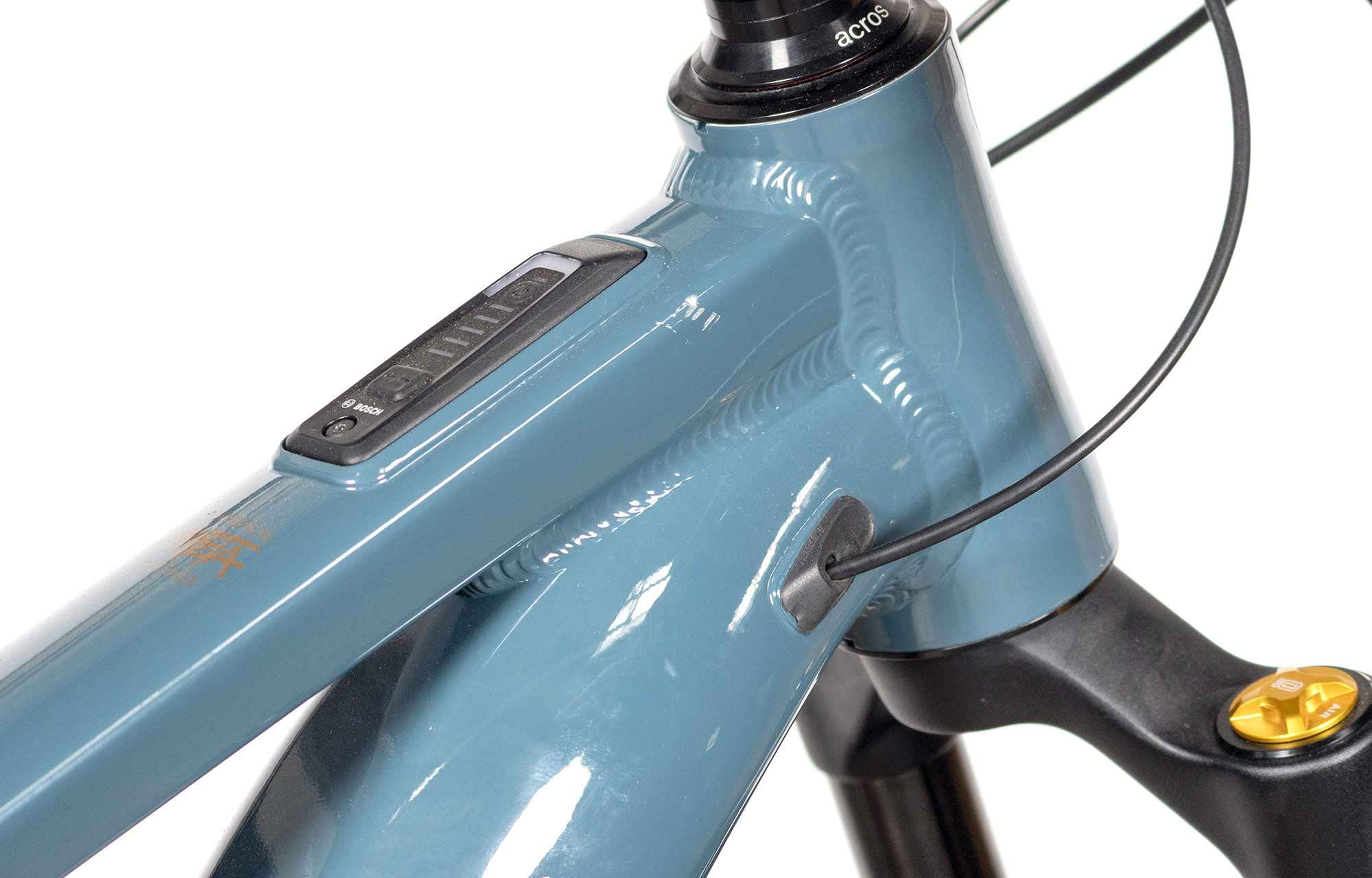

Paint scratch on top tube near head tube.
Scratch on DS fork lowers.

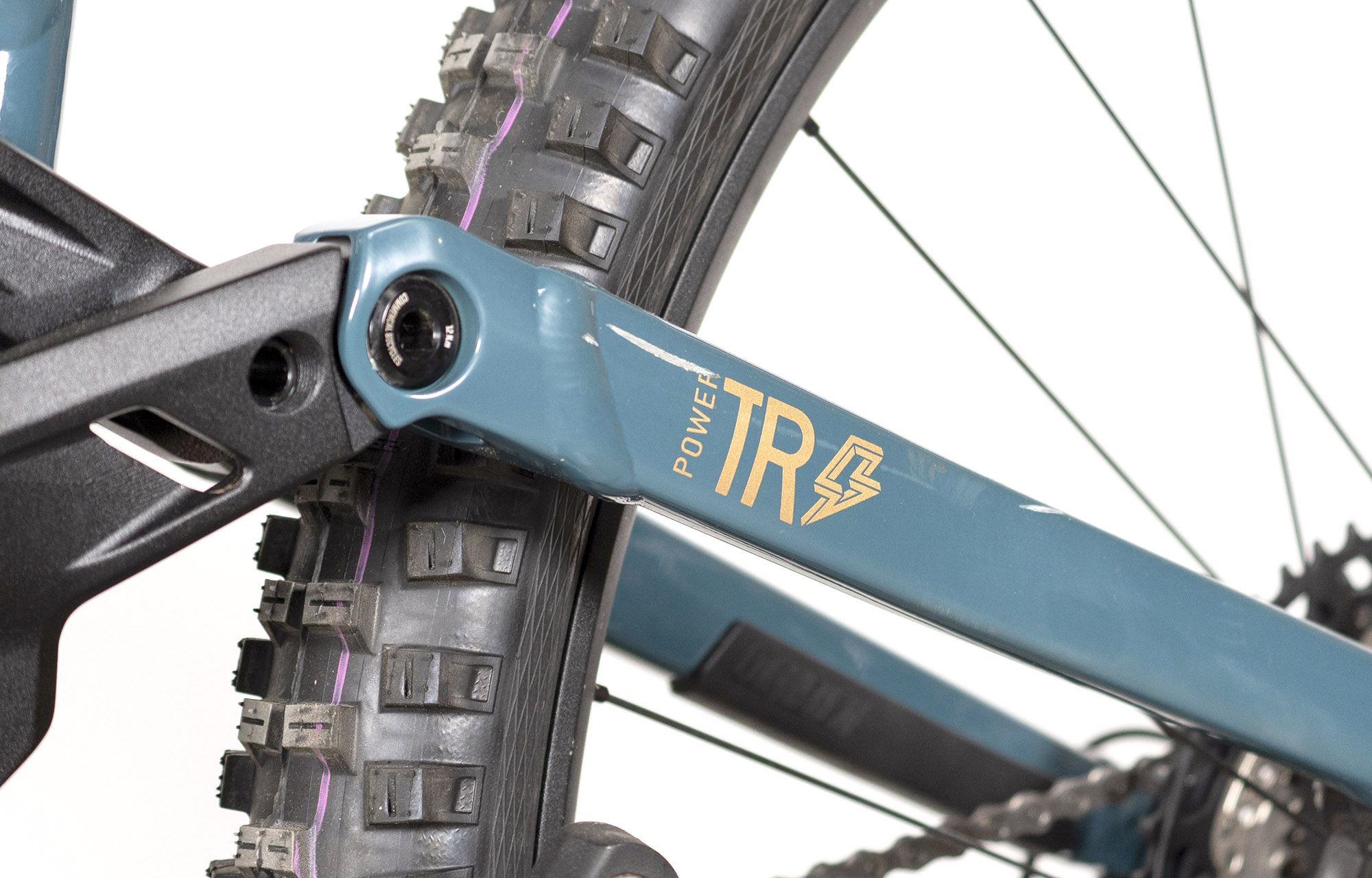

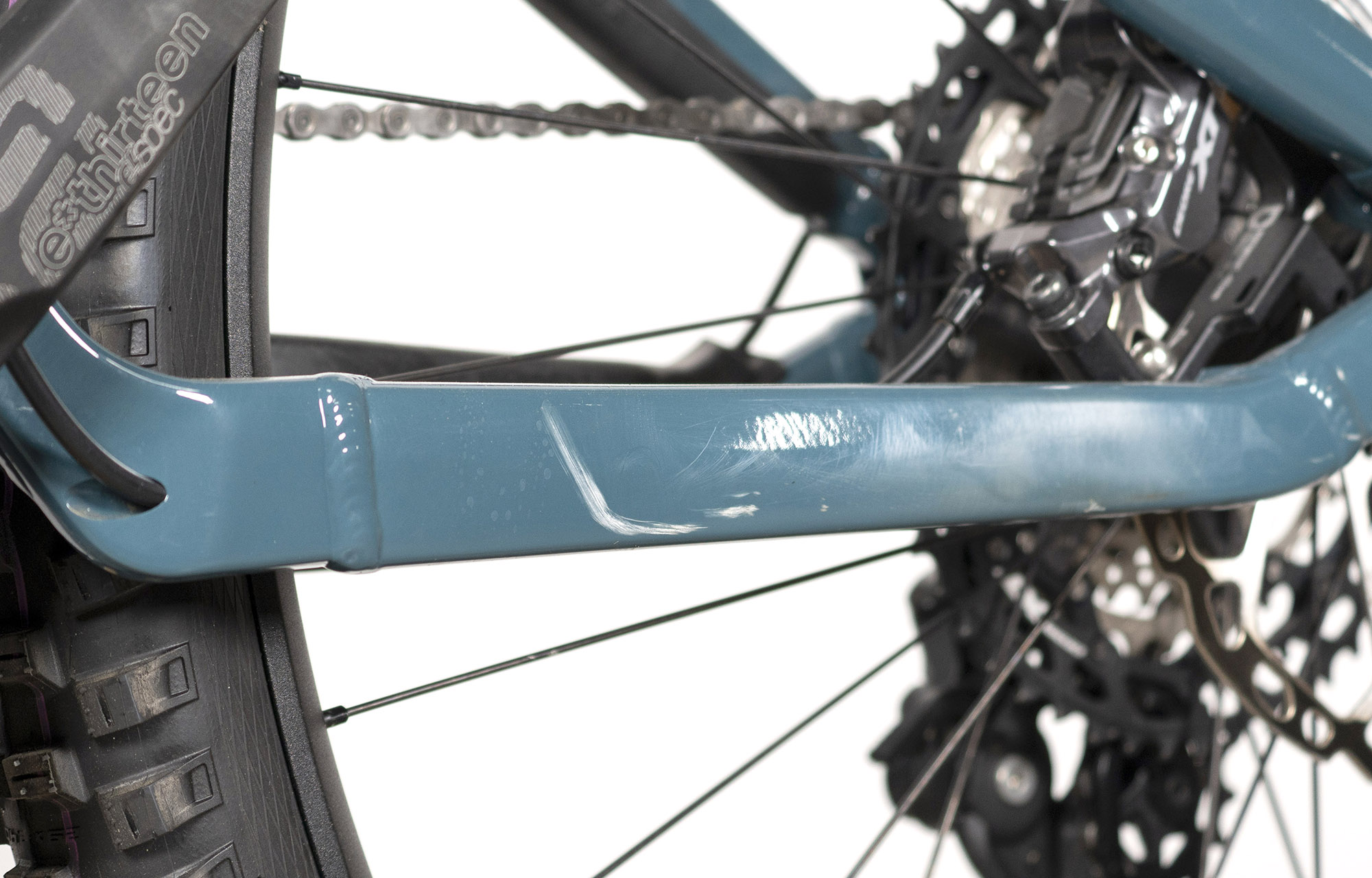

Paint scratches on NDS chain stay and seat stay.

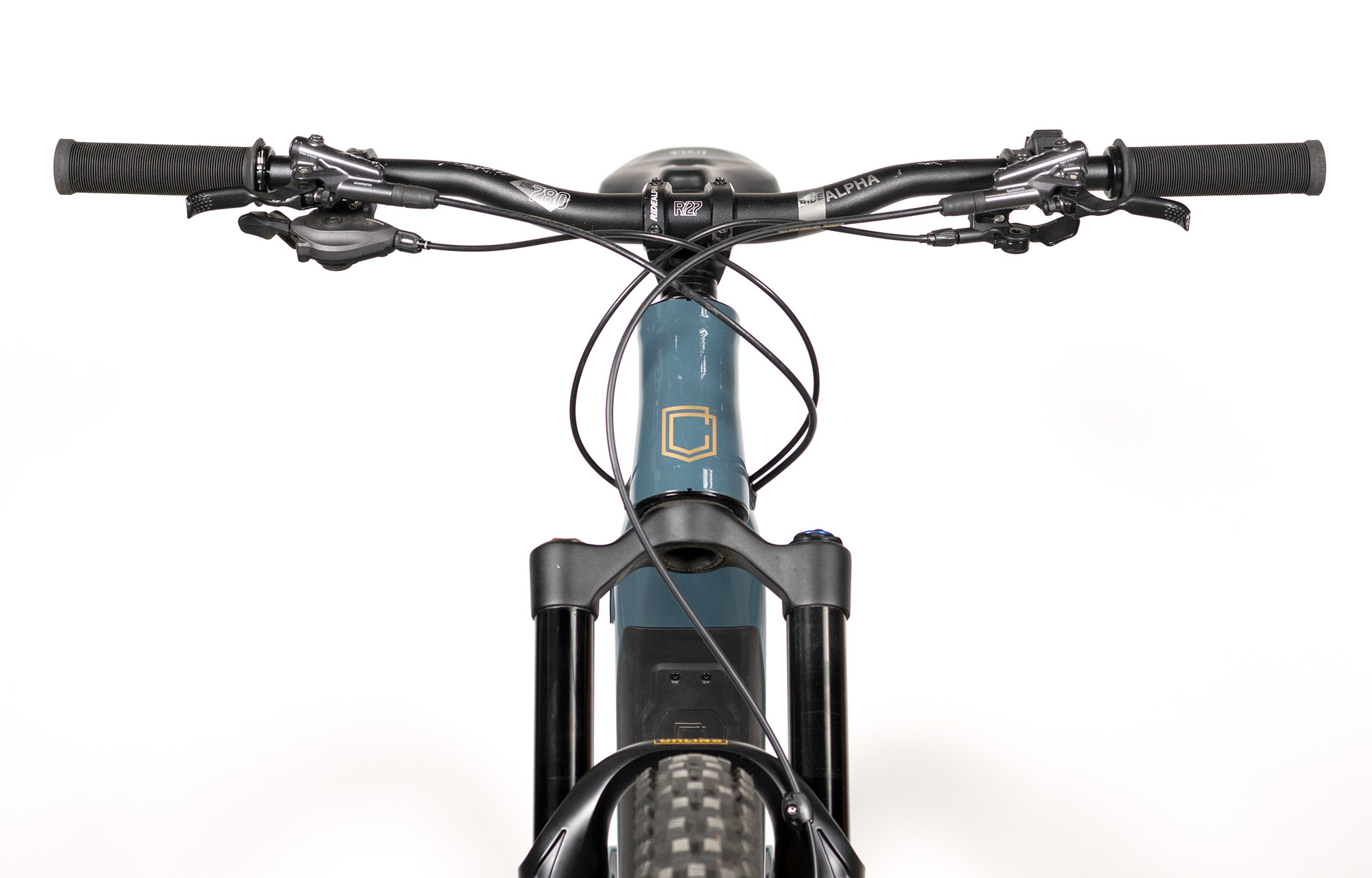

Minor scratches on handlebars.
- MECHANICAL DESCRIPTION -
None.
Don’t hesitate to contact us for more details.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
META POWER TR BOSCH, 140 mm
29", Alloy 6066, triple butted tubes, T4, T6.Motor
BOSCH Performance Line CX
Max. torque: 85N.m, 250WBattery
BOSCH PowerTube 625, 625Wh
BOSCH 4A Charger, Compact size & lightweight
Compatible w/Bosch PowerMore 250 for extra rangeDisplay
BOSCH System Controller
BOSCH Mini Remote currently not available in the USAShock

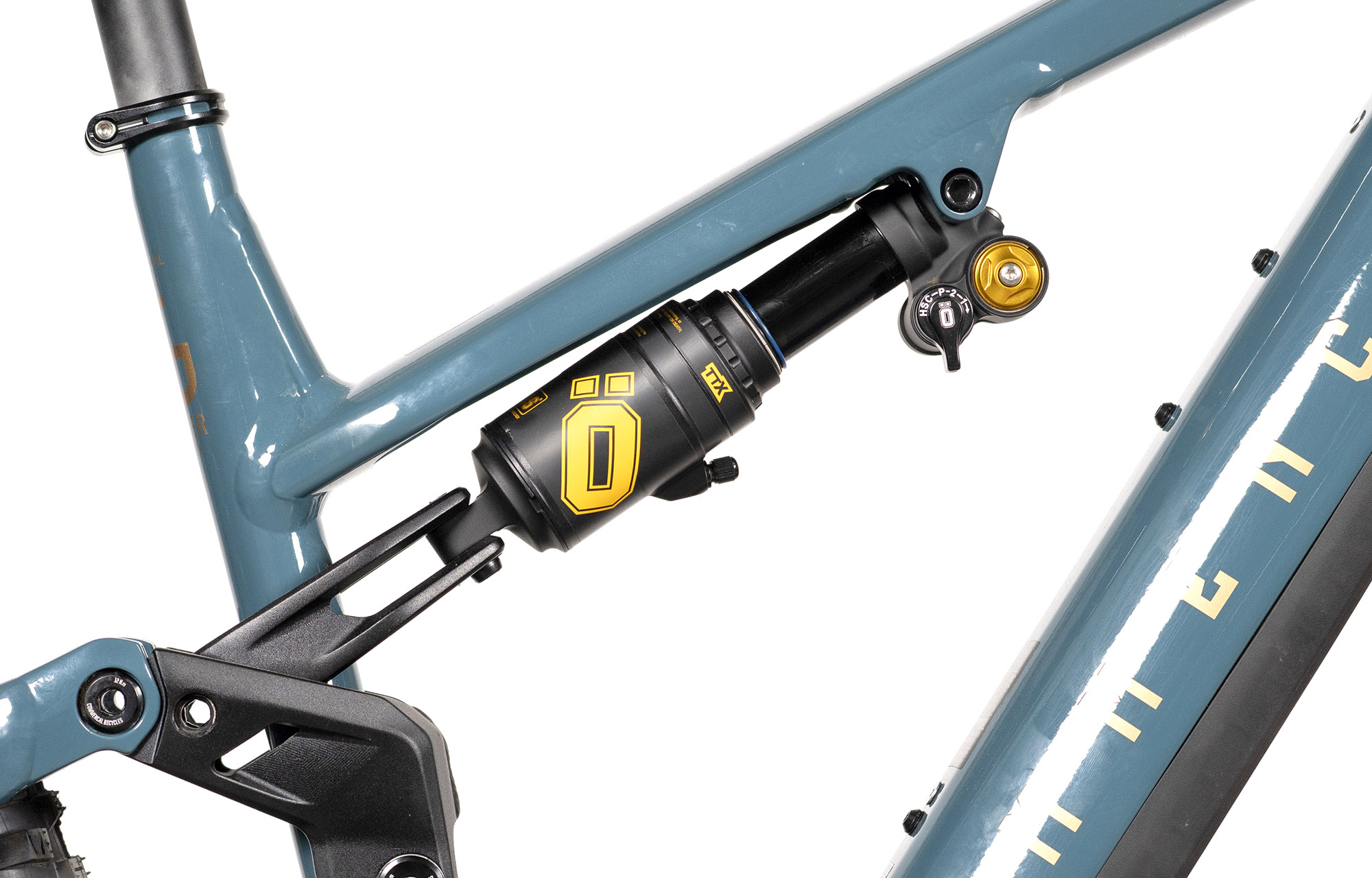

OHLINS TTX22 Air
210 x 55 mm, climb mode, LSC, 3 positions HSC, reboundFork

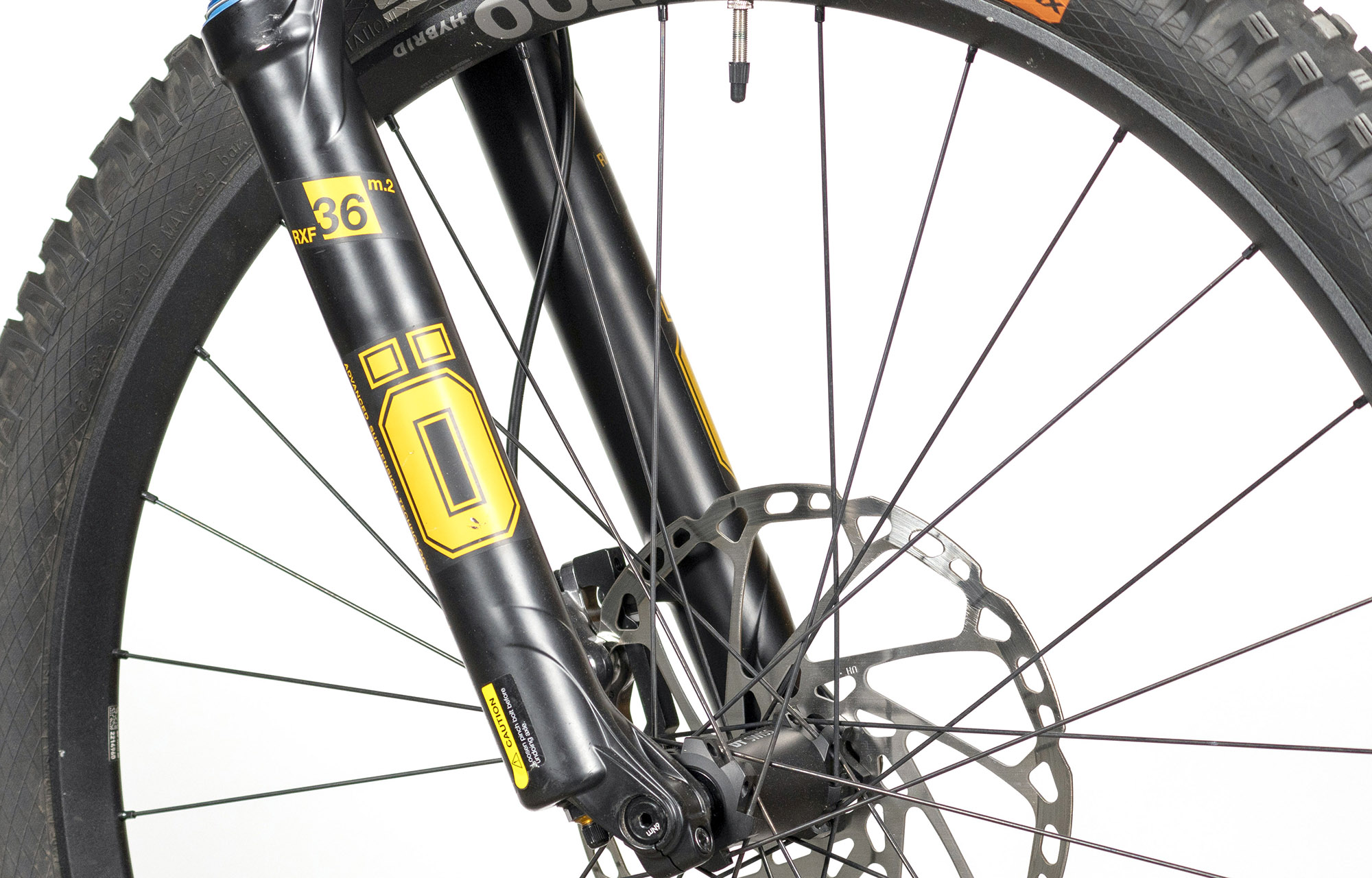

OHLINS RXF36 m.2 Air, 150 mm travel
29", TTX 18 damper, climb mode, LSC, 3 positions HSC, rebound, Boost (15 x 110 mm), 44 mm offsetHeadset
ACROS ZS56 / ZS66
Alloy cups, sealed bearingsStem
RIDE ALPHA 40 EXTERNAL
40 mm extension, 31,8 mmHandlebar
RIDE ALPHA R20 POWER on S - RIDE ALPHA R27 POWER on M / L / XL
Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes

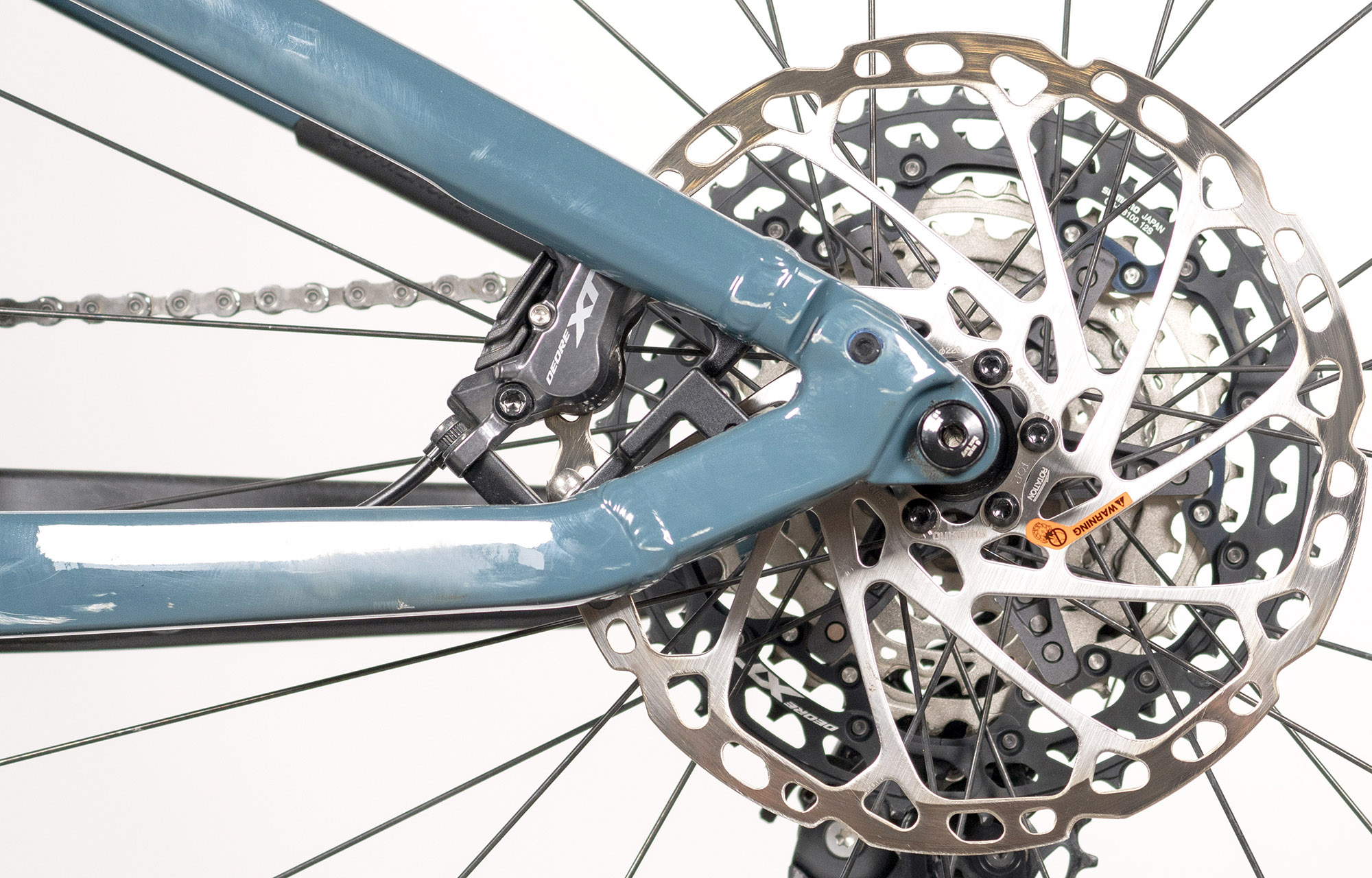

SHIMANO XT, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT66 220 mm, 6-boltShifters
SHIMANO Deore XT
12sChain guide
RIDE ALPHA Upper Guide
32-34tREAR DERAILLEUR
SHIMANO Deore XT
12sBottom bracket
BOSCH
Crankset
E13 E*Spec Plus Bosch CX, 160 mm crank arms
Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mountChain
SHIMANO SLX
12sCassette
SHIMANO Deore XT
12s, 10-51tRims
Rear: DT SWISS HX1700 Spline - Front: DT SWISS HX1700 Spline
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, blackHubs
Rear: DT SWISS 350 - Front: DT SWISS 350
Rear: 28h, 12 x 148 mm, sealed bearings, 24t, e-bike specific, SRAM XD - Front: 28h, 15 x 110 mm, sealed bearingsSpokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with Nylok, blackTyres
Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary
Rear: 29" x 2.4", Super Trail, Addix SpeedGrip, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless EasySeat post
KS Lev Integra
31.6 mm, travel: 125 mm on S, 175 mm on M/L, 200 mm on XL, SouthPaw alloy remoteSaddle
FIZIK Terra Aidon X3
145 mm width, Kium Mobius railsWeight
23.8 kg / 52.47 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
Yes
Colour
Aqua Blue
Shiny FinishAccessories
RIDE ALPHA CNC pedals, motor protector, chainstay protector, seatstay protector, user manual
*Actual product may differ from pictures.
*Please note that bike specs are subject to change without prior notice.Battery recycling
Partnership with BOSCH
The battery (used up, damaged, defective) must be recycled. Each national distributor is responsible for providing the dealer with a free recycling solution.
Applicable laws: Battery Act, Directive 2006/66/EC, BattG in Germany too.
Robert Bosch GmbH recommends concluding a contract with a national service provider for returning batteries in each case.
Bike specifications are subject to change without notice.
Our kinematics are the result of advanced engineering for optimal working harmony of front and rear suspension with our bikes.
This guide is aimed to help understand exactly how things work and set everything up so that your COMMENCAL functions in the best way.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
Geometry
Geometry
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
