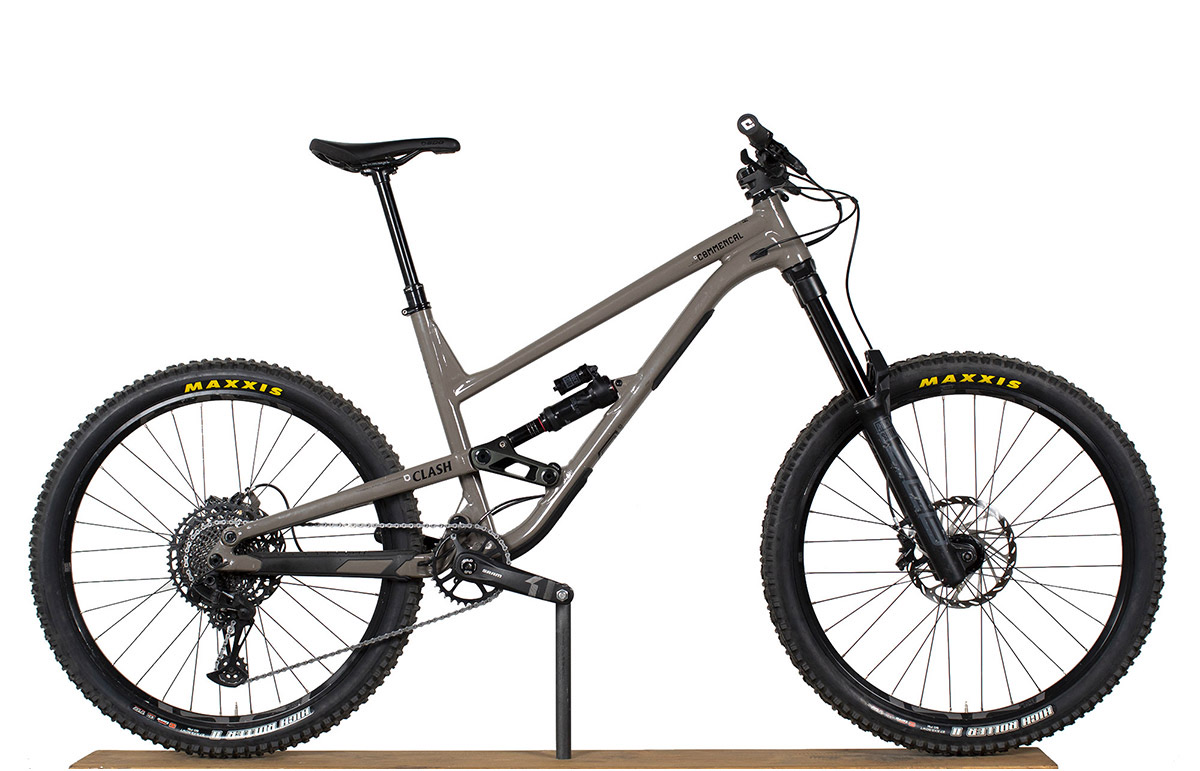

Frame
2022 CLASH, 170 mm travel
27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
Shock
ROCKSHOX Super Deluxe Select
230 x 65 mm, rebound, 3 Tokens

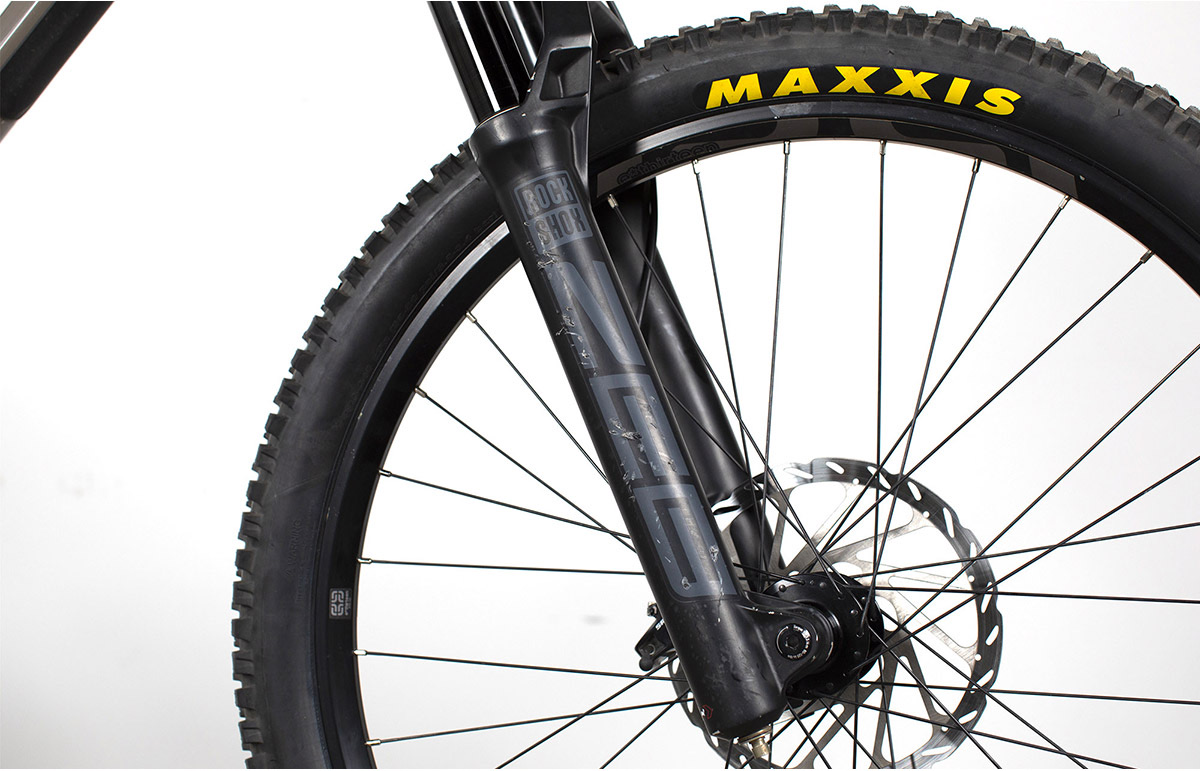

Fork
ROCKSHOX Zeb, 180 mm travel
27.5", Charger damper, Debonair, rebound, Boost (15 x 110 mm), 38 mm offset, 0 Token
Headset
ACROS ZS44/ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 40
40 mm extension, 31.8 mm

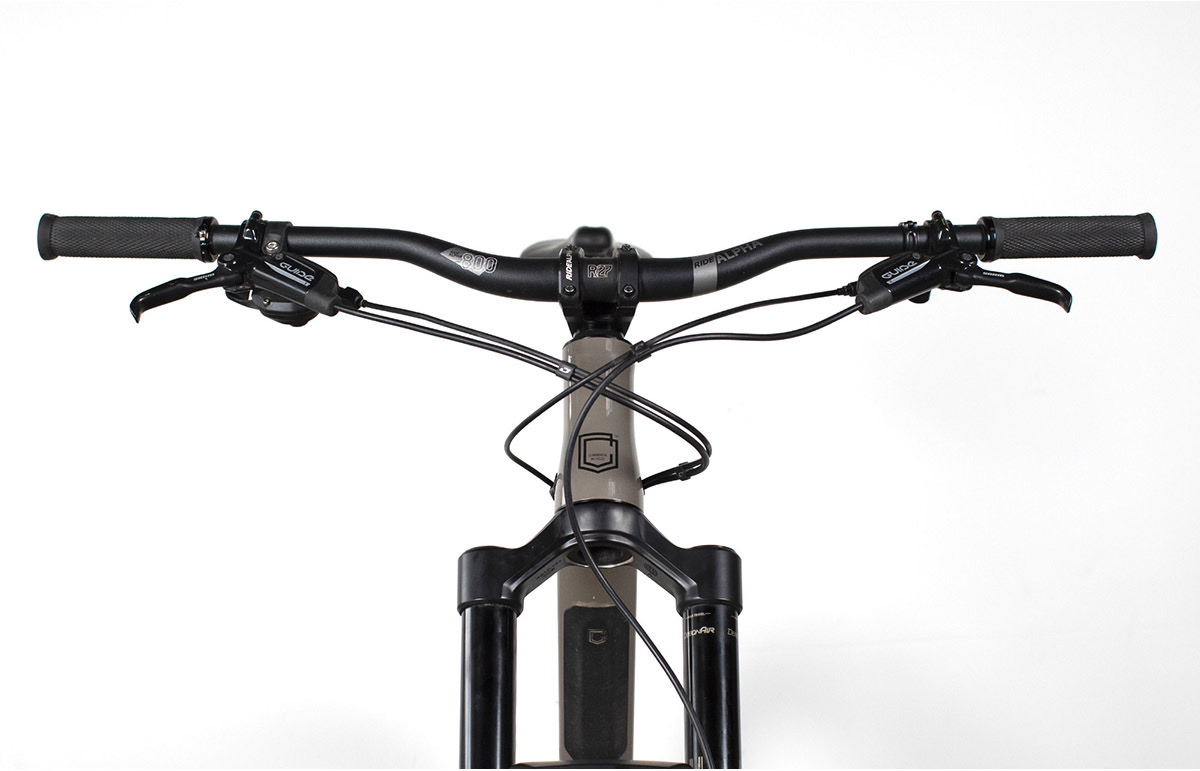

Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Elite Motion
Soft pro compound, single clamp, black
Brakes
SRAM Guide T, 4 pistons, MatchMaker compatible
Rotor: SRAM G2 CleanSweep 200 mm, 6-bolt
Shifters
SRAM SX Eagle
12s
REAR DERAILLEUR
SRAM SX Eagle
12s
Bottom bracket
SRAM DUB
Pressfit

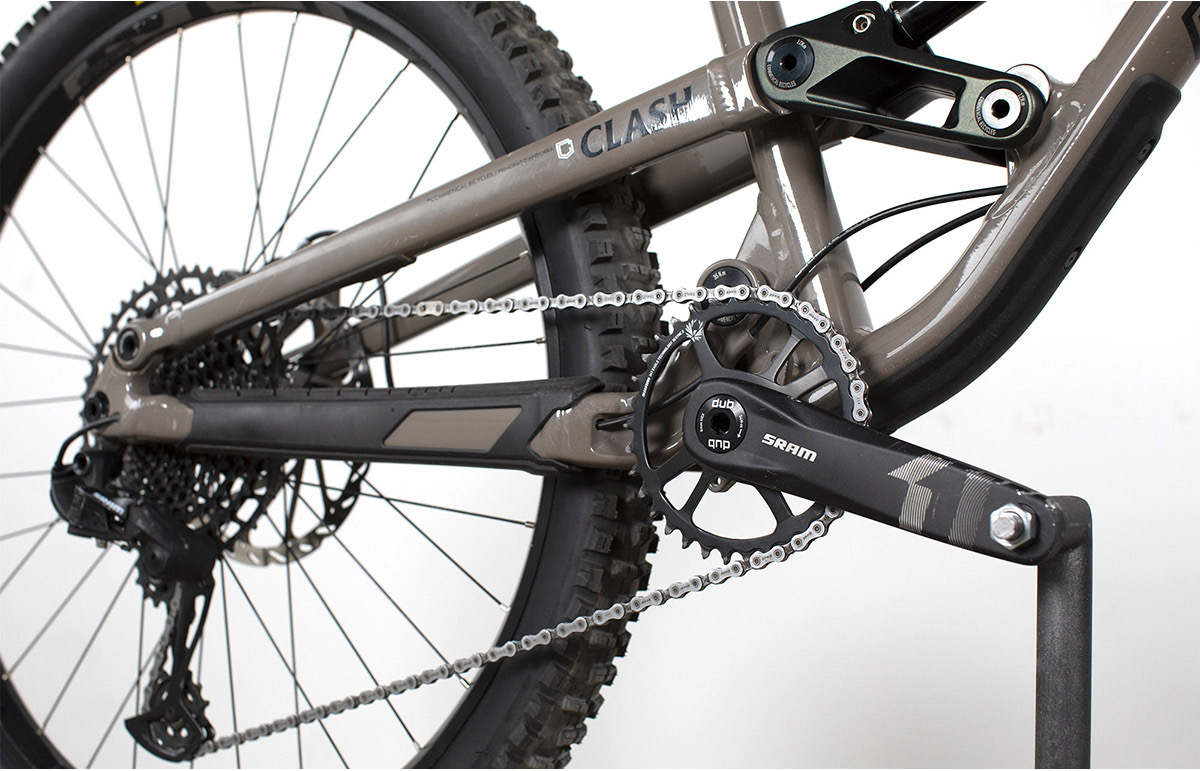

Crankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 34t, Narrow-Wide
Chain
SRAM NX Eagle
12s
Cassette
SRAM PG-1210
12s, 11-50t
Rims
E13 LG1 DH Base
27.5'', 32h, 30 mm inner width
Hubs
Rear: FORMULA DC-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings - Front: 32h, sealed bearings
Spokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
Tyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5" x 2.4", WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 27.5" x 2.5", WT, 3C MaxxGrip, EXO+, Tubeless Ready
Seat post
KS Rage-I
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote
Saddle
SDG Bel Air V3
Steel Rails
Weight
16,1 kg / 35.49 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
Dirt
Shiny Finish
Accessories
Down tube protector, chainstay protector, seatstay protector, shuttle pad
