This bike has been ridden and shows signs of wear, scratches and paint chips, mainly on the chainstay, seatstay.
However, it should be noted that these cosmetic defects do not in any way affect its performance or smooth running.
- THE WORKSHOP NOTE -
-Frame has cosmetic damage, parts are in good shape.
Please note that this bike is guaranteed as new!
Enjoy!
Our second-hand bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and refurbished, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our second-hand bikes come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our second-hand bikes and our new bikes are scratches and paint chips caused by normal use.
Don't hesitate to contact us for more details.
Bicycle type
ENDURO - DH KIDS 24
Frame material
AL-6061 + AL-6066
Frame weight
2,9 kg / 6.39 lb
Rear travel
150 mm
Shock length/stroke
210 x 50 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 8 mm Front, 20 x 10 mm Rear
Recommended/max. fork height
500 mm - 510 mm
Headset dimension
ZS44 / ZS56
Headset type
ZS44 / ZS56
Maximum tyre dimension (etrto)
65 - 507
Disc brake standard
Post Mount 180 mm
Rear rotor max. size
200 mm
Seatpost/seat clamp diameter
31,6 mm - 34,9 mm
Bottom bracket type
BSA 68 mm
ISCG
ISCG05
Rear hub compatibility
12 x 148 mm
Frame
2021 CLASH 24, 145 mm travel
24, Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

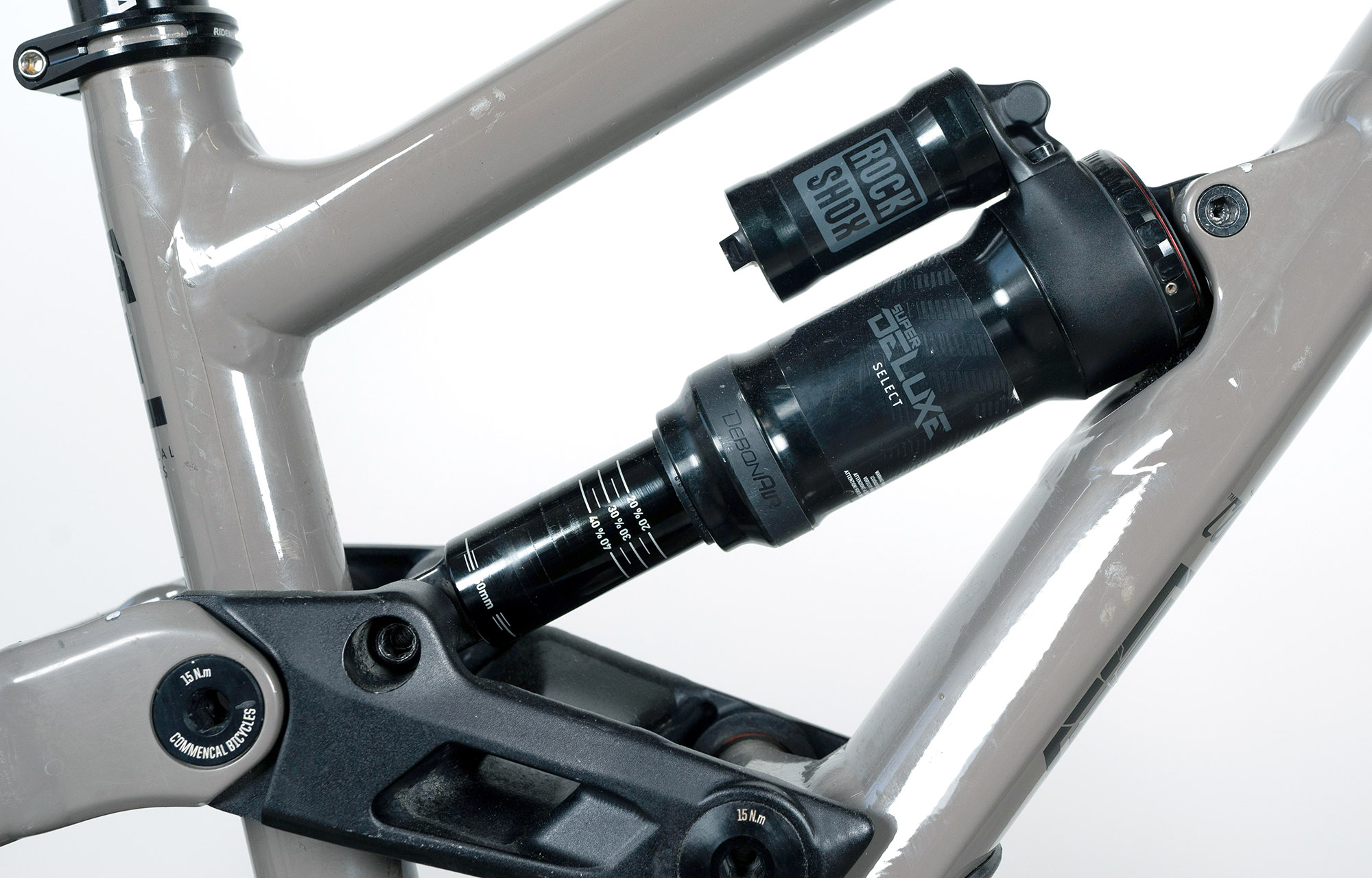

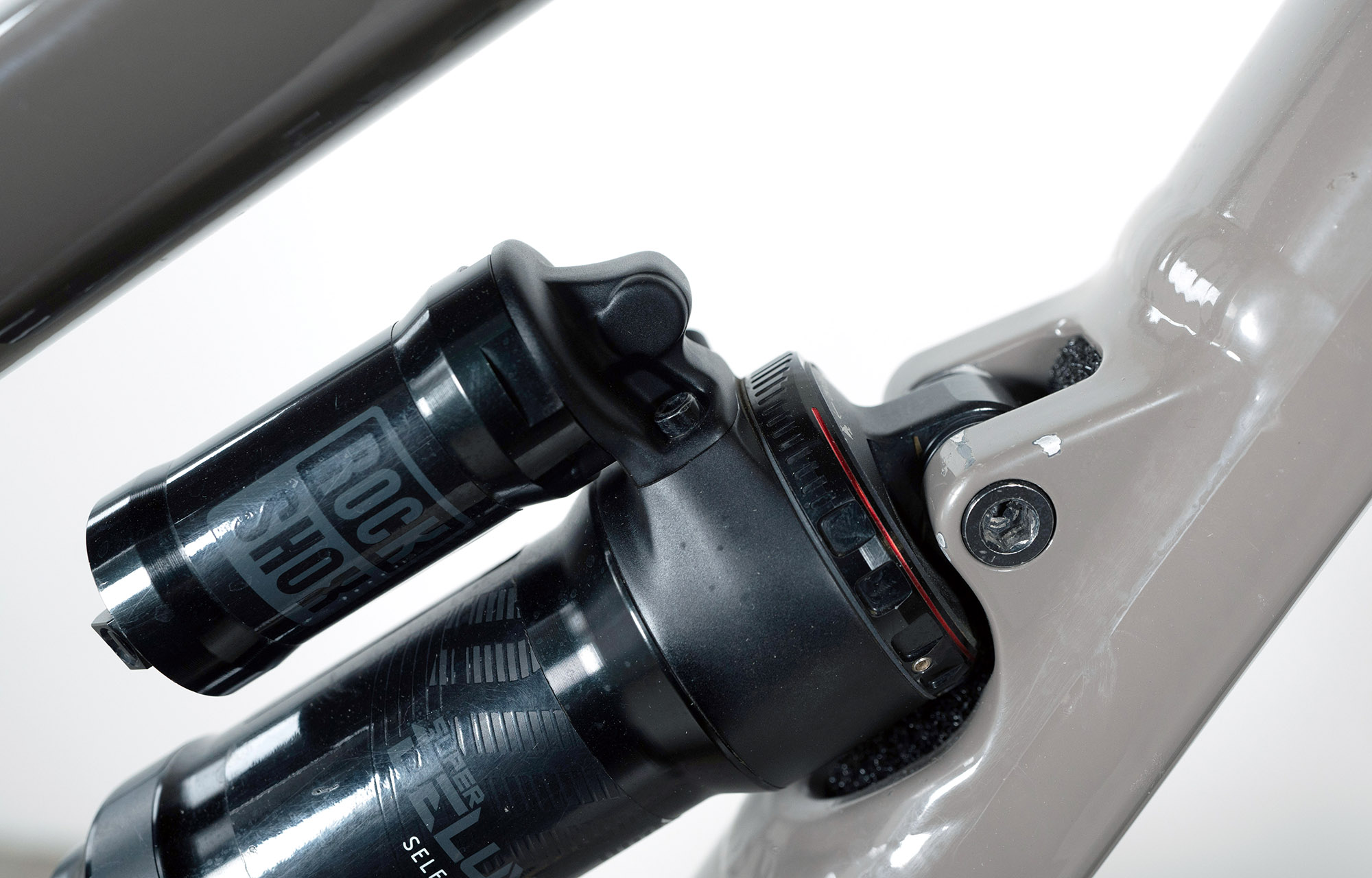

Shock
ROCKSHOX Deluxe Select
210 x 50 mm, rebound

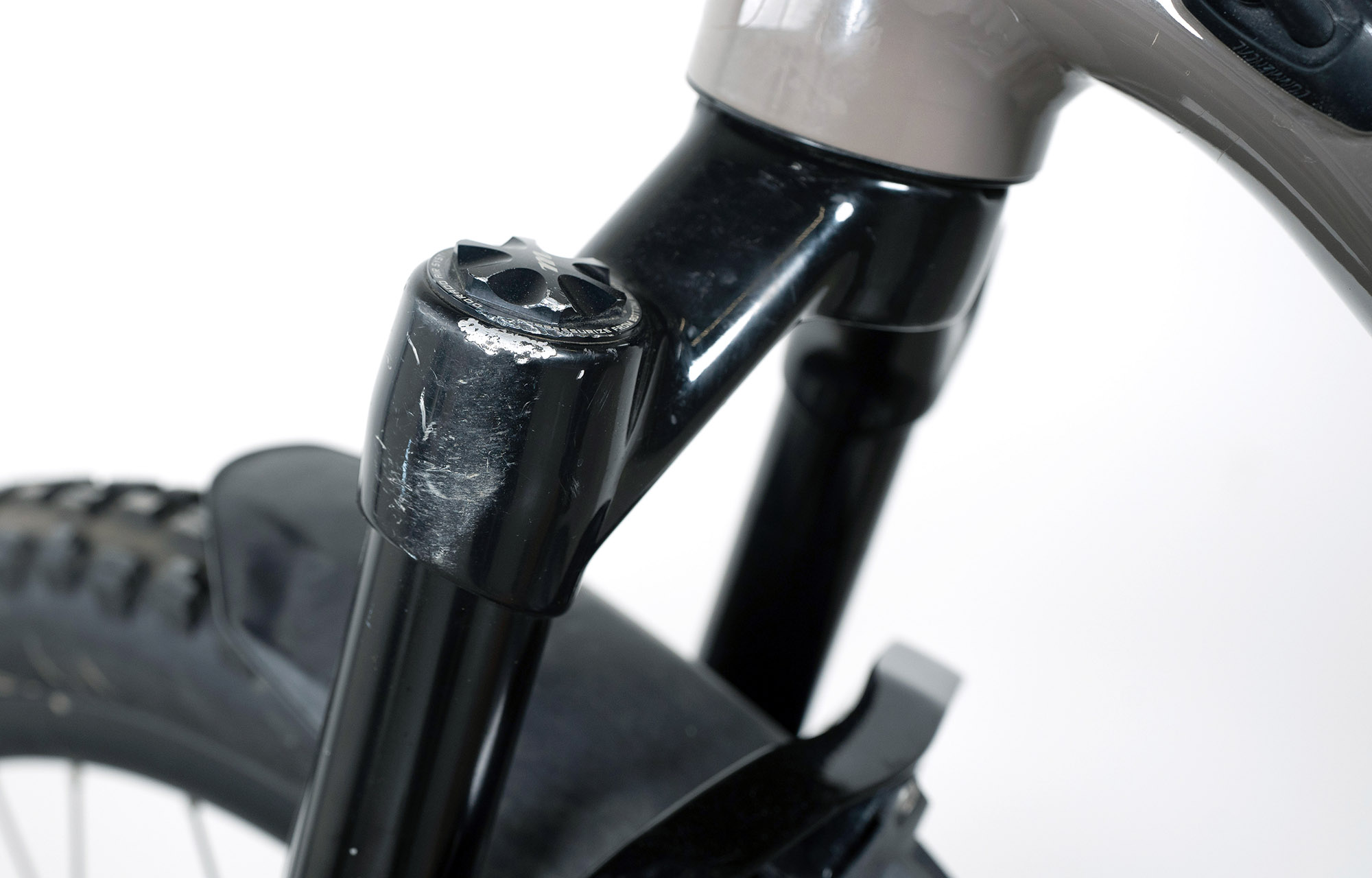

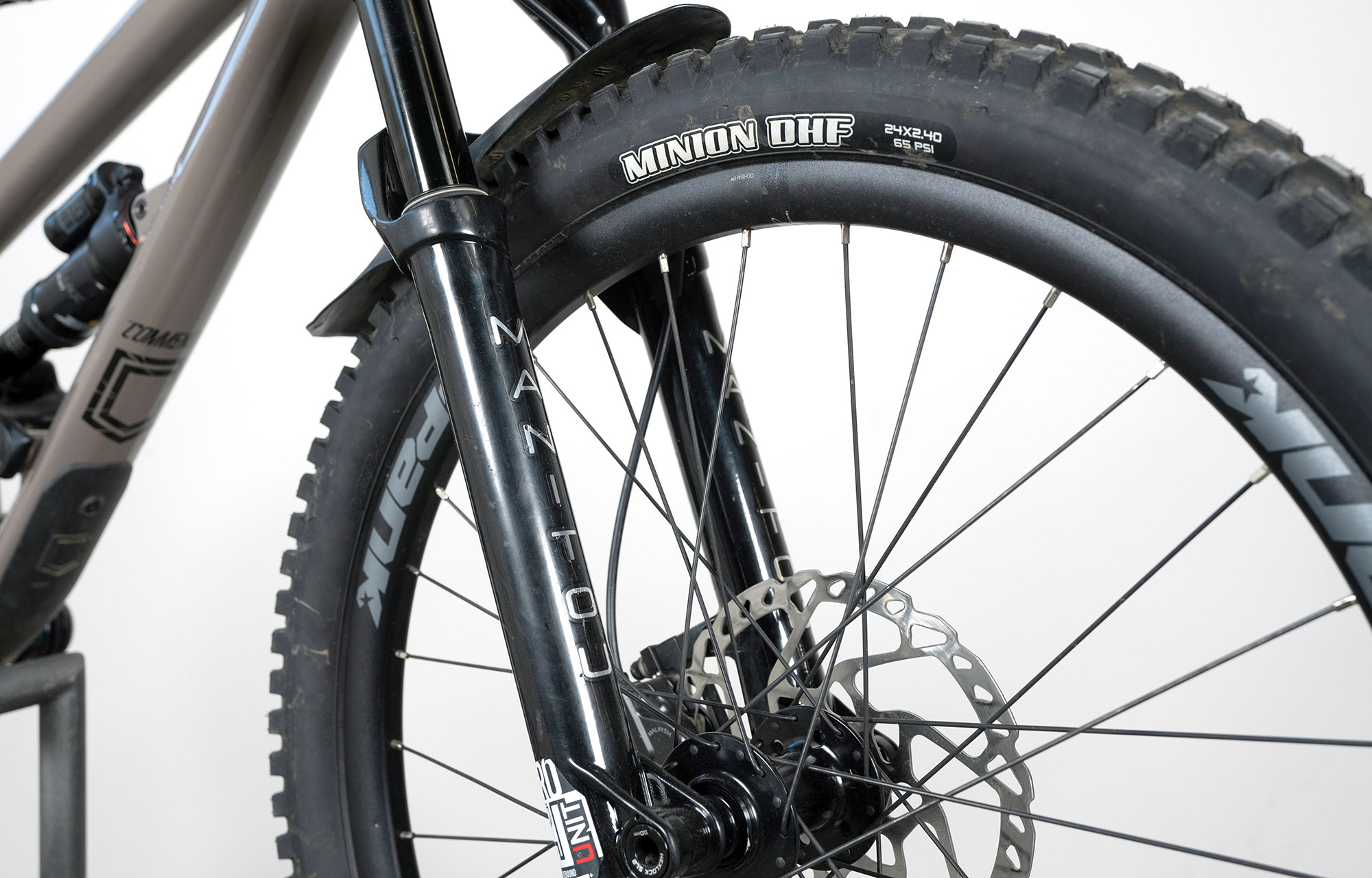

Fork
MANITOU Machete Junit Pro, 145 mm travel
24, kids specific air cartridge, rebound, compression. Custom tuned for Commencal Bicycles. Boost (15 x 110 mm)
Headset
ACROS ZS44 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mm

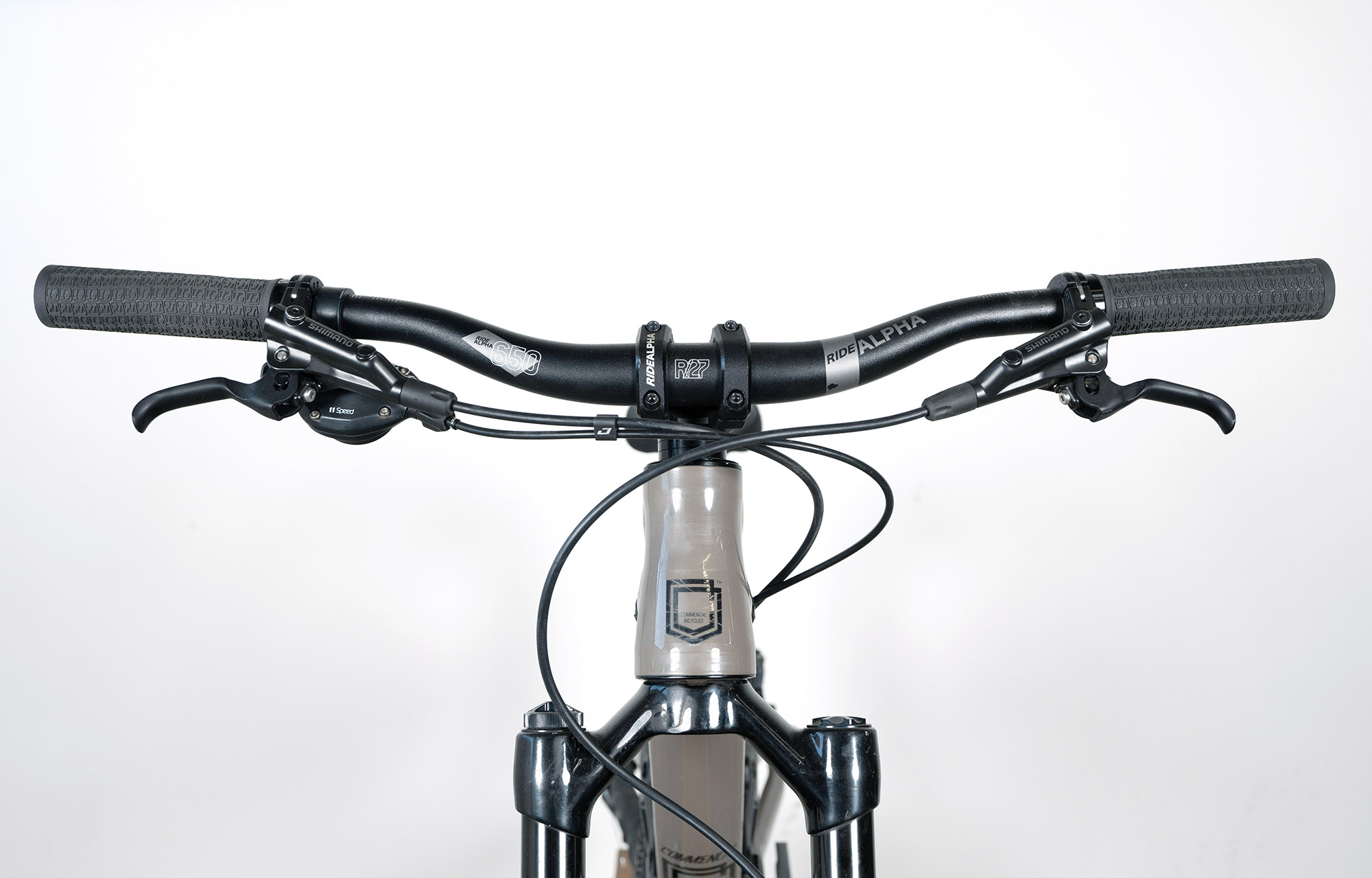

Handlebar
PROTAPER Junit Rizer bar
31,8 mm, 600 mm width, 25 mm rise, Alloy 7050-T76, Stealth
Grips
PROTAPER Junit 27 mm
Kids specific 27 mm diameter

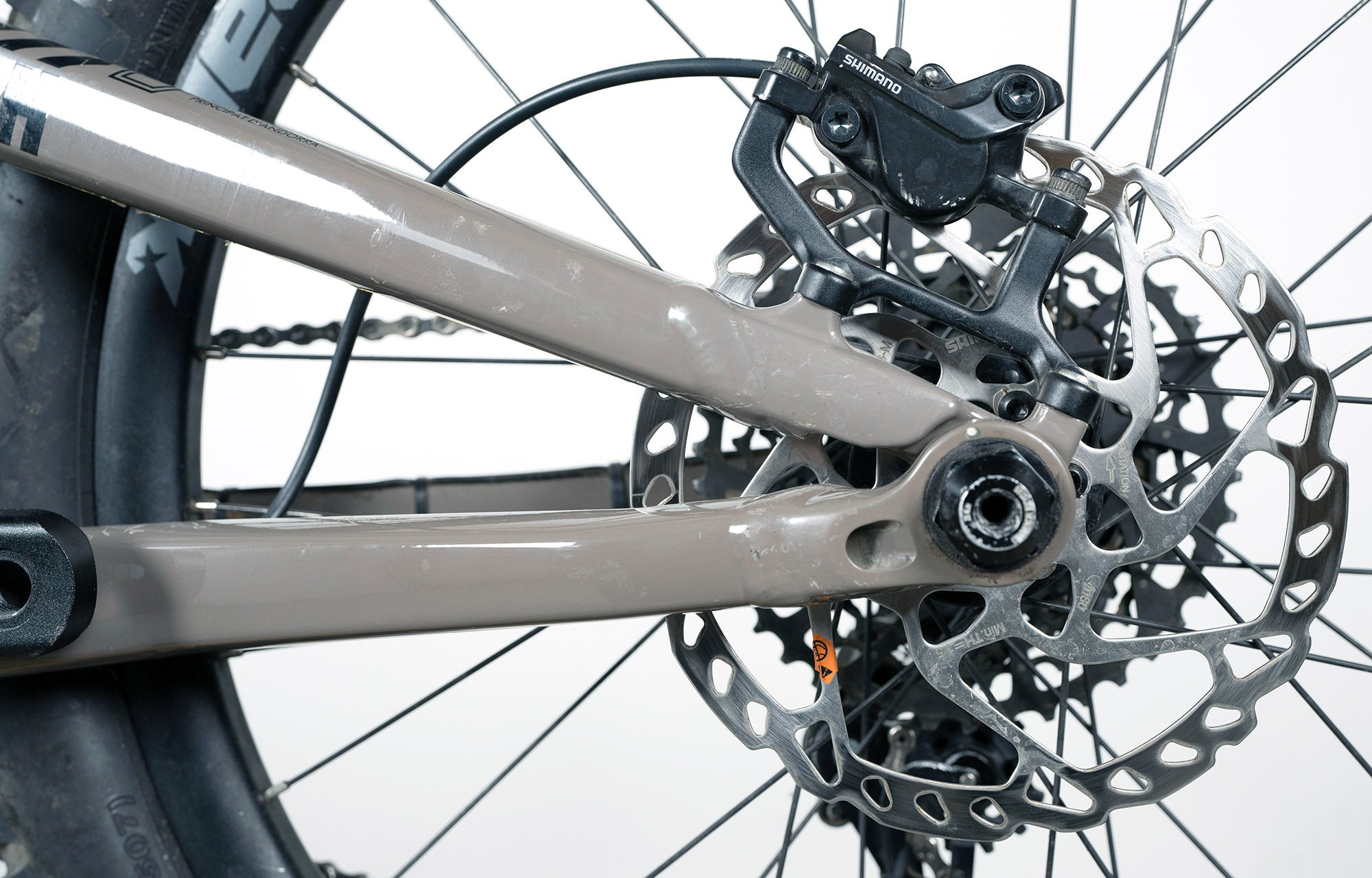

Brakes
SHIMANO MT501, Servo Wave, I-Spec compatible, resin pads
Rotors: SHIMANO SM-RT66 180 mm, 6-bolt
Shifters
SRAM NX
11s
REAR DERAILLEUR
SRAM NX
11s
Bottom bracket
AEROZINE BSA 30
Threaded

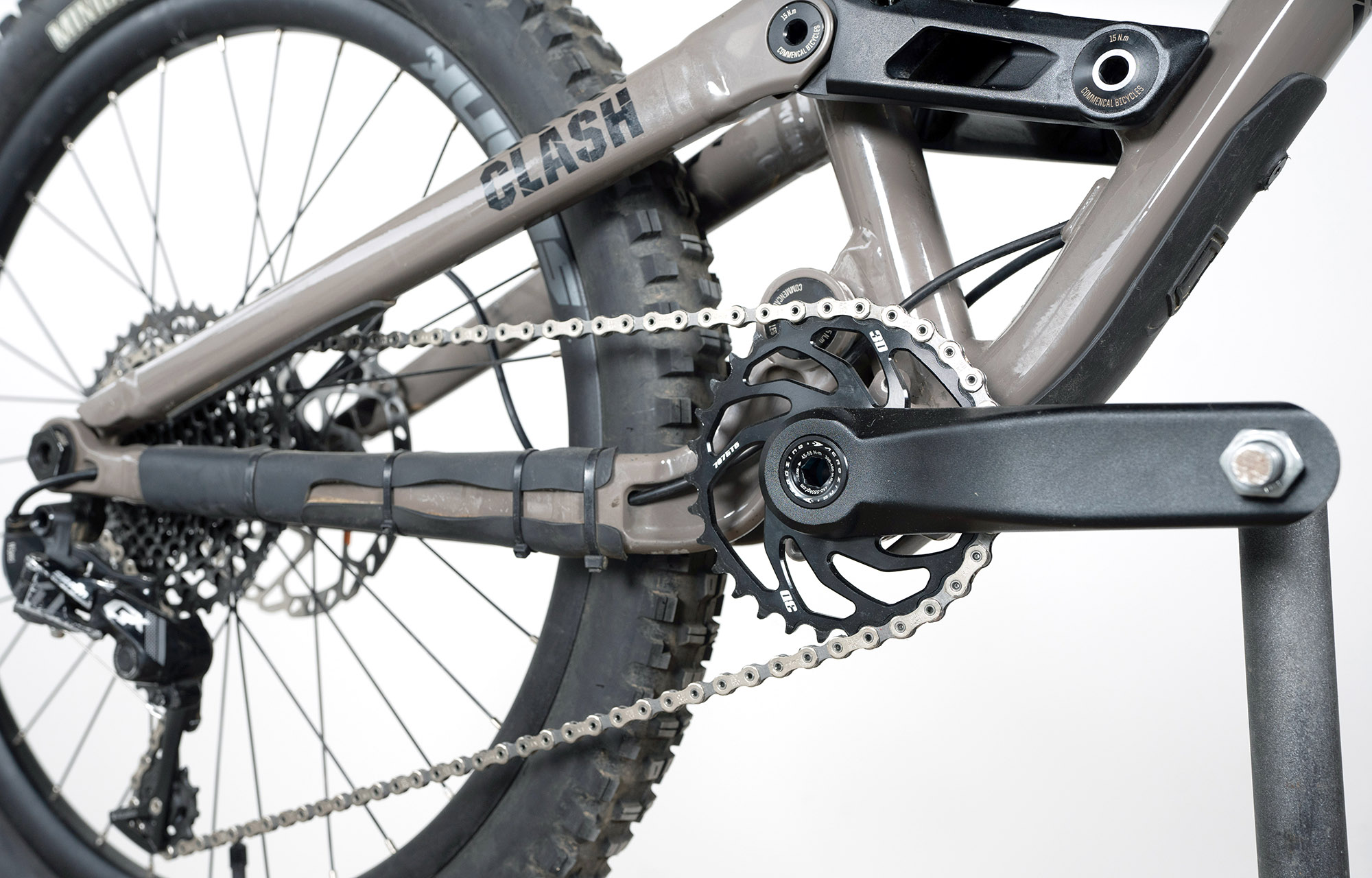

Crankset
AEROZINE Xeon-A1, 145 mm crank arms, 30 mm axle, 7075 alloy
Chainring: AEROZINE Direct Mount 32t, Narrow-Wide, full CNC
Chain
KMC X11
11s
Cassette
SRAM PG-1030
11-42t
Rims
SPANK Spoon 28
24, 32h, 23 mm inner width
Hubs
Rear: FORMULA DC-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings - Front: 32h, sealed bearings
Spokes/nipples
SAPIM Leader
J-Bend 2,0 mm, stainless, with Nylok, black
Tyres
Rear: MINION DHR II 24 - Front: MINION DHF 24
Rear: 24X2.30 FOLDABLE Clincher M327P no tubeless - Front: 24X2.40 FOLDABLE Clincher M301P no tubeless
Seat post
KS Rage-I
31,6 mm, 75 mm travel, SouthPaw alloy remote
Saddle
SDG Fly Jr
Kids specific, reinforced sides
Weight
13,9 kg / 30.64 lb
Without pedals. Weight may differ slightly due to manufacturing tolerances
Pedals included
Yes
Colour
Dirt
Shiny finish
Accessories
RIDE ALPHA CNC medium pedals, down tube protector, chainstay protector, seatstay protector
