Our refurbished bikes come from our demo fleets, test fleets and returns for shipping damage.
We perform a thorough check of each bike and replace all wearing and damaged parts.
While they may have cosmetic imperfections, our refurbished bikes are ready to ride.
These bikes are final sale but come with a full warranty.
- GENERAL DESCRITPION -
Frame is used, in great working condition.
Blemishes inspected and determined not to dimish the working quality of the frame.
- COSMETIC DESCRIPTION -
Small chips and scratches, will not affect performance of the frame
- MECHANICAL DESCRITPION -
None.
Don’t hesitate to contact us for more details.

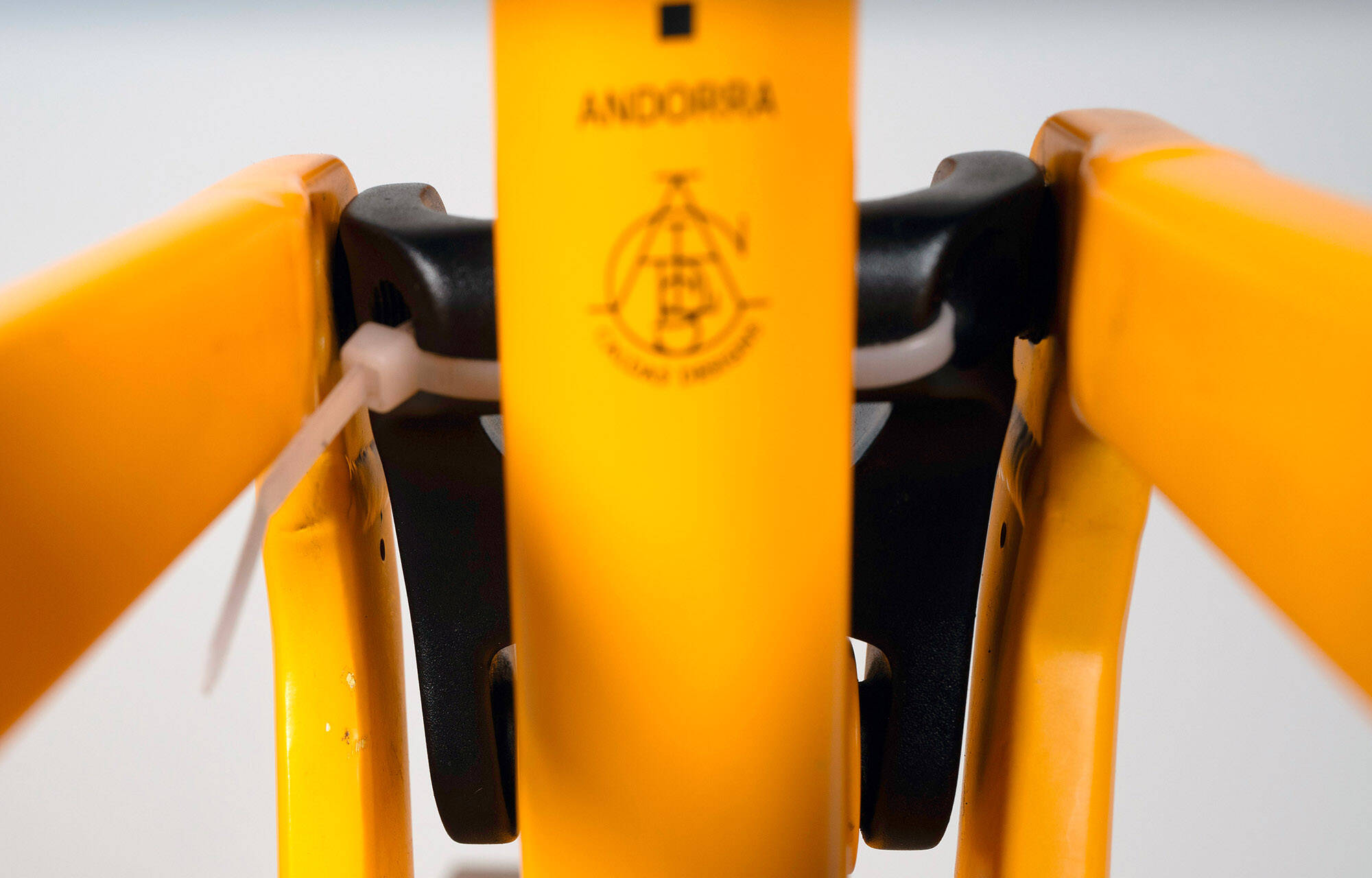

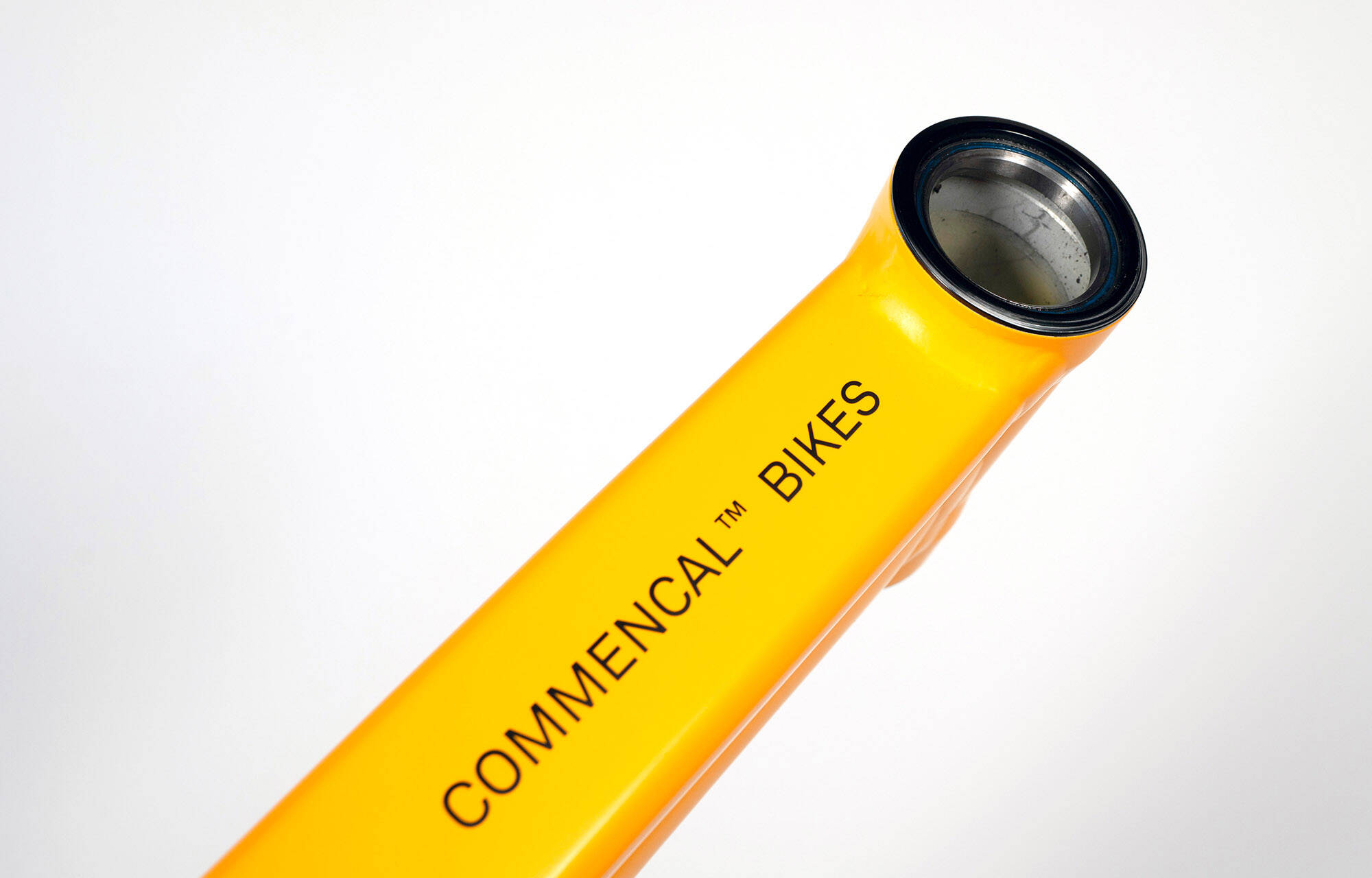

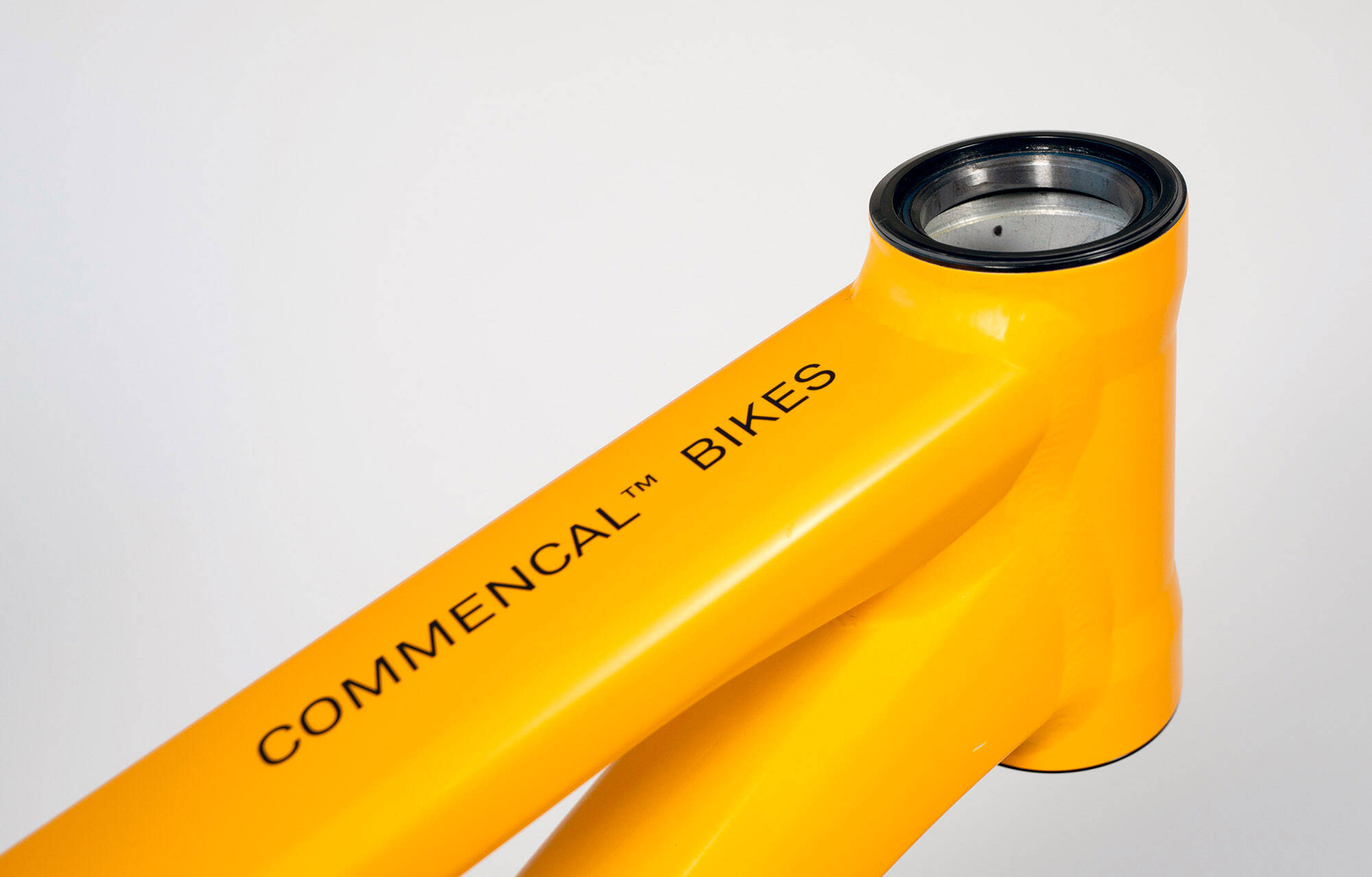

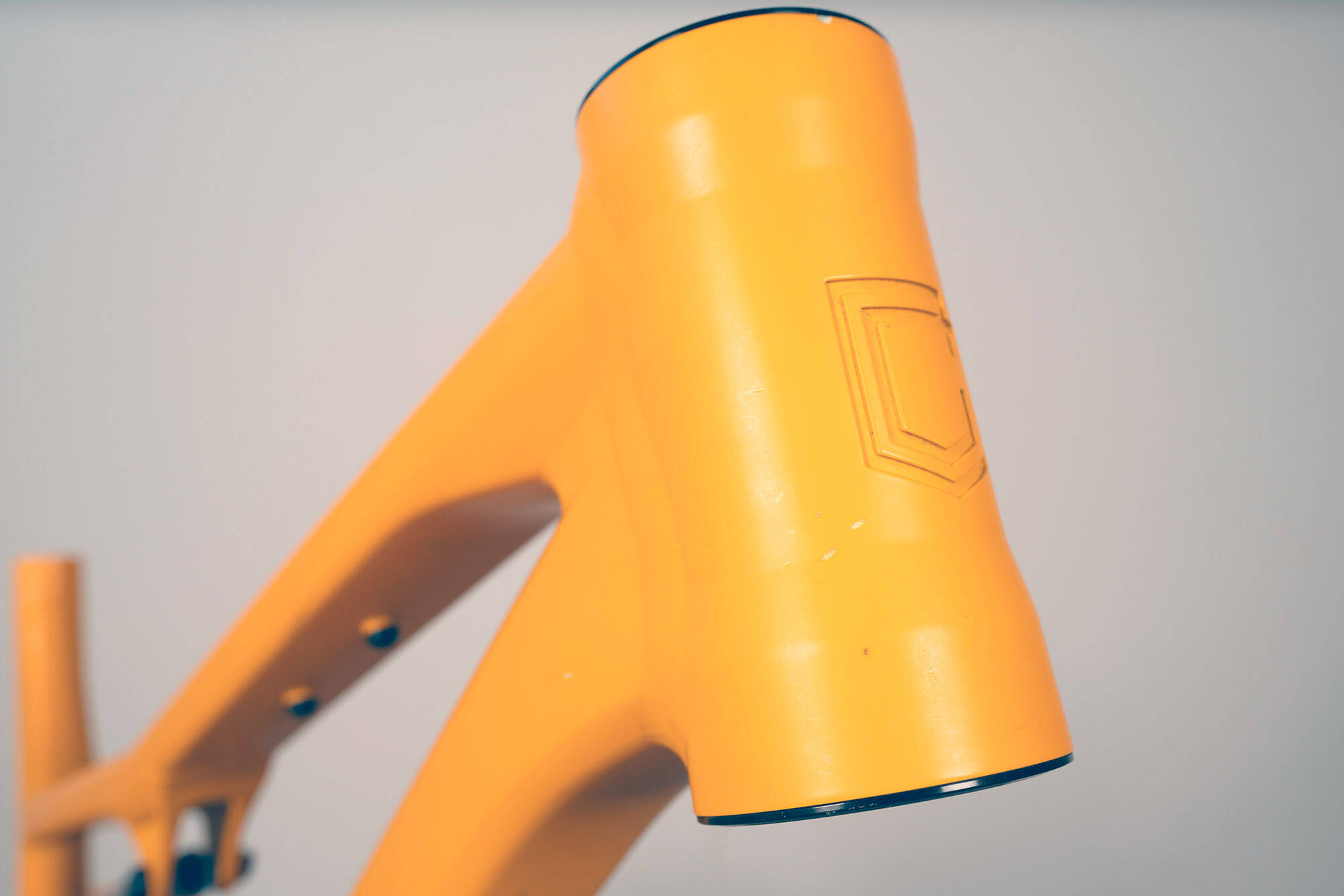

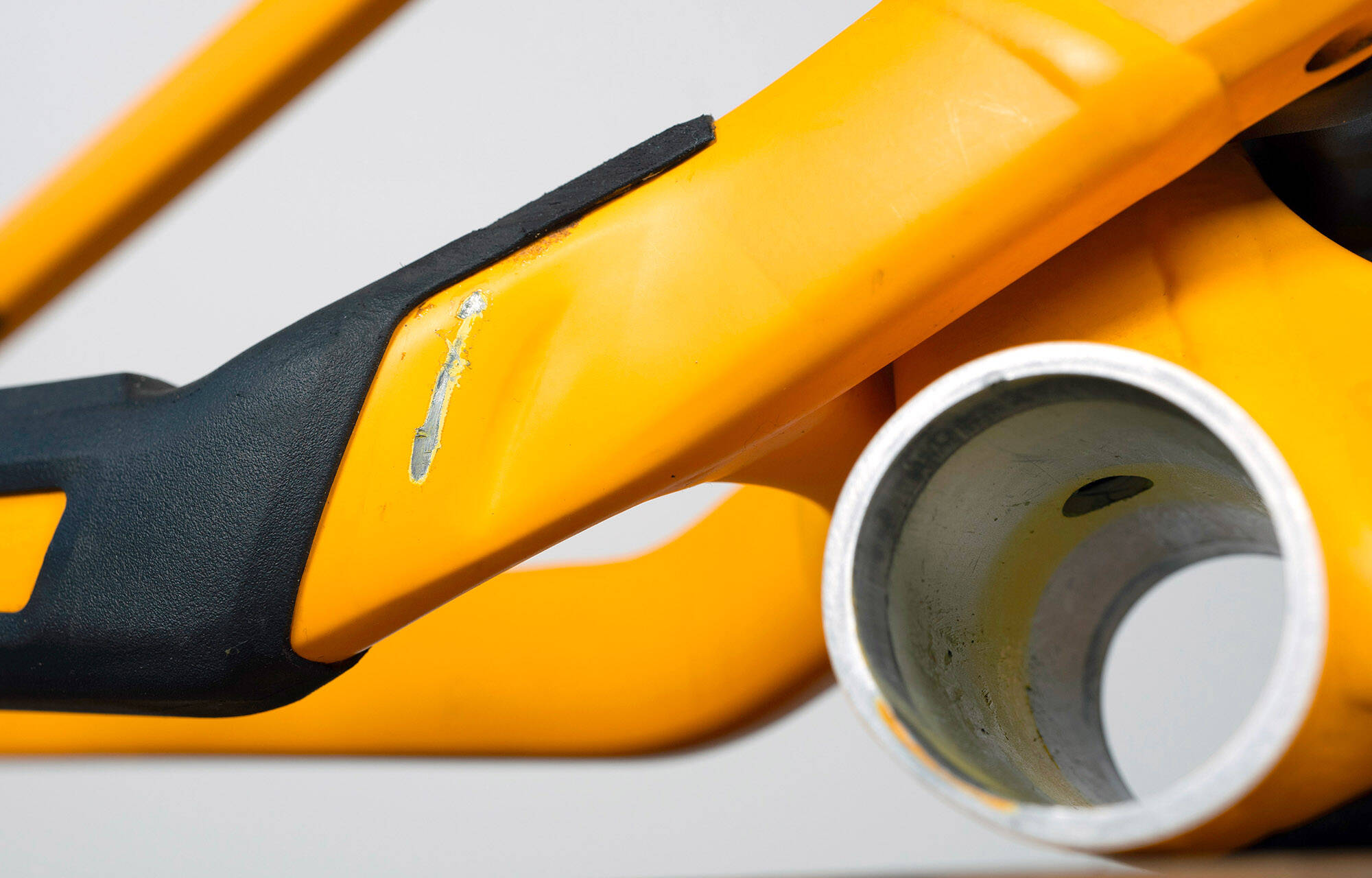

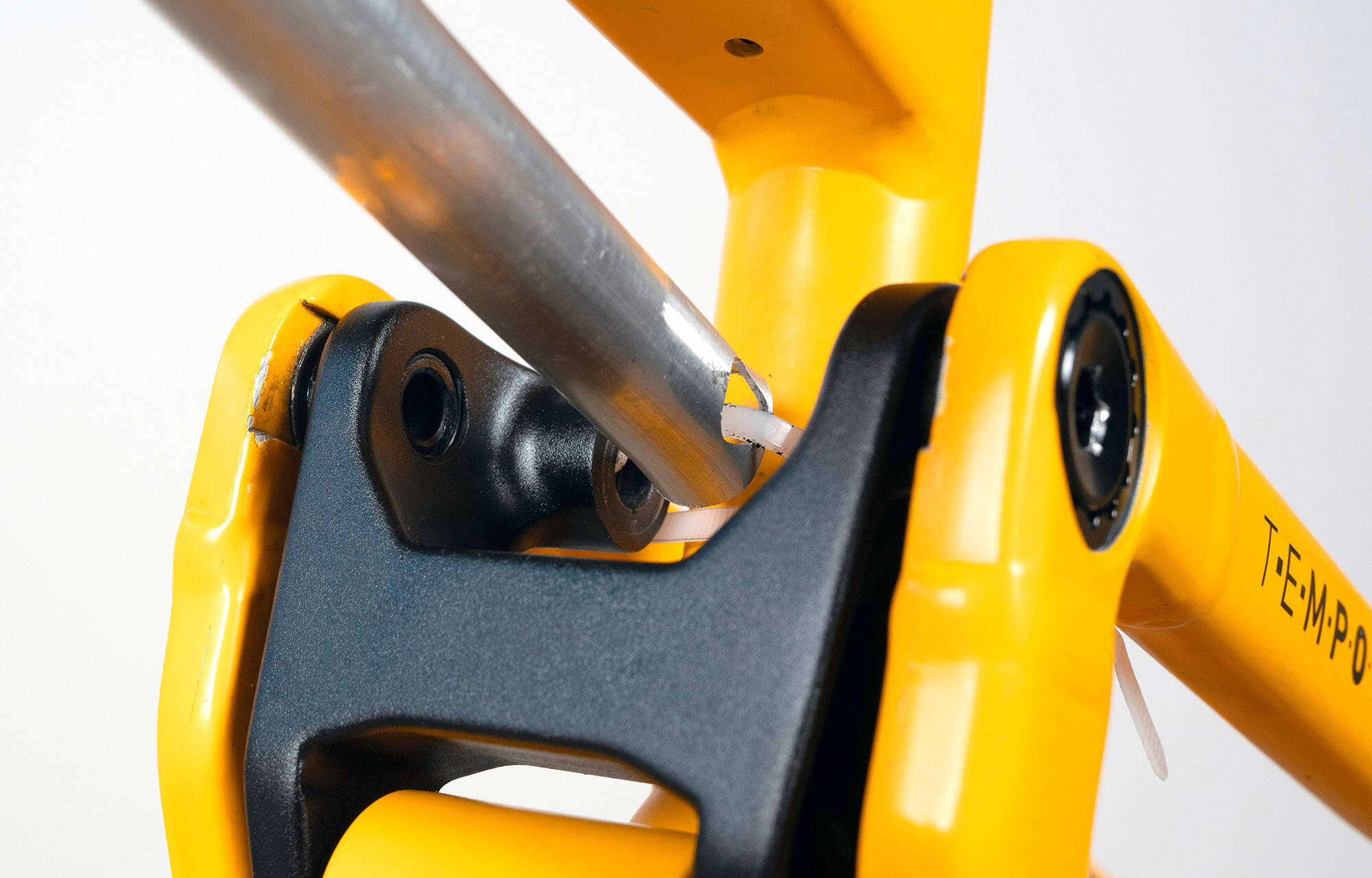

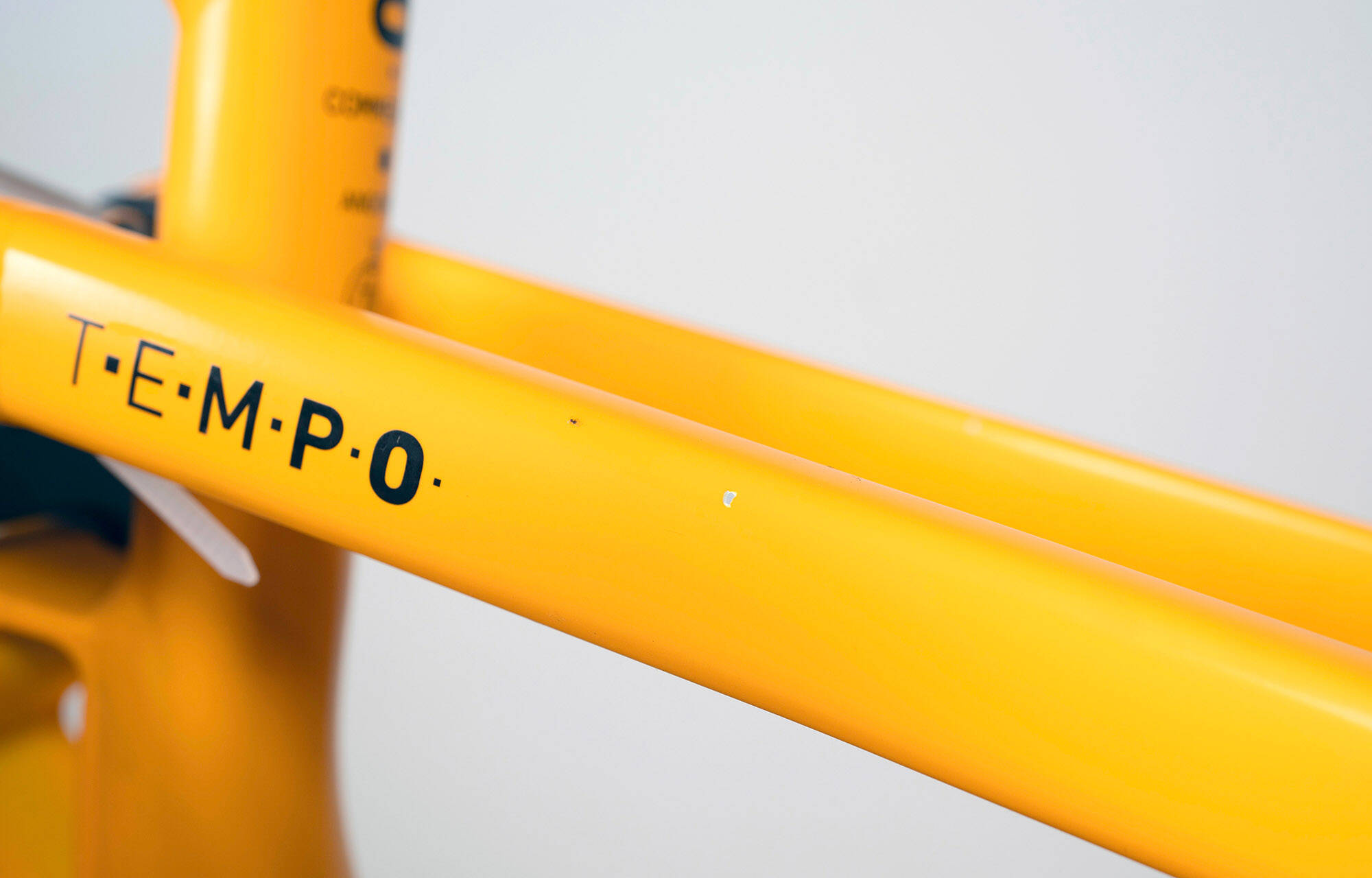

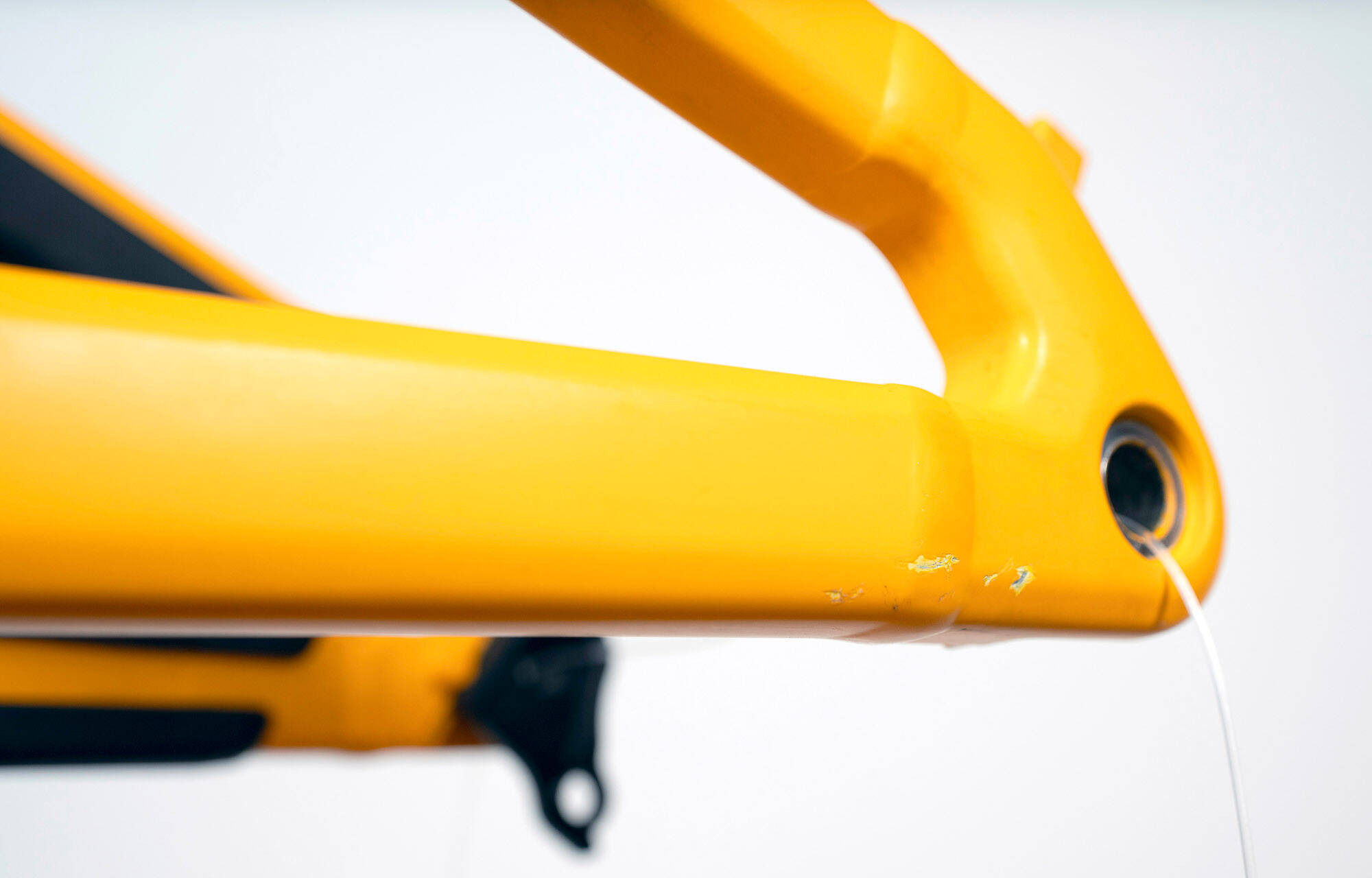

Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
Technical informations
Technical informations
-
Bicycle type
Trail
-
Frame material
AL 6069 T4, T6
-
Frame weight
3,44 kg / 7,58 lb
-
Rear travel
125mm
-
Shock length/stroke
210x50mm
-
Recommended SAG
28-30% / 14-15mm
-
Piggy back shock compatible
Yes
-
Shock bushings
20x10mm / 30x10mm
-
Recommended/max. fork height
551mm / 561mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
Yes
-
Wheels size
29’’ - 29’’
-
Max. rear tyre dimension - ETRTO
64mm - Ø622mm
-
rear brake mounting type
Postmount 180mm
-
Rear brake rotor max. size
200mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
S : 225mm / M : 265mm / L : 285mm / XL : 305mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
ISCG 05 lower - Custom upper guide
-
Recommended/max. chainring teeth
32T / 34T
-
Chain line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
UDH standard, 180mm, M12, P1.0mm
-
UDH hanger
Yes
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
