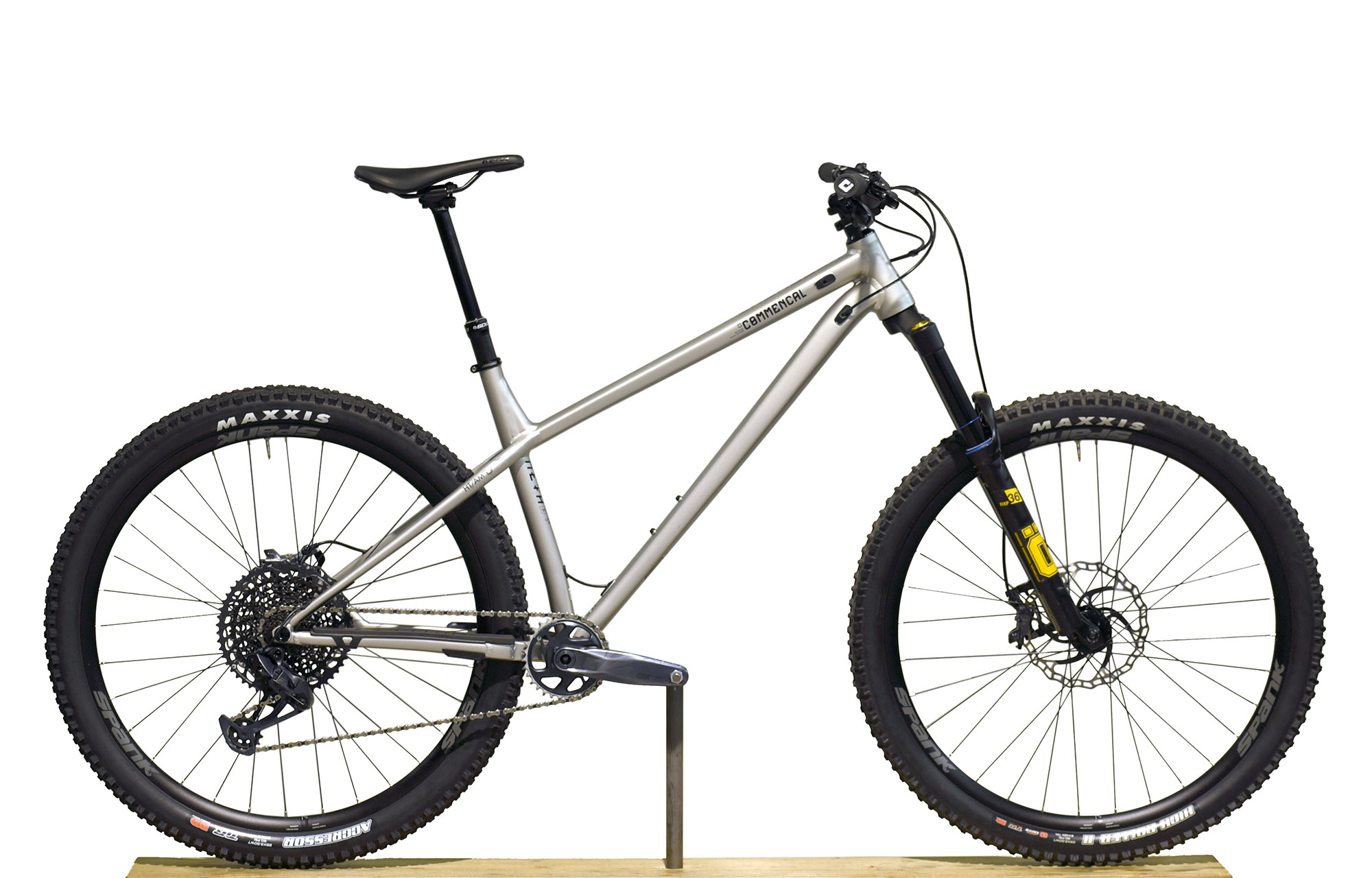

COMMENCAL META HT AM OHLINS EDITION SILVER - L (22131903)

Rahmen

2022 Meta HT AM - 29''/27'' on S / M & 29''/29'' on L / XL

Alloy 6061, triple butted tubes, T4, T6.

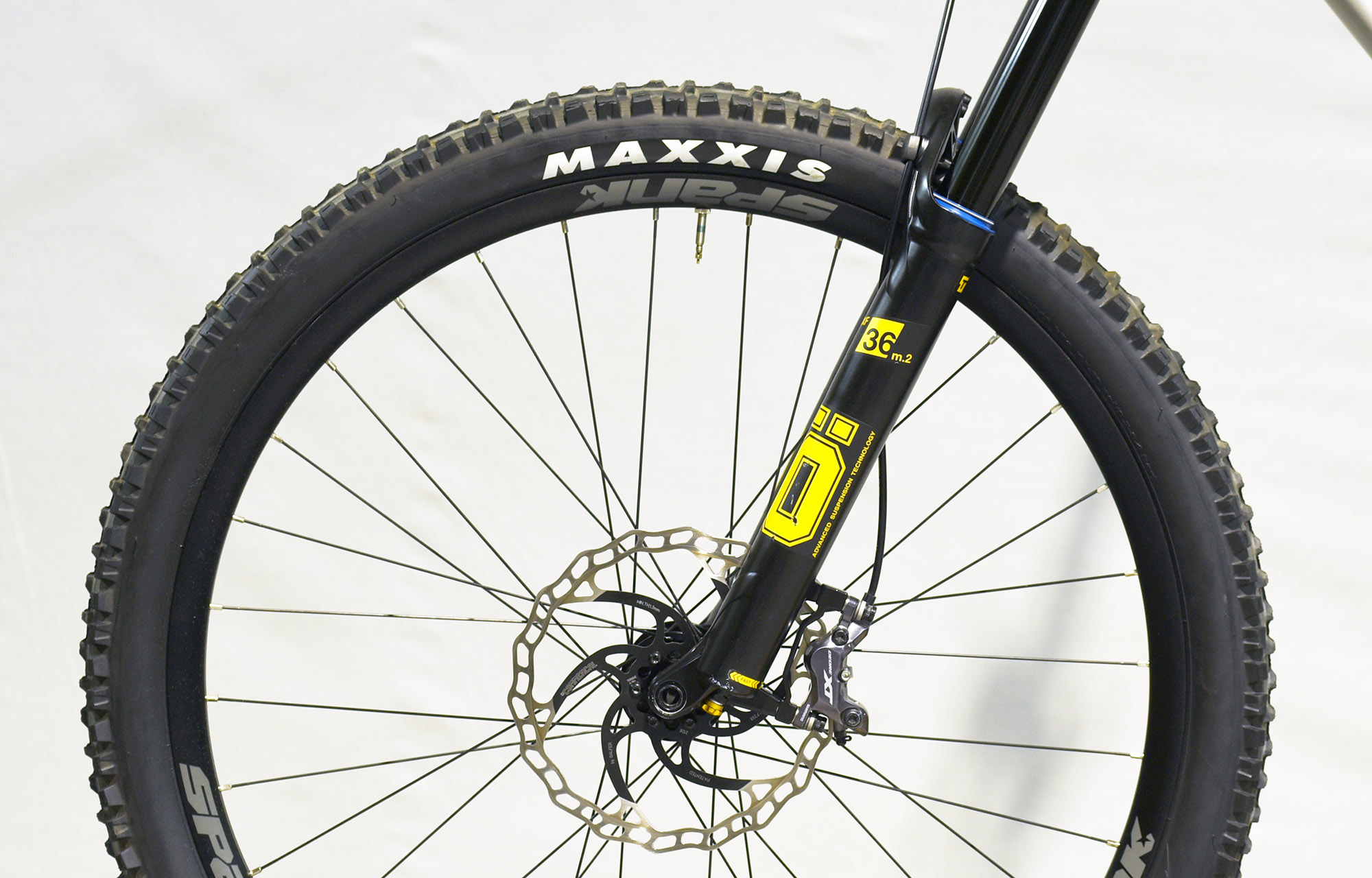

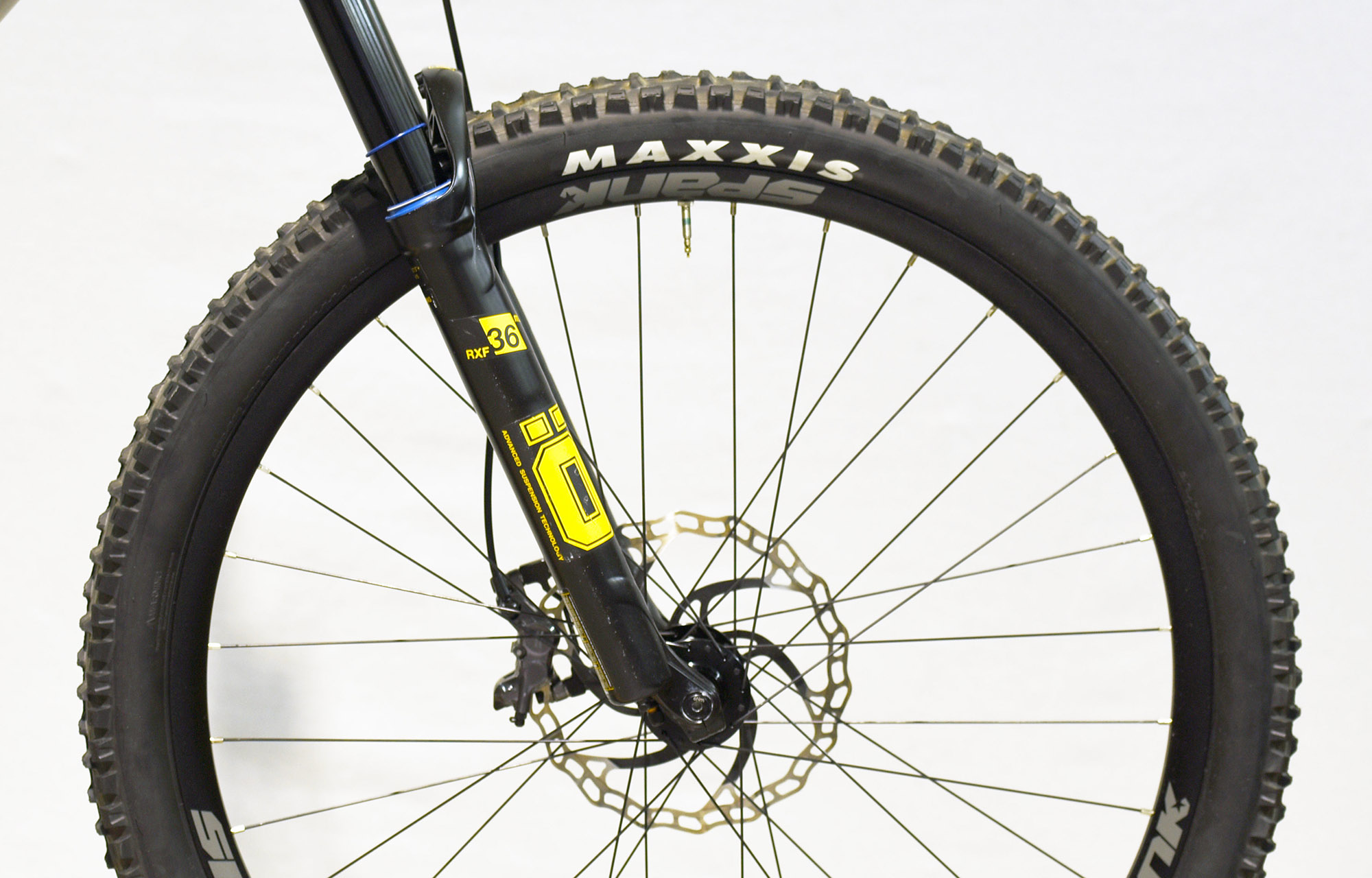

Gabel

OHLINS RXF36 m.2 Air, 150 mm travel

29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 44 mm offset

Steuersatz

ACROS ZS44 / ZS56

Alloy cups, sealed bearings

Vorbau

RIDE ALPHA Freeride 40

40 mm extension, 31,8 mm

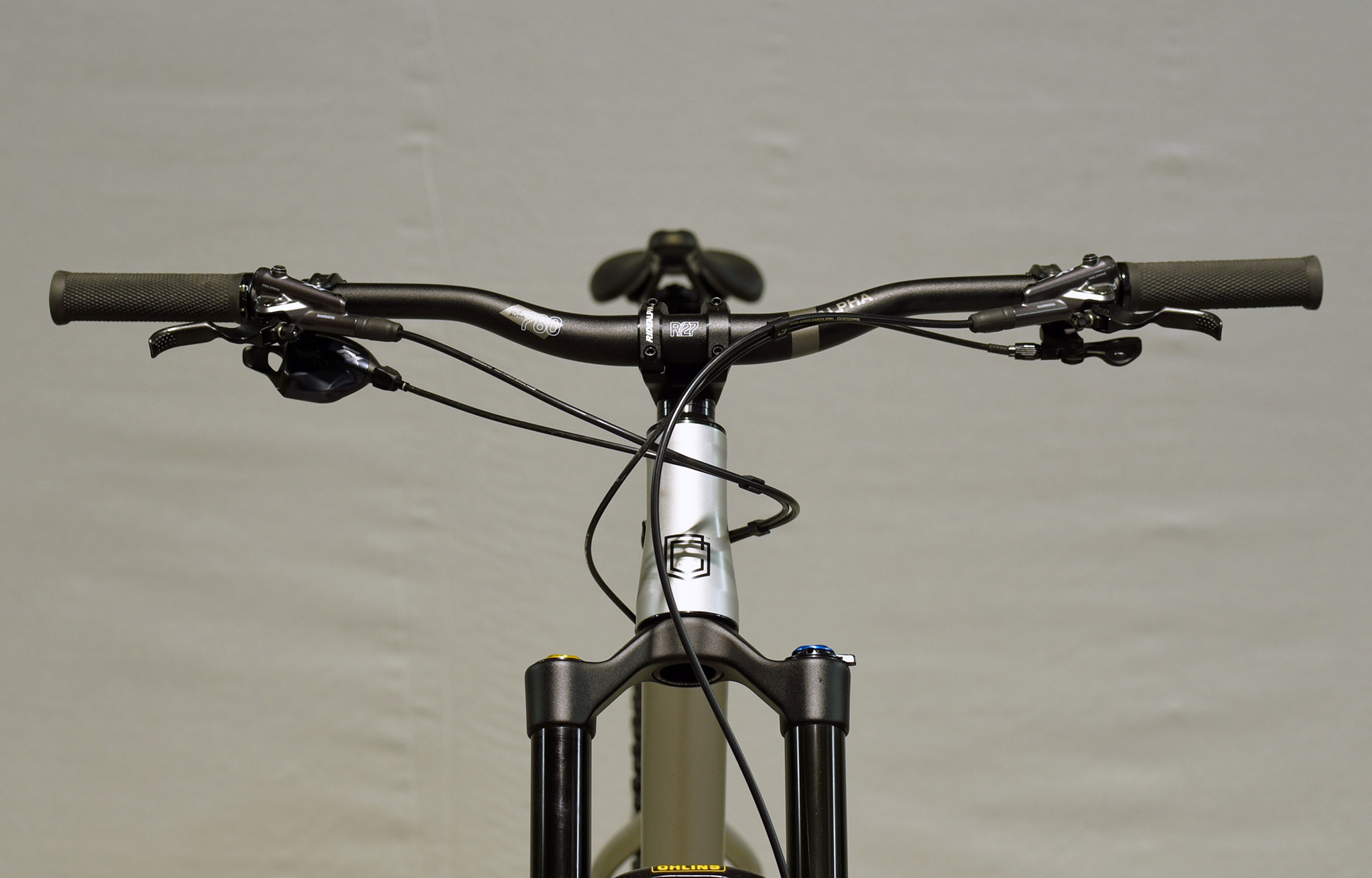

Lenker

RIDE ALPHA R20 on S - RIDE ALPHA R27 on M / L / XL

31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

Griffe

ODI Elite Motion

Soft pro compound, single clamp, black

Bremsen

SHIMANO XT, 4 pistons, I-Spec EV compatible

Rotors : SHIMANO SM-RT76 203 mm, 6-bolt

Schaltung

SRAM GX Eagle

12s

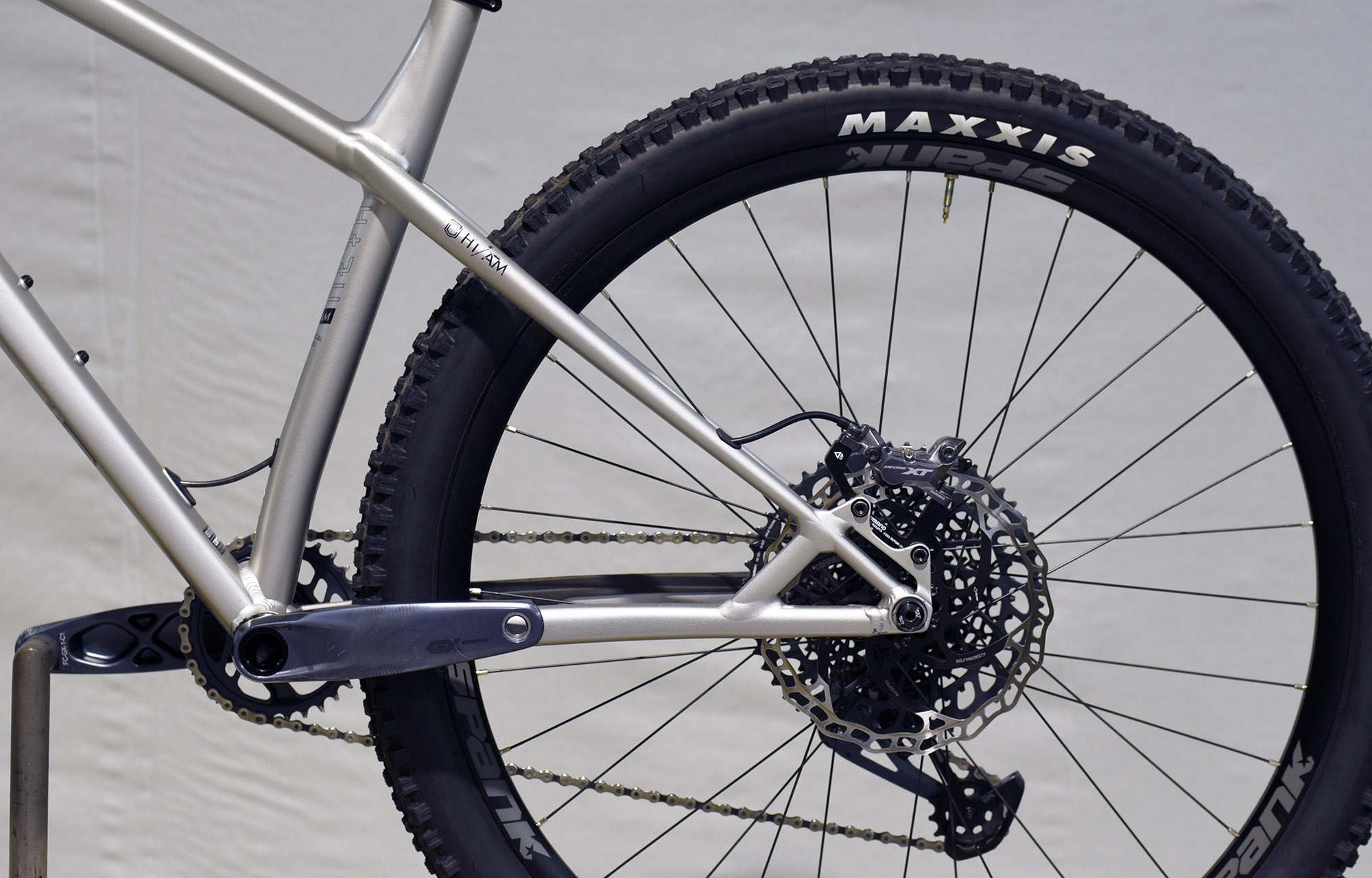

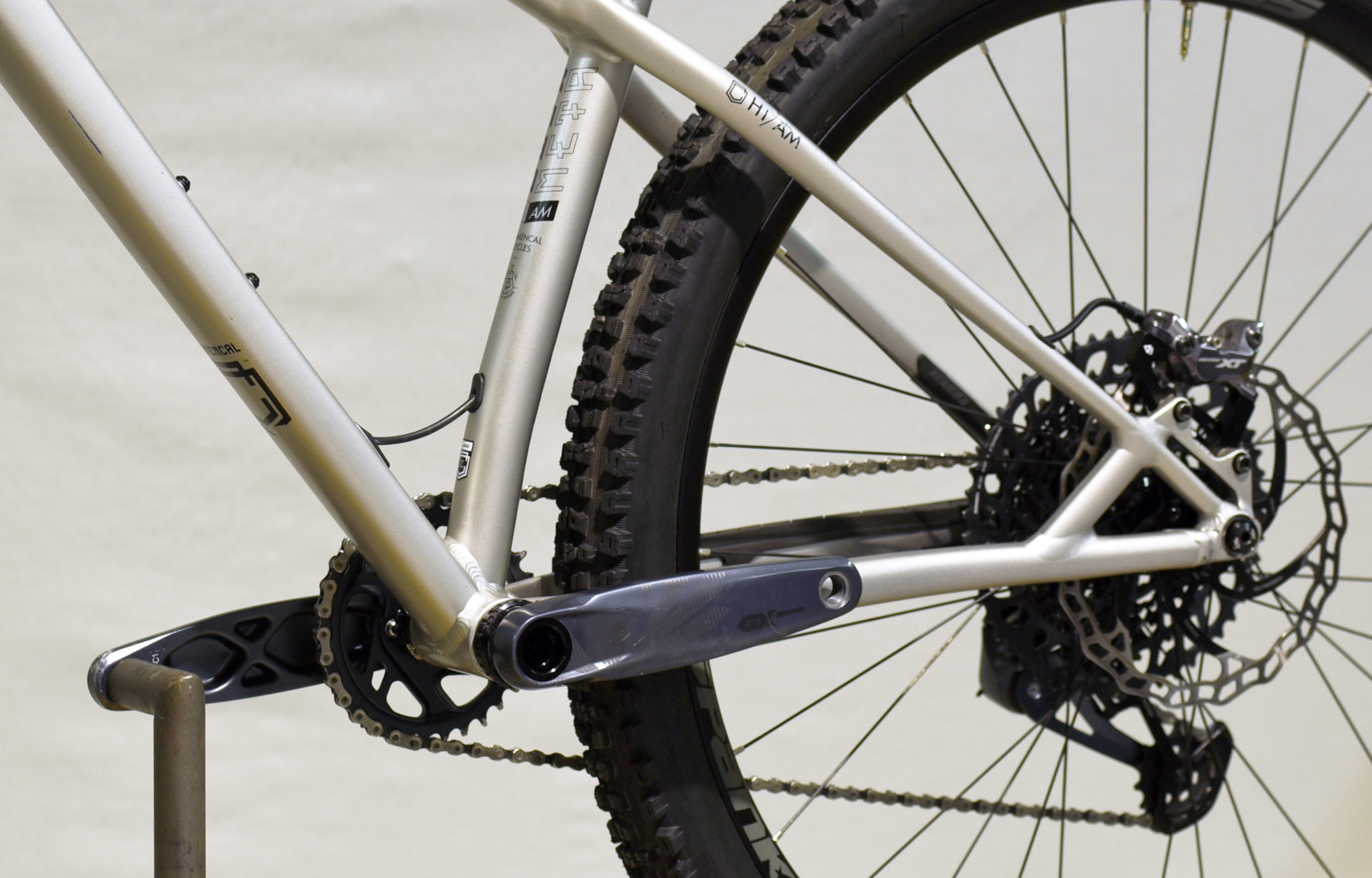

Schaltwerk

SRAM GX Eagle

12s

tretlager

SRAM BSA

Threaded

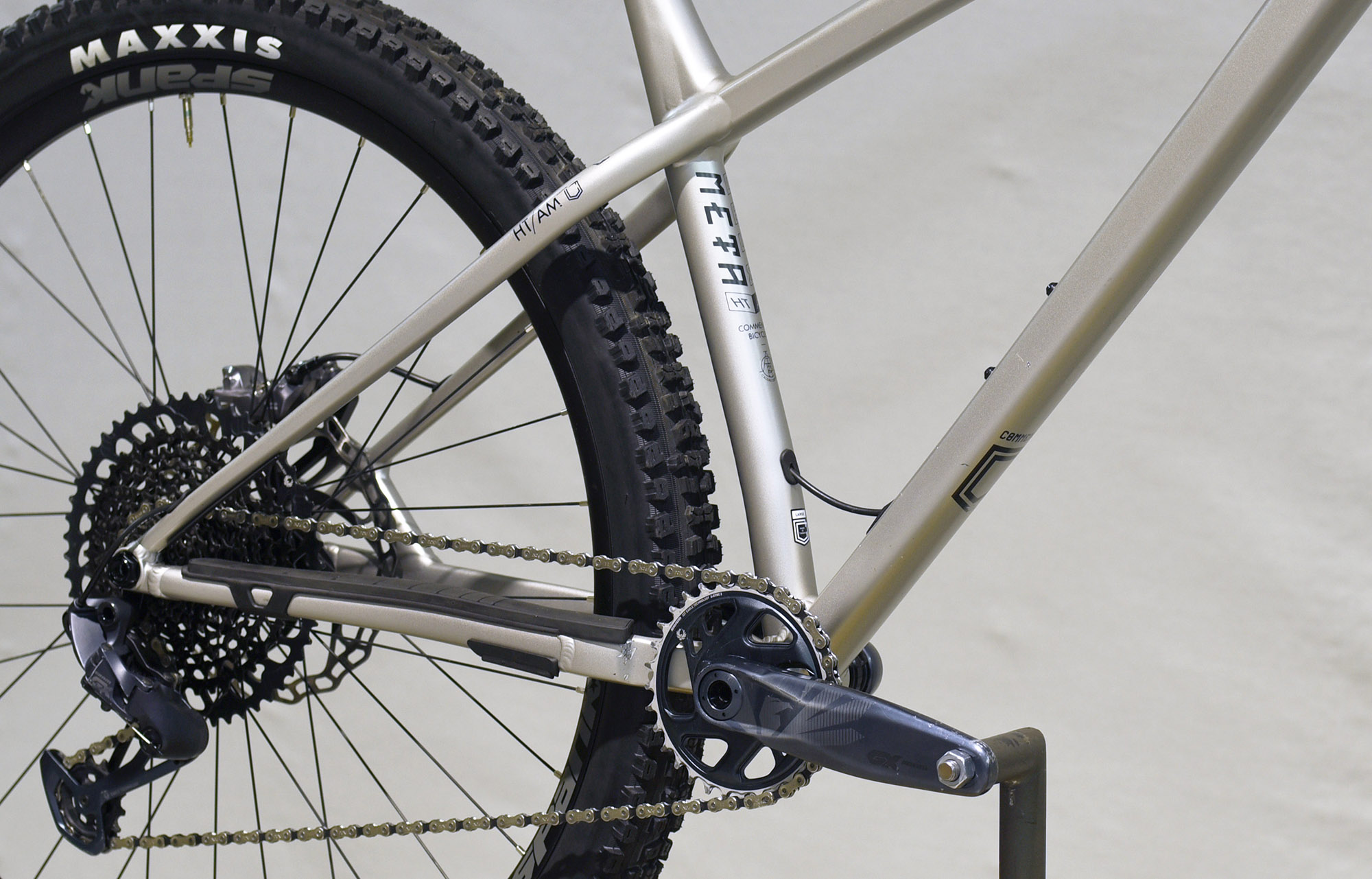

Kurbeln

SRAM GX Eagle, 170 mm crank arms, DUB, Boost

Chainring: SRAM GX Eagle, 32t, Narrow-Wide

Kette

SRAM GX Eagle

12s

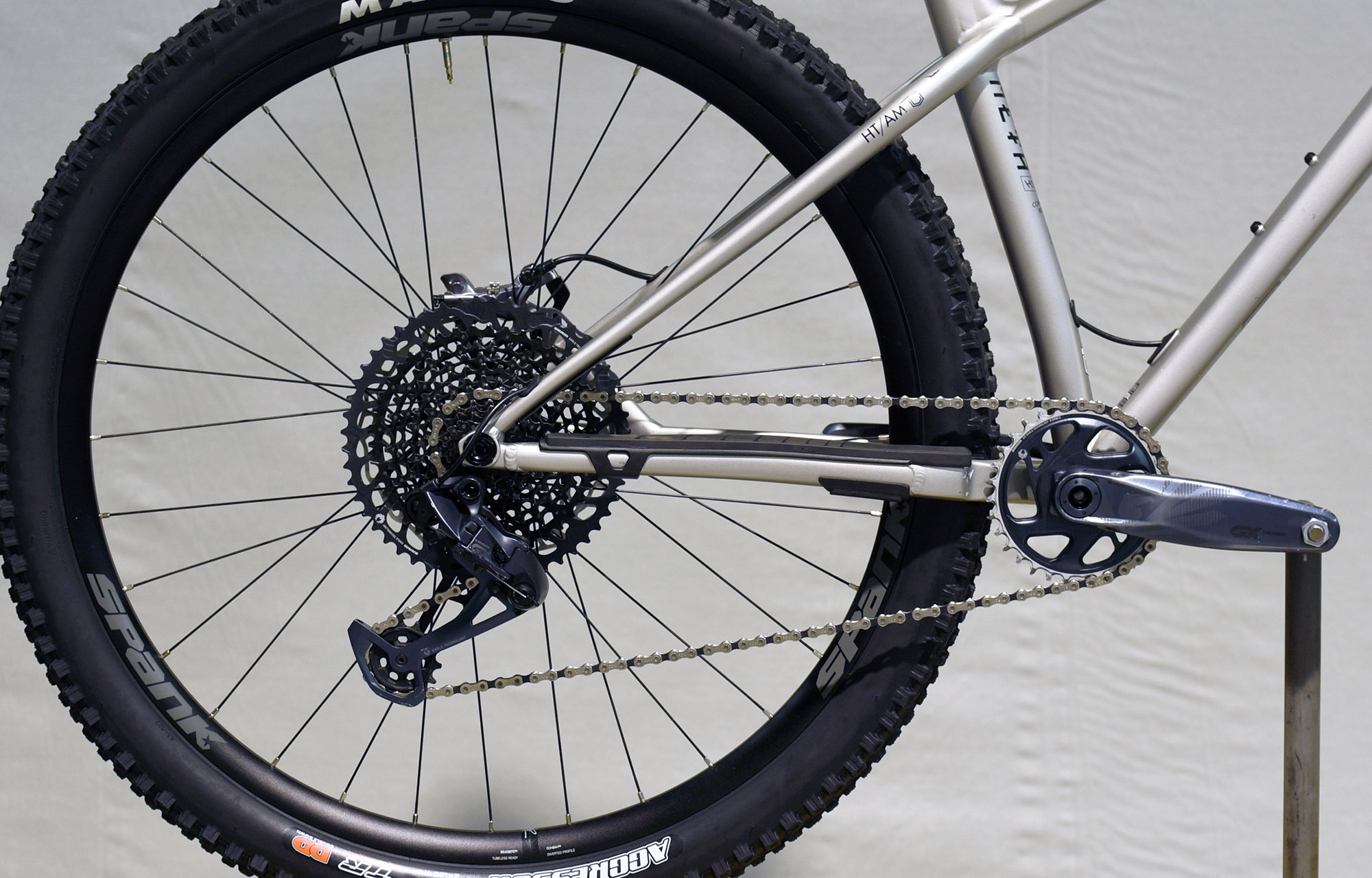

Kassette

SRAM GX Eagle

12s, 10-52t

Felgen

SPANK Spike Race 33

Rear: 27.5'', 32h, 28 mm inner width on S / M 29'', 32h, 28 mm inner width on L / XL - Front: 29'', 32h, 28 mm inner width on S / M / L / XL

Naben

Rear: FORMULA MSL-148A - Front: FORMULA DC-711

Rear: 32h, sealed bearings, 12 x 148 mm, Sram XD - Front: 32h, sealed bearings, 15 x 110 mm

Speichen / nippel

SAPIM Race

J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

Reifen

Rear: MAXXIS Aggressor - Front: MAXXIS High Roller II

Sattelstütze

SDG Tellis

31.6 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 200 mm on XL

Sattel

SDG Bel Air V3 Atmos

140 mm width, Steel rails

Gewicht

13,5 kg / 29.76 lb

Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

Inklusive pedale

No

Farbe

Ash Grey

Shiny Finish

Zubehör

Chainstay protector, seatstay protector
