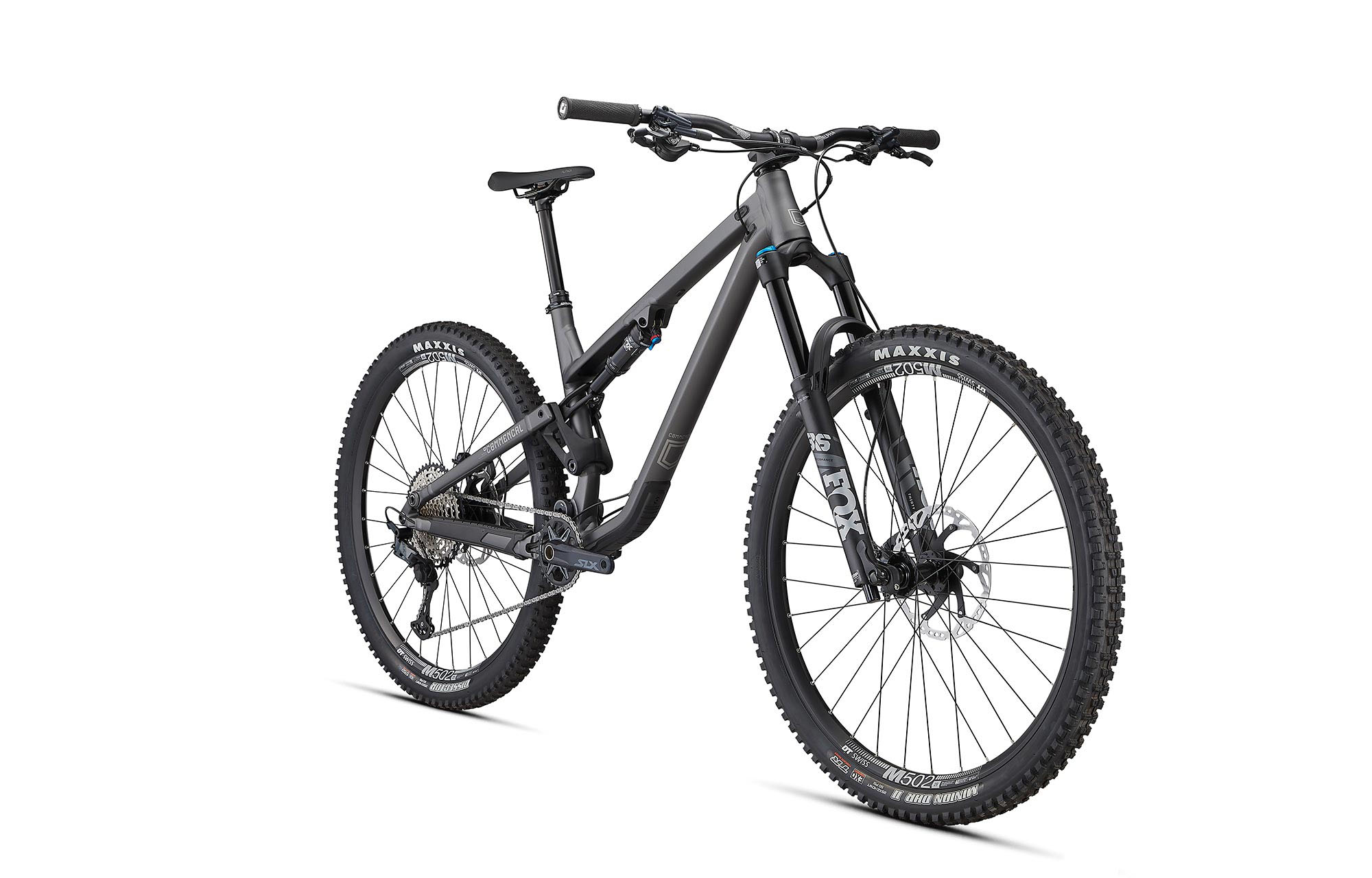

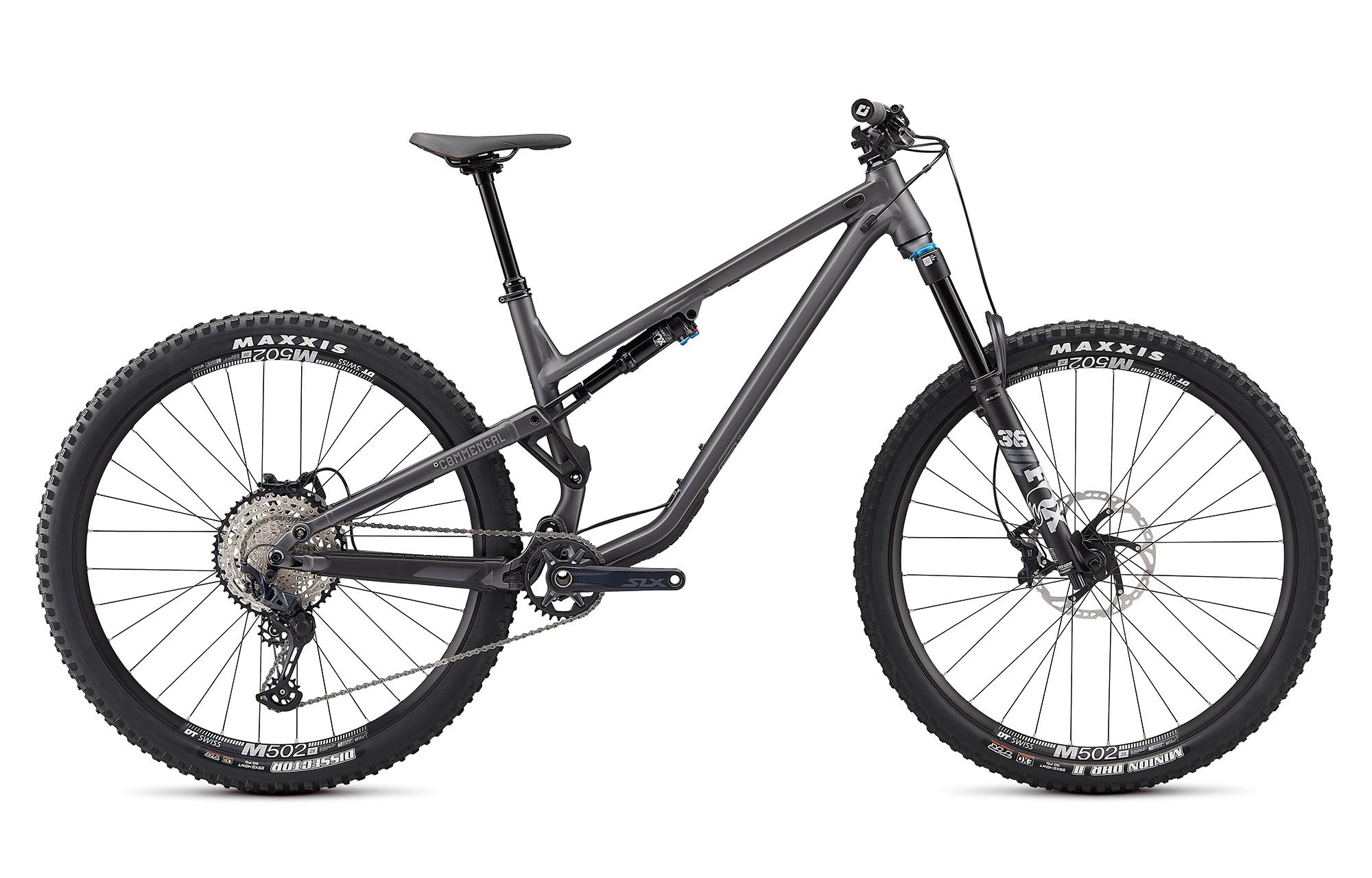

COMMENCAL META TR V4 ESSENTIAL DARK SLATE
- TECHNICAL INFO
When we developed the META TR 29, our intentions were clear - to make a bike that performs very well uphill but that also retains the COMMENCAL downhill DNA. We got the result we wanted thanks to a few key points:
- Large 29-inch wheels.
- Reworked and modifiable kinematics making the bike more dynamic.
- A straighter seat angle (and reduced offset).
The result is a particularly harmonious bike, a formidable pedaller and ideal companion for long active rides. The TR is seamlessly capable of transcending from uphill to downhill and soaking up all types of lumps and bumps in between. Thanks to 140mm of rear travel and the 150mm or 160mm fork, it tackles most obstacles without hesitation. Plus, the TR shows liveness and is playful when it comes to the terrain and pumping for speed etc.
Mike Kazimer, reporter at Pinkbike, describes the META TR 29 as one of the funnest bikes he's ridden!
The stiffness of the frame is always the subject of much attention.The use of double-row Enduro Bearings allows a more homogeneous deformation of the frame without the loss of stiffness via the bearings.
In addition to all this in-depth work, like on our META POWER TR, META SX and CLASH bikes, we now offer a Flip Chip on the shock absorber extension in order to more acutely adjust the geometry, and therefore fit your personal style! This system means you can influence the height of the bottom bracket as well as the steerer and saddle angles within seconds. Depending on what you want, effectively, you can choose between a lively bike perfect for big pedalling missions, or more progressive bike ideal for days in bike park or on more committed lines.
META TR V4 ESSENTIAL
We have shiny Dark Slate colours for this META TR V4 ESSENTIAL.
More than the essentials in this ESSENTIAL:
- The FOX 36 Performance Grip fork is ultra-efficient.
- The FOX Float DPS Performance shock is dynamic and performs excellently.
- The 12-speed drivetrain and brakes are provided by SHIMANO SLX, a groupset that is unanimous for reliability, power and ease of maintenance.
- The DT SWISS M502 rims are a solid choice for this bike.
All these components make this META TR 29 formidable on any trail you might find.
*Please note that bike specs are subject to change without prior notice.
3,7 kg / 8.15 lb
210 x 55 mm
Piggy back shock compatible
20 x 10 mm
Recommended/max. fork height
551 mm / 571 mm
ZS44 / ZS56
Maximum tyre dimension (etrto)
Disc brake standard
POSTMOUNT 200 mm
Rear rotor max. size
Seatpost/seat clamp diameter
34,9 mm / 38,5 mm
Bottom bracket type
Rear hub compatibility
12 x 148 mm
2022 Meta TR, 140 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings
FOX Float DPS Performance
210 x 55 mm, rebound, 3 position adjustment
FOX 36 Performance, 150 mm travel
29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 Tokens
ACROS ZS44 / ZS56
Alloy cups, sealed bearings
RIDE ALPHA Freeride 40
40 mm extension, 31,8 mm
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
ODI Elite Motion
Soft pro compound, single clamp, black
SHIMANO SLX, 4 pistons, I-Spec EV compatible
Rotor: SHIMANO SM-RT76 203 mm, 6 holes
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + Technology
DT SWISS M 502 29''
29'', 32h, 30 mm inner width
Rear: FORMULA DCL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, Micro Spline - Front: 32h, sealed bearings
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
Rear: MAXXIS Dissector - Front: MAXXIS DHR II
Rear: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready - Front: 29" x 2.40", WT, EXO, dual compound, Tubeless Ready
34.9 mm, travel: 125 mm on S, 150 mm on M, 170 mm on L, 190 mm on XL, SouthPaw alloy remote
FIZIK Terra Alpaca X5
145 mm width, S-alloy rails
15 kg / 33.06 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Down tube protector, chainstay protector, seatstay protector
