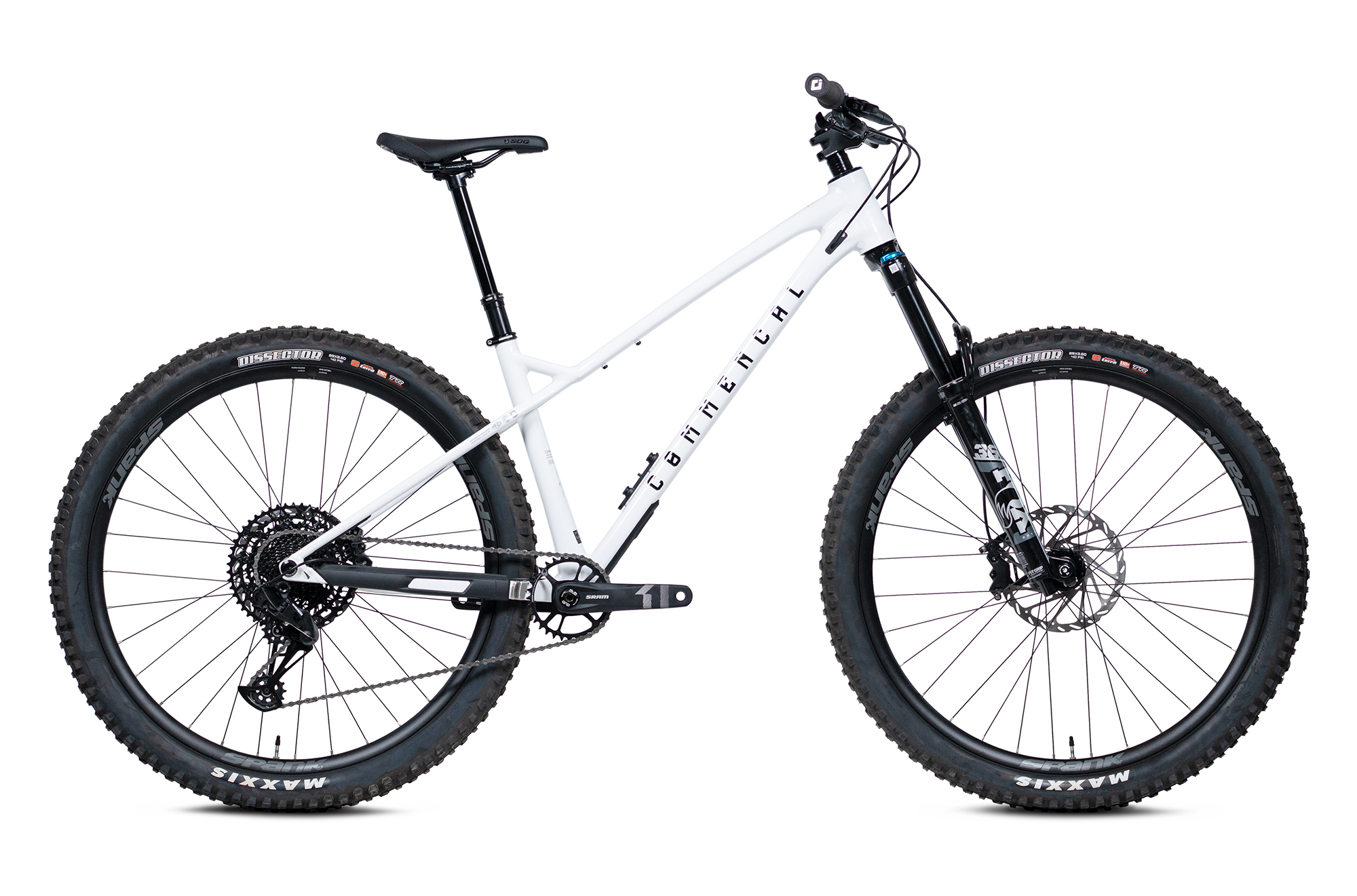

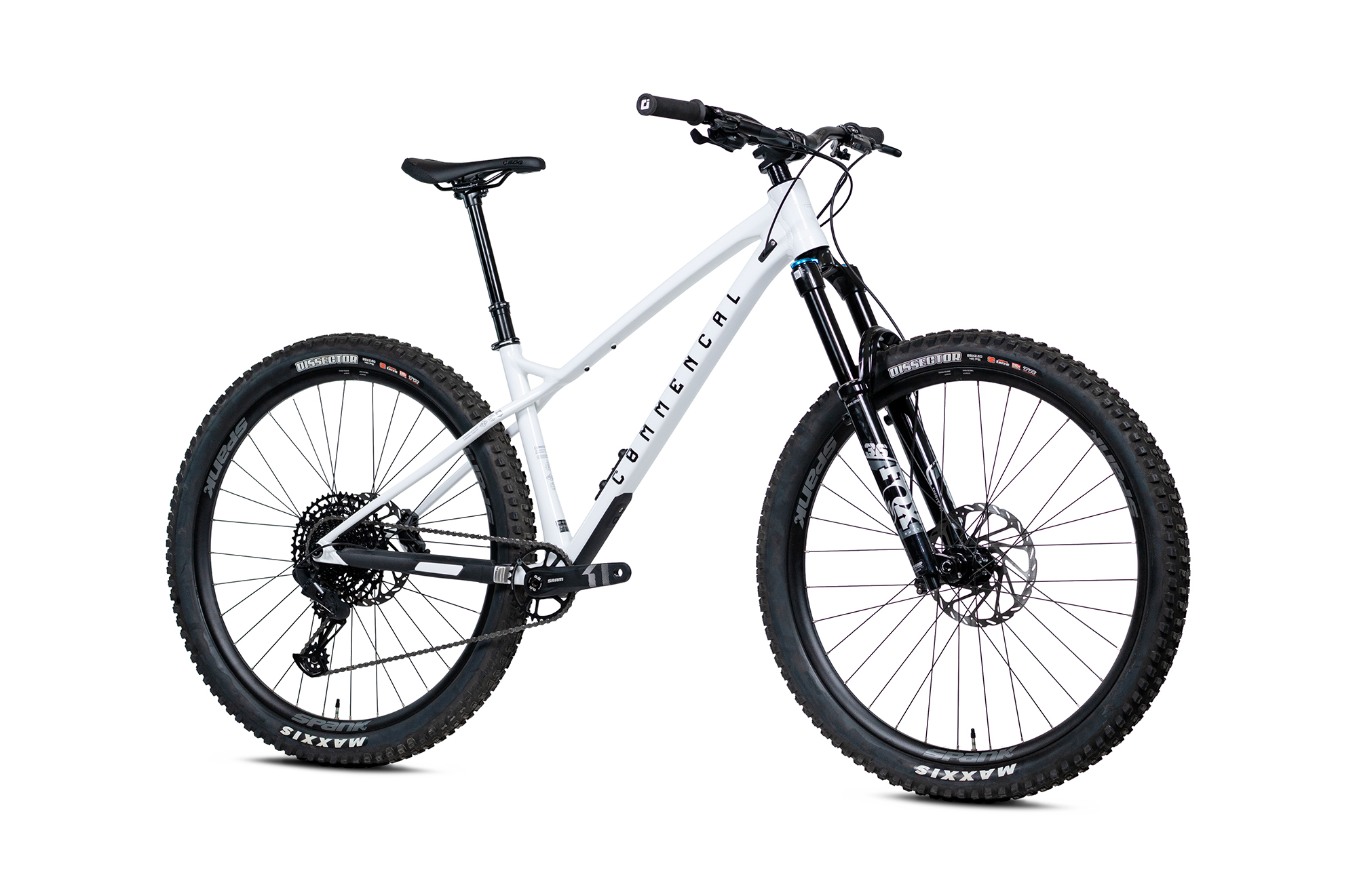

COMMENCAL META HT V3 ESSENTIAL PURE WHITE
Riding a hardtail is a true state of mind. It's about putting the joy of riding at the center of the game, without any gimmicks. The META HT V3 has been freshened up with a completely redesigned frame to improve comfort and for carefree riding on all types of trails.
TRAIL
ALL MOUNTAIN
TRAIL
ALL MOUNTAIN
150mm
150mm
29" / 29"
29 / 27.5"
29" / 29"
29 / 27.5"
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists. Contact the shop directly for service options and rates.Learn more
Showroom Delivery
Choose pickup at one of our COMMENCAL USA showrooms (Golden, CO or Menifee, CA) and enjoy personalized advice from our team. If your order includes a bike, various assembly and setup options will be available at checkout.
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B SALES DEPARTMENT to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
specifications
specifications
Frame
2023 META HT : 29"/29"
Alloy 6061, triple butted tubes, T4, T6.Fork

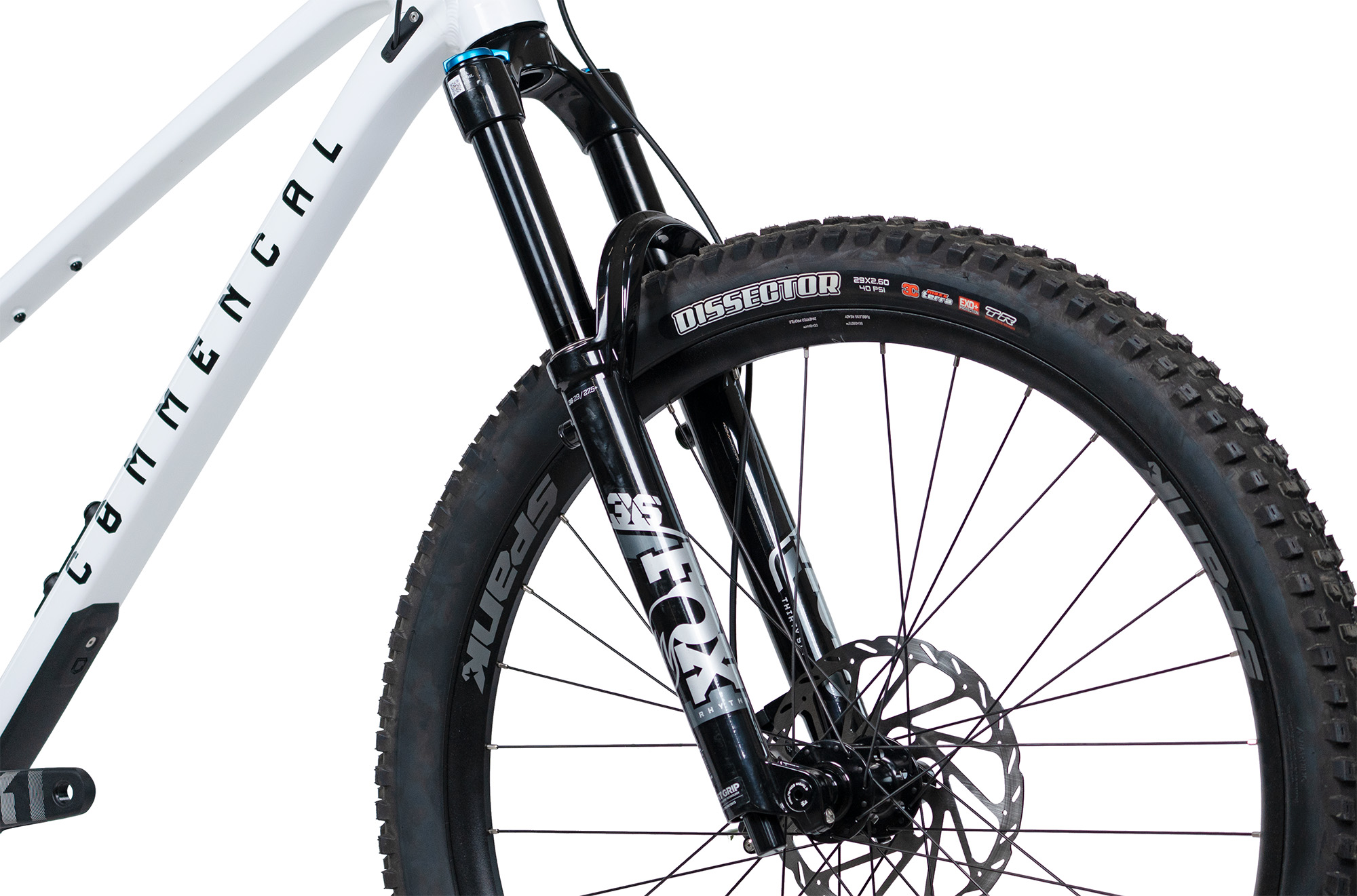

FOX 36 Rhythm, 150 mm travel
29", Grip damper, LSR, Boost (15 x 110 mm), 44 mm offset, 3 TokensHeadset
ACROS ZS56/ZS56
Integrated Headset, Alloy cups, sealed bearingsStem

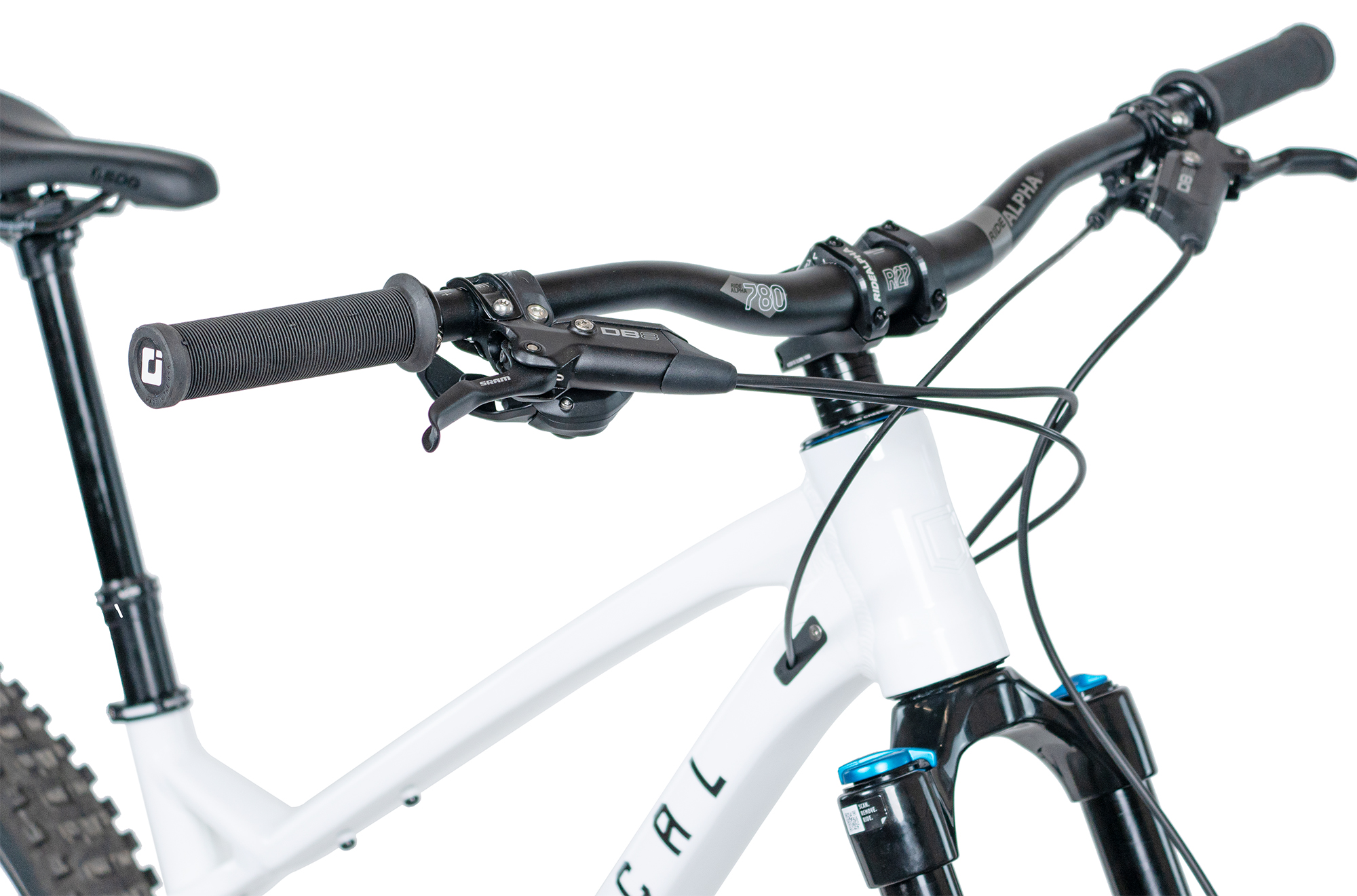

RIDE ALPHA 40
40 mm extension, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061Grips
ODI Longneck
Soft compound, single clamp, blackBrakes
SRAM DB8, 4 pistons, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-boltShifters

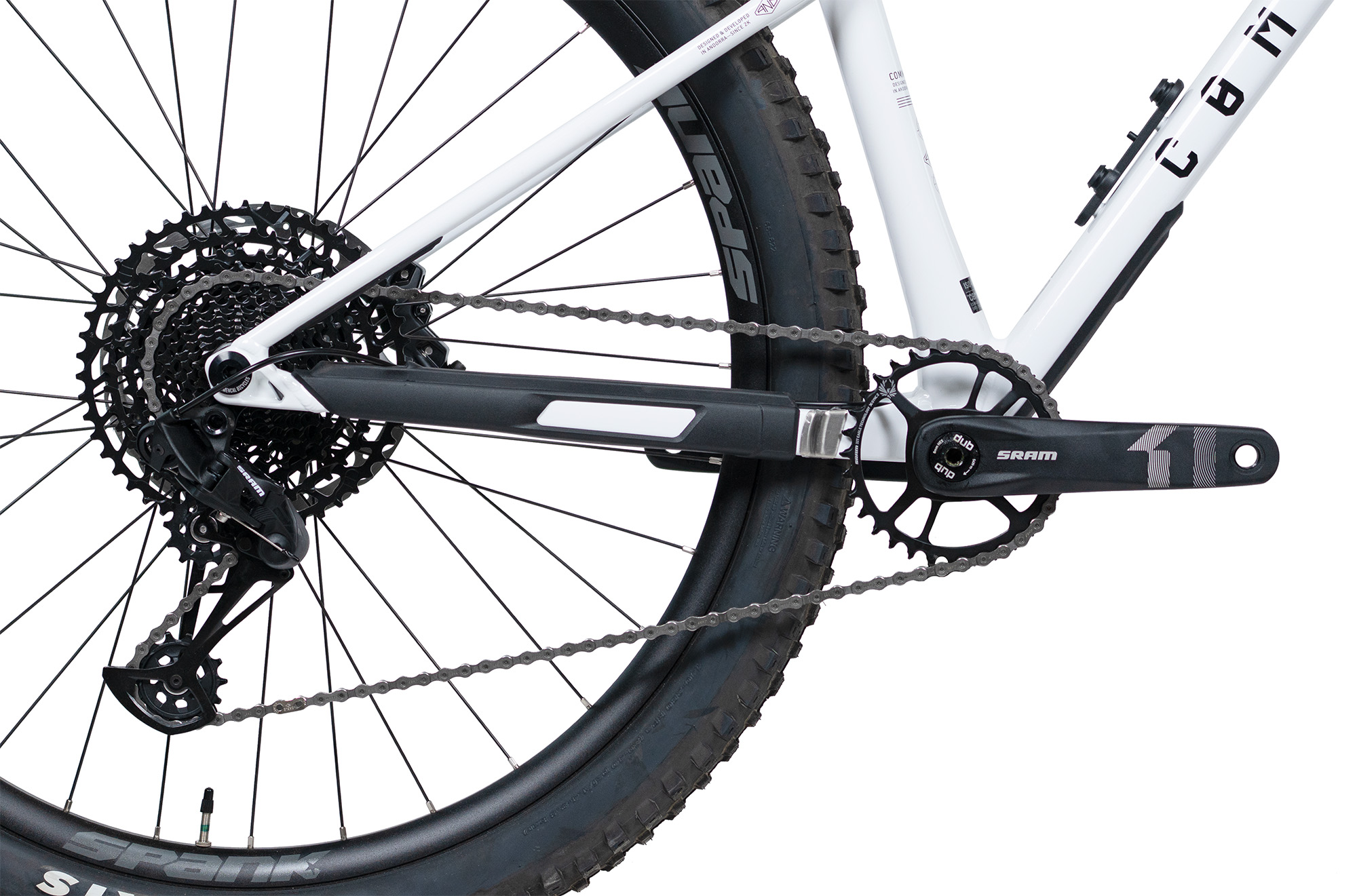

SRAM SX Eagle
12sREAR DERAILLEUR
SRAM SX Eagle
12sBottom bracket
SRAM DUB
BSACrankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM X1 1000 Eagle, 32t, Narrow-WideChain
SRAM NX Eagle
12sCassette
SRAM PG-1210
12s, 11-50tRims
SPANK Spike Race 33
Rear: 29", 32h, 28mm inner width - Front: 29", 32h, 28 mm inner widthHubs
Rear: FORMULA DC-348A - Front: FORMULA DC-711
32h, sealed bearingsSpokes/nipples
SAPIM Leader
J-Bend 2.0mm, stainless, with Nylok, blackTyres
MAXXIS Dissector
29"x2.6", 3C MaxxTerra, New EXO+, Tubeless ReadySeat post

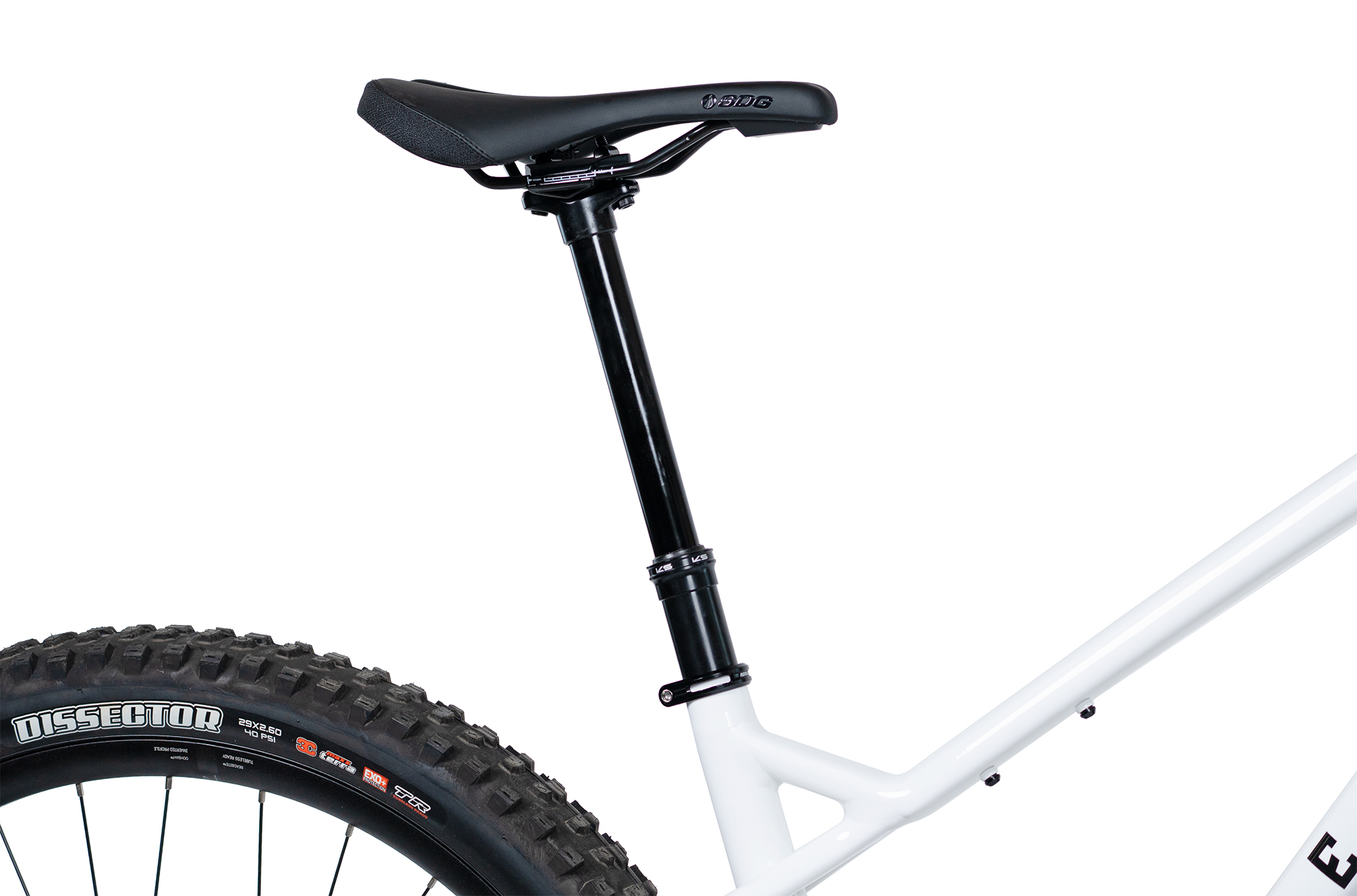

KS Rage-I
31.6 mm, travel: 170 mm on M/L, SouthPaw alloy remoteSaddle
SDG Bel Air V3
Steel railsPedals included
No
Colour
Pure White
Shiny FinishAccessories
Chainstay protector, seatstay protector, downtube protector
Bike specifications are subject to change without notice.
Technical informations
Technical informations
Bicycle type
Frame Hardtail Enduro
Frame material
Al 6061 T6
Frame weight
1,86 KG
Recommended/max. fork height
561 / 571 mm
Headset dimension
1-1/2" / 1-1/2"
Headset type
ZS56 / ZS56 (ACROS integrated duct routing)
Maximum tyre dimension (etrto)
29 2,6 MAXXIS
Wheel Size
26/27 XS, 27/29" S - 29" M, L, XL
Disc brake standard
Postmount (200 XL L M S & 180 XS)
Rear rotor max. size
200 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
BSA
Chain Line
53 mm
Rear hub compatibility
148 x 12 mm / UDH
-
Bicycle type
All Mountain
-
Frame material
AL 6061 T4, T6
-
Frame weight
2,32 kg / 5,11 lb
-
Recommended/max. fork height
561mm / 571mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
Yes
-
Wheels size
29’’ - 29’’ (M-L-XL)
29’’ - 27.5’’ (S) -
Max. rear tyre dimension - ETRTO
64mm - Ø622mm (M-L-XL)
64mm - Ø584mm (S) -
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
200mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
S : 300mm / M : 300mm / L : 320mm / XL : 340mm
-
Bottom bracket type
BSA 68mm
-
Chain guide
No
-
Recommended/max. chainring teeth
32T / 34T
-
Chain line
53
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
UDH standard, 180mm, M12, P1.0mm
-
UDH hanger
Yes
Geometry
Geometry
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
A META HT FOR YOUR CHILD?
A META HT FOR YOUR CHILD?
The META HT KIDS are the children's versions of our META HT. The geometries, components, and wheel sizes are designed as a complete package to help children become experienced riders.
The META HT V3 comes with a lifetime guarantee against manufacturing defects, exclusively for the original purchaser.
commencal care
commencal care
We value contact with our customers. In the event of any issue, it will work with you to find a solution. Regardless of the delivery option you choose, all your purchases include free access to COMMENCAL CARE.
Warranty
Warranty
Our products are covered by our warranty to offer you peace of mind and allow you to fully enjoy your purchase.
Registration
Registration
The online registration of your bike will enable us to deal efficiently with any potential problem you may encounter.
Technical documents
Technical documents
Here you will find all the technical and practical information concerning your COMMENCAL.
