settings guide

The SUPREME DH V5.2 is a race machine with no compromises, made to go fast whatever the track. For this reason, frame settings are adjustable depending on various factors, like terrain conditions or simply just your preferences.

These recommendations are indeed recommendations. The best settings are the ones where you feel most comfortable on the bike.

SUSPENSION KINEMATICS

A flip chip at the shock anchor allows adjustment of the suspension kinematics. It has four settings that can be adapted depending on how you ride or what you’re riding. More linear with forward anchoring, more progressive with rear anchoring.

WHAT POSITION TO CHOOSE

NATURAL OR TECHNICAL TRACKS

HIGH AND LINEAR POSITION

➔ DRIVE SIDE

Position most used by our riders.

Promotes agility and precision.

Central riding position.

Responsive mid-stroke suspension for technical sections.

REQUIRES:

stock left flip chip
stock right flip chip

FAST OR ROLLING TRACKS

LOW AND LINEAR POSITION

➔ DRIVE SIDE

Stable and precise position.

Ideal for when speed increases.

Central riding position.

Promotes aggressive riding and grip.

REQUIRES:

after market left flip chip
stock right flip chip

SLOW OR MANMADE TRACKS

HIGH AND PROGRESSIVE POSITION

➔ DRIVE SIDE

Position offering maximum grip.

Mid-stroke support.

Bottom-out resistance.

Ideal for landing jumps.

REQUIRES:

after market left flip chip
stock right flip chip

STEEP OR SMOOTH TRACKS

LOW AND PROGRESSIVE POSITION

➔ DRIVE SIDE

Stable and forgiving position.

Low bottom bracket and slacker steering.

Rider weight on the rear.

Provides grip and support for a true feel of the bike.

REQUIRES:

5-10 additional psi

stock left flip chip
stock right flip chip

CHAIN STAY LENGTH

As an option, the SUPREME DH V5 has an insert to adjust the chain stay length and vary the balance of the frame. The bike is originally delivered with an intermediate setting to cope with as many situations as possible.

WHAT POSITION TO CHOOSE

LONG CHAIN STAYS

+6 MM

➔ DRIVE SIDE

More grip through turns, more weight on the front, ideal for fast and gentle slopes.

REQUIRES:

left chain stays adjust +/- 6mm
right chain stays adjust +/- 6mm
brake caliper adjust +/- 6mm

INTERMEDIATE CHAIN STAYS

0 MM

➔ DRIVE SIDE

Compromise between long and short chain stays, for very varied slopes.

REQUIRES:

left chain stays adjust 0mm
right chain stays adjust 0mm
brake caliper adjust 0mm

SHORT CHAIN STAYS

-6 MM

➔ DRIVE SIDE

Livelier, less weight on the front, preferred for slow and steep tracks.

REQUIRES:

left chain stays adjust +/- 6mm
right chain stays adjust +/- 6mm
brake caliper adjust +/- 6mm

REINFORCMENT BRIDGES

Depending on your weight, the terrain, your level, or the weather conditions, you have the option of changing the thickness of the bridge of your SUPREME DH V5.2 to modify its behaviour.

WHICH BRIDGE?

Our SUPREME DH V5.2 models are originally delivered with the following bridges:

SIZES XS/S

THIN BRIDGE

thin bridge

SIZES M/L

MEDIUM BRIDGE

medium bridge

SIZE XL

THICK BRIDGE

thick bridge

To improve grip in precarious conditions, for better reading of the terrain or for easy bike, there is the option of a thinner bridge.

The SUPREME DH V5.2 will gain flex with this option.

For lightweight riders and beginners, with smoothest riding.

For more precision and dynamism, when there is a lot of grip or when pushing hard, the rider can opt for a thicker bridge.

The SUPREME DH V5.2 will therefore become stiffer.

For heavy riders or those who apply heavy force.

SUSPENSION ADJUSTMENTS

SUSPENSION ADJUSTMENTS

Recommended suspension settings according to your level:

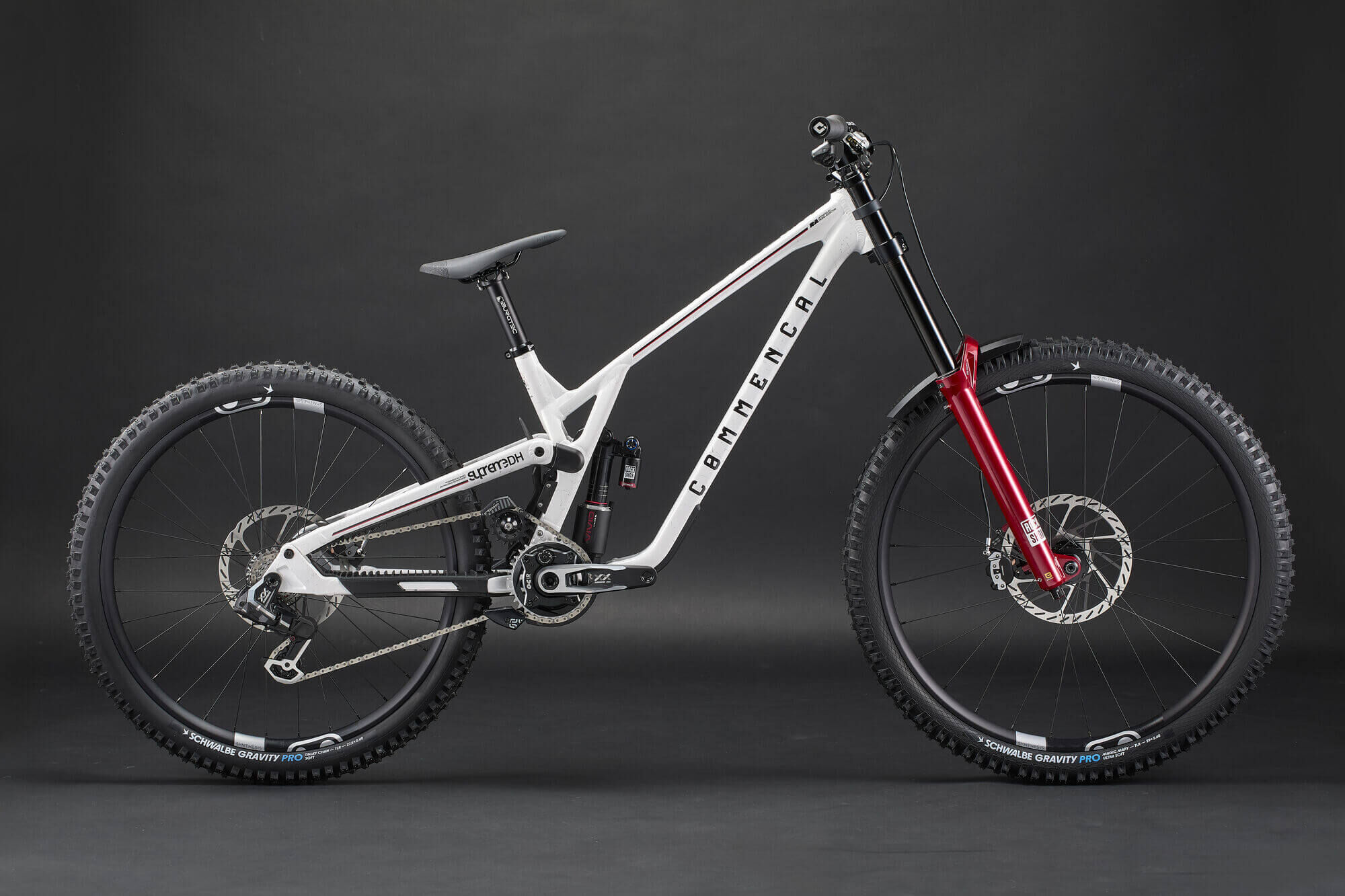

ROCKSHOX ULTIMATE TEAM REPLICA

BEGINNER

INTERMEDIATE

EXPERT

I’m new to the sport, but I’m starting to feel comfortable on less technical trails.

I’m not looking to go fast, but I can maintain momentum over rocks and roots.

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
Tokens
LSC
HSC
LSR
SHOCK
air pressure (PSI)
Tokens
LSC
HSC
LSR
50 / 110
86
1
9
3
13
192
2
4
3
13
55 / 121
95
1
9
3
13
203
2
4
3
12
60 / 132
105
1
9
3
12
214
2
4
3
12
65 / 143
114
1
9
3
11
226
2
4
3
11
70 / 154
123
1
9
3
10
237
2
4
3
10
75 / 165
132
1
9
3
9
249
2
4
3
9
80 / 176
141
1
9
3
9
260
2
4
3
9
85 / 187
151
1
9
3
8
271
2
4
3
8
90 / 198
160
1
9
3
7
283
2
4
3
7
95 / 209
169
1
9
3
7
294
2
4
3
7
100 / 220
178
1
9
3
6
305
2
4
3
6
105 / 231
187
1
9
3
5
317
2
4
3
5
110 / 243
196
1
9
3
4
328
2
4
3
4

For a weight above 100 kg / 220 lbs, we recommend installing a coil shock absorber.

I ride regularly and feel comfortable on most trails, even technical or steep ones.

I can carry speed through berms and handle medium jumps, drops, or wooden features.

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
Tokens
LSC
HSC
LSR
SHOCK
air pressure (PSI)
Tokens
LSC
HSC
LSR
50 / 110
88
1
8
2
14
194
2
3
2
13
55 / 121
97
1
8
2
14
206
2
3
2
12
60 / 132
107
1
8
2
13
217
2
3
2
12
65 / 143
116
1
8
2
12
229
2
3
2
11
70 / 154
125
1
8
2
11
241
2
3
2
10
75 / 165
135
1
8
2
10
252
2
3
2
9
80 / 176
144
1
8
2
10
264
2
3
2
9
85 / 187
154
1
8
2
9
275
2
3
2
8
90 / 198
163
1
8
2
8
287
2
3
2
7
95 / 209
172
1
8
2
8
298
2
3
2
7
100 / 220
182
1
8
2
7
310
2
3
2
6
105 / 231
191
1
8
2
6
321
2
3
2
5
110 / 243
200
1
8
2
5
333
2
3
2
4

For a weight above 100 kg / 220 lbs, we recommend installing a coil shock absorber.

I can ride fast and smooth on all trails, regardless of difficulty.

I’m active on the bike, jumping with style and precision, pushing through corners, and always looking to build speed.

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
Tokens
LSC
HSC
LSR
SHOCK
air pressure (PSI)
Tokens
LSC
HSC
LSR
50 / 110
90
1
7
2
14
197
2
2
1
14
55 / 121
99
1
7
2
14
209
2
2
1
13
60 / 132
109
1
7
2
13
221
2
2
1
13
65 / 143
118
1
7
2
12
232
2
2
1
12
70 / 154
128
1
7
2
11
244
2
2
1
11
75 / 165
138
1
7
2
10
256
2
2
1
10
80 / 176
147
1
7
2
10
267
2
2
1
10
85 / 187
157
1
7
2
9
279
2
2
1
9
90 / 198
166
1
7
2
8
291
2
2
1
8
95 / 209
176
1
7
2
8
302
2
2
1
8
100 / 220
185
1
7
2
7
314
2
2
1
7
105 / 231
195
1
7
2
6
326
2
2
1
6
110 / 243
205
1
7
2
5
338
2
2
1
5

For a weight above 100 kg / 220 lbs, we recommend installing a coil shock absorber.

Turn your adjustment knob to the closed position (full clockwise) until it stops. Then back it out (counterclockwise) to the number of clicks shown in the table.

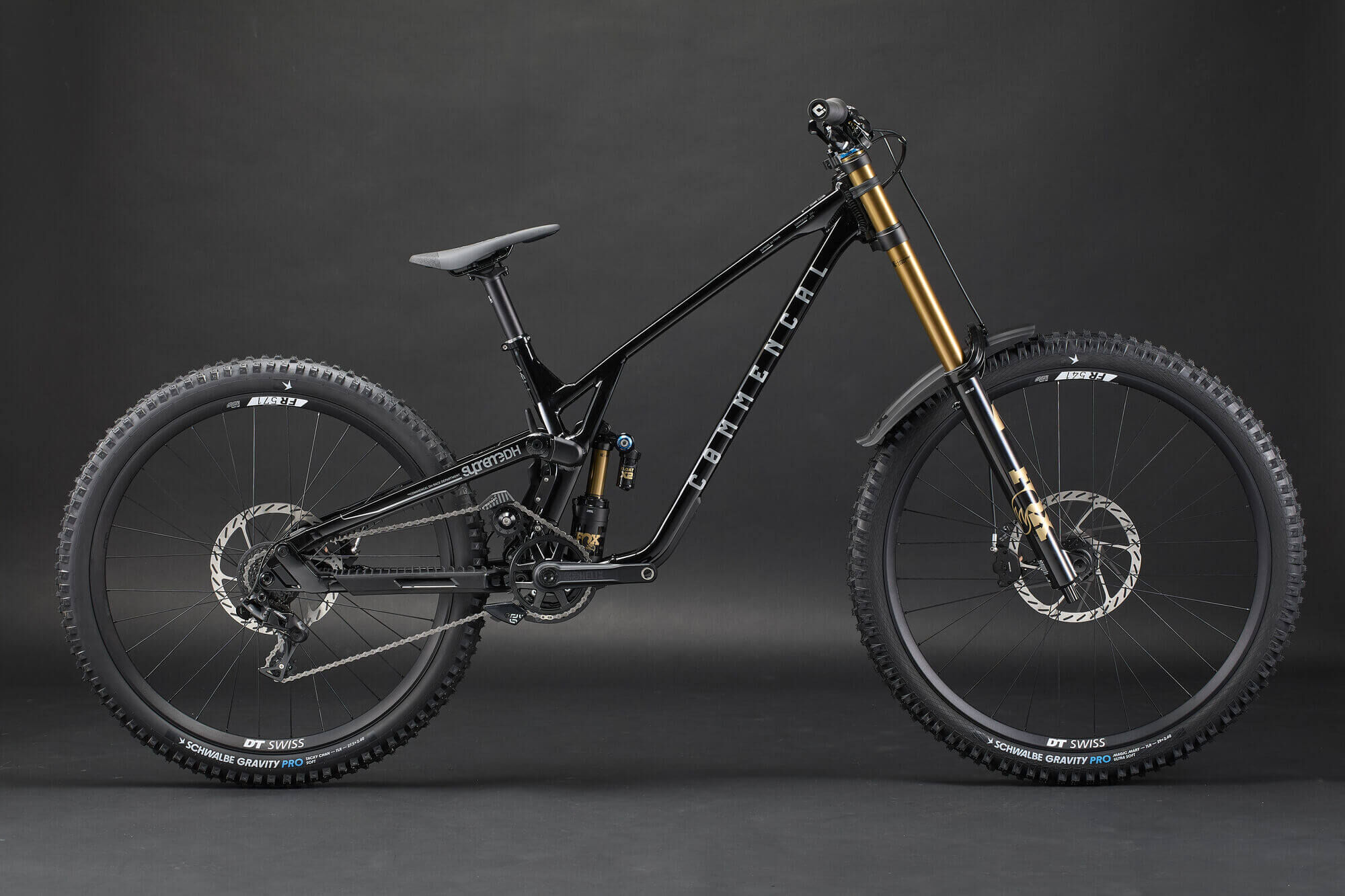

FOX FACTORY

BEGINNER

INTERMEDIATE

EXPERT

I’m new to the sport, but I’m starting to feel comfortable on less technical trails.

I’m not looking to go fast, but I can maintain momentum over rocks and roots.

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
Tokens
LSC
HSC
LSR
HSR
SHOCK
air pressure (PSI)
Tokens
LSC
HSC
LSR
HSR
50 / 110
48
2
15
9
14
8
173
8cc
7
3
10
2
55 / 121
51
2
15
9
14
8
184
8cc
8
4
9
2
60 / 132
53
2
15
9
14
8
196
8cc
8
4
8
2
65 / 143
57
2
15
9
14
8
208
8cc
8
4
8
2
70 / 154
60
2
15
8
13
8
220
8cc
9
4
7
2
75 / 165
63
2
15
8
12
8
232
8cc
9
5
6
2
80 / 176
65
2
14
8
12
7
244
8cc
10
5
6
2
85 / 187
69
2
14
7
11
7
256
8cc
10
5
5
2
90 / 198
73
2
14
7
10
7
268
8cc
11
5
4
2
95 / 209
76
2
14
6
10
7
280
8cc
11
6
4
2
100 / 220
79
2
14
6
9
7
292
8cc
11
6
3
2
105 / 231
83
2
14
5
8
7
304
8cc
12
6
2
2
110 / 243
88
2
13
5
8
6
316
8cc
12
6
2
2

I ride regularly and feel comfortable on most trails, even technical or steep ones.

I can carry speed through berms and handle medium jumps, drops, or wooden features.

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
Tokens
LSC
HSC
LSR
HSR
SHOCK
air pressure (PSI)
Tokens
LSC
HSC
LSR
HSR
50 / 110
50
2
14
8
14
8
175
8cc
6
2
11
3
55 / 121
53
2
14
8
14
8
187
8cc
7
3
10
3
60 / 132
56
2
14
8
14
8
199
8cc
7
3
9
3
65 / 143
60
2
14
8
14
8
211
8cc
7
3
9
3
70 / 154
62
2
14
7
13
8
223
8cc
8
3
8
3
75 / 165
65
2
14
7
12
8
235
8cc
8
4
7
3
80 / 176
68
2
13
7
12
7
248
8cc
9
4
7
3
85 / 187
72
2
13
6
11
7
260
8cc
9
4
6
3
90 / 198
76
2
13
6
10
7
272
8cc
10
4
5
3
95 / 209
80
2
13
5
10
7
284
8cc
10
5
5
3
100 / 220
83
2
13
5
9
7
296
8cc
10
5
4
3
105 / 231
86
2
13
4
8
7
308
8cc
11
5
3
3
110 / 243
91
2
12
4
8
6
320
8cc
11
5
3
3

I can ride fast and smooth on all trails, regardless of difficulty.

I’m active on the bike, jumping with style and precision, pushing through corners, and always looking to build speed.

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
Tokens
LSC
HSC
LSR
HSR
SHOCK
air pressure (PSI)
Tokens
LSC
HSC
LSR
HSR
50 / 110
52
2
13
8
14
8
177
8cc
5
2
12
3
55 / 121
55
2
13
8
14
8
190
8cc
6
3
11
3
60 / 132
58
2
13
8
14
8
202
8cc
6
3
10
3
65 / 143
62
2
13
8
14
8
214
8cc
6
3
10
3
70 / 154
65
2
13
7
13
8
226
8cc
7
3
9
3
75 / 165
68
2
13
7
12
8
239
8cc
7
4
8
3
80 / 176
71
2
12
7
12
7
251
8cc
8
4
8
3
85 / 187
75
2
12
6
11
7
263
8cc
8
4
7
3
90 / 198
79
2
12
6
10
7
276
8cc
9
4
6
3
95 / 209
83
2
12
5
10
7
288
8cc
9
5
6
3
100 / 220
86
2
12
5
9
7
300
8cc
9
5
5
3
105 / 231
90
2
12
4
8
7
312
8cc
10
5
4
3
110 / 243
95
2
11
4
8
6
325
8cc
10
5
4
3

Turn your adjustment knob to the closed position (full clockwise) until it stops. Then back it out (counterclockwise) to the number of clicks shown in the table.

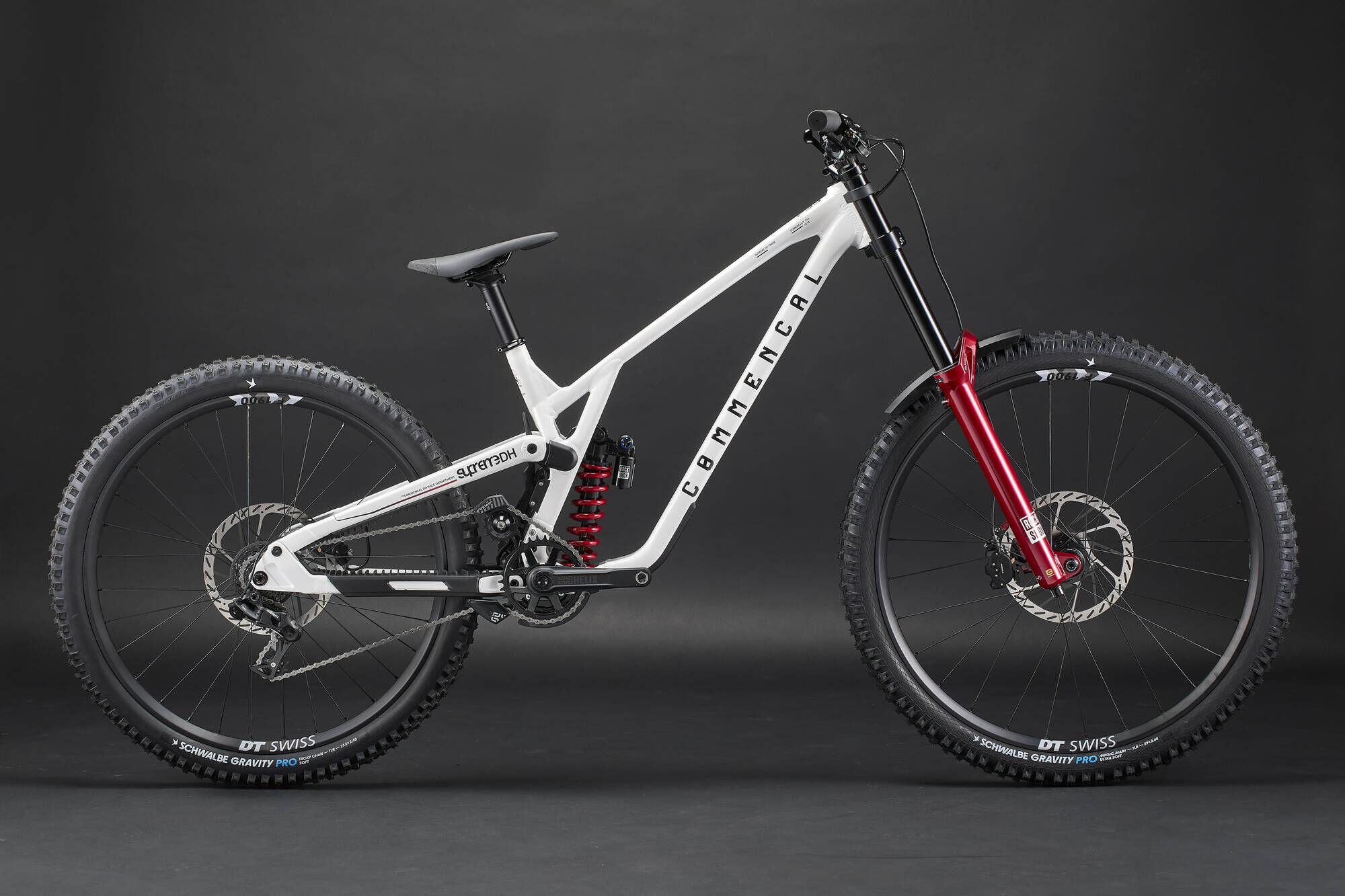

ROCKSHOX ULTIMATE

BEGINNER

INTERMEDIATE

EXPERT

I’m new to the sport, but I’m starting to feel comfortable on less technical trails.

I’m not looking to go fast, but I can maintain momentum over rocks and roots.

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
Tokens
LSC
HSC
LSR
SHOCK
spring rate (Lbs)
LSC
HSC
LSR
50 / 110
86
1
9
3
13
350
4
3
13
55 / 121
95
1
9
3
13
350
4
3
12
60 / 132
105
1
9
3
12
400
4
3
12
65 / 143
114
1
9
3
11
400
4
3
11
70 / 154
123
1
9
3
10
450
4
3
10
75 / 165
132
1
9
3
9
450
4
3
9
80 / 176
141
1
9
3
9
450
4
3
9
85 / 187
151
1
9
3
8
500
4
3
8
90 / 198
160
1
9
3
7
500
4
3
7
95 / 209
169
1
9
3
7
550
4
3
7
100 / 220
178
1
9
3
6
550
4
3
6
105 / 231
187
1
9
3
5
550
4
3
5
110 / 243
196
1
9
3
4
600
4
3
4

I ride regularly and feel comfortable on most trails, even technical or steep ones.

I can carry speed through berms and handle medium jumps, drops, or wooden features.

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
Tokens
LSC
HSC
LSR
SHOCK
spring rate (Lbs)
LSC
HSC
LSR
50 / 110
88
1
8
2
14
350
3
2
13
55 / 121
97
1
8
2
14
350
3
2
12
60 / 132
107
1
8
2
13
400
3
2
12
65 / 143
116
1
8
2
12
400
3
2
11
70 / 154
125
1
8
2
11
450
3
2
10
75 / 165
135
1
8
2
10
450
3
2
9
80 / 176
144
1
8
2
10
450
3
2
9
85 / 187
154
1
8
2
9
500
3
2
8
90 / 198
163
1
8
2
8
500
3
2
7
95 / 209
172
1
8
2
8
550
3
2
7
100 / 220
182
1
8
2
7
550
3
2
6
105 / 231
191
1
8
2
6
550
3
2
5
110 / 243
200
1
8
2
5
600
3
2
4

I can ride fast and smooth on all trails, regardless of difficulty.

I’m active on the bike, jumping with style and precision, pushing through corners, and always looking to build speed.

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
Tokens
LSC
HSC
LSR
SHOCK
spring rate (Lbs)
LSC
HSC
LSR
50 / 110
90
1
7
2
14
350
2
1
14
55 / 121
99
1
7
2
14
400
2
1
13
60 / 132
109
1
7
2
13
400
2
1
13
65 / 143
118
1
7
2
12
400
2
1
12
70 / 154
128
1
7
2
11
450
2
1
11
75 / 165
138
1
7
2
10
450
2
1
10
80 / 176
147
1
7
2
10
500
2
1
10
85 / 187
157
1
7
2
9
500
2
1
9
90 / 198
166
1
7
2
8
550
2
1
8
95 / 209
176
1
7
2
8
550
2
1
8
100 / 220
185
1
7
2
7
550
2
1
7
105 / 231
195
1
7
2
6
600
2
1
6
110 / 243
205
1
7
2
5
600
2
1
5

Turn your adjustment knob to the closed position (full clockwise) until it stops. Then back it out (counterclockwise) to the number of clicks shown in the table.

TYRE PRESSURE ADJUSTMENTS

TYRE PRESSURE ADJUSTMENTS

Our recommended tyre pressures for SCHWALBE Super Downhill and MAXXIS DH Casing tyres:

SCHWABLE

MAXXIS

WEIGHT
Kg / Lbs
FRONT PRESSURE
Bar / PSI
REAR PRESSURE
Bar / PSI
50 / 110
1,3 / 19
1,5 / 21
55 / 121
1,4 / 20
1,5 / 21
60 / 132
1,4 / 21
1,5 / 22
65 / 143
1,5 / 22
1,6 / 23
70 / 154
1,6 / 23
1,7 / 24
75 / 165
1,6 / 23
1,7 / 25
80 / 176
1,7 / 24
1,8 / 26
85 / 187
1,7 / 25
1,9 / 27
90 / 198
1,8 / 26
1,9 / 28
95 / 209
1,8 / 27
2 / 29
100 / 220
1,9 / 28
2,1 / 30
105 / 231
2 / 28
2,1 / 31
110 / 242
2 / 29
2,2 / 32
WEIGHT
Kg / Lbs
FRONT PRESSURE
Bar / PSI
REAR PRESSURE
Bar / PSI
50 / 110
1,3 / 19
1,5 / 21
55 / 121
1,4 / 20
1,5 / 22
60 / 132
1,4 / 21
1,6 / 23
65 / 143
1,5 / 22
1,7 / 24
70 / 154
1,6 / 23
1,7 / 25
75 / 165
1,6 / 23
1,8 / 26
80 / 176
1,7 / 24
1,8 / 27
85 / 187
1,7 / 25
1,9 / 28
90 / 198
1,8 / 26
2 / 29
95 / 209
1,8 / 27
2 / 30
100 / 220
1,9 / 28
2,1 / 30
105 / 231
2 / 28
2,2 / 31
110 / 242
2 / 29
2,2 / 32
FIND YOUR SUPREME DH V5.2
