SUSPENSION SETTINGS

For enduro, bike park, pedalling, or pump track, the META HT KIDS bikes are the children’s versions of our flagship model: the META HT. With this bike in hand the kids are a step closer to becoming real mini riders!

Below you will find the recommended suspension settings chart based on your level and the build of your META HT KIDS.

These recommendations are indeed recommendations.The best settings are the ones where you feel most comfortable on the bike.

WARNING: These setup recommendations apply only to the models shown in the corresponding photos.

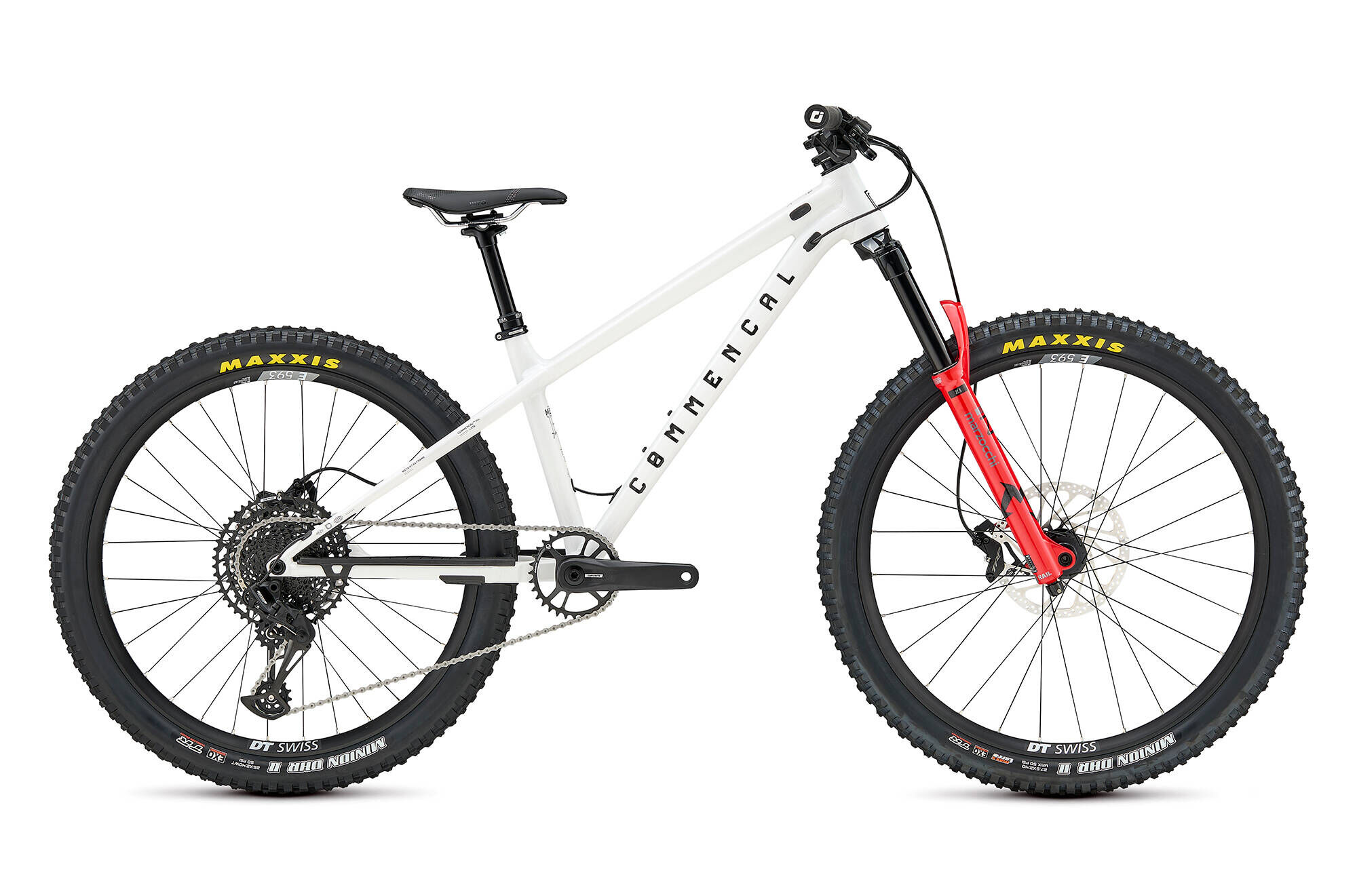

META HT XS

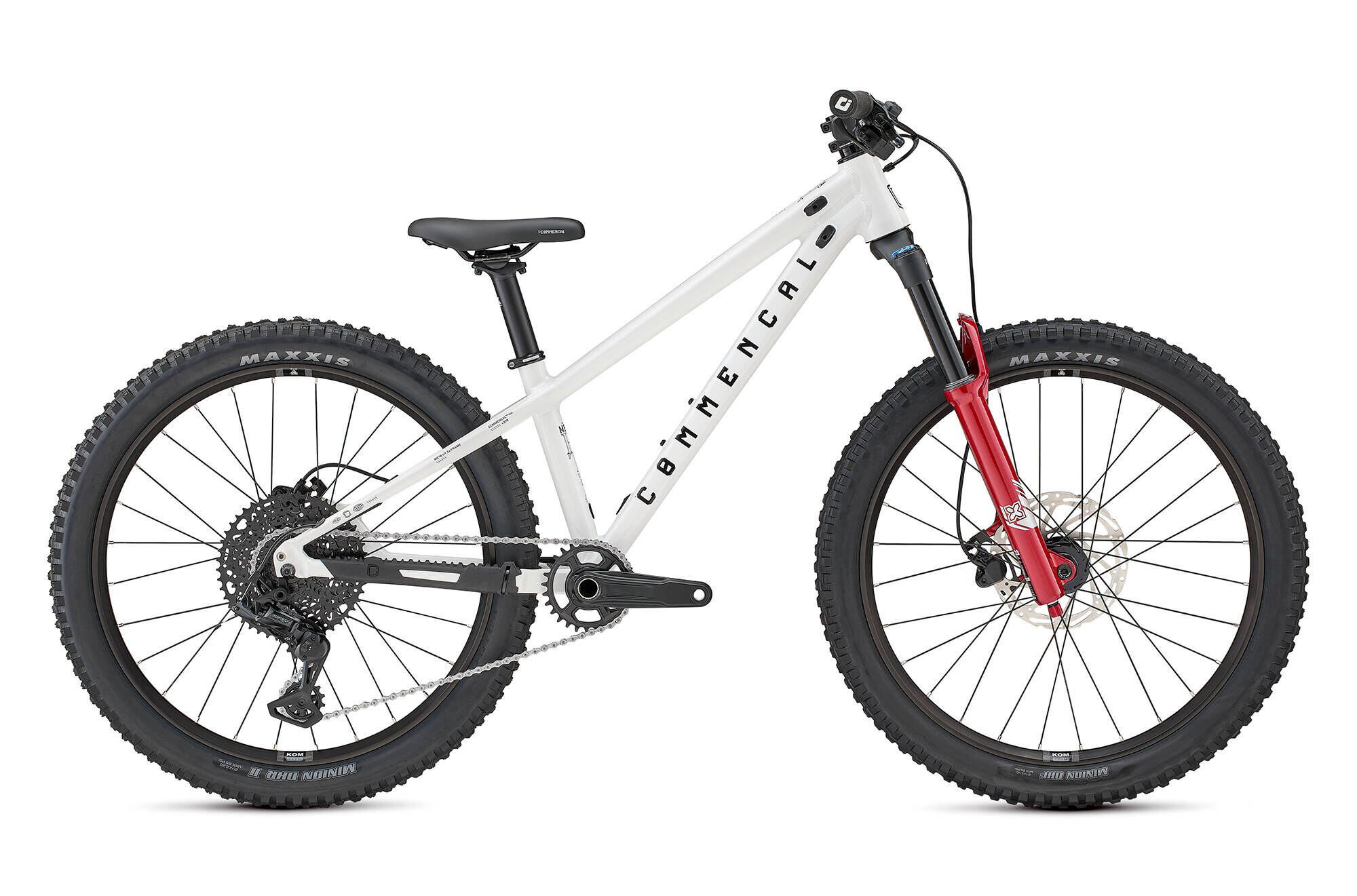

META HT 24

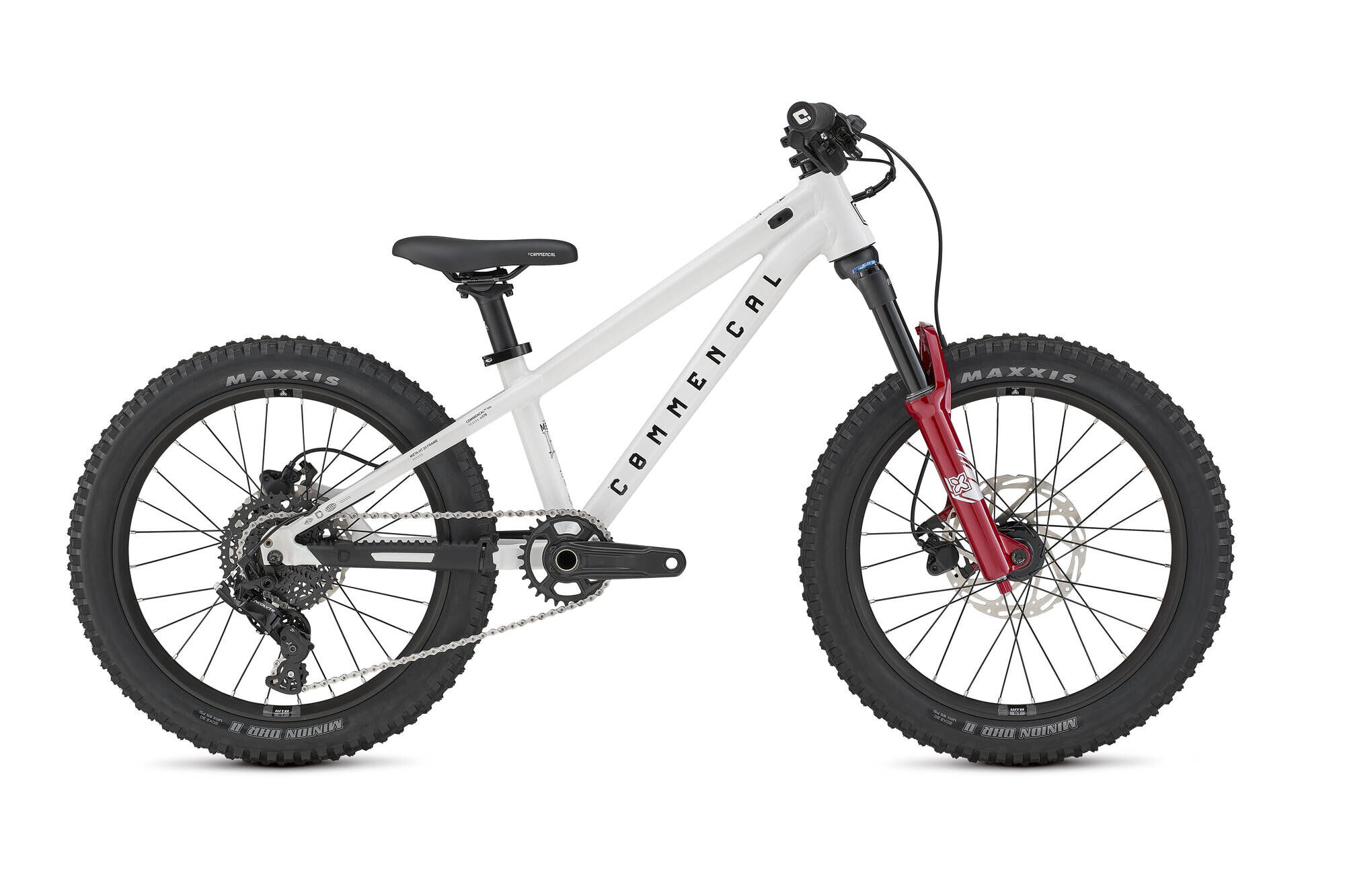

META HT 20

META HT XS

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
Tokens
LSR
40 / 88
43
2
10
45 / 99
47
2
9
50 / 110
52
2
9

Turn your adjustment knob to the closed position (full clockwise) until it stops. Then back it out (counterclockwise) to the number of clicks shown in the table.

META HT 24

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
LSR
20 / 44
22
18
25 / 55
28
16
30 / 66
33
15
35 / 77
38
14
40 / 88
43
14

Turn your adjustment knob to the closed position (full clockwise) until it stops. Then back it out (counterclockwise) to the number of clicks shown in the table.

META HT 20

WEIGHT
Kg / Lbs
FORK
air pressure (PSI)
LSR
15 / 33
14
21
20 / 44
17
20
25 / 55
21
18
30 / 66
25
17

Turn your adjustment knob to the closed position (full clockwise) until it stops. Then back it out (counterclockwise) to the number of clicks shown in the table.
