Technical features

  • Bicycle type

    Trail

  • Frame material

    AL 6069 T4, T6

  • Frame weight

    3,44 kg / 7,58 lb

  • Rear travel

    125mm

  • Shock length/stroke

    210x50mm

  • Recommended SAG

    28-30% / 14-15mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    20x10mm / 30x10mm

  • Recommended/max. fork height

    551mm / 561mm

  • Headset type

    ZS56 / ZS56

  • ICR compatible

    Yes

  • Wheels size

    29’’ - 29’’

  • Max. rear tyre dimension - ETRTO

    64mm - Ø622mm

  • rear brake mounting type

    Postmount 180mm

  • Rear brake rotor max. size

    200mm

  • Seatpost/seat clamp diameter

    31,6mm / 34,9mm

  • Seatpost insertion max.

    S : 225mm / M : 265mm / L : 285mm / XL : 305mm

  • Bottom bracket type

    Press Fit BB 92mm

  • Chain guide

    ISCG 05 lower - Custom upper guide

  • Chain line

    55

  • Rear Hub dimension

    148x12mm

  • Rear Axle dimension

    Maxle standard, 180mm, M12, P1.0mm

  • UDH hanger

    Yes

  • shock anchor adjustment

    No

Geometry

SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
76,6°
76,6°
76,6°
76,6°
3 - HEAD TUBE ANGLE
65,5°
65,5°
65,5°
65,5°
4 - HEAD TUBE LENGTH
115
120
125
130
5 - WHEELBASE
1190
1211,5
1238,5
1261
6 - TOP TUBE LENGTH
579
600
621,5
642,9
7 - CHAIN STAY LENGTH
435
435
440
440
8 - BOTTOM BRACKET HEIGHT
-35
-35
-35
-35
9 - FORK LENGTH
551
551
551
551
10 - FORK OFFSET
51
51
51
51
11 - REACH
430
450
470
490
12 - STACK
624
628,5
633
637,5

All lengths in millimeters.

Frame Assembly

frame assembling tutorial

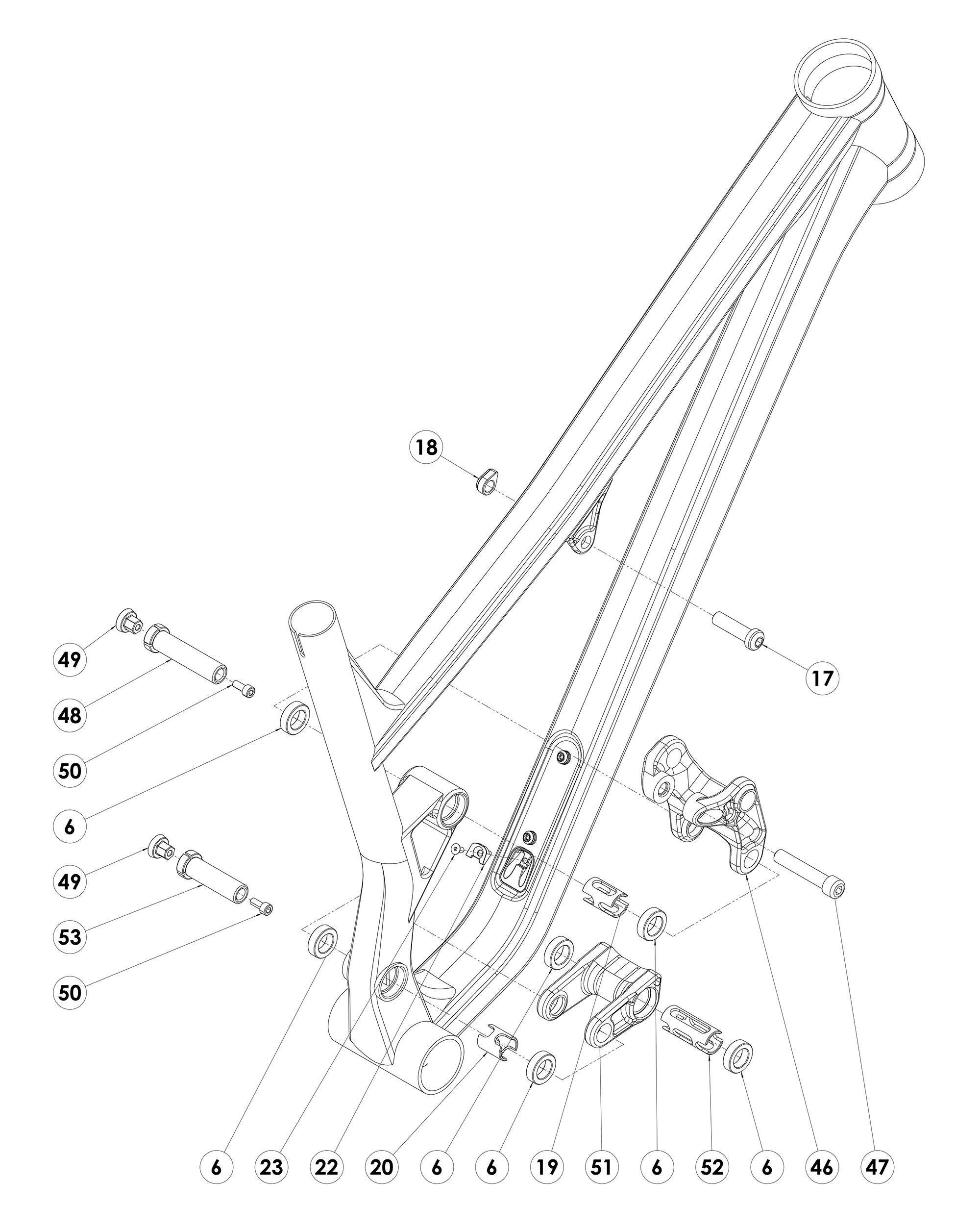

Front triangle

17+18
W22TPOAXLESHFT
T.E.M.P.O. FRONT TRIANGLE/SHOCK AXLE
10N.m
19
W22TPOSPACERUL
T.E.M.P.O. UPPER LINK SPACER
20
W22TPOSPACERLLFT
LOWER LINK / FRONT TRIANGLE SPACER T.E.M.P.O.
22+23
W22TPOCABLEGUIDE
T.E.M.P.O. DOWN TUBE CABLE GUIDE
3N.m
46
W22TPOUPPERLINK
T.E.M.P.O. UPPER LINK
48+49+50
W22TPOAXLEULFT
T.E.M.P.O. FRONT TRIANGLE/SHOCK AXLE, META V5 & META SX V5
Axle: 20N.m / Expander Bolt: 6N.m
49+50+53
W22TPOAXLELLFT
T.E.M.P.O. FRONT TRIANGLE/LOWER LINK AXLE, META V5 & META SX V5
Axle: 20N.m / Expander Bolt: 6N.m
51
W22TPOLOWERLINK
T.E.M.P.O. LOWER LINK
52
W22TPOSPACERLLRT
LOWER LINK / REAR TRIANGLE SPACER T.E.M.P.O.
47
W22TPOAXLESHUL
Product not available on our site, please contact our teams.
10N.m
6
W21EB3802
Product not available on our site, please contact our teams.
15x24x7

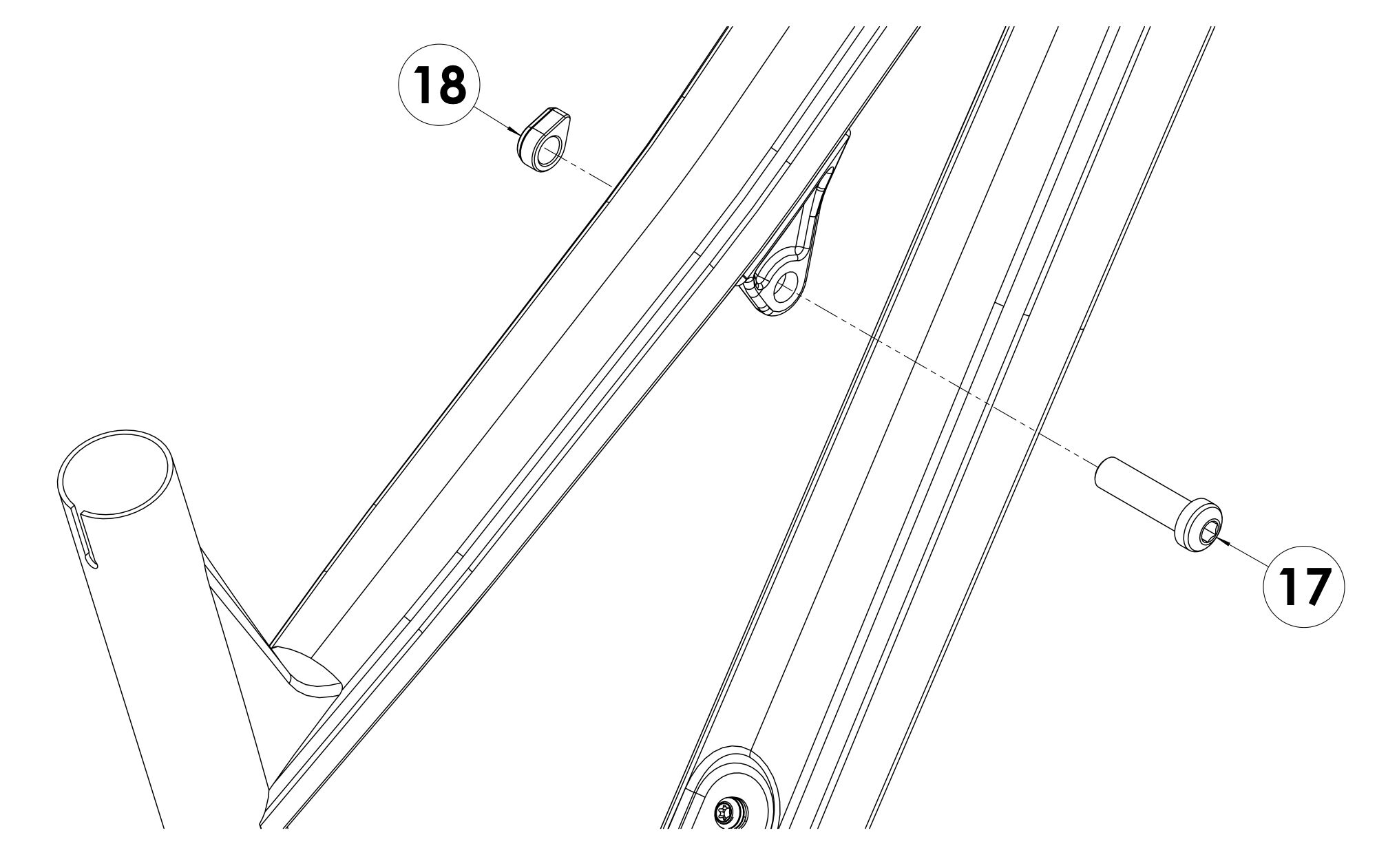

Top tube

17+18
W22TPOAXLESHFT
T.E.M.P.O. FRONT TRIANGLE/SHOCK AXLE
10N.m

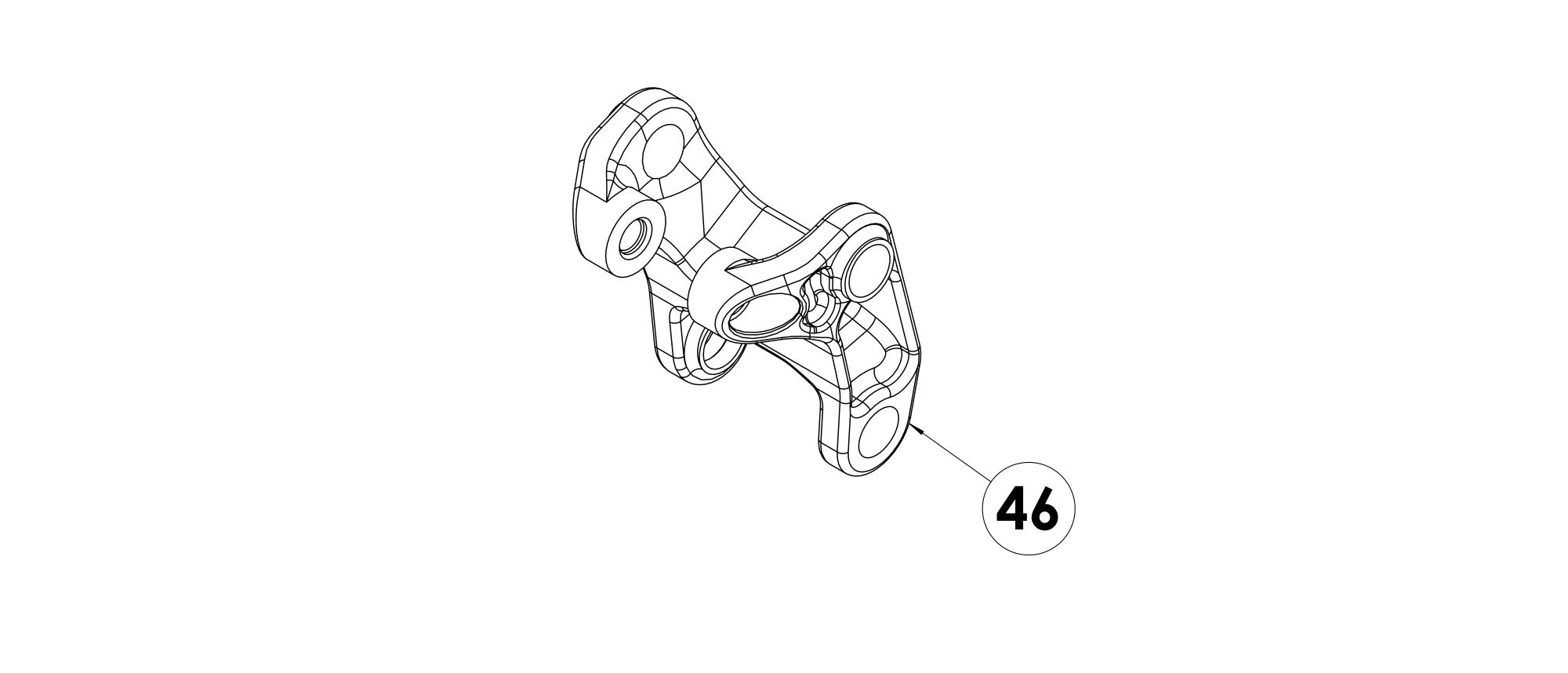

Upper link

46
W22TPOUPPERLINK
T.E.M.P.O. UPPER LINK

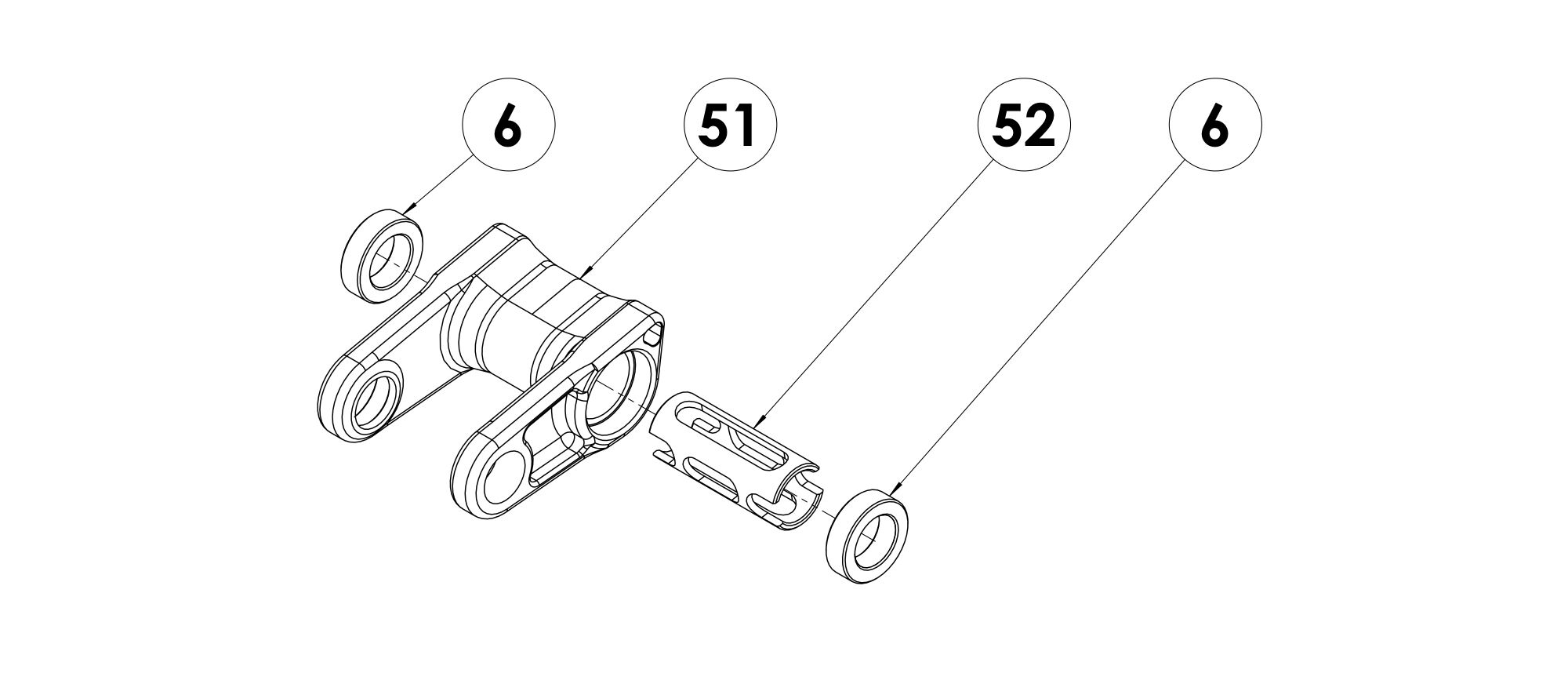

Lower link

51
W22TPOLOWERLINK
T.E.M.P.O. LOWER LINK
52
W22TPOSPACERLLRT
LOWER LINK / REAR TRIANGLE SPACER T.E.M.P.O.
6
W21EB3802
Product not available on our site, please contact our teams.
15x24x7

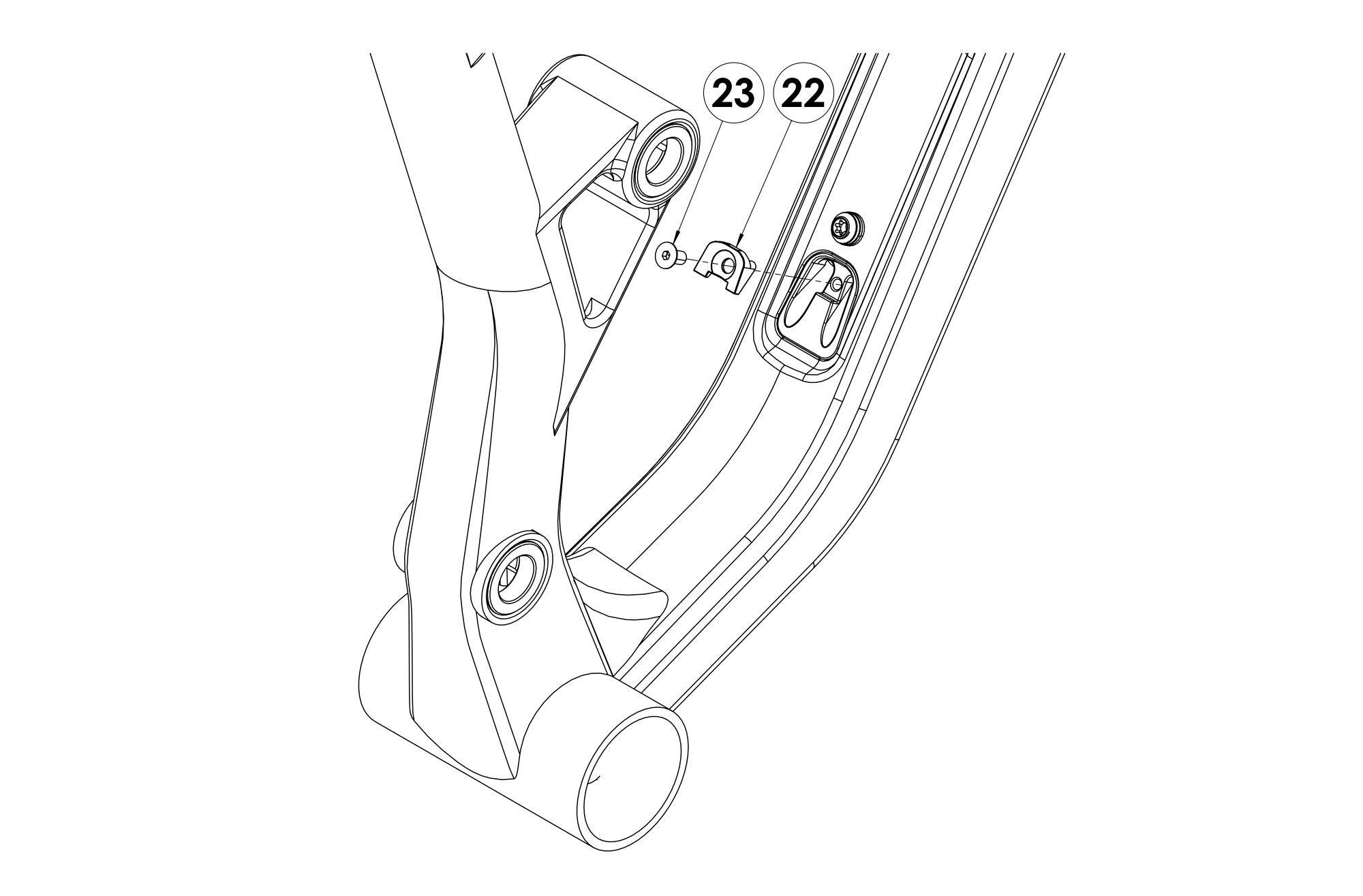

Down tube Cables exit

22+23
W22TPOCABLEGUIDE
T.E.M.P.O. DOWN TUBE CABLE GUIDE
3N.m

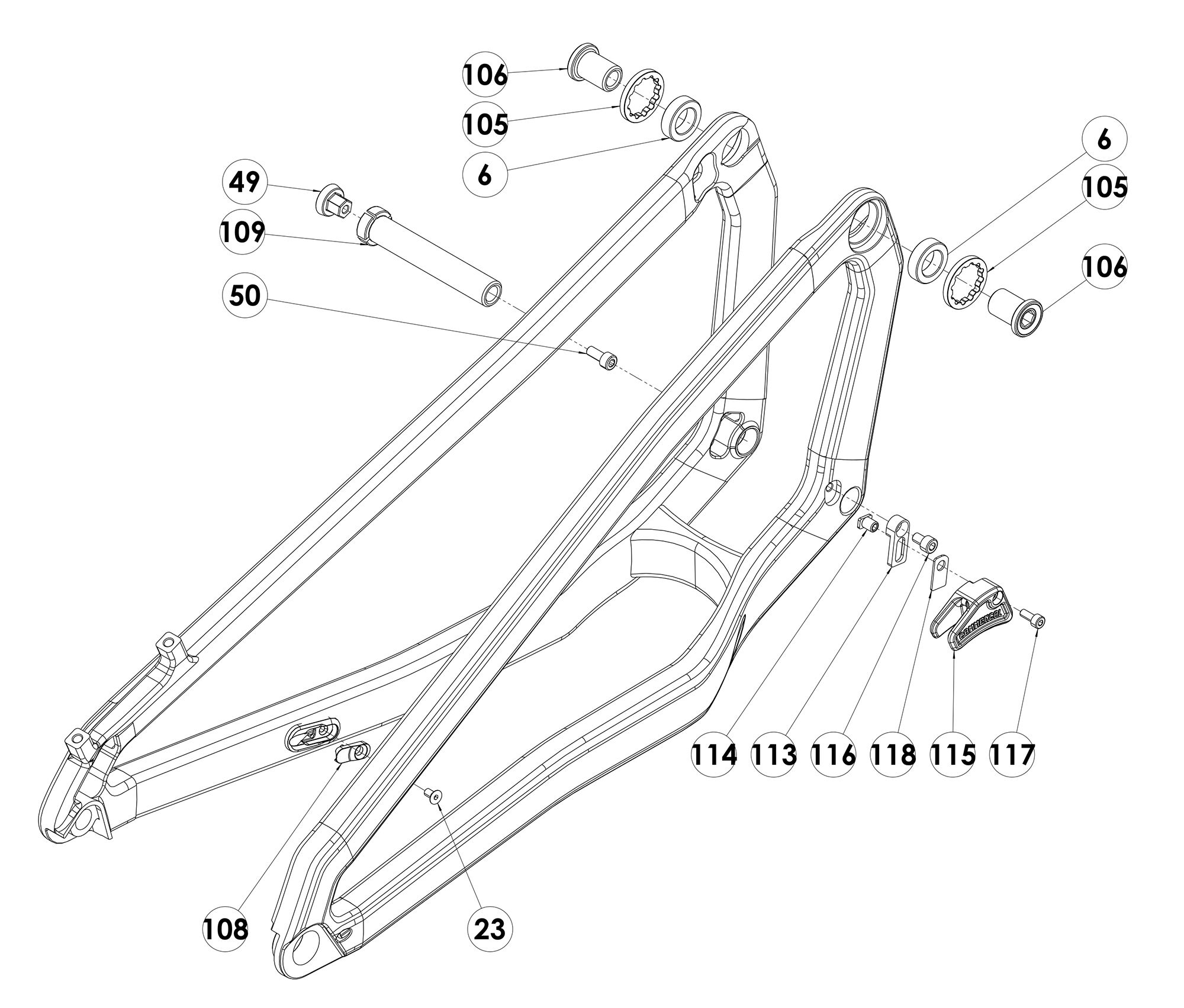

Rear triangle

105
W21METALOCKRING
BEARING LOCKNUT T.E.M.P.O. & META
5 N.m
106
W22TPOAXLEULRT
T.E.M.P.O. REAR TRIANGLE/SHOCK AXLE
12 N.m
23+108
W19CLHCABLEGUIDEB
META, META POWER, CLASH, FRS, T.E.M.P.O., DHV5 TOP TUBE CABLE GUIDE
3 N.m
49+50+109
W22TPOAXLELLRT
T.E.M.P.O. REAR TRIANGLE/LOWER LINK AXLE
Axle: 20N.m / Expander Bolt: 6N.m
6
W21EB3802
Product not available on our site, please contact our teams.
15x24x7

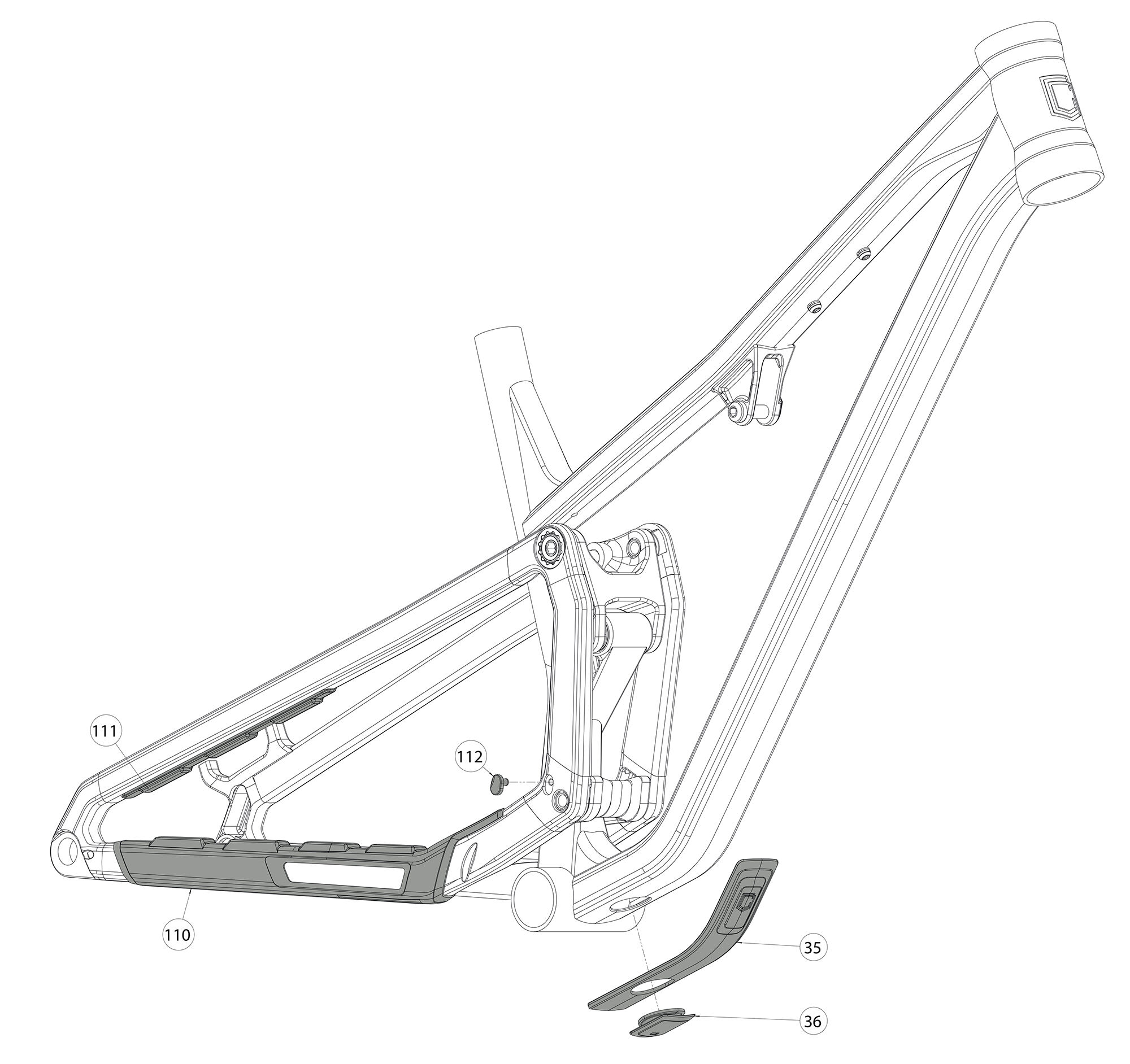

Protectors

110
W22TPOPROTECCS
T.E.M.P.O. CHAIN STAY PROTECTOR
111
W22TPOPROTECSS
T.E.M.P.O. SEAT STAYS PROTECTOR
112
W22TPOPLUGCG
T.E.M.P.O. THREAD PROTECTOR
35
W22TPOPROTECDTM
T.E.M.P.O. DOWN TUBE PROTECTOR
Medium Size Frame
35
W22TPOPROTECDTL
T.E.M.P.O. DOWN TUBE PROTECTOR
Large Size Frame
35
W22TPOPROTECDTXL
T.E.M.P.O. DOWN TUBE PROTECTOR
X-Large Size Frame
35
W22TPOPROTECDTS
Product not available on our site, please contact our teams.
Small Size Frame
36
W22TPOPLUGDTP
Product not available on our site, please contact our teams.

Cable Routing

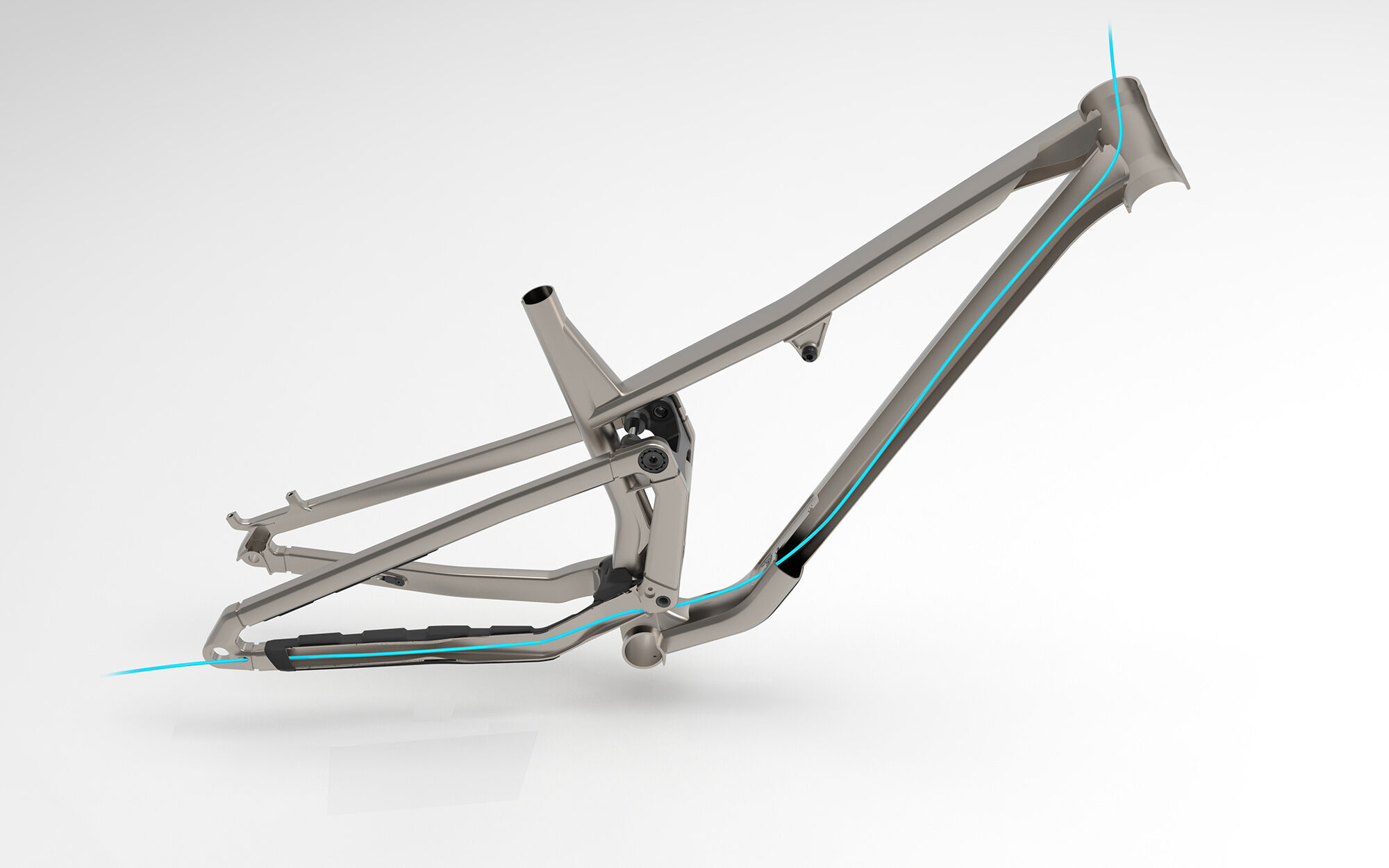

Derailleur

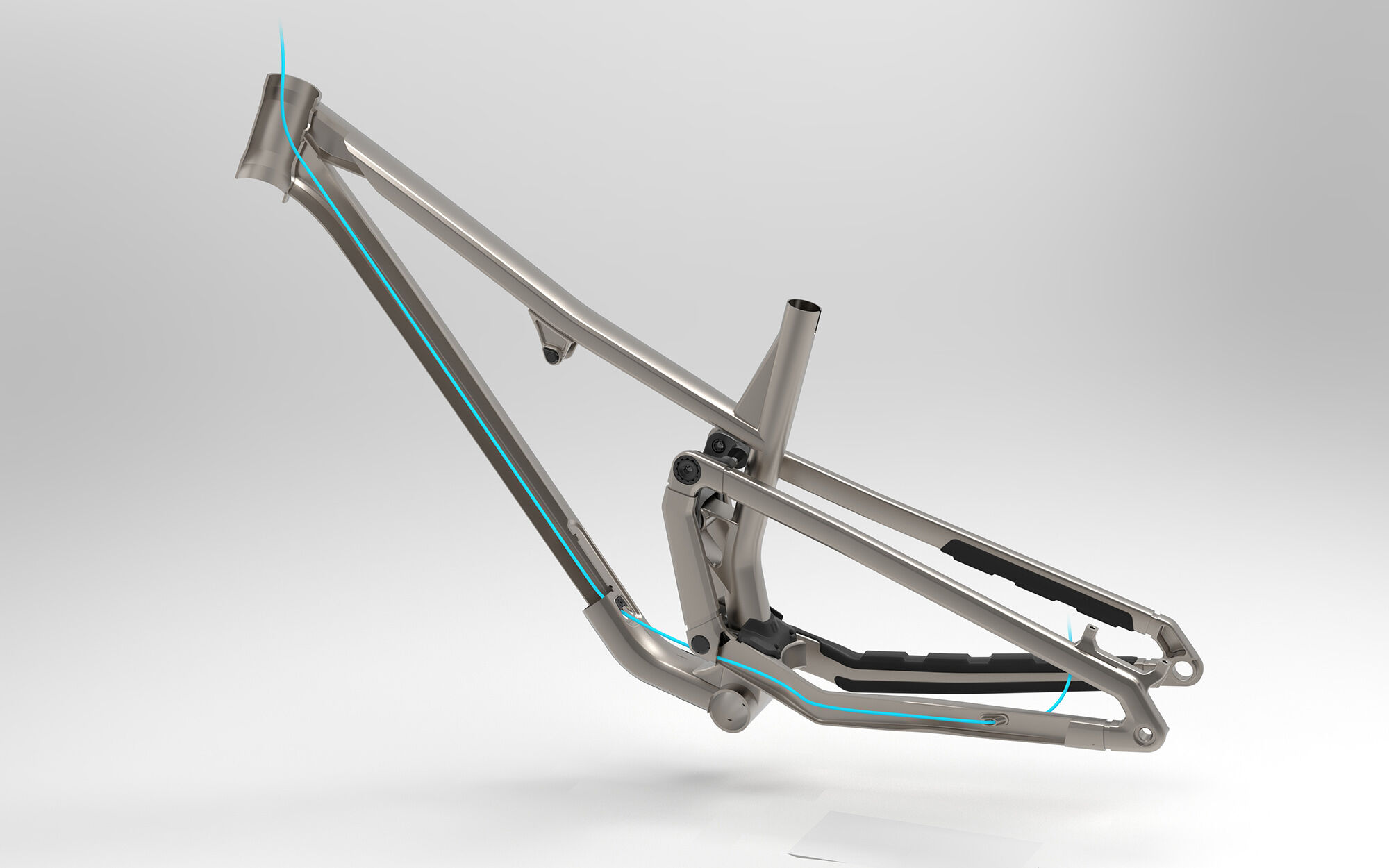

Rear Brake

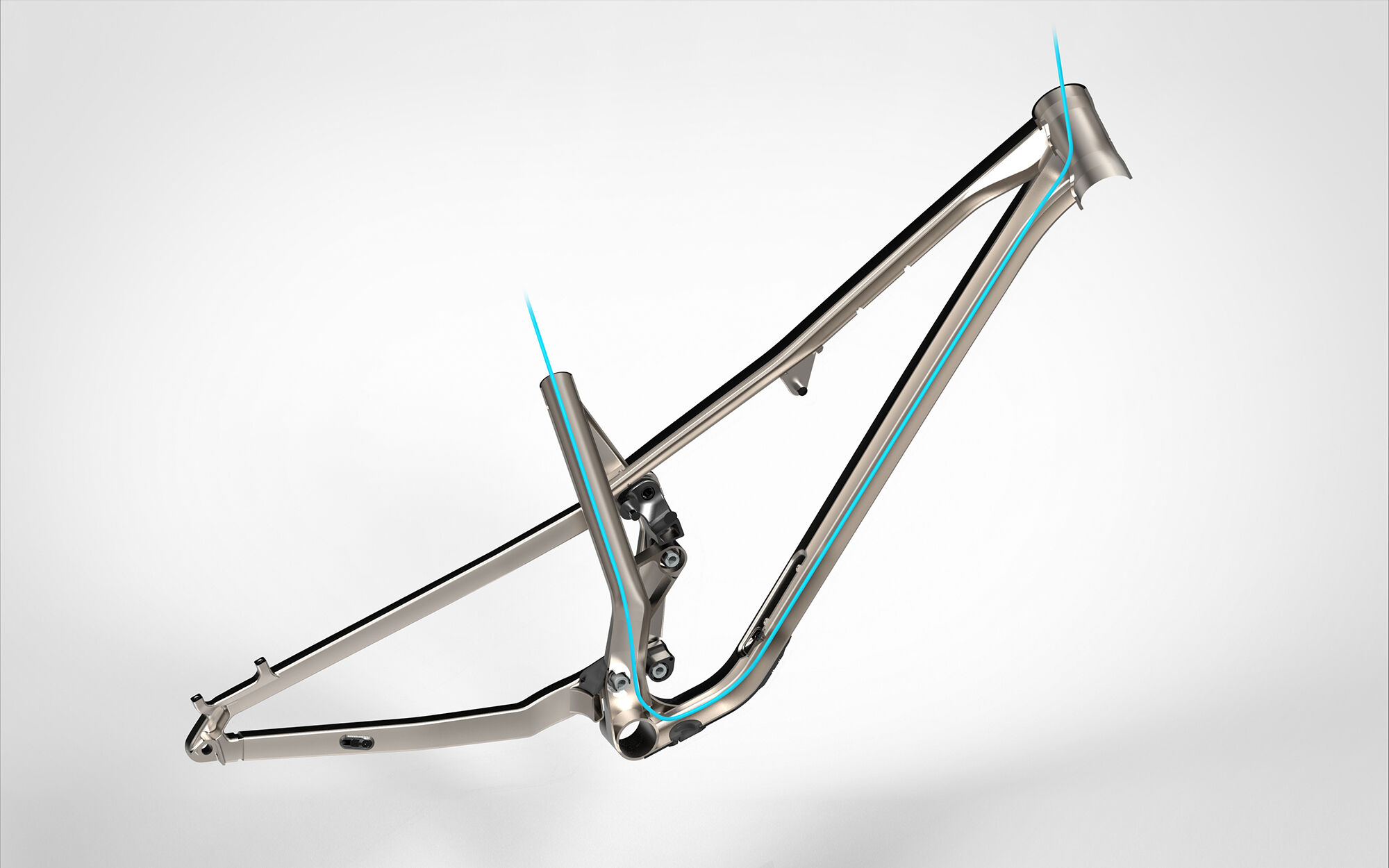

Dropper post

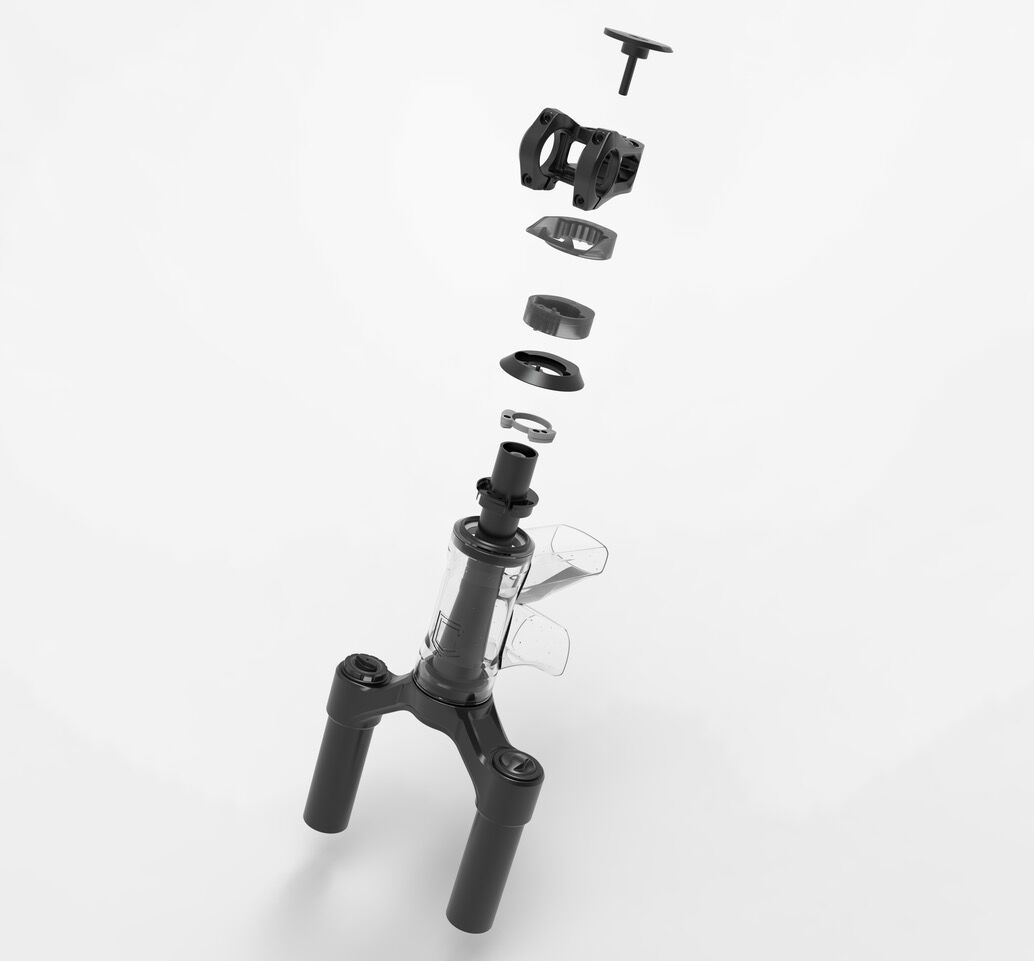

Headset assembly

Upper
A23JDDICRTOPV5
UPPER HEADSET BEARING KIT ZS56 ACROS ICR FOR T.E.M.P.O.
Lower
A23JDDICRBOTV5
LOWER HEADSET BEARING KIT ACROS ZS56 ICR FOR T.E.M.P.O.

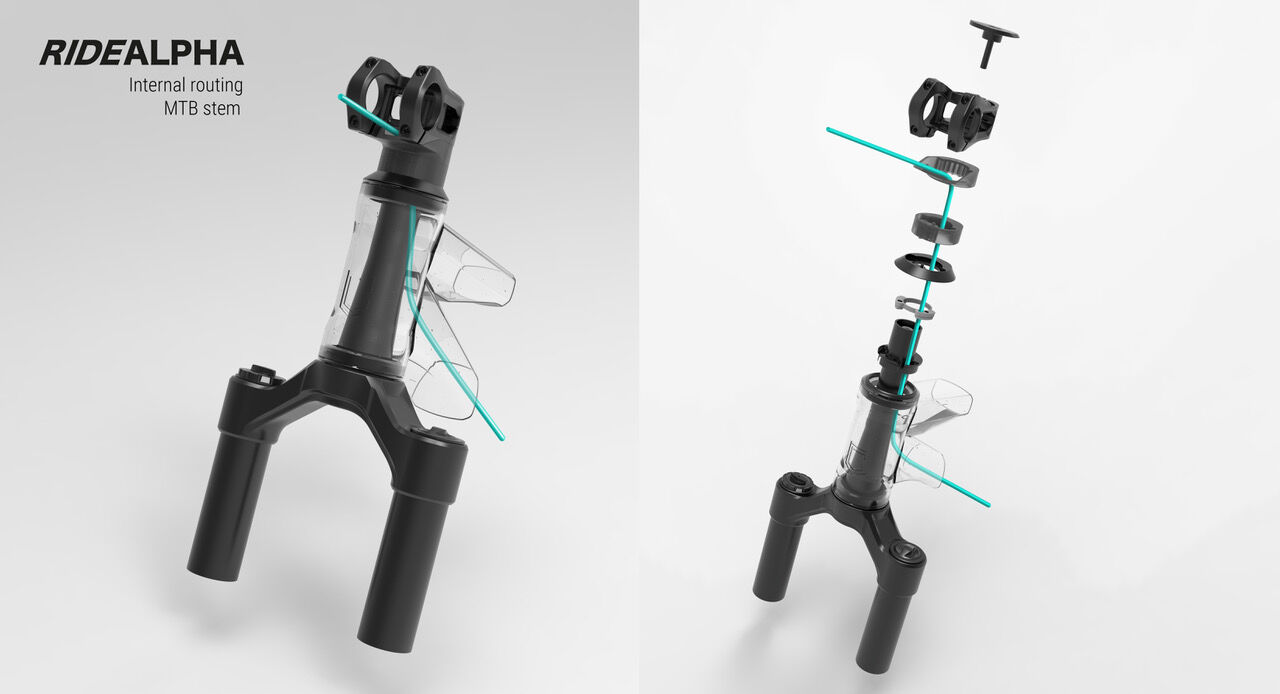

Headset Cable Routing
