ÖHLINS TTX22M.2 210X55

Price reduced from € 791,66 excl. VAT to € 500,00 excl. VAT -37%
id/sku : A23SHKOHLTTX22ME
Availability: This Item is currently not available. null
BUY IN-STORE

You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B sales department to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.

10% off for pick-up at the COMMENCAL Village

To benefit from 10% off the VAT-included price (valid only on bikes, frames, skis or snowboards) with pickup at the COMMENCAL Village (Andorra), order through our dedicated e-commerce platform. On site, take advantage of expert advice from our specialists, full bike assembly, and also enjoy our dining area at the COMMENCAL Spot.

- DESCRIPTION -

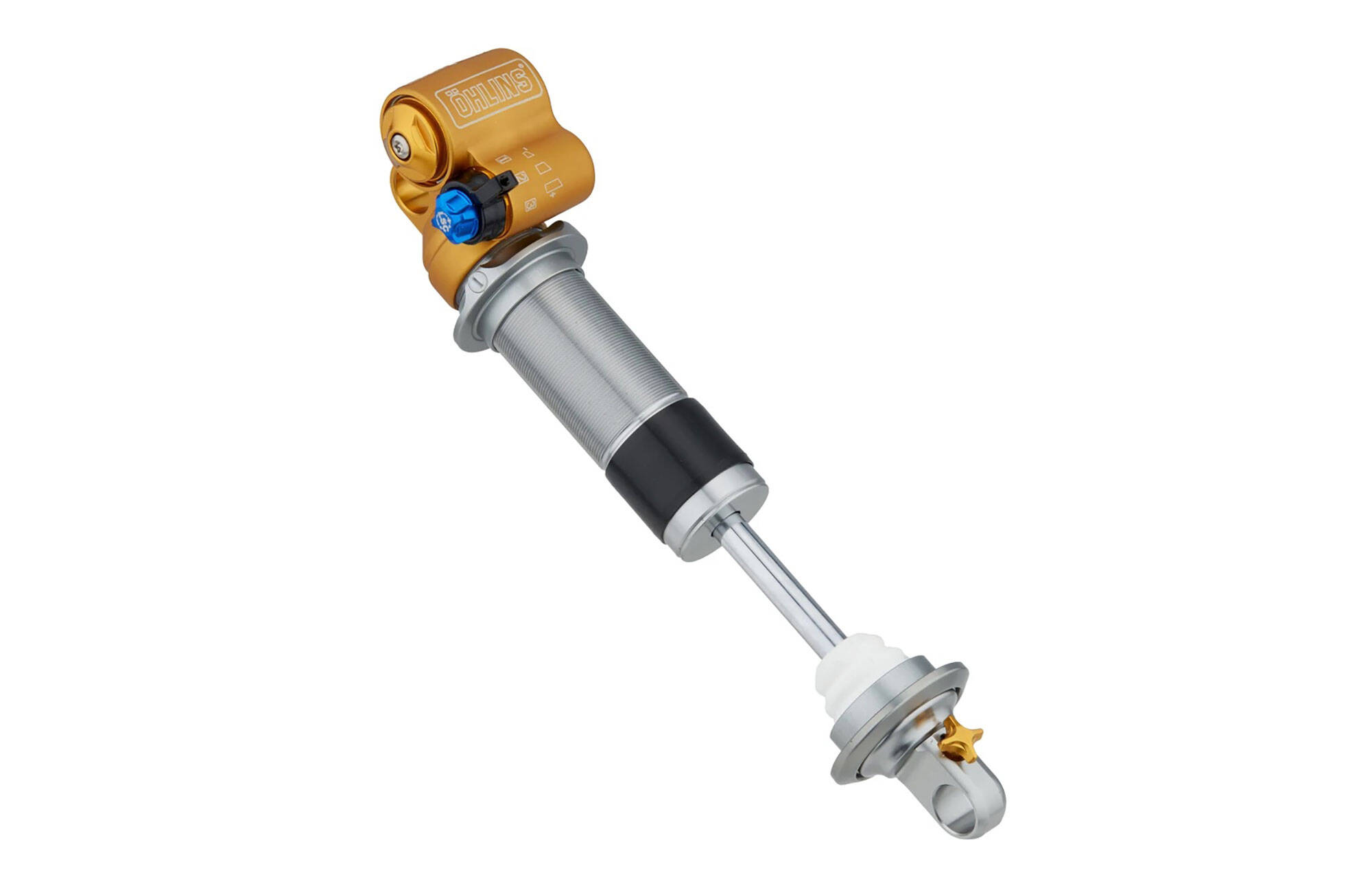

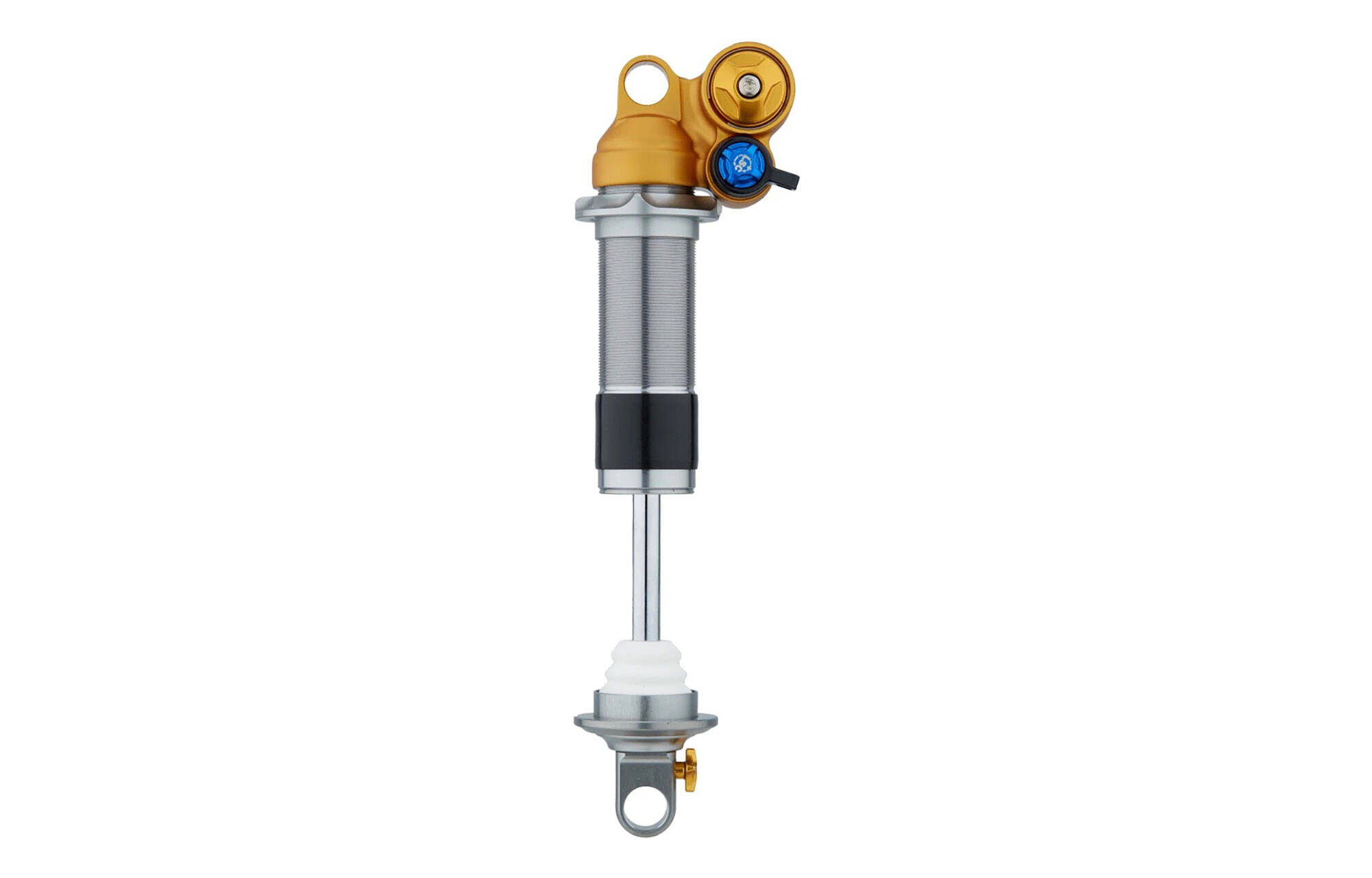

The new Öhlins TTX22M.2 shock is an upgraded version of the proven TTX22. It’s made to tackle the most demanding trails. The colour of shock body changes from black to grey, for improved aesthetics.

The Öhlins TTX22M.2 shock offers better performance thanks to a redesigned bottom buffer. This improvement helps increase mid-stroke control and reduces the risk of bottoming out.

In addition, the firmness of ‘trail mode’ has been reinforced to reduce energy loss during the steepest climbs.

Finally, the rebound adjuster has been reworked to make coil spring replacement easier. The Twin Tube (TTX) design is still present, offering the ability to separately adjust high and low speed compression as well as rebound.

Technical specifications:
• Length and stroke: 210x55mm
• Bushes: 20x10 / Ø
• Internal settings: Rebound R10 / Compression C10
• High speed compression adjustment: 3 clicks
• Low-speed compression adjustment: 16 clicks
• Rebound adjustment: 7 clicks
• Weight: 450g without spring
• Spring not included

Compatible models:
- META TR / META V5

All the ÖHLINS suspension that we offer have been tested by our engineers and product teams in order to have, from the outset, internal settings perfectly adapted to your COMMENCAL bike.

The defined settings of this shock result in freer rebound, making it possible to fully exploit the kinematics of our frames.
