- DESCRIPTION -

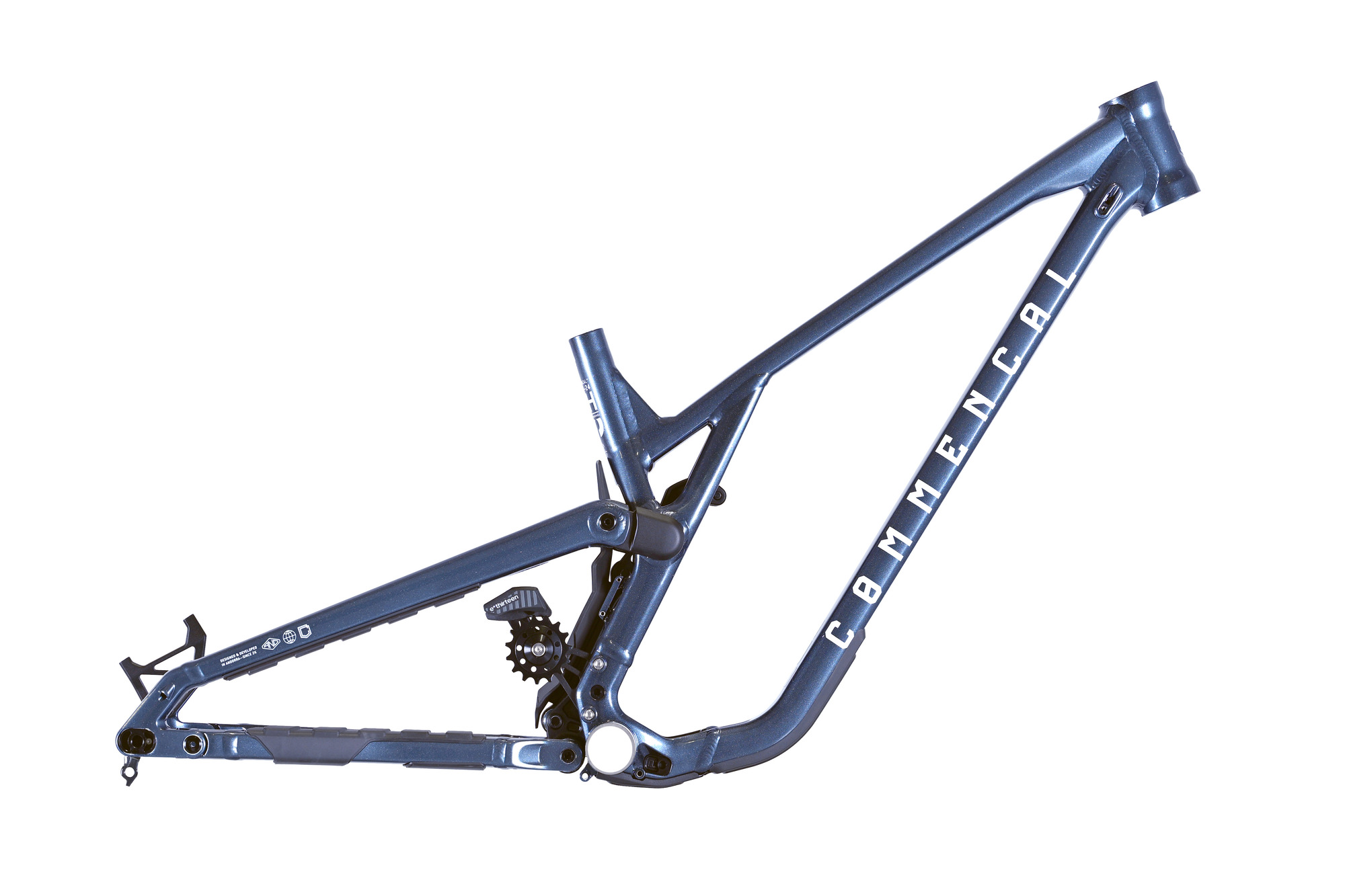

CHECK OUT THE SUPREME DH V5

Elevate your performance with the SUPREME DH V5, our exceptional race machine. The culmination of three years of intense collaboration between our R&D department and our elite athletes, this bike proved its superiority from its very first World Cup season. With an impressive track record of 9 wins, 27 podiums, and securing first place in the Elite Women, Men, and Team rankings, its results speak for themselves.

The V5 integrates a concentration of technology and experience, ushering in the High Virtual Contact System kinematics. This is our approach to optimally combine liveliness and shock absorption. Furthermore, thanks to ingenious inserts in the aluminium frame, you can precisely adjust the bike's geometry and behaviour for perfect adaptation to every race condition.

SUPREME DH V5 SETTINGS GUIDE

Frame not compatible with the new FOX Float X2 2026 shock.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    Frame DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle

  • Rear travel

    220 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 8 mm / 30 x 8 mm

  • Recommended/max. fork height

    612 mm / 620 mm

  • Headset type

    612 mm / 620 mm

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, rear wheel axle, chainguide, frame mudguard, roller cover, rear brake adaptor, rear hanger

  • Flip Chip
    Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)
  • Hub Old
    157 x 12
  • Wheel Base Length
    Centered (Available as an option: Flip Flop +/-6mm)
  • Bridge
    XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)
- SPECIFICATIONS -
  • Colour

    Glittery Blue - Shiny Finish

- SIZES -
- GEOMETRY -
SIZES
