- DESCRIPTION -

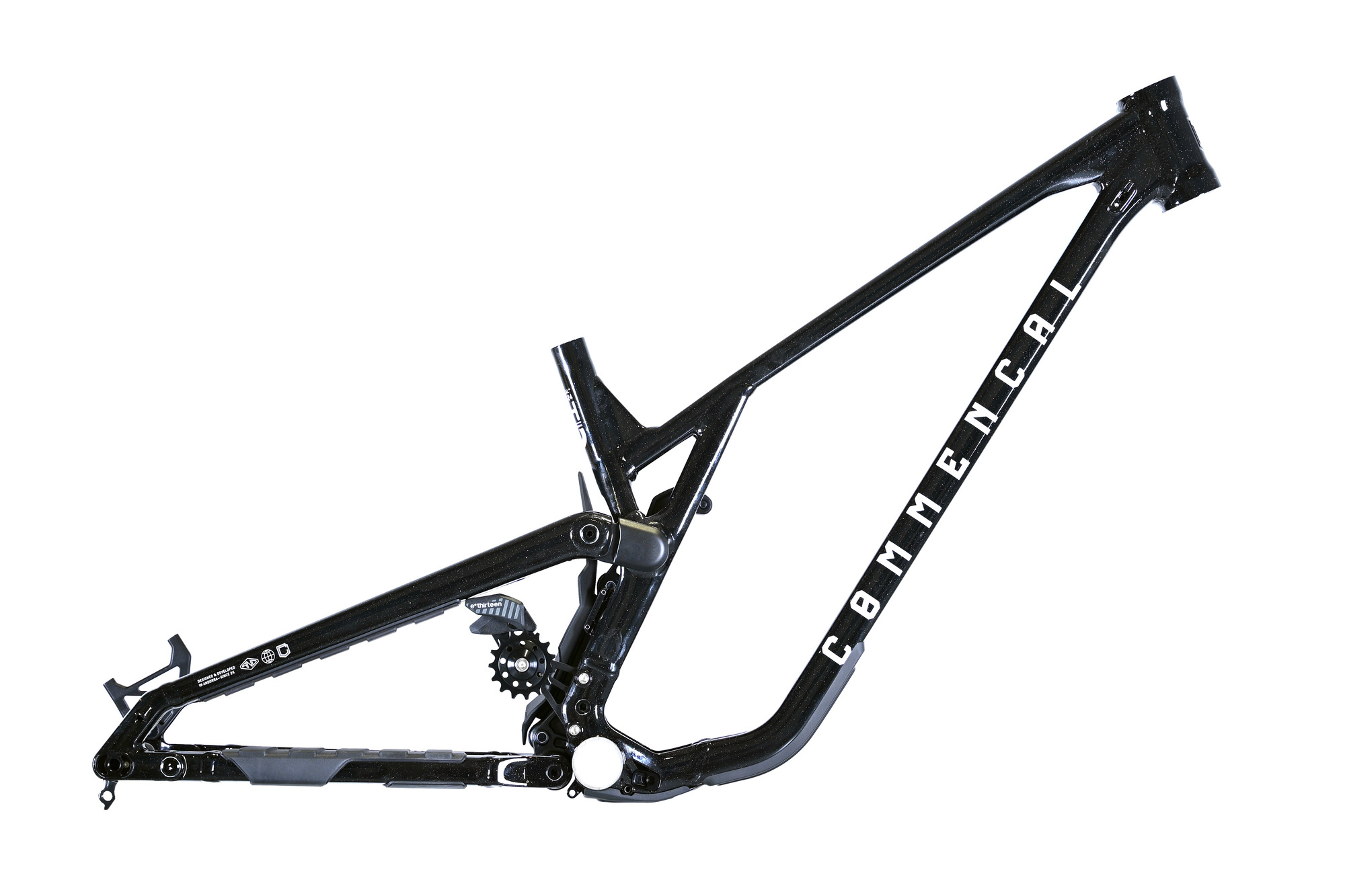

CHECK OUT THE SUPREME DH V5

Unleash your potential with the SUPREME DH V5, the ultimate racing machine built to dominate. Crafted over three years of relentless collaboration between our R&D team and top athletes, this beast of a bike stormed the World Cup in its debut season. Boasting 9 stunning victories, 27 podiums, and top spots in the Elite Women, Men, and Team rankings, the V5 is the undisputed champion.

Packed with cutting-edge technology, the V5 introduces the revolutionary High Virtual Contact System. This exclusive innovation delivers the perfect blend of explosive responsiveness and superior shock absorption, ensuring unmatched performance on any terrain. With clever inserts in its aluminium frame, the V5’s geometry and handling adapt seamlessly to every race condition, giving you the winning edge. Choose the SUPREME DH V5 and carve your path to glory.

SUPREME DH V5 SETTINGS GUIDE

Frame not compatible with the new FOX Float X2 2026 shock.

See more See less
- TECHNICAL INFO -
  • Bicycle type

    Frame DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    5,4 kg / 11,9 lbs in size S with frame protections, chain guide, rear wheel axle

  • Rear travel

    220 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 8 mm / 30 x 8 mm

  • Recommended/max. fork height

    612 mm / 620 mm

  • Headset type

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle

  • Accessories

    Down tube protector, chainstay protector, seatstay protector, rear wheel axle, chainguide, frame mudguard, roller cover, rear brake adaptor, rear hanger

  • Flip Chip
    Front / Up - Rear / Low (Available as an option: Front / Low - Rear / Up)
  • Hub Old
    157 x 12
  • Wheel Base Length
    Centered (Available as an option: Flip Flop +/-6mm)
  • Bridge
    XS & S: Thin - M & L: Medium - XL: Thick (All bridges are available as an option)
- SPECIFICATIONS -

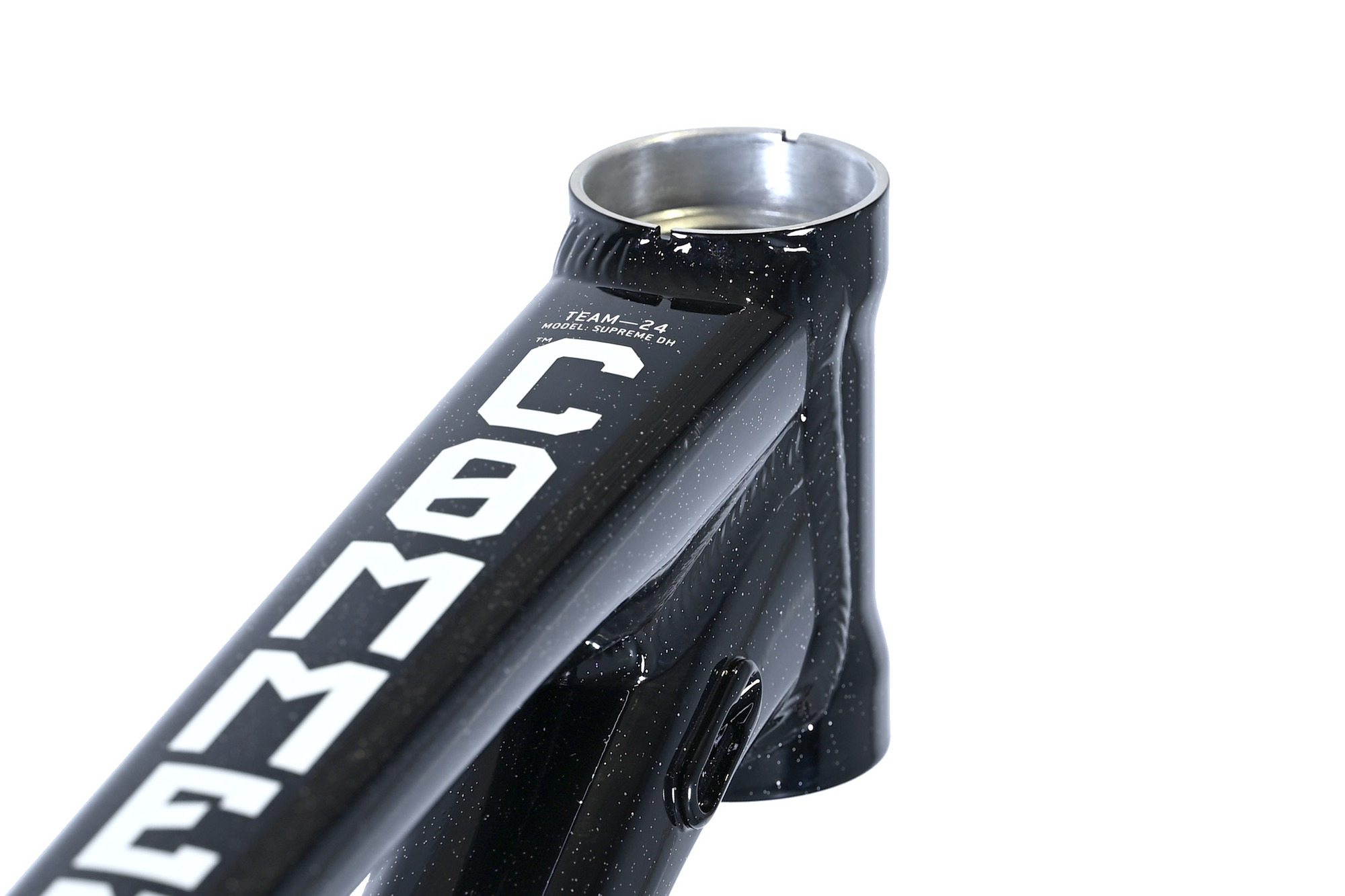

  • Colour

    Glittery Black - Shiny Finish
