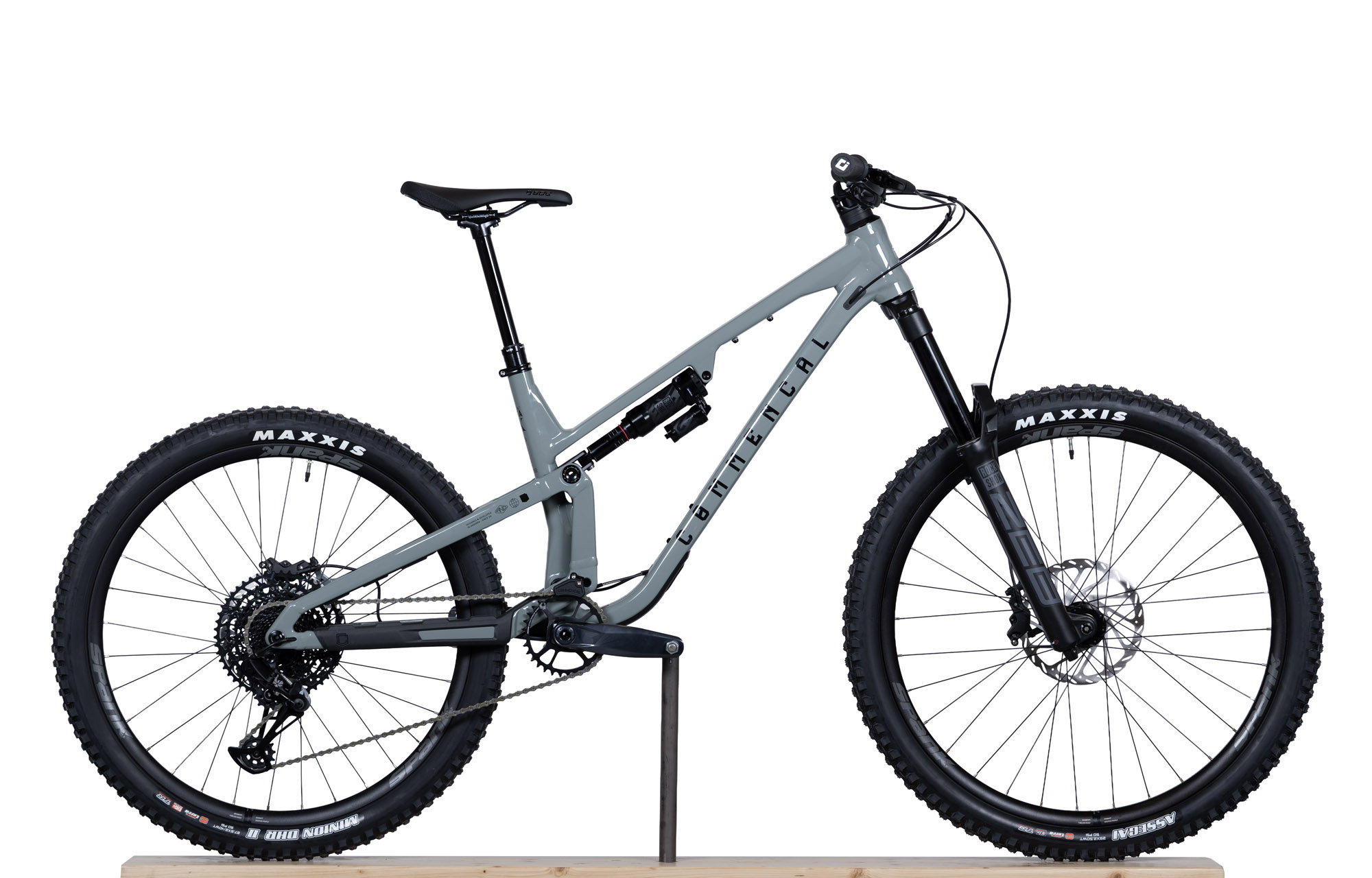

COMMENCAL META SX V5 RIDE PYRITE GREY - M (23131402)
Demo, rental, press, teams, bike patrols, showroom, new bikes (damaged): our refurbished bikes come from a variety of fleets. Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
THESE BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
Price reduced from
3.333,33 €
excl. VAT
to
2.741,66 €
excl. VAT
-18%
id/sku : AN5060
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists.Learn more
Pickup at the COMMENCAL Village
To benefit from 10% off the VAT-included price (valid only on bikes, frames, skis or snowboards) with pickup at the COMMENCAL Village (Andorra), order through our dedicated e-commerce platform. On site, take advantage of expert advice from our specialists, full bike assembly, and also enjoy our dining area at the COMMENCAL Spot.
Shipping Estimation
No delivery options are available for this address or item. Please contact us at store@commencal.com
Become a B2B+ reseller
Today, you have the opportunity to become a B2B+ reseller: privileged access to better conditions and increased online visibility.
B2B+ benefits:
• Listed on the COMMENCAL Store as an official reseller
• 20% discount off the public price (excl. VAT) on all 2027 new arrivals and a selection of models
• Presence in the Click & Collect option on the COMMENCAL Store
Customize your jersey!
Make your jersey unique by adding your name for an additional € 15.Simply indicate your name in the "Comments" section during the final step of your order. We will then contact you to finalize the personalization and its payment.
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B sales department to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
- GENERAL -
Ex-display bike as good as new, never been ridden, ready for a new start.
- AESTHETIC -
As good as new.

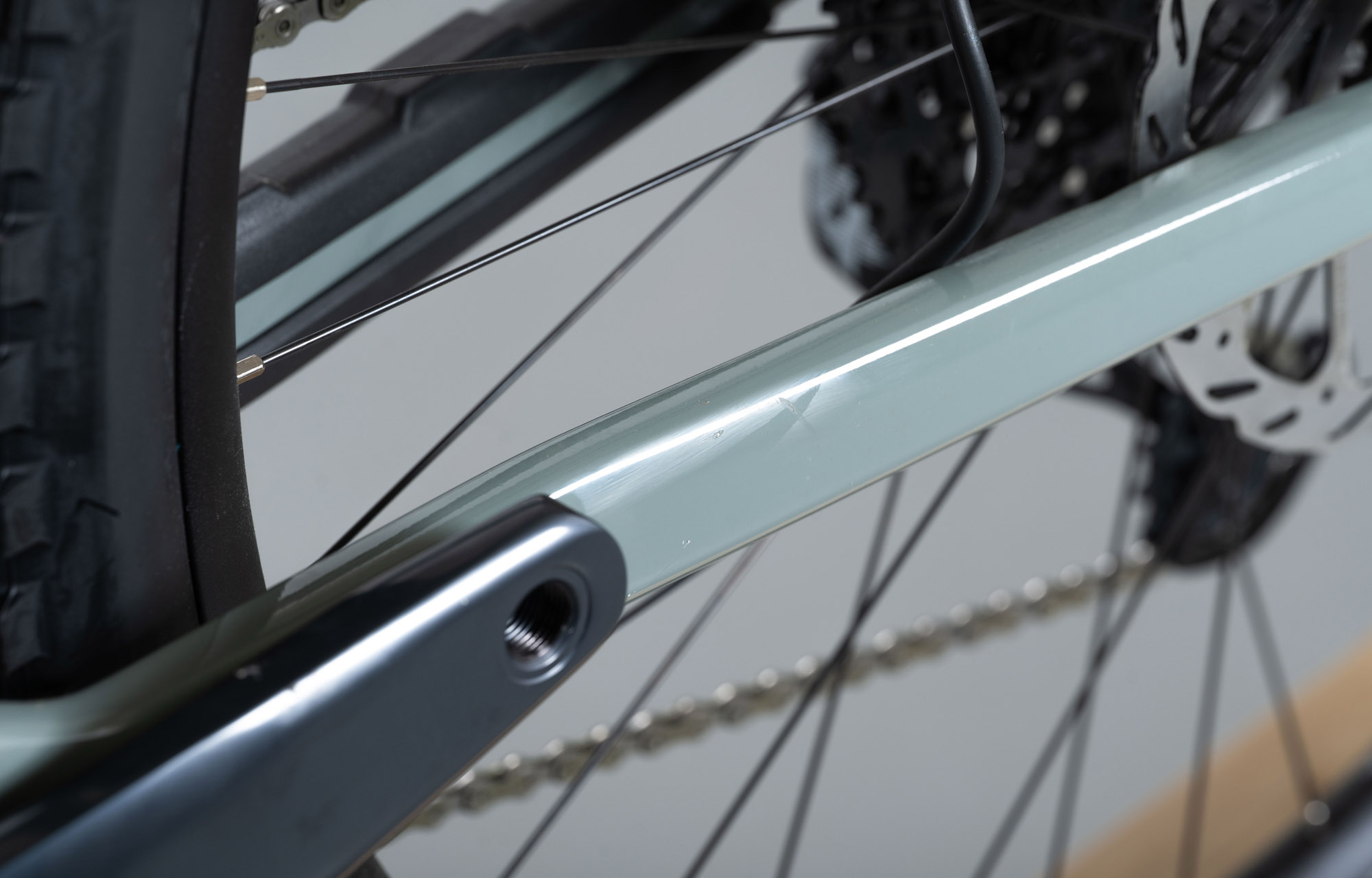

Small scratch on the chainstay (transport and storage).
- MECHANICAL -
Fully checked.

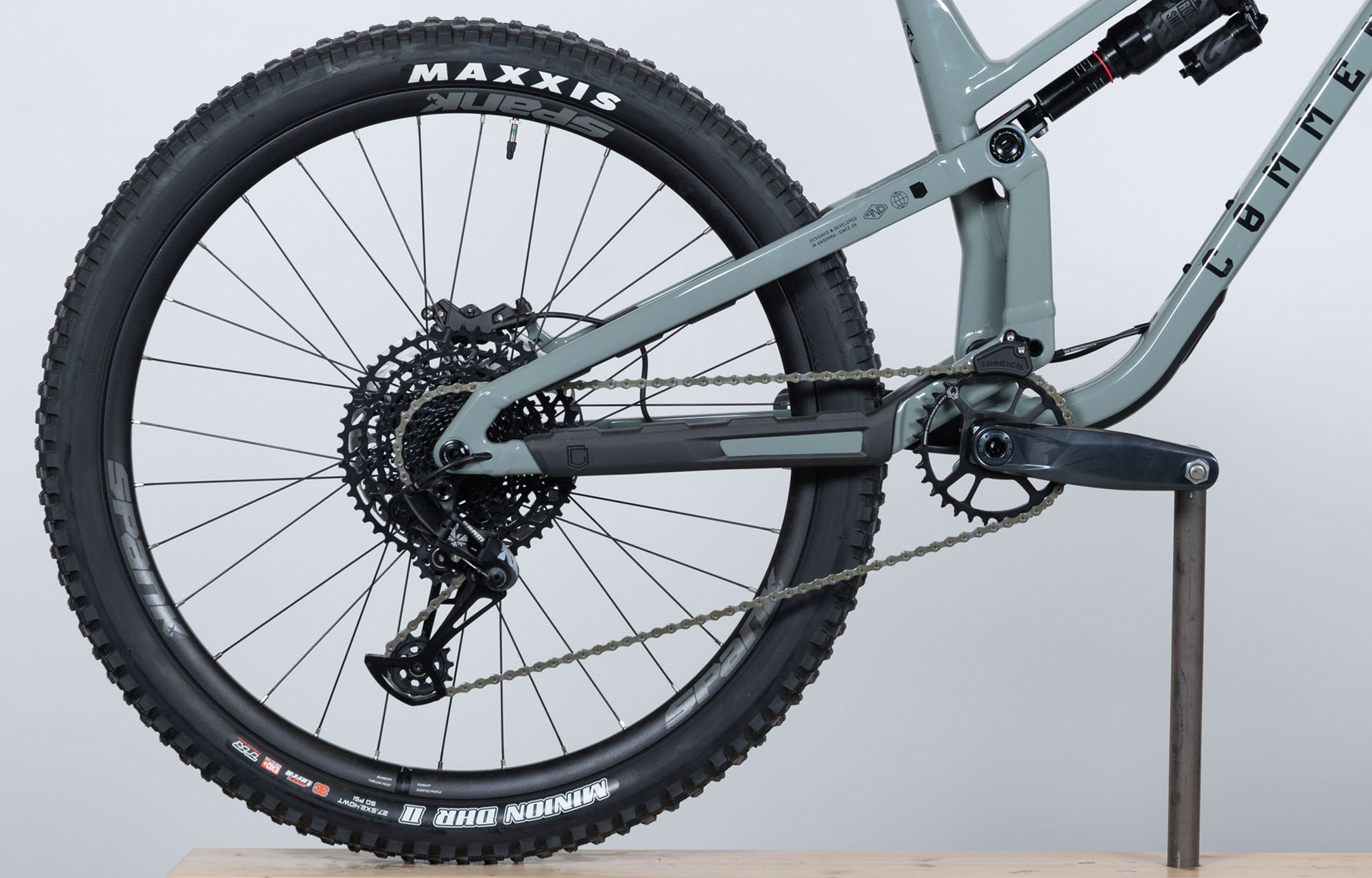

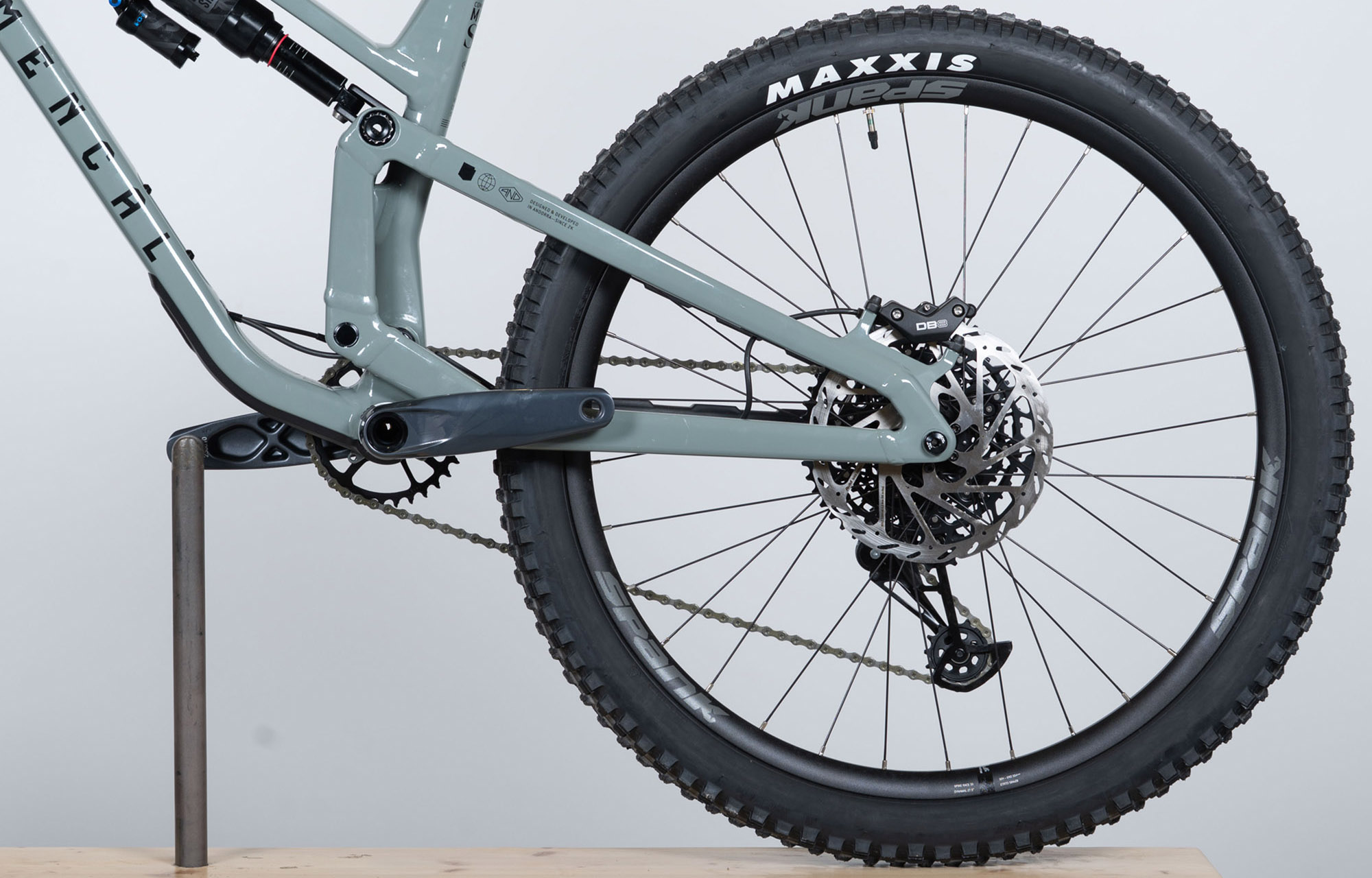

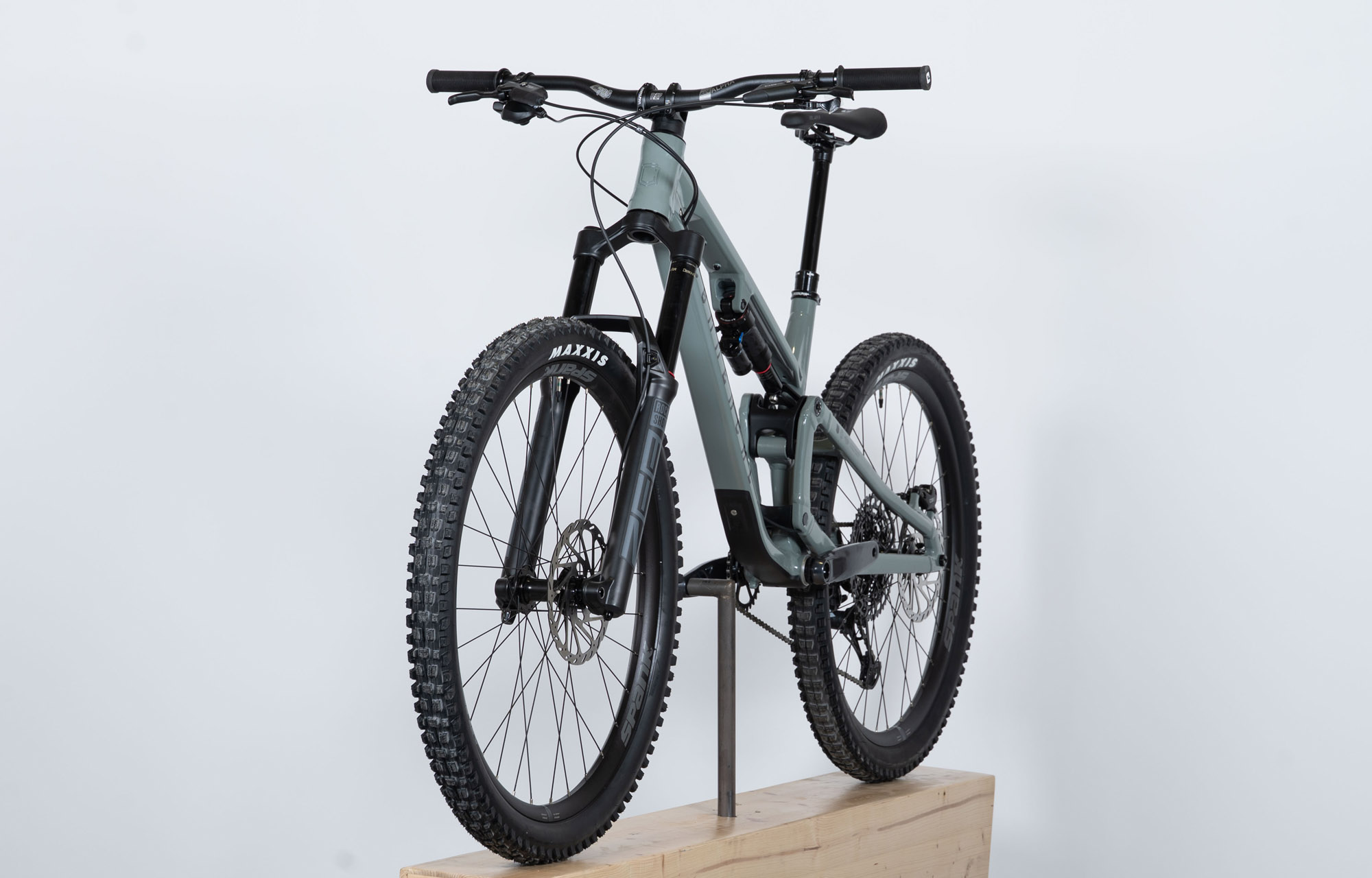

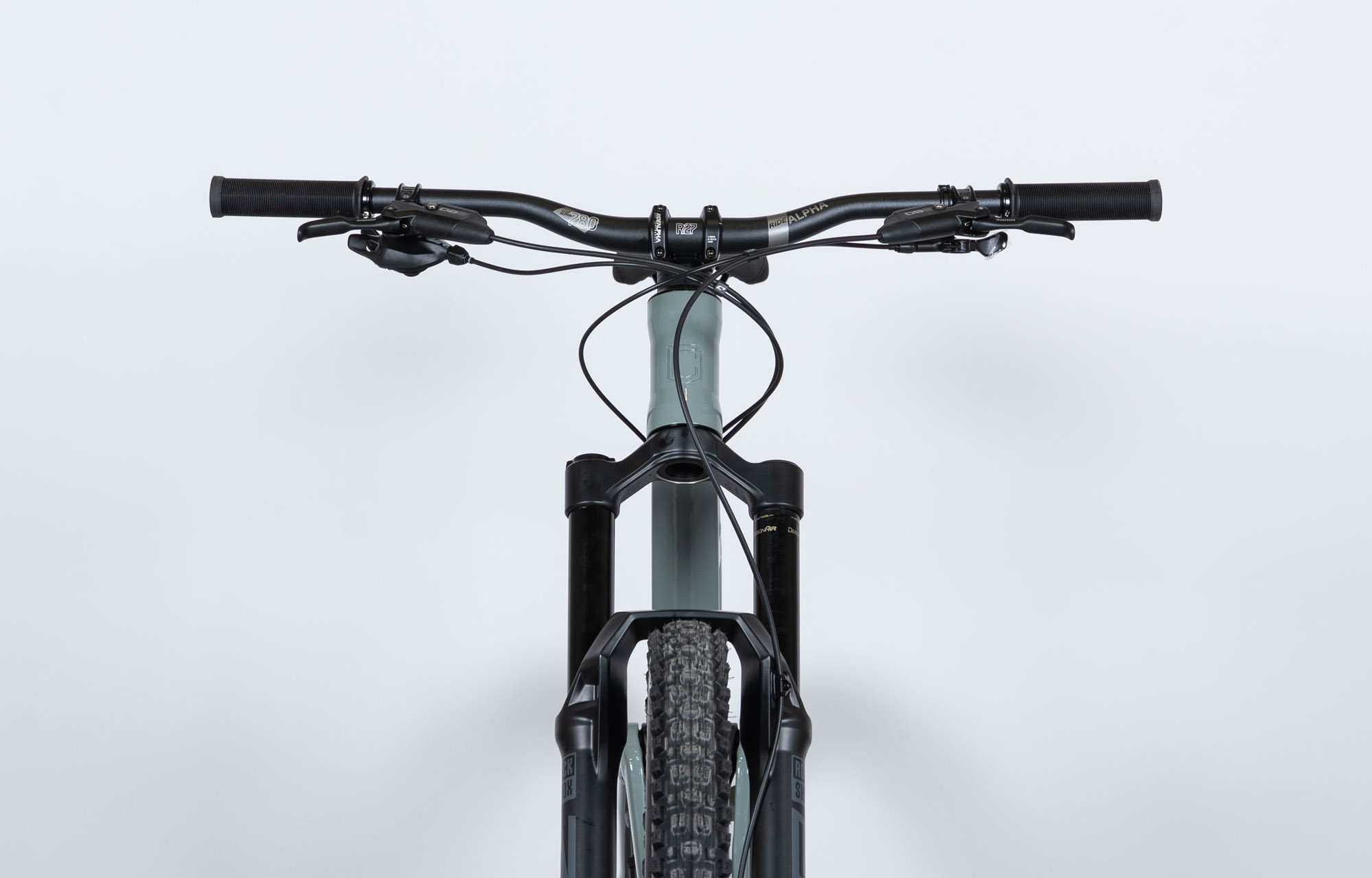

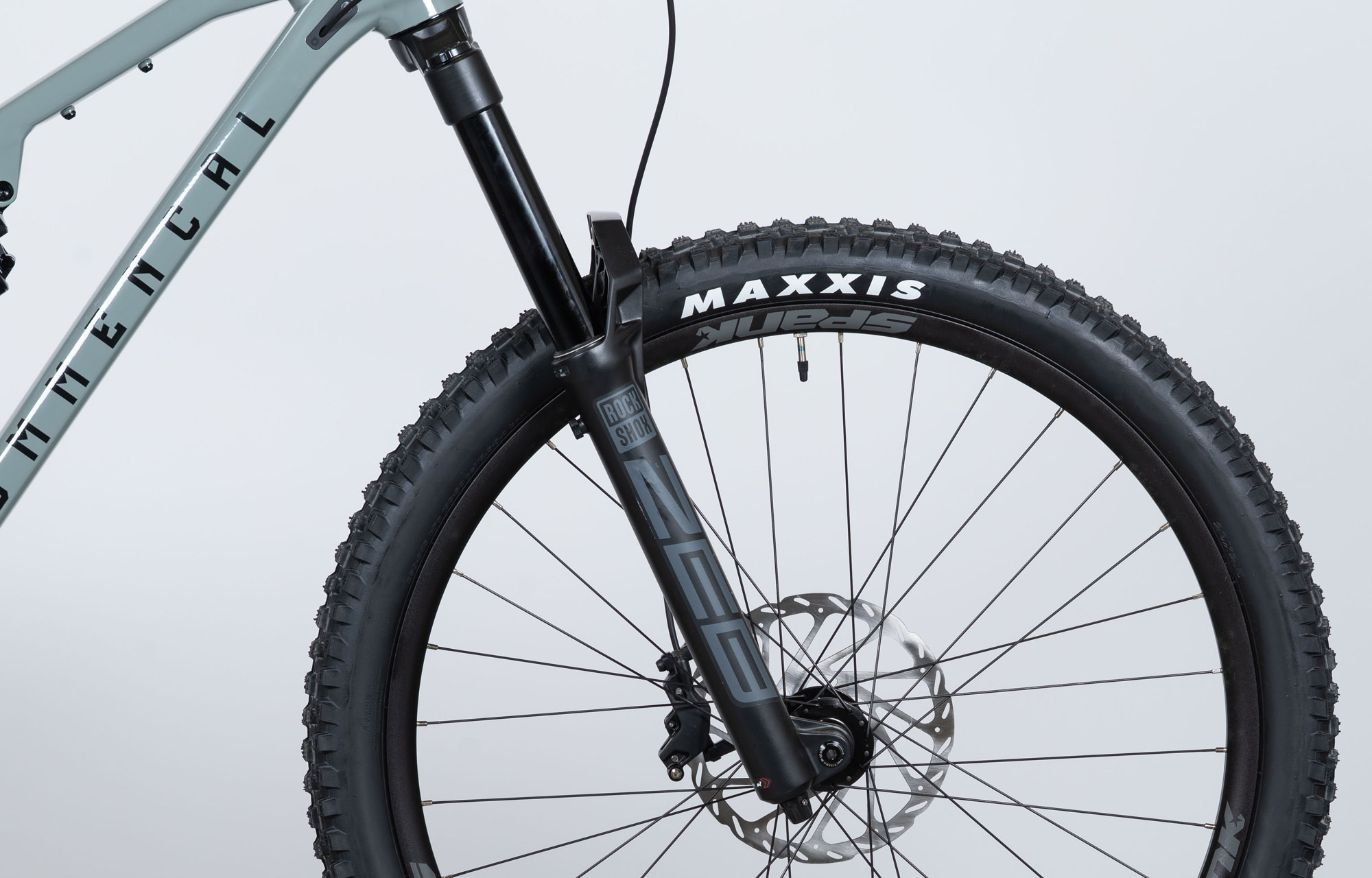

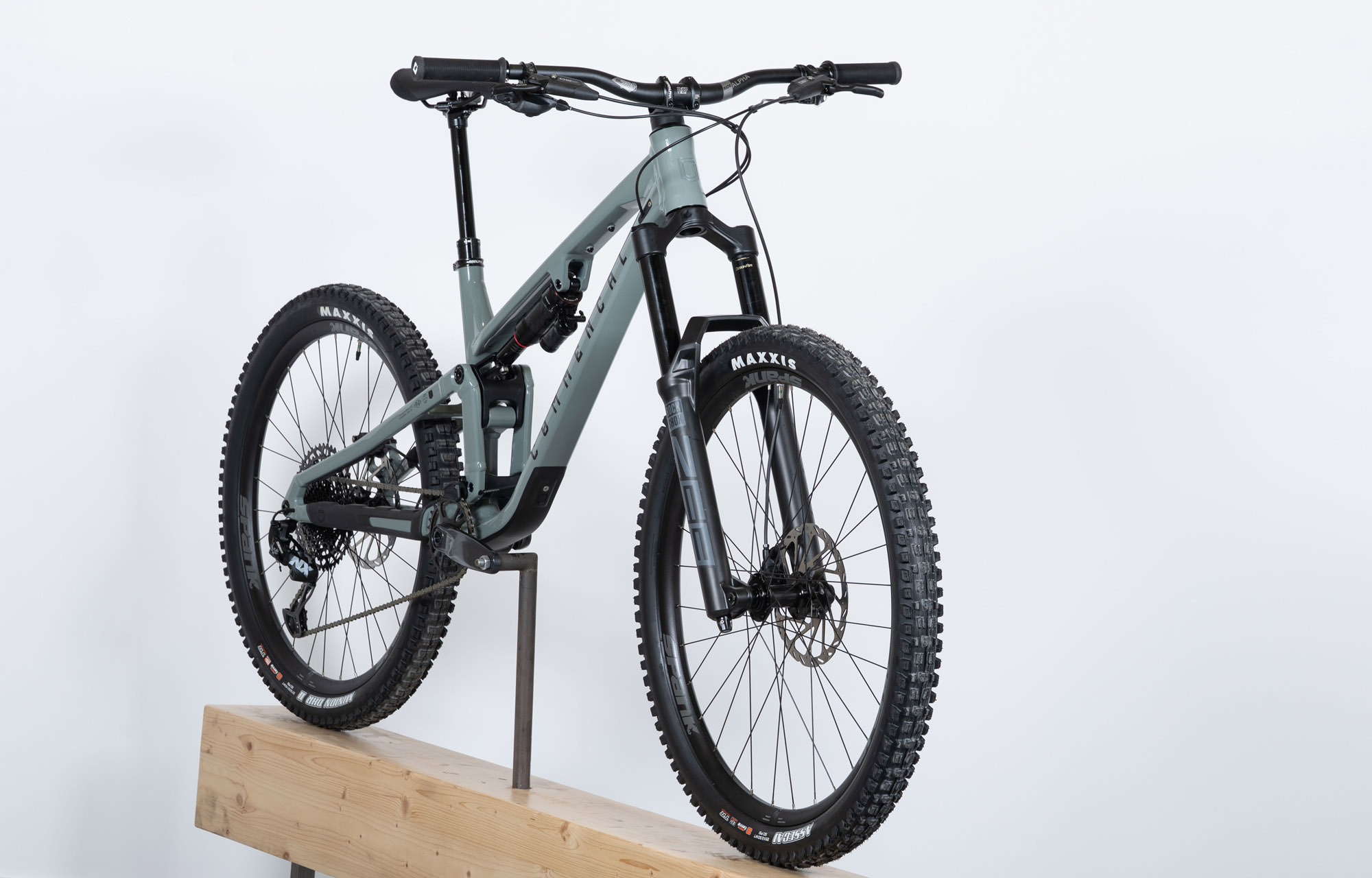

Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
META SX V5, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6
Shock
ROCKSHOX Super Deluxe Select +
230 x 65 mm, RT damper, DebonAir, rebound, 2 position compression adjustment, 0 Token neg. 3 Tokens pos.

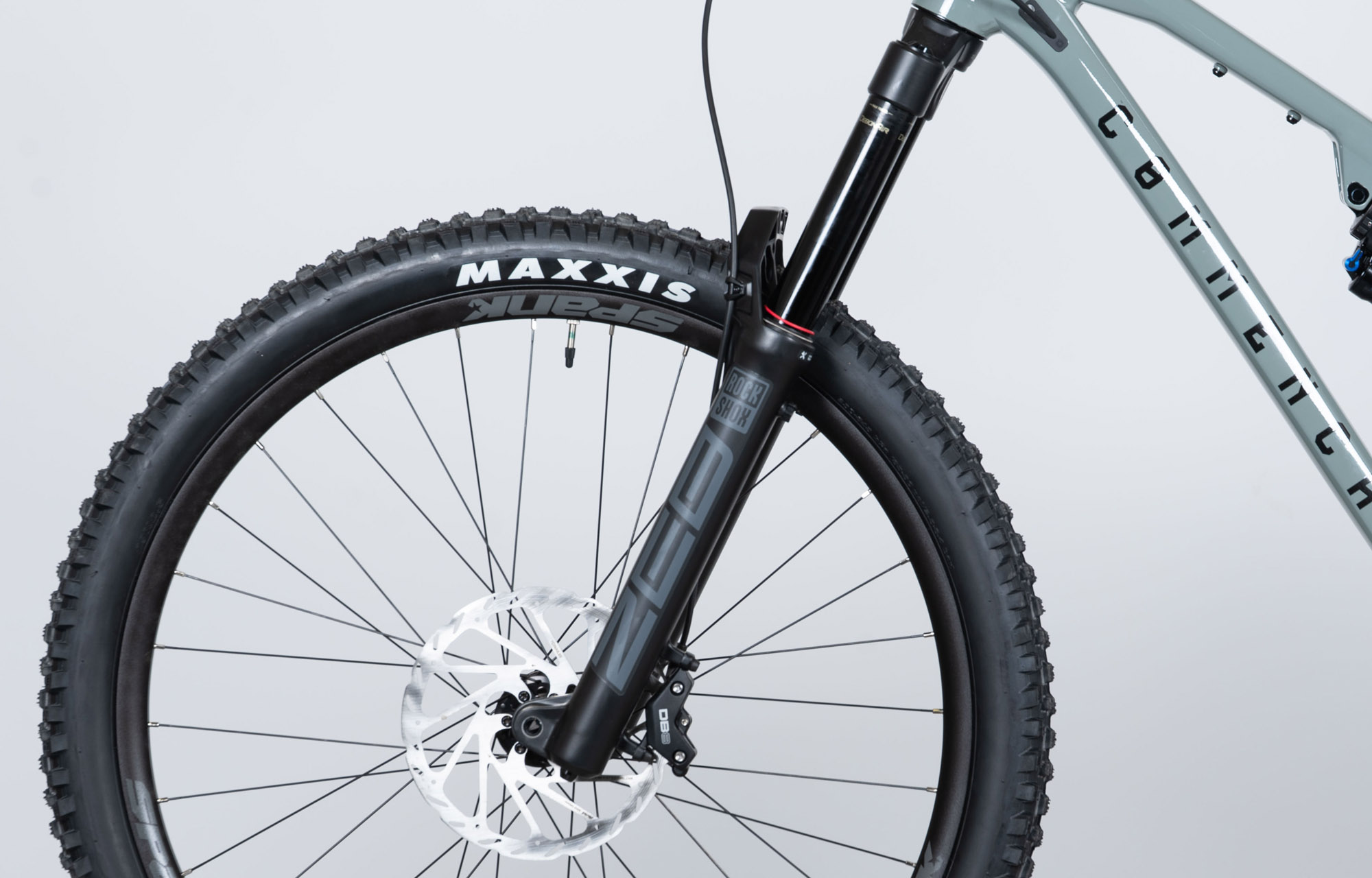

Fork
ROCKSHOX Zeb Base, 170 mm travel
29", Rush RC damper, DebonAir+, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 1 Token
Headset
ACROS ZS56 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA 40
40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Longneck
Soft compound, single clamp, black
Brakes
SRAM DB8, 4 pistons, steel-backed organic pads, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6-bolt
Shifters
SRAM NX Eagle
12s
Chain guide
RIDE ALPHA
32t-34t
Rear derailleur
SRAM NX Eagle
12s
Bottom bracket
SRAM DUB WIDE
Pressfit
Crankset
SRAM X1 1000 Eagle, 165 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-Wide
Chain
SRAM NX Eagle
12s
Cassette
SRAM PG-1210
12s, 11-50t
Rims
SPANK SPIKE RACE 33
Rear: 27.5'', 32h, 28 mm inner width - Front: 29'', 32h, 28 mm inner width
Hubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 15 x 110 mm
Spokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
Tyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless Ready
Seat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remote
Saddle
SDG Bel Air V3
140 mm width, steel rails
Weight
16,1 kg / 35.49 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Colour
Pyrite Grey
Shiny Finish
Accessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
Bike specifications are subject to change without notice.
Media, team, exhibition, rental, or bike patrol… Our refurbished bikes come from various fleets. Before being put back on sale, they are fully disassembled, inspected, and serviced by our team. This ensures that we can offer bikes and frames with the same warranty guarantee as our new models.
Technical informations
Technical informations
-
Bicycle type
Enduro / Freeride
-
Frame material
AL 6066 T4, T6
-
Frame weight
4,08 kg / 8,99 lb
-
Rear travel
165mm
-
Shock length/stroke
230x65mm
-
Recommended SAG
27-30% / 18-20mm
-
Piggy back shock compatible
Yes
-
Shock bushings
20x10mm / no bushing needed on clevis
-
Recommended/max. fork height
586mm / 598mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
Yes
-
Wheels size
29’’ - 27.5’’
-
Max. rear tyre dimension - ETRTO
65mm - Ø584mm
-
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
34,9mm / 38,5mm
-
Seatpost insertion max.
S : 230mm / M : 270mm / L : 290mm / XL : 310mm
-
Bottom bracket type
Press Fit BB 92mm
-
Chain guide
ISCG 05 lower - Custom upper guide
-
Recommended/max. chainring teeth
32T / 34T
-
Chain Line
55
-
Rear Hub dimension
148x12mm
-
Rear Axle dimension
UDH standard, 180mm, M12, P1.0mm
-
UDH hanger
Yes
-
shock anchor adjustment
No
Geometry
Geometry
SIZE
S
M
L
XL
1 - SEAT TUBE LENGTH
380
420
440
460
2 - SEAT TUBE ANGLE
77,5°
77,5°
77,5°
77,5°
3 - HEAD TUBE ANGLE
64°
64°
64°
64°
4 - HEAD TUBE LENGTH
115
120
125
130
5 - WHEELBASE
1230,8
1253
1280,2
1302,4
6 - TOP TUBE LENGTH
579,4
600,6
621,9
643,2
7 - CHAIN STAY LENGTH
442
442
447
447
8 - BOTTOM BRACKET HEIGHT
4
4
4
4
9 - FORK LENGTH
586
586
586
586
10 - REACH
440
460
480
500
11 - STACK
633,8
638,3
642,8
647,3
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
