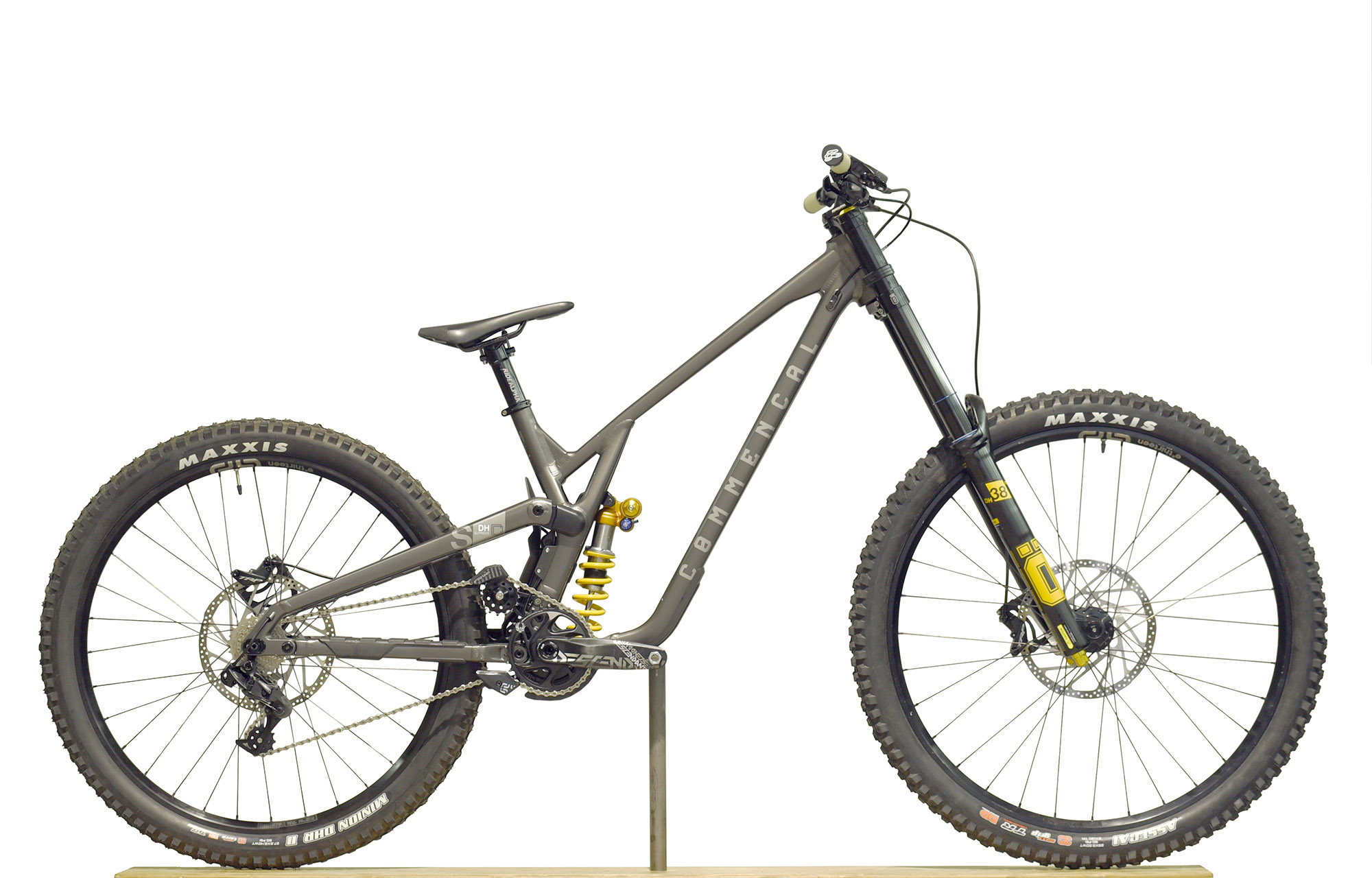

COMMENCAL SUPREME DH V5 OHLINS EDITION DARK SLATE - M (23150702)
Demo, rental, press, teams, bike patrols, showroom, new bikes (damaged): our refurbished bikes come from a variety of fleets. Each bike undergoes a thorough inspection and maintenance process: Disassembled, bikes and components are carefully checked, and all non-functional parts are replaced. Although some may show aesthetic imperfections, every bike is fully reconditioned and ready to ride.
THESE BIKES COME WITH THE SAME WARRANTY AS OUR NEW MODELS!
N/A
excl. VAT
id/sku : AN3710
HOME
DELIVERY
CLICK &
COLLECT
SHOWROOM
DELIVERY
Click & collect
Order on our website and have your items delivered to one of our partner stores to enjoy all the personalized services offered by specialists.Learn more
Pickup at the COMMENCAL Village
To benefit from 10% off the VAT-included price (valid only on bikes, frames, skis or snowboards) with pickup at the COMMENCAL Village (Andorra), order through our dedicated e-commerce platform. On site, take advantage of expert advice from our specialists, full bike assembly, and also enjoy our dining area at the COMMENCAL Spot.
Shipping Estimation
No delivery options are available for this address or item. Please contact us at store@commencal.com
Become a B2B+ reseller
In 2025 and in the years to come, we are strengthening our multichannel approach. Today, you have the opportunity to become a B2B+ reseller: privileged access to better conditions and increased online visibility.
B2B+ benefits:
• Listed on the COMMENCAL Store as an official reseller
• 20% discount off the public price (excl. VAT) on META POWER SX 800 and META POWER SX AVINOX
• Presence in the Click & Collect option on the COMMENCAL Store
• Minimum order: for your first order, 2 bikes including at least one META POWER SX 800
Customize your jersey!
Make your jersey unique by adding your name for an additional € 15.Simply indicate your name in the "Comments" section during the final step of your order. We will then contact you to finalize the personalization and its payment.
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B sales department to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
workshop note
workshop note
The bike has been ridden and shows signs of wear, scratches and paint chips, on the fork, crank, and derailleur.
However, it should be noted that these cosmetic defects do not in any way affect its performance or smooth running.
- THE WORKSHOP NOTE -
-NEW Headset
-NEW Grips
-NEW Tires
-Brakes bleed, pads changed
-Revised shock absorber and fork
Please note that this bike is guaranteed as new!
Enjoy!
Our bikes come from our test fleet (Press, Demo, Research and development) or from our showrooms: they're our bikes!
Completely disassembled and Refurbed, the bearings are replaced, suspension serviced, wearing parts and damaged components are replaced: each model is unique!
Our Refurbed come with the same warranty as our new bikes, so you can ride with complete peace of mind all year round.
The only difference between our Refurbed bikes and our new bikes are scratches and paint chips caused by normal use.
Components and accessories may exceptionally differ from those shown in the specifications : contractual pictures.
Don't hesitate to contact us for more details.
Please feel free to check the photos below for more details.
Contractual photos - Components and accessories may exceptionally differ from those specified in the specifications.
For more information, contact us.
specifications
specifications
Frame
SUPREME DH V5 29/27, 200 mm travel on S / M / L / XL
27/29'', Alloy 6066, triple butted tubes, T4, T6Shock

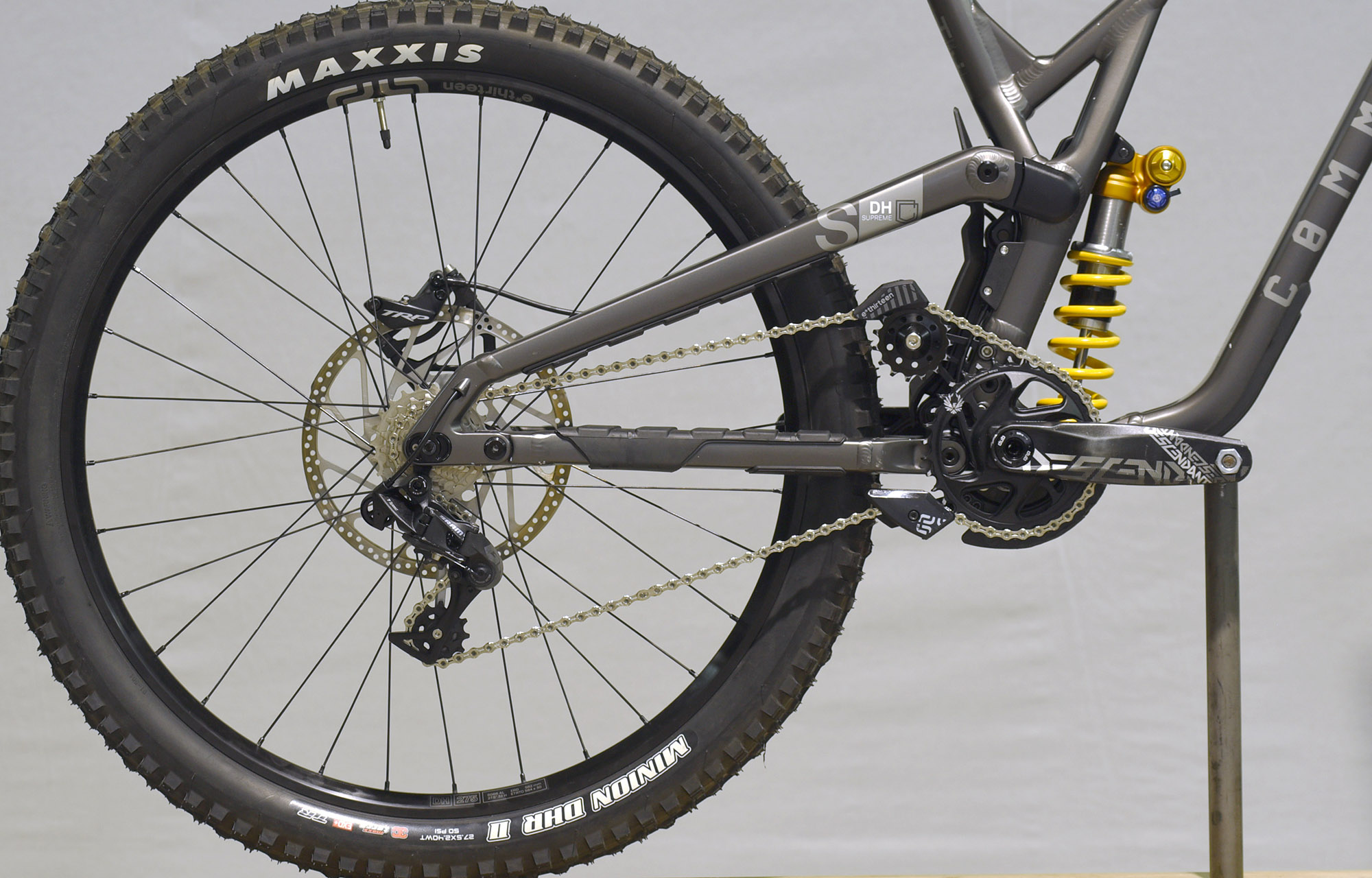

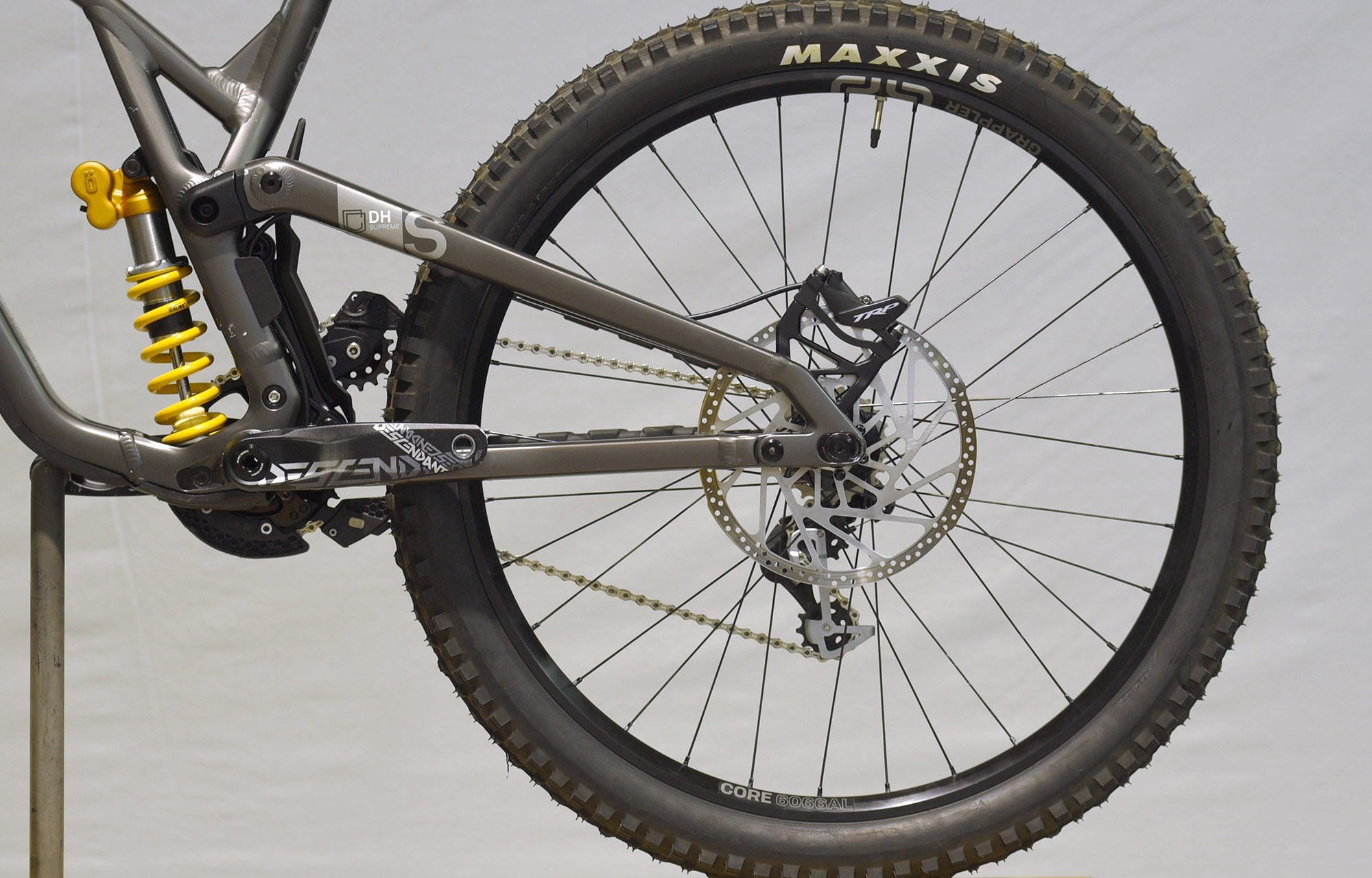

OHLINS TTX22 m.2
250 x 75 mm, HSC, LSC, rebound. Spring rates: 388 lbs on S, 434 lbs on M, 457 lbs on L, 502 lbs on XLFork

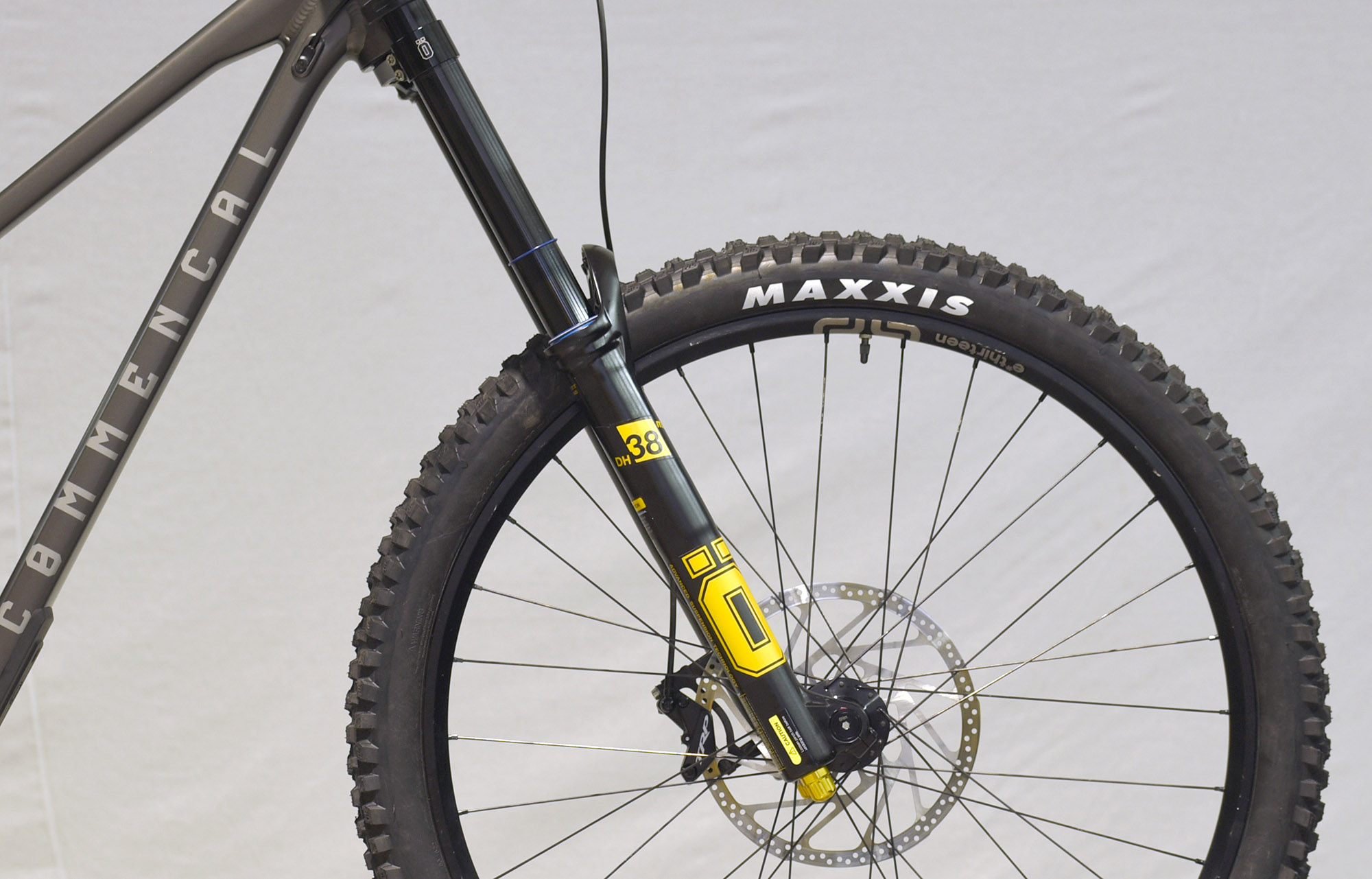

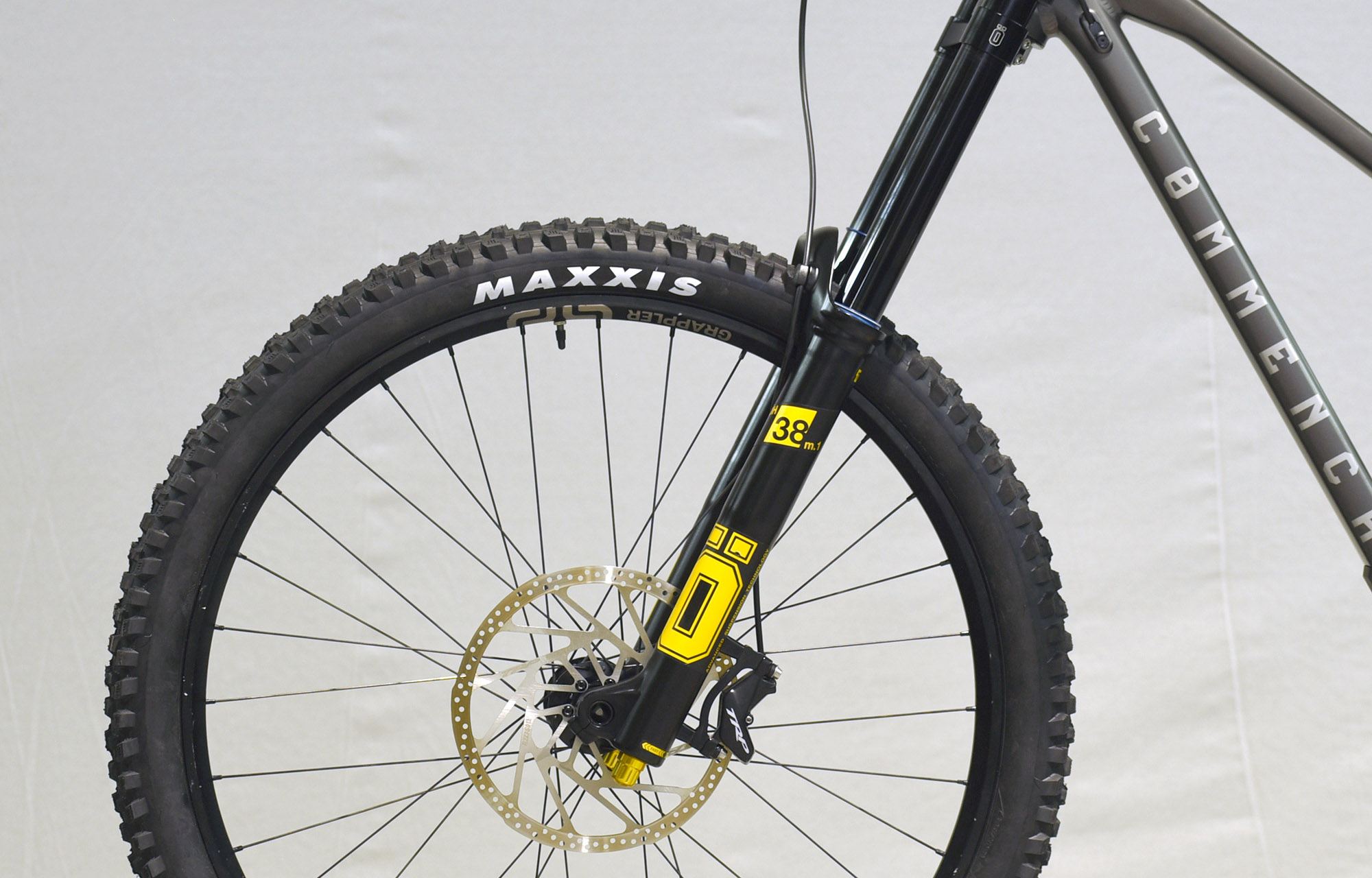

OHLINS DH38 m.1 Air, 200 mm travel
29", TTX 18 damper, LSC, HSC, rebound Boost (20 x 110 mm), 54 mm offsetHeadset
WORKS ZS56 / ZS56
Alloy cups, sealed bearingsStem

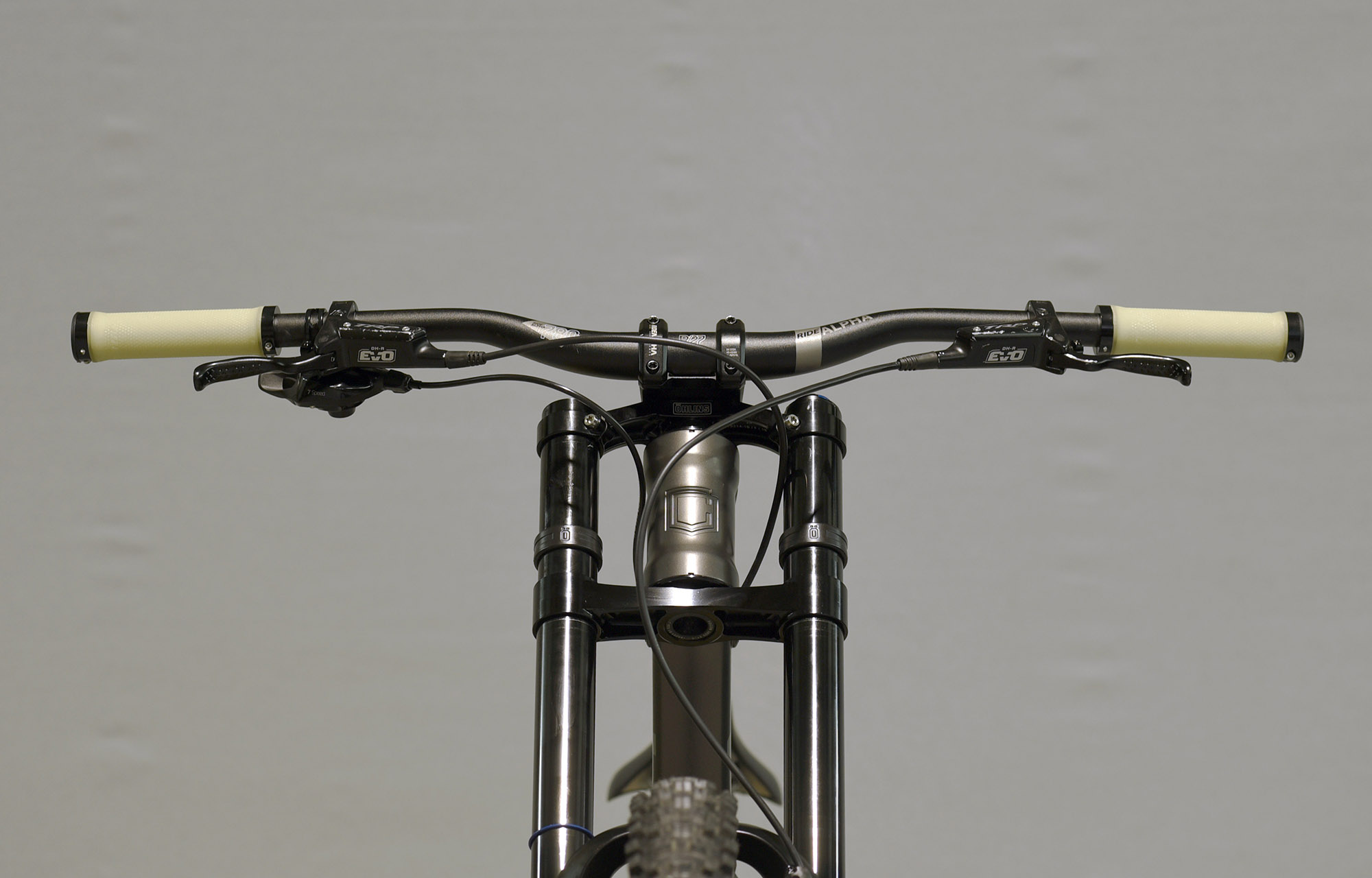

RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
RENTHAL
Brakes
TRP DH-R Evo, 4 pistons, resin pads
Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thicknessShifters
SRAM GX DH
7 spChain guide
E13 LG1 + Bottom Guide
32-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
E13 DH 7 Speed Integrated Cassette
7s, 9-24t DM CassetteRims
E13 LG1 Plus DH or E13 Grappler Race Alloy DH
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm innerHubs
Rear: E13 LG1 Plus DH - Front: E13 LG1 Plus DH
Rear: E13 LG1 Plus DH or Grappler Race Alloy DH - Front: E13 LG1 Plus DH or Grappler Race Alloy DHTyres
Rear: MAXXIS Minion DHR II - Front: MAXXIS Assegai
Seat post
RIDE ALPHA Super Light
31.6 mm, 250 mm lengthSaddle
FIZIK Gravita Alpaca X5
130 mm width, S-Alloy railsWeight
18 kg / 39,68 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Dark Slate
Matte FinishAccessories
Chainstay protector, seatstay protector, downtube protector, roller cover, frame mudguard
*Please note that bike specs are subject to change without prior notice.
