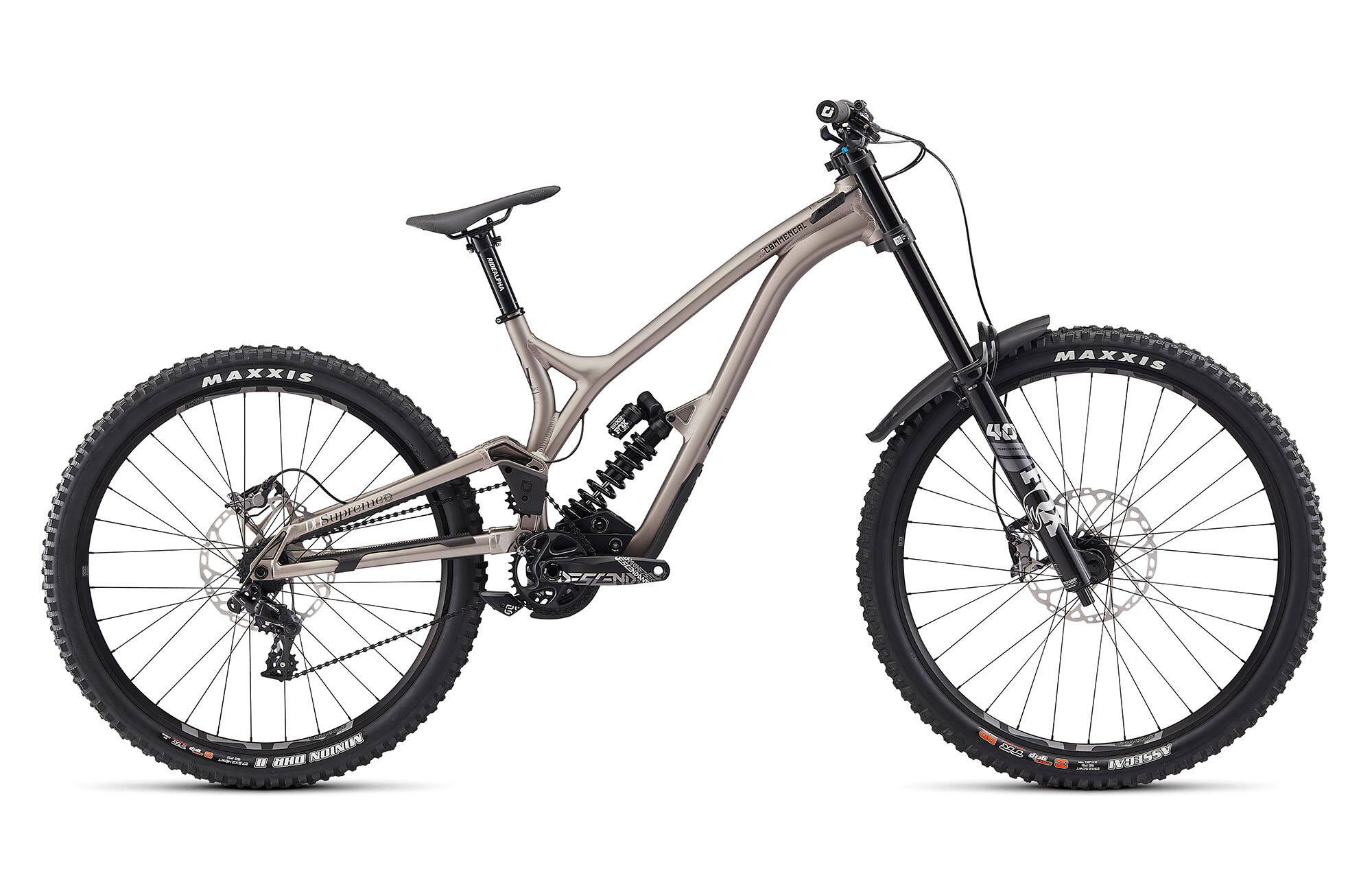

COMMENCAL SUPREME DH V4 RACE CHAMPAGNE
Since 2015, the SUPREME DH V4 has been acclaimed for its efficiency. Not content with putting the high pivot point back into the spotlight, it is often considered one of the best downhill mountain bikes ever produced. As comfortable between DH race tape as on bike park trails, this version with a mullet wheel set-up is the most ultimate evolution we could ever have dreamt of.
DOWNHILL
DOWNHILL
200mm
200mm
200mm
200mm
29" / 27.5"
29" / 27.5"
Price reduced from
€ 4.833,33
excl. VAT
to
€ 3.250,00
excl. VAT
-33%
id/sku : 22SUPR
Availability:
Select the size to see
null
Become a B2B+ reseller
In 2025 and in the years to come, we are strengthening our multichannel approach. Today, you have the opportunity to become a B2B+ reseller: privileged access to better conditions and increased online visibility.
B2B+ benefits:
• Listed on the COMMENCAL Store as an official reseller
• 20% discount off the public price (excl. VAT) on META POWER SX 800 and META POWER SX DJI
• Presence in the Click & Collect option on the COMMENCAL Store
• Minimum order: for your first order, 2 bikes including at least one META POWER SX 800
BUY IN-STORE
You can place your order and have the COMMENCAL product of your choice delivered directly to your nearest store. Your store will need to contact our B2B sales department to register your order. Your store receives the product and you will pay directly with them. The store will inform you of the receipt of your order.
10% off for pick-up at the COMMENCAL Village
To benefit from 10% off the VAT-included price (valid only on bikes, frames, skis or snowboards) with pickup at the COMMENCAL Village (Andorra), order through our dedicated e-commerce platform. On site, take advantage of expert advice from our specialists, full bike assembly, and also enjoy our dining area at the COMMENCAL Spot.
specifications
specifications
Frame
SUPREME DH 29/27, 200 mm travel on S / M / L - 2022 Supreme DH 29, 200 mm travel on XL
Alloy 6066, triple butted tubes, T4, T6. Enduro bearingsShock
FOX DHX 2 Performance Elite
250 x 75 mm, Rebound. Spring rates: 400lbs on S, 450lbs on M, 500lbs on L, 550lbs on XLFork
FOX 40 Performance, 203 mm travel
29", Grip damper, LSC, LSR, Float Evol. Boost (20 x 110 mm), 56 mm offset, 2 TokensHeadset
ACROS ZS56 / ZS56
Alloy cups, sealed bearingsStem
RIDE ALPHA DH 40
40 mm extension, direct mount, 31.8 mmHandlebar
RIDE ALPHA R27
31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XLGrips
ODI Elite Motion
Soft pro compound, single clamp, blackBrakes
SHIMANO XT, 4 pistons, I-Spec EV compatible
Rotors: SHIMANO SM-RT66 220 mm, 6-boltShifters
SRAM GX DH
7spChain guide
E13 LG1 + Bottom Guide
28-34tREAR DERAILLEUR
SRAM GX DH
7 spBottom bracket
SRAM DUB
PressfitCrankset
TRUVATIV Descendant DH, 165 mm crank arms, DUB
Chainring: TRUVATIV Descendant DH X-Sync, 34tChain
KMC X11EL
BlackCassette
E13 LG1 + DH
7s, 9-21t DM CassetteRims
E13 LG1 + DH
Rear: 27.5'', 32h, 30 mm inner width on S / M / L - 29'', 32h, 30 mm inner width on XL - FRONT: 29'', 32h, 30 mm inner width on S/M/L/XLHubs
Rear: E13 LG1 + DH - Front: E13 LG1 + DH
Rear: 32h, sealed bearings, 12 x 150 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, blackSpokes/nipples
E13 LG1 + DH
Tyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5'' x 2.4'', WT, 3C MaxxGrip, DH casing, Tubeless Ready on S / M / L - 29" x 2.4", WT, 3C MaxxGrip, DH casing, Tubeless Ready on XL - Front: 29" x 2.5" WT, 3C MaxxGrip, Double Down, Tubeless Ready on S / M / L / XLSeat post
TRUVATIV Descendant DH
31.6 mm, 250 mm, Alloy 7075Saddle
FIZIK Gravita Alpaca X5
130 mm width, S-Allow railsWeight
17,3 kg / 38,13 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.Pedals included
No
Colour
Champagne
Matte FinishAccessories
Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, FOX 40 Fender
*Please note that bike specs are subject to change without prior notice.
Bike specifications are subject to change without notice.
Technical informations
Technical informations
Bicycle type
DH Racing
Frame material
AL 6066 T4, T6
Frame weight
4,6 kg / 10.14 lb
Rear travel
200 mm
Shock length/stroke
250 mm / 75 mm
Piggy back shock compatible
Yes
Shock bushings
20 x 8 mm / 30 x 10 mm
Recommended/max. fork height
27 : 590mm / 595 mm - 29 : 601mm / 610 mm
Headset type
ZS56 / ZS56
Maximum tyre dimension (etrto)
27.5’’: 65 mm - 29’’ : 65 mm
Disc brake standard
Postmount 200 mm
Rear rotor max. size
223 mm
Seatpost/seat clamp diameter
31,6 mm / 34,9 mm
Bottom bracket type
Press Fit BB 107
ISCG
ISCG 05
Rear hub compatibility
L = 176 mm, m12, p1.0 mm - moyeu : 150 x 12 mm standard maxle
-
Bicycle type
Downhill Racing
-
Frame material
AL 6066 T4, T6
-
Frame weight
4,6 kg / 10.14 lb
-
Rear travel
200mm
-
Shock length/stroke
250x75mm
-
Recommended SAG
17-23% / 11-15mm
-
Piggy back shock compatible
Yes
-
Shock bushings
20x8mm / 30x10mm
-
Recommended/max. fork height
601mm / 610mm
-
Headset type
ZS56 / ZS56
-
ICR compatible
No
-
Wheels size
29’’ - 27.5’’
29’’ - 29’’ -
Max. rear tyre dimension - ETRTO
65mm - Ø584mm (29’’ - 27.5’’)
65mm - Ø622mm (29’’ - 29’’) -
rear brake mounting type
Postmount 200mm
-
Rear brake rotor max. size
223mm
-
Seatpost/seat clamp diameter
31,6mm / 34,9mm
-
Seatpost insertion max.
105mm
-
Bottom bracket type
Press Fit BB 107mm
-
Chain guide
ISCG 05 lower - Custom upper idler guide
-
Chain line
56,5
-
Rear Hub dimension
150x12mm
-
Rear Axle dimension
Maxle standard, 176mm, M12, P1.0mm
-
UDH hanger
No
-
shock anchor adjustment
No
Geometry
Geometry
SIZE
XS
S
M
L
XL
1 - SEAT TUBE LENGTH
400
400
400
400
400
2 - SEAT TUBE ANGLE
66,5°
65,5°
65,5°
65,5°
65,5°
3 - HEAD TUBE ANGLE
63°
62,7°
62,2°
62,2°
63,8°
4 - HEAD TUBE LENGTH
112
112
112
112
112
5 - WHEELBASE
1191
1256
1290
1320
1301
6 - TOP TUBE LENGTH
563
596
614
645
665
7 - CHAIN STAY LENGTH
425
448
456
456
433
8 - BOTTOM BRACKET HEIGHT
-5
-3
2
2
-11,5
9 - FORK LENGTH
590
607
607
607
607
10 - STACK
615
634
631
631
632
11 - REACH
405
425
445
477
500
All lengths in millimeters.
Size guide
Size guide
What Size to Choose?
According to your riding style, choose a bike with a shorter Reach for more responsive and intuitive handling, or one with a longer Reach for more stability and confidence at high speeds. On a longer model, the front wheel is positioned farther forward, giving an enhanced feeling of security but at the expense of maneuverability and requiring more effort to move the bike.
Between Two Sizes?
When you find yourself between two sizes, the ideal solution is to test ride both to see which fits you best. Unfortunately, this isn't always possible. At minimum, check the Reach and Stack measurements of your current bike to compare them with those of the model you're considering. This will give you a better idea of which size to choose and how the position will feel once on the bike. You can also follow the advice below.
Morphology
Body proportions vary from person to person, even at identical heights. If you have long legs and a shorter-than-average torso, you might consider choosing a bike with a shorter Reach than the recommended size. Conversely, if you have long arms and a more developed upper body, the larger size might be better suited to your morphology. Ideally, you should try before you choose.
