COMMENCAL SUPREME DH V5 XS CHALK ROCKSHOX

Price reduced from € 5.166,66 excl. VAT to € 3.750,00 excl. VAT -27%
id/sku : BT3SUPV5XS2XS
Availability: In stock null
10% off for pick-up in andorra
You can place your order online and have the COMMENCAL bike or frame of your choice ready to collect directly from our SHOWROOM in Andorra. You will benefit from an additional 10% OFF the total price on our website (including VAT). Just contact our SALES DEPARTMENT to place an order. Our team will contact you to set a collection date shortly after the request is processed.
c
- DESCRIPTION -

CHECK OUT THE SUPREME DH V5

The SUPREME DH V5 XS is the kid’s version of our World Cup Downhill winning bike. Coming from a race background, it is the bike that put Amaury Pierron on the top step of the World Cup DH podium. Ultra efficient and super adjustable; it has no limits. The XS version in 27.5 is specifically designed for teenagers and smaller riders.

SUPREME DH V5 SETTINGS GUIDE

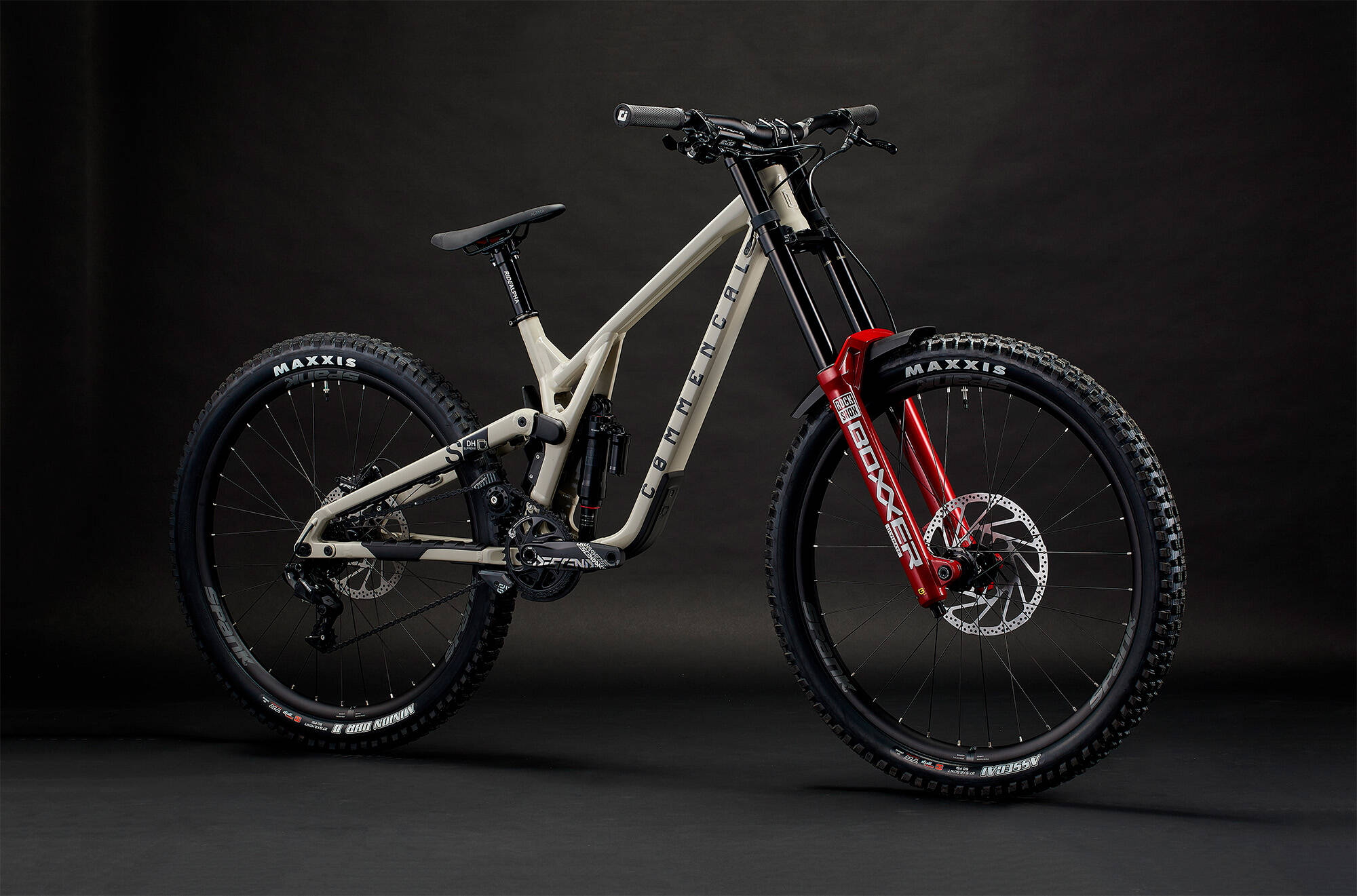

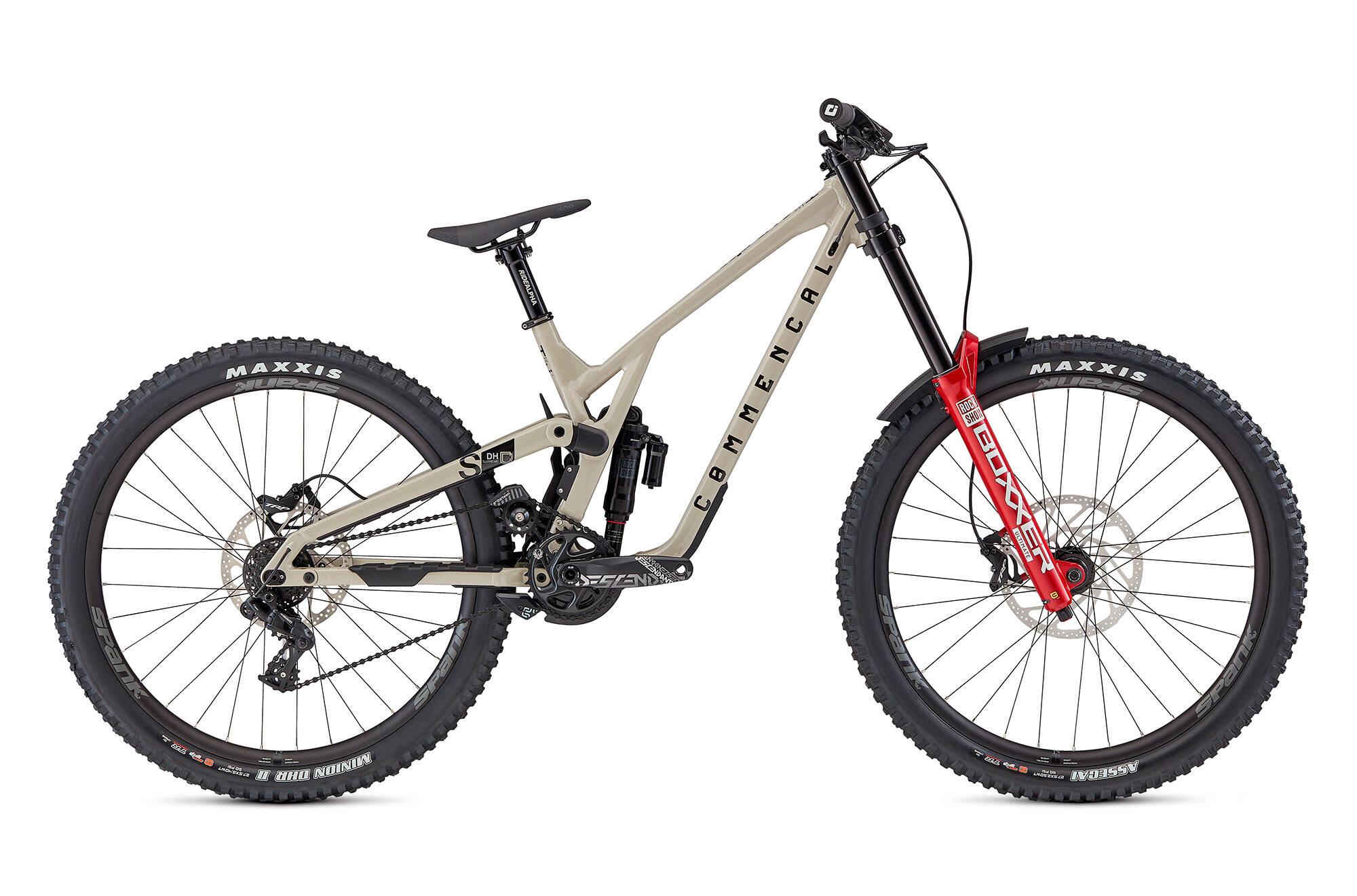

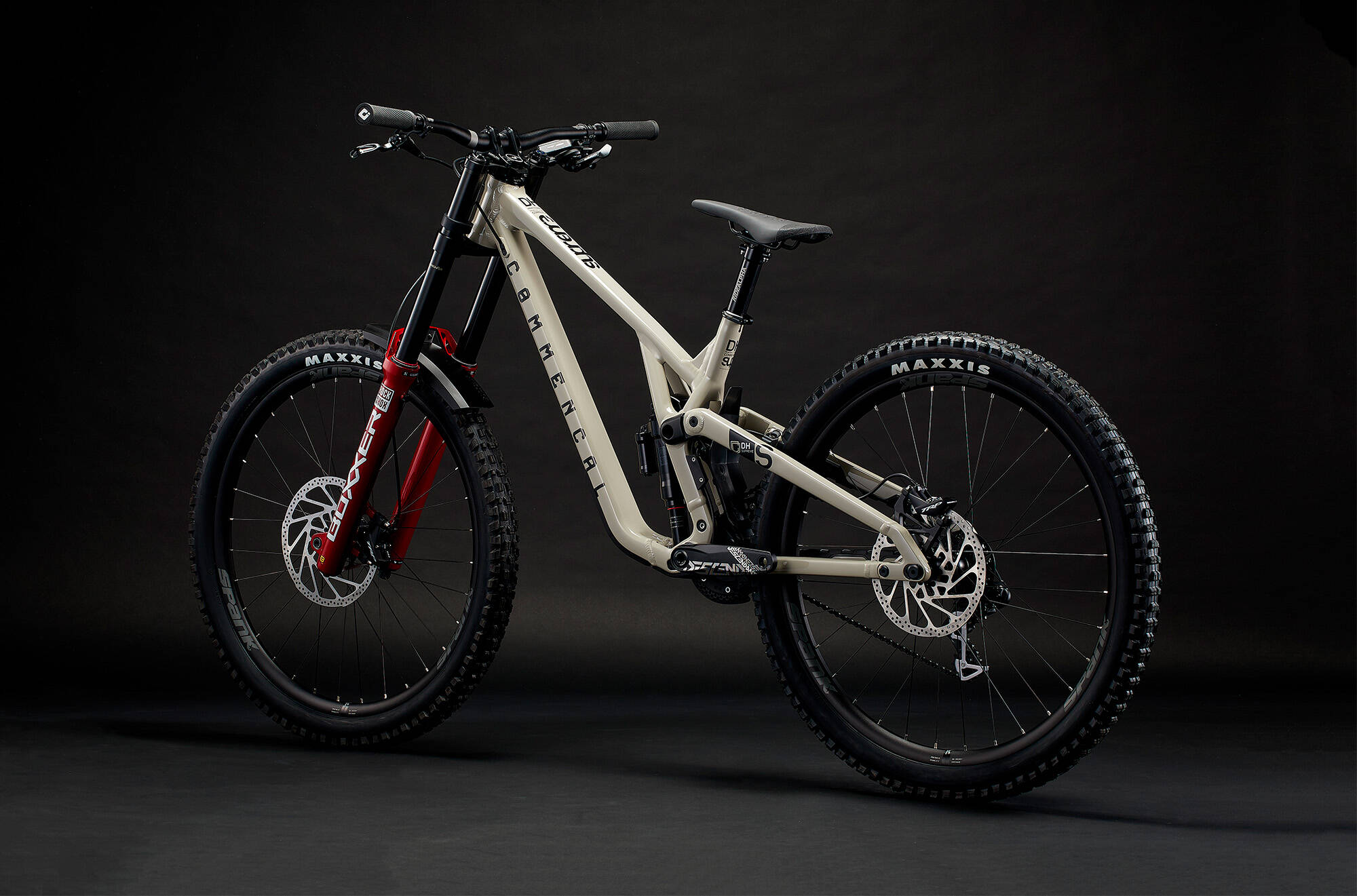

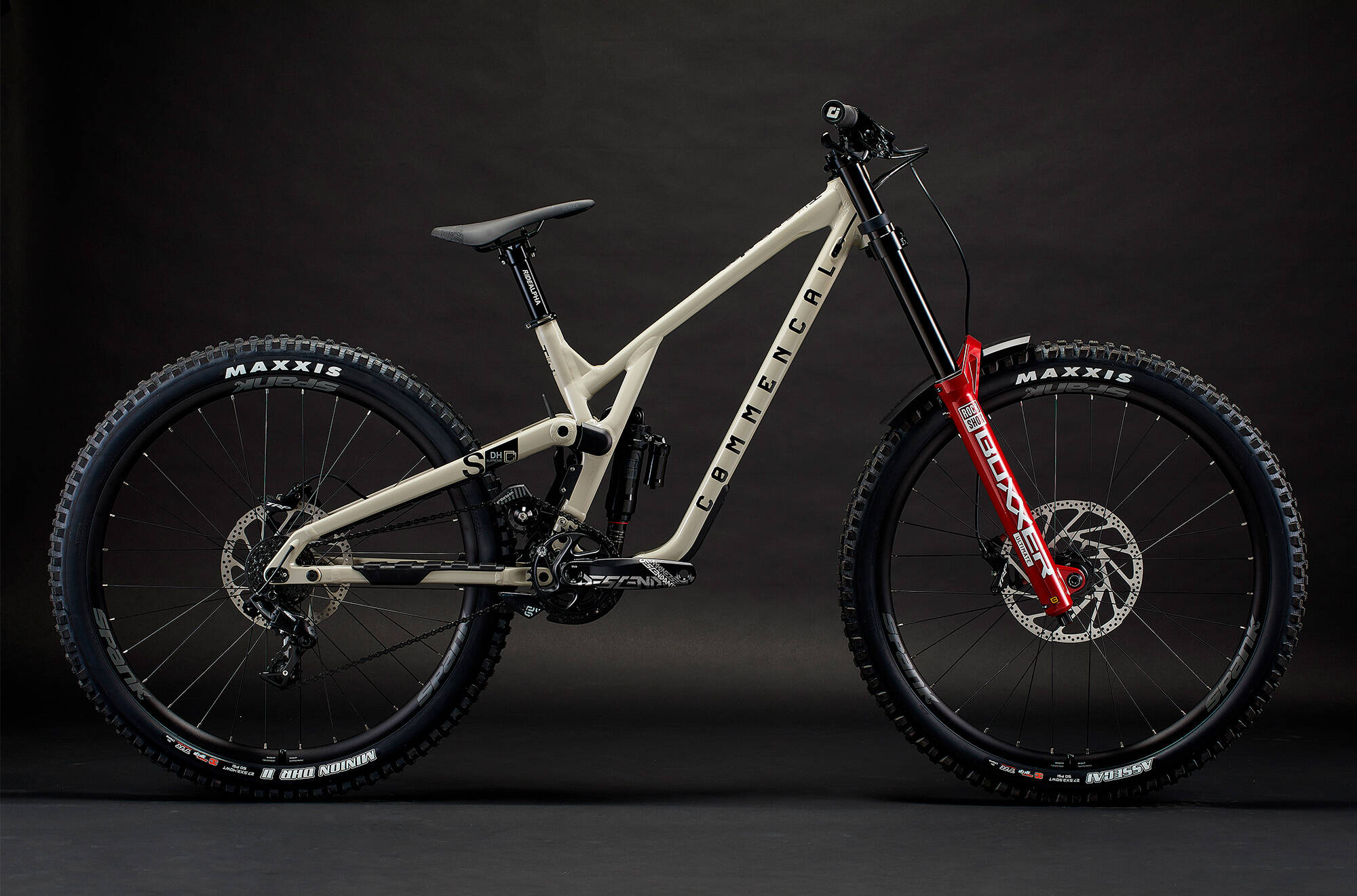

COMMENCAL SUPREME DH V5 XS CHALK

The SUPREME DH V5 XS is designed for smaller riders.

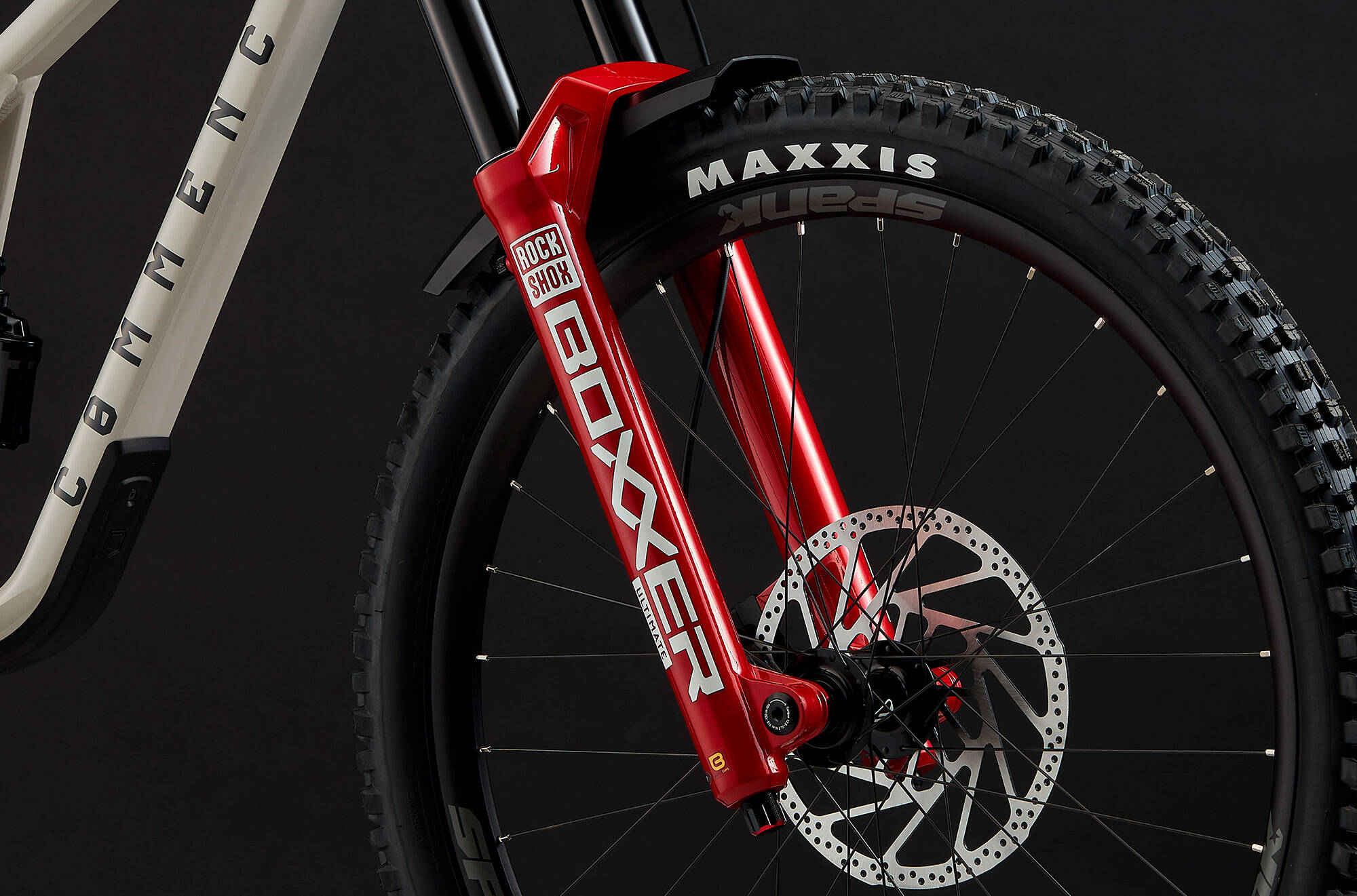

Efficient and ergonomic, the ROCKSHOX BoXXer Ultimate has been completely revised. These forks come complete with a performance optimized chassis featuring 38mm stanchions, Charger 3 hydraulic cartridge with precise adjustments, DebonAir+ air spring combining sensitivity and support, and finally, ButterCups cylinders which limit fatigue in the hands.

The rear suspension comes in the form of the ROCKSHOX Super Deluxe Select R which provides sensitivity and dynamism. The air spring makes it versatile for many riders because the volume of the negative and positive chambers can be adjusted independently.

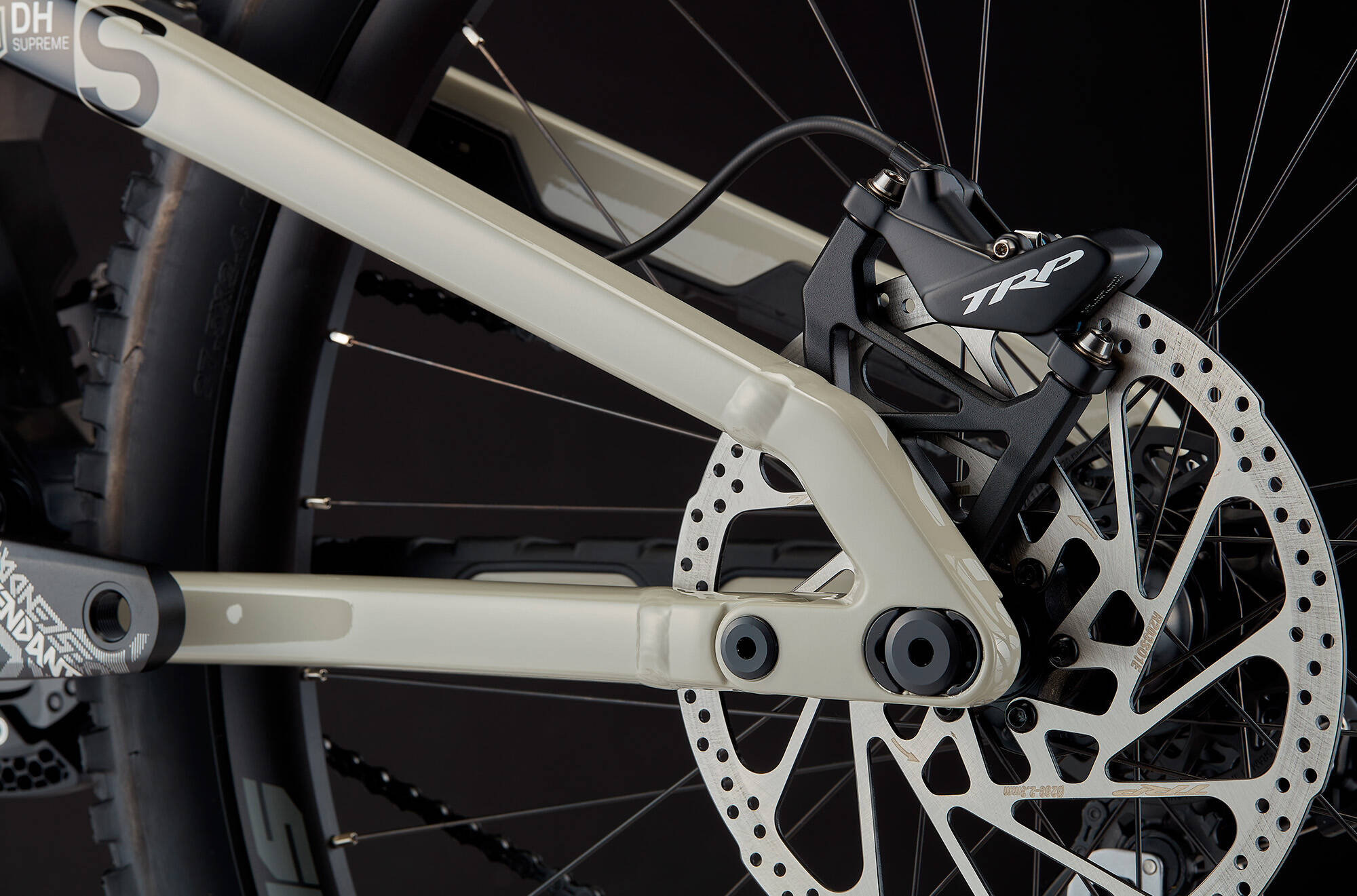

TRP DH-R Evo brakes provide the stopping power: 4 pistons and 223mm discs make them powerful, durable, progressive, and precise.

The SPANK Race 33 rims are perfect for riders looking for strong, light, and reliable wheels at the same time.

The SRAM GX DH transmission offers ultra-precise and quick gear changes for DH.

To offer maximum grip and stability we have a MAXXIS Assegai and Minion DHRII DH casing tyre combo.

*Please note that bike specs are subject to change without prior notice.

See more See less
- Video -
- TECHNICAL INFO -
  • Bicycle type

    Frame DH Racing

  • Frame material

    AL 6066 T4, T6

  • Frame weight

    5,2 kg / 11,46 lbs in size S with frame protections, chain guide, rear wheel axle 4,2 kg / 9,25 lb (without accessories)

  • Rear travel

    220 mm

  • Shock length/stroke

    250 mm / 75 mm

  • Piggy back shock compatible

    Yes

  • Shock bushings

    30 x 8 mm / 30 x 8 mm

  • Recommended/max. fork height

    612 mm / 620 mm

  • Headset type

    ZS56 / ZS56

  • Maximum tyre dimension (etrto)

    65 mm

  • Disc brake standard

    Postmount 200 mm

  • Rear rotor max. size

    223 mm

  • Seatpost/seat clamp diameter

    31,6 mm / 34,9 mm

  • Bottom bracket type

    Press Fit BB 107

  • ISCG

    ISCG 05

  • Rear hub compatibility

    L=200 mm, M12, P1.0 mm - Hub 157 x 12 mm standard Maxle

  • Flip Chip
    Front / Up
  • Wheel Base Length
    Centered
  • Bridge
    XS & S : Thin - M & L : Medium - XL : Thick
- SPECIFICATIONS -
  • Frame

    SUPREME DH V5 27'', 220 mm travel
    27.5'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

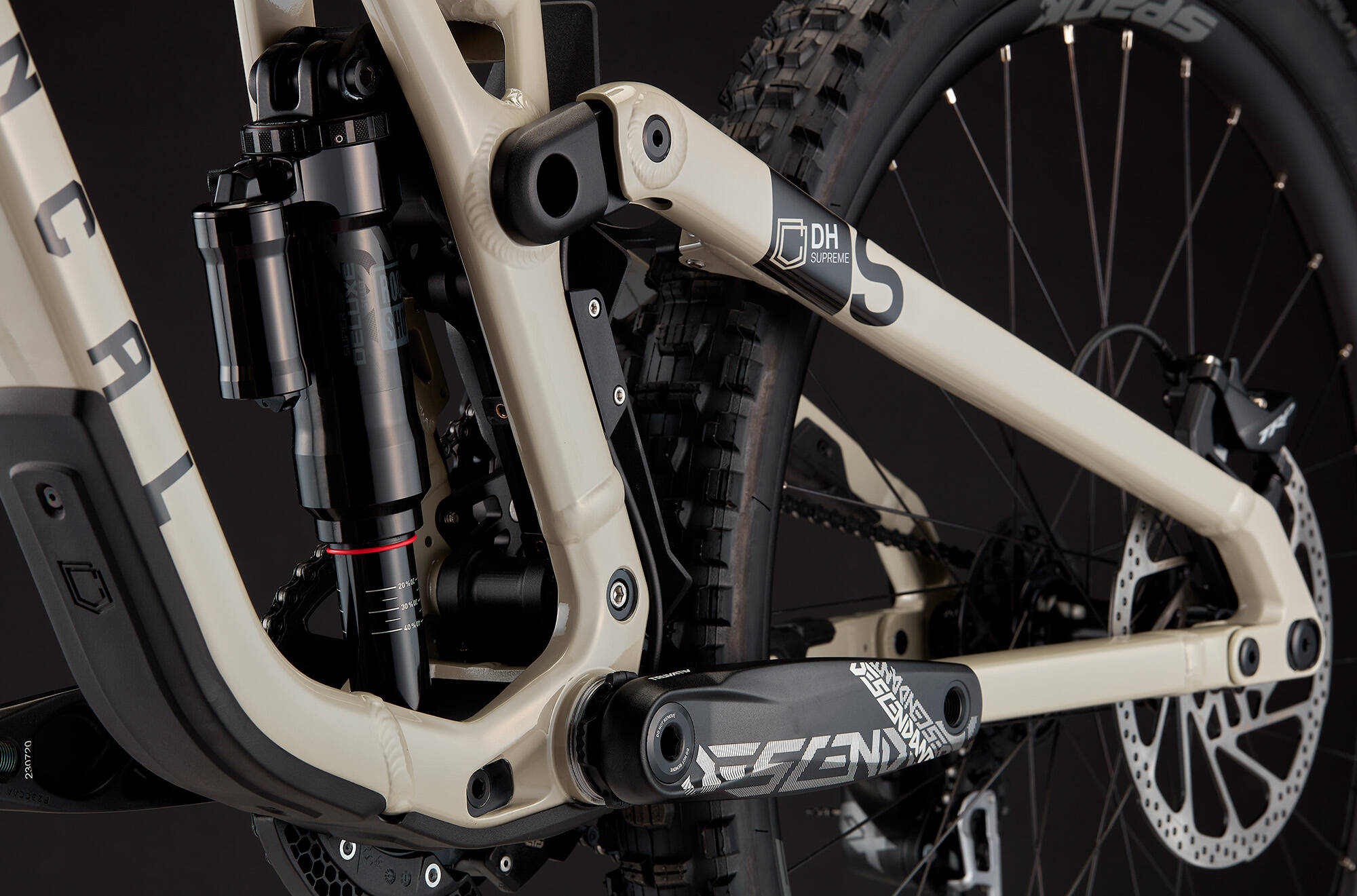

  • Shock

    ROCKSHOX SuperDeluxe Select R
    250 x 75 mm, R damper, DebonAir, rebound, 0 Token neg. 1 Token pos.

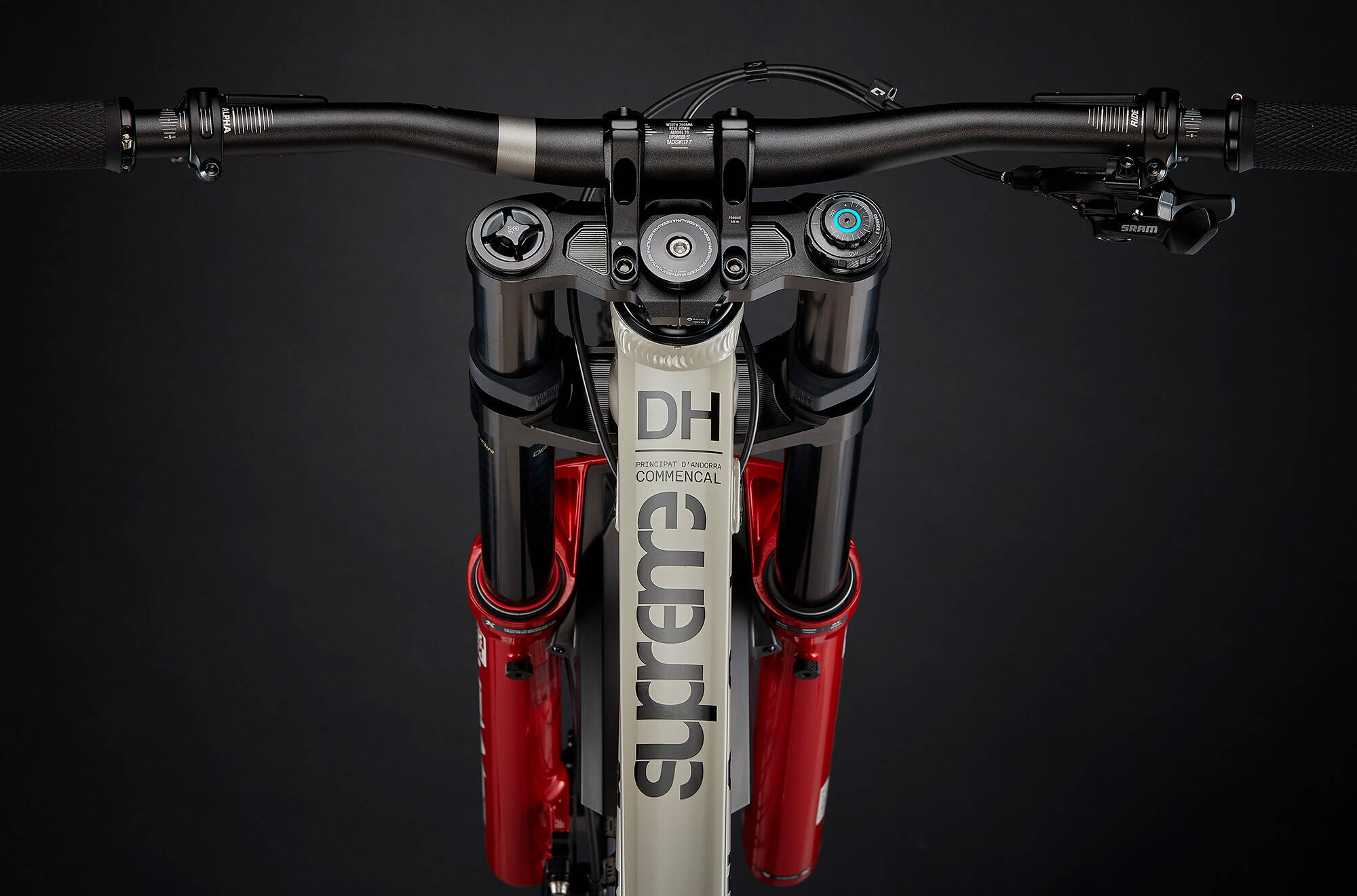

  • Fork

    ROCKSHOX Boxxer Ultimate, 200 mm travel
    27.5", Charger 3 RC2 damper W/ButterCups, DebonAir+ W/ButterCups, HSC, LSC, rebound, Boost (20 x 110 mm), 48 mm offset, 0 Token

  • Headset

    ACROS ZS56 / ZS56
    Alloy cups, sealed bearings

  • Stem

    RIDE ALPHA DH 40
    40 mm extension, direct mount, 31.8 mm

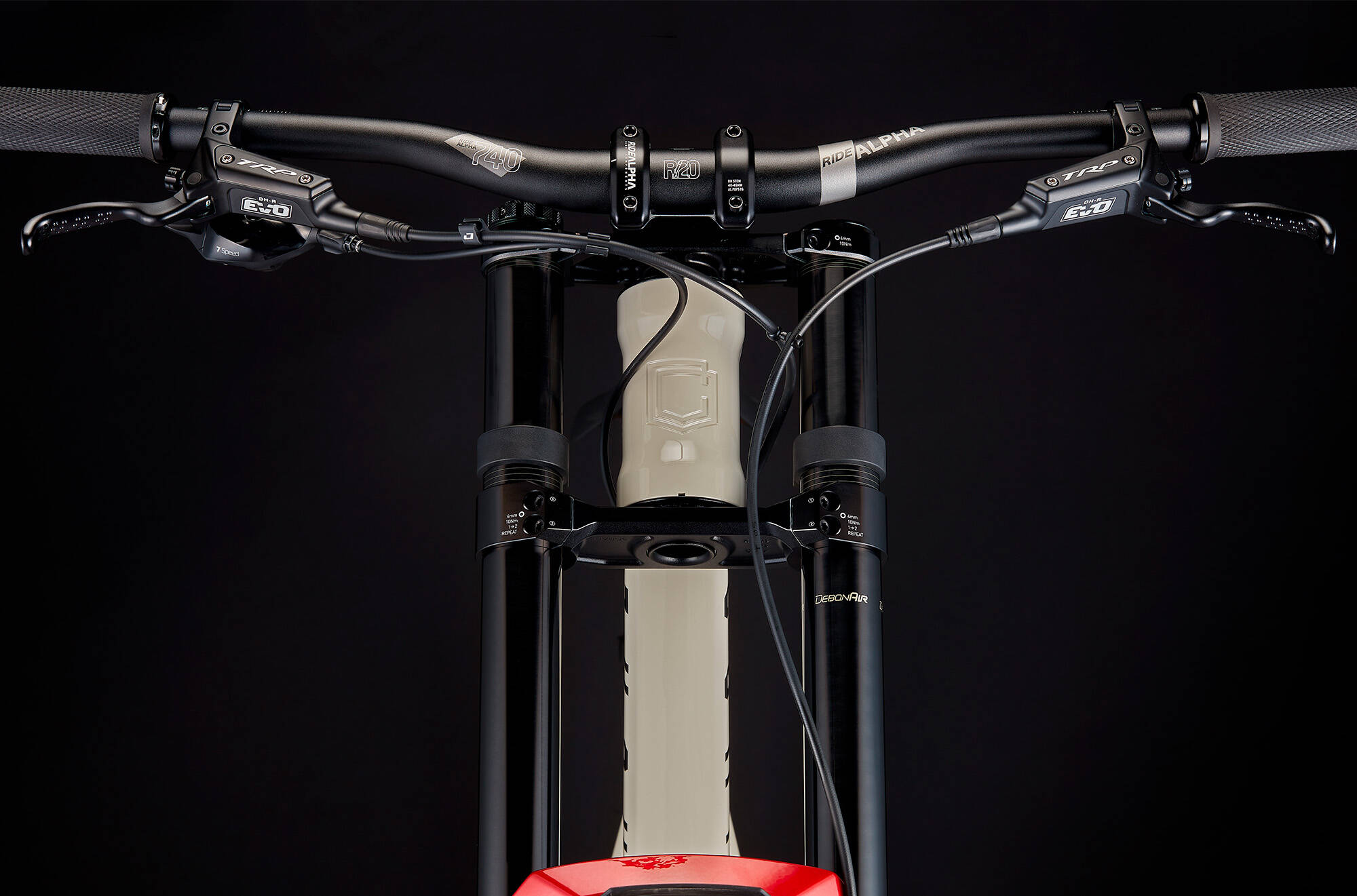

  • Handlebar

    RIDE ALPHA R20
    31.8 mm, 740 mm width, 20 mm rise, Alloy 6061

  • Grips

    ODI Elite Motion
    Soft pro compound, single clamp, black

  • Brakes

    TRP DH-R Evo, 4 pistons, resin pads
    Rotors: TRP R1 223/203 mm, 6-bolt, 2.3 mm width

  • Shifters

    SRAM PG-720
    7 sp

  • Chain guide

    E13 LG1 + Bottom Guide
    32-34t

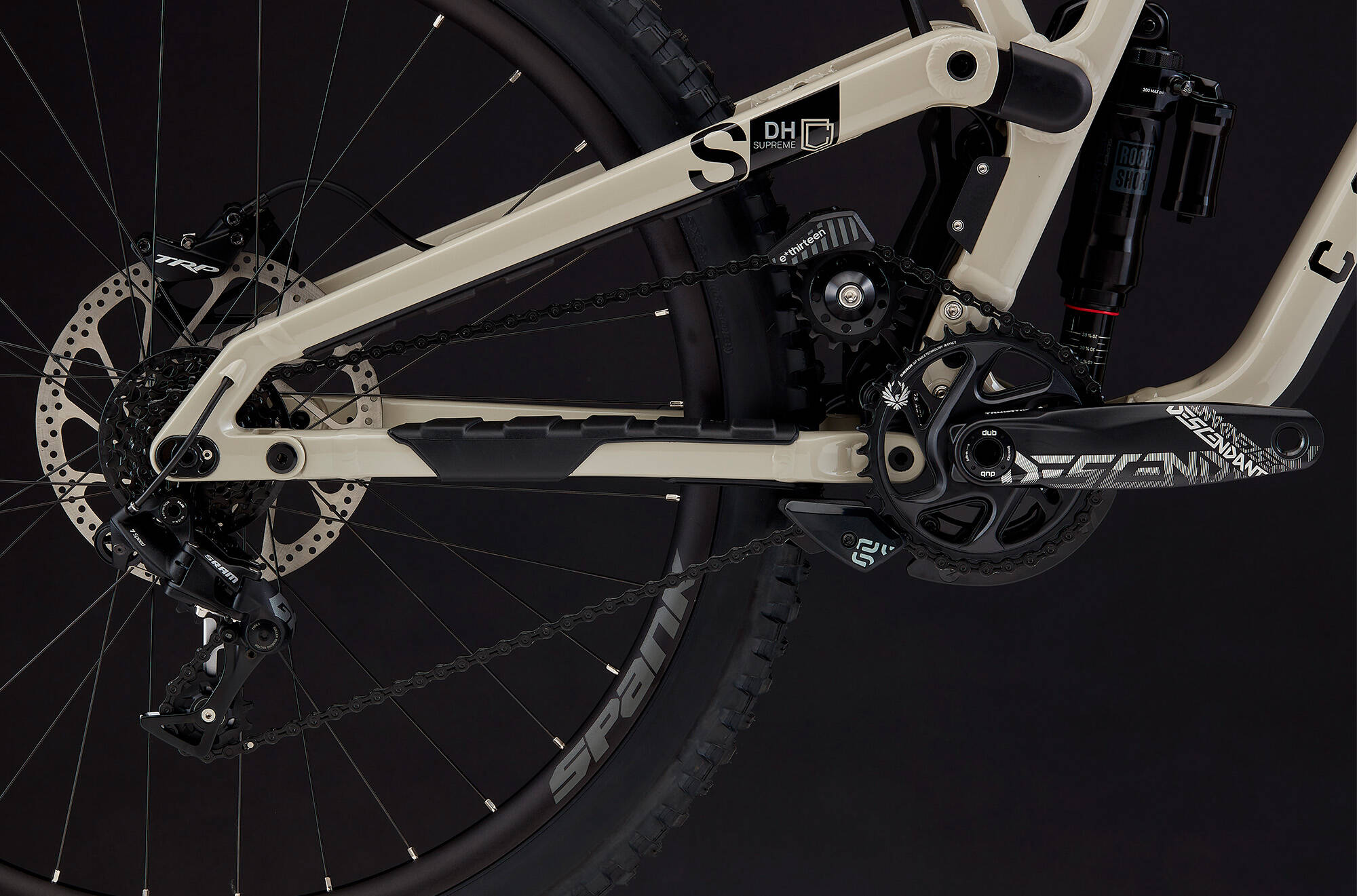

  • REAR DERAILLEUR

    SRAM GX DH
    7 sp

  • Bottom bracket

    SRAM DUB
    Pressfit

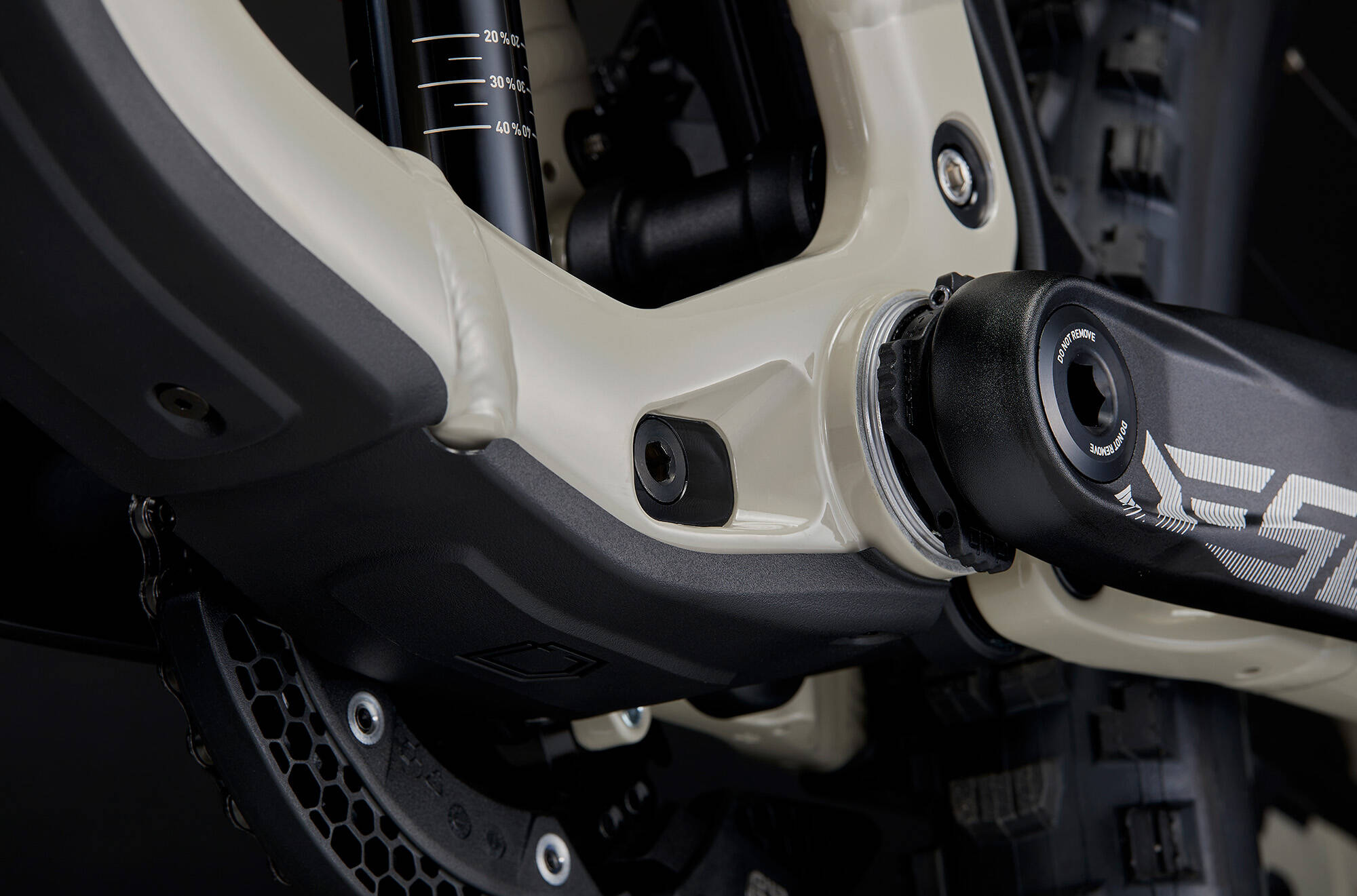

  • Crankset

    TRUVATIV Descendant DH, 165 mm crank arms, DUB
    Chainring: TRUVATIV Descendant DH X-Sync, 34t

  • Chain

    KMC X11EL
    Black

  • Cassette

    SRAM GX DH
    7 sp, 11-25t

  • Rims

    SPANK Spike Race 33
    27.5'', 32h, 28 mm inner width, tubeless ready

  • Hubs

    Rear: FORMULA DHG-157 - Front: FORMULA DHL-93
    Rear: 32h, sealed bearings, 12 x 157 mm, Shimano Hyperglide - Front: 32h, sealed bearings, 20 x 110 mm Boost, black

  • Spokes/nipples

    SAPIM D-Light
    J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black

  • Tyres

    Rear: MAXXIS DHR II - Front: MAXXIS Assegai
    REAR: 27.5" x 2.4", WT, 3C MaxxTerra, Double Down, Tubeless Ready - FRONT: 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready

  • Seat post

    RIDE ALPHA Super Light
    31.6 mm, 250 mm, Alloy 7075

  • Saddle

    FIZIK Gravita Alpaca X5
    130 mm width, S-Alloy rails

  • Weight

    16.8 kg / 37.04 lbs
    Average weight for XS size, without pedals. Weight may differ slightly due to manufacturing tolerances.

  • Pedals included

    No

  • Colour

    Chalk
    Shiny FInish

  • Accessories

    Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, frame mudguard, pick-up pad, specific Boxxer fender
    *Please note that bike specs are subject to change without prior notice.
